P4YSAM-OCU-14OCU (On-board Control Unit)

On board Control Unit SAM-OCU-14 System Manual Ver 1.2 SAM-OCU-14_MANUAL Rev. 1.2 Dec. 05, 2013 Copyright ⓒ 2013 Samsung SDS Co., Ltd. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this document in part or as a whole for any purposes other than those for which this document is disclosed. This document is copyrighted and contains confidential information and other intellectual property rights of Samsung SDS Co., Ltd. Any unauthorized use, copy, disclosure or distribution constitutes infringement of Samsung SDS’ intellectual property rights. System Manual – SAM-OCU-14 – 2013.12.05 Copyright ⓒ 2013 Samsung SDS Co., Ltd. All rights reserved | Confidential Revision History Document Name On board Control Unit System Manual Version Date Notice Writer 0.1 1.0 1.1 1.2 2013.06.20 2013.11.14 2013.11.18 2013.12.05 Draft Revision Revision & Translation Revision Kihyun, Kim Dalyoung, Kim Kihyun, Kim Dalyoung, Kim System Manual – SAM-OCU-14 – 2013.12.05 Copyright ⓒ 2013 Samsung SDS Co., Ltd. All rights reserved | Confidential CONTENTS Table of Contents 1 OVERVIEW .............................................................................................................................................. - 4 - 1.1 GENERAL DESCRIPTION ....................................................................................................................... - 4 - 1.2 OUTSIDE DIMENSION ........................................................................................................................... - 4 - 1.3 SYSTEM CONFIGURATION .................................................................................................................... - 6 - 1.3.1 Block Diagram............................................................................................................................ - 6 - 1.4 GENERAL SPECIFICATION ..................................................................................................................... - 7 - 2 MODULE CONFIGURATION ............................................................................................................... - 8 - 2.1 CPU MODULE ...................................................................................................................................... - 8 - 2.1.1 General Description .................................................................................................................... - 8 - 2.1.2 Block diagram ............................................................................................................................ - 9 - 2.2 BASE BOARD MODULE ........................................................................................................................ - 10 - 2.2.1 General Description ................................................................................................................. - 10 - 2.2.2 Layout of Base board module .................................................................................................. - 10 - 2.2.3 Wi-Fi/Bluetooth module ........................................................................................................... - 11 - 2.2.4 GPS module .............................................................................................................................. - 11 - 2.3 TOUCH SCREEN DISPLAY ................................................................................................................... - 11 - 2.3.1 General Description ................................................................................................................. - 11 - 2.3.2 Layout ....................................................................................................................................... - 12 - 2.3.3 LCD display specification ........................................................................................................ - 13 - 2.3.4 Touch panel Specification ........................................................................................................ - 13 - 2.4 SPEAKER ............................................................................................................................................ - 14 - 2.4.1 General Description ................................................................................................................. - 14 - 2.5 CONNECTOR AND POWER SWITCH ...................................................................................................... - 15 - 2.5.1 Signal & Power connector ....................................................................................................... - 15 - 2.5.2 LAN connector ......................................................................................................................... - 15 - 2.5.3 Power switch & Fuse holder .................................................................................................... - 16 - 2.6 CONNECTION DIAGRAM ....................................................................................................................... - 0 - 2.6.1 Rear Cover connector – PWR .................................................................................................... - 0 - 2.6.2 Rear Cover connector –SIGNAL ............................................................................................... - 1 - 2.6.3 Rear Cover connector –DIO ....................................................................................................... - 1 - 2.7 OPERATION & USAGE .......................................................................................................................... - 2 - System Manual – SAM-OCU-14 – 2013.12.05 Copyright ⓒ 2013 Samsung SDS Co., Ltd. All rights reserved | Confidential List of Tables TABLE 1 GENERAL SPECIFICATION ....................................................................................................................... - 7 - TABLE 2 SPECIFICATION OF GPS MODULE .......…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 SAMSUNG 2013.12.12 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Certification Service Technology Inc. (CSTech) hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description : OCU (On-board Controller Unit) model name : SAM-OCU-14 FCC ID : P4YSAM-OCU-14 We affirm that between SIEMIC and Certification Service Technology Inc. (CSTech), any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Myoung Kue Lee (manager) Contact information / address : Information Company Name SAMSUNG SDS Co., Ltd. Address 707-19, Yoksam 2-dong, Gangnam-gu, Seoul, Korea, 135-918 Name For Contact Purposes E-mail Myoung Kue Lee [email protected] Telephone no. +82-2-6484-0557 Fax no. +82-2-6484-0688

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 SAMSUNG 2013.12.12 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: P4YSAM-OCU-14 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - PCB Layout The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Myoung Kue Lee (manager) Contact information / address: Information Company Name SAMSUNG SDS Co., Ltd. Address 707-19, Yoksam 2-dong, Gangnam-gu, Seoul, Korea, 135-918 Name For Contact Purposes Myoung Kue Lee E-mail [email protected] Telephone no. +82-2-6484-0557 Fax no. +82-2-6484-0688 SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 SAMSUNG 2013.12.12 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: P4YSAM-OCU-14 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - External Photo - Internal Photo - Setup Photo - User manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title : Myoung Kue Lee (manager) Contact information / address : Information Company Name SAMSUNG SDS Co., Ltd. Address 707-19, Yoksam 2-dong, Gangnam-gu, Seoul, Korea, 135-918 Name For Contact Purposes E-mail Myoung Kue Lee [email protected] Telephone no. +82-2-6484-0557 Fax no. +82-2-6484-0688

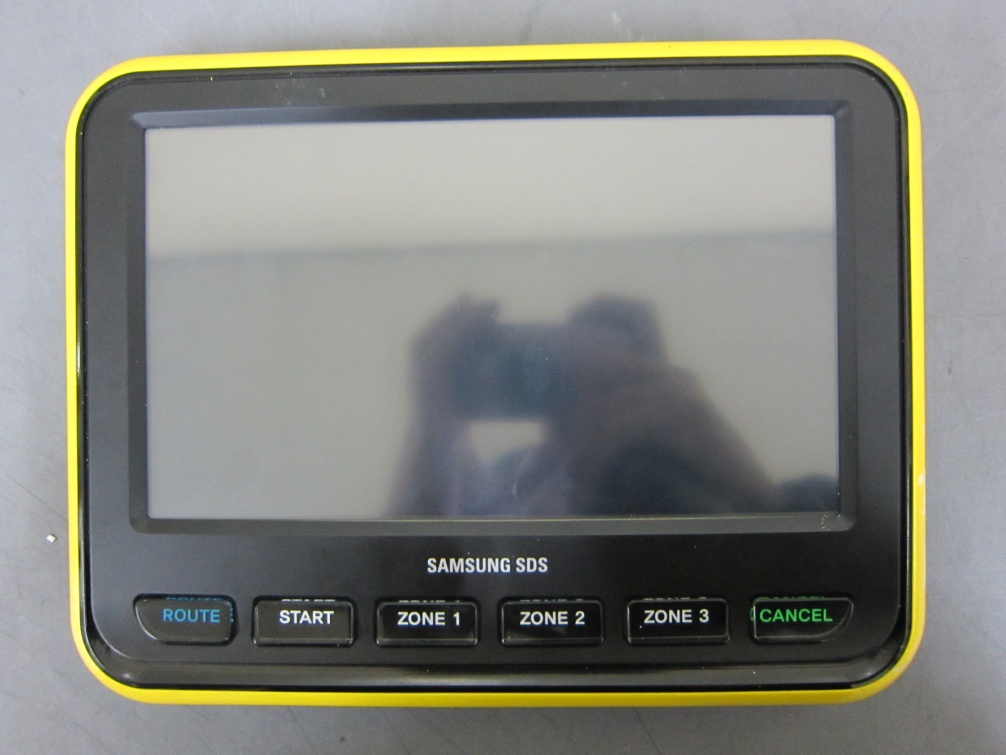

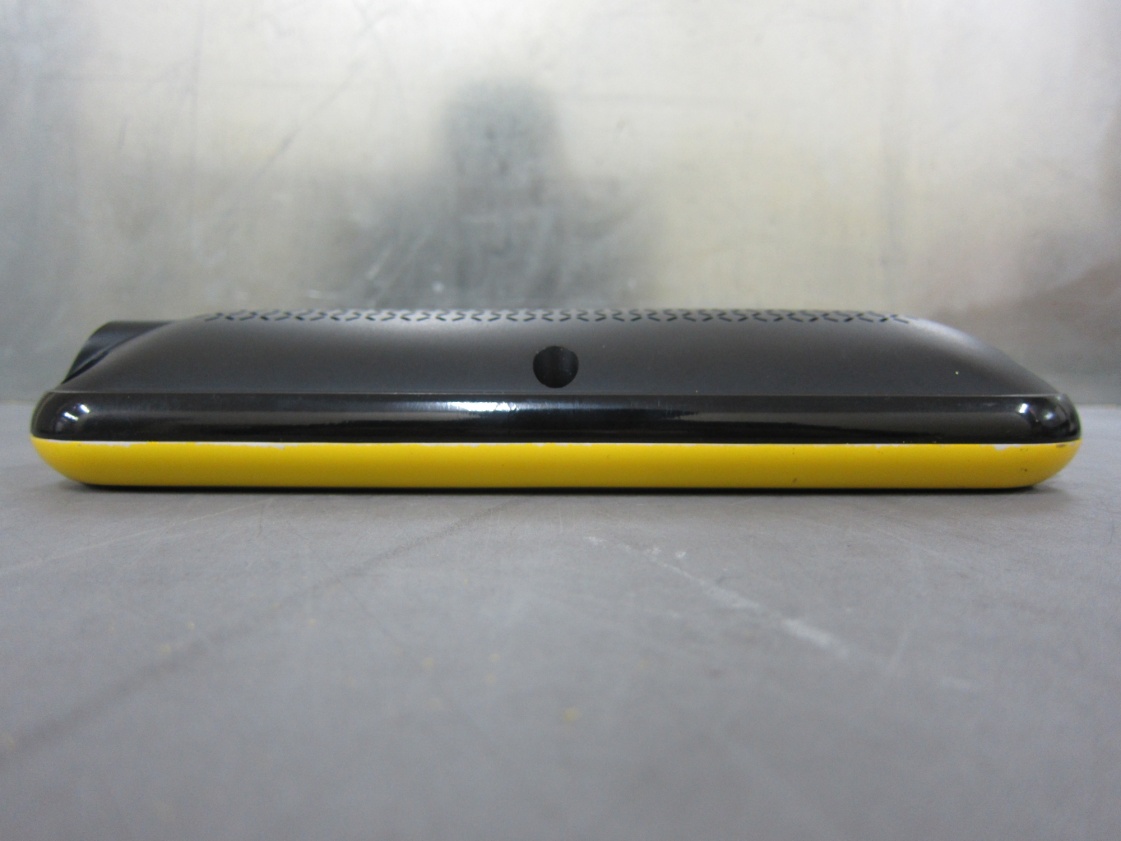

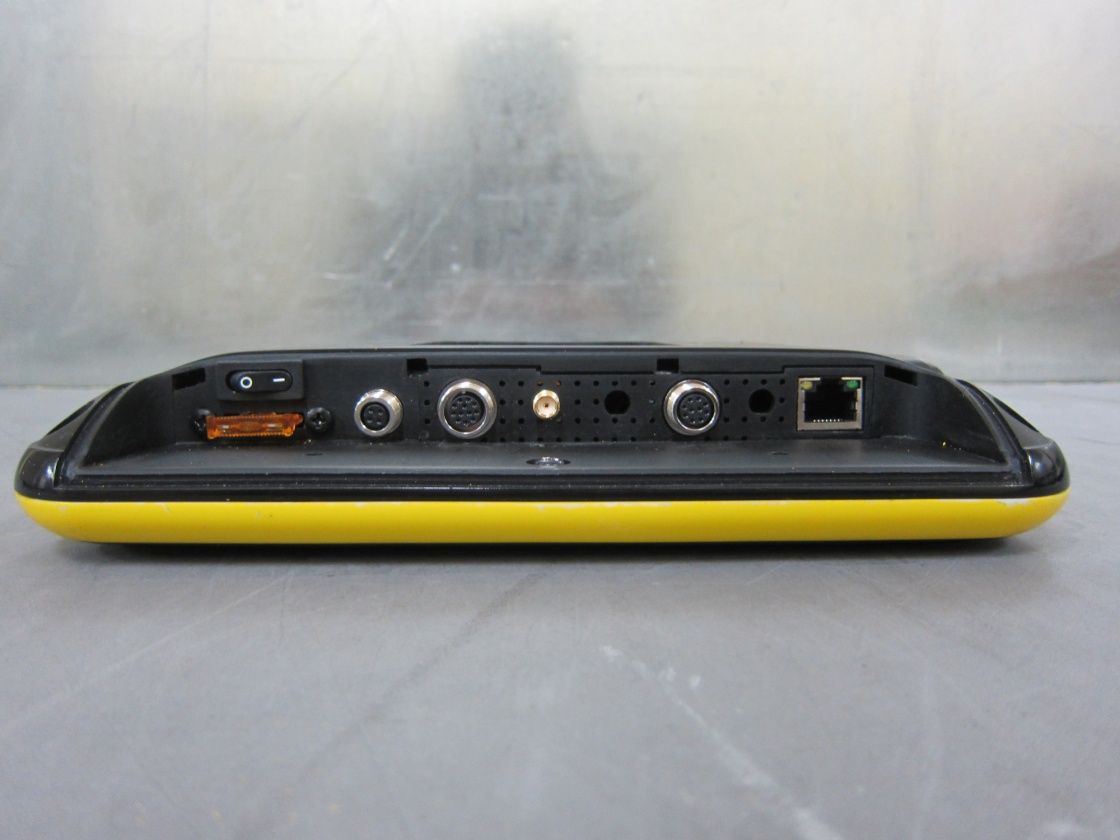

Photographs of EUT [External View] Front Rear Top Bottom Right Left-1 Left-2 Label

INPUT DATE MADE IN KOREA OCU THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. (1) This device may not cause harmful interference, and(2) This device must accept any interference received.including interference that may cause undesired operation. Left-2 Label

Potographs of EUT [Internal View] Main Board _Front Main Board _Rear Sub Board_Front Sub Board_Rear LCD Board Front LCD Board Rear RF Part / Chip Antenna

Certification Service Technology Model Name : SAM-OCU-14 Test Report No : CSTPOC13-FCC0049-1 C S Te c h Inc. Page Number : Page 2 of 4 This report shall not be reproduced except in full, without the allowance of the test laboratory. 1. General Description of EUT Item Specification note Dimension 230mm x 176.2 mm x 46.9 mm RF spec Frequency Range 2402 MHz ~ 2480 MHz Channel 79 Modulation Type GFSK (BDR), 8-DQPSK (EDR) Power 0.01156 W (BDR) 0.00293 W (EDR) * It is maximum peak conducted power in band Antenna Gain 2.5 dBi Power Source DC 24V NOTE: 1. This report is issued as a supplementary report of the original report. 2. The EUT, operates in the 2.4GHz frequency range, lets you connect Bluetooth devices to the network. 3. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. 2. General Information of Test Certification Service Technology Inc. (CSTech) Test Site Location 1055, Singil-dong ,Danwon-gu ,Ansan-si, Gyeonggi-do, Korea 425-839 TEL : +82-31-493-2001 FAX : +82-31-493-2055 Certification Service Technology Model Name : SAM-OCU-14 Test Report No : CSTPOC13-FCC0049-1 C S Te c h Inc. Page Number : Page 3 of 4 This report shall not be reproduced except in full, without the allowance of the test laboratory. 3. RF Exposure Measurement 3.1 Introduction & Standard RF Exposure Requirements : 47 CFR §1.1307(b) RF Radiation Exposure Limits : 47 CFR §1.1310 RF Radiation Exposure Guidelines : FCC OST/OET Bulletin Number 65 EUT Frequency Band : 2402 MHz ~ 2480 MHz (Bluetooth) Limits for General Population/Uncontrolled Exposure in the band of : 1500 MHz ~ 100000 MHz Power Density Limit : 1 mW/cm 2 3.2 Compliance criteria Evaluating for Power flux density Equations are accurate in the far-field lf antenna but will over-predict in the near field. Under above describe specification of EUT and Antenna, Equivalent plane wave power density is calculated as below underlined quotation formula ; S = power density (mW/cm²) P = output power (mW) G = antenna gain relative to isotropic (convert to numeric gain) R = distance from transmitting antenna (cm) or S = (PG)/(4 πd²) S = power density (W/m²) P = output power (W) G = antenna gain relative to isotropic (convert to numeric gain) R = distance from transmitting antenna (m) Certification Service Technology Model Name : SAM-OCU-14 Test Report No : CSTPOC13-FCC0049-1 C S Te c h Inc. Page Number : Page 4 of 4 This report shall not be reproduced except in full, without the allowance of the test laboratory. 3.2.1 Accordingly as a result of calculated value -. P (W) = 11.56 mW -. G(dBi) = 2.5 ㏈i (Conversion 2.5 ㏈ i to Linearity value is 1.778) -. r (m) = setting a distance (20cm) from the antenna to calibrated tuned receiving antenna in far field S eq (mW/cm 2 ) : (11.56 x 1.778) /(4 x 3.14 x 20 2 ) = 0.004091 mW/cm 2 So, above calculated 0.004091 mW/cm 2 is comply with the value required standard

Page Number : Page 2 to 62 Certification Service Technology http://www.cstlab.co.kr FCC Test Report SAM-OCU-14 Test Report No : CSTPOC13-FCC0049 FCC Test Report Table of Contents 1. General Information .......................................................................... 3 1.1 General Description of EUT ...............................................................................................................3 1.2 Basic Description of EUT ..................................................................................... .4 1.3 Antenna Description ............................................................................................ 4 2. Summary of test results ...................................................................... 5 2.1 Measurement uncertainty .......................................................................................6 2.2 Testing Facility ...................................................................................................7 3. TEST Instruments ............................................................................ 8 4. Configuration of system under test ...................................................... 10 4.1 Conducted Test Setup ...........................................................................................10 4.2 Radiated Test Setup ....................................................................................................10 4.3 Description of support units ...................................................................................12 4.4 Test Software Power Setting (Power Parameters of GFSK / 8-DQPSK) ...............................12 5.Test mode applicability and tested channel detail .......................................12 6. Measurement results ........................................................................13 6.1 Carrier Frequency Separation .................................................................................13 6.2 Number of hopping frequencies ..............................................................................19 6.3 Time of occupancy (Dwell Time) ............................................................................21 6.4 Max. Conducted peak output power .........................................................................24 6.5 Conducted peak power spectral density .......................................................................26 6.6 Band-edge Compliance of RF Conducted emissions ......................................................29 6.7 Band-edge Compliance of RF Radiated emissions .........................................................33 6.8 Spurious RF Conducted emissions ...........................................................................40 6.9 Spurious RF Radiated emissions .............................................................................50 6.10 Antenna requirement ..........................................................................................62 Page Number : Page 3 to 62 Certification Service Technology http://www.cstlab.co.kr FCC Test Report SAM-OCU-14 Test Report No : CSTPOC13-FCC0049 FCC Test Report 1. General Information 1.1 General Description of EUT Applicant’s Information Company Name Samsung SDS Co., Ltd.. Address 707-19, Yoksam 2-dong, Gangnam-gu, Seoul, Korea, 135-918 Name For Contact Purposes Kim Dal-Young E-mail [email protected] Telephone no. +82-2-6484-0756 Fax no. +82-2-6484-1301 Manufacturer Information Company Name SAMSUNG SDS Co., Ltd. Address 707-19, Yoksam 2-dong, Gangnam-gu, Seoul, Korea, 135-918 Page Number : Page 4 to 62 Certification Service Technology http://www.cstlab.co.kr FCC Test Report SAM-OCU-14 Test Report No : CSTPOC13-FCC0049 FCC Test Report 1.2 Basic Description of EUT Basic Description of EUT Equipment Name : OCU (On-board Controller Unit) Model NO. : SAM-OCU-14 Serial NO. : - Operating Frequency : 2402 MHz ~ 2480 MHz (Tx / Rx) Channel : 79 Communication Access Method : FHSS (Frequency Hopping Spread Spectrum) Emission Type : F1D, G1D Communication Type : Half duplex Modulation Type : GFSK (BDR), 8-DQPSK (EDR) Oscillation Type : PLL RF Output Power : 10.63 dBm (GFSK mode), 4.68 dBm (8-DQPSK mode) *It is maximum peak conducted power in band Power Source : DC 24V (Car battery) Dimension : 230mm x 176.2 mm x 46.9 mm FCC ID : P4YSAM-OCU-14 1.3 Antenna Description Antenna Description Type of Antenna : CHIP ANT. Connector Type : - Center Frequency : 2.4 GHz ~ 2.5 GHz Model Name : W5I-BF-XX Gain : 2.5 dBi max Polarization : Linear Length : 10 x 4 x 1.2 mm Page Number : Page 5 to 62 Certification Service Technology http://www.cstlab.co.kr FCC Test Report SAM-OCU-14 Test Report No : CSTPOC13-FCC0049 FCC Test Report 2. Summary of test results The EUT has been tested according to the follow specification: Description of Test FCC Rule Reference Clause Pass/Fail Test Result Carrier frequency separation (20 ㏈ bandwidth) 15.247(a)(1) Clause 5.1 Pass Compliance Number of hopping frequencies 15.247(a)(1)(iii) Clause 5.2 Pass Compliance Time of occupancy (Dwell Time) 15.247(a)(1)(iii) Clause 5.3 Pass Compliance Max. Conducted peak output power 15.247(b)(1) Clause 5.4 Pass Compliance Conducted peak output power spectrum density 15.247(e) Clause 5.5 Pass Compliance Band edge compliance of RF conducted emissions 15.247(d) Clause 5.6 Pass Compliance Band edge compliance of RF radiated emissions 15.247(d) 15.205 & 15.209 Clause 5.7 Pass Compliance Spurious RF conducted emissions 15.247(d) Clause 5.8 Pass Compliance Spurious RF radiated emissions 15.247(d), 15.209Clause 5.9 Pass Compliance Antenna requirement 15.203, 15.247 Clause 5.10 Pass Compliance Compliance : The EUT complies with the essential requirements in the standard. Not Compliance : The EUT does not comply with the essential requirements in the standard. N/A : The test was not applicable in the standard.  The measurement report and tested in accordance with measurement procedures specified in ANSI C 63.4-200…

Text truncated - open the document above for the full version.

Photographs of test setup - Conducted RF measurements - Radiated RF measurements Radiated RF measurement (Below 30 MHz) Radiated RF measurement (Below 1 ㎓) Radiated RF measurement (Above 1 ㎓)
