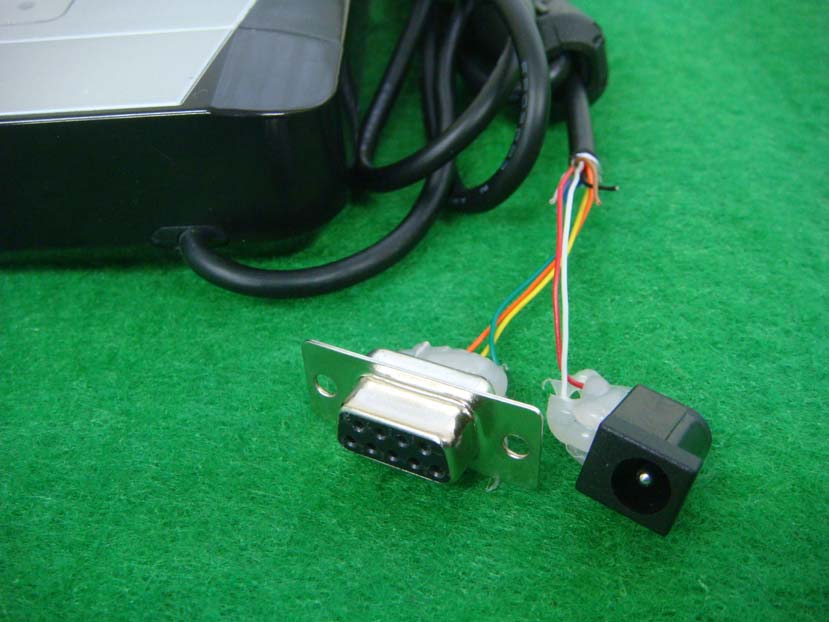

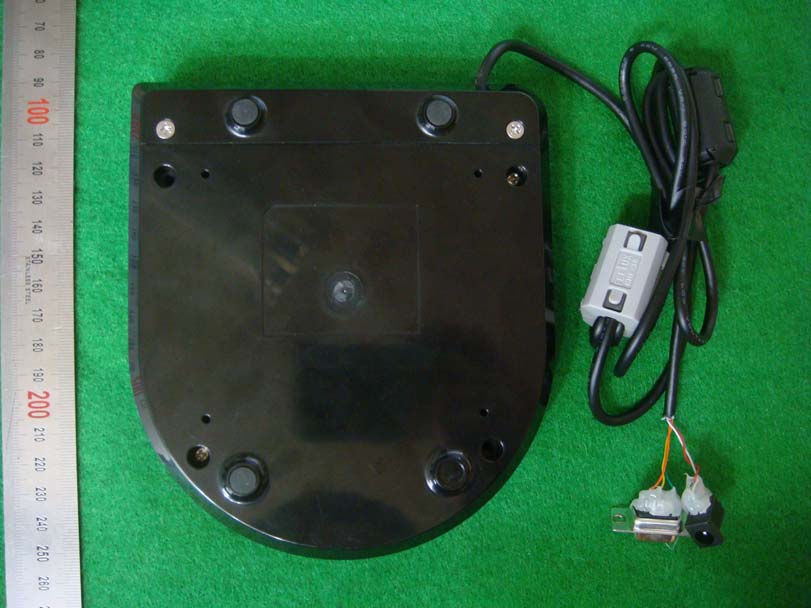

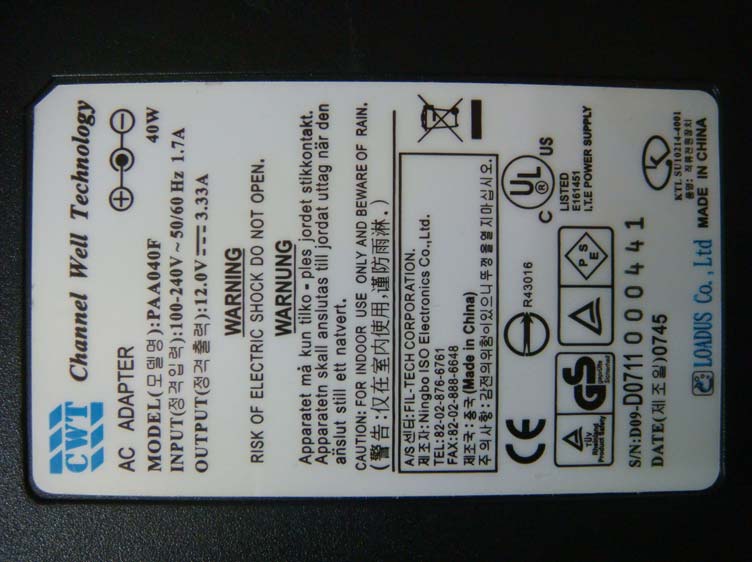

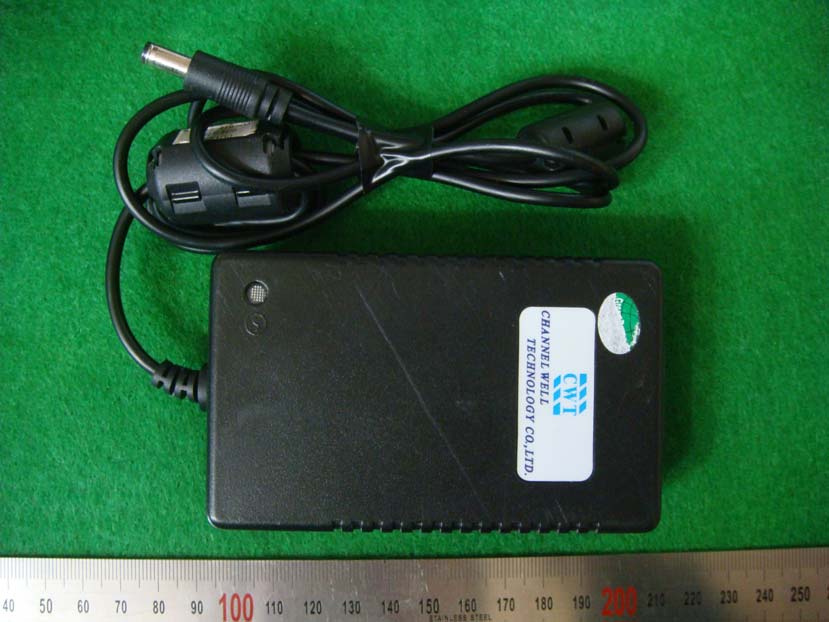

Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 1 of 9 SAM-CRM-13 (Validator RF) Board H/W S pecification 2012. 06. 20 Duali ______________________________ Project Manager ___________________________ Approved Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 2 of 9 Revision History Version Date Author Verifier Description Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 3 of 9 1 Overview SAM-CRM-13 is a high-end RF reader and it is the world first device which supports all three specification as following, (1) Conrtactless card spec_Mifare, ISO14443 Standard A/B, (2)Payment spec_Paywave, Paypass, JSMART, American Express and (3) EMVCo Type Approval Contact less Level 1 , NFC forum spec complaint. It also has 8(EA) of SIM slot for secure communication, RS-232(2ea) as interface method. 1) Purpose (Use) It is multi-purpose smartcard reader mainly use for credit card transaction at auto- gate at subway station or automatic ticket vending machine 2) Communication & Operation It controls credit card transaction by sending command to Host Controller via RS232. This terminal operates LED and Buzzer of the transaction operating and result. The operation of LED & Buzzer can be different by each specification (refer to the Paypass, JSMART, American Express specification for detail information) 3) RF interface ①. Conrtactless card spec_Mifare, ②. ISO14443 Standard A/B 4) SAM interface It is designed to capable of communicating SAM (ISO 7816 ) by attaching extended parts for future use. Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 4 of 9 2 Summary ITEM Specification Description CPU STM32F417ZGT6 (ARM Cortex_M4, 144pin) ST Program Memory 1MBytes FLASH (default) Up to 8Mbytes external Flash(Basically 4M byte) On chip Option (1M,2M,4M,8M) Data Memory 192KBytes SRAM (default) Up to 8Mbytes external SRAM(Basically 512K byte) On chip Option (1M,2M,4M,8M) DISPLAY 4 Status LED Communication RS-232 * 2 Decide when order BUZZER Magnetic Buzzer RF CARD Frequency : 13.56MHz Speed : 106,212,424,848Kbps ISO-14443 A/B ,MIFARE SAM 4 SAM slots (optional 4 SAM slots) Class A and B, T=0 and T=1 Input Power DC 12V Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 5 of 9 3 Structure The Structure of equipment - SAM-CRM-13 itself contains all circuits include antenna, 8 SAM connectors. Description of SAM-CRM-13  CPU: 32bit RISC ARM core CPU, It is stm32f417 which is ARM-based 32-bit MCU with Flash, This CPU has 1Mbyte Flash memory, 192Kbyte SRAM.  PN512 RF IC: This RF IC can control RF card like MIFARE card, type A/B card, Felica, simultaneously.  RS-232 Driver: It’s a Communication part for RS-232 communication.  SAM part: It can control 8 SAMs for multi purpose. Each SAM slot can be operated independently and they don’t affect the transmitted signal.  LED: It has 4 LEDs to display status of communication and card process. - Ready : Blue - Process : Yellow - Complete : Green - Error : Red  Battery: It maintains RTC and battery backup SRAM while power is not supplied.  Tamper switch: Erase security memory when case is opened.  SRAM : optional SRAM for user memory.  Reset : External reset  Buzzer : Displays transaction status (success result/ error). Detail operation is defined by each Payment specification. Host Controller (RS-232) Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 6 of 9 4 Description of Surface The picture of device surface  Communication Cable Serial cable  The size of terminal 135.5(W) * 152.7(L) * 29(H)mm  LED configuration RF Card zone Blue - Ready Yellow - Process Green - Complete Red - Error Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 7 of 9 5 Connector Pin Assignment RS-232 Connector and Cable Pin No Description 1 PWR_IN DC 12V 2 GND 3 TX1_RS232 For Host Controller 4 RX1_RX232 For Host Controller 5 GND 6 TX2_RS232 For slave 7 RX2_RX232 For slave 8 IO 9 RESET+ 10 RESET- Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 8 of 9 6 Description of Electricity The Description of power - Input power : 12V The using electric current - Normal 12V, 130mA under - MAX 12V, 300mA under The Description of Serial communication - 115200bps, 8 data, no parity, 1 stop bit 7 Description of Function Protocol Specification Refer to protocol specification for detail function. ( provide on request) Control Code Specification Refer to control code specification for detail function. (provide on request) Firmware Download Refer download manual. (provide on request) 8 Property Operating Condition - Temperature to use : -10 ~ 60 °C - Humidity to use : 30 ~ 90 % (relative humidity) Storage Condition - Temperature to keep : -20 ~ 80 °C - Humidity to use : 30 ~ 90 % (relative humidity) 9 Warning and Notice - For indoor use only. - This product is affected by an element like metal or Magnetism. So one has to take precautions. Revision Date Document Name Document Number Page A4 2012.06.11 SAM-CRM-13 H/W Spec. 9 of 9 10 Certifications EU This product is CE marked according to the provision of the R&TTE Directive (99/5/EC). Here by DUALi Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. FCC STATEMENT CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause har…
