PDCILM272XSWInternet Location Modem

FCC ID: PDCILM272XSW 6/19/02 DRAFT Confidential Information 1 PN: 900-002x-000 © 2002 At Road, Inc. All Rights Reserved @Road @Road @Road @Road i LM LMLM LM    2720 Installation Guide 2720 Installation Guide 2720 Installation Guide 2720 Installation Guide Important Important Important Important – –– – Please Read! Please Read! Please Read! Please Read! FCC Compliance This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Exposure Information Warning: The antenna supplied with this device must be used for installation and operation. Substitution of other antennas must be approved by the manufacturer for compliance to radiation safety limits, which the antenna gain should not exceed 8 dBi for Cellular Band and 5 dBi for PCS Band. The mounting of this device and antenna must be done by professional installers to ensure that the user or nearby persons will maintain at least 20 cm from the antenna in normal use. Cautions: All persons must be at least 20 cm from modem antenna when transmitter operating to meet FCC RF exposure requirements . BEFORE THE INSTALLATION ¾Gather Components Please ensure you have the following items are together before beginning the installation. There should be one complete set for each vehicle being installed. If any items are missing, contact a local Agent or @Road immediately. 1. i LM Unit Following the simple steps below will ensure optimum performance of your i LM unit. Should you have questions, please contact @Road Customer Service toll-free at 1-877-4-AtRoad (1-877-428-7623). FCC ID: PDCILM272XSW 6/19/02 DRAFT Confidential Information 2 PN: 900-002x-000 © 2002 At Road, Inc. All Rights Reserved 2. Power Cable 3. Installation Parts Kit 4. One of Three Antenna options, o Option A: separate GPS and CDMA “on glass” antenna o Option B: one-piece permanent roof mount antenna o Option C: Limo/Lip mount: one-piece trunk lip mount antenna 5. Installation Information Sheet, 3 part carbon (packaged with i LM Unit) ¾ BEFORE YOU CONTINUE Verify/Match Unit to Correct Vehicle NOTE: NOTE:NOTE: NOTE: Some i LM’s are pre-matched to vehicle by number. This must be known before beginning the installation. 1) Check with the customer Check with the customerCheck with the customer Check with the customer to see if vehicles were pre-matched by name/VIN/Serial Number . 2) Fill out the Installation Information Sheet Fill out the Installation Information SheetFill out the Installation Information Sheet Fill out the Installation Information Sheet noting i LM ID’s to Vehicles by VIN, License or Car Number . This information is required for the customer to track their vehicles. This information is required for the customer to track their vehicles.This information is required for the customer to track their vehicles. This information is required for the customer to track their vehicles. i LM 2720 Assembly and External Interface Details Data Port1 (Green) Data Port2 (Yellow) PTO I/Os Power In CDMA Antenna GPS Antenna FCC ID: PDCILM272XSW 6/19/02 DRAFT Confidential Information 3 PN: 900-002x-000 © 2002 At Road, Inc. All Rights Reserved BEGINNING THE INSTALLATION 1) 1)1) 1) Choose a Location Choose a LocationChoose a Location Choose a Location Determine the best location to install the i LM unit. Recommendations are: • In the trunk, where luggage and other items will not come into contact with the unit • Behind or under the seats • Under or behind the dashboard • Behind the left or right kick-panels • In the console (side or overhead) • In the glove compartment/glove box • Hidden from driver’s view when possible, to limit driver tampering 2) 2)2) 2) Mount the Mount the Mount the Mount the i LM Unit LM UnitLM Unit LM Unit The i LM should be mounted using screws or tie-wraps 3) 3)3) 3) Hook Up Power Hook Up PowerHook Up Power Hook Up Power The i LM should be connected directly to a known 12V-DC power source (range of 10 to 24V- DC), either the column harness or battery of the vehicle. Although the unit has a built-in self- resetting fuse, the iLM2000’s power cable must be fused protected at the power source on both the RED and WHITE power connections with the 3 amp fuses and fuse holders, included in the installation kit. Additionally, remember to place the tamper resistant sticker and a tie wrap over the cover of the fuse holder, as shown in the following picture, so that any tampering with power source wires can be easily detected. PLEASE NOTE: PLEASE NOTE:PLEASE NOTE: PLEASE NOTE: Placement should: • Avoid direct sunlight • Provide minimal exposure to dust • Ensure minimal exposure to moisture • Never be installed in engine compartment (Unit is designed to be installed inside the i LM 2720 Installation Side View PLEASE NOTE: It is essential that you follow these steps exactly, as any inaccuracies may cause hardware damage and the @Road system to malfunction. FCC ID: PDCILM272XSW 6/19/02 DRAFT Confidential Information 4 PN: 900-002x-000 © 2002 At Road, Inc. All Rights Reserved Use a voltmeter to verify voltage and hook wires as indicated below. Black Ground Red (fused, 3 Amps) to vehicle battery, unswitched (+), this wire must see at least 10 volts at all times, if not the unit will reset continually and send inaccurate information White (fused, 3 Amps) To true ignition, 12V switched, there must be 12 volt power in the “on”, “start”, and “run” position. All connections at the column harness must be made by either soldering bare wire to bare wire or using the poke and wrap method. Note: T-taps, scotch locks, and like connectors are not permitted and must not be used to tie the iLM to its power source. 4 44 4 ) )) ) Position GPS Antenna for Optimum Performance Position GPS Antenna for Optimum PerformancePosition GPS Antenna for Optimum Performance Position GPS Antenn…

Text truncated - open the document above for the full version.

July 3, 2002 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Rd. Columbia, M.D. 21046 Dear sir/madam: Re: FCC ID PDCILM272XSW and Request for Confidentiality We hereby request that the documentation listed below, submitted with the above application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. 1. SB555 modem schematics SB555SCH_S.PDF 2. SB555 Bill of Materials SB555BOM_S.PDF. 3. SB555 Detailed Circuit Description SB555DCD_S.PDF 4. SB55 Block Diagram SB555BLK_S.PDF Sincerely, Jit Roop Project Manager Sierra Wireless Inc

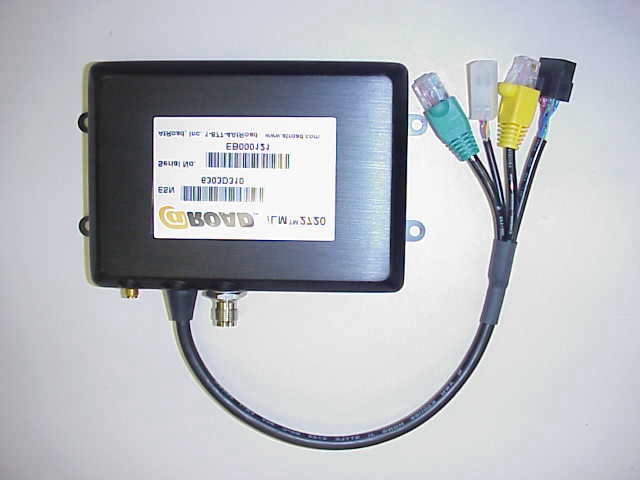

Applicant: AT ROAD, Inc. FCC ID: PDCILM272XSW ILM2720 EXTERNAL PHOTO TOP SIDE ILM2720 EXTERNAL PHOTO BOTTOM SIDE PDCILM272XSW

Applicant: AT ROAD, Inc. FCC ID: PDCILM272XSW EUT FCC ID LABEL FCC ID LABEL IS LOCATED ON BACK SIDE OF EUT PDCILM272XSW PDCILM272XSW

Applicant: AT ROAD, Inc. FCC ID: PDCILM272XSW EUT, iLM2720, PCB TOP SIDE EUT, iLM2720, PCB BOTTOM SIDE Applicant: AT ROAD, Inc. FCC ID: PDCILM272XSW TRANSMITTER, MODEM, TOP SIDE TRANSMITTER, MODEM, BOTTOM SIDE Applicant: AT ROAD, Inc. FCC ID: PDCILM272XSW ILM2720 ASSEMBLY WITH TOP OPEN ILM2720 ASSEMBLY WITH TOP CLOSE

SB555 Photographs for FCC submission. #1. SB555 Logic side with shield on. #2. SB555 Logic side with shield off. #3. SB555 Radio side with shield on. #4. SB555-T Radio side with shield off.

1365 Adams Court, Menlo Park, CA 94025 At Road, Inc., iLM2720 FCC ID: PDCILM272XSW RF Exposure Information The At Road device, FCC ID:PDCILM272XSW is designed for use in a vehicle. It is categorized as a mobile device used at least 20 cm from a user or nearby persons in normal operation. As stated in the test report, the maximum ERP/EIRP (average values) are: In the band 824-849 MHz: ERP = 28.9 dBm or 0.78 W In the band 1850-1910 MHz: EIRP = 28.0 dBm or 0.63 W According to the FCC 2.1091, the device is categorically excluded from routine environmental evaluation for RF exposure. The MPE does not exceed the Limit for MPE for Occupational/Uncontrolled Exposures. The calculated MPE at 20 cm is: 2.54 W/m 2 = 0.254 mW/cm 2 - in the band 824 - 849 MHz 1.25 W/m 2 = 0.125 mW/cm 2 - in the band 1850 - 1910 MHz Therefore, the device is in compliance with the FCC requirements. For the antenna installation instructions and transmitter operating requirements, see the “Installation Guide”.
