Page 1August 2000 RX3310A UHF ASK Receiver A d v a n c e I n f o r m a t i o n HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information contained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The RX3310A is a fully integrated, amplitude-shift-keying (ASK) modulation, single chip receiver. It is designed to operate in a variety of low power radio applications. All popular radio frequencies from 250 MHz to 450 MHz may be supported by simply choosing the appropriate external components. Particular emphasis has been placed on low current con- sumption. Average current consumption is 2.6 mA in normal operation mode and 25
A in power down mode under VCC=3.0volts. Features ‹ Wide frequency range: 250 MHz to 450 MHz ‹ High sensitivity ‹ Low power consumption ‹ Automotive temperature range ‹ High integration level requiring few and inexpensive external components ‹ SOP 18L package or SSOP 20L package Applications ‹ Remote control systems ‹ Car alarm and other security systems ‹ Baby finder, wireless doorbell, wireless toys Block Diagram the wireless IC company RF AMP MIXER OSC IF FILTER COMPARATOR IF AMP BUFFER LIMITER BANDGAP REFERENCE FOOSC1OSC2 CPA CPBCPO VSSDATADISABLE VCCVEEVIRF VCCLINCPC LFB VORF MIXIN

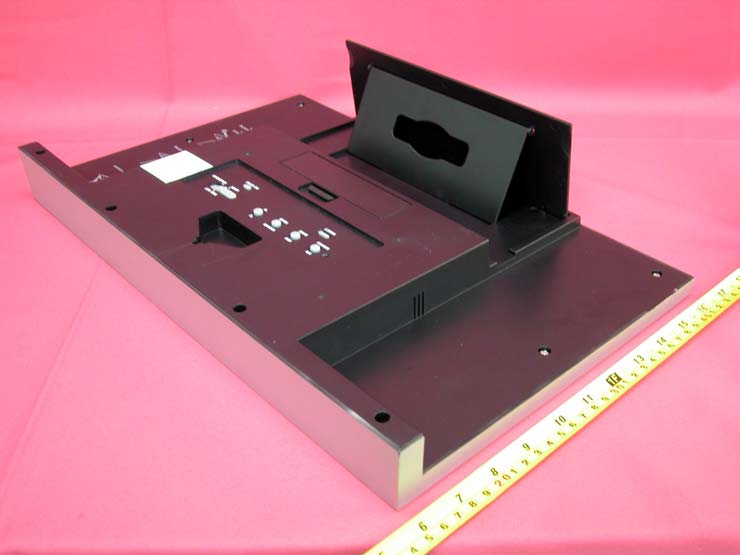

Test Setup FCCID : PEQ185490803 External Photo -front External Photo - rear
