PEQA480110813BLE Vibration Alarm

Instruction Manual [For iPod, iPhone and iPad User] Main Unit Location of Control 1. Snooze button / LED indicator 2. Pair 3. Reset 4. Alarm 5. Battery Compartment 6. Battery door 6 5 432 1 FCC ID: PEQA480110813 Electronics Tomorrow Ltd. Model No: A480 DC 4.5V 3 X 1.5V - - - MADE IN CHINA Features Thank you for purchasing the Vibration Alarm. This product is designed as a Vibration Alarm by working with your iPad, iPhone, iPod or other iOS devices. - Support iOS version 7 or above; - Support Bluetooth version 4.0. - Set wake up buzzer alarm or vibration alarm with snooze function, up to 10 alarms. - Take full control of the Vibration Alarm with i-device app via Bluetooth Low Energy. - Selectable alarm tone pattern and volume to different alarms. - Set count down timer. - Monitor the battery status of the Vibration Alarm and have low battery warning if it is at low level. Before you start using it • Please make sure to read the instruction manual carefully. • Following and respecting the instuctions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. • We shall not be liable for any damage occuring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them. • Please take particular note of the safety advice! • Please keep this instruction manual for future reference. Getting started 1. Install battery: 1.1 Open the battery compartment. 1.2 Insert 3 x AAA batteries in polarity (+) and (-) as indicated. 1.3 Close the battery compartment. 2. Install BleAlarm App on your mobile device. 2.1 Access app store and search for BleAlarm . 2.2 Select and install BleAlarm App on your mobile device. BLE ALARM FCC ID: PEQA480110813 Electronics Tomorrow Ltd. Model No: A480 DC 4.5V 3 X 1.5V - - - MADE IN CHINA Pairing the Vibration Alarm 3. Pair the Vibration Alarm with BleAlarm app. 3.1 Before running the BleAlarm app, make sure the Bluetooth is turned ON at your i-device. 3.2 After you tap the app icon , the ‘Nearby Devices’ screen appears. You need to pair the Vibration Alarm device before you enter the main app screen. BLE ALARM Pairing the Vibration Alarm 3.3 Tap “ Pair New Device” to search for nearby devices. 3.4 Press and hold the [PAIR] button on the Vibration Alarm device for 5 seconds. You can find the flashing LED will turn from red to blue. 3.5 The New Vibration Alarm will be displayed on App and is ready for pairing. Tap the "New Vibration Alarm" will start the pairing and connection process. Once the Vibration Alarm is paired, it will start time and data synchronization. Pairing the Vibration Alarm 3.6 Once connected, the following information will be synchronized: i) Current time and date ii) Alarms & timer setting iii) Unit battery level 3.7 One Vibration Alarm unit can pair one idevice each time. 3.8 One idevice can pair up to 5 Vibration Alarm units. Rename the Vibration Alarm 4. Rename the device. Tap the device name (default is “Vibration Alarm”) at the top of the screen to edit the Vibration Alarm device name. Battery status indicator 5. Battery status indicator It indicates the battery level of your Vibration Alarm device.While the battery level drops below 20%, the battery icon is in red status and a low battery warning will pop up to remind battery replacement. Above 60% Between 20% ~ 60% Below 20% Setting the alarm time 6. Setting the alarm time 6.1 Tap [New Alarm] to create a new alarm or tap the existing alarm to modify. 6.2 On alarm setting screen, you can edit and adjust the item below: i) Alarm Name: Tap to edit you preferred name to this alarm. ii) Time: Scroll up and down to adjust the alarm time. iii) Day of Week: Tap to select which day of week to enable the alarm. - If none is selected, it alarms once only. - If all days are selected, it alarms daily. iv) Sound pattern: Tap to select which tone pattern (5 options plus one random pattern available) is applied to this alarm. Setting the alarm time v) Alarm volume level: Tap to select the alarm sound volume level (three options: Low, Med and High). vi) Vibration strength: Tap to select the vibration strength (four options: Off, Low, Med and High). 6.3 Complete the alarm setting. i) Tap [Done] to save the alarm setting and go back to main screen. ii) Tap [Cancel] to restore to the original alarm setting and go back to main screen. iii) Tap [Delete Alarm] to delete the current alarm and go back to main screen. Snooze operation 7. Using the SNOOZE function 7.1 When the alarm sounds, press [Snooze] and alarm will repeat every 5 minutes up to three times. 7.2 Above default value can be adjusted by setting the “Maximum Snoozes” and “Snooze Duration” in the preference screen. To turn off the alarm 8. To disable the alarm 8.1 When alarm sounds, press [Snooze] once to stop the alarm and activate the snooze funtion, or press [Alarm] to disable the alarm completely. 8.2 If no button is pressed, The alarm will sound for 1 minute and stop automatically. If Snooze Enabled setting is ON, the alarm will repeat every 5 minutes. You can press the [Snooze] button to stop the alarm, or can press [Alarm] button to turn off the alarm and stop the snooze function completely . 8.3 User can tap the alarm time to disable the alarm completely ( Please make sure your app is paired with the device) Setting the Timer 9. To set the timer Tap timer on main screen to go into setting screen. 9.1 You can edit and adjust items below on this screen. i) Timer period: Scroll up and down to adjust the timer duration. ii) Sound pattern: Tap to select the tone pattern (5 options plus one random pattern available). iii) Sound volume level: Tap to select the sound volume level (Four options: Off, Low, Med and High). iv) Vibration: Tap to select the vibration strength (Four options: Off, Low, Med and High). Setting the timer 9.2 Using the Timer In the Home screen, tap “Start” under T…

Text truncated - open the document above for the full version.

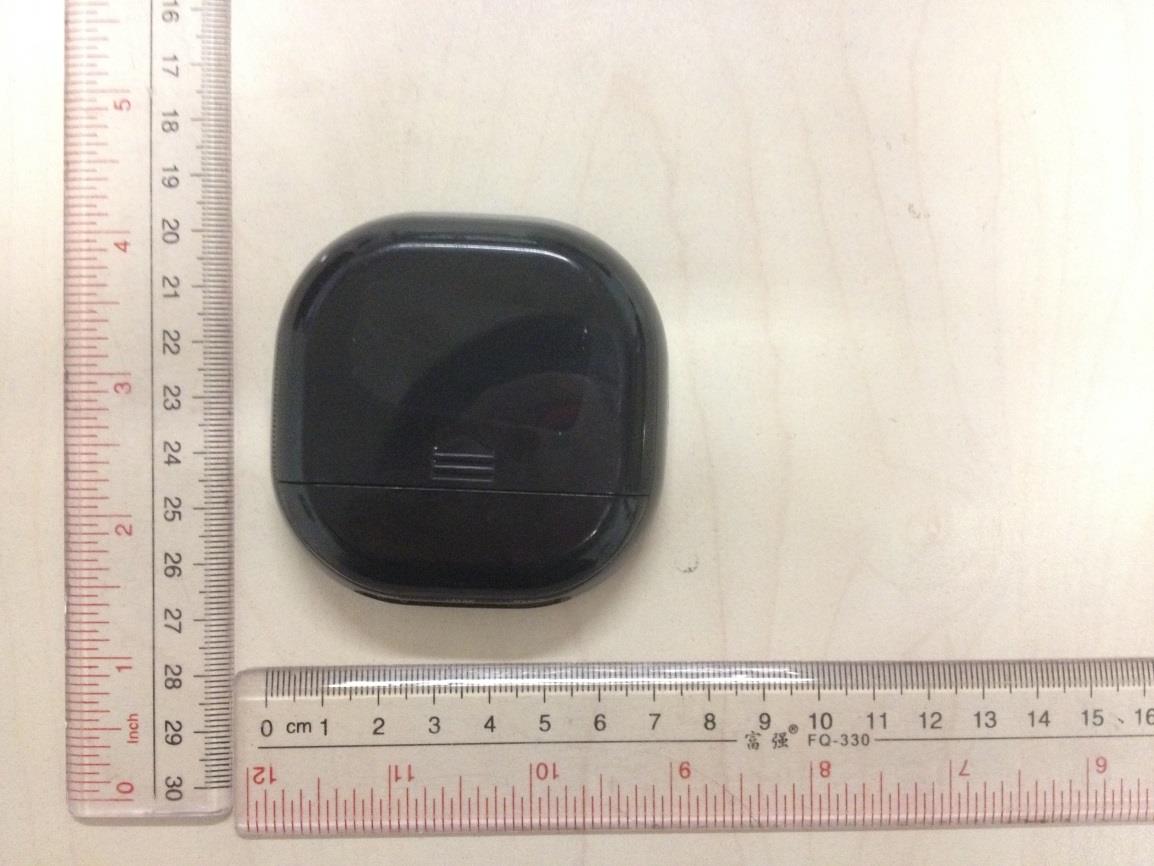

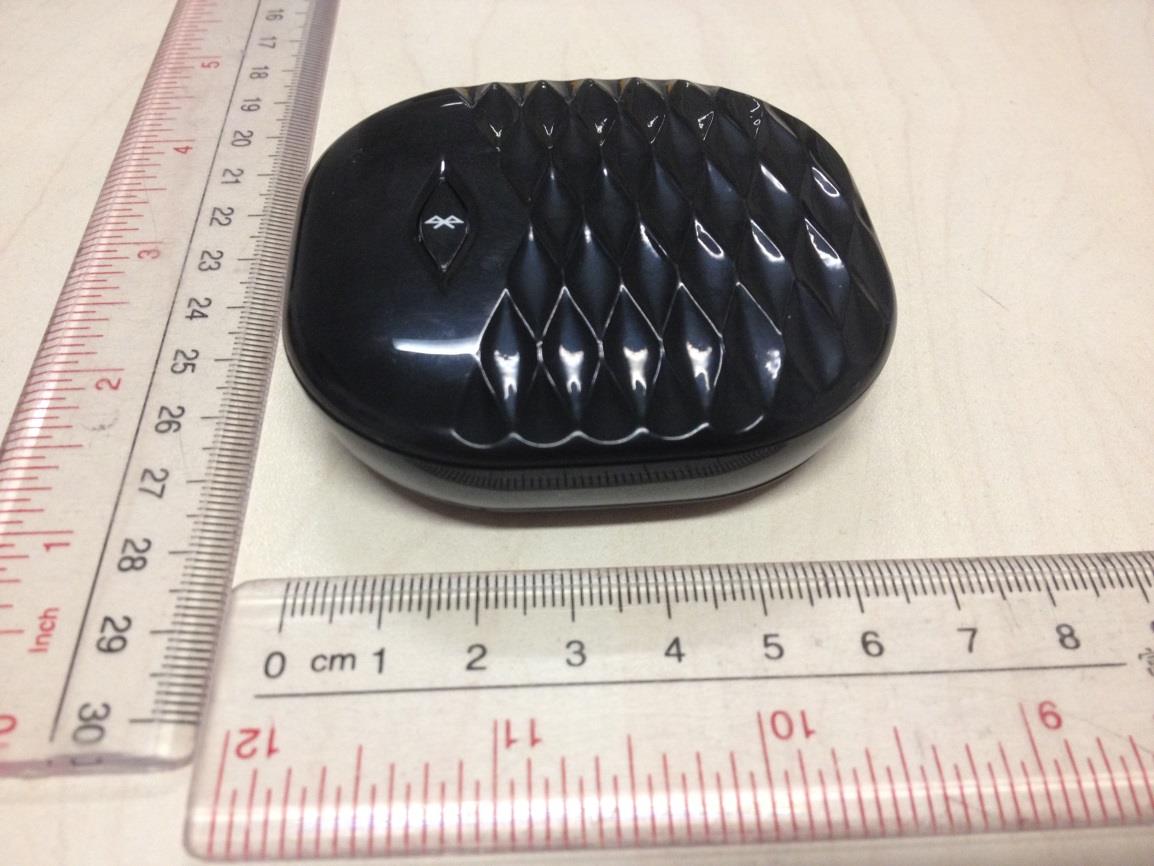

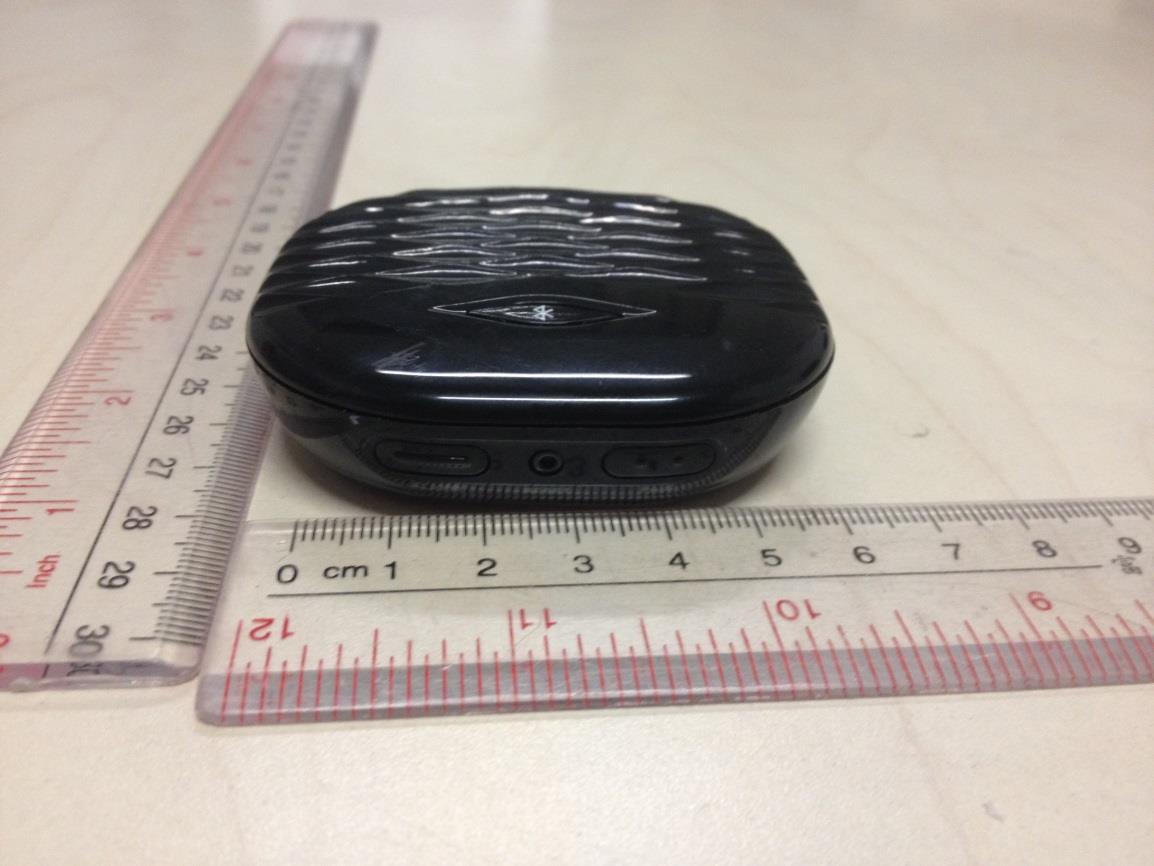

External Photos(A480)

4.8X4.5 mm

Internal Photos(A480) BT ANT

A Test Lab Techno Corp. Report Number：1408FR37 Page 1 of 43 FCC RF Test Report Product Type ： BLE Vibration Alarm Applicant ： Electronics Tomorrow Ltd. Address ： Unit 903-7, 9/F., Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon,HK Trade Name ： N/A Model Number ： A480 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2013 RSS-210 Issue 8 December 2010 ANSI C63.10:2009 KD558074 D01 DTS Meas Guidance v03r02 Receive Date ： 18 August, 2014 Test Period ： 25 August, 2014 to 02 September, 2014 Issue Date ： 05 September, 2014 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number：1408FR37 Page 2 of 43 Revision History Rev. Issue Date Revisions Revised By 00 05 September, 2014 Initial Issue A Test Lab Techno Corp. Report Number：1408FR37 Page 3 of 43 V e r i f i c a t i o n o f C o m p l i a n c e Issued Date: 09/05/2014 Product Type : BLE Vibration Alarm Applicant : Electronics Tomorrow Ltd. Address : Unit 903-7, 9/F., Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon,HK Trade Name : N/A Model Number : A480 FCC ID : PEQA480110813 EUT Rated Voltage : DC 4.5V --3×AAA battery Test Voltage : DC 4.5V Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2013 RSS-210 Issue 8 December 2010 ANSI C63.10:2009 KD558074 D01 DTS Meas Guidance v03r02 Test Result : Complied Performing Lab. : Shenzhen Academy of Metrology and Quality Inspection No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China Tel：0086-755-86928965 / Fax：0086-755-86009898-31396 Web: www.smq.com.cn The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory assumed full responsibility for the accuracy of the test results. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Fly Lu) A Test Lab Techno Corp. Report Number：1408FR37 Page 4 of 43 CONTENT 1. General Information ........................................................................................................................... 5 2. Test Summary ..................................................................................................................................... 5 3. Description of the Equipment under Test (EUT) ............................................................................... 6 4. Measurement Uncertainty ............................................................................................................... 10 5. Main Test Instruments ..................................................................................................................... 10 6. Test Conditions and Results ............................................................................................................. 12 6.1 AC Power Conducted Emission .......................................................................................................... 12 6.2 Radiated Emissions ............................................................................................................................ 15 6.3 Maximum Peak Output Power .......................................................................................................... 21 6.4 Power Spectral Density...................................................................................................................... 22 6.5 Band Edge Compliance of RF Emission ............................................................................................. 25 6.6 Spurious RF Conducted Emission ...................................................................................................... 29 6.7 6dB Bandwidth................................................................................................................................... 40 6.8 Antenna Requirement ....................................................................................................................... 43 A Test Lab Techno Corp. Report Number：1408FR37 Page 5 of 43 1. General Information 1.1 Applied Standard Applied Rules: FCC 47 CFR PART 15 SUBPART C: Oct., 2013 Test Method: FCC 558074 D01 DTS Meas Guidance FCC KDB 662911 D01MultipleTransmitter Output 1.2 Test Location TestLocation1: Shenzhen Academy of Metrology and quality Inspection Address: No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China 1.3 Test Environment Condition Ambient Temperature: 19.5to 25°C Ambient Relative Humidity: 40 to 55 % Atmospheric Pressure: Not applicable 2. Test Summary Test Item FCC Part No. Requirements Verdict DTS (6 dB) Bandwidth 15.247(a)(2) ≥ 500 kHz. PASS Maximum Peak Conducted Output Power 15.247(b)(3) For directional gain:< 30dBm – (G[dBi] –6 [dB]),peak; Otherwise :< 30dBm, peak. PASS Maximum Power Spectral Density Level 15.247(e) For directional gain :< 8dBm/3 kHz – (G[dBi] –6[dB]), peak. Otherwise :< 8dBm/3 kHz, peak. PASS Band Edges Compliance 15.247(d) < -20dBr/100 kHz if total peak p…

Text truncated - open the document above for the full version.

Radiated Emission Below 1 GHz Above 1 GHz
