PEQA43071013Remote Thermo-Hygrometer

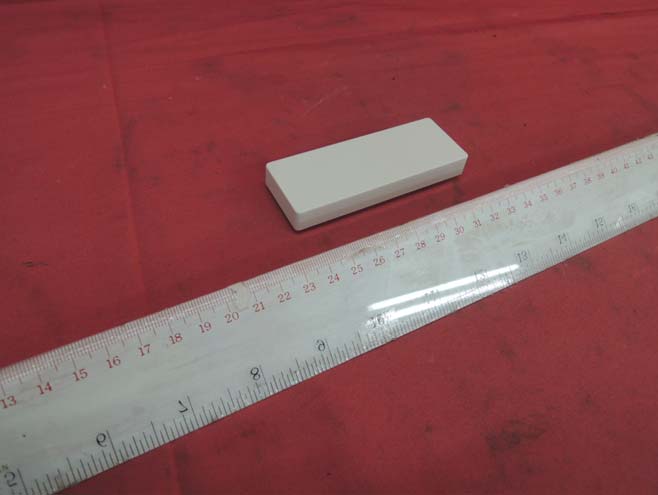

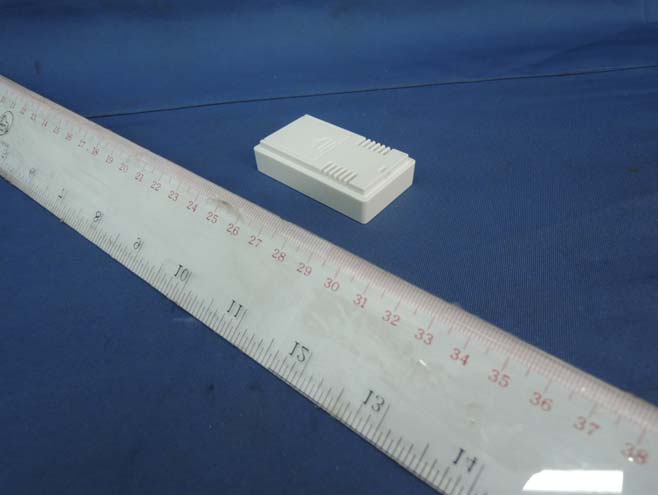

INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A460 (External) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A430 (External)

A430/A460 MAC Size22*16mm FCC ID SENSOR CR2032 CR2032 CR2032 RESET CONNECT 200% 35mm 16mm A430 6 1 m m 2 2 m m (150%) Label 100% MADE IN CHINA SENSOR_ XXX XXXXXXXXX XXXXXX FCC ID:PEQA43071013 MADE IN CHINA SENSOR_ XXX XXXXXXXXX XXXXXX FCC ID:PEQA43071013 MADE IN CHINA SENSOR_ XXX XXXXXXXXX XXXXXX FCC ID:PEQA43071013 A430/A460 MAC Size22*16mm FCC ID SENSOR MADE IN CHINA SENSOR_ XXX XXXXXXXXX XXXXXX FCC ID:PEQA43071013 RESETCONNECT Label A460 200% 9 6 m m 35mm 2 2 m m 16mm (150%) 100% MADE IN CHINA SENSOR_ XXX XXXXXXXXX XXXXXX FCC ID:PEQA43071013 MADE IN CHINA SENSOR_ XXX XXXXXXXXX XXXXXX FCC ID:PEQA43071013

INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A460 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A460 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A460 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A460 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A430 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A430 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A430 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A430 (Internal) INTERTEK TESTING SERVICE Report No.: 13090838HKG-001 FCC ID: PEQA43071013 Equipment Photographs Model : A430 (Internal)

Analysis Report Report No.: 13090838-HKG001 The Equipment Under Test (EUT) is a 2.4GHz Remote Thermo-Hygrometer, which is operating between 2402MHz and 2480MHz (40 channels with 2MHz channel spacing). The EUT is powered by 3.0VDC (2x 1.5VDC “AAA” Size batteries). The EUT has a pair of control button , temperature sensor , humidity sensor and a red LED indicator. It is required to press the pairing button to pair with the corresponding device, such as IOS device which installed with corresponding software. After pairing, the LED will stay lit and transmit the information of temperature and humidity. Antenna Type: Internal integral (PCB Trace) Antenna Gain: -3dBi Nominal rated field strength: 93.9dBμV/m at 3m Maximum allowed field strength of production tolerance: -3dm to +3 dBm According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 96.9dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.469mW Conducted power = Radiated Power (EIRP) - Antenna Gain So; Conducted Power = 2.951mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mWm Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13090838HKG-001 i FCC ID: PEQA43071013 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Electronics Tomorrow Ltd. BRAND NAME: N/A, MODEL: A430, A460 FCC ID: PEQA43071013 Grantee: Electronics Tomorrow Ltd. Grantee Address: Unit 903-7, 9/F., Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, Hong Kong. Contact Person: Steve Lam Tel: NA Fax: NA e-mail: [email protected] Manufacturer: Gaojin Electronics (Shenzhen) Co., Ltd. Manufacturer Address: 11 Fang Keng Road, Pinghu Village, Pinghu Town, Longgang District, Shenzhen City, Guangdong Province, P.R China Brand Name: N/A Model: A430, A460 Type of EUT: Transceiver Description of EUT: Remote Thermo-Hygrometer Serial Number: N/A FCC ID: PEQA43071013 Date of Sample Submitted: September 19, 2013 Date of Test: September 30, 2013 Report No.: 13090838HKG-001 Report Date: October 21, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13090838HKG-001 ii FCC ID: PEQA43071013 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Electronics Tomorrow Ltd. BRAND NAME: N/A, MODEL: A430, A460 FCC ID: PEQA43071013 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.249 Pass Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13090838HKG-001 iii FCC ID: PEQA43071013 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Equipment Modification ..................................................................................2 2.5 Measurement Uncertainty...............................................................................2 2.6 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................9 5.0 Product Labelling .............................................................................................9 6.0 Technical Specifications .................................................................................9 7.0 Instruction Manual ...........................................................................................9 8.0 Miscellaneous Information .........................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13090838HKG-001 FCC ID: PEQA43071013 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : A460 Radiated Emission Model: A460 Job number: 13090838HKG-001 Side A INTERTEK TESTING SERVICE Report No: 13090838HKG-001 FCC ID: PEQA43071013 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : A460 Radiated Emission Model: A460 Job number: 13090838HKG-001 Side B
