PEQ457090805433MHz RF Receiver

Electronics Tomorrow Ltd.

Click to zoom

Application Details

Equipment Class: CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant: Oct 24, 2005
Application Purpose: Original Equipment
Date of Application: Oct 24, 2005
Equipment Note: 433MHz RF Receiver
Frequency Range: 433.00000000 - 433.00000000
Company: Electronics Tomorrow Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Block Diagram of 4570 ( Rx ) Frequency 60kHz(iv) Power control Data Powe control Frequency System Frequenc y System Frequency 433.92MHz(i) L.O. : 433.12MHz(ii) 32.768kHz(iii) Raw Data (i) The frequency is the frequency that the antenna received (ii) The L.O. is 433.12MHz (iii) The frequency is the clock of all MCU for normal operation LCD Display Bar Antenna MCU IC : TM8706 RF circuit IC : RX3310A Key Matrix MCU IC : S1C60N16 Radio control clock receiver Key Matrix Pressure sensor Backlight Temperature & humidity Sensor WF ASIC IC Key Matrix Page 1April 2004 RX3310A UHF ASK Receiver HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information contained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The RX3310A is a fully integrated, amplitude-shift-keying (ASK) modulation, single chip receiver. It is designed to operate in a variety of low power radio applications. All popular radio frequencies from 250 MHz to 450 MHz may be supported by simply choosing the appropriate external components. Particular emphasis has been placed on low current con- sumption. Features Wide frequency range: 250 MHz to 450 MHz High sensitivity Low power consumption Automotive temperature range High integration level requiring few and inexpensive external components SOP 18L package or SSOP 20L (150 mil) package Applications Remote control systems Car alarm and other security systems Baby finder, wireless doorbell, wireless toys Block Diagram RF AMP MIXER OSC IF FILTER COMPARATOR IF AMP BUFFER LIMITER BANDGAP REFERENCE FO OSC1OSC2 CPA CPBCPO VSSDATADISABLE VCCVEEVIRF VCCLINCPC LFB VORF MIXIN

External Photos

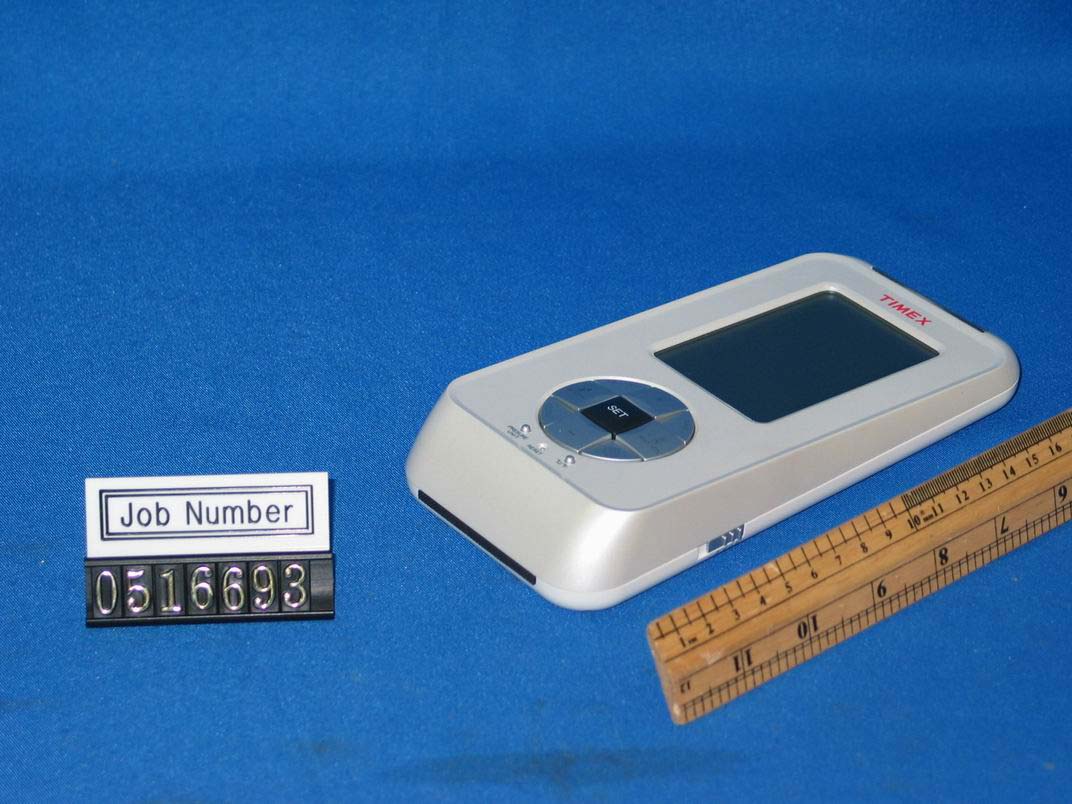

Test Setup FCC ID : PEQ457090805 External Photo - Front External Photo - Rear

Internal Photos

Test Setup FCC ID : PEQ457090805 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : PEQ457090805 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : PEQ457090805 Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : PEQ457090805 Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : PEQ457090805 Internal Photo - 9 Internal Photo - 10 Test Setup FCC ID : PEQ457090805 Internal Photo - 11 Internal Photo - 12 Test Setup FCC ID : PEQ457090805 Internal Photo - 13 Internal Photo - 14 Test Setup FCC ID : PEQ457090805 Internal Photo - 15

Operational Description

Technical Description of the Circuit: This product can be divided into three separate function modules (i) RF module (ii) RCC module (iii) WF & Pressure module (i)RF module This module can divide into two part, RF and Baseband, the RF circuit is a single conversion, super-heterodyne architecture receiver IC. The incoming RF signal received by the antenna is fed to the RF input terminal of the IC RX3310A, then the RF signal is then amplified by the LNA in the IC RX3310A. The amplified signal will fed to the mixer input, the LO for the mixer is generated by the external LC tank circuit, in the above circuit, the LO is 432.12MHz, the IF ( F RF -F LO ) is then demodulated by the demodulator in the IC RX3310A and the IC RX 3310A provide the raw data. The data is then fed to the baseband MCU TM8706 for decoding and the MCU TM8706 will display the decoded temperature at the LCD. (ii)RCC module This module can also divide into RF and Baseband, the RF circuit is a AM demodulator which receive 60kHz WWVB time signal and demodulate the signal into useful time data. The data is then fed to the baseband MCU S1C60N16 for decode, the decoded time will be display on the LCD. (iii)WF & Pressure module This module measure the atmosphere pressure by the pressure sensor and display pressure reading as well as predict the upcoming weather condition. Page 1April 2004 RX3310A UHF ASK Receiver HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information contained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The RX3310A is a fully integrated, amplitude-shift-keying (ASK) modulation, single chip receiver. It is designed to operate in a variety of low power radio applications. All popular radio frequencies from 250 MHz to 450 MHz may be supported by simply choosing the appropriate external components. Particular emphasis has been placed on low current con- sumption. Features Wide frequency range: 250 MHz to 450 MHz High sensitivity Low power consumption Automotive temperature range High integration level requiring few and inexpensive external components SOP 18L package or SSOP 20L (150 mil) package Applications Remote control systems Car alarm and other security systems Baby finder, wireless doorbell, wireless toys Block Diagram RF AMP MIXER OSC IF FILTER COMPARATOR IF AMP BUFFER LIMITER BANDGAP REFERENCE FO OSC1OSC2 CPA CPBCPO VSSDATADISABLE VCCVEEVIRF VCCLINCPC LFB VORF MIXIN RX3310A Page 2April 2004 Package and Pin Assignment: SOP 18L or SSOP 20L Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. A------2.640------0.1041.351.601.750.0530.0640.069 A10.100------0.004------0.1---0.250.004---0.010 A22.1902.2902.3900.0860.0900.094---1.45------0.057--- b0.3600.4100.4600.0140.0160.0180.200.250.300.0080.0100.012 C0.2420.2500.2580.0070.0100.0130.19---0.250.007---0.010 D11.4611.5611.660.4510.4550.4598.55---8.750.337---0.344 SOP 18L package VCC MIXIN VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 10 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA 1 2 3 4 5 6 7 8 HiMARK RX3310A 9 DISABLE SSOP 20L package VCC VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA HiMARK RX3310A DISABLE 1 2 3 4 5 6 7 8 9 10 19 20 MIXIN VCC VSS RX3310A Page 3April 2004 RX3310A Chip Window E10.0410.3410.640.3950.4070.4195.80---6.200.228---0.244 E17.3907.4907.5900.2910.2950.2993.80---4.000.150---0.157 e1.2201.2701.3200.0480.0500.052---0.64------0.025--- L0.6400.8401.0400.0250.0330.0410.40---1.270.016---0.050 θ 0 °---8°0°---8°0° --- 8 °0° --- 8 ° y --- ---0.050 --- ---0.002------0.10------0.004 Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. RX3310A Page 4April 2004 Pin Descriptions Number (18L SOP) Number (20L SSOP) NameI/ODescription 120OSC1IOOscillator tank connection 21OSC2IOOscillator tank connection 32FOOIF filter output 43CPAIComparator input A 54CPBIComparator input B 65CPOIComparator offset adjustment 76,7VSSGNDGround 88DATAOData output 99DISABLEIDisable input. See Electrical Characteristics (cont.) on page 6 1010CPCIComparator input C 1111LINILimiter input 1212VCCPOWERPositive supply voltage 1313LFBIOLimiter feedback B 1414VIRFIRF amplifier input (requires external ac decoupling capacitor) 1515VEEGNDGround for RF amplifier 1616VORFORF amplifier output 1717MIXINIMixer input (requires external ac decoupling capacitor) 1818,19VCCPOWERPositive supply voltage RX3310A Page 5April 2004 Absolute Maximum Ratings V SS = 0 V Recommended Operating Conditions V SS = 0 V ParameterSymbolRatingUnit Supply voltage V CC V SS – 0.3 to V SS + 6.0 V Operating temperature range T OPR –60 to 85 °C Storage temperature range T STG –60 to 125 °C Soldering temperature range T SLD 255 °C Soldering time range t SLD 10s ParameterSymbol Va l u e Unit min.typ.max. Supply voltage range V CC 2.03.06.0V Operating temperature T A –402585 °C RX3310A Page 6April 2004 Receiver Characteristics (V CC = 2.0 to 6.0 V, LO-RF=1.8MHz,All tests at T A = 25 °C unless otherwise noted) Electrical Characteristics (V CC = 3.0 V, V SS = 0 V, All tests at T A = 25 °C unless otherwise noted) Electrical Characteristics (cont.) (V CC = 5.0 V, V SS = 0 V, All tests at T A = 25°C unless otherwise noted) ParameterSymbolCondition Va l u e Unit min.typ.max. Sensitivity P sens V CC = 3.0 V, T A = 27 °C, AM 99%, sine wave (ASK square wave) -100 (-104) -98 (-102) dBm Maximum input powerP in,max -35-30dBm Receiver turn-on timet ON 5ms ParameterSymbolCondition Va l u e Unit min.typ.max. Supply currentI CC 34.5mA Standby currentI CC,sb DISABLE = high510μA Disable pin input logic high a a.Note: If the Disable pad is connected to an off-chip signal (ope…
