PEQ673A900411433 MHz RF Cooking Thermometer (Transmitter)

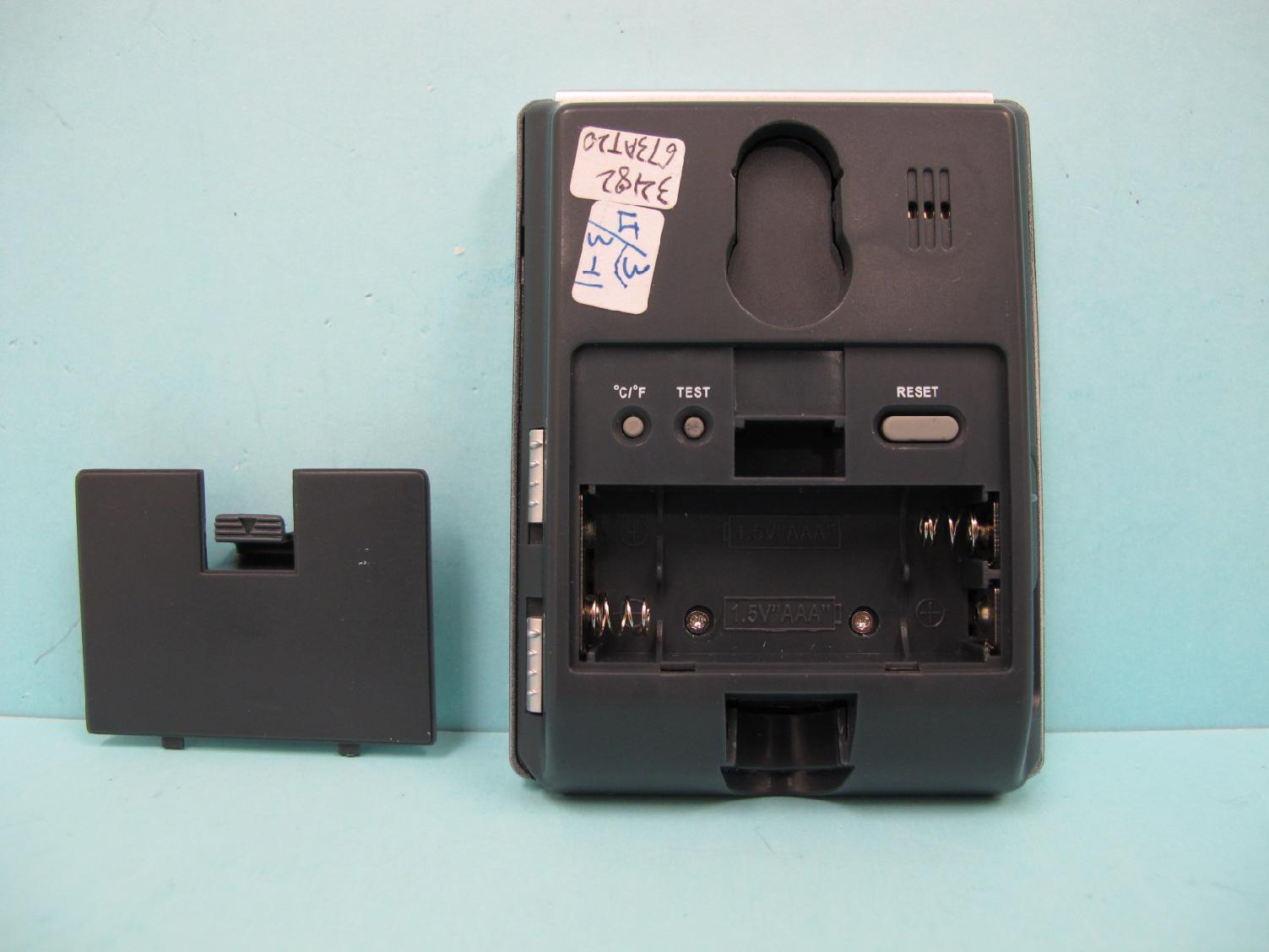

Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2011-04-20 Test report no.: 60.870.11.007.01F Model no.: 673A Photos of EUT – External EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Ancillary - Probe

Page 1 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2011-04-20 Test report no.: 60.870.11.007.01F Model no.: 673A Photos of EUT – Internal EUT Photos Page 2 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Page 3 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Page 4 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Page 5 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Page 6 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Page 7 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A Page 8 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.01F Model no.: 673A

TEST REPORT Date: 2011-04-20 Report No.: 60.870.11.007.01F Page 1 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Applicant: Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Description of Samples:Model name: 433MHz RF Cooking Thermometer (Transmitter) Brand name: Nil Model no.:673A FCCID:PEQ673A900411 Date Samples Received:2011-03-24 Date Tested:2011-03-24 to 2011-04-19 Investigation Requested:FCC Part 15 Subpart C, Section 15.231 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Prudence PoonJeff Pong Technical ManagerProject Manager Wireless & Telecom DepartmentWireless & Telecom Department Report No.: 60.870.11.007.01F Page 2 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 19 Content Page 2 of 19 1.0General Details 1.1Test Laboratory Page 3 of 19 1.2Applicant Details Page 3 of 19 1.3Equipment Under Test [EUT] Page 3-4 of 19 1.4 Related Submittal(s) Grants Page 5 of 19 2.0Technical Details 2.1Investigations Requested Page 6 of 19 2.2Test Standards and Results Summary Page 6 of 19 3.0Test Methodology 3.1Radiated Emission Page 7 of 19 3.2Field Strength Calculation Page 7 of 19 3.3Conducted Emission Page 7 of 19 4.0Test Results 4.1Radiated Emission of Fundamental Frequency Page 8-9 of 19 4.2Spurious Radiated Emission Page 10-13 of 19 4.3Conducted Emission Page 14 of 14 4.4Bandwidth Measurement Page 15 of 19 4.5Average Factor Page 16-18 of 19 5.0List of Measurement Equipments Page 19 of 19 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.11.007.01F Page 3 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory Neutron Engineering Inc. No 3, Jinshagang 1 st Road, ShiXia, Dalang Town, Dong Guan, China. Registration Number:319330 Tested by: Ares Liu 1.2Applicant Details Applicant Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Manufacturer Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Report No.: 60.870.11.007.01F Page 4 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of EUT Model Name:433MHz RF Cooking Thermometer (Transmitter) Manufacturer:Electronics Tomorrow Ltd. Brand Name: Nil Model Number: 673A FCCID:PEQ673A900411 Rating:DC 3.0V ( 2 x “ AAA” size batteries ) Antenna Type:Integral Operated Frequency:433.970MHz No. of Channel:1 Accessories and Auxiliary Equipment:None EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a transmitter operated at 433.970MHz to detect the temperature of the food and transmit this information to its associated receiver. Periodic Operation of EUT The transmitter transmits signal for every 12 seconds that mean the silence period must not less than 12 seconds. Each data packet is continuously transmitting for approximate 232.8 ms in one transmission, it activated automatically shall cease transmission within 1 seconds after activation. So the EUT is deemed to fulfill FCC section 15.231( e ). According to section 15.231(e), the EUT shall be provided with a means for automatically limiting operation so that the duration of each transmission shall not be greater than one second and the silent period between transmissions shall be at least 30 times the duration of the transmission but in no case less than 10 seconds. Report No.: 60.870.11.007.01F Page 5 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.4Related Submittal(s) Grants This is a single application for certification of the transmitter. Report No.: 60.870.11.007.01F Page 6 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4: 2003 for FCC Verification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPass Failed N/A Radiated Emission of Carrier Frequency FCC 47CFR 15.231ANSI C63.4:2003 N/A Radiated Emission, 30MHz to 4.5GHz FCC 47CFR 15.231ANSI C63.4:2003Class B Conducted Emission on AC, 0.15MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2003Class B Bandwidth Measurement FCC 47CFR 15.231ANSI C63.4:2003N/A Note: N/A - Not Applicable Report No.: 60.870.11.007.01F Page 7 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On astandard emission test sitewith a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 319330. 3.2Field Strength Calculation The field strength at 3 m was establis…

Text truncated - open the document above for the full version.

Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix A Date: 2011-04-20 Test report no.: 60.870.11.007.01F Model no.: 673A Photos of Test Setup – Radiated Emission
