PEQ706640305433MHz RF Transmitter

INSTRUCTION MANUAL Locations of Control Main Unit SNOOZE/LIGHT BUTTON LOCK/ALARM/TIME/CAL SWITCH TEMP MIN/MAX BUTTON SET BUTTON WAVE BUTTON ∞C/∞F BUTTON DST ON/OFF BUTTON RESET BUTTON CLEAR BUTTON + BUTTON _ BUTTON RE-SYNC BUTTON SNOOZE ON/OFF / ALARM SWITCH A B C D E F G H I J K L M Model 8104 Feature • Calendar with day of the week display from January 1, 2003 to December 31, 2069 • Hour and minute display • 12 or 24-hour format • Indoor temperature and remote temperature • Centigrade or Fahrenheit readout • Clock operating temperature from 0∞C to 50∞C ( 32∞F to 122∞F ) • Indoor, Outdoor Temperature measuring range from -50∞C to 70∞C (-58∞F to 158∞F )* • Temperature resolution 0.1∞C * If using the wireless transmitter with temperature below 32∞F or above 122∞F, user are recommended to use Lithium battery to enhance batteries life. Before You Begin To ensure proper functioning of the RF Thermo Clock, please follow this set up procedure. • Insert batteries for main unit ( Refer to instructions for battery installation ). • Place the main unit as close as possible next to the remote unit and insert batteries for the remote unit. • Position the remote unit and main unit within effective transmission range, which in usual circumstances is 20 to 30 meters. Note that the effective range is affected by the building materials and where the main and remote unit are positioned. Try various setup for the best results. Batteries Installation Batteries installation of the clock • Insert 2 "AA" batteries in polarity (+) and (-) as indicated • Close the battery cover • The low battery icon will show in the clock window when your batteries need replacing Batteries installation of wireless transmitter • Insert new batteries into transmitter • Insert 2 "AA" size batteries in proper polarity (+) and (-) as indicated • Close the battery door Warning : Do not mix old and new batteries Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Do not touch any other buttons or settings on your clock. It will automatically receive the remote temperature. Size: 140mm(W) x 177mm(H) total 8 pages (M043) #8697P.2M043P.1 • The configuration of your clock may differ somewhat from that shown in the illustration. • "AA" or "AAA" size battery. This clock may use more than one piece of battery. Please refer to the engraved battery marks inside the battery compartment for the correct battery type. C B I M J K L D E F G H A RESET∞C/∞F L O C K OPE N Model 7062 RESET Button Battery Compartment Wall Bracket ∞C/∞F A B C D Outdoor Remote Sensor (Transmitter) A C B D ELECTRONICS TOMORROW LTD. MODEL NO:8104 DC 4X1.5V MADE IN CHINA RESET WAVE C/ F CLEARMIN/MAX TEMP RE-SYNC DST ON/OFF SET FORECAST DAYDATEMONTH INDOOR OUTDOOR PM M043M043 Getting Started Upon power up of the transmitter ( or pressing the reset button ), the temperature RF signal is immediately sent to the clock. The clock attempts to receive the RF temperature signal for 5 minutes. The clock refreshes the RF temperature every 3 minutes. Check IN / REMOTE Temperature The indoor temperature is displayed on the IN temperature field and the remote temperature will be displayed on the REMOTE temperature field. If the RF temperature signal is not received within 5 minutes after power up of the receiver (or pressing the reset button), blank "---" will appear in the outdoor temperature window of the clock. In this case, press the HR/SYNC button of the clock. The clock will attempt outdoor temperature reception for another 6 minutes. After the remote temperature shows in the lower LCD panel, place the remote transmitter outside in a shaded, dry area to protect it as if under an umbrella. Try relocating the clock or the transmitter if the clock does not display the outdoor temperature after 6 minutes. Maximum and Minimum IN / REMOTE Temperature The maximum and minimum recorded temperature readings will automatically be stored in the memory. Press the Max/Min button once to display the INDOOR maximum and minimum record. Press the button again to show the REMOTE maximum and minimum record. The respective indicators, IN and REMOTE will be displayed. To clear the memory, press CLEAR when the maximum and minimum temperature records are shown, it will clear the record of the shown temperature field. To Set Calendar Press SET one time, upper LCD show year "2002" and blinks. Press + or - button to set year. Press and hold + or - will accelerate setting in faster speed. Press SET again, upper LCD changes to 1 M 1 D and blinks, press + or - button to set month and date. Press and hold + or - will accelerate setting in faster speed. To Set Time Press SET again, time digits blink, press + or - button to set time in minutes. Press and hold + or - will accelerate setting in faster speed. To Set 12HR / 24 HR Time Format Press SET again, upper LCD shows 12H and blink, press + or - button to select 12H or 24H. Press SET again to go back to current time display or if no button is further pressed for few minutes, the clock will go back to normal time display automatically. To Set Daily Alarm Time When the clock is at normal time display, press + or - to set your desired alarm time. Press and hold + or - will accelerate setting in faster speed. To Activate Alarm Function 1. Slide the SNZ/ALARM ON/OFF switch to ON position, the sign will appear on the time display. The alarm function is activated. 2. When the alarm sounds, press the Snooze/Light button. The alarm will sound the same time of the next day. 3. To deactivate the alarm function, slide the SNZ/ALARM ON/OFF switch to OFF position. To Activate the snooze alarm 1. Slide the SNZ/ALARM ON/OFF switch to SNZ position. The sign and Zz will appear on the time display. 2. When the alarm sounds, press the Snooze/Light button. The alarm will sound again in approximately 5 minutes. You may repeat this function for 10 minutes. 3. To deactivate the snooze alarm, slide the SNZ/ALARM ON/OFF switch to the OFF position. Cen…

Text truncated - open the document above for the full version.

Block Diagram of 7066 / 7063 ( Tx ) Power System Frequency System Frequency 433.9MHz (ii) 32.768kHz (i) Raw Data RF Part Base Band (i) The 32.768kHz is the MCU clock frequency for normal operation. (ii) The 433.9MHz is the output of the RF circuit Antenna Matching network MCU IC: TM8712 SAW stabilized Colpitts Oscillator Thermo sensor Key Matrix LCD

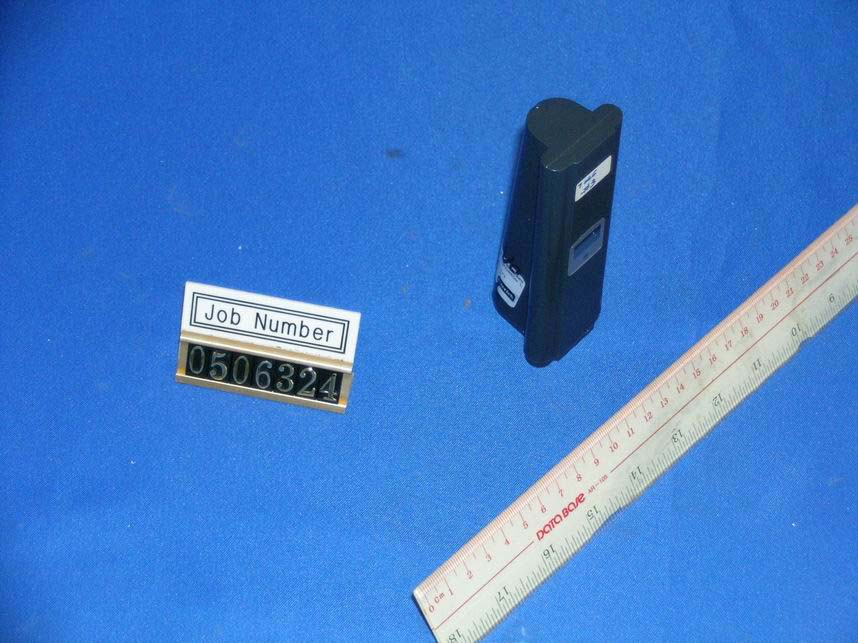

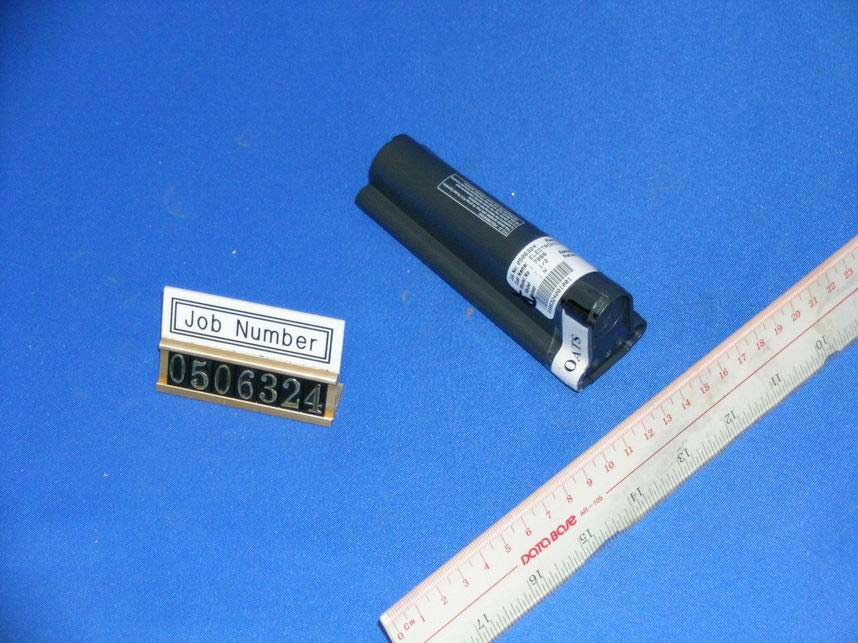

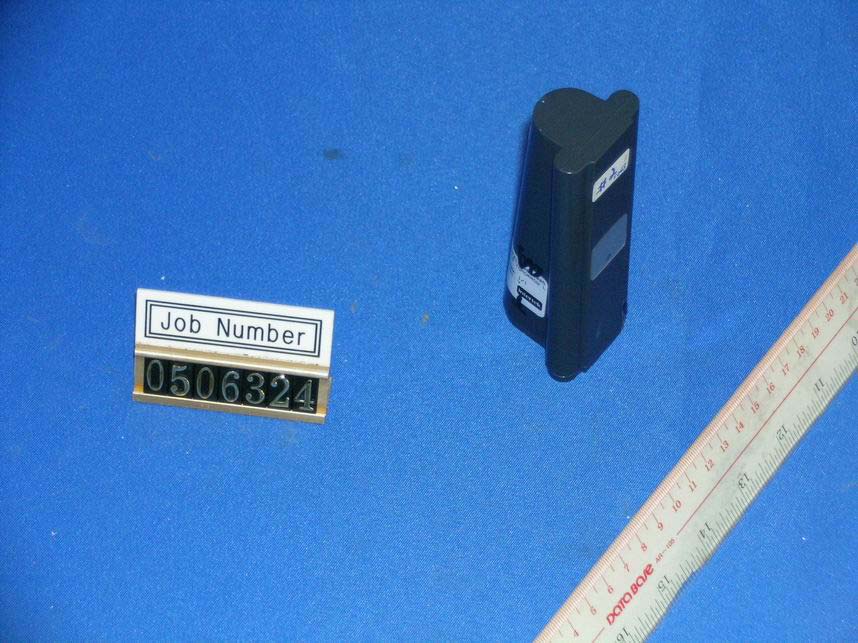

FCC ID : PEQ706640305 Model: 7066 External Photo - Front External Photo - Rear Test Setup FCC ID : PEQ706640305 Model: 7063 External Photo - Front External Photo - Rear

Test Setup FCC ID : PEQ706640305 Internal Photo - 1 Internal Photo - 2 FCC ID : PEQ706640305 Internal Photo - 3 Internal Photo – 4 FCC ID : PEQ706640305 Internal Photo - 5 Internal Photo - 6 FCC ID : PEQ706640305 Internal Photo - 7 Internal Photo - 8 FCC ID : PEQ706640305 Internal Photo - 9 Model: 7066 (Left) and Model: 7063 (Right)

Technical Description of the Circuit: The circuit is a RF thermometer transmitter part, the MCU TM8712 will measure the temperature and code the data. Afterward, the data is transferred to the RF circuit which is a SAW stabilized Colpitts Oscillator ( Constructed by Q1, L1, L2, C1, C2, C3, C4, C5, R1, R3 and X1 ) every 3 minutes, when the Data pin output HIGH level to the oscillator, the oscillator is turned on and output 433.9MHz RF signal, when the Data pin output LOW level to the oscillator, the oscillator is turned off and this ON & OFF process modulate the code data into 433.9MHz with ON OFF KEYING.. Also there is an antenna matching network ( Constructed by C7, C8, L3 and L4 ) after the SAW stabilized Colpitts Oscillator, this network suppress harmonic and spurious also match the Oscillator to the antenna.

X1 : 433.92MHz Q1 : 2SC3356

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Electronics Tomorrow Ltd. Application For Certification (FCC ID: PEQ706640305) Transmitter 0506324 DL/ Sandy Lee August 31, 2005 INTERTEK TESTING SERVICES FCC ID: PEQ706640305 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PEQ706640305 ii MEASUREMENT/TECHNICAL REPORT Electronics Tomorrow Ltd. - MODEL: Electronics Tomorrow Ltd. 7066 Electronics Tomorrow Ltd. 7063 FCC ID: PEQ706640305 August 31, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-04 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: PEQ706640305 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 4.0 Equipment Photographs .....................................................................................16 5.0 Product Labelling ................................................................................................18 6.0 Technical Specifications ....................................................................................20 7.0 Instruction Manual ..............................................................................................22 8.0 Miscellaneous Information .................................................................................24 8.1 Measured Bandwidth .........................................................................................25 8.2 Discussion of Pulse Desensitization ...................................................................26 8.3 Calculation of Average Factor ............................................................................27 8.4 Emissions Test Procedures................................................................................28 INTERTEK TESTING SERVICES FCC ID: PEQ706640305 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: PEQ706640305 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PEQ706640305 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 433.9MHz. The EUT is powered by 3V d.c. (2 x 1.5V “AA” battery). It transmits temperature signal to corresponding receiver and th…

Text truncated - open the document above for the full version.

Test Setup FCC ID : PEQ706640305 Radiated Photo - Front Radiated Photo - Rear
