PEQ724A90504433 MHz Receiver Clock

INSTRUCTION MANUAL Locations of Control Main Unit (Receiver) HR/RE-SYNC BUTTON MINUTE/CLEAR BUTTON YEAR/ MAX/MIN BUTTON MONTH/ 12/24 BUTTON DATE/ ∞C/∞F BUTTON SNOOZE/ALARM ON/OFF SWITCH RESET BUTTON LOCK/ALARM/TIME/CAL SWITCH SNOOZE/LIGHT BUTTON A B C D E F G H I Model 724A Feature • Calendar with day of the week display from January 1, 2003 to December 31, 2069 • Hour and minute display • 12 or 24-hour format • Indoor temperature and remote temperature • Centigrade or Fahrenheit readout • Clock operating temperature from 0∞C to 50∞C ( 32∞F to 122∞F ) • Indoor, Outdoor Temperature measuring range from -50∞C to 70∞C (-58∞F to 158∞F )* • Temperature resolution 0.1∞C * If using the wireless transmitter with temperature below 32∞F or above 122∞F, user are recommended to use Lithium battery to enhance batteries life. Before You Begin To ensure proper functioning of the RF Thermo Clock, please follow this set up procedure. • Insert batteries for main unit ( Refer to instructions for battery installation ). • Place the main unit as close as possible next to the remote unit and insert batteries for the remote unit. • Position the remote unit and main unit within effective transmission range, which in usual circumstances is 20 to 30 meters. Note that the effective range is affected by the building materials and where the main and remote unit are positioned. Try various setup for the best results. Batteries Installation Batteries installation of the main unit • Insert 2 "AA" batteries in polarity (+) and (-) as indicated • Close the battery cover • The low battery icon will show in the clock window when your batteries need replacing Batteries installation of remote unit • Insert 2 "AA" size batteries in proper polarity (+) and (-) as indicated • Close the battery door Warning : Do not mix old and new batteries Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Size: 140mm(W) x 177mm(H) total 8 pages (M059) #9306P.2M059P.1 • The configuration of your clock may differ somewhat from that shown in the illustration. • "AA" or "AAA" size battery. This clock may use more than one piece of battery. Please refer to the engraved battery marks inside the battery compartment for the correct battery type. A Model 7452 Remote Unit (Transmitter) SNOOZE/LIGHT H B C DE G F I M059M059 Do not touch any other buttons or settings on your clock. It will automatically receive the remote temperature. Getting Started Upon power up of the remote unit ( or pressing the reset button ), the temperature RF signal is immediately sent to the main unit. The main unit attempts to receive the RF temperature signal for 5 minutes. The main unit refreshes the RF temperature every 3 minutes. Check IN / REMOTE Temperature The indoor temperature is displayed on the IN temperature field and the remote temperature will be displayed on the REMOTE temperature field. If the RF temperature signal is not received within 5 minutes after power up of the main unit (or pressing the reset button), blank "---" will appear in the outdoor temperature window of the main unit. In this case, press the HR/SYNC button of the main unit. The main unit will attempt outdoor temperature reception for another 6 minutes. After the remote temperature shows in the lower LCD panel, place the remote unit outside in a shaded, dry area to protect it as if under an umbrella. Try relocating the unit if the main unit does not display the remote temperature after 6 minutes. Maximum and Minimum IN / REMOTE Temperature The maximum and minimum recorded temperature readings will automatically be stored in the memory. Press the Max/Min button once to display the indoor maximum and minimum record. Press the button again to show the REMOTE maximum and minimum record. The respective indicators, IN and REMOTE will be displayed. To clear the memory, press CLEAR when the maximum and minimum temperature records are shown, it will clear the record of the shown temperature field. Clock Set 1. Slide the LOCK/ALM/TIME/CAL switch to TIME position. The clock time blinks. 2. To set the time, press the HR/SYNC and MIN/CLEAR buttons until the desired time appear on the display. 3. Slide the switch to LOCK position. Alarm Set 1. Slide the LOCK/ALM/TIME/CAL switch to ALM position. The alarm time blinks. 2. To set the alarm time, press the HR/SYNC and MIN/CLEAR buttons until the desired alarm time appear on the display. 3. Slide the switch to LOCK position. Calendar Set 1. Slide the LOCK/ALM/TIME/CAL switch to CAL position. The calendar date blinks. 2. To set the calendar date, press the MONTH 12/24, DATE/∞C/∞F and YEAR/MAX/MIN button until the desired calendar date appear on the display. 3. Slide the switch to LOCK position. To Activate Alarm Function 1. Slide the SNZ/ALARM ON/OFF switch to ON position, the sign will appear on the time display. The alarm function is activated. 2. When the alarm sounds, press the Snooze/Light button. The alarm will sound the same time of the next day. 3. To deactivate the alarm function, slide the SNZ/ALARM ON/OFF switch to OFF position. To Activate the snooze alarm 1. Slide the SNZ/ALARM ON/OFF switch to SNZ position. The sign and Zz will appear on the time display. 2. When the alarm sounds, press the Snooze/Light button. The alarm will sound again in approximately 5 minutes. You may repeat this function for 10 minutes. 3. To deactivate the snooze alarm, slide the SNZ/ALARM ON/OFF switch to the OFF position. 12HR/24HR International Time Display Set Press the 12HR/24HR button to choose the desired display format. "AM" or "PM" will be displayed only in 12HR format. Centigrade (∞C) or Fahrenheit (∞F) set Press the ∞C/∞F button to choose the Centigrade or Fahrenheit readout. Note that the remote temperature display on the main unit is dominated by the selection on the main unit. Whatever the display unit of the remote unit is, it will be automatically converted to the chosen one of the main unit. P.4P.3 Trouble-Shooting • Press t…

Text truncated - open the document above for the full version.

Block Diagram of 724A/734A ( Rx ) Power control Frequency System Frequency System Frequency 433.92MHz(i) L.O. : 433.12MHz(ii) 32.768kHz(iii) Raw Data (i) The frequency is the frequency that the antenna received (ii) The L.O. is 433.12MHz (iii) The frequency is the clock of the MCU for normal operation (iv) The frequency is the frequency that the antenna received LCD MCU IC : TM8706 RF circuit IC : RX3310A Key Matrix LED back light Alarm Circuit Page 1August 2000 RX3310A UHF ASK Receiver Advance Information HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information contained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The RX3310A is a fully integrated, amplitude-shift-keying (ASK) modulation, single chip receiver. It is designed to operate in a variety of low power radio applications. All popular radio frequencies from 250 MHz to 450 MHz may be supported by simply choosing the appropriate external components. Particular emphasis has been placed on low current con- sumption. Average current consumption is 2.6 mA in normal operation mode and 25 μ A in power down mode under VCC=3.0volts. Features ‹ Wide frequency range: 250 MHz to 450 MHz ‹ High sensitivity ‹ Low power consumption ‹ Automotive temperature range ‹ High integration level requiring few and inexpensive external components ‹ SOP 18L package or SSOP 20L package Applications ‹ Remote control systems ‹ Car alarm and other security systems ‹ Baby finder, wireless doorbell, wireless toys Block Diagram the wireless IC company RF AMP MIXER OSC IF FILTER COMPARATOR IF AMP BUFFER LIMITER BANDGAP REFERENCE FOOSC1OSC2 CPA CPBCPO VSSDATADISABLE VCCVEEVIRF VCCLINCPC LFB VORF MIXIN

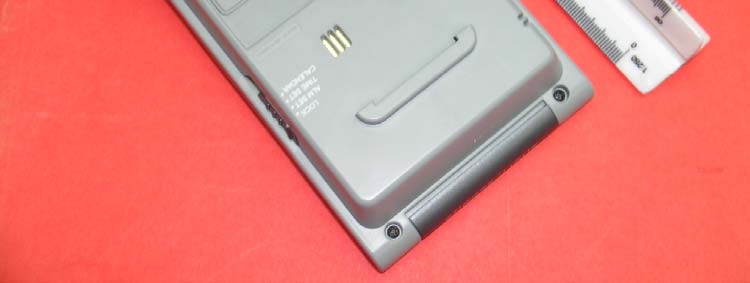

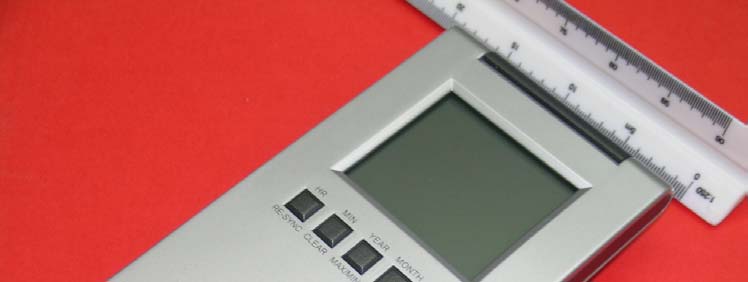

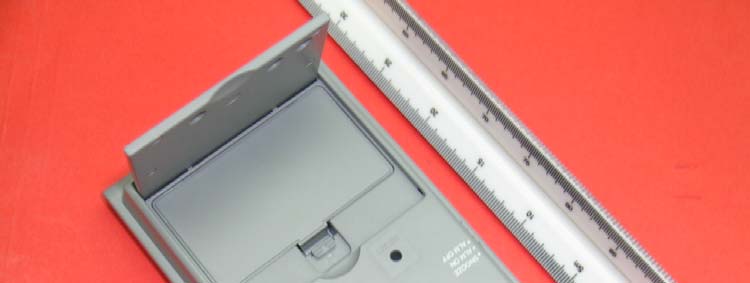

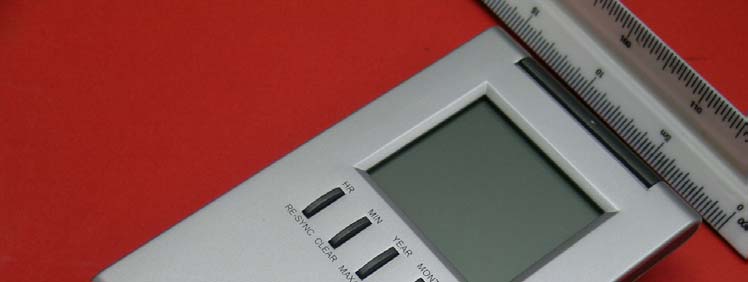

Test Setup FCCID : PEQ724A90504 Model : 724A External Photo - front External Photo - rear External Photo - front Test Setup FCCID : PEQ724A90504 Model : 734A External Photo - rear

Test Setup FCC ID :PEQ724A90504 Model : 724A Internal Photo - 1 Internal Photo - 2 Internal Photo - 3 Test Setup FCC ID : PEQ724A90504 Model : 724A Internal Photo - 4 Internal Photo - 5 Test Setup FCC ID : PEQ724A90504 Model : 724A Internal Photo - 6

699e.sch-3 - Fri Jul 11 09:06:24 2003

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Electronics Tomorrow Ltd. Application For Certification (FCC ID: PEQ724A90504) Superheterodyne Receiver 0408435 DL/ Sandy Lee June 11, 2004 INTERTEK TESTING SERVICES FCC ID: PEQ724A90504 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PEQ724A90504 ii MEASUREMENT/TECHNICAL REPORT Electronics Tomorrow Ltd. - MODEL: Electronics Tomorrow Ltd. 724A Electronics Tomorrow Ltd. 734A FCC ID: PEQ724A90504 This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: PEQ724A90504 iii Table of Contents 1.0 General Description ....................................................................................... 2 1.1 Product Description .......................................................................................... 2 1.2 Related Submittal(s) Grants.............................................................................. 2 1.3 Test Methodology............................................................................................. 3 1.4 Test Facility ...................................................................................................... 3 2.0 System Test Configuration ............................................................................ 5 2.1 Justification ...................................................................................................... 5 2.2 EUT Exercising Software.................................................................................. 5 2.3 Special Accessories ......................................................................................... 5 2.4 Equipment Modification .................................................................................... 6 2.5 Measurement Uncertainty................................................................................. 6 2.6 Support Equipment List and Description ........................................................... 6 3.0 Emission Results ........................................................................................... 8 3.1 Field Strength Calculation................................................................................. 9 3.2 Radiated Emission Configuration Photograph................................................. 10 3.3 Radiated Emission Data ................................................................................. 11 4.0 Equipment Photographs .............................................................................. 14 5.0 Product Labelling......................................................................................... 16 6.0 Technical Specifications .............................................................................. 18 7.0 Instruction Manual....................................................................................... 20 8.0 Miscellaneous Information .......................................................................... 22 8.1 Discussion of Pulse Desensitization................................................................ 23 8.2 Calculation of Average Factor......................................................................... 24 8.3 Emissions Test Procedures ............................................................................ 25 INTERTEK TESTING SERVICES FCC ID: PEQ724A90504 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: PEQ724A90504 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PEQ724A90504 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a receiver operating at 433MHz. The EUT is powered by 3.0V d.c. (2 x 1.5V “AA” size batteries). During normal use, it will receive temperature signal from the corresponding transmitter when the temperature will display on the LCD of receiver. Besides, it have clock and calendar functions. The Model: Electronics Tomorrow Ltd. 734A is the same as the Model: Electronics Tomorrow Ltd. 724A in hardware aspect except …

Text truncated - open the document above for the full version.

Test Setup FCC ID : PEQ724A90504 Model : 724A Radiated - front Radiated - rear
