PEQ740090702433MHz RF Receiver

Page 1June 2001 RX3310A UHF ASK Receiver HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information contained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The RX3310A is a fully integrated, amplitude-shift-keying (ASK) modulation, single chip receiver. It is designed to operate in a variety of low power radio applications. All popular radio frequencies from 250 MHz to 450 MHz may be supported by simply choosing the appropriate external components. Particular emphasis has been placed on low current con- sumption. Average current consumption is 2.6 mA in normal operation mode and 25 μA in power down mode under VCC=3.0volts. Features ‹Wide frequency range: 250 MHz to 450 MHz ‹High sensitivity ‹Low power consumption ‹Automotive temperature range ‹High integration level requiring few and inexpensive external components ‹SOP 18L package or SSOP 20L package Applications ‹Remote control systems ‹Car alarm and other security systems ‹Baby finder, wireless doorbell, wireless toys Block Diagram the wireless IC company RF AMP MIXER OSC IF FILTER COMPARATOR IF AMP BUFFER LIMITER BANDGAP REFERENCE FOOSC1OSC2 CPA CPBCPO VSSDATADISABLE VCCVEEVIRF VCCLINCPC LFB VORF MIXIN RX3310A the wireless IC company Page 2June 2001 Package and Pin Assignment: SOP 18L or SSOP 20L Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. A------2.640------0.104------2.00------0.079 A10.100------0.004------0.05------0.002------ A22.1902.2902.3900.0860.0900.094---1.75------0.069--- b0.3600.4100.4600.0140.0160.0180.220.300.380.0090.0120.015 C0.2420.2500.2580.0070.0100.0130.130.150.200.0050.0060.008 D11.4611.5611.660.4510.4550.4597.087.207.340.2790.2840.289 SOP 18L package VCC MIXIN VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 10 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA 1 2 3 4 5 6 7 8 HiMARK RX3310A 9 DISABLE SSOP 20L package VCC VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA HiMARK RX3310A DISABLE 1 2 3 4 5 6 7 8 9 10 19 20 MIXIN VCC VSS RX3310A the wireless IC company Page 3June 2001 RX3310A Chip Window E10.0410.3410.640.3950.4070.4197.407.808.200.2910.3070.323 E17.3907.4907.5900.2910.2950.2995.005.305.600.1970.2090.220 e1.2201.2701.3200.0480.0500.052---0.65------ 0.0256 --- L0.6400.8401.0400.0250.0330.0410.560.750.970.0220.0320.037 θ 0 ° ---8 ° 0 ° ---8 ° 0 ° ---8 ° 0 ° ---8 ° y --- ---0.050 --- ---0.002 --- ---0.10 --- ---0.004 Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. RX3310A the wireless IC company Page 4June 2001 Pin Descriptions Number (18L SOP) Number (20L SSOP) NameI/ODescription 120OSC1IOOscillator tank connection 21OSC2IOOscillator tank connection 32FOOIF filter output 43CPAIComparator input A 54CPBIComparator input B 65CPOIComparator offset adjustment 76,7VSSGNDGround 88DATAOData output 99DISABLEIDisable input. See Electrical Characteristics (cont.) on page 6 1010CPCIComparator input C 1111LINILimiter input 1212VCCPOWERPositive supply voltage 1313LFBIOLimiter feedback B 1414VIRFIRF amplifier input (requires external ac decoupling capacitor) 1515VEEGNDGround for RF amplifier 1616VORFORF amplifier output 1717MIXINIMixer input (requires external ac decoupling capacitor) 1818,19VCCPOWERPositive supply voltage RX3310A the wireless IC company Page 5June 2001 Absolute Maximum Ratings V SS = 0 V Recommended Operating Conditions V SS = 0 V ParameterSymbolRatingUnit Supply voltage V CC V SS – 0.3 to V SS + 6.0 V Operating temperature range T OPR –60 to 85 ° C Storage temperature range T STG –60 to 125 ° C Soldering temperature range T SLD 255 ° C Soldering time range t SLD 10s ParameterSymbol Va l u e Unit min.typ.max. Supply voltage range V CC 2.03.06.0V Operating temperature T A –402585 ° C RX3310A the wireless IC company Page 6June 2001 Receiver Characteristics (V CC = 2.0 to 6.0 V, LO-RF=1.8MHz,All tests at T A = 25 ° C unless otherwise noted) Electrical Characteristics (V CC = 3.0 V, V SS = 0 V, All tests at T A = 25 ° C unless otherwise noted) Electrical Characteristics (cont.) (V CC = 5.0 V, V SS = 0 V, All tests at T A = 25 ° C unless otherwise noted) ParameterSymbolCondition Va l u e Unit min.typ.max. Sensitivity P sens V CC = 3.0 V, T A = 27 ° C, , 9600 bps -106-100dBm Maximum input powerP in,max 0+3dBm Receiver turn-on timet ON 10ms ParameterSymbolCondition Va l u e Unit min.typ.max. Supply currentI CC 2.52.6mA Standby currentI CC,sb DISABLE = high2545μA Disable pin input logic high a a.Note: If the Disable pad is connected to an off-chip signal (open), then the pad is internally grounded. V DIH 2.02.4V Disable pin input logic low a V DIL 0.8V Data output logic high V OH V PP b – - 0.3 V b. Note: V PP is the pull-up voltage for open collector data output. It may be as high as 13 V. V Data output logic low V OL 0.3V ParameterSymbolCondition Va l u e Unit min.typ.max. Supply currentI CC 4.55.0mA Standby currentI CC,sb DISABLE = high3550μA Disable pin input logic highV DIH 2.02.4V Disable pin input logic low V DIL 0.8V Data output logic high V OH V PP a - 0.3 V a.Note: If the Disable pad is not connected to an off-chip signal (open), then the pad is internally grounded. b: Note: V PP is the pull-up voltage for open collector data output. It may be as high as 13 V. V Data output logic low V OL 0.3V BER 3 10 0 ---------≤ RX3310A the wireless IC company Page 7June 2001 Functional Description RF amplifier The RF amplifier uses a common emitter configuration with a separate emitter connection (VEE). The input signal (VIRF) should be ac-coupled externally. The output of the ampli- fier is open collector so that the gain may be set with an external tuned loa…

Text truncated - open the document above for the full version.

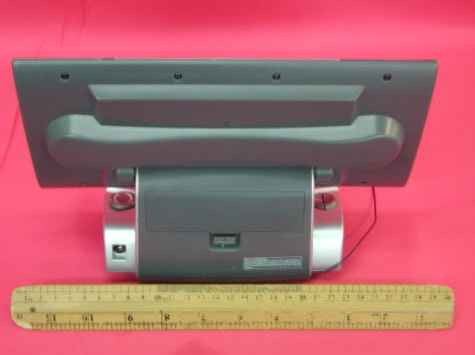

Test Setup FCCID : PEQ740090702 External Photo -front External Photo – rear

Test Setup FCCID : PEQ740090702 Internal Photo - 1 Internal Photo - 2 Test Setup FCCID : PEQ740090702 Internal Photo – 3 Internal Photo – 4 Test Setup FCCID : PEQ740090702 Internal Photo – 5 Internal Photo – 6 Test Setup FCCID : PEQ740090702 Internal Photo –7

Page 1June 2001 RX3310A UHF ASK Receiver HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information contained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The RX3310A is a fully integrated, amplitude-shift-keying (ASK) modulation, single chip receiver. It is designed to operate in a variety of low power radio applications. All popular radio frequencies from 250 MHz to 450 MHz may be supported by simply choosing the appropriate external components. Particular emphasis has been placed on low current con- sumption. Average current consumption is 2.6 mA in normal operation mode and 25 μA in power down mode under VCC=3.0volts. Features ‹Wide frequency range: 250 MHz to 450 MHz ‹High sensitivity ‹Low power consumption ‹Automotive temperature range ‹High integration level requiring few and inexpensive external components ‹SOP 18L package or SSOP 20L package Applications ‹Remote control systems ‹Car alarm and other security systems ‹Baby finder, wireless doorbell, wireless toys Block Diagram the wireless IC company RF AMP MIXER OSC IF FILTER COMPARATOR IF AMP BUFFER LIMITER BANDGAP REFERENCE FOOSC1OSC2 CPA CPBCPO VSSDATADISABLE VCCVEEVIRF VCCLINCPC LFB VORF MIXIN RX3310A the wireless IC company Page 2June 2001 Package and Pin Assignment: SOP 18L or SSOP 20L Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. A------2.640------0.104------2.00------0.079 A10.100------0.004------0.05------0.002------ A22.1902.2902.3900.0860.0900.094---1.75------0.069--- b0.3600.4100.4600.0140.0160.0180.220.300.380.0090.0120.015 C0.2420.2500.2580.0070.0100.0130.130.150.200.0050.0060.008 D11.4611.5611.660.4510.4550.4597.087.207.340.2790.2840.289 SOP 18L package VCC MIXIN VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 10 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA 1 2 3 4 5 6 7 8 HiMARK RX3310A 9 DISABLE SSOP 20L package VCC VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA HiMARK RX3310A DISABLE 1 2 3 4 5 6 7 8 9 10 19 20 MIXIN VCC VSS RX3310A the wireless IC company Page 3June 2001 RX3310A Chip Window E10.0410.3410.640.3950.4070.4197.407.808.200.2910.3070.323 E17.3907.4907.5900.2910.2950.2995.005.305.600.1970.2090.220 e1.2201.2701.3200.0480.0500.052---0.65------ 0.0256 --- L0.6400.8401.0400.0250.0330.0410.560.750.970.0220.0320.037 θ 0 ° ---8 ° 0 ° ---8 ° 0 ° ---8 ° 0 ° ---8 ° y --- ---0.050 --- ---0.002 --- ---0.10 --- ---0.004 Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. RX3310A the wireless IC company Page 4June 2001 Pin Descriptions Number (18L SOP) Number (20L SSOP) NameI/ODescription 120OSC1IOOscillator tank connection 21OSC2IOOscillator tank connection 32FOOIF filter output 43CPAIComparator input A 54CPBIComparator input B 65CPOIComparator offset adjustment 76,7VSSGNDGround 88DATAOData output 99DISABLEIDisable input. See Electrical Characteristics (cont.) on page 6 1010CPCIComparator input C 1111LINILimiter input 1212VCCPOWERPositive supply voltage 1313LFBIOLimiter feedback B 1414VIRFIRF amplifier input (requires external ac decoupling capacitor) 1515VEEGNDGround for RF amplifier 1616VORFORF amplifier output 1717MIXINIMixer input (requires external ac decoupling capacitor) 1818,19VCCPOWERPositive supply voltage RX3310A the wireless IC company Page 5June 2001 Absolute Maximum Ratings V SS = 0 V Recommended Operating Conditions V SS = 0 V ParameterSymbolRatingUnit Supply voltage V CC V SS – 0.3 to V SS + 6.0 V Operating temperature range T OPR –60 to 85 ° C Storage temperature range T STG –60 to 125 ° C Soldering temperature range T SLD 255 ° C Soldering time range t SLD 10s ParameterSymbol Va l u e Unit min.typ.max. Supply voltage range V CC 2.03.06.0V Operating temperature T A –402585 ° C RX3310A the wireless IC company Page 6June 2001 Receiver Characteristics (V CC = 2.0 to 6.0 V, LO-RF=1.8MHz,All tests at T A = 25 ° C unless otherwise noted) Electrical Characteristics (V CC = 3.0 V, V SS = 0 V, All tests at T A = 25 ° C unless otherwise noted) Electrical Characteristics (cont.) (V CC = 5.0 V, V SS = 0 V, All tests at T A = 25 ° C unless otherwise noted) ParameterSymbolCondition Va l u e Unit min.typ.max. Sensitivity P sens V CC = 3.0 V, T A = 27 ° C, , 9600 bps -106-100dBm Maximum input powerP in,max 0+3dBm Receiver turn-on timet ON 10ms ParameterSymbolCondition Va l u e Unit min.typ.max. Supply currentI CC 2.52.6mA Standby currentI CC,sb DISABLE = high2545μA Disable pin input logic high a a.Note: If the Disable pad is connected to an off-chip signal (open), then the pad is internally grounded. V DIH 2.02.4V Disable pin input logic low a V DIL 0.8V Data output logic high V OH V PP b – - 0.3 V b. Note: V PP is the pull-up voltage for open collector data output. It may be as high as 13 V. V Data output logic low V OL 0.3V ParameterSymbolCondition Va l u e Unit min.typ.max. Supply currentI CC 4.55.0mA Standby currentI CC,sb DISABLE = high3550μA Disable pin input logic highV DIH 2.02.4V Disable pin input logic low V DIL 0.8V Data output logic high V OH V PP a - 0.3 V a.Note: If the Disable pad is not connected to an off-chip signal (open), then the pad is internally grounded. b: Note: V PP is the pull-up voltage for open collector data output. It may be as high as 13 V. V Data output logic low V OL 0.3V BER 3 10 0 ---------≤ RX3310A the wireless IC company Page 7June 2001 Functional Description RF amplifier The RF amplifier uses a common emitter configuration with a separate emitter connection (VEE). The input signal (VIRF) should be ac-coupled externally. The output of the ampli- fier is open collector so that the gain may be set with an external tuned loa…

Text truncated - open the document above for the full version.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. •The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2745 8306 Electronics Tomorrow Ltd. Application For Certification (FCC ID: PEQ740090702) Superheterodyne Receiver WO# 0212981 TL/Sandy November 28, 2002 INTERTEK TESTING SERVICES FCC ID: PEQ740090702 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PEQ740090702 ii MEASUREMENT/TECHNICAL REPORT Electronics Tomorrow Ltd. - MODEL: Talking Alarm Clock with Weather and Message Center 7400 FCC ID: PEQ740090702 This report concerns (check one:)Original Grant X Class II Change ____ Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [12-18-01 Edition] provision. Report prepared by:Tommy Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone:852-2173-8538 Fax:852-2371-0521 INTERTEK TESTING SERVICES FCC ID: PEQ740090702 iii Table of Contents 1.0 General Description............................................................................................................2 1.1 Product Description............................................................................................................2 1.2 Related Submittal(s) Grants.................................................................................................2 1.3 Test Methodology...............................................................................................................3 1.4 Test Facility........................................................................................................................3 2.0 System Test Configuration.................................................................................................5 2.1 Justification.........................................................................................................................5 2.2 EUT Exercising Software....................................................................................................5 2.3 Special Accessories............................................................................................................5 2.4 Equipment Modification......................................................................................................6 2.5 Measurement Uncertainty....................................................................................................6 2.6 Support Equipment List and Description..............................................................................6 3.0 Emission Results.................................................................................................................8 3.1 Field Strength Calculation....................................................................................................9 3.2 Radiated Emission Configuration Photograph.....................................................................10 3.3 Radiated Emission Data....................................................................................................11 3.4 Conducted Emission Configuration Photograph..................................................................13 3.5 Conducted Emission Data.................................................................................................14 4.0 Equipment Photographs....................................................................................................16 5.0 Product Labelling..............................................................................................................18 6.0 Technical Specifications....................................................................................................20 7.0 Instruction Manual............................................................................................................22 8.0 Miscellaneous Information...............................................................................................24 8.1 Discussion of Pulse Desensitization....................................................................................25 8.2 Calculation of Average Factor...........................................................................................26 8.3 Emissions Test Procedures................................................................................................27 INTERTEK TESTING SERVICES FCC ID: PEQ740090702 iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.pdf Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated photos.pdf Test Setup PhotoConducted Emissionconducted photos.pdf Test ReportConducted Emission Test Resultconducted.pdf External PhotoExternal Photoexternal photos.pdf Internal PhotoInternal Photointernal photos.pdf Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf …

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO Report No.:0212981 Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:0212981 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement: x QP Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 dBuV 80 0.45 30 MHz 110 FCC15B Intertek Testing Services ETL SEMKO Report No.:0212981 Ctrl No.:N/A Tested By:Hong, Report No.:0212981 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement Results: no Results

Test Setup FCCID : PEQ740090702 Radiated -front Radiated - rear

Test Setup FCCID : PEQ740090702 Conduct Photo - 1 Conduct Photo - 2 Test Setup FCCID : PEQ740090702 Conduct Photo – 3
