PEQ840090604433MHz RF Thermo Receiver Clock

INSTRUCTION MANUAL Locations of Control Main Unit (Receiver) SNOOZE/LIGHT BUTTON SNOOZE/ALARM ON/OFF SWITCH TEMP MAX/MIN BUTTON SET BUTTON + BUTTON RE-SYNC BUTTON SELECT BUTTON HUMIDITY MAX/MIN BUTTON CLEAR BUTTON - BUTTON WAVE BUTTON ûC/ûF BUTTON RESET BUTTON DST/TIME ZONE A B C D E F G H I J K L M N Model 8400 The Radio-Controlled Clock with Thermometer With the Radio-Controlled Clock, you have the most accurate timepiece within the continent. It can receive the time signal transmitted by the National Institute of Standards and Technology (NIST), which is regulated by 3 atomic clocks and deviates less than 1 second within 3,000 years. The NIST broadcasts the time signal (WWVB, 60kHz) continuously from Fort Collins, Colorado. This signal can be received anywhere in the continental USA that long wave (AM) radio reception is possible with a portable radio. It is expected that the signal can cover a distance of over 2,000 miles from the transmitter. Therefore, your clock will receive the signal within the broadcast range anywhere an AM signal can be received; generally the signal cannot be picked up in massive metal and concrete structures unless near a window. In addition, some environmental effects (see next page) may affect the transmitting distance. For more information, please study the WWVB WEB page of NIST at: http://www.boulder.nist.gov/timefreq/ Feature ¥ Receive 60kHz WWVB signal transmitted by NIST in Fort Collins,Colorado. ¥ Automatic time adjustment after signal reception. ¥ Calendar with day of the week display from January 1, 2003 to December 31, 2039 ¥ Hour, minute and second display ¥ 12 or 24-hour format ¥ Indoor temperature and remote temperature ¥ Indoor humidity and remote humidity ¥ Centigrade or Fahrenheit readout ¥ Clock operating temperature from 0ûC to 50ûC ( 32ûF to 122ûF ) ¥ Indoor, Outdoor Temperature measuring range from -50ûC to 70ûC (-58ûF to 158ûF )* ¥ Temperature resolution 0.1ûC ¥ humidity resolution 1% ¥ Time accuracy (Atomic clock): better then 1 second in 3000 years. ¥ Time accuracy (free run): average with in ±60 seconds per month * If using the wireless transmitter with temperature below 32ûF or above 122ûF, user are recommended to use Lithium battery to enhance batteries life. Attention The Radio-Controlled Clock obtains the accurate time with wireless technology. Same as all wireless devices, the receiving ability may be affected by, but not limited to, the following conditions: ¥ Long transmitting distance. ¥ Nearby mountains and valleys. ¥ Among tall buildings. ¥ Near railway, high voltage cable, etc. ¥ Near freeway, airport, etc. ¥ Near construction site. ¥ Inside concrete buildings. ¥ Near electrical appliances. ¥ Bad weather. ¥ Inside moving vehicles. ¥ Nearby metallic structures. Location Precautions This clock receives a radio wave much like a TV or radio. Be sure to locate it near a window or some other locations where reception is good. Avoid the following locations, which can interfere with proper reception. Size: 140mm(W) x 177mm(H) total 8 pages (M0xx) #xxxxP.2M0xxP.1 ¥ The configuration of your clock may differ somewhat from that shown in the illustration. ¥ "AA" or "AAA" size battery. This clock may use more than one piece of battery. Please refer to the engraved battery marks inside the battery compartment for the correct battery type. Model 7530 SELECTION RESET Button ûC/ûF A B C Remote Unit (Transmitter) FCC ID : PEQ753090303 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not ca- use harmful interference,and (2) this device must accept any inte rference received,including interference that may cause undesired operation. - RESET SELECTIONC/ F A B C M0xxM0xx Before You Begin To ensure proper functioning of the Weather Forecast Station, please follow this set up procedure. ¥ Insert batteries for main unit ( Refer to instructions for battery installation ). ¥ Place the main unit as close as possible next to the remote unit and insert batteries for the remote unit. ¥ Position the remote unit and main unit within effective transmission range, which in usual circumstances is 20 to 30 meters. Note that the effective range is affected by the building materials and where the main and remote unit are positioned. Try various setup for the best results. Batteries Installation Batteries installation of the main unit ¥ Insert 4 "AAA" batteries in polarity (+) and (-) as indicated ¥ Close the battery cover ¥ The low battery icon will show in the display when your batteries need replacing Batteries installation of remote unit ¥ Insert 2 "AA" size batteries in proper polarity (+) and (-) as indicated ¥ Close the battery door Warning : Do not mix old and new batteries Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Do not touch any other buttons or settings on your weather forcast station. It will automatically receive the outdoor temperature humidity. Getting Started ¥ Upon power up of the remote unit ( or pressing the reset button ), the temperature/humidity RF signal is immediately sent to the main unit. The main clock attempts to receive the RF temperature/humidity signal for 5 minutes. When the RF temperature/humidity signal received after power up of main unit, display will change to show the OUTDOOR readout and the main unit refreshes the RF temperature/humidity every 3 minutes. ¥ After the outdoor temperature/humidity shows in the lower LCD panel, place the remote unit outside in a shaded, dry area to protect it as if under an umbrella. ¥ If the RF temperature/humidity signal is not received within 5 minutes after power up of the main unit (or pressing the reset button), only INDOOR readout will be available and LCD keep showing INDOOR readout. In this case, press the RE-SYNC button of the main unit. The main unit will attempt outdoor temperature/humidity reception for another 6 minutes. Check INDOOR/OUTDOOR Temperature and H…

Text truncated - open the document above for the full version.

Block Diagram of 8400/8401 ( Rx ) F r e q u e n c y 60kHz(iv) P o w e r c o n t r o l D a t a P o w e c o n t r o l Frequency System Frequency System Frequency System Frequency 433.92MHz(i) L.O. : 433.12MHz(ii) 32.768kHz(iii) 32.768kHz(iii) R a w D a t a LCD Display Bar Antenna MCU IC : TM8706 RF circuit IC : RX3310A Key Matr ix MCU IC : S1C60N16 Radio control clock receiv er Key Matr ix Pressure sensor module The m o & Hygro sensor Backlight ( EL for 8400 and LED for 8401) (i) The frequency is the frequency that the antenn a receiv e d (ii) The L.O. is 433.12MHz (iii) The frequency is the clock of the MCU for nor m a l operation (iv) The frequency is the frequency that the antenn a receiv e d

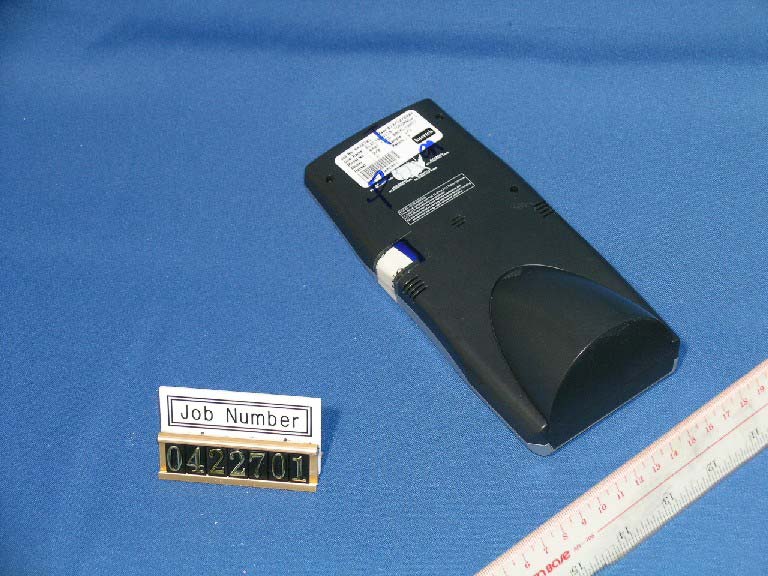

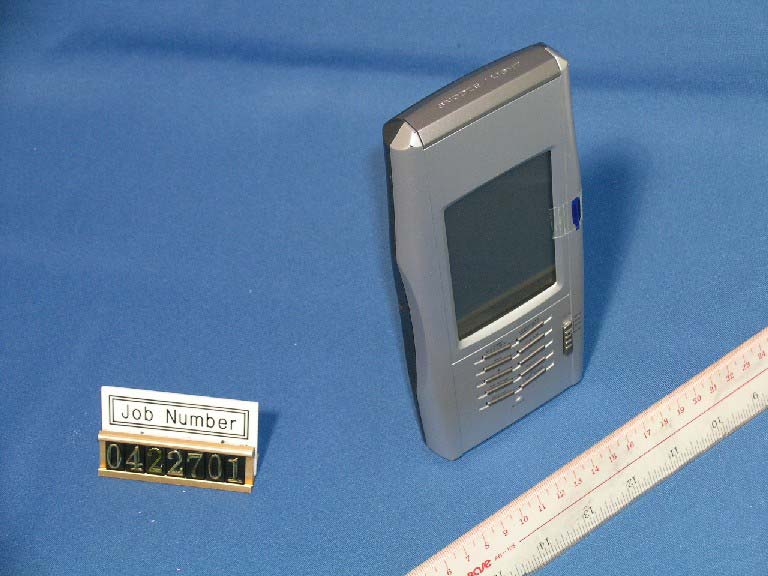

INTERTEK TESTING SERVICES FCC ID: PEQ840090604 External Photo (Model No.: 8400 EL Blacklight) Front View Rear View INTERTEK TESTING SERVICES FCC ID: PEQ840090604 External Photo (Model No.: 8401 LED Blacklight) Front View Rear View

INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-1 Photo-2 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-3 Photo-4 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-5 Photo-6 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-7 Photo-8 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-9 Photo-10 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-11 Photo-12 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-13 Photo-14 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8400 EL Blacklight) Photo-15 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8401 LED Blacklight) Photo-16 Photo-17 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Internal Photo (Model No.: 8401 LED Blacklight) Photo-18

Technical Description of the Circuit: This product can be divided into two separate function module (i) RF module (ii) RCC module (i)RF module This module can divide into two part, RF and Baseband, the RF circuit is a single conversion, super-heterodyne architecture receiver IC. The incoming RF signal received by the antenna is fed to the RF input terminal of the IC RX3310A, then the RF signal is then amplified by the LNA in the IC RX3310A. The amplified signal will fed to the mixer input, the LO for the mixer is generated by the external LC tank circuit, in the above circuit, the LO is 432.12MHz, the IF ( FRF-FLO ) is then demodulated by the demodulator in the IC RX3310A and the IC RX 3310A provide the raw data. The data is then fed to the baseband MCU TM8706 for decoding and the MCU TM8706 will display the decoded temperature at the LCD. (ii)RCC module This module can also divide into RF and Baseband, the RF circuit is a AM demodulator which receive 60kHz WWVB time signal and demodulate the signal into useful time data. The data is then fed to the baseband MCU S1C60N16 for decode, the decoded time will be display on the LCD. Page 1June 2003 RX3310A UHF ASK Receiver HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information contained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The RX3310A is a fully integrated, amplitude-shift-keying (ASK) modulation, single chip receiver. It is designed to operate in a variety of low power radio applications. All popular radio frequencies from 250 MHz to 450 MHz may be supported by simply choosing the appropriate external components. Particular emphasis has been placed on low current con- sumption. Features ‹Wide frequency range: 250 MHz to 450 MHz ‹High sensitivity ‹Low power consumption ‹Automotive temperature range ‹High integration level requiring few and inexpensive external components ‹SOP 18L package or SSOP 20L (150 mil) package Applications ‹Remote control systems ‹Car alarm and other security systems ‹Baby finder, wireless doorbell, wireless toys Block Diagram RF AMP MIXER OSC IF FILTER COMPARATOR IF AMP BUFFER LIMITER BANDGAP REFERENCE FO OSC1OSC2 CPA CPBCPO VSSDATADISABLE VCCVEEVIRF VCCLINCPC LFB VORF MIXIN RX3310A Page 2June 2003 Package and Pin Assignment: SOP 18L or SSOP 20L Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. A------2.640------0.1041.351.601.750.0530.0640.069 A10.100------0.004------0.1---0.250.004---0.010 A22.1902.2902.3900.0860.0900.094---1.45------0.057--- b0.3600.4100.4600.0140.0160.0180.200.250.300.0080.0100.012 C0.2420.2500.2580.0070.0100.0130.19---0.250.007---0.010 D11.4611.5611.660.4510.4550.4598.55---8.750.337---0.344 SOP 18L package VCC MIXIN VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 10 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA 1 2 3 4 5 6 7 8 HiMARK RX3310A 9 DISABLE SSOP 20L package VCC VORF VEE VIRF LFB VCC LIN 18 17 16 15 14 13 12 11 CPC OSC1 OSC2 FO CPA CPB CPO VSS DATA HiMARK RX3310A DISABLE 1 2 3 4 5 6 7 8 9 10 19 20 MIXIN VCC VSS RX3310A Page 3June 2003 RX3310A Chip Window E10.0410.3410.640.3950.4070.4195.80---6.200.228---0.244 E17.3907.4907.5900.2910.2950.2993.80---4.000.150---0.157 e1.2201.2701.3200.0480.0500.052---0.64------0.025--- L0.6400.8401.0400.0250.0330.0410.40---1.270.016---0.050 θ 0 °---8°0°---8°0° --- 8 °0° --- 8 ° y --- ---0.050 --- ---0.002------0.10------0.004 Sym bols SOP 18L (dimensions in mm) SOP 18L (dimensions in inch) SSOP 20L (dimensions in mm) SSOP 20L (dimensions in inch) MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX.MIN.NOM.MAX. RX3310A Page 4June 2003 Pin Descriptions Number (18L SOP) Number (20L SSOP) NameI/ODescription 120OSC1IOOscillator tank connection 21OSC2IOOscillator tank connection 32FOOIF filter output 43CPAIComparator input A 54CPBIComparator input B 65CPOIComparator offset adjustment 76,7VSSGNDGround 88DATAOData output 99DISABLEIDisable input. See Electrical Characteristics (cont.) on page 6 1010CPCIComparator input C 1111LINILimiter input 1212VCCPOWERPositive supply voltage 1313LFBIOLimiter feedback B 1414VIRFIRF amplifier input (requires external ac decoupling capacitor) 1515VEEGNDGround for RF amplifier 1616VORFORF amplifier output 1717MIXINIMixer input (requires external ac decoupling capacitor) 1818,19VCCPOWERPositive supply voltage RX3310A Page 5June 2003 Absolute Maximum Ratings V SS = 0 V Recommended Operating Conditions V SS = 0 V ParameterSymbolRatingUnit Supply voltage V CC V SS – 0.3 to V SS + 6.0 V Operating temperature range T OPR –60 to 85 °C Storage temperature range T STG –60 to 125 °C Soldering temperature range T SLD 255 °C Soldering time range t SLD 10s ParameterSymbol Va l u e Unit min.typ.max. Supply voltage range V CC 2.03.06.0V Operating temperature T A –402585 °C RX3310A Page 6June 2003 Receiver Characteristics (V CC = 2.0 to 6.0 V, LO-RF=1.8MHz,All tests at T A = 25 °C unless otherwise noted) Electrical Characteristics (V CC = 3.0 V, V SS = 0 V, All tests at T A = 25 °C unless otherwise noted) Electrical Characteristics (cont.) (V CC = 5.0 V, V SS = 0 V, All tests at T A = 25°C unless otherwise noted) ParameterSymbolCondition Va l u e Unit min.typ.max. Sensitivity P sens V CC = 3.0 V, T A = 27 °C, AM 99%, sine wave (ASK square wave) -100 (-104) -98 (-102) dBm Maximum input powerP in,max -35-30dBm Receiver turn-on timet ON 5ms ParameterSymbolCondition Va l u e Unit min.typ.max. Supply currentI CC 34.5mA Standby currentI CC,sb DISABLE = high 25 45 μA Disable pin input logic high a a.Note: If the Disable pad is connected to an off-chip signal (open), then the pad is internally grounded. V DIH 2.02.4V Disable pin input logic low a V DIL 0.8V Data output logic high V OH V PP b – - 0.3 V b. Note: V PP is the pull-up voltage for open collector data output…

Text truncated - open the document above for the full version.

697jV2.sch-1 - Thu Dec 16 10:49:41 2004 79661v11.sch-1 - Thu Dec 16 08:24:26 2004 697jV2.sch-2 - Thu Dec 16 08:22:31 2004

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Electronics Tomorrow Ltd. Application For Certification (FCC ID: PEQ840090604) Superheterodyne Receiver 0422701 DL/ Sandy Lee March 14, 2005 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PEQ840090604 ii MEASUREMENT/TECHNICAL REPORT Electronics Tomorrow Ltd. - MODEL: Electronics Tomorrow Ltd. 8400 Electronics Tomorrow Ltd. 8401 FCC ID: PEQ840090604 This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 iii Table of Contents 1.0 General Description .......................................................................................... 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants ................................................................................ 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration ............................................................................... 5 2.1 Justification ......................................................................................................... 5 2.2 EUT Exercising Software .................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty ................................................................................... 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results .............................................................................................. 8 3.1 Field Strength Calculation ................................................................................... 9 3.2 Radiated Emission Configuration Photograph ................................................... 10 3.3 Radiated Emission Data.................................................................................... 11 4.0 Equipment Photographs ................................................................................. 15 5.0 Product Labelling ............................................................................................ 17 6.0 Technical Specifications ................................................................................ 19 7.0 Instruction Manual .......................................................................................... 21 8.0 Miscellaneous Information ............................................................................. 23 8.1 Discussion of Pulse Desensitization .................................................................. 24 8.2 Calculation of Average Factor ........................................................................... 25 8.3 Emissions Test Procedures............................................................................... 26 INTERTEK TESTING SERVICES FCC ID: PEQ840090604 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: PEQ840090604 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PEQ840090604 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a RF Receiver Clock operating at 434MHz. The EUT is powered by 6VDC (4 x 1.5V “AAA” size batteries). Once the batteries are placed in the EUT, it starts to receive the RF temperature and humidity signal from the remote sensor for 5 minutes. Upon successful reception, the RF temperature and humidity signal will display on the receiver. The EUT…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Radiated Emissions Test Setup (Model No.: 8400 EL Blacklight) Front View Rear View INTERTEK TESTING SERVICES FCC ID: PEQ840090604 Radiated Emissions Test Setup (Model No.: 8401 LED Blacklight) Front View Rear View
