PEQ944390807Wireless Weather Station Receiver

TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Kowloon ,Hong Kong Tel: +(852) 2776 1323 Fax: +(852) 2776 1372 Application of FCC Certificate Date:22.10.2007 To: Phoenix TestLab GmbH Tel No.:+49 (0) 52 35 95 00-24Fax No.:+49 (0) 52 35 95 00-28 Our Project No.: 60.870.7.009.01F Product:Wireless Heat / Humindex Thermometer Model:260NU Dear Sir / Madam, We hereby would like to apply the FCC Certificate for the above mentioned product, test report and all essential technical documents are submitted for your reviewing, please kindly find all documents in the zip file. If there are any query or missing document regarding to this application, please free feel to contact me directly [email protected] . Thank you very much for your attention. Best Regards, Prudence Poon Project Manager Telecom Department TÜV SÜD Hong Kong Ltd.

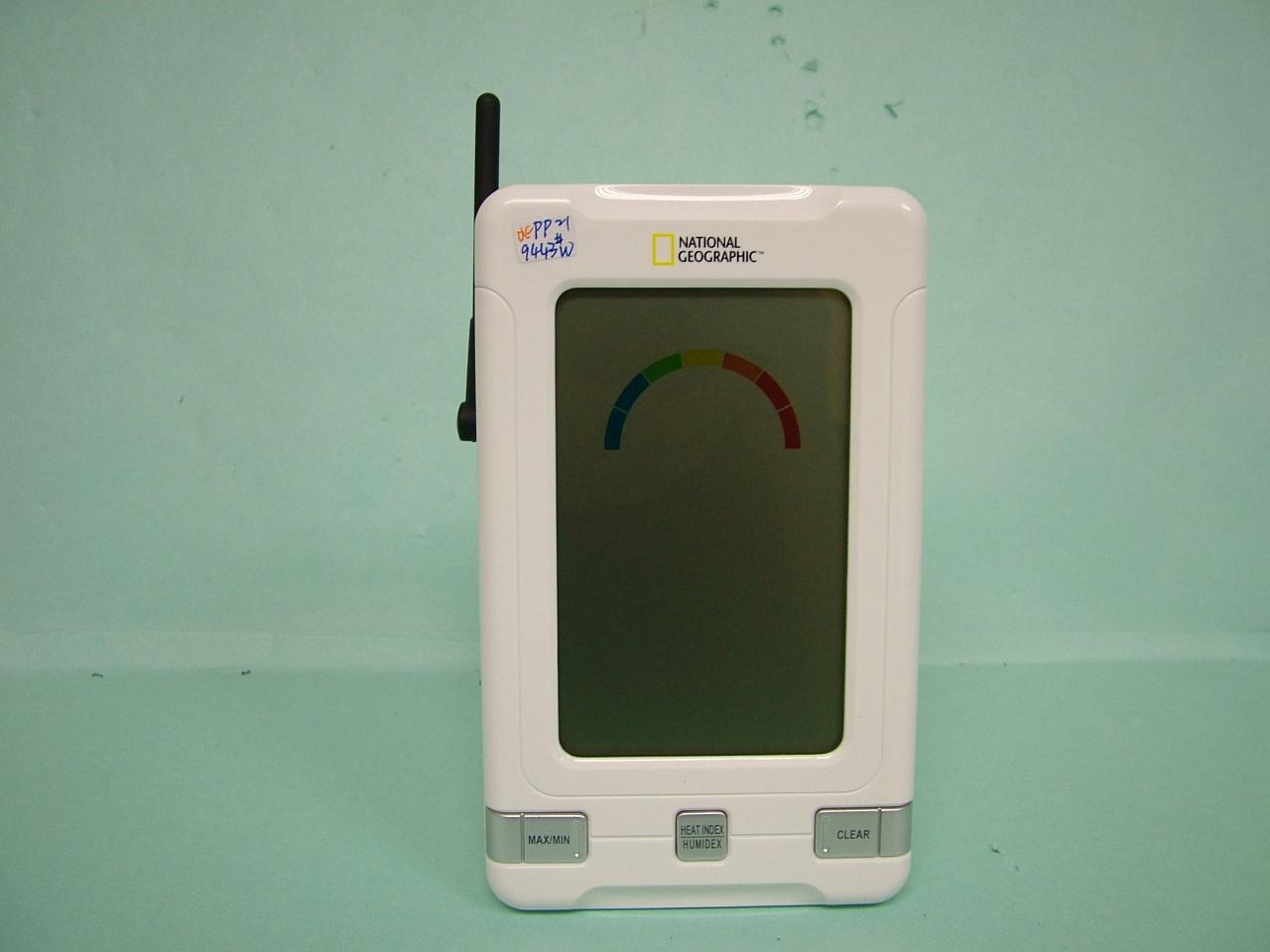

Page 1 of 1 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix B Date: 2007-10-05 Test report no.: 60.870.7.009.01F Model no.: 260NU Photos of EUT – External EUT Photos

Page 1 of 5 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix C Date: 2007-10-05 Test report no.: 60.870.7.009.01F Model no.: 260NU Photos of EUT – Internal EUT Photos Page 2 of 5 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Test report no.: 60.870.7.009.01F Model no.: 260NU Page 3 of 5 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Test report no.: 60.870.7.009.01F Model no.: 260NU Page 4 of 5 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Test report no.: 60.870.7.009.01F Model no.: 260NU Page 5 of 5 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Test report no.: 60.870.7.009.01F Model no.: 260NU

Technical Description of the Circuit: The product can divide into two part, RF and Baseband, the RF circuit is a single conversion, super-heterodyne architecture receiver IC. The incoming RF signal received by the antenna is fed to the RF input terminal of the IC RX3310A, then the RF signal is then amplified by the LNA in the IC RX3310A. The amplified signal will fed to the mixer input, the LO for the mixer is generated by the external LC tank circuit, in the above circuit, the LO is 433.12MHz, the IF (F RF -F LO ) is then demodulated by the demodulator in the IC RX3310A and the IC RX 3310A provide the raw data. The data is then fed to the baseband MCU TM8726 for decoding and the MCU TM8726 will display the decoded temperature at the LCD.

Date: 2007-10-05 TEST REPORT No.: 60.870.7.009.01F Page 1 of 14 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Applicant: Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Description of Samples: Model name: Wireless Heat/Humindex Thermometer Brand name: Nil Model no.:260NU, 260NC, 260BC, 260BU FCCID:PEQ944390807 Date Samples Received: 2007-09-24 Date Tested: 2007-09-24 to 2007-10-03 Investigation Requested: FCC Part 15 Subpart B Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Checked by:Approved by:- Prudence PoonVictor Kwan Project ManagerManager Telecom departmentTelecom department Page 2 of 14 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONTENT: Cover Page 1 of 14 Content Page 2 of 14 1.0 General Details 1.1Test Laboratory Page 3 of 14 1.2Applicant Details Page 3 of 14 1.3Equipment Under Test [EUT] Page 4 of 14 1.4Related Submittal(s) Grants Page 4 of 14 2.0 Technical Details 2.1Investigations Requested Page 5 of 14 2.2Test Standards and Results Summary Page 5 of 14 3.0 Test Methodology 3.1Radiated Emission Page 6 of 14 3.2Field Strength Calculation Page 6 of 14 3.3Conducted Emission Page 6 of 14 4.0 Test Result 4.1Spurious Radiated Emission Page 7 of 14 4.2Conducted Emission Page 13 of 14 5.0 List of Equipment Page 14 of 14 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Page 3 of 14 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.0 General Details 1.1 Test Laboratory Hong Kong Productivity Council HKPC Building, 78 Tat Chee Avenue, Kowloon Tong, Hong Kong Registration Number: 90656 1.2 Applicant Details Applicant Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Manufacturer Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Page 4 of 14 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.3 Equipment Under Test [EUT] Description of Sample Model Name:Wireless Heat/Humindex Thermometer Manufacturer:Electronics Tomorrow Ltd. Brand Name: Nil Model Number: 260NU Rating:3.0Vd.c. ( 3 x “ AA” size batteries ) No. of Channel:1 Accessories and Auxiliary Equipment:None EUT Exercising Software:None Description of EUT The Equipment Under Test (EUT) is the wireless weather station operated at 433.920MHz to receive the temperature and humidity signal from the associated transmitter. As per Client Declaration, circuit design, PCB Layout, shielding and interface of 260NU, 260NC, 260BC and 260BU are identical, only the cosmetic is different. So, 260NU is selected to be a representative model to perform all testing. 1.4 Related Submittal(s) Grants This is a single application for certification of the receiver. Page 5 of 14 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2007 and ANSI C63.4: 2003 for FCC Verification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPass Failed N/A Radiated Emissions, 30MHz to 2GHz FCC 47CFR 15.109ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.107ANSI C63.4:2003 Class B Note: N/A - Not Applicable Page 6 of 14 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 3.0 Test Methodology 3.1 Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On a standard emission test site with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90656. 3.2 Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3 Conducted Emissions The EUT was placed on a non-metallic table 0.8m above the horizontal metal reference place and 0.4m from a vertical ground plane which is connected to the horizontal metal ground plane. Meanwhile, the AC main of EUT was connected to the distance of 0.8m line impedance stabilization network (LISN) during measurement. Initial measurements were performed in quasi-peak and average detection modes by the test receiver, any emissions recorded within 30dB of the relevant limit lines were re-measured using quasi-peak and average detection on the live and neutral lines with the worst case recorded in the table of results…

Text truncated - open the document above for the full version.

Page 1 of 1 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix A Date: 2007-10-05 Test report no.: 60.870.7.009.01F Model no.: 260NU Photo of Test Setup – Radiated Emission Front side Back side
