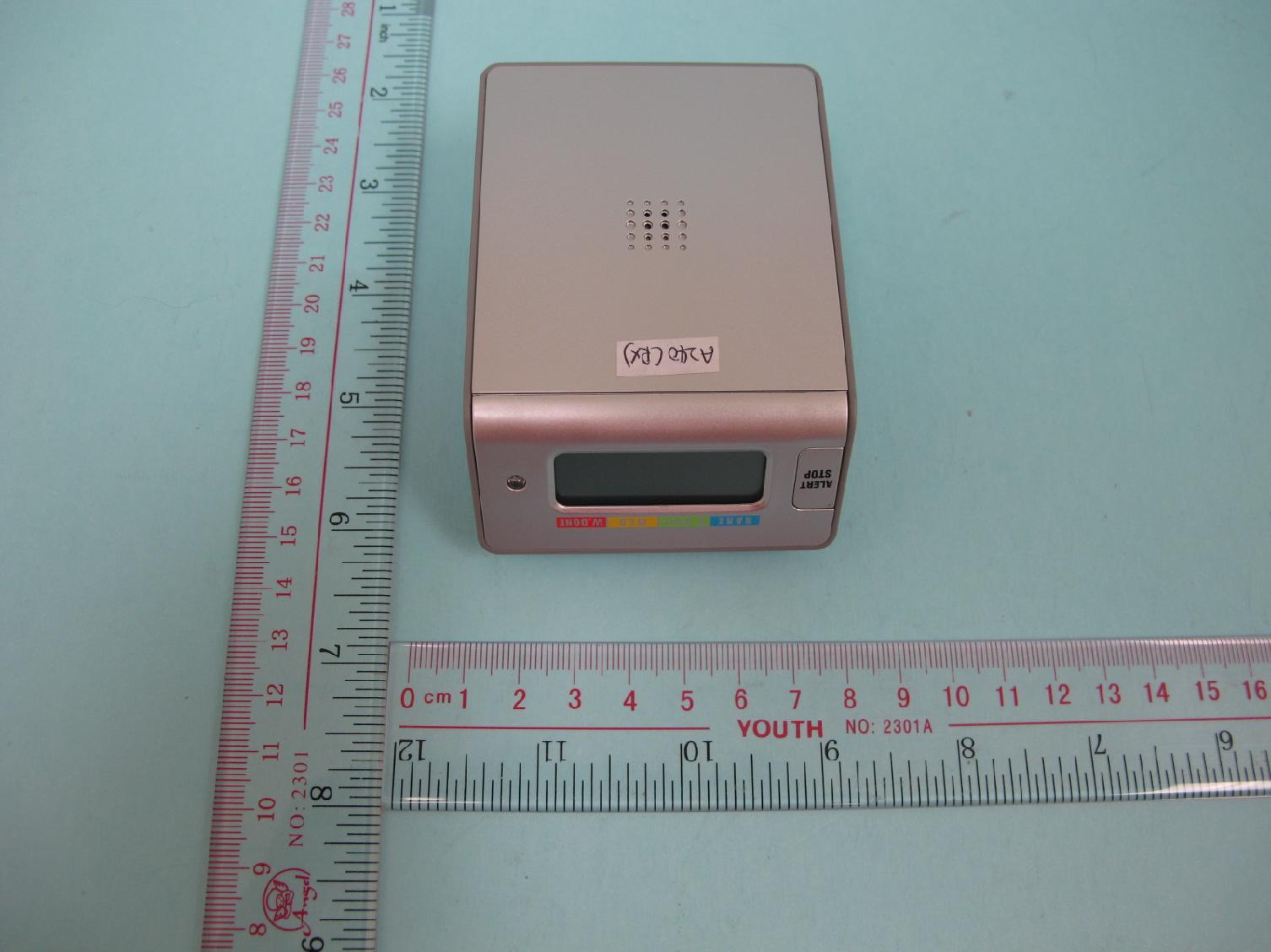

Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2011-04-20 Test report no.: 60.870.11.007.02F Model no.: WT2 Photos of EUT – External EUT Photos Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.02F Model no.: WT2

Page 1 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2011-04-20 Test report no.: 60.870.11.007.02F Model no.: WT2 Photos of EUT – Internal EUT Photos Page 2 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.02F Model no.: WT2 Page 3 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.02F Model no.: WT2 Page 4 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.02F Model no.: WT2 Page 5 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.02F Model no.: WT2 Page 6 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.007.02F Model no.: WT2

TEST REPORT Date: 2011-04-20 Report No.: 60.870.11.007.02F Page 1 of 12 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Applicant: Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Description of Samples:Model name: 433MHz RF Cooking Thermometer (Receiver) Brand name: Nil Model no.:WT2 FCCID:PEQA240900411 Date Samples Received:2011-03-24 Date Tested:2011-03-24 to 2011-04-19 Investigation Requested:FCC Part 15 Subpart B Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Prudence PoonJeff Pong Technical ManagerProject Manager Wireless & Telecom DepartmentWireless & Telecom Department Report No.: 60.870.11.007.02F Page 2 of 12 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 12 Content Page 2 of 12 1.0General Details 1.1Test Laboratory Page 3 of 12 1.2Applicant Details Page 3 of 12 1.3Equipment Under Test [EUT] Page 4 of 12 1.4Related Submittal(s) Grants Page 4 of 12 2.0Technical Details 2.1Investigations Requested Page 5 of 12 2.2Test Standards and Results Summary Page 5 of 12 3.0Test Methodology 3.1Radiated Emission Page 6 of 12 3.2Field Strength Calculation Page 6 of 12 3.3Conducted Emission Page 6 of 12 4.0Test Result 4.1Spurious Radiated Emission Page 7-10 of 12 4.2Conducted Emission Page 11 of 12 5.0List of Equipment Page 12 of 12 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.11.007.02F Page 3 of 12 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory Neutron Engineering Inc. No 3, Jinshagang 1 st Road, ShiXia, Dalang Town, Dong Guan, China. Registration Number: 319330 Tested by: Ares Liu 1.2Applicant Details Applicant Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Manufacturer Electronics Tomorrow Ltd. Unit 903-7, 9/F, Tower 1, Harbour Center, 1 Hok Cheung Street, Hung Hom, Kowloon, HK. Report No.: 60.870.11.007.02F Page 4 of 12 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of Sample Model Name:433MHz RF Cooking Thermometer (Receiver) Manufacturer:Electronics Tomorrow Ltd. Brand Name: Nil Model Number: WT2 FCCID:PEQA240900411 Rating:DC 3.0V ( 2 x “ AAA” size batteries ) No. of Channel:1 Accessories and Auxiliary Equipment: None EUT Exercising Software:None Description of EUT The Equipment Under Test (EUT) is the wireless receiver operated at 433.970MHz to receive the temperature signal from the associated transmitter. 1.4Related Submittal(s) Grants This is a single application for certification of the receiver. Report No.: 60.870.11.007.02F Page 5 of 12 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4: 2003 for FCC Verification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result Severity Pass Failed N/A Radiated Emissions, 30MHz to 4.5GHz FCC 47CFR 15.109ANSI C63.4:2003Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.107ANSI C63.4:2003Class B Note: N/A - Not Applicable Report No.: 60.870.11.007.02F Page 6 of 12 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On astandard emission test sitewith a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 319330. 3.2Field Strength Calculation The field strength at 3 m was established by addingthe meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Conducted Emissions The EUT was placed on a non-metallic table 0.8m above the horizontal metal reference place and 0.4m from a vertical ground plane which is connected to the horizontal metal ground plane. Meanwhile, the AC main of EUT was connected to the distance of 0.8m line impedance stabilization network (LISN) during measurement. Initial measurements were performed in quasi-peak and average detection modes by the test receiver, any emissions recorded within 30dB of the relevant limit lines were re-measured using quasi-peak and average detection on the live and neutral lines with the worst case recorded in the table of results. Report No.:…
