PEQAJ26090807434MHz RF Wireless Transmitter

Block Diagram of KAJ260 ( Tx ) Power System Frequency System Frequency 434MHz (ii) 32.768kHz (i) Raw Data RF Part Base Band Antenna Matching network MCU IC: TM8712 RF IC: PT4450 Thermo sensor Key Matrix LCD (i) The 32.768kHz is the MCU clock frequency for normal operation. (ii) The 434MHz is the output of the RF circuit (iii) The matching network is fo rmed by L2, L3, L4 & C2, C7, C8 FCC ID: PEQAJ26090807

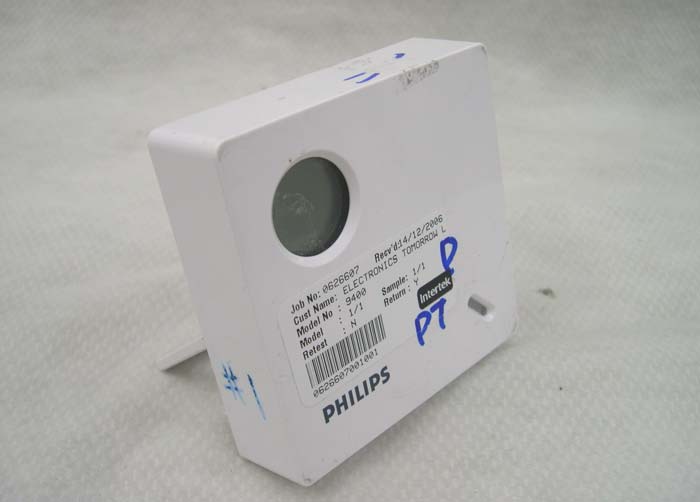

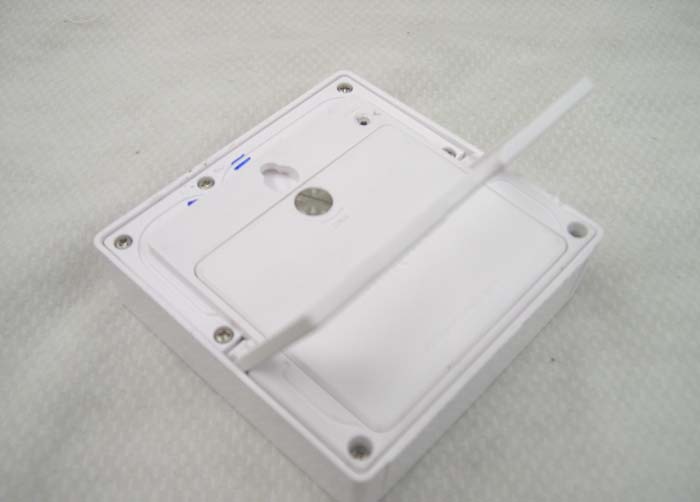

INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (External) FCC ID: PEQAJ26090807 INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (External) FCC ID: PEQAJ26090807

Report: 0626607 Label Location FCC ID: PEQAJ26090807

INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (Internal) FCC ID: PEQAJ26090807 INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (Internal) FCC ID: PEQAJ26090807 INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (Internal) FCC ID: PEQAJ26090807 INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (Internal) FCC ID: PEQAJ26090807 INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (Internal) FCC ID: PEQAJ26090807 INTERTEK TESTING SERVICE Report No.: 0626607 Equipment Photographs Model : AJ260/37 (Internal) FCC ID: PEQAJ26090807

FCC ID: PEQAJ26090807 Technical Description of the Circuit: The circuit is a RF thermometer & hygrometer transmitter part, the MCU TM8712 will measure the temperature & relative humidity and code the data. Afterward, the data is transferred to the RF circuit by the IC PT4450 which includes a SAW oscillator 434MHz. One-shot circuit every 3 minutes when the data pin output HIGH level to the oscillator, the oscillator is turned on and output 434MHz RF signal, when the data pin output LOW level to the oscillator, the oscillator is turned off, and this ON & OFF process modulate the code data into 434MHz with ON OFF KEYING.. L4, C8, L3, C7, L2 and C2 for antenna matching network. Page 1March 2006 PT4450 SAW-based ASK/OOK Transmitter IC Advance Information Princeton Technology Corp. reserves the right to change the product described in this datasheet. All information con- tained in this datasheet is subject to change without prior notice. Princeton Technology Corp. assumes no responsibility for the use of any circuits shown in this datasheet. Description The PT4450 is a high performance 315/433 MHz ASK/OOK transmitter for the Remote Keyless Entry (RKE) systems. The chip consists of a SAW oscillator, a power amplifier (PA), and an one-shot circuit to control the SAW oscillator. Features ‹Supply voltage: 2.2V to 3.6V ‹Frequency range: 250MHz to 500MHz, depend on the external SAW resonator. ‹Output power and consumption current: 10dBm/10mA@3V@433MHz in CW output ‹Harmonics: -50dBc ‹RF power on/off ratio: 50dB(TBD) ‹Data rate: 10Kbps maximum ‹SOT26 package Applications ‹Wireless mouse ‹Video sender remote controller ‹Car alarm and home security system Block Diagram PA z CE BIAS Output matching network PT4450 ASK/OOK Transmitterer IC Page 2March 2006 Pin Descriptions NumberNameI/ODescription 1OSCOUTOUTSAW resonator output 2VSSPWRGround connection 3PAOUTOUTPower amplifier output 4CEINChip enable 5VDDPWRPower supply connection 6OSCININSAW resonator input PT4450 ASK/OOK Transmitterer IC Page 3March 2006 Absolute Maximum Ratings V SS = 0 V Recommended Operating Conditions V SS = 0 V ParameterSymbolRatingUnit Supply voltage V CC V SS – 0.5 to V SS + 8.0 V Operating temperature range T OPR –40 to 85 °C Storage temperature range T STG –55 to 150 °C Soldering temperature range T SLD 255 °C Soldering time range t SLD 10s ParameterSymbol Va l u e Unit min.typ.max. Supply voltage range V CC 2.23.03.6V RF input frequency f RFIN 250500MHz Operating temperature T A –102560 °C PT4450 ASK/OOK Transmitterer IC Page 4March 2006 Electrical Characteristics Nominal conditions: V DD = 3.0 V, V SS = 0 V, CE = “high”, Temp= 27 °C, f RF = 433 MHz ParameterSymbolCondition Va l u e Unit min.typ.max. Power Supply Supply voltage V DD 2.23.03.6V Consumption dc current I DD CW transmission10mA Total dc current (stand-by mode) I standby CE = low1.0μA Frequency range f RF 250500MHz Power amplifier output powerPoutCW transmission+10dBm Data rate DATA rate 110KHz Start-up time T ON 100μS Operating ambient temperature T AMBIENT -40+85 o C Power Amplifier Output power P out V DD =2.2V to 3.6V 10dBm Consumption current I DD CW transmission8mA RF power on/off ratio P EXT TBD dB Harmonics P HARM 2x/3x f RF –50dBc PT4450 ASK/OOK Transmitterer IC Page 5March 2006 Application Circuit ‹Power amplifier will be swtiched ON/OFF with the CE signal ‹An one-shot circuit is implemented to control the SAW oscillator.When the CE stay in High, SAW oscillator will be turn ON. When CE is toggled in High/Low(negative edge trigger), SAW resonator will keep ON for an one-shot period PT4450 1 OSCOUT 2 GND 3 PAOUT 4 CE 5 VDD 6 OSCIN VDD VDD

9400T10.sch-1 - Fri Dec 01 08:39:01 2006 PDF created with pdfFactory Pro trial version www.pdffactory.com 94002T10.sch-1 - Fri Dec 01 08:40:28 2006 PDF created with pdfFactory Pro trial version www.pdffactory.com

− The evaluation data of the report will be kept for 3 years from the date of issuance. − This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Electronics Tomorrow Limited Application For Certification (FCC ID: PEQAJ26090807) Transmitter 0626607 TC/el November 29, 2007 INTERTEK TESTING SERVICES FCC ID: PEQAJ26090807 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PEQAJ26090807 ii MEASUREMENT / TECHNICAL REPORT Electronics Tomorrow Limited − MODEL: Philips AJ260137 FCC ID: PEQAJ26090807 November 29, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [05-04-07 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: PEQAJ26090807 iii Table of Contents 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 2 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 5 2.3 Special Accessories .................................................................................. 5 2.4 Equipment Modification............................................................................. 6 2.5 Measurement Uncertainty ......................................................................... 6 2.6 Support Equipment List and Description ................................................... 6 3.0 Emission Results ............................................................................................. 8 3.1 Field Strength Calculation ......................................................................... 9 3.2 Radiated Emission Configuration Photograph ........................................ 11 3.3 Radiated Emission Data.......................................................................... 12 4.0 Equipment Photographs ............................................................................... 15 5.0 Product Labelling.......................................................................................... 17 6.0 Technical Specifications ............................................................................... 19 7.0 Instruction Manual ......................................................................................... 21 8.0 Miscellaneous Information ........................................................................... 23 8.1 Measured Bandwidth.............................................................................. 24 8.2 Discussion of Pulse Desensitization........................................................ 25 8.3 Calculation of Average Factor ................................................................. 26 8.4 Emissions Test Procedures .................................................................... 27 INTERTEK TESTING SERVICES FCC ID: PEQAJ26090807 iv List of attached file Exhibit Type File Description Filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label / Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: PEQAJ26090807 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTIN…

Text truncated - open the document above for the full version.

FCC ID: PEQAJ26090807 RF Data Encode format: _ _ _ Logic 1 – duty on 5.859 ms and then duty off 1.953 ms | | _ Logic 0 – duty on 1.953 ms and then duty off 5.859 ms | | _ _ _ Details of Data Frame Format: 11bits-sync bits: 00000000000b 1bit-start bit: 3bits-Channel ID: 11bits-temperature(Hex): 7bits-humidity(Hex) 3bits- miscellanies (low battery): 4bits-CRC check code Total number of bit is 40 Timing of one frame is 312.48ms In one transmission there will be three frames, the idle time between each frame is 28.8ms, so one transmission is about 1 seconds

INTERTEK TESTING SERVICE Report No: 0626607 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : AJ260/37 Fig.1 FCC ID: PEQAJ26090807 INTERTEK TESTING SERVICE Report No: 0626607 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : AJ260/37 Fig.2 FCC ID: PEQAJ26090807
