PML433WSCNemo Transmitter

Le présent appareil est conforme aux CNR dʼIndustrie Canada applicables aux appareils radio exempts de licence. Lʼexploitation est autorisée aux deux conditions suivantes : (1) lʼappareil ne doit pas produire de brouillage, et (2) lʼutilisateur de lʼappareil doit accepter tout brouillage radioélectrique subi, mȇme si le brouillage est susceptible dʼen compromettre le fonctionnement. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device my not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications made to this equipment not expressly approved by NICE S.p.A. may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: xReorient or relocate the receiving antenna. xIncrease the separation between the equipment and receiver. xConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. xConsult the dealer or an experienced radio/TV technician for help. IST240.4851 rev.000

Nemo Climatic sensor 0682 SCT WSCT EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso DE - Installierungs-und Gebrauchsanleitungen und Hinweise PL - Instrukcje i ostrzeżenia do instalacji i użytkowania NL - Aanwijzingen en aanbevelingen voor installatie en gebruik 2 EN ENGLISH GENERAL WARNINGS Safety warnings • During device installation, always strictly ob serve all instructions in this manual. If in any doubt re - garding installation, do not proceed and contact the Nice Technical Assistance for clarifications. • CAUTION! – Important instructions: keep these instructions in a safe place to ena ble future product maintenance and disposal procedures. •CAUTION! – All installation, connection, pro- gramming and maintenance operations must be performed exclusively by a qualified techni- cian! • CAUTION! – Nemo is not to be considered a sa - fety device that eliminates faults on the aw ning caused by strong winds (in fact a simple power failure would make automatic retraction of the awning impossible). Nemo should be con si de - red part of an automation used to safeguard the awning and to facilitate use. • Nice declines all liability for material damage cau sed by atmospheric agents not detected by the device sen- sors. • Do not open the device protection housing as it con- tains electrical circuits that do not require maintenance. • Never apply modifications to any part of the de vice. Operations other than as specified can only cause malfunctions. The manufacturer de clines all liability for da mage caused by makeshift modifications to the product. • Never place devices near to sources of heat and never expose to naked flames. This may damage the unit and cause malfunctions. Other warnings • The device is powered by a photovoltaic cell which must be exposed to sunlight. Therefore ensure that the surface of this cell is kept clean and free of leaves, snow or other elements: clean the surface with a soft damp cloth, avoiding the use of substances containing alco- hol, benzene, solvents or similar. • The product packaging material must be disposed of in full observance of current local legislation governing waste disposal. 1 –PRODUCT DESCRIPTION AND INTEND- ED USE This product is part of the series of Nemoclimatic sen- sors. These are equipped with a built-in radio transmitter with “TTS” encoding and independent solar power sup- plied by a built-in photovoltaic cell; during the night Nemo uses the residual power accumulated during the day, thus eliminating the need for connection to the mains power supply. Nemo is designed for systems used to automate sun awnings, shutters, skylights and similar, which implement Nice tubular motors with “TTS” radio encoding. Any oth- er use is to be considered improper and is strictly prohibited! The manufacturer declines all liability for damage resulting from improper use of the product and other than as specified in this manual. 2–UNIT OPERATION Operation of Nemo is based on the detection of varia- tions in wind speed (function present on Nemo SCT only) or variations in the intensity of sunlight. When the reading value exceeds thetrip threshold (mo - difiable parameter), Nemo transmits a “radio signal” to the automation. This, in turn, activates the set ma noeuvre according to the type of signal received. • “Sun” sensor (fig. 8) When the intensity of sunlight, measured by the sensor (b - fig. 6) exceeds the threshold, after 2 minutes Nemo transmits the Descent command to the automation. Otherwise, when the sunlight intensity falls below the threshold value, after 15 minutes Nemo transmits the retraction command to the automation. The delay intervals described above are implemented to avoid continuous and repetitive movements of the au - tomation in the presence of transitory clouds. As regards the thresholds, there is a difference (hysteresis) of approx. 70% between the threshold that activates descent and the threshold that activates retraction. For example, if the threshold is set at 20Klux descent is activated when this brightness value is reached, while the awning is retracted when the value reaches approx. 14Klux. • “Wind” sensor (fig. 7) When the wind speed, measured by the sensor (a - fig. 6), exceeds the threshold, Nemo immediately transmits the Up command to the automation. At the same time it also sends a command that blocks execution of any oth- er command sent to the automation, to protect the awning from the wind. When the wind speed falls below the threshold value, after 4 minutes Nemo unblocks the awning protection to enable other automation commands. After the system is unblocked, if the sun threshold is exceeded, after 15 min- utes Nemo sends the command for awning descent. Note- During normal operation of the product, the led remains permanently off, even when Nemo sends com- mands. 3 –PRELIMINARY INSTALLATION CHECKS AND PRODUCT APPLICATION LIMITS • Read the technical specifications provided in the chap- ter “Product technical specifications”to check the application limits of Nemo. • Ensure that the automation receiver on which Ne mo is to be memorised uses “TTS” encoding (refer to the automation receiver instruction manual). • Nemo may not be compatible with older motors pro- duced before June 2004 or TT0 control unit models. •(fig. 1) Ensure that the selected installation site for Nemo is within the range with respect to the automa- tion to be controlled. Although the range in favourable conditions (open field) can reach 100m, as Nemo rep- resents a protection for the awning, a maximum range of 10-20 m is recommended. It is also recommended to check that there are no other radio devices in the zone operating at the same frequency, such as alarms, radio headphones etc.: these may reduce the range further or even block communication between N…

Text truncated - open the document above for the full version.

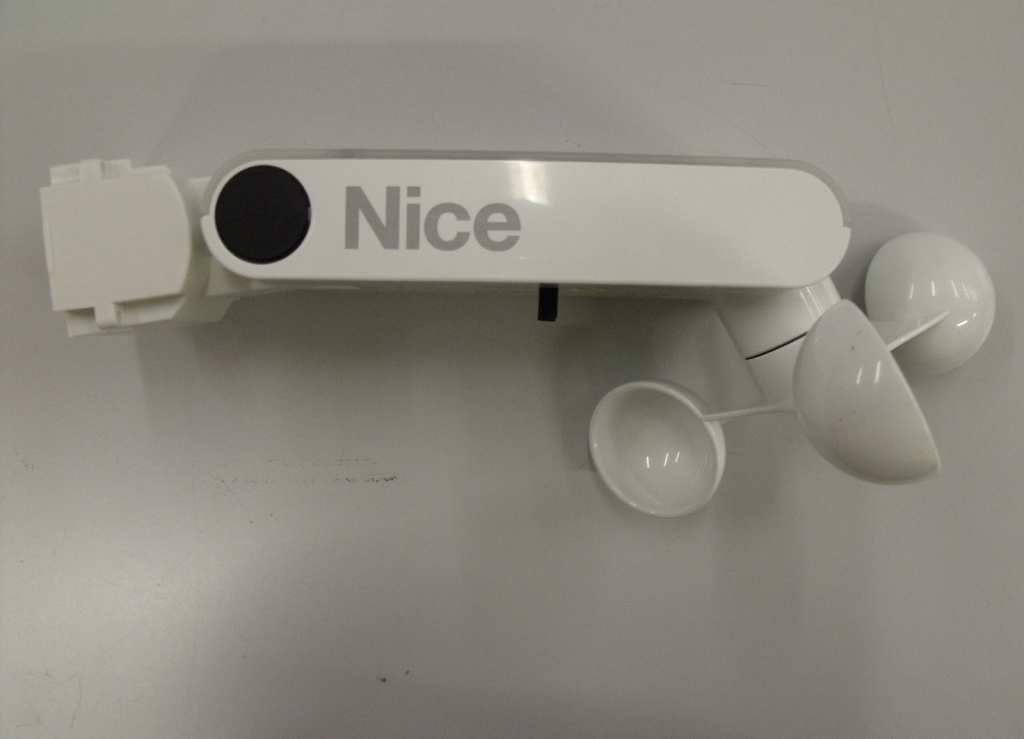

FCC test report Report nr. 0051FCC11 page 26 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com 7 Photographic Documentation 8.1 EUT Identification Photo 1 – WSCT/U

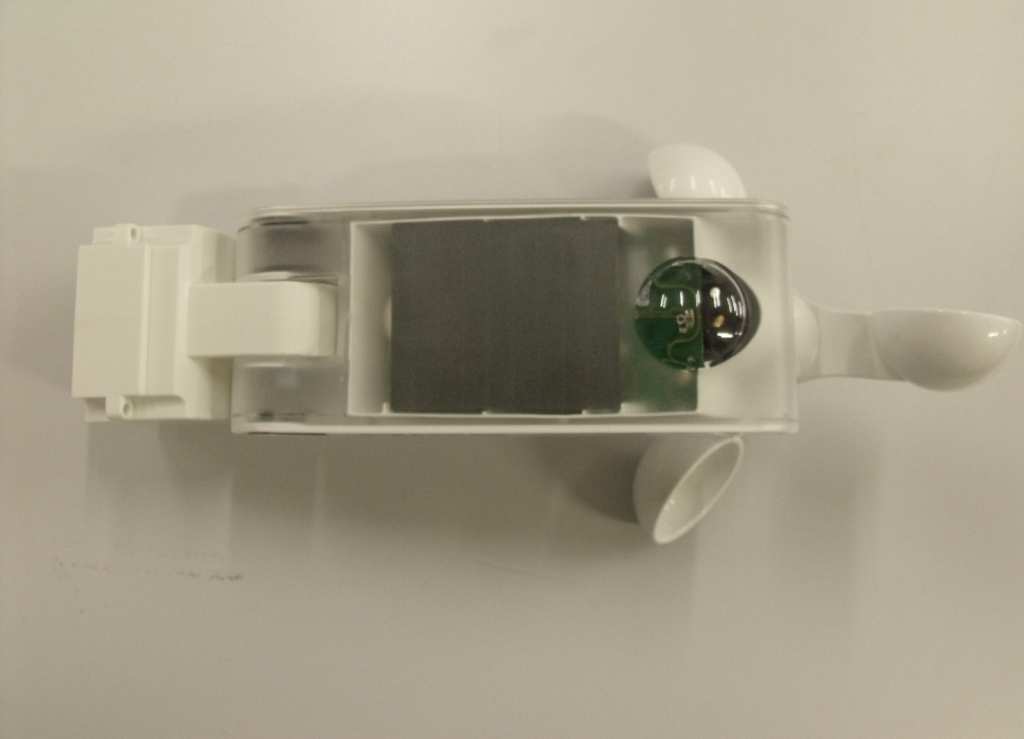

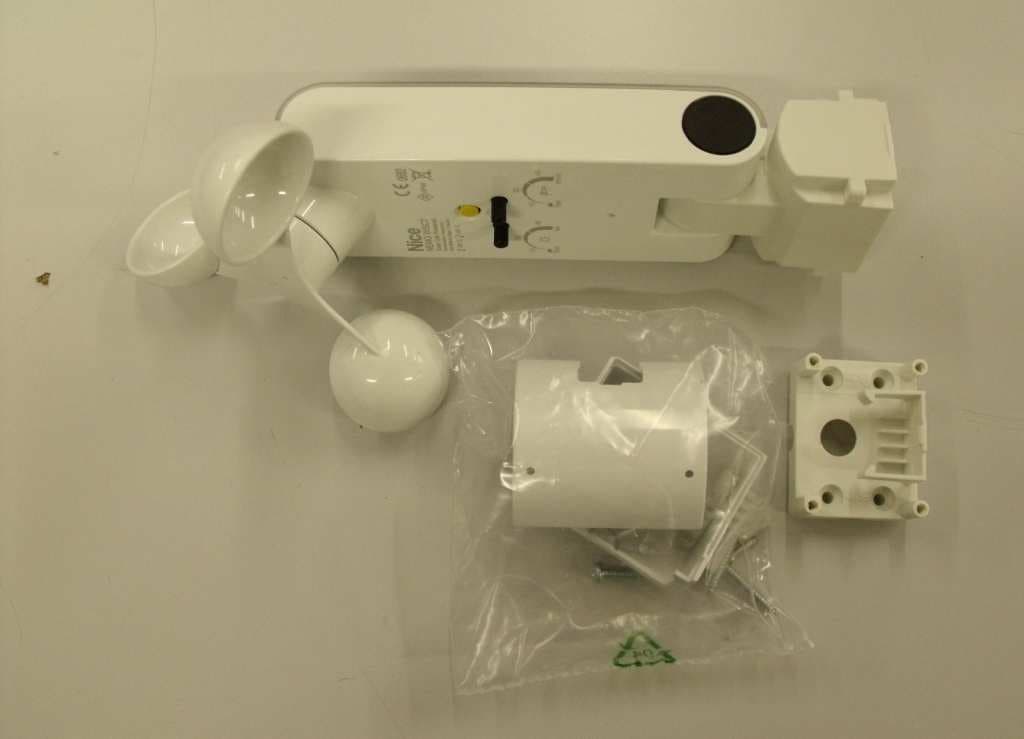

FCC test report Report nr. 0051FCC11 page 28 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Photo 4 – WSCT/U Photo 5 – SCT/U FCC test report Report nr. 0051FCC11 page 29 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Photo 6 – SCT/U Photo 7 – SCT/U FCC test report Report nr. 0051FCC11 page 30 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Photo 8 – WSCT/U Photo 9 – WSCT/U FCC test report Report nr. 0051FCC11 page 31 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Photo 10 – WSCT/U

Informative ex law D.lgs n.196/2003 - European regulation 2002 / 58 / CE Personal information that Nice S.p.A., holder of the treatment, gets directly or by third parties will be treated in writing or data processing form for legal contractual requirements. The information can be communicated and/or treated in Italy and/or abroad exclusively by the Nice staff, by the group companies and/or by companies of proved professionalism entrusted by us preventively. The concerned person can exercise the rights as per art. 7 of law by decree n°196/2003 (the informative can be consulted at www.niceforyou.com). Nice SpA Via Pezza Alta, 13 Z.I. Rustignè I-31046 Oderzo TV Italia Cap. Soc. € 11.600.000 i.v. Phone +39.0422.853838 Fax +39.0422.853585 P.IVA 03099360269 [email protected] www.niceforyou.com 28 th April 2011 Name of product: Weather sensor Model of product: WSCT and SCT Description: The circuit consists of: - The power supply circuit is composed by two capacitor recharged by the solar panel placed on the top of the sensor. The sensor is gifted with a battery for power the logic circuit when there isn’t the sun. - The code is generated by the integrated circuit IC1 and consists of a train of 55 pulses lasting 82.5ms followed by a pause of another 18ms; as the code is the "Rolling Code" type, it changes each time the push button on the remote control is pressed or the wind/sun command is transmitted. - The Q2 transistor, used as an AM-OOK modulator (On Off Key), switches the oscillator circuit. - The Q3 transistor that works like an oscillator; the signal taken from its collector passes through the C18-L5-C10-C20-C21 filter and reaches the Loop type aerial, engraved on a printed circuit, providing a guarantee of stability as regards its characteristics and, consequently, the complete lack of calibrations. The SAW1 Resonator guarantees the exact oscillation frequency. Category: I By: _Mr. Oscar Marchetto _ (Signature) (Print name) Title: Electronic Director email: [email protected] On behalf of: Nice s.p.A. (Company Name) Telephone: +39 0422 853838

FCC test report Notice: The result of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This report shall not be reproduced partially or in its entirely without written approval of Nice S.p.A. Report nr. 0051FCC11 page 1 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Test report nr. 0051FCC11 Measurements performed in accordance with: FCC Rules: code of Federal Regulations (CFR) no. 47 PART 15 – RADIO FREQUENCY DEVICES Product: Transmitter (Nemo) Tested model: WSCT/U, SCT/U FCC ID PML433WSC Applicant: Nice S.p.A. Manufacturer: Nice S.p.A. Trademark: Nice Testing Laboratory Nice S.p.A. Via Pezza Alta, 13 I-31046 Rustignè di Oderzo (TV) Registration number: 771316 Date of receipt sample: 2011-02-07 Testing date: 2011-02-07 to 2011-02-08 Issue date: 22 March 2011 Tested by: L. Pastres Checked by: E. Campion FCC test report Report nr. 0051FCC11 page 2 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Contents Contents ............................................................................................................................. 2 1 General Description of Equipment under Test ............................................................. 3 1.1 Applicant .................................................................................................................... 3 1.2 Manufacturer .............................................................................................................. 3 1.3 Equipment classification ............................................................................................. 3 1.4 Basic Description of equipment under test ................................................................. 4 1.5 Feature of equipment under test ................................................................................ 5 2 Test configuration of equipment under test ................................................................. 6 2.1 Environmental conditions ........................................................................................... 6 2.2 Description of support equipment............................................................................... 6 2.3 Interface identification and connection diagram of test system .................................. 7 3 Operation of equipment under test ............................................................................... 8 3.1 Operating test conditions ........................................................................................... 8 4 Tests identification and result ....................................................................................... 9 4.1 Methods of measurement .......................................................................................... 9 4.2 Frequency range investigated .................................................................................... 9 5 Tests .............................................................................................................................. 10 5.1 Radiated emission .................................................................................................... 10 5.2 Timing of the transmitter .......................................................................................... 15 5.3 Radiated output power ............................................................................................. 17 5.4 Typical pulse train of a signal ................................................................................... 18 5.5 Compliance with the limit of FCC ............................................................................. 20 5.6 Spurious emission - radiated .................................................................................... 21 5.7 Occuped bandwith ................................................................................................... 22 6 Measurement and Test Equipment instrumentation.................................................. 23 7 Photographic Documentation ...................................................................................... 26 8.1 EUT Identification ..................................................................................................... 26 8.2 Test Set-up .............................................................................................................. 32 FCC test report Report nr. 0051FCC11 page 3 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com 1 General Description of Equipment under Test 1.1 Applicant Name: Nice S.p.A. Address: via Pezza Alta, 13 Country: 31046 Rustignè di Oderzo (TV) – Italy 1.2 Manufacturer Name: Nice S.p.A. Address: via Pezza Alta, 13 Country: 31046 Rustignè di Oderzo (TV) – Italy 1.3 Equipment classification According to definition 15.3 (o) is a intentional Radiator operating within the Bands: so it shall fulfil provisions of 47CFR Part 15 Subpart C – international radiators – and Section 15.209. According to definition 15.3 (z) is a unintentional Radiator: So it shall fulfil provisions of 47CFR Part 15 Subpart B – Unintentional radiator and section 15.107 and 15.109. FCC test report Report nr. 0051FCC11 page 4 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com 1.4 Basic Description of equipment under test Parameters Value Type of equipment: weather sensor (wind and solar) with LPD transmitter Model: WSCT/U, SCT/U FCC ID: PML433WSC Trade Name: Nice Data cable: - Telecom cable: - Power supply type: internal battery and solar cell AC power input cable: - DC power input cable: internal battery CR2032 Model Description WSCT/U whether sensor (wind, solar) with transmitter LPD at 433,92MHz for tubular motor. It is equipped with solar cell and battery CR2032 SCT/U same of WSCT/U without wind sensor FCC test report Report nr. 0051FCC…

Text truncated - open the document above for the full version.

FCC test report Report nr. 0051FCC11 page 32 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com 8.2 Test Set-up Photo 11 – Emission Radiated Power Photo 12 – Emission Radiated Power FCC test report Report nr. 0051FCC11 page 33 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Photo 13 – SCT FCC test report Report nr. 0051FCC11 page 34 / 34 date: 22 March 2011 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Photo 14 – WSCT
