PMLON3ELRATransceiver control

EN - Instructions for the fitter IT - Istruzioni per l’installatore FR - Instructions pour l’installateur ES - Instrucciones para el instalador DE - Anweisungen für den installateur PL - Instrukcje dla instalatora NL - Aanwijzingen bestemd voor de installateur RU - Инструкции и предупреждения по монтажу ENGLISH Instructions translated from Italian 1 - PRODUCT DESCRIPTION AND INTENDED USE The ON3ELR (ON3ELR/A) transmitter is designed to control automations (gates, garage doors, road barriers and similar). All uses other than that described herein and use in environmental conditions other than those indicated in this manual are con- sidered improper and forbidden! ON3ELR (ON3ELR/A) is compatible with receiv - ers that adopt both the two-way “LR” radio encoding systems. The ON3ELR (ON3ELR/A) is equipped with 4 keys (Fig. 1): 3 keys are used to send commands and 1 function key to request the automation’s status. Moreover, a series of optional accessories are available: string for keyring (Fig. 2); support for mounting (Fig. 3 ON3ELR, Fig. 4 ON3ELR/A). 2 - TRANSMITTER FUNCTIONS The two-way communication between the ON3ELR (ON3ELR/A) transmitter and the OXILR (OXILR/A) receiver has the following functions: • Sending of the receiver’s confirmation of the command received: sending to the transmitter of the confirmation that the command trans - mitted was received by the receiver. - Command received: the transmitter vibrates and the LED emits a series of orange flashes followed by a steady green light for 2 seconds. - Command not received: the transmitter LED emits a series of orange flashes followed by a steady red light for 2 seconds (there is no vibration). • Sending of the automation’s status (for exam - ple, whether the gate is open or closed): see Paragraph 5. • Indication of the automation’s anomaly status: flashing of the red LED and intermittent vibra - tion. 3 - TRANSMITTER VERIFICATION Before memorising the transmitter in the auto - mation’s receiver, ensure that it is working cor- rectly by pressing a control key while observing whether the LED (Fig. 1) lights up; should this not occur, see Paragraph 6. 4 - TRANSMITTER MEMORISATION To memorise the transmitter in a receiver, the fol - lowing procedures can be adopted: • Memorisation in “Mode 1” • Memorisation in “Mode 2” • Memorisation in “Extended Mode 2” • Memorisation through the “Enabling Code” received from a previously memorised trans - mitter These procedures are described in the instruc- tion manual of the receiver or control unit with which the transmitter must be operated. The above-mentioned manuals are also available on the website: www.niceforyou.com - For the procedures listed below only keys 1, 2, 3 of the transmitter are enabled (Fig. 1). The fourth key is exclusively reserved for the status request (Paragraph 5). A - Memorisation in “Mode 1” Allows for memorising in the receiver, once only, the 3 transmitter command keys, associating them automatically with each command man - aged from the control unit (default commands). B - Memorisation in “Mode 2” Allows for memorising in the receiver a single transmitter key, associating it with the commands managed from the control unit (maximum 4 and chosen by the user). Note – the same procedure must be repeated for each key to be memorised. C - Memorisation in “Extended Mode 2” The same as memorisation “B” - “Mode 2”, with the added possibility of choosing the desired command (to be paired with the key being memorised) in an extended list of commands managed from the control unit (up to 15 different commands). The feasibility of the procedure depends on the control unit’s ability to manage the 15 com - mands. D - Memorisation through the “ENABLING Code” (between an OLD transmitter already memorised and a NEW transmitter) The ON3ELR (ON3ELR/A) transmitter has a secret code, the so-called “ENABLING CODE”. By transferring this code from a memorised transmitter to a new transmitter, the latter is rec- ognised (and memorised) automatically by the receiver. Memorisation procedure for ON3ELR: 01. Bring the two transmitters (NEW and OLD one already memorised) close to one another as shown in Fig. 5. 02. On the NEW transmitter press and release a command key. The LED of the OLD transmit - ter will switch on and start flashing. 03. On the OLD transmitter press and release a command key. Once the code has been transferred, for an instant both the transmit- ters (NEW and OLD) will vibrate and their green LED will light up (end of the proce- dure). Memorisation procedure for ON3ELR/A: 01. On both transmitters (NEW and OLD) press and hold key “i” until the red LED lights up. 02. Release keys “i”; the LEDs will start flashing red. 03. Within 3 seconds, press and release key “i” again on the OLD transmitter; the LED will start flashing green. 04. On the OLD transmitter press and release a command key. Once the code has been transferred, for an instant both the transmit - ters (NEW and OLD) will vibrate and their green LED will light up (end of the proce - dure). When the NEW transmitter will be used, for the first 20 times it will transmit this “enabling code” to the receiver together with the command. The receiver will automatically memorise the identifi - cation code of the transmitter that transmitted it. 5 - STATUS REQUEST PROCEDURE 01. Press and release the “i” “Status request” key (Fig. 1). 02. Press and release the command key associ - ated with the automation for which the status is requested. 03. Observe the final colour of the LED after the series of orange flashes: • GREEN: gate/door OPEN • RED: gate/door CLOSED • ORANGE: partial opening/closing Note – If the transmitter is memorised in multiple automations and a status request is made, the ON3ELR (ON3ELR/A) will only signal the status of the automation that responded first to the status request or that falls within the transmitter range. Important - In this specific case, Nice cannot offer any guarantee regarding the status of all …

Text truncated - open the document above for the full version.

NICE SPA PAG. 1 di 1 Technical schemes Vibrating Motor μP (U1) CR2032 Lithium Battery Low pass filter Matching network T/R (U3) 8MHz clock Aeria 915 MHzl LED Red/green 4 PUSH Buttons 3V (32MHz oscillator) NFC tag (U2)

N N i i c c e e S S p p A A V V i i a a C C a a l l l l a a l l t t a a , , 1 1 I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m 083017 – 10 Authority to Act as Agent Date: 2019/11/08________ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______IMQ______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: _____ ________ __Enrico Campion___________ (Signature 1 ) (Print name) Title: _Laboratory Manager_______ On behalf of: ___Nice S.p.A.__________ (Company Name) Telephone: _+39 0422 85383_________________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

N N i i c c e e S S p p A A V V i i a a P P e e z z z z a a A A l l t t a a , , 1 1 3 3 Z Z . . I I . . R R u u s s t t i i g g n n è è I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m 083017 – 10 Request for Confidentiality Date: 2019/11/08________ Subject: Confidentiality Request for: ______PMLON3ELRA______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual ______Nice S.p.a._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180___ 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ___ __ _Enrico Campion___ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

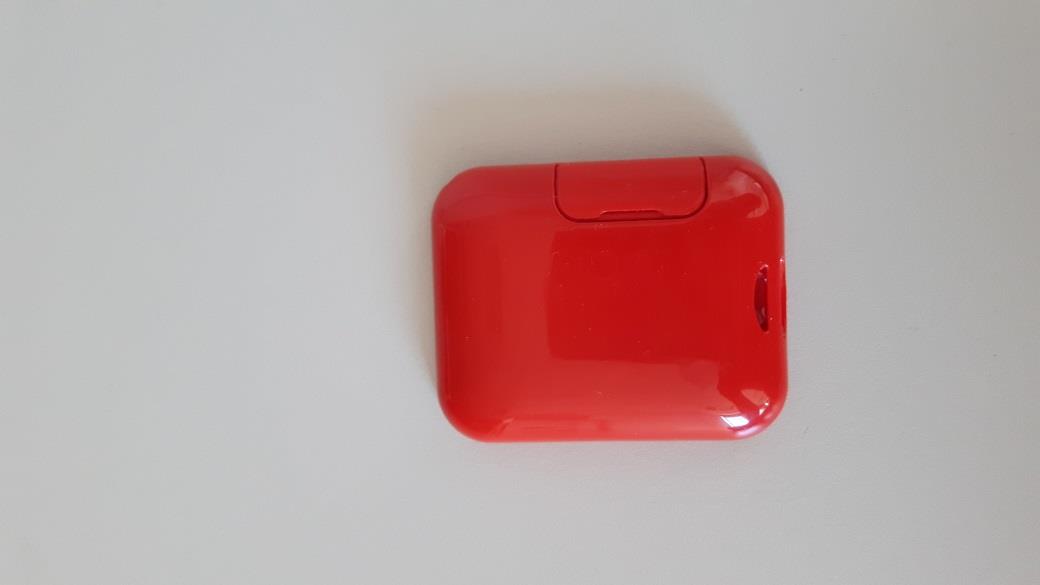

FCC ID: PMLON3ELRA IC ID: 6140A-ON3ELRA NICE – Model: ON3ELR/A External Photos

NICE SPA PAG. 1 di 1 Label & Labelling For details, please see PD0132D5100

FCC ID: PMLON3ELRA IC ID: 6140A-ON3ELRA NICE – Model: ON3ELR/A Internal Photos

NICE SPA PAG. 1 di 1 Overview The ON3ELR/A is a transmitter used to control automation of gates, garage doors and road barriers. When ON3ELR/A transmits a command, the bidirectional receiver recognizes it and transmits the confirmation that the command has been executed. On the bidirectional transmitter, the confirmation is indicated by the vibration. ON3ELR/A may also require the state of automation and indicates it with the colour of the Led. The transmitter operates on 915,75 MHz using LORA modulation and it’s powered with one CR2032 Lithium battery. Description of the product The circuit consists of: • A microcontroller U1 (R5F100AEASP) that implements the application functions and communication protocols. The internal oscillation clock is set to 8MHz. • A transceiver U3 (SX1276) that handles the radio channels with LORA modulation. An external 32MHz oscillator is used to generate the incoming clock signals. Matching components and filter are used between antenna and transceiver. • A bi-color LED to inform the user of the programming status and the states of automation. • Three control keys to transmit and un button to request the state of automations • A vibrating motor for confirmation that the command has been executed. • An NFC tag induction circuit (U2, C11, LA PCB) • PCB antenna • Max nominal output RF power: -1.14dBm • Peak gain loop antenna PCB: 0dBd • Loss and mismatching between SX1276PS and antenna: -10dB • Tune-up tolerance: -1.5dB / +0.5dB

NICE SPA PAG. 1 di 3 Technical specifications Working temperature: from -5°C to +55°C Power: CR2032 Lithium battery Working Frequency: 915,75 MHz BW > 500 kHz Modulation: LO.RA. Spreading Factor: SF=12 CR = 4/5 Timings When the button is pressed one time, ON3ELR/A is in transmission mode for about 231ms. Then ON3ELR/A goes in reception mode waiting feedback signal (same frequency and modulation). If the feedback from the associated receiver OXILR/A doesn’t arrive the transmitter return in transmission mode another time. At most three transmissions are possible. Below the times measured with a diode detector by pressing and releasing the key with the three possible transmission (without feedback). NICE SPA PAG. 2 di 3 Receiving the feedback 1) The feedback arrives after a transmission To see the feedback packet the receiver antenna is bringed close the detector. Feedback packet lasts about 190ms. NICE SPA PAG. 3 di 3 Status request After a status request is sent by ON3LR/A the associated receiver OXILR/A responds to the request in the same manner of a command. Instructions Manual For details, please read the annex IS0631A02MM

RF Exposure evaluation Notice: The result of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This report shall not be reproduced partially or in its entirely without written approval of Nice S.p.A. Report nr. 00911GaSAR19 page 1 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Test report nr. 00911GaSAR19 Measurements performed in accordance to: FCC Rules (CFR) no. 47 Part 15 Subpart C § 1.1307 (b) (1) Product: Remote control Tested model: ON3ELR/A FCC ID PMLON3LRA Applicant: Nice S.p.A. Manufacturer: Nice S.p.A. Trademark: Nice Issue date: 30 June 2020 Checked by: E. Campion RF Exposure evaluation Report nr. 00911GaSAR19 page 2 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Contents Contents ............................................................................................................................. 2 1 Tests ................................................................................................................................ 3 1.1 RF Exposure evaluation ............................................................................................. 3 RF Exposure evaluation Report nr. 00911GaSAR19 page 3 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com 1 Tests 1.1 RF Exposure evaluation Specify: Base standard: 1.1307 (b) (1) Systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines § 1.1307 (b) (1) EUT classification (fixed, mobile or portable devices) Limits According to § 2.1093 of this Chapter, by means of the following guidelines: OET Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies (447498 D1 General RF Exposure Guidance v06) Date. SAR Test Exclusion Threshold for 100MHz – 6GHz and ≤ 50mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The test separation distances ≥ 5mm is applied to determine SAR test esclusion. RF Exposure evaluation Report nr. 00911GaSAR19 page 4 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com SAR Test Exclusion Thresholds for 100MHz – 6GHz and ≤ 50mm 447498 D01 General RF Exposure Guidance v06 § 4.3 Frequency (MHz) Radiated power (dBuV/m) Conducted power (dBm) Tune-up tolerance (dB) Power plus tune-up (dBm) Max conducted power (mW) Distance (mm) 916 94.1 -1.14 -1.5 / +0.5 -0.64 0.86 ≈ 1 5 (max conducted power / distance) * SQRT (frequency) Limits 0.2 ≤ 3.0 for head SAR or ≤ 7.5 for 10-g extremity SAR Test Result This value is less than the low threshold limit. No SAR test is required. Maximum radiated power was taken into consideration to establish he worst case aggregate maximum output power.

The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A.. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. TEST REPORT No. AR19-0043846-01 performed in accordance with FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart C Section 15.247 PRODUCT Radio module MODEL(s) TESTED ON3ELR/A FCC ID PMLON3ELRA TRADE MARK(s) NICE APPLICANT NICE S.p.A. ∼ Via Pezza alta, 13 ∼ I-31046 Rustignè di Oderzo (TV) Tested by Robertino Torri [Laboratory technician] Approved by Giovanni Di Turi [Laboratory manager] Revision Sheet Release No. Date Revision Description Rev. 0 2020-06-24 First edition Digital signed - AR19-0043846-01_TR_FCC 15.247_NICE_ON3ELR-A Mod. TRF 3712 / / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY Test Report No. AR19-0043846-01 Date: 2020-06-24 Page 2 of 25 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2020-04-08 (Item(s) sampled and sent by applicant) IMQ reference samples BEM 99151 Samples tested No. 1 Object under analysis recognition Not carried out Except where stated, characteristics of products were taken from client description and were not verified by the laboratory Date of acceptance of test item 2020-04-08 TEST LOCATION Testing dates 2020-04-14 ÷ 2020-04-15 Testing laboratory. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 Milano Testing site Via Quintiliano, 43 – I-20138 Milano ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 21.0 ÷ 23.0 °C Relative Humidity 47 ÷ 55 % Atmospheric Pressure 991 ÷ 1001 mbar The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. REMARKS Throughout this report a point is used as the decimal separator. The ability or reliability of this product to perform its intended function in a particular application has not been investigated. Unless otherwise specified, warnings, installation instruction and/or user manual provided with the sample have been checked in Italian or English version only. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Test Report No. AR19-0043846-01 Date: 2020-06-24 Page 3 of 25 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 2015 Radio Frequency Device ANSI C63.4 2014 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Test Report No. AR19-0043846-01 Date: 2020-06-24 Page 4 of 25 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 3. EQUIPMENT UNDER TEST (EUT) DETAILS GENERAL DATA (according to manufacturer declaration) MODEL (basic) Description ON3ELR/A Radio module VARIANTS (derived) Description / / FCC ID PMLON3ELRA Manufacturer NICE S.p.A. ∼ Via Pezza alta, 13 ∼ I-31046 Rustignè di Oderzo (TV) Type of equipment DTS - Digital transmission equipment Operating frequency 915.77 MHz Max RF radiated power 94.09 dBμV/m @3m Modulation CSS Channel 1 Occupied bandwidth > 500 kHz Antenna Integral strip line on PCB Remarks None Test Report No. AR19-0043846-01 Date: 2020-06-24 Page 5 of 25 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 4. TEST CONFIGURATION OF EQUIPMENT UNDER TEST EUT PORTS Port Description Max length Enclosure Plastic / AC power / / DC power 3 V DC by CR2032 lithium battery / Signal/ Control / / Antenna Integral strip line on PCB / STATE OF THE EUT DURING TESTS Ref. Transmission Mode Description #1 CW Continuous unmodulated transmission mode (constant tone) #2 Modulated Continuous modulated transmission (PBRS9 duty cycle close to 100%) #3 Normal operating Receiving mode / Transmission only after BD encoding reception for acknowledge SUPPORT EQUIPMENT Defined as equipment needed for correct operation or loading of the EUT, but not considered as tested: Equipment Manufacturer Model / / / EUT Antenna Port AC Power Port Earth Port Telecommunication Port Signal/Control Port DC Power Port Enclosure Port Test Report No. AR19-0043846-01 Date: 2020-06-24 Page 6 of 25 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY ELECTROMAGNETICALLY RELEVANT COMPONENTS Component No. Manufacturer Model PCB board 1 NICE 646-B – R02 RFI SUPPRESSION DEVICES Component No. Manufacturer Model / / / / EMI PROTECTION DEVICES Component No. Manufacturer Model / / / / EUT TECHNICAL DOCUMENTATION Document Reference / / Test Report No. AR19-0043846-01 Date: 2020-06-24 Page 7 of 25 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 5. METHODS OF MEASUREMENT All compliance measurements have been carried out using the procedures described in the standard ANSI C63.4-2014, ANSI C63.10-2013 and Section 15.31 of CFR47 Part 15 – Subpart A (General). Additional test requirements have been adopted according to the reference Section indicated in the § 6 of this test report. FREQUENCY RANGE INVESTIGATED Radiated emission tests: from 9 kHz to tenth harmonic of fundamental. Test Report No. AR19-0043846-01 Date: 2020-06-24 Page 8 of 25 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 6. SUMMARY OF TEST RESULTS POSSIBLE TEST CASE VERDICTS: Test object meets the requirement PASS Test object does not meet the requirement FAIL Test case does not apply to the test object N.A. Test not performed…
