PMLOXILRATransceiver control

Radio receiver Nice OXILR OXILR/A made in Italy EN - Instructions for the fitter IT - Istruzioni per l’installatore FR - Instructions pour l’installateur ES - Instrucciones para el instalador DE - Anweisungen für den installateur PL - Instrukcje dla instalatora NL - Aanwijzingen bestemd voor de installateur RU - Инструкции и предупреждения по монтажу www.niceforyou.com Nice S.p.A. Via Callalta, 1 31046 Oderzo TV Italy [email protected] IS0630A02MM_18-12-2019 For more detailed instructions visit the Support section on Niceforyou.com or scan this QR code. ENITFRES TECHNICAL SPECIFICATIONS CARATTERISTICHE TECNICHE CARACTÉRISTIQUES TECHNIQUES CARACTERÍSTICAS TÉCNICAS Product type Two-way receiver Tipologia Ricevitore bidire- zionale Typologie Récepteur bidirec- tionnel Tipo Receptor bidirec- cional Decoding “LR” Decodifica “LR” Décodage «LR» Decodificación “LR” Input impedance 50 Ω Impedenza di ingresso 50 Ω Impédance d’en- trée 50 Ω Impedancia de entrada 50 Ω Reception fre- quency OXILR: 433.75 MHz; OXILR/A: 915.75 MHz Frequenza di ricezione OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Fréquence de réception OXILR : 433,75 MHz ; OXILR/A : 915,75 MHz Frecuencia de recepción OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Transmission frequency OXILR: 433.75 MHz; OXILR/A: 915.75 MHz Frequenza di trasmissione OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Fréquence de transmission OXILR : 433,75 MHz ; OXILR/A : 915,75 MHz Frecuencia de transmisión OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Outputs 4 (on “SM” plug- type connector) Uscite 4 (su connettore “SM” ad innesto) Sorties 4 (sur connecteur « SM » enfichable) Salidas 4 (en conector “SM” con empal- me) Sensitivity –120 dBm Sensibilità -120 dBm Sensibilité -120 dBm Sensibilidad -120 dBm Absorption 50 mA (maximum) Assorbimento 50 mA (massimo) Absorption 50 mA (maximum) Absorción 50 mA (máximo) Radiated power (ERP) < 10 mW (OXILR) Potenza irradiata (ERP) < 10 mW (OXILR) Puissance irra- diée (ERP) < 10 mW (OXILR) Potencia radiada (ERP) < 10 mW (OXILR) Dimensions (mm) W 49.5; H 41.9; D 18 Dimensioni (mm) L 49,5; H 41,9; P 18 Dimensions (mm) L 49,5 ; H 41,9 ; P 18 Medidas (mm) L 49,5; H 41,9; P 18 Weight (g) 22 Peso (g) 22 Poids (g) 22 Peso (g) 22 Operating tem- perature –20 °C ... +55 °C Temperatura di funzionamento -20 °C ... +55 °C Température de fonctionnement -20 °C ... +55 °C Temperatura de funcionamiento -20 °C ... +55 °C DEPLNLRU TECHNISCHE DATEN PARAMETRY TECHNICZNE TECHNISCHE KENMERKEN ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ Typ Bidirektionaler Empfänger Typologia Odbiornik dwukie- runkowy Type Bidirectionele ontvanger Тип Двусторонний приемник Decodierung „LR“ Odkodowanie „LR” Decodeert “LR” Кодировка «LR» Eingangsimpe- danz 50 Ω Impedancja wej- ścia 50 Ω Ingangsimpe- dantie 50 Ω Входной импе- данс 50 Ом Empfangsfre- quenz OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Częstotliwość odbioru OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Ontvangstfre- quentie OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Частота приема OXILR: 433,75 МГц; OXILR/A: 915,75 МГц Sendefrequenz OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Częstotliwość nadawania OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Zendfrequentie OXILR: 433,75 MHz; OXILR/A: 915,75 MHz Частота пере- дачи OXILR: 433,75 МГц; OXILR/A: 915,75 МГц Ausgänge 4 (am SM Steck- verbinder) Wyjścia 4 (na złączu „SM” wtykowym) Uitgangen 4 (op SM-aansluit- connector) Выходы 4 (на разъеме «SM») Empfindlichkeit -120 dBm Czułość -120 dBm Gevoeligheid -120 dBm Чувствитель- ность -120 дБм Stromaufnahme max. 50 mA Pobór prądu 50 mA (maksymal- nie) Opgenomen stroom 50 mA (max.) Потребляемый ток 50 мА (макси- мальный) Sendeleistung (ERP) < 10 mW (OXILR) Moc wypromie- niowana (ERP) < 10 mW (OXILR) Uitgestraald ver- mogen (ERP) < 10 mW (OXILR) Излучаемая мощность (ERP) < 10 мВ (OXILR) Abmessungen (mm) L 49,5; H 41,9; P 18 Wymiary (mm) L 49,5; H 41,9; P 18 Afmetingen (mm) L 49,5; H 41,9; D 18 Размеры (мм) L 49,5; H 41,9; P 18 Gewicht (g) 22 Masa (g) 22 Gewicht (g) 22 Вес (г) 22 Betriebstempe- ratur -20 °C ... -55 °C Temperatura robocza -20 °C ... +55 °C Bedrijfstempera- tuur -20 °C ... +55 °C Рабочая темпе- ратура -20 °C ... +55 °C • EN - SIMPLIFIED EU DECLARATION OF CON- FORMITY Hereby Nice S.p.A. declares that the radio equipment type OXILR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is avail- able at the following internet address: https://www.niceforyou.com/en/support COMPLIANCE WITH THE FCC RULES (PART 15) AND WITH RSS-210 RULES This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s); and with Part 15 of the FCC rules of the United States of America. Operation is subject to the following two conditions: (1) This device may not cause interfer- ence. (2) This device must accept any interference, including interference that may cause undesired oper- ation of the device. Any changes or modifications made to this device, without the express permission of the manufacturer, may void the user’s authority to operate this device. WARNINGS This device must be professionally installed. The only permitted antenna is a 17 cm whip included. Changeable antenna that must be professionally installed. For OXILR/A must not use the coaxial cable but con- nect the whip cable included. • IT - DICHIARAZIONE DI CONFORMITÀ UE SEMPLIFICATA Il fabbricante Nice S.p.A. dichiara che il tipo di appa- recchiatura radio OXILR è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: https://www.niceforyou.com/it/supporto • DE - VEREINFACHTE EU-KONFORMITÄTS ERKLÄRUNG Hiermit erklärt Nice S.p.A. dass der Funkanlagentyp OXILR der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: https://www.niceforyou.com/de/support • PL - UPROSZCZONA DEKLARACJA ZGOD- NOŚCI UE Nice S.p.A. niniejszym oświadcza, że typ u…

Text truncated - open the document above for the full version.

NICE SPA PAG. 1 di 1 Technical schemes PUSH Button μP (U1) (32MHz oscillator) Low pass filter Matching network T/R (U3) 32MHz clock Aerial 915.75 MHz LED Red/green LDO regulator CH_01 CH_02 CH_03 CH_04 3,3V RX/TX 5V “SM” connector

N N i i c c e e S S p p A A V V i i a a C C a a l l l l a a l l t t a a , , 1 1 I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m 083017 – 10 Authority to Act as Agent Date: 2019/11/08________ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______IMQ______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: _____ ________ __Enrico Campion___________ (Signature 1 ) (Print name) Title: _Laboratory Manager_______ On behalf of: ___Nice S.p.A.__________ (Company Name) Telephone: _+39 0422 85383_________________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

N N i i c c e e S S p p A A V V i i a a P P e e z z z z a a A A l l t t a a , , 1 1 3 3 Z Z . . I I . . R R u u s s t t i i g g n n è è I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m 083017 – 10 Request for Confidentiality Date: 2019/11/08________ Subject: Confidentiality Request for: ______PMLOXILRA______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual ______Nice S.p.a._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180___ 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ___ __ _Enrico Campion___ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

N N i i c c e e S S p p A A V V i i a a P P e e z z z z a a A A l l t t a a , , 1 1 3 3 Z Z . . I I . . R R u u s s t t i i g g n n è è I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m Cover letter for professional installation Date: 2020-06-30 Subject: Professional installation for OXILR/A (FCC ID: PMLOXILRA, IC: 6140A-OXILRA) i. Professional installation must be justified in the filing, and grant condition must state “This device must be professionally installed.” In the installation manual is specified that the product is for professionally installed. ii. Professional installation does not permit use of any antenna with the transmitter; the permitted types of antenna must be specified. In the installation manual is specified that the installer shall be use the included antenna. iii. The applicant should address the following items when justifying professional installation. 1. To qualify for professional installation, the applicant must explain why the hardware is not readily available to average consumer. The product is sold in the professional market and not for final user. 2. Marketing—Device cannot be sold via retail to the general public or by mail order; it must be sold to authorized dealers or installers only. The product is sold in the professional market and not for final user. 3. Filing must show that intended use is not for consumers and general public; rather device is generally for industrial/commercial use. The product is sold in the professional market and not for final user. 4. Explain what is unique, sophisticated, complex, or specialized about the equipment that REQUIRES it to be installed by a professional installer? Due to the installation instruction, professional installation is required. The device will install into drive therefore need tools and specialized skill compare to average consumer. The must installed by qualified personnel to guarantee safety. iv. Other professional installation requirements. 1. Installation must be controlled. The product is easy to install but require the professional installer. 2. Installed by licensed professionals (e.g., device sold to dealer who hire installers). The product is sold to professional installer. 3. Installation requires special training (e.g., special programming, access to keypad, field strength measurements made). The Nice HQ and subsidiaries organize regularly trainer for professional installer. Sincerely, By: ______ ____________________ _______Mr. Enrico Campion ____

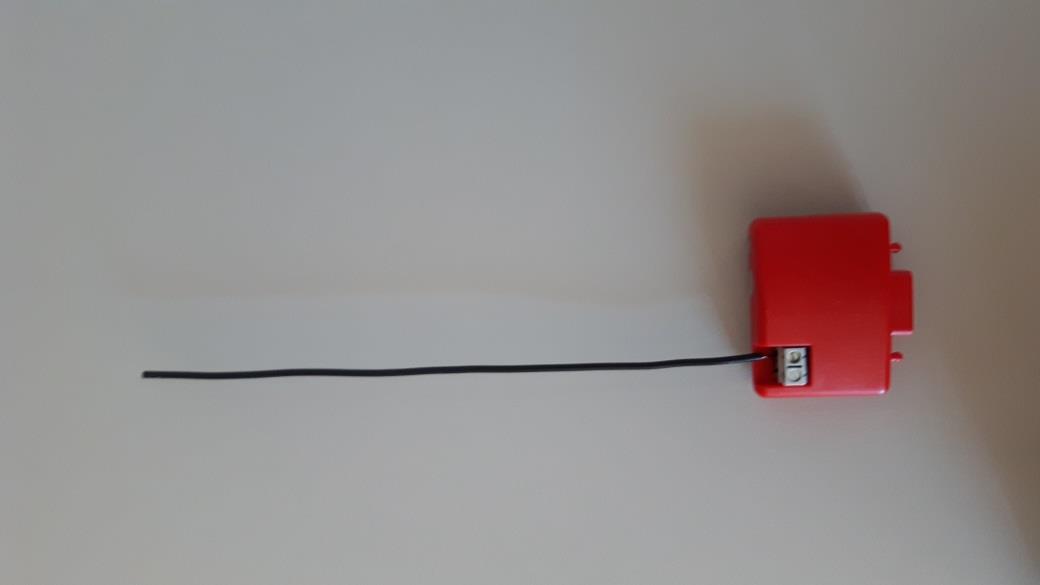

FCC ID: PMLOXILRA IC ID: 6140A-OXILRA NICE – Model: OXILR/A External Photos

NICE SPA PAG. 1 di 1 Label & Labelling For details, please see PD1860C5100

FCC ID: PMLOXILRA IC ID: 6140A-OXILRA NICE – Model: OXILR/A Internal Photos

NICE SPA PAG. 1 di 1 Overview The OXILR/A is a receiver used with control unit fitted on systems for the automation of gates, garage doors and road barriers. When a bidirectional transmitter transmits a command, the receiver recognizes and it transmits the confirmation that the command has been executed. On the bidirectional transmitter, the confirmation is indicated by the vibration and the color of the LED. The OXILR/A’s directly powered from the control unit at 5V. Description of the product The circuit consists of: • A microcontroller U1 (R5F100AGASP) that implements the application functions and communication protocols. The internal oscillation clock is set to 32 MHz. It’s directly powered from the control unit at 5V. • A transceiver U3 (SX1276) that handles the radio channels with LORA modulation (915MHz band). An external 32MHz oscillator is used to generate the incoming clock signals. Matching components and filter are used between antenna and transceiver. The aerial supplied is connected to the J1 terminal. • A linear LDO regulator Q1 (AZ1117E) to supply the transceiver at 3.3V. • A bi-color LED to inform the user of the programming status; LED changes colour to indicate the currently selected function. • A push button to manage the memorization/deletion of transmitters and select functions. • An electrically erasable PROM U2 (24LC64MSOP) in which to memorize transmitters • The board is connected to the control unit by inserting the connector J1 (“SM” type) in the relative control unit connector. • Max nominal RF power: 8.4dBm • Antenna: whip 170mm • Peak gain whip antenna: 0dBd • Tune-up tolerance: -1.5dB / +0.5dB • According to KDB 353028 D1, antenna are consider for: c) Professional installation i) in the instruction: “This device must be professionally installed” ii) use only the antenna associated to the product. This is specified in the instruction iii) professional installation 1) Only for professional installer 2) Product sold only to authorized installer 3) Nice sold only for professional installer 4) Nice organize the training to professional installer to use correctly the product

NICE SPA PAG. 1 di 1 Technical specifications Working temperature: from -5°C to +55°C Power: 5V directly powered from the control unit Working Frequency: 915,75 MHz BW > 500 kHz Modulation: Lo.Ra. Spreading Factor: SF=12 CR= 4/5 Timings Normally the receiver is in receiver mode. If a packet sent by a memorized transimitter is recived correctly, OXILR/A Transmits a feedback RF packet to remote control. Below the time of the feedback measured with an Antenna and RF diode detector. Instructions Manual For details, please read the annex IS0630A02MM

RF Exposure evaluation Notice: The result of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This report shall not be reproduced partially or in its entirely without written approval of Nice S.p.A. Report nr. 00911GbSAR19 page 1 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Test report nr. 00911GbSAR19 Measurements performed in accordance to: FCC Rules (CFR) no. 47 Part 15 Subpart C § 1.1307 (b) (1) Product: Remote control Tested model: OXILR/A FCC ID PMLOXILRA Applicant: Nice S.p.A. Manufacturer: Nice S.p.A. Trademark: Nice Issue date: 30 June 2020 Checked by: E. Campion RF Exposure evaluation Report nr. 00911GbSAR19 page 2 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com Contents Contents ............................................................................................................................. 2 1 Tests ................................................................................................................................ 3 1.1 RF Exposure evaluation ............................................................................................. 3 RF Exposure evaluation Report nr. 00911GbSAR19 page 3 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com 1 Tests 1.1 RF Exposure evaluation Specify: Base standard: 1.1307 (b) (1) Systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines § 1.1307 (b) (1) EUT classification (fixed, mobile or portable devices) Limits According to § 2.1093 of this Chapter, by means of the following guidelines: OET Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies (447498 D1 General RF Exposure Guidance v06) Date. SAR Test Exclusion Threshold for 100MHz – 6GHz and ≤ 50mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The test separation distances ≥ 5mm is applied to determine SAR test esclusion. RF Exposure evaluation Report nr. 00911GbSAR19 page 4 / 4 date: 30 June 2020 Nice S.p.A. Oderzo TV Italia tel. +39.0422.853838 www.niceforyou.com SAR Test Exclusion Thresholds for 100MHz – 6GHz and ≤ 50mm 447498 D01 General RF Exposure Guidance v06 § 4.3 Frequency (MHz) Radiated power (dBuV/m) Conducted power (dBm) Tune-up tolerance (dB) Power plus tune-up (dBm) Max conducted power (mW) Distance (mm) 916 99.6 8.4 -1.5 / +0.5 8.9 7.8 5 (max conducted power / distance) * SQRT (frequency) Limits 1.49 ≤ 3.0 for head SAR or ≤ 7.5 for 10-g extremity SAR Test Result This value is less than the low threshold limit. No SAR test is required. Maximum radiated power was taken into consideration to establish he worst case aggregate maximum output power.

The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A.. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. TEST REPORT No. AR19-0043840-01 performed in accordance with FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart C Section 15.247 PRODUCT Radio module MODEL(s) TESTED OXILR/A FCC ID PMLOXILRA TRADE MARK(s) NICE APPLICANT NICE S.p.A. ∼ Via Pezza alta, 13 ∼ I-31046 Rustignè di Oderzo (TV) Tested by Robertino Torri [Laboratory technician] Approved by Giovanni Di Turi [Laboratory manager] Revision Sheet Release No. Date Revision Description Rev. 0 2020-06-24 First edition Digital signed - AR19-0043840-01_TR_FCC 15.247_NICE_OXILR-A Mod. TRF 3712 / / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY Test Report No. AR19-0043840-01 Date: 2020-06-24 Page 2 of 28 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2020-04-08 (Item(s) sampled and sent by applicant) IMQ reference samples BEM 99151 Samples tested No. 1 Object under analysis recognition Not carried out Except where stated, characteristics of products were taken from client description and were not verified by the laboratory Date of acceptance of test item 2020-04-08 TEST LOCATION Testing dates 2020-04-20 ÷ 2020-04-21 Testing laboratory. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 Milano Testing site Via Quintiliano, 43 – I-20138 Milano ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 21.0 ÷ 23.0 °C Relative Humidity 47 ÷ 55 % Atmospheric Pressure 991 ÷ 1001 mbar The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. REMARKS Throughout this report a point is used as the decimal separator. The ability or reliability of this product to perform its intended function in a particular application has not been investigated. Unless otherwise specified, warnings, installation instruction and/or user manual provided with the sample have been checked in Italian or English version only. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Test Report No. AR19-0043840-01 Date: 2020-06-24 Page 3 of 28 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 2015 Radio Frequency Device ANSI C63.4 2014 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Test Report No. AR19-0043840-01 Date: 2020-06-24 Page 4 of 28 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 3. EQUIPMENT UNDER TEST (EUT) DETAILS GENERAL DATA (according to manufacturer declaration) MODEL (basic) Description OXILR/A Radio module VARIANTS (derived) Description / / FCC ID PMLOXILRA Manufacturer NICE S.p.A. ∼ Via Pezza alta, 13 ∼ I-31046 Rustignè di Oderzo (TV) Type of equipment DTS - Digital transmission equipment Operating frequency 915.77 MHz Max RF radiated power 99.58 dBμV/m @3m Modulation CSS Channel 1 Occupied bandwidth > 500 kHz Antenna Dedicated wire length 170mm Remarks None Test Report No. AR19-0043840-01 Date: 2020-06-24 Page 5 of 28 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 4. TEST CONFIGURATION OF EQUIPMENT UNDER TEST EUT PORTS Port Description Max length Enclosure Plastic / AC power / / DC power 5V DC (by external power supply adapter 12/24 V DC – 5V DC) / Signal/ Control / / Antenna 170mm wire for terminal block connector / STATE OF THE EUT DURING TESTS Ref. Transmission Mode Description #1 CW Continuous unmodulated transmission mode (constant tone) #2 Modulated Continuous modulated transmission (PBRS9 duty cycle close to 100%) #3 Normal operating Receiving mode / Transmission only after BD encoding reception for acknowledge SUPPORT EQUIPMENT Defined as equipment needed for correct operation or loading of the EUT, but not considered as tested: Equipment Manufacturer Model Universal baseplate for Nice plug-in transceivers (DC power supply adapter) Nice OX2UBP (678-A PCB) DC power supply HP 6038A AC/DC adapter Victory VI1000-6CR EUT Antenna Port AC Power Port Earth Port Telecommunication Port Signal/Control Port DC Power Port Enclosure Port Test Report No. AR19-0043840-01 Date: 2020-06-24 Page 6 of 28 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY ELECTROMAGNETICALLY RELEVANT COMPONENTS Component No. Manufacturer Model PCB board 1 NICE 647-B – R02 RFI SUPPRESSION DEVICES Component No. Manufacturer Model / / / / EMI PROTECTION DEVICES Component No. Manufacturer Model / / / / EUT TECHNICAL DOCUMENTATION Document Reference / / Test Report No. AR19-0043840-01 Date: 2020-06-24 Page 7 of 28 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 5. METHODS OF MEASUREMENT All compliance measurements have been carried out using the procedures described in the standard ANSI C63.4-2014, ANSI C63.10-2013 and Section 15.31 of CFR47 Part 15 – Subpart A (General). Additional test requirements have been adopted according to the reference Section indicated in the § 6 of this test report. FREQUENCY RANGE INVESTIGATED Radiated emission tests: from 9 kHz to tenth harmonic of fundamental. Test Report No. AR19-0043840-01 Date: 2020-06-24 Page 8 of 28 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 6. SUMMARY OF TEST RE…

Text truncated - open the document above for the full version.

FCC ID: PMLOXILRA IC ID: 6140A-OXILRA NICE – Model: OXILR/A Radiated Measurements Test Set-up Conducted Measurements Test Set-up
