PMLON3EBDATransceiver control

EN - Instructions for the fitter IT - Istruzioni per l’installatore FR - Instructions pour l’installateur ES - Instrucciones para el instalador DE - Anweisungen für den Installateur PL - Instrukcje dla instalatora NL - Aanwijzingen bestemd voor de installateur RU - Инструкции и предупреждения по монтажу ENGLISH Instructions translated from Italian 1 - PRODUCT DESCRIPTION AND INTEND- ED USE The ON3EBD (ON3EBD/A) transmitter is designed to control automations (gates, garage doors, road barriers and similar). All uses other than that described herein and use in environmental conditions other than those indicated in this manual are con - sidered improper and forbidden! ON3EBD (ON3EBD/A) is compatible with receiv - ers that adopt both the one-way “O-Code” (“O-Code/A”) and the two-way “BD” radio encoding systems; the latter, besides the advanced and exclusive functions of the “Nice - Opera” system, has a series of additional func- tions (Paragraph 2). The ON3EBD (ON3EBD/A) transmitter, con - figured in two-way mode, can be memorised on maximum 10 two-way receivers (OXIBD (OXIBD/A)). Configured in one-way mode (6 - ENCODING SWITCH PROCEDURE), it can be memorised on any desired number of one-way receivers. The ON3EBD (ON3EBD/A) is equipped with 4 keys (Fig. 1): 3 keys are used to send commands and 1 function key to request the automation’s status or to switch the encoding system. Moreo - ver, a series of optional accessories are available: string for keyring (Fig. 2); support for mounting (Fig. 3 ON3EBD, Fig. 4 ON3EBD/A). 2 - TRANSMITTER FUNCTIONS Each single encoding allows for exploit- ing only the functions linked to that specific encoding system. The two-way communication between the ON3EBD (ON3EBD/A) transmitter and the OXIBD (OXIBD/A) receiver has the following functions: • Sending of the receiver’s confirmation of the command received: sending to the transmitter of the confirmation that the command trans - mitted was received by the receiver. - Command received: the transmitter vibrates and the LED emits a series of orange flashes followed by a steady green light for 2 seconds. - Command not received: the transmitter LED emits a series of orange flashes followed by a steady red light for 2 seconds (there is no vibration). • Sending of the automation’s status (for exam - ple, whether the gate is open or closed): see Paragraph 5. • Indication of the automation’s anomaly status: flashing of the red LED and intermittent vibra - tion. 3 - TRANSMITTER VERIFICATION Before memorising the transmitter in the automa - tion’s receiver, ensure that it is working correctly by pressing any key while observing whether the LED (Fig. 1) lights up; should this not occur, see Paragraph 8. 4 - TRANSMITTER MEMORISATION To memorise the transmitter in a receiver, the fol - lowing procedures can be adopted: • Memorisation in “Mode 1” • Memorisation in “Mode 2” • Memorisation in “Extended Mode 2” • Memorisation through the “Enabling Code” received from a previously memorised trans - mitter These procedures are described in the instruc - tion manual of the receiver or control unit with which the transmitter must be operated. The above-mentioned manuals are also available on the website: www.niceforyou.com - For the procedures listed below only keys 1, 2, 3 of the transmitter are enabled (Fig. 1). The fourth key is exclusively reserved for the status request (Paragraph 5). A - Memorisation in “Mode 1” Allows for memorising in the receiver, once only, the 3 transmitter command keys, associating them automatically with each command man - aged from the control unit (default commands). B - Memorisation in “Mode 2” Allows for memorising in the receiver a single transmitter key, associating it with the commands managed from the control unit (maximum 4 and chosen by the user). Note – the same procedure must be repeated for each key to be memorised. C - Memorisation in “Extended Mode 2” The same as memorisation “B” - “Mode 2”, with the added possibility of choosing the desired command (to be paired with the key being memorised) in an extended list of commands managed from the control unit (up to 15 different commands). The feasibility of the procedure depends on the control unit’s ability to manage the 15 com - mands. D - Memorisation through the “ENABLING Code” (between an OLD transmitter already memorised and a NEW transmitter) The ON3EBD (ON3EBD/A) transmitter has a secret code, the so-called “ENABLING CODE”. By transferring this code from a memorised transmitter to a new transmitter, the latter is rec - ognised (and memorised) automatically by the receiver. Memorisation procedure: 01. Bring the two transmitters (NEW and OLD one already memorised) close to one anoth - er as shown in Fig. 5. 02. On the NEW transmitter press and release a command key. The LED of the OLD transmit - ter will switch on and start flashing. 03. On the OLD transmitter press and release a command key. Once the code has been transferred, for an instant both the trans - mitters (NEW and OLD) will vibrate and the green LED will light up (end of the proce - dure). When the NEW transmitter will be used, for the first 20 times it will transmit this “enabling code” to the receiver together with the command. The receiver will automatically memorise the identifi - cation code of the transmitter that transmitted it. 5 - STATUS REQUEST PROCEDURE 01. Press and release the “i” “Status request” key (Fig. 1). 02. Press and release the command key associ - ated with the automation for which the status is requested. 03. Observe the final colour of the LED after the series of orange flashes: • GREEN: gate/door OPEN • RED: gate/door CLOSED • ORANGE: partial opening/closing Note – If the transmitter is memorised in multiple automations and a status request is made, the ON3EBD (ON3EBD/A) will only signal the status of the automation that responded first to the status request or that falls within the transmitter range. Important - In this specific case, Nice cannot of…

Text truncated - open the document above for the full version.

N N i i c c e e S S p p A A V V i i a a P P e e z z z z a a A A l l t t a a , , 1 1 3 3 Z Z . . I I . . R R u u s s t t i i g g n n è è I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m Addendum for instruction ON3EBD/A This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s); and with Part 15 of the FCC rules of the United States of America. Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

N N i i c c e e S S p p A A V V i i a a C C a a l l l l a a l l t t a a , , 1 1 I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m 083017 – 10 Authority to Act as Agent Date: 2019/08/28________ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______IMQ______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____12 months_____ By: _____ ________ __Enrico Campion___________ (Signature 1 ) (Print name) Title: _Laboratory Manager_______ On behalf of: ___Nice S.p.A.__________ (Company Name) Telephone: _+39 0422 85383_________________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

N N i i c c e e S S p p A A V V i i a a P P e e z z z z a a A A l l t t a a , , 1 1 3 3 Z Z . . I I . . R R u u s s t t i i g g n n è è I I - - 3 3 1 1 0 0 4 4 6 6 O O d d e e r r z z o o T T V V I I t t a a l l i i a a C C a a p p . . S S o o c c . . € € 1 1 1 1 . . 6 6 0 0 0 0 . . 0 0 0 0 0 0 i i . . v v . . P P h h o o n n e e + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 8 8 3 3 8 8 F F a a x x + + 3 3 9 9 . . 0 0 4 4 2 2 2 2 . . 8 8 5 5 3 3 5 5 8 8 5 5 P P . . I I V V A A 0 0 3 3 0 0 9 9 9 9 3 3 6 6 0 0 2 2 6 6 9 9 i i n n f f o o @ @ n n i i c c e e f f o o r r y y o o u u . . c c o o m m w w w w w w . . n n i i c c e e f f o o r r y y o o u u . . c c o o m m 083017 – 10 Request for Confidentiality Date: 2019/08/28________ Subject: Confidentiality Request for: ______PMLON3EBDA______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual ______Nice S.p.a._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180___ 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: ___ __ _Enrico Campion___ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

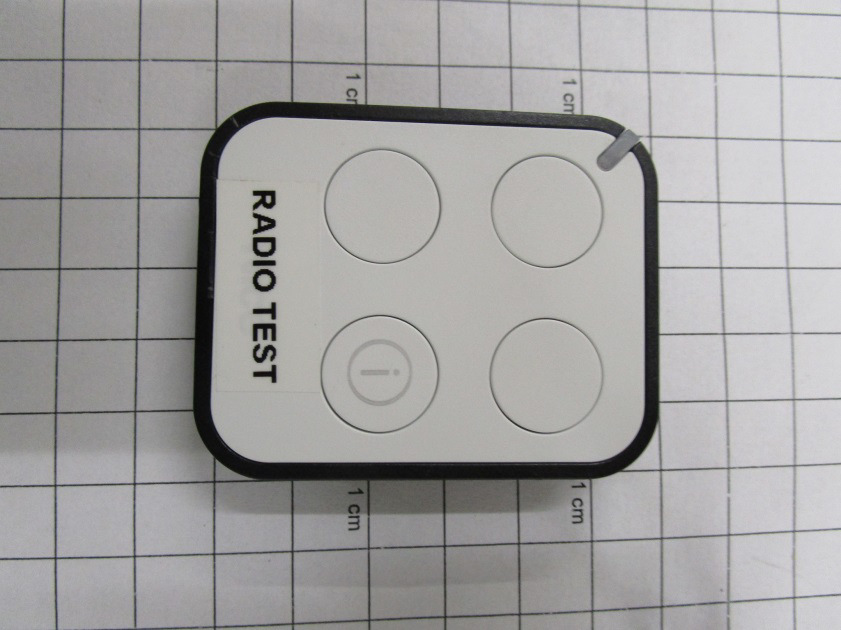

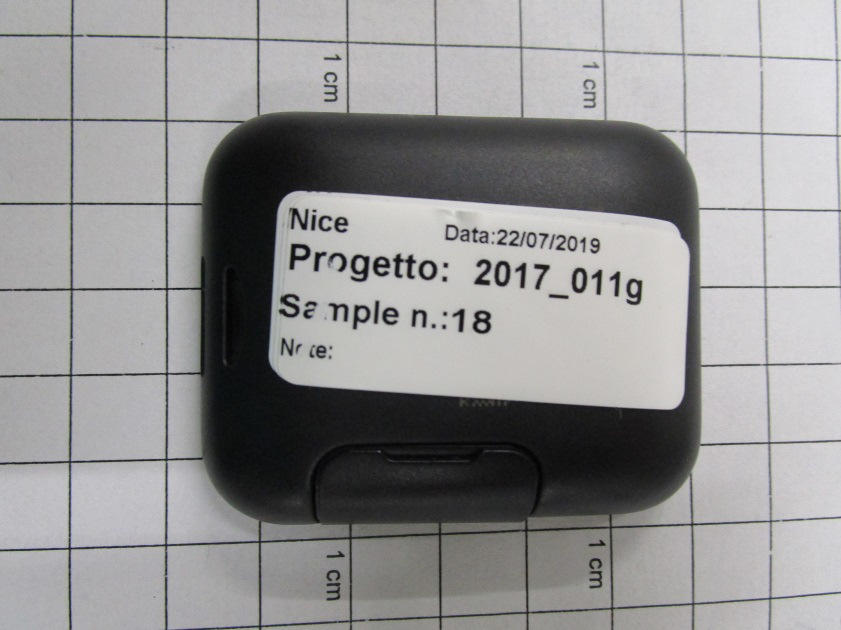

FCC ID: PMLON3EBDA IC ID: 6140A-ON3EBDA NICE – Model: ON3EBD/A External Photos

NICE SPA PAG. 1 di 1 Label & Labelling For details, please see PD0132C5100

FCC ID: PMLON3EBDA IC ID: 6140A-ON3EBDA NICE – Model: ON3EBD/A Internal Photos

The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A.. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. TEST REPORT No. AR19-0043508-01 performed in accordance with FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart C Section 15.231 PRODUCT LPD transmitter MODEL(s) TESTED ON3EBD/A FCC ID PMLON3EBDA TRADE MARK(s) NICE APPLICANT NICE S.p.A. ∼ Via Pezza alta, 13 ∼ I-31046 Rustignè di Oderzo (TV) Tested by Robertino Torri [Laboratory technician] Approved by Giovanni Di Turi [Laboratory manager] Revision Sheet Release No. Date Revision Description Rev. 0 2019-09-12 First edition Digital signed - AR19-0043508-01_TR_FCC Part C 15.231 - NICE - ON3EBD_A Mod. TRF 3724/ 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY Test Report No. AR19-0043508-01 Date: 2019-09-12 Page 2 of 21 Mod. TRF 3724 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIP MENT L ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2019-09-03 (Item(s) sampled and sent by applicant) IMQ reference samples BEM 96821 Samples tested No. 1 Object under analysis recognition Not carried out Except where stated, characteristics of products were taken from client description and were not verified by the laboratory Date of acceptance of test item 2019-09-03 TEST LOCATION Testing dates 2019-09-03 Testing laboratory. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 Milano Testing site Via Quintiliano, 43 – I-20138 Milano ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 22.5 °C Relative Humidity 47 % Atmospheric Pressure 965 mbar The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. REMARKS Throughout this report a point is used as the decimal separator. The ability or reliability of this product to perform its intended function in a particular application has not been investigated. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Test Report No. AR19-0043508-01 Date: 2019-09-12 Page 3 of 21 Mod. TRF 3724 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIP MENT L ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 2015 Radio Frequency Device ANSI C63.4 2014 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10 2013 American National Standard for Testing Unlicensed Wireless Devices Test Report No. AR19-0043508-01 Date: 2019-09-12 Page 4 of 21 Mod. TRF 3724 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIP MENT L ABORATORY 3. EQUIPMENT UNDER TEST (EUT) DETAILS GENERAL DATA (According to manufacturer declaration) MODEL (basic) Description ON3EBD/A LPD transmitter MODEL (derivated) Description / / FCC ID PMLON3EBDA Manufacturer NICE S.p.A. ∼ Via Pezza alta, 13 ∼ I-31046 Rustignè di Oderzo (TV) Type of equipment LPD transmitter Operating frequency 433.92 MHz Max radiated peak power 81.04 dBμV/m (at 3m distance) Modulation 2GFSK / AM-OOK Channel Spacing / Channel bandwidth 200 kHz Antenna Integrated (strip line on PCB) Number of channels / Note: The receiver can only memorize transmitter belonging to one of the following encoding families: “BD” encoding or “O-code/A” encoding “BD” With these encoding families, reception and transmission are supported. Modulation: 2GFSK (BT = 0.5) “O-code/A” With these encoding families, only reception is supported. Modulation AM-OOK Test Report No. AR19-0043508-01 Date: 2019-09-12 Page 5 of 21 Mod. TRF 3724 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIP MENT L ABORATORY 4. TEST CONFGURATION OF EQUIPMENT UNDER TEST EUT PORTS Port Description Max length Enclosure Plastic / AC power / / DC power 3 V DC by CR2032 type lithium battery / Signal/ Control / / Antenna Integrated (strip line on PCB) / STATE OF THE EUT DURING TESTS Ref. Transmission Mode Description #1 CW Continuous unmodulated transmission mode (constant tone) #2 Modulated Continuous modulated transmission (PBRS9 duty cycle close to 100%) #3 Normal operating Receiving mode / Normal transmission (button push) SUPPORT EQUIPMENT Defined as equipment needed for correct operation or loading of the EUT, but not considered as tested: Equipment Manufacturer Model / / / EUT Antenna Port AC Power Port Earth Port Telecommunication Port Signal/Control Port DC Power Port Enclosure Port Test Report No. AR19-0043508-01 Date: 2019-09-12 Page 6 of 21 Mod. TRF 3724 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIP MENT L ABORATORY ELECTROMAGNETICALLY RELEVANT COMPONENTS Component No. Manufacturer Model PCB board 1 NICE 673-A - R10 RFI SUPPRESSION DEVICES Component No. Manufacturer Model / / / / EMI PROTECTION DEVICES Component No. Manufacturer Model / / / / EUT TECHNICAL DOCUMENTATION Document Reference / / Test Report No. AR19-0043508-01 Date: 2019-09-12 Page 7 of 21 Mod. TRF 3724 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIP MENT L ABORATORY 5. METHODS OF MEASUREMENT All compliance measurements have been carried out using the procedures described in the standard ANSI C63.4:2014, ANSI C63.10:2013 and Section 15.31 of CFR47 Part 15 – Subpart A (General). Additional test requirements have been adopted according to the reference Section indicated in the § 6 of this test report. FREQUENCY RANGE INVESTIGATED Radiated emission tests: from 30 MHz to tenth harmonic of fundamental. Test Report No. AR19-0043508-01 Date: 2019-09-12 Page 8 of 21 Mod. TRF 3724 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIP MENT L ABORATORY 6. SUMMARY OF TEST RESULTS POSSIBLE TEST CASE VERDICTS: Test obj…

Text truncated - open the document above for the full version.

FCC ID: PMLON3EBDA IC ID: 6140A-ON3EBDA NICE – Model: ON3EBD/A Radiated Measurements Test Set-up
