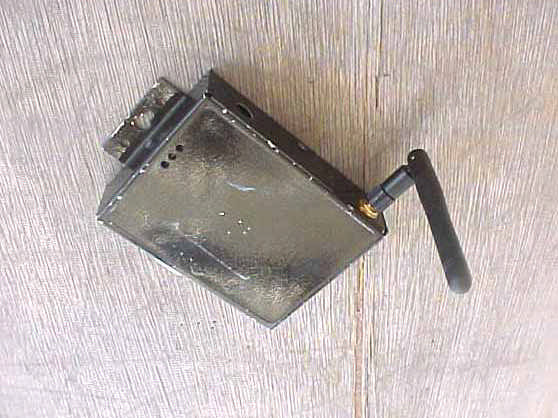

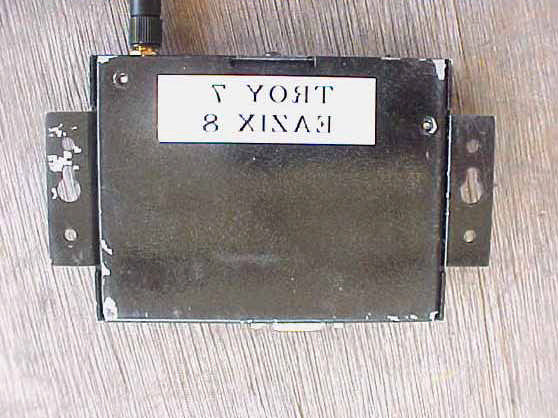

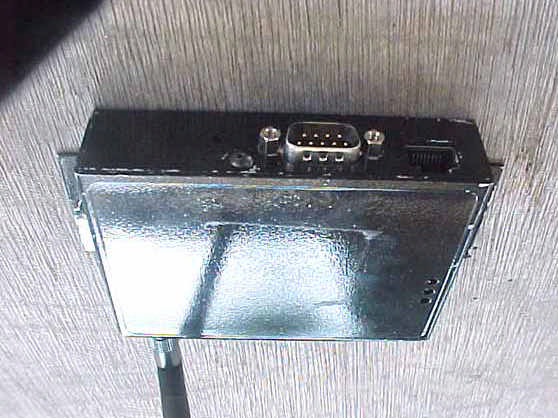

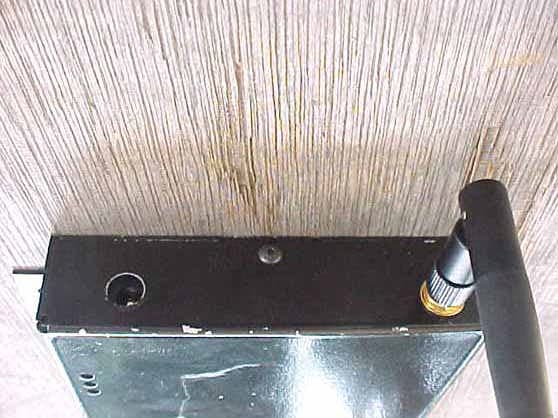

Serial Server Ethernet and Wireless Serial Servers Installation and User’s Guide Part Number 40179-120 Revision X5 Product Photo Notice TROY GROUP, INC. SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS OF THIS PRODUCT FOR A PARTICULAR PURPOSE. TROY shall not be liable for any errors contained in this manual or for any damages resulting from loss of use, data, profits, or any incidental or consequential damages arising from the use of TROY products or services. The information contained in this documentation is subject to change without notice. Trademarks HP, HP/UX, LaserJet, DesignJet, DeskJet, PaintJet, JetDirect, and JetAdmin are trademarks of Hewlett-Packard Company. DEC, DECserver, VMS, LAT, and ULTRIX are trademarks of Digital Equipment Corporation. UNIX is a trademark of UNIX Systems Laboratories. Ethernet is a trademark of Xerox Corporation. PostScript is a trademark of Adobe Systems Incorporated. NetWare is a trademark of Novell, Inc. Apple, Macintosh, LaserWriter, and AppleTalk are trademarks of Apple Computer, Inc. IBM, LAN Server, and AIX are trademarks of International Business Machines Corporation. LAN Manager, Windows, and MS- DOS are trademarks of Microsoft Corporation. VINES is a trademark of Banyan Systems Inc. PrintKit is a trademark of Northlake Software. QADD is a trademark of Network Compatibility Group. LAN Attached and UNIX Printing for VINES is a trademark of Incognito Software Inc. ExtendView, Xadmin 32, and WebXAdmin are trademarks of TROY Group, Inc. TROY is a registered trademark of TROY Group, Inc. Information and descriptions contained herein are the property of TROY Group, Inc. Such information and descriptions may not be copied, disseminated, or distributed without the express written consent of TROY Group, Inc. This publication is subject to change without notice. TROY Group, Inc. 2331 S. Pullman Street Santa Ana, CA 92705 TEL: (949) 250-3280 FAX: (949) 250-8972 http://www.troygroup.com [email protected] © Copyright 2004 TROY Group, Inc. Printed in the United States of America July 1, 2004 Serial Server User’s Guide Document #40179-120 Rev. X5 i TABLE OF CONTENTS Section 1 – Product Overview Introduction............................................................................................................................ 1-1 Package Contents ................................................................................................................... 1-1 About this User’s Guide.........................................................................................................1-1 Windows System Requirements ............................................................................................ 1-2 Wireless Serial Server Requirements..................................................................................... 1-2 Component Descriptions........................................................................................................ 1-3 LED Indicators................................................................................................................ 1-4 Pushbutton Functions...................................................................................................... 1-4 Factory Default Settings ........................................................................................................1-5 Configuration Notes........................................................................................................ 1-5 Section 2 – Hardware Installation Install the TROY Serial Server (for wired and wireless models) .......................................... 2-1 Section 3 – Configuration and Management Configuration Options ...........................................................................................................3-1 ExtendView Utility ......................................................................................................... 3-1 Installing the ExtendView Utility (Windows Operating Systems).......................................... 3-1 Web Browser Interface ...................................................................................................3-1 HP Web JetAdmin Utility ............................................................................................... 3-1 Command Console..........................................................................................................3-2 Configuring the Serial Server via an Ethernet Connection .................................................... 3-2 Configuring the Serial Server via a Serial Connection .......................................................... 3-4 First-Time Configuration of the Wireless Serial Server Uisng 802.11b................................ 3-5 Verifying the Serial Server’s Connection to a Serial Device................................................. 3-6 Changing the Serial Settings .................................................................................................. 3-7 Changing the Baud Rate ................................................................................................. 3-7 Changing the Serial Port Protocol................................................................................... 3-7 Using the Modbus Protocol ................................................................................................... 3-8 Serial Transmission Modes............................................................................................. 3-8 Typical Modbus Applications......................................................................................... 3-8 Changing the Modbus Settings ....................................................................................... 3-8 Section 4 - Troubleshooting Introduction............................................................................................................................ 4-1 Troubleshooting Installation Problems ........................................…

Text truncated - open the document above for the full version.

9.2 0.3 8.0 9.89 ±0 8.30 0.2 1.5/1 3 RP SMA 2.4--2.5GHz Antenna W201-108-D2 W201-108-D2 D Yang 09/05/2002 02-323 02-342 Yang 09/17/2002 02-373 Yang 10/02/2002 02-521 Yang 12/13/2002 4 5 6 7 87.3 0.5mm 9.2 0.3 108.5 0.5mm 0 . 96 0 . 02 2 Sample NEW RELEASE 1/4-36 UNS-2B : 5.5 0.2 B C SEE ECN D SEE ECN 1 3 1. 0 0 .3 9 0 R E F ELECTRICAL PERFORMANCE :1.Impedance : 50 ohms2.Frequency Range : 2.4--2.5 GHz3.VSWR : 2.0 maximum4.Gain:1.5dbi REV. A DESCRIPTION ECN REVISIONS DRAWN DATE O I INPUT OUTPUT REMARKS: TOLERANCES: DIM. X.X=±0.5 UNIT:mm TITLE: DESIGNED: CHECKED: DRAWN: APPROVAL: SHEET:DWG NO. :LAYER: SCALE:REV. P/No. : X.XX=±0.25 OF Yang Yang Bras s TPEE Black ABS Black ABS Black RP SM A Bras s Co n t act e r Be.Copper 30u " RP SMAD604-400A Bras s 4u"

scott To: [email protected]; [email protected] Subject: FCC ID: PTY-TROY500 12/7/2004 Mr. Fujimoto: In order for processing of this application (FCC ID: PTY‐TROY500) to continue, the following issue(s) will have to be addressed: 1) The confientialiy letter submitted refers to the incorrect FCC ID. Please submit a new letter. 2) Please indicate whether the device complies with the voltage variation requirements in section 15.31 (e) of the FCC rules. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e‐mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is PTY‐TROY500‐1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579‐0500 Direct: (714) 579‐1489 Fax: (714) 579‐1850 [email protected]

MPE Calculations For RF Exposure Requirements Wireless Serial Server Model: TROY500 Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations Power density at the specific separation of 20 centimeters: S = PG/(4R 2 π) S = (53.58 * 1.413) / (4 * 20 2 * π) S = 0.01506 mW/cm 2 where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20 cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (1.5 dBi/10) G = 1.413

Report Number: B41004D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Serial Server Model: TROY500 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 26 FCC PART 15, SUBPART B and C TEST REPORT for WIRELESS SERIAL SERVER MODEL: TROY500 Prepared for TROY GROUP, INC. 2331 SOUTH PULLMAN STREET SANTA ANA, CALIFORNIA 92705 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: OCTOBER 18,2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 26 2 2 2 29 77 138 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B41004D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Serial Server Model: TROY500 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 26 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.2 Description of Test Configuration – EMI (Continued) 10 4.1.1 Cable Construction and Termination for RS-232 Mode 11 4.1.2 Cable Construction and Termination for RS-422 Mode 12 4.1.3 Cable Construction and Termination for RS-485 Mode 13 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 14 5.1 EUT and Accessory List for RS-232 Mode 14 5.2 EUT and Accessory List for RS-422 Mode 14 5.3 EUT and Accessory List for RS-422 Mode 15 5.4 EMI Test Equipment for Brea Facility – Part 1 16 5.5 EMI Test Equipment for Brea Facility – Part 2 17 6. TEST SITE DESCRIPTION 18 6.1 Test Facility Description 18 6.2 EUT Mounting, Bonding and Grounding 18 7. CHARACTERISTICS OF THE TRANSMITTER 19 7.1 Antenna Gain 19 8. Test Procedures 20 8.1 RF Emissions 20 8.1.1 Conducted Emissions Test 20 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 21 8.2 6 dB and 20 dB Bandwidth 23 8.3 Peak Output Power 23 8.4 RF Antenna Conducted Test 23 8.5 Spectral Density Output 24 8.6 RF Band Edges 25 9. CONCLUSIONS 26 Report Number: B41004D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Serial Server Model: TROY500 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 26 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map and Layout of 3 Meter Radiated Site Report Number: B41004D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Serial Server Model: TROY500 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 26 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government. Device Tested: Wireless Serial Server Model: TROY500 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Troy Group, Inc. 2331 South Pullman Street Santa Ana, California 92705 Test Dates: September 24, 27, 28, and 29 2004 Test Specifications : EMI requirements Limits: Class B of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.4: 2003 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B41004D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Serial Server Model: TROY500 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 26 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 30 MHz – 1000 MHz Complies with the Class B limits of CFR Tit…

Text truncated - open the document above for the full version.

Report Number: B41004D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Serial Server Model: TROY500 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page E1 APPENDIX E DATA SHEETS Report Number: B41004D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Serial Server Model: TROY500 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page E2 RADIATED EMISSIONS DATA SHEETS FCC 15.247 Troy Group, Inc.Date: 9/28/04 Wireless Serial ServerLab: B Model: TROY500Tested By: Kyle Fujimoto Channel 1 - 802.11 b Mode Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482447.25V74-26.75Peak2.72180 482444.8V54-9.2Avg2.72180 723647.27V74-26.73Peak1.7225 723640.46V54-13.54Avg1.7225 964853.13V----Peak2.40 Not in Restricted Band 964848.53V----Avg2.40 Not in Restricted Band 1206048.13V74-25.87Peak1.79315 1206035.74V54-18.26Avg1.79315 1447250.83V74-23.17Peak1.79270 1447237.95V54-16.05Avg1.79270 1688448.4V----Peak2.68180 Not in Restricted Band 1688436.58V----Avg2.68180 Not in Restricted Band 19296V74-74Peak No Emission 19296V54-54Avg Detected 21708V----Peak No Emission 21708V----Avg Detected 24120V----Peak No Emission 24120V----Avg Detected FCC 15.247 Troy Group, Inc.Date: 9/28/04 Wireless Serial ServerLab: B Model: TROY500Tested By: Kyle Fujimoto Channel 1 - 802.11 b Mode Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h)LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482448.09H74-25.91Peak2.5345 482445.39H54-8.61Avg2.5345 723644.7H74-29.3Peak2.6135 723633.1H54-20.9Avg2.6135 964851H----Peak1.8845 Not in Restricted Band 964843.4H----Avg1.8845 Not in Restricted Band 1206049.6H74-24.4Peak1.55180 1206035.57H54-18.43Avg1.55180 1447251.75H74-22.25Peak1.55225 1447237.86H54-16.14Avg1.55225 1688451.99H----Peak1.55315 Not in Restricted Band 1688436.8H----Avg1.55315 Not in Restricted Band 19296H74-74Peak No Emission 19296H54-54Avg Detected 21708H----Peak No Emission 21708H----Avg Detected 24120H----Peak No Emission 24120H----Avg Detected FCC 15.247 Troy Group, Inc.Date: 9/28/04 Wireless Serial ServerLab: B Model: TROY500Tested By: Kyle Fujimoto Channel 6 - 802.11 b Mode Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 487445.8V74-28.2Peak3.33135 487442.39V54-11.61Avg3.33135 731147.54V74-26.46Peak1.27225 731141.03V54-12.97Avg1.27225 974851.75V----Peak1.72315 Not in Restricted Band 974845.14V----Avg1.72315 Not in Restricted Band 1218550.34V74-23.66Peak2.34315 1218535.98V54-18.02Avg2.34315 1462250.37V----Peak2.26225 Not in Restricted Band 1462236.68V----Avg2.26225 Not in Restricted Band 1705951.82V----Peak2.24135 Not in Restricted Band 1705937.81V----Avg2.24135 Not in Restricted Band 19496V74-74Peak No Emission 19496V54-54Avg Detected 21933V----Peak No Emission 21933V----Avg Detected 22001V74-74Peak No Emission 22001V54-54Avg Detected 24370V----Peak No Emission 24370V----Avg Detected FCC 15.247 Troy Group, Inc.Date: 9/28/04 Wireless Serial ServerLab: B Model: TROY500Tested By: Kyle Fujimoto Channel 6 - 802.11 b Mode Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h)LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 487447.3H74-26.7Peak2.5645 487443.76H54-10.24Avg2.5645 731144.66H74-29.34Peak2.55135 731132.74H54-21.26Avg2.55135 974851.66H----Peak3.5745 Not in Restricted Band 974845.87H----Avg3.5745 Not in Restricted Band 1218549.94H74-24.06Peak2.945 1218535.81H54-18.19Avg2.945 1462251.55H----Peak2.8245 Not in Restricted Band 1462236.84H----Avg2.8245 Not in Restricted Band 1705951.32H----Peak2.34270 Not in Restricted Band 1705937.53H----Avg2.34270 Not in Restricted Band 19496H74-74Peak No Emission 19496H54-54Avg Detected 21933H----Peak No Emission 21933H----Avg Detected 22001H74-74Peak No Emission 22001H54-54Avg Detected 24370H----Peak No Emission 24370H----Avg Detected FCC 15.247 Troy Group, Inc.Date: 9/28/04 Wireless Serial ServerLab: B Model: TROY500Tested By: Kyle Fujimoto Channel 11 - 802.11 b Mode Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 492448V74-26Peak2.66135 492444.56V54-9.44Avg2.66135 738644.18V74-29.82Peak1.78225 738633.79V54-20.21Avg1.78225 984851.21V----Peak2.87315 Not in Restricted Band 984845.64V----Avg2.87315 Not in Restricted Band 1231048.75V74-25.25Peak2.02315 1231034.71V54-19.29Avg2.02315 1477250.32V----Peak2.72315 Not in Restricted Band 1477236.37V----Avg2.72315 Not in Restricted Band 1723450.23V----Peak1.70 Not in Restricted Band 1723435.89V----Avg1.70 Not in Restricted Band 19696V74-74Peak No Emission 19696V54-54Avg Detected 22158V74-74Peak No Emission 22158V54-54Avg Detected 24620V----Peak No Emission 24620V----Avg Detected FCC 15.247 Troy Group, Inc.Date: 9/28/04 Wireless Serial ServerLab: B Model: TROY500Tested By: Kyle Fujimoto Channel 11 - 802.11 b Mode Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 492447.72H74-26.28Peak2.545 492444.27H54-9.73Avg2.545 738642.4H74-31.6Peak2.5645 738629.38H54-24.62Avg2.5645 984849.26H----Peak3.5845 Not in Restricted Band 984843.78H----Avg3.5845 Not in Restricted Band 1231049.46H74-24.54Peak2.3645 1231034.92H54-19.08Avg2.3645 1477250.24H----Peak2.2345 Not in Restricted Band 1477236.06H----Avg2.2345 Not in Restricted Band 1723449.74H----Peak3.19225 Not in Restricted Band 1723435.72H----Avg3.19225 Not in Restricted Band 19696H74-74Peak No Emission 19696H54-54Avg Detecte…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) for the Wireless Serial Server Model: Troy 500 FCC-ID: PTY-TROY500 The fundamental was maximized on the Lab B test site using a normal test setup with the EUT’s AC Adapter connected directly to the AC public mains (115 Vac). Next, the EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: 87, Serial Number: 956410240, Calibration Due Date: November 07, 2005. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
