PTY-WNDCTIIPrinter Server

WindConnect II User’s Guide (For use with TROY WindConnect II Printer Adapters with Bluetooth ® Technology) Open the Adobe Acrobat Reader navigation pane to use the links for this document. NOTE : The X3 version of this document does not contain any links in the navigation pane. The final copy will contain these links for the reader . Document #40xxx-110 Rev. X3 NOTE : For best results, view this document using Adobe Acrobat Reader 5.0 or higher. Electromagnetic Specifications For electromagnetic specifications, refer to Appendix B in this User’s Guide. Safety Considerations Prior to the installation and use of this product, review all safety markings and in structions. Do not proceed beyond a WARNIN G or CAUTION notice until you have understood the hazar d and have taken appropriate steps. Notice TROY GROUP, INC. SPECIFICALLY DISCLA IMS THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS OF THIS PRODUCT FOR A PARTICULAR PURPOSE. TROY shall not be liable for any erro rs contained in this manual or for any damages resulting from l oss of use, data profits, or any incidental or consequential damages arising from the us e of TROY products or services. Trademarks Windows is a trademark of Microsoft Corporation. TROY is a registered trademark of TROY Group. Warranty The TROY printer adapters are warranted to be free of defects in ma terials and workmanship for a period of five years. This pe riod begins upon the date of shipment if the hardware is in stalled by the Purchaser, or upon installation if the Hardware is installed by TROY. During the warranty period, TROY will repair or replace the unit at no charge provided it is returned to TR OY with the freight pre-paid. The warra nty on repaired products or replacement products is 30 days or the last day of the warranty of the original defective product, whichever is lon ger. This warranty does not apply if the product has been damaged by accident, misuse, nat ural catastrophe, modification, improper service, or con ditions resulting from causes external to the product. The warranty shall be void if the TROY serial numbers have been removed. Information and descriptions contained herein are the property of TR OY Group, Inc. Such information and descriptions may not b e copied, disseminated, or distributed without the express written consent of TROY Group, In c. This publication is subject to change wit hout notice. TROY Group, Inc. 2331 S. Pullman Street Santa Ana, CA 92705 TEL: (949) 250-3280 (800) 332-6427 FAX: (949) 250-8972 http://www.troygroup.com [email protected] © Copyright 1992-2003 TROY Group, Inc. Printed in the United States of America Table of Contents WindConnect II Printer Adapter with Bluetooth Technology User’s Guide -- Document #50xxx-110 Rev. X3 TOC-1 Section 1 – Introduction Overview....................................................................................................................... ........................1-1 Package Contents ............................................................................................................... .................1-2 Windows System Requirements.................................................................................................... .....1-2 PDA System Requirements........................................................................................................ .........1-3 About This User’s Guide ........................................................................................................ ............1-3 Section 2 – Hardware Installation Procedures Before You Begin............................................................................................................... ..................2-1 Handling Precautions........................................................................................................... ...............2-1 Printer Adapter Components..................................................................................................... ........2-2 Installing the Hardware on the USB or Parallel Port ......................................................................2-3 Verifying Successful Installation.............................................................................................. ..........2-4 Verifying the Connection to the Printer........................................................................................ ....2-4 Section 3 – Printing to Your Bluetooth-Enabled Printer Configuring a Windows Printer Port Using HCRP .........................................................................3-1 Configuring a Windows COM Port Using SPP ................................................................................3-2 Setting Up a Printer for Use wi th the Printer Adapter....................................................................3-3 How to Set Up and Print from Windows XP ..................................................................................3-10 Moving the Printer Adapter to Another Printer ............................................................................3-13 Printing the First Job ......................................................................................................... ...............3-14 Printing Additional Jobs....................................................................................................... ............3-16 Configuring Other Devices Using SPP ............................................................................................ 3-16 Printing Requirements for Other Devices.......................................................................................3 -16 Printing From a PDA, Mobile Ph one, or Camera Enabled with Bluetooth Technology ............3-17 Table of Contents WindConnect II Printer Adapter with Bluetooth Technology User’s Guide -- Document #50xxx-110 Rev. X3 TOC-2 Section 4 – Configuring Your Printer Adapter Overview.........................................................................…

Text truncated - open the document above for the full version.

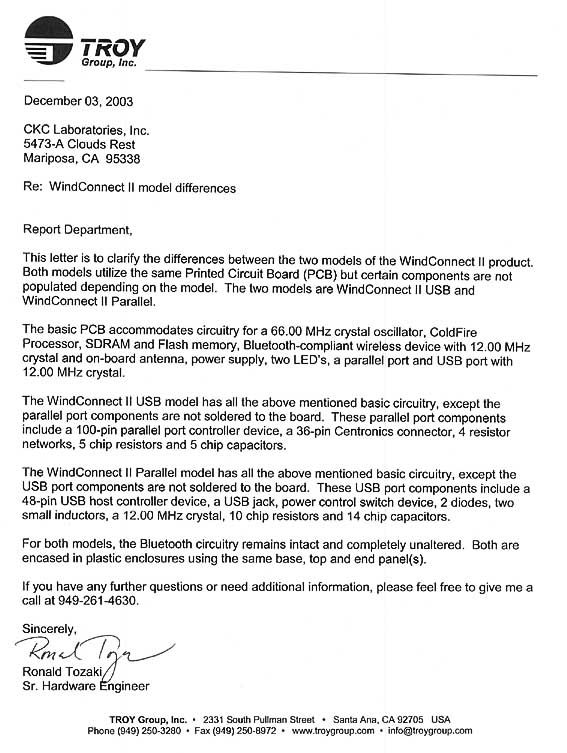

____________________________________________________________________ _______ TROY Group, Inc. • 2331 South Pullman Street • Santa Ana, CA 92705 USA Phone (949) 250-3280 • Fax (949) 250-8972 • www.troygroup.com • [email protected] December 03, 2003 CKC Laboratories, Inc. 5473-A Clouds Rest Mariposa, CA 95338 Re: WindConnect II model differences Report Department, This letter is to clarify the differences between the two models of the WindConnect II product. Both models utilize the same Printed Circuit Board (PCB) but certain components are not populated depending on the model. The two models are WindConnect II USB and WindConnect II Parallel. The basic PCB accommodates circuitry for a 66.00 MHz crystal oscillator, ColdFire Processor, SDRAM and Flash memory, Bluetooth-compliant wireless device with 12.00 MHz crystal and on-board antenna, power supply, two LED’s, a parallel port and USB port with 12.00 MHz crystal. The WindConnect II USB model has all the above mentioned basic circuitry, except the parallel port components are not soldered to the board. These parallel port components include a 100-pin parallel port controller device, a 36-pin Centronics connector, 4 resistor networks, 5 chip resistors and 5 chip capacitors. The WindConnect II Parallel model has all the above mentioned basic circuitry, except the USB port components are not soldered to the board. These USB port components include a 48-pin USB host controller device, a USB jack, power control switch device, 2 diodes, two small inductors, a 12.00 MHz crystal, 10 chip resistors and 14 chip capacitors. For both models, the Bluetooth circuitry remains intact and completely unaltered. Both are encased in plastic enclosures using the same base, top and end panel(s). If you have any further questions or need additional information, please feel free to give me a call at 949-261-4630. Sincerely, Ronald Tozaki Sr. Hardware Engineer

____________________________________________________________________ _______ TROY Group, Inc. • 2331 South Pullman Street • Santa Ana, CA 92705 USA Phone (949) 250-3280 • Fax (949) 250-8972 • www.troygroup.com • [email protected] December 03, 2003 CKC Laboratories, Inc. 5473-A Clouds Rest Mariposa, CA 95338 Re: WindConnect II model differences Report Department, This letter is to clarify the differences between the two models of the WindConnect II product. Both models utilize the same Printed Circuit Board (PCB) but certain components are not populated depending on the model. The two models are WindConnect II USB and WindConnect II Parallel. The basic PCB accommodates circuitry for a 66.00 MHz crystal oscillator, ColdFire Processor, SDRAM and Flash memory, Bluetooth-compliant wireless device with 12.00 MHz crystal and on-board antenna, power supply, two LED’s, a parallel port and USB port with 12.00 MHz crystal. The WindConnect II USB model has all the above mentioned basic circuitry, except the parallel port components are not soldered to the board. These parallel port components include a 100-pin parallel port controller device, a 36-pin Centronics connector, 4 resistor networks, 5 chip resistors and 5 chip capacitors. The WindConnect II Parallel model has all the above mentioned basic circuitry, except the USB port components are not soldered to the board. These USB port components include a 48-pin USB host controller device, a USB jack, power control switch device, 2 diodes, two small inductors, a 12.00 MHz crystal, 10 chip resistors and 14 chip capacitors. For both models, the Bluetooth circuitry remains intact and completely unaltered. Both are encased in plastic enclosures using the same base, top and end panel(s). If you have any further questions or need additional information, please feel free to give me a call at 949-261-4630. Sincerely, Ronald Tozaki Sr. Hardware Engineer

R SURYA 12-5-2003 M o d e l : W N D C T I I - U FCC ID: PTY-WNDCTII4 7 1 7 5 - 2 1 0 R e v . A w w w . t r o y g r o u p . c o m T M P r i n t A d a p t e r w i t h B l u e t o o t h R W i r e l e s s T e c h n o l o g y R a t e d + 5 v d c - - - 4 0 0 m A R WindConnect " A " LABEL PLACEMENT WINDCONNECT II VIEW " A "

R SURYA 12-5-2003 M o d e l : W N D C T I I - U FCC ID: PTY-WNDCTII4 7 1 7 5 - 2 1 0 R e v . A w w w . t r o y g r o u p . c o m T M P r i n t A d a p t e r w i t h B l u e t o o t h R W i r e l e s s T e c h n o l o g y R a t e d + 5 v d c - - - 4 0 0 m A R WindConnect " A " LABEL PLACEMENT WINDCONNECT II VIEW " A "

ETS03-035A2 Page 1 of 2 ETS03-035A1 Page 2 of 2

ETS03-035A2 Page 1 of 2 ETS03-035A1 Page 2 of 2

Page 1 of 78 Report No: FC03-072 TROY GROUP, INC. TEST REPORT FOR THE WINDCONNECT II - PRINT SERVER, WNDCTII-U & WNDCTII-P FCC PART 15 SUBPART B SECTIONS 15.107 AND 15.109 CLASS B AND SUBPART C SECTIONS 15.207, 15.209 AND 15.247 COMPLIANCE DATE OF ISSUE: DECEMBER 15, 2003 PREPARED FOR: Troy Group, Inc. 2331 South Pullman Street Santa Ana, CA 92705 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 71773Date of test: September 15 – December 12, 2003 W.O. No.: 81560 Report No.: FC03-072 This report contains a total of 78 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 78 Report No: FC03-072 TABLE OF CONTENTS Administrative Information .............................................................................................4 Summary of Results .........................................................................................................5 Conditions for Compliance ..............................................................................................5 Approvals .........................................................................................................................5 Equipment Under Test (EUT) Description ......................................................................6 FCC 15.31(e) Voltage Variation......................................................................................6 FCC 15.31(m) Number Of Channels ...............................................................................6 FCC 15.33(a) Frequency Ranges Tested .........................................................................6 FCC 15.203 Antenna Requirements ................................................................................6 FCC 15.205 Restricted Bands..........................................................................................6 Eut Operating Frequency .................................................................................................6 Equipment Under Test .....................................................................................................7 Peripheral Devices ...........................................................................................................7 Measurement Uncertainty ................................................................................................7 Report of Measurements ..................................................................................................8 Table 1: FCC 15.107 Six Highest Conducted Emission Levels ..........................8 Table 2: FCC 15.109 Six Highest Radiated Emission Levels .............................9 Table 3: FCC 15.207 Six Highest Conducted Emission Levels ..........................10 FCC 15.247(a)(1) Number Of Hopping Frequencies ..........................................11 FCC 15.247(a)(1) 20 dB Bandwidth Plots...........................................................12 FCC 15.247(a)(1) Carrier Frequency Separation.................................................15 FCC 15.247(a)(1)(iii) Dwell Time Plots..............................................................16 Table 5: FCC 15.247(b) Six Highest RF Power Output Levels ..........................20 FCC 15.247(b)(5) MPE Calculations ..................................................................22 Table 6: FCC 15.247(c) Six Highest Radiated Emission Levels.........................24 FCC 15.247(c) Bandedge Plots............................................................................25 Temperature And Humidity During Testing....................................................................31 EUT Setup........................................................................................................................31 Correction Factors............................................................................................................31 Table A: Sample Calculations .............................................................................31 Test Instrumentation and Analyzer Settings ....................................................................32 Spectrum Analyzer Detector Functions ...............................................................32 Peak..........................................................................................................32 Quasi-Peak ...............................................................................................32 Average ....................................................................................................32 EUT Testing.....................................................................................................................33 Mains Conducted Emissions................................................................................33 Radiated Emissions ..............................................................................................33 Appendix A: Test Setup Photographs..............................................................................34 Photograph Showing Mains Conducted Emissions .............................................35 Photograph Showing Mains Conducted Emissions .............................................36 Photograph Showing Mains Conducted Emissions .............................................37 Page 3 of 78 Report No: FC03-072 Photograph Showing Mains Conducted Emissions .............................................38 Photograph Showing Radiated Emissions ...........................................................39 Photograph Showing Radiated Emissions ...........................................................40 Photograph Showing Radiated Emissions ...........................................................41 Photograph Showing Radiated Emissions ...........................................................42 Photograp…
