PTY90150Bluethooth Wireless Print Adapter

User’s Guide Bluetooth TM Print Adapter TROY Group, Inc. Wireless and Connectivity Division • 1692 Browning • Irvine, CA 92606-4809 USA Tel: +1 (949) 399-0820 Fax: +1 (949) 399-0825 ª E-mail: [email protected] • www.troyxcd.com Part Number 40150-100 Revision 0.2 TM ii Copyright Notice All rights reserved. No part of this publication may be reproduced, stored, in a retrieval system, or transmitted in any form or by any means, electronic, mechani- cal, photocopying, recording, or otherwise, without the prior written permission of TROY Group, Inc. The information contained herein is designed only for use with this TROY product. TROY is not responsible for any use of this information as applied to other products. Neither TROY nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of accident, misuse or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with TROY’S operating and maintenance instructions. Warranty Notice TROY GROUP, INC. SPECIFICALLY DISCLAIMS THE IMPLIED WAR- RANTIES OF MERCHANTABILITY AND FITNESS OF THIS PRODUCT FOR A PARTICULAR PURPOSE. TROY shall not be liable for any errors con- tained in this manual or for any damages resulting from loss of use, data profits, or any incidental or consequential damages arising from the use of TROY products or services. Trademark Notice WindConnect is a registered trademarks of TROY Group, Inc. Bluetoothis a trademark of BLUETOOTHSIG, Inc. and licensed to TROY. General Notice: Other product names used herein are for identifications purposes only and may be trademarks of their respective owners. TROY disclaims any and all rights in those marks. Copyright © 2001 by TROY Group, Inc. Contents Introduction Windows System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 About Your User’s Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1Installing the WindConnect Bluetooth Print Adapter Hardware Unpacking and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 WindConnect Connector, Switch, and LEDs . . . . . . . . . . . . . . . . . . . .1-2 Connecting to the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 Verifying Successful Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 Verifying Connection to the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4 2Configuring the Software on Your PC Installing the BluetoothSoftware Suite . . . . . . . . . . . . . . . . . . . . . . . . .2-1 Installing the Port Monitor Software . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 Adding a Windows Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 Printing the First Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6 Printing Additional Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8 Disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8 3 Configuring Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 4 Using the Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1 5 Troubleshooting If You Can’t Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1 6 Where to Get Help Worldwide Web Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1 Contacting TROY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1 Returning Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2 7Notices FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2 iii iv 1 Introduction The TROY WindConnect TM Bluetooth TM Print Adapter is a device that enables wireless communications capabilities on most models of printers. By using the WindConnect, you can conveniently print from laptop computers and other devices without using a cable, as shown in the diagram below. This manual covers installation of the WindConnect for use with laptop computers that have a TROY, IBM ® or Toshiba BluetoothPCMCIA card. The WindConnect BluetoothPrint Adapter can also be used with other Bluetoothenabled devices, pro- vided that they support the BluetoothSerial Port Profile, the LAN Access Profile, or the Object Push Profile. Installation of these other types of devices is described in Chapter 3 of this manual Printer with TROY WindConnect BluetoothPrint Adapter Laptop computer with IBM or Toshiba BluetoothPCMCIA adapter Bluetooth wireless communications link Note: The WindConnect BluetoothPrint Adapter is designed for printing text and low-resolution graphics. Because of the speed limitations of the Bluetooth wireless communications link, you should not use the WindConnect to print high resolution graphics or photographs. To get better printing performance with Bluetooth, you might want to consult your printer’s user guide. Windows TM System Requirements To use the WindConnect BluetoothPrint Adapter for printing from a PC, your system should include: wAn IBM-compatible PC with Pentium 133MHz or higher processor wMicrosoft Windows 95, 98, 98SE, ME, 2000, or XP (the Toshiba card is sup- ported on Windows 95SE and Windows Millennium only) wAt least 64MB RAM wAt least 10MB of free hard disk space to install the software wA CD-ROM drive wA TROY WindPort, IBM 09N9812 or Toshiba PA3053U-1PCC Bluetooth PCMCIA card wit…

Text truncated - open the document above for the full version.

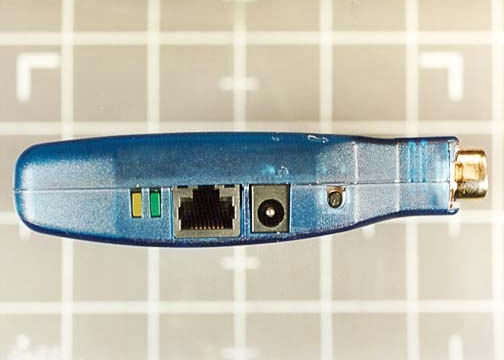

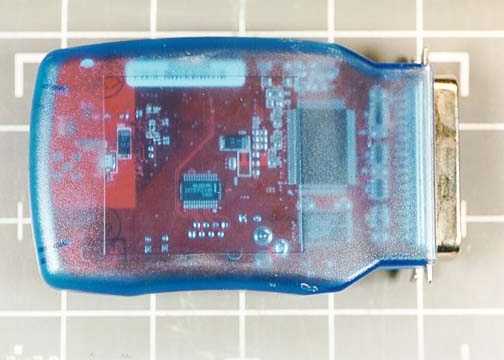

Troy WindConnect I Device Description The WindConnect I (WC I) is a BlueTooth™ print-server allow users of laptops, PDA’s, cell-phones, and other device to print wirelessly using spread spectrum technology. The device utilizes 80 channels in a frequency hopping scheme from 2402MHz to 2480MHz, and with its printed circuit antenna, transmits a maximum power of 0dBm (1 milliwatt) using Gaussian Frequency Shift Keying (GPSK). It has a useful range of approximately 30ft. w hich is classified as a BlueTooth™ class 3 device. The WC I is powered by common 5 Volt DC wall adapter transformers supplying 400mA or more and is capable of being powered directly form the Centronics type parallel interface on many types of printers. The WC I is a “dongle” type device and is designed to plug directly to the parallel connector on many printers. It also has the capability of BlueTooth™ enabling many serial accessories via an RS-232 interface supplied as an RJ45 connector. The major components of the WindConnect I are a Motorola MC68LC302 microcontroller, a high speed parallel port host interface chip, 1 Mbyte SRAM, 1 Mbyte field upgradable FLASH memory, a Texas Instruments BlueTooth™ baseband-controller, and a Texas Instruments BlueTooth™ radio-modem IC, and a printed circuit antenna. Pa r a lle l Po r t In te r f a c e 4 RS232 In te r f a c e Flas h CPU SRA M BlueTooth™ Baseband Controller BlueTooth™ Radio Modem 1M bit/sec 4 115Kbits/sec 2.4GH z R F 20MHz CPU Bus 20MHz CPU Bus 20MHz CPU Bus 115Kbits/sec

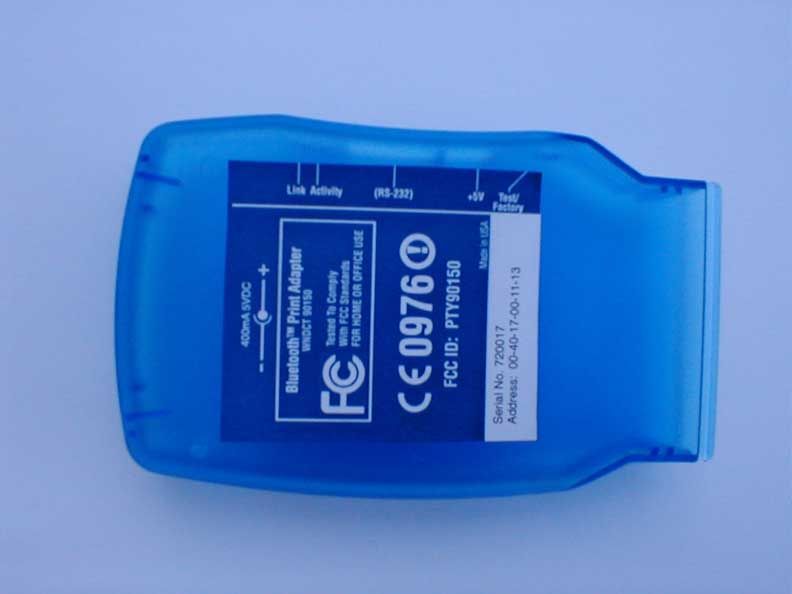

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE WNDCT 90150 FCC ID: PTY90150 Serial No. 720017 Address: 00-40-17-00-11-13

Communicate Without Cables! The TROY WindConnect enables Bluetoothwireless communications capabilities on printers and other devices. By using the WindConnect, users with Bluetoothenabled laptop computers can send jobs to a printer without connecting a cable to their computer. Although the WindConnect is especially well-suited for wireless printing, it can also be used for general-purpose wireless cable replacement applications. The WindConnect is a small box that can plug directly into the parallel port of the printer for maximum compactness. It also includes a serial interface for connecting RS-232- compatible devices over a Bluetoothwireless communications link, so it can operate with a wide range of different kinds of devices and applications. If the printer provides 300mA@+5V on pin 18 of the parallel port, the WindConnect can be used without an external power supply. The WindConnect is simple to use. It supports the Service Discovery Protocol (SDP) to allow the receiving device to be discovered by any sending device that supports the SDP protocol. It can operate in any of the following modes: • Serial Port Profile (Cable Replacement).This mode allows devices that support the BluetoothSerial Port Profile to send data wirelessly to an RS-232 serial or IEEE 1284 parallel device. The data is passed unmodified to the receiving device. In this mode, the sending and receiving devices look to the software as though they are communicating via a hardwired RS-232 connection. Therefore, the WindConnect can be used with any printer that supports printing over the serial port (although the actual physical connection between the PAD II and the printer can be parallel, the sending device thinks it is communicating to a serial device). With Windows systems, this means that standard printer drivers like the HP LaserJet 5 driver can be used, so no special software needs to be installed on the PC. In addition to printing, the WindConnect can be used with a variety of other applications that require serial port connectivity (modem controls are not supported except for flow control). • Object Push Printing Mode.This mode allows cellular telephones and other devices that support printing using the BluetoothObject Push Profile to send vObjects wirelessly to an RS-232 serial or IEEE 1284 parallel printer. The WindConnect translates the vObject into ASCII data so that it can be printed out on most popular types of printers. Versatile Bluetooth Interface for Parallel and Serial Printers WindConnect Bluetooth Print Adapter TMTM Wireless connectivity Wireless and Connectivity Performance. Security. Quality. TROY sets the world’s standards for wireless connectivity. TROY Group, Inc. Wireless and Connectivity Division 1692 Browning Irvine, CA 92606 USA Ph: 949-399-0820 or 800-923-9538 (US Only) Fax: 949-399-0825 www.troyxcd.com ©TROY Group, Inc. 2001. WindConnect is a trademark of TROY. Bluetooth is a trademark of BLUETOOTH SIG, Inc., and licensed to TROY. Any other marks used are the property of their holders. SpeedUp to 600Kbps Dimensions6.5 x 2.5 x 11.7 cm (2.6 x 1 x 4.6 inches) Weight3.6 ounces (102.1 grams) without power supply DC Power300 mA @ +5V (from external power supply or from pin 18 of the printer’s Centronics port, if available) AC Power115VAC 60Hz external adapter (U.S.); 100 to 240VAC 50/60Hz external adapter (international) Connectivity(1) 1284 parallel, (1) serial RS-232 interface BluetoothRadioClass 3 0dBM radio (10 meters maximum distance) BluetoothProfilesSerial Port Profile, LAN Access Profile, Object Push Profile, Service Discovery Profile Operating SystemsAny operating system that provides printing functionality using one of the supported Bluetooth profiles; TROY port monitor software is supported on Windows 98, ME, 2000, and XP TROY WindConnect BluetoothPrint Adapter WindConnect Print Adapter •LAN Access mode.This mode allows devices that support printing using TCP/IP and PPP to send binary files wirelessly to an RS-232 serial or IEEE 1284 parallel printer or other device. The data is sent unmodified to the receiving device. Any popular TCP/IP printing protocol, such as lpr/lpd, can be used in this mode. The WindConnect features flash memory, so it can be easily upgraded when new features like the BluetoothPrinting Profile are available. An external switch is also included for printing a test page, entering diagnostic mode and resetting the unit to its factory defaults. Compatible and Easy to Use The WindConnect is compatible with any Bluetoothsending device that can print using the Serial Port Profile, the LAN Access Profile, or the Object Push Profile. It has already been successfully tested with TROY, Digianswer, Toshiba, IBM, 3COM, and Xircom BluetoothPCMCIA cards, as well as with Ericsson Bluetoothmobile phones and with Socket Bluetooth compact flash cards. In addition, it can be used in a back-to-back mode in which the sending device is connected to one WindConnect and the receiving device is connected to a second WindConnect (the parallel port can only be used on the receiving device). For laptop users that have Motorola/Digianswer, Toshiba, or IBM Bluetooth PCMCIA cards, TROY XCD’s Bluetoothport monitor makes wireless printing easy. This Windows 98/2000/ME/XP software package combines the disovery and printing processes into a single point-and-click interface, eliminating the need to run separate utilities for each print job. The port monitor is compatible with virtually all WIndows application programs and most standard Windows printer drivers (the driver must support printing to a serial port). Who is TROY Group? TROY Group, Inc. (NASDAQ:TROY) designs, develops and markets technology solutions for businesses and consumers in the areas of wireless and connectivity solutions and electronic payment systems. TROY's wireless and connectivity products include a wide range of products that enable users of intelligent devices such as PCs, cellular telephones, personal digital assistant…

Text truncated - open the document above for the full version.

QCD000 Rev. 002 09/20/01 Page 1 of 45 “Wireless that Works” SM 1279 Quarry Lane • Suite B, Pleasanton, CA 94566-8499 USA Phone: +1.925.462.9105 Fax: +1.925.280.7751 Bluetooth Qualification Test Report EUT: WindConnect - PADII Job Number: 114-01070012 Revision Number: 001 Date: 10/8/2001 Prepared for: Troy XCD 1692 Browning Irvine, CA 92606 Phone: +1.949.399.0820 Fax: +1.949.399.0825 Bluetooth Qualification Test Report Hyper Corp. Job#: 114-0107012 Rev. 001 10/2/2001 QCD0004 Rev. 002 09/20/01 Page 2 of 45 Signature Page The below listed Hyper Corporation Personnel takes responsibility for the contents of this Test Report. Signatures Written by Engineer: Adam LaCourse Date Reviewed by Technical Manager: Original signed Kevin Marquess Date Bluetooth Qualification Test Report Hyper Corp. Job#: 114-0107012 Rev. 001 10/2/2001 QCD0004 Rev. 002 09/20/01 Page 3 of 45 1 List of Revisions Version Date Author(s) Description 001 10/02/01 LaCourse, Marquess Initial Version Bluetooth Qualification Test Report Hyper Corp. Job#: 114-0107012 Rev. 001 10/2/2001 QCD0004 Rev. 002 09/20/01 Page 4 of 45 TABLE OF CONTENTS Title Page...........................................................................................................................1 Signature Page..................................................................................................................2 1 List of Revisions........................................................................................................3 2 Disclaimer Notice......................................................................................................5 3 Reproduction Clause................................................................................................5 4 References.................................................................................................................5 5 Test Facility................................................................................................................6 6 Document Scope.......................................................................................................6 7 Documentation of Tested Device(s).......................................................................6 8 EUT Information and Description...........................................................................7 9 Test Result Summary List........................................................................................8 PART A – RF CONFORMANCE...................................................................................8 10 Test Procedure..........................................................................................................8 TEST SETUP(S)...........................................................................................................9 11 Test Program Deviations......................................................................................10 12 List of Test Equipment Used................................................................................11 Appendix A: Pre-Qualified Components.....................................................................12 Appendix B: ICS/IXIT.....................................................................................................13 Appendix C: Test Data..................................................................................................14 Bluetooth Qualification Test Report Hyper Corp. Job#: 114-0107012 Rev. 001 10/2/2001 QCD0004 Rev. 002 09/20/01 Page 5 of 45 2 Disclaimer Notice This test report applies only to the EUT (Equipment Under Test) and the results of the specifications called out in this report. 3 Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without written permission of Hyper Corporation, 1279 Quarry Lane Suite B, Pleasanton, CA 94566-8499. 4 References The tests performed on WindConnect are in compliance with the Bluetooth wireless technology Specification(s) below. A table of the tests performed and their outcome, is provided in Section 8 of this report. Test results show that WindConnect can be qualified as a Bluetooth End Product according to the Bluetooth Specification Version 1.1. Reference Standards Meets Requirements Comments Specification of the Bluetooth System – RF Test Specification Version 0.91. Yes Refer to Test Results Bluetooth Qualification Test Report Hyper Corp. Job#: 114-0107012 Rev. 001 10/2/2001 QCD0004 Rev. 002 09/20/01 Page 6 of 45 5 Test Facility Testing was performed by Test Facility Location Parts Tested Hyper Corporation 1279 Quarry Lane, Suite B Pleasanton, CA 94566-8499 Part A-E – Conducted Troy XCD 1692 Browning Ave. Irvine, CA 92606 Part A-E – Conducted 6 Document Scope WindConnect was tested in accordance with the following part(s) of the Bluetooth Specification Version 1.1 and any deviation(s) from these Specifications are clarified in section 11, “Test Program Deviations” of this report if applicable: Part A-E RF Provisional - Conformance 7 Documentation of Tested Device(s) Documentation for the tested device(s) has been created by Hyper Corporation Engineers in compliance with applicable Bluetooth test specifications. All documentation is kept at Hyper Corporation’s Quality Department in the Troy XCD Compliance Folder. QCD000 Rev. 002 09/20/01 Page 7 of 45 8 EUT Information and Description Date received : 09/17/01 Date(s) tested: 09/17/01 – 09/27/2001 Description of EUT: The Troy XCD WindConnect allows laptop and PCs and other devices to send data across a Bluetooth wireless communications link. Condition of EUT: The EUT was hand carried into Hyper Corp. on 09/17/01 in the form of a board and was received in good condition. Product ID: Troy XCD BT-Pad-II Serial number: XCD1340145 Hardware Version: 400-125-0150 Rev E1 Software Version: Troy XCD BT-Stack-I Firmware Version: PAD-B387 Pre-Qualified Components: Please see Appendix A Bluetooth Qualification Test Report Hy…

Text truncated - open the document above for the full version.

Test Report Processing gain Measurement for PADB6.81 printer dongle Report Reference: 4_TROY_0101_BTT_FCCa TTI-P-G 178/99 Test Laboratory: 7 layers AG Borsigstrasse. 11 D-40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory Registergericht  registered in:Vorstand  Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany Aufsichtsratsvorsitzende  Dr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Test report 4_TROY_0101_BTT_FCCa Page 2 of 7 pages Administrative Data: Testing Laboratory Company Name:7 layers AG Address:Borsigstrasse 11 40880 Ratingen Germany Laboratory accreditation no:DAR – Registration no. TTI-P-G 178/99 Responsible for accreditation scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Marco Kullik Report Template Version:1.2 Project Data Responsible for test and report:Dipl.-Ing. Arndt Stöcker Date of Report:2001 October 2 nd Applicant Data: Company Name:Troy Wireless and Connectivity Address:1692 Browning Irvine, CA 92606 USA Contact Person:Mr. Jorge Flores-Guido Summary of test result The device fulfils the requirements of FCC part 15, 247(g), processing gain. Responsible forResponsible for Accreditation Scope: _______________ testing and Test Report:______________ Test report 4_TROY_0101_BTT_FCCa Page 3 of 7 pages Introduction This report describes the results of the processing gain measurement test using the FCC CW jamming margin method. Requirement Hybrid systems that employ a combination of both direct sequence and frequency hopping modulation techniques shall achieve a processing gain of at least 17 dB from the combined techniques. Measurement method De-spreading is accomplished by correlating the received bit stream with the bit pattern of the access code. Then with the value of the correlator output will be decided if the access code is valid or not. That means if the access code is not valid a “bit error” occurs for the Bluetooth device. For this reason, the ratio of invalid access codes (IACR) is used instead of the BER, in CW jamming margin method. Another reason to use this criterion is the fact, that the Bluetooth technology uses the access code to find the correct sampling point. That means if the access code cannot be found, all other bits in the transmission cannot be sampled successfully. In this case the Packet Error Rate (PER), which is similar to the Access Code Error Rate, was used. As limit a PER of 0.1% was chosen. The test was performed in the Bluetooth test mode loop back. System losses In the formula for calculation of the processing gain the term ‘system losses’ appear. In Bluetooth, there are two major causes for the system loss: 1. The non-optimal sampling time. The CW jamming method assumes that the optimal sampling time has been determined before. In fact it will be determined via the access code. If a Packet is not accepted (PER) the access code is not valid. 2. Losses due to attenuation in the RF part. Although this two points produce a system loss (Lsys) which will be much greater than 2 dB, we calculated with this value, because this is the maximum that will be accepted by FCC. Test report 4_TROY_0101_BTT_FCCa Page 4 of 7 pages Measurement Set-up To measure the PER, the following test set-up was used: 7 4 5 3 RF In/Out High Pass 10 Signal Generator Fixed Attenuator 1 6 dB Coupler Directional Coupler 6 8 Step Attenuator 9 RF Switch 12 13 Device under test Spectrum Analyser Noise Source PowerAmplifier 2 Signaling device Fixed Attenuator 20dB 40dB Measurement set-up Note: detailed information for the equipment please see in the test equipment list For setting up the connection and measuring the PER, the Bluetooth tester CMU200 was used. The measurement was performed at the RF input (temporary antenna connector) of the device under test. The level of the wanted signal was set for all single measurements to –50 dBm. Test report 4_TROY_0101_BTT_FCCa Page 5 of 7 pages Measurement Results S/N Measurement The measurement for S/N was performed by adding noise to the wanted signal. The noise level was adjusted until the PER reached 0.1% (noise level: –71,3 dBm). With this measurement configuration, the S/N ratio was 21.3 dB Jammer/Signal Measurement (JSR) The jammer signal was stepped in 50 kHz steps over the receiving channel. For every step the jammer level was adjusted until the PER was 0.1 %. The ratio between wanted signal power and the jammer power at the RF input of the device is the required Jammer to Signal ratio. With this measurement configuration the JSR has the following results: Disregarding the marked data points (-350, -400, -450, 500 kHz) the worst data point is at 300 kHz offset with a JSR value of –18 dB. Jammer Offset/kHz Jammer Signal (dBm) -500 -65,4 -450 -64,5 -400 -65,9 -350 -64,8 -300 -64,3 -250 -62,7 -200 -61,2 -150 -60,6 -100 -61,5 -50 -60,1 0 -60 50 -60,1 100 -62,8 150 -64 200 -65,3 250 -67,8 300 -68 350 -68,6 400 -69 450 -69 500 -68,9 -75 -70 -65 -60 -55 -50 -45 -40 -500-400-300-200-1000100200300400500 Jam m er Offset /kHz dB Jammer Signal (dBm) Test report 4_TROY_0101_BTT_FCCa Page 6 of 7 pages Processing gain calculation With these values we calculated the processing gain: S/N = 21.3 dB Mj = JSR =-18 dB Lsys = system loss = 2 dB Gp = S/N + Mj + Lsys = 21.3 – 18.0 + 2.0 = 5.3 dB The processing gain for the DSS is 5.3 dB. The processing gain for FHSS part is calculated as: 10 * log 32 = 15 dB (32 hopping channels in hybrid mode) This means for the total processing gain of the hybrid system: 15 dB + 5.3 dB = 20.3 dB This is above the minimum value of 17 dB stated in FCC rules. The device passes the requirement of this clause. Test report 4_TROY_0101_BTT_FCCa Page 7 of 7 pages Test equipment noSingle DevicesTypeSerial NoManu…

Text truncated - open the document above for the full version.

Page 1 of 73 Report No: FC01-062A TROY GROUP, INC. WIRELESS AND CONDUCTIVITY DIVISION TEST REPORT FOR THE BLUETOOTH WIRELESS PRINT ADAPTER, WINDCONNECT FCC PART 15 SUBPART C SECTIONS 15.207 & 15.247 AND FCC PART 15 SUBPART B SECTIONS 15.107 & 15.109 CLASS B COMPLIANCE DATE OF ISSUE: SEPTEMBER 14, 2001 PREPARED FOR: Troy Group, Inc. Wireless and Conductivity Division 1692 Browning Irvine, CA 92606-4809 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: W.O. No.: 004867-00 77036 Date of test: August 16 – September 12, 2001 Report No.: FC01-062A This report contains a total of 73 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 73 Report No: FC01-062A TABLE OF CONTENTS Administrative Information ............................................................................................. 4 Summary of Results......................................................................................................... 5 Modifications Required for Compliance ......................................................................... 5 Approvals......................................................................................................................... 5 Equipment Under Test (EUT) Description...................................................................... 6 Equipment Under Test..................................................................................................... 6 Peripheral Devices ........................................................................................................... 6 15.33 Frequency Range Tested ....................................................................................... 7 Radiated Emissions ............................................................................................. 7 Conducted Emissions .......................................................................................... 7 EUT Operating Frequency............................................................................................... 7 Temperature and Humidity During Testing .................................................................... 7 Report of Measurements.................................................................................................. 8 Table 1: Fundamental Radiated Emission Levels ............................................... 8 Table 2: Highest Radiated Emission Levels: 30 kHz - 30 MHz ......................... 9 Table 3: Six Highest Radiated Emission Levels: 30 - 1000 MHz....................... 10 Table 4: Six Highest Radiated Emission Levels: 1-18 GHz ............................... 11 Table 5: Six Highest Radiated Emission Levels: 1-26.5 GHz ............................ 12 Table 6: Six Highest Conducted Emission Levels .............................................. 13 Table 7: Six Highest Radiated Emission Levels: Receiver Verification............. 14 Table 8: Six Highest Conducted Emission Levels: Receiver Verification.......... 15 Measurement Uncertainty................................................................................................ 16 EUT Setup .......................................................................................................................16 Correction Factors ........................................................................................................... 16 Table A: Sample Calculations ............................................................................. 16 Test Instrumentation and Analyzer Settings.................................................................... 18 Table B: 15.35 Analyzer Bandwidth Settings Per Frequency Range.................. 18 Spectrum Analyzer Detector Functions............................................................... 19 Peak ......................................................................................................... 19 Quasi-Peak............................................................................................... 19 Average.................................................................................................... 19 EUT Testing ....................................................................................................................20 Radiated…

Text truncated - open the document above for the full version.
