PTY90148Wireless Print Server

User’s Guide 802.11bPrint Server TROY Group, Inc. Wireless and Connectivity Division • 1692 Browning • Irvine, CA 92606-4809 USA Tel: +1 (949) 399-0820 Fax: +1 (949) 399-0825 ª E-mail: [email protected] • www.troyxcd.com Part Number 40148-100 Revision 0.2 ii Copyright Notice All rights reserved. No part of this publication may be reproduced, stored, in a retrieval system, or transmitted in any form or by any means, electronic, mechani- cal, photocopying, recording, or otherwise, without the prior written permission of TROY Group, Inc. The information contained herein is designed only for use with this TROY product. TROY is not responsible for any use of this information as applied to other products. Neither TROY nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of accident, misuse or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with TROY’S operating and maintenance instructions. Warranty Notice TROY GROUP, INC. SPECIFICALLY DISCLAIMS THE IMPLIED WAR- RANTIES OF MERCHANTABILITY AND FITNESS OF THIS PRODUCT FOR A PARTICULAR PURPOSE. TROY shall not be liable for any errors con- tained in this manual or for any damages resulting from loss of use, data profits, or any incidental or consequential damages arising from the use of TROY products or services. Trademark Notice EtherWind is a registered trademarks of TROY Group, Inc. Bluetoothis a trade- mark of BLUETOOTHSIG, Inc. and licensed to TROY. General Notice: Other product names used herein are for identifications purposes only and may be trademarks of their respective owners. TROY disclaims any and all rights in those marks. Copyright © 2001 by TROY Group, Inc. Contents Introduction Windows System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 About Your User’s Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1Installing the EtherWind Print Server Hardware Unpacking the Print Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 EtherWind Connectors, Switches, and LED’S . . . . . . . . . . . . . . . . . . .1-2 Connecting the Serial EtherWind to an RS-232 Serial Device . . . . . . . .1-3 Connecting to a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4 Verifying Successful Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4 Verifying the Connection to the Printer . . . . . . . . . . . . . . . . . . . . . . . .1-5 Configuring the EtherWind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5 2Configuring the EtherWind 802.11b and IP Settings . . . . .2-1 3Management Methods WP-Admin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 XAdmin32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 WebXAdmin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 EtherWind Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2 4 Windows Network Configuration . . . . . . . . . . . . . . . . . . . . . .4-1 5 AppleTalk Network Configuration . . . . . . . . . . . . . . . . . . . . . .5-1 6 Novell NetWare Network Configuration . . . . . . . . . . . . . . . .6-1 7UNIX Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . .7-1 8DEC LAT Network Configuration . . . . . . . . . . . . . . . . . . . . .8-1 9Banyan VINES Network Configuration . . . . . . . . . . . . . . . . .9-1 10 PrintraNet Internet Remote Printing . . . . . . . . . . . . . . . . . . .10-1 iii iv 11 Troubleshooting Troubleshooting Frequently Asked Questions . . . . . . . . . . . . . . . . . . .11-1 Loading the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-2 Uninstalling the EtherWind Wireless Software . . . . . . . . . . . . . . . . . .11-4 12 Where to Get Help Worldwide Web Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-1 Contacting TROY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-1 Returning Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-1 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2 13 Notices FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-1 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-2 Introduction The EtherWind 802.11b Wireless Print Server lets you communicate with printers from anywhere on an 802.11b wireless network. You can use the print server in ad-hoc (peer-to-peer) or infrastructure (access point) wireless mode, as shown below. The print server operates at speeds of up to 11 Mbps on any IEEE 802.11b wire- less compatible network. Your printer can be simultaneously connected to your PC or Macintosh via the USB port. Follow the instructions in this manual to install the print server for your printer. For more information, and software downloads, check on the TROY web site (http://www.troyxcd.com). 1 Ad-Hoc Mode (Peer-to-Peer) Infrastructure Mode (With Access Point) Laptop computer with 802.11b capabilities Laptop computer with 802.11b capabilities EtherWind EtherWind 802.11b Access Point Local Area Network (or Cable/DSL connection) Printer Printer System Requirements To use the EtherWind for printing from a wireless network, you need an 802.11b wireless network. The wireless network will consist of either of the following: wAn 802.11b wireless enabled PC or Macintosh printing straight to the printer (Ad-Hoc or Peer-to-Peer Mode). wAn 802.11b wireless access point allowin…

Text truncated - open the document above for the full version.

TROY Group, Inc. * Wireless and Connectivity Division * 1692 Browning * Irvine, CA 92606 USA Ph: (949) 399-0820 * Fax: (949) 399-0825 * Toll Free: (800) 923-9538 * www.troygroup.com To whom it may concern: In compliance with the FCC requirement to include an appropriate warning statement per section 15.247(b)(4), a statement will be inc luded in our manual with regard to the radiated power of the EtherWind. The following statement will be added to the EtherWind manual on page 13-1 in the section that provides warnings to the user and will appear after the existing paragraph in that section: The radiated output power of EtherWind is far below the FCC radio frequency exposure limits. Nevertheless, the EtherWind shall be used in such a manner that the potential for human contact during normal operation is minimized. Regards, Annette Gathright Senior Project Engineer Troy Group, Inc. Wireless and Connectivity Division

CanadaXXXXXXXXXX

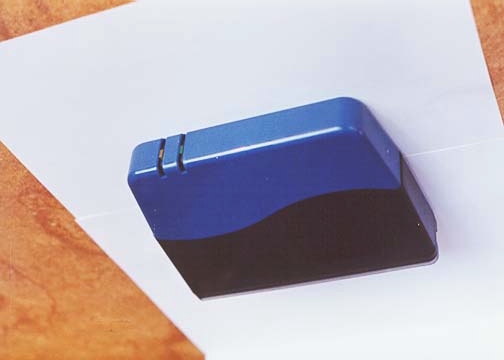

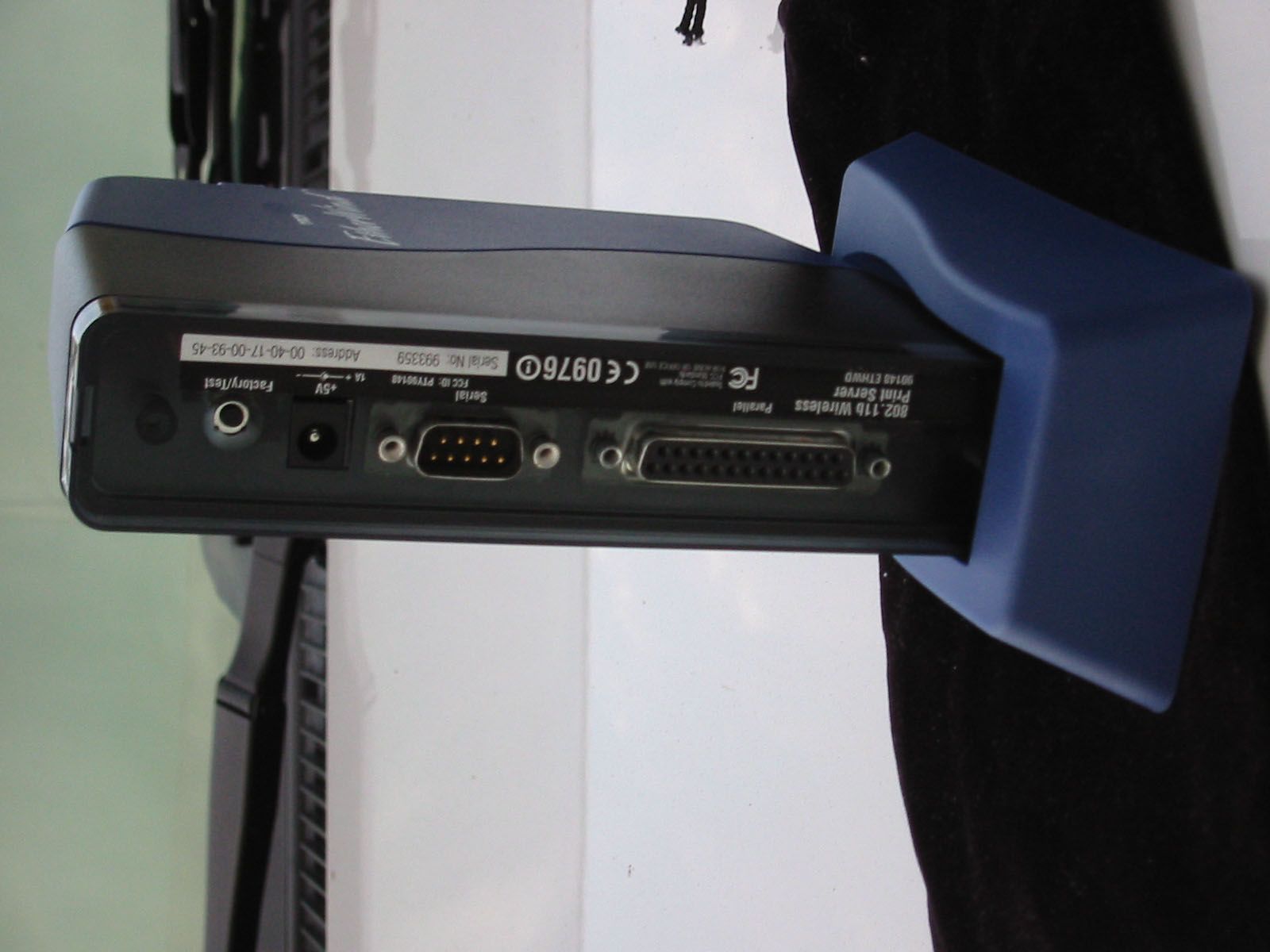

Troy Etherwind Device Description The Etherwind is an IEEE 802.11b (wireless Ethernet) compliant print-server that allows users of laptops, PDA’s, cell-phones, and other similar devices to print wirelessly using spread spectrum technology. The device utilizes 11 channels (US operation) in a DSSS modulation scheme in the 2.4GHz frequency band. These 11 channels cover 2412MHz to 2462MHz. The antenna is implemented via printed circuit etch. It transmits a maximum power of 1000mw compliant with FCC limitations. It has a useful range of approximately 300ft. The Etherwind is powered by common 5 Volt DC wall adapter transformers typically supplying 600mA. The Etherwind is a stand-alone device, that connects to the printer via a standard IEEE P1284 parallel connection. It can also connect to other serial devices via a DB9 standard RS-232 interface. The major components of the Etherwind are an Intersil ‘Prism’ 802.11b chip set and the associated SRAM, Flash, filter ICs and oscillators, a Motorola MC68LC302 microcontroller with its, clock oscillator, SRAM, and field upgradable FLASH memory, a high speed parallel and serial port host interface chip, and a printed circuit antenna. The Intersil chip set provides the RF radio communications functions; the MC68LC302 and associated hardware provides the printer control and server functions.

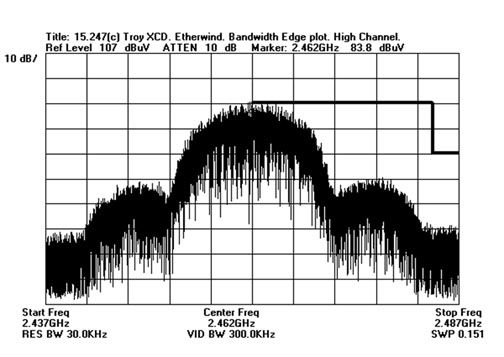

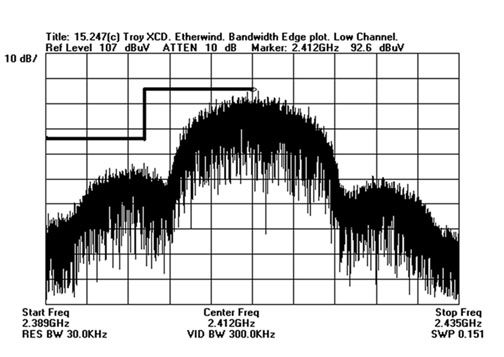

Page 1 of 52 Report No: FC01-063 TROY GROUP, INC. WIRELESS AND CONDUCTIVITY DIVISION TEST REPORT FOR THE WIRELESS PRINT SERVER, ETHERWIND FCC PART 15 SUBPART C SECTIONS 15.207, 15.209 AND 15.247 COMPLIANCE DATE OF ISSUE: SEPTEMBER 19, 2001 PREPARED FOR: Troy Group, Inc. Wireless and Conductivity Division 1692 Browning Irvine, CA 92606-4809 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: W.O. No.: 005008-00 76953 Date of test: August 23-28, 2001 Report No.: FC01-063 This report contains a total of 52 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 52 Report No: FC01-063 TABLE OF CONTENTS Administrative Information ............................................................................................. 4 Summary of Results......................................................................................................... 5 Modifications Required for Compliance ......................................................................... 5 Approvals......................................................................................................................... 5 Equipment Under Test (EUT) Description...................................................................... 6 Equipment Under Test..................................................................................................... 6 Peripheral Devices ........................................................................................................... 6 15.33 Frequency Range Tested ....................................................................................... 7 Radiated Emissions ............................................................................................. 7 Conducted Emissions .......................................................................................... 7 EUT Operating Frequency............................................................................................... 7 Temperature and Humidity During Testing .................................................................... 7 Report of Measurements.................................................................................................. 8 Table 1: Fundamental Radiated Emission Levels ............................................... 8 Table 2: Six Highest Radiated Emission Levels: 15.247 9 kHz - 30 MHz ......... 9 Table 3: Six Highest Radiated Emission Levels: 15.247 30 - 1000 MHz........... 10 Table 4: Six Highest Radiated Emission Levels: 15.247 1-25 GHz ................... 11 Table 5: Six Highest Radiated Emission Levels: 15.209 9 kHz - 1000 MHz ..... 12 Table 6: Six Highest Radiated Emission Levels: 15.209 1-25 GHz ................... 13 Table 7: Highest Radiated Emission Levels: Peak Power Spectral Density ....... 14 Table 8: Six Highest Conducted Emission Levels .............................................. 15 Measurement Uncertainty................................................................................................ 16 EUT Setup .......................................................................................................................16 Correction Factors ........................................................................................................... 16 Table A: Sample Calculations ............................................................................. 16 Test Instrumentation and Analyzer Settings.................................................................... 18 Table B: 15.35 Analyzer Bandwidth Settings Per Frequency Range.................. 18 Spectrum Analyzer Detector Functions............................................................... 19 Peak ......................................................................................................... 19 Quasi-Peak............................................................................................... 19 Average.................................................................................................... 19 EUT Testing ....................................................................................................................20 Radiated Emissions ............................................................................................. 20 Mains Conducted Emissions ............................................................................... 20 Transmitter Characteristics.............................................................................................. 21 15.203 Antenna Requirements ............................................................................ 21 15.205 Restricted Bands ...................................................................................... 21 15.215 Additional Provisions To The General Radiated Emission Limitations . 21 15.247(a)(2) Bandwidth – Direct Sequence ........................................................ 22 Channel 1 Bandwidth .............................................................................. 22 Page 3 of 52 Report No: FC01-063 Channel 6 Bandwidth .............................................................................. 23 Channel 11 Bandwidth ............................................................................ 24 15.247(d) Peak Power Spectral Density .............................................................. 25 Channel 1 ................................................................................................. 25 Channel 6 ................................................................................................. 26 Channel 11 ............................................................................................... 27 Appendix A: Information About The Equipment Under Test......................................... 28 I/O Ports............................................................................................................... …

Text truncated - open the document above for the full version.

118 Appendix B Intersil Corporation Certification Report Testing for Compliance with FCC Rules 15-247e Theoretical BER Curves for the IEEE 1 and 2Mbps Modulations 11Mbps Channel 1 Processing Gain 11Mbps Channel 6 Processing Gain 11Mbps Channel 11 Processing Gain 2Mbps Channel 6 Processing Gain 119 120 121 122 123 124 125 126 127 128 129

130 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp(S/N)oMj = J/SLsysJammerLVLFER (GHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 2.40352016.41.62-38.485.4 2.4035519.516.41.12-38.97.56.2 2.403619.416.412-397.47.3 2.403651916.40.62-39.476.1 2.403718.916.40.52-39.56.95.8 2.4037518.816.40.42-39.66.85.8 2.403818.916.40.52-39.56.95.7 2.4038518.916.40.52-39.56.97.1 2.40391916.40.62-39.477.3 2.4039519.116.40.72-39.37.15.6 2.40419.516.41.12-38.97.56.7 2.4040519.816.41.42-38.67.87.2 2.404119.616.41.22-38.87.66.8 2.4041519.516.41.12-38.97.56 2.404219.616.41.22-38.87.67.8 2.4042519.416.412-397.47.5 2.404319.316.40.92-39.17.36.5 2.4043519.316.40.92-39.17.35.2 2.404419.216.40.82-39.27.26.5 2.4044519.116.40.72-39.37.14.9 2.40451916.40.62-39.477.5 2.4045518.616.40.22-39.86.67.9 2.404618.516.40.12-39.96.57.5 2.4046518.116.4-0.32-40.36.15.7 2.404718.116.4-0.32-40.36.16.1 2.404751816.4-0.42-40.465.2 2.404818.116.4-0.32-40.36.17.9 2.404851816.4-0.42-40.464.9 2.40491816.4-0.42-40.465 2.4049518.216.4-0.22-40.26.27.1 2.40518.516.40.12-39.96.57.9 2.4050518.616.40.22-39.86.67.7 2.405118.616.40.22-39.86.68 2.4051518.516.40.12-39.96.56.2 2.405218.416.402-406.46.4 2.4052518.316.4-0.12-40.16.35.6 2.405318.316.4-0.12-40.16.36.2 2.4053518.216.4-0.22-40.26.25.2 2.405418.216.4-0.22-40.26.26.6 2.4054518.116.4-0.32-40.36.16.8 2.405517.816.4-0.62-40.65.86.5 2.4055517.416.4-12-415.46.8 2.405617.216.4-1.22-41.25.26.7 2.405651716.4-1.42-41.455.7 2.405716.916.4-1.52-41.54.96.9 131 2.4057516.816.4-1.62-41.64.87.3 2.405816.716.4-1.72-41.74.76.1 2.4058516.716.4-1.72-41.74.78 2.405916.616.4-1.82-41.84.67 2.4059516.716.4-1.72-41.74.77.5 2.40616.716.4-1.72-41.74.75.8 2.4060516.716.4-1.72-41.74.75.8 2.406116.716.4-1.72-41.74.77.9 2.4061516.616.4-1.82-41.84.67.1 2.406216.416.4-22-424.45.9 2.4062516.316.4-2.12-42.14.37.7 2.40631616.4-2.42-42.445.3 2.4063515.916.4-2.52-42.53.97 2.406415.716.4-2.72-42.73.76.2 2.4064515.616.4-2.82-42.83.67.6 2.406515.416.4-32-433.46.4 2.4065515.316.4-3.12-43.13.36.1 2.406615.316.4-3.12-43.13.37.2 2.4066515.216.4-3.22-43.23.27 2.406715.216.4-3.22-43.23.27.3 2.4067515.116.4-3.32-43.33.15.3 2.406815.116.4-3.32-43.33.16.2 2.4068515.116.4-3.32-43.33.17 2.40691516.4-3.42-43.438 2.4069514.816.4-3.62-43.62.87.2 2.40714.716.4-3.72-43.72.77.8 2.4070514.516.4-3.92-43.92.56.5 2.407114.416.4-42-442.46.5 2.4071514.316.4-4.12-44.12.36.9 2.407214.216.4-4.22-44.22.27.3 2.4072514.116.4-4.32-44.32.16.4 2.407314.116.4-4.32-44.32.17.8 2.407351416.4-4.42-44.426.6 2.40741416.4-4.42-44.428 2.4074513.916.4-4.52-44.51.97.2 2.407513.816.4-4.62-44.61.86.3 2.4075513.716.4-4.72-44.71.75.9 2.407613.616.4-4.82-44.81.66.9 2.4076513.516.4-4.92-44.91.57.4 2.407713.416.4-52-451.48 2.4077513.316.4-5.12-45.11.37.9 2.407813.216.4-5.22-45.21.27.6 2.4078513.116.4-5.32-45.31.16 2.407913.116.4-5.32-45.31.16.6 2.4079513.116.4-5.32-45.31.16.5 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp(S/N)oMj = J/SLsysJammerLVLFER (GHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 132 2.40813.116.4-5.32-45.31.16.8 2.4080513.116.4-5.32-45.31.18 2.408113.116.4-5.32-45.31.16.5 2.4081513.216.4-5.22-45.21.27.5 2.408213.116.4-5.32-45.31.18 2.4082512.916.4-5.52-45.50.96.1 2.408312.716.4-5.72-45.70.75.2 2.4083512.716.4-5.72-45.70.77.3 2.408412.516.4-5.92-45.90.56.7 2.4084512.416.4-62-460.47.2 2.408512.416.4-62-460.48 2.4085512.316.4-6.12-46.10.37 2.408612.316.4-6.12-46.10.35.1 2.4086512.316.4-6.12-46.10.38 2.408712.216.4-6.22-46.20.26.2 2.4087512.316.4-6.12-46.10.37.2 2.408812.216.4-6.22-46.20.26.9 2.4088512.216.4-6.22-46.20.27.8 2.40891216.4-6.42-46.407.3 2.4089511.916.4-6.52-46.5-0.17.6 2.40911.716.4-6.72-46.7-0.36.9 2.4090511.616.4-6.82-46.8-0.47.9 2.409111.416.4-72-47-0.66.6 2.4091511.416.4-72-47-0.68 2.409211.316.4-7.12-47.1-0.77.9 2.4092511.216.4-7.22-47.2-0.86.8 2.409311.216.4-7.22-47.2-0.87 2.4093511.216.4-7.22-47.2-0.87 2.409411.316.4-7.12-47.1-0.77.7 2.4094511.316.4-7.12-47.1-0.76.9 2.409511.316.4-7.12-47.1-0.76.3 2.4095511.416.4-72-47-0.66.9 2.409611.416.4-72-47-0.67.4 2.4096511.416.4-72-47-0.67.3 2.409711.316.4-7.12-47.1-0.76.7 2.4097511.316.4-7.12-47.1-0.78 2.409811.116.4-7.32-47.3-0.96.7 2.4098511.116.4-7.32-47.3-0.97.6 2.40991116.4-7.42-47.4-16.5 2.409951116.4-7.42-47.4-17.4 2.4110.916.4-7.52-47.5-1.16.1 2.410051116.4-7.42-47.4-18 2.41011116.4-7.42-47.4-16.6 2.4101511.116.4-7.32-47.3-0.97.6 2.410211.216.4-7.22-47.2-0.87.7 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp(S/N)oMj = J/SLsysJammerLVLFER (GHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 133 2.4102511.316.4-7.12-47.1-0.77.5 2.410311.316.4-7.12-47.1-0.76.3 2.4103511.416.4-72-47-0.68 2.410411.316.4-7.12-47.1-0.76.4 2.4104511.316.4-7.12-47.1-0.76.5 2.410511.316.4-7.12-47.1-0.77.2 2.4105511.216.4-7.22-47.2-0.86.5 2.410611.216.4-7.22-47.2-0.86.6 2.4106511.316.4-7.12-47.1-0.77.8 2.410711.316.4-7.12-47.1-0.77 2.4107511.316.4-7.12-47.1-0.76 2.410811.416.4-72-47-0.66.2 2.4108511.516.4-6.92-46.9-0.56.5 2.410911.616.4-6.82-46.8-0.46.9 2.4109511.616.4-6.82-46.8-0.46.7 2.41111.616.4-6.82-46.8-0.47.8 2.4110511.416.4-72-47-0.67.2 2.411111.516.4-6.92-46.9-0.57 2.4111511.616.4-6.82-46.8-0.47.4 2.411211.516.4-6.92-46.9-0.56.3 2.4112511.516.4-6.92-46.9-0.56.6 2.411311.516.4-6.92-46.9-0.56.9 2.4113511.416.4-72-47-0.66.1 2.411411.416.4-72-47-0.66 2.4114511.416.4-72-47-0.66.7 2.411511.416.4-72-47-0.67.3 2.4115511.416.4-72-47-0.66.6 2.411611.616.4-6.82-46.8-0.47.7 2.4116511.616.4-6.82-46.8-0.46.6 2.411711.516.4-6.92-46.9-0.56 2.4117511.416.4-72-47-0.66.8 2.411811.216.4-7.22-47.2-0.85.8 2.4118511.116.4-7.32-47.3-0.97.1 2.41191116.4-7.42-47.4-15.6 2.4119510.816.4-7.62-47.6-1.26 2.41210.916.4-7.52-47.5-1.16.1 2.4120510.916.4-7.52-47.5-1.14 2.412111.116.4-7.32-47.3-0.93.5 2.4121511.416.4-72-47-0.66.5 2.412211.516.4-6.92-46.9-0.55.4 2.4122511.616.4-6.82-46.8-0.47.5 2.412311.716.4-6.72-46.7-0.34.5 2.4123511.716.4-6.72-46.7-0.37.2 2.412411.716.4-6.72-46.7-0.36.7 2.4124511.616.4-6.82-46.8-0.45.9 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp(S/N)oMj = J/SLsysJammerLVLFER (GHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 1…

Text truncated - open the document above for the full version.

148 11Mbps Channel 11 Processing Gain Gp = (S/N)o +Mj +Lsys Freq.Gp(S/N)oMj = J/SLsysJammerLvlFER (GHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 2.453519.516.41.12-38.92.97.7 2.4535519.116.40.72-39.32.57.4 2.453618.816.40.42-39.62.26.9 2.4536518.516.40.12-39.91.95.3 2.453718.416.402-401.86 2.4537518.416.402-401.87.2 2.453818.416.402-401.86.8 2.4538518.516.40.12-39.91.97.4 2.453918.616.40.22-39.827 2.4539518.816.40.42-39.62.26.6 2.45419.116.40.72-39.32.57.1 2.4540519.116.40.72-39.32.55.7 2.454119.116.40.72-39.32.56.4 2.454151916.40.62-39.42.45 2.45421916.40.62-39.42.47.5 2.4542518.916.40.52-39.52.35.4 2.454318.916.40.52-39.52.36.8 2.4543518.816.40.42-39.62.25 2.454418.816.40.42-39.62.26.4 2.4544518.716.40.32-39.72.16.4 2.454518.516.40.12-39.91.96.1 2.4545518.216.4-0.22-40.21.66.4 2.454617.916.4-0.52-40.51.35.7 2.4546517.716.4-0.72-40.71.15.5 2.454717.716.4-0.72-40.71.16.4 2.4547517.716.4-0.72-40.71.17.2 2.454817.716.4-0.72-40.71.17 2.4548517.716.4-0.72-40.71.16.6 2.454917.816.4-0.62-40.61.26.4 2.4549517.916.4-0.52-40.51.36.2 2.45518.116.4-0.32-40.31.55.6 2.4550518.216.4-0.22-40.21.66 2.455118.216.4-0.22-40.21.66.5 2.4551518.116.4-0.32-40.31.55.3 2.45521816.4-0.42-40.41.45.2 2.455251816.4-0.42-40.41.47.6 2.455317.916.4-0.52-40.51.35.2 2.4553517.916.4-0.52-40.51.35.7 2.455417.916.4-0.52-40.51.36.3 2.4554517.816.4-0.62-40.61.25.4 2.455517.716.4-0.72-40.71.17.4 2.4555517.216.4-1.22-41.20.66.5 2.455616.916.4-1.52-41.50.35.9 2.4556516.716.4-1.72-41.70.16.5 2.455716.616.4-1.82-41.807.3 149 2.4557516.516.4-1.92-41.9-0.17.2 2.455816.416.4-22-42-0.26.9 2.4558516.316.4-2.12-42.1-0.35.1 2.455916.316.4-2.12-42.1-0.35.4 2.4559516.416.4-22-42-0.26.1 2.45616.516.4-1.92-41.9-0.17.6 2.4560516.416.4-22-42-0.25.7 2.456116.416.4-22-42-0.26.4 2.4561516.316.4-2.12-42.1-0.36.7 2.456216.216.4-2.22-42.2-0.47.5 2.456251616.4-2.42-42.4-0.67.1 2.456315.816.4-2.62-42.6-0.86.3 2.4563515.716.4-2.72-42.7-0.97 2.456415.616.4-2.82-42.8-17.4 2.4564515.416.4-32-43-1.26.6 2.456515.316.4-3.12-43.1-1.37.4 2.4565515.116.4-3.32-43.3-1.55.6 2.456615.116.4-3.32-43.3-1.56.5 2.456651516.4-3.42-43.4-1.66 2.45671516.4-3.42-43.4-1.66.6 2.456751516.4-3.42-43.4-1.66.4 2.45681516.4-3.42-43.4-1.66.7 2.4568514.916.4-3.52-43.5-1.76.1 2.456914.816.4-3.62-43.6-1.86.2 2.4569514.616.4-3.82-43.8-26 2.45714.516.4-3.92-43.9-2.16.2 2.4570514.416.4-42-44-2.27 2.457114.316.4-4.12-44.1-2.37.7 2.4571514.216.4-4.22-44.2-2.47.6 2.45721416.4-4.42-44.4-2.65.2 2.457251416.4-4.42-44.4-2.66.8 2.457313.916.4-4.52-44.5-2.76 2.4573513.916.4-4.52-44.5-2.76.9 2.457413.916.4-4.52-44.5-2.77.3 2.4574513.916.4-4.52-44.5-2.78 2.457513.816.4-4.62-44.6-2.87.3 2.4575513.716.4-4.72-44.7-2.97.4 2.457613.516.4-4.92-44.9-3.16.5 2.4576513.416.4-52-45-3.27.1 2.457713.316.4-5.12-45.1-3.37.5 2.4577513.216.4-5.22-45.2-3.47.6 2.457813.116.4-5.32-45.3-3.56.4 2.4578513.116.4-5.32-45.3-3.57.1 2.457913.116.4-5.32-45.3-3.57.7 2.4579513.116.4-5.32-45.3-3.57.4 11Mbps Channel 11 Processing Gain Gp = (S/N)o +Mj +Lsys Freq.Gp(S/N)oMj = J/SLsysJammerLvlFER (GHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 150 2.45813.116.4-5.32-45.3-3.57.4 2.458051316.4-5.42-45.4-3.66.4 2.458113.116.4-5.32-45.3-3.57.1 2.4581513.116.4-5.32-45.3-3.57 2.45821316.4-5.42-45.4-3.66.3 2.4582512.916.4-5.52-45.5-3.75.9 2.458312.816.4-5.62-45.6-3.86.5 2.4583512.716.4-5.72-45.7-3.97.6 2.458412.616.4-5.82-45.8-47.5 2.4584512.516.4-5.92-45.9-4.17.5 2.458512.416.4-62-46-4.27 2.4585512.416.4-62-46-4.27.4 2.458612.416.4-62-46-4.27.6 2.4586512.416.4-62-46-4.27.4 2.458712.416.4-62-46-4.27.4 2.4587512.416.4-62-46-4.26 2.458812.516.4-5.92-45.9-4.18 2.4588512.416.4-62-46-4.26.3 2.458912.316.4-6.12-46.1-4.36.8 2.4589512.216.4-6.22-46.2-4.46.5 2.45912.116.4-6.32-46.3-4.57.1 2.4590511.916.4-6.52-46.5-4.76.4 2.459111.816.4-6.62-46.6-4.86 2.4591511.816.4-6.62-46.6-4.87.3 2.459211.716.4-6.72-46.7-4.97 2.4592511.716.4-6.72-46.7-4.97.6 2.459311.616.4-6.82-46.8-56 2.4593511.716.4-6.72-46.7-4.97.5 2.459411.716.4-6.72-46.7-4.97 2.4594511.716.4-6.72-46.7-4.96.2 2.459511.716.4-6.72-46.7-4.95.8 2.4595511.816.4-6.62-46.6-4.87.1 2.459611.816.4-6.62-46.6-4.86.5 2.4596511.716.4-6.72-46.7-4.95.9 2.459711.716.4-6.72-46.7-4.97.6 2.4597511.616.4-6.82-46.8-58 2.459811.516.4-6.92-46.9-5.17.1 2.4598511.416.4-72-47-5.27.5 2.459911.416.4-72-47-5.28 2.4599511.316.4-7.12-47.1-5.37 2.4611.316.4-7.12-47.1-5.36.6 2.4600511.316.4-7.12-47.1-5.36.6 2.460111.416.4-72-47-5.27.1 2.4601511.516.4-6.92-46.9-5.17.1 2.460211.516.4-6.92-46.9-5.16 11Mbps Channel 11 Processing Gain Gp = (S/N)o +Mj +Lsys Freq.Gp(S/N)oMj = J/SLsysJammerLvlFER (GHz)(dB)(dB)(dB)(dB)(dBm)(dBm) 151 2.4602511.616.4-6.82-46.8-56.4 2.460311.616.4-6.82-46.8-56 2.4603511.616.4-6.82-46.8-56.8 2.460411.616.4-6.82-46.8-57.2 2.4604511.516.4-6.92-46.9-5.16.6 2.460511.516.4-6.92-46.9-5.17.2 2.4605511.416.4-72-47-5.26.6 2.460611.416.4-72-47-5.27.1 2.4606511.516.4-6.92-46.9-5.18 2.460711.516.4-6.92-46.9-5.16.7 2.4607511.616.4-6.82-46.8-57.8 2.460811.616.4-6.82-46.8-56 2.4608511.816.4-6.62-46.6-4.87.7 2.460911.916.4-6.52-46.5-4.77.6 2.460951216.4-6.42-46.4-4.67.9 2.4611216.4-6.42-46.4-4.67.8 2.4610511.916.4-6.52-46.5-4.78 2.46111216.4-6.42-46.4-4.67.7 2.4611512.116.4-6.32-46.3-4.57.4 2.461212.116.4-6.32-46.3-4.56.8 2.4612512.116.4-6.32-46.3-4.56.5 2.461312.116.4-6.32-46.3-4.57 2.4613512.116.4-6.32-46.3-4.56.5 2.461412.116.4-6.32-46.3-4.56.5 2.4614512.116.4-6.32-46.3-4.56 2.461512.216.4-6.22-46.2-4.47.8 2.4615512.216.4-6.22-46.2-4.46.8 2.461612.316.4-6.12-46.1-4.36.8 2.4616512.316.4-6.12-46.1-4.35.4 2.461712.416.4-62-46-4.27.1 2.4617512.316.4-6.12-46.1-4.35.8 2.461812.216.4-6.22-46.2-4.46.5 2.4618512.116.4-6.32-46.3-4.57 2.46191216.4-6.42-46.4-4.66.2 2.461951216.4-6.42-46.4-4.67 2.46211.916.4-6.52-46.5-4.76.2 2.462051216.4-6.42-46.4-4.67 2.462112.116.4-6.32-46.3-4.57 2.4621512.216.4-6.22-46.2-4.46.6 2.462212.316.4-6.12-46.1-4.35.8 2.4622512.416.4-62-46-4.25.2 2.462312.516.4-5.92-45.9-4.17.3 2.4623512.416.4-62-46-4.25.5 2.462412.416.4-62-46-4.27.3 2.4624512.316.4-6.12-46.1-4.36.2 11Mbps Channel 11 Processing Gain Gp = (S/N)o +Mj +Lsys Freq.Gp(S/N)…

Text truncated - open the document above for the full version.

Page 1 of 52 Report No: FC01-063 TROY GROUP, INC. WIRELESS AND CONDUCTIVITY DIVISION TEST REPORT FOR THE WIRELESS PRINT SERVER, ETHERWIND FCC PART 15 SUBPART C SECTIONS 15.207, 15.209 AND 15.247 COMPLIANCE DATE OF ISSUE: SEPTEMBER 19, 2001 PREPARED FOR: Troy Group, Inc. Wireless and Conductivity Division 1692 Browning Irvine, CA 92606-4809 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: W.O. No.: 005008-00 76953 Date of test: August 23-28, 2001 Report No.: FC01-063 This report contains a total of 52 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 52 Report No: FC01-063 TABLE OF CONTENTS Administrative Information ............................................................................................. 4 Summary of Results......................................................................................................... 5 Modifications Required for Compliance ......................................................................... 5 Approvals......................................................................................................................... 5 Equipment Under Test (EUT) Description...................................................................... 6 Equipment Under Test..................................................................................................... 6 Peripheral Devices ........................................................................................................... 6 15.33 Frequency Range Tested ....................................................................................... 7 Radiated Emissions ............................................................................................. 7 Conducted Emissions .......................................................................................... 7 EUT Operating Frequency............................................................................................... 7 Temperature and Humidity During Testing .................................................................... 7 Report of Measurements.................................................................................................. 8 Table 1: Fundamental Radiated Emission Levels ............................................... 8 Table 2: Six Highest Radiated Emission Levels: 15.247 9 kHz - 30 MHz ......... 9 Table 3: Six Highest Radiated Emission Levels: 15.247 30 - 1000 MHz........... 10 Table 4: Six Highest Radiated Emission Levels: 15.247 1-25 GHz ................... 11 Table 5: Six Highest Radiated Emission Levels: 15.209 9 kHz - 1000 MHz ..... 12 Table 6: Six Highest Radiated Emission Levels: 15.209 1-25 GHz ................... 13 Table 7: Highest Radiated Emission Levels: Peak Power Spectral Density ....... 14 Table 8: Six Highest Conducted Emission Levels .............................................. 15 Measurement Uncertainty................................................................................................ 16 EUT Setup .......................................................................................................................16 Correction Factors ..........................................................................................................…

Text truncated - open the document above for the full version.
