b User’s Guide iPAQ Bluetooth Sleeve Part Number:xxxxxxx -xxx September 2001 Notice Compaq Computer Corporation shall not be liable for technical or editorial errors or omissions contained herein. The information in this guide is subject to change without notice. © 2001 Compaq Computer Corporation. Except for use in connection with the accompanying Compaq product, no part of this guide may be photocopied or reproduced in any form without prior written consent from Compaq Computer Corporation. COMPAQ, the Compaq logo, and Deskpro Registered in U.S. Patent and Trademark Office. Microsoft, Windows, Windows NT, and other names of Microsoft products referenced herein are trademarks or registered trademarks of Microsoft Corporation. All other product names mentioned herein may be trademarks or registered trademarks of their respective companies. Printed in U.S.A. The following words and symbols mark special messages throughout this guide: Å WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. Ä CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. User’s Guide Compaq iPAQ Bluetooth Sleeve First Edition (September 2001) Part Number xxxxxx-xxx Compaq Computer Corporation User’s Guide1 Contents Getting Started INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ1 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ1 Customer Registration . . . . . . . . . . . . . . . . . . . . . . . . 1ñ2 iPAQ Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ2 Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ3 Launching the Application . . . . . . . . . . . . . . . . . . . . 1ñ3 The Main Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ6 Device Group Pulldown . . . . . . . . . . . . . . . . . . . . . . 1ñ7 Services List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ8 View Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ8 Tools Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ8 Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ñ8 Bluetooth Radio Icon. . . . . . . . . . . . . . . . . . . . . . . . . 1ñ8 Device Discovery The Search Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2ñ1 Device List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2ñ2 Searching for Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . 2ñ3 Saving Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2ñ4 Device Information Dialogue . . . . . . . . . . . . . . . . . . 2ñ6 Viewing Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2ñ7 Communicating With Other Devices . . . . . . . . . . . 2ñ11 Moving and Removing Devices. . . . . . . . . . . . . . . . . . . 2ñ14 Device Groups Modifying Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ1 2User’s Guide Group Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ5 General Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ6 Connections Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ7 File Sharing Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ10 PIM Objects Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ14 Serial Port Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ16 DialUp Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3ñ18 System Diagnostics Compaq iPAQ Bluetooth Sleeve User Guide1–1 1 Getting Started INTRODUCTION Bluetooth wireless technology eliminates the need for cables between electronic devices such as desktop computers, printers and local area networks (LANs). Bluetooth wireless technology provides fast, reliable, and secure wireless communication in a small space, and enables you to synchronize devices like your desktop computer and mobile phone. Without the need of any cables or wiring, you can:
Transfer files
Access DialUp networks
Connect to local area networks
Connect to audio ports
Connect to serial ports The basic functions of the Bluetooth Neighborhood include:
Device Discovery
Service Discovery
Establishing links with remote devices Terminology Before you install and begin using your new Bluetooth capable sleeve, please take a few minutes to review some of the terms that you will be seeing throughout the documentation. 1–2Compaq iPAQ Bluetooth Sleeve User Guide Getting Started
Authentication: Security feature that requires users to verify a numeric passkey before exchanging data.
Authorization: Security feature that requires user approval before another user is allowed to share data.
Bonded Device: Recognized by your device so as not to require Authentication or Authorization.
Device: Bluetooth equipped piece of hardware.
Device address: Unique electronic address of a Bluetooth device.
Device discovery: The location and recognition of one Bluetooth device by another.
Device group: Compilation of several Bluetooth devices into a group, normally to conduct related tasks.
Device name: Name that a Bluetooth device provides when discovered by another device.
PIM: Personal Information Manager (e.g. Contacts, Calendars and Tasks)
Service Discovery: Determining which applications that other devices have in common with yours. Customer Registration You can receive the latest information on your iPAQ accessory, as well as special offers on iPAQ H3000 accessories and software, by registering with Compaq. Complete and mail in the Register Now* card included in the shipping box or the online registration. * Not available in all regions. iPAQ Basics It is assumed that you are already familiar with the basic operation of the iPAQ. If you are …

Text truncated - open the document above for the full version.

2–2Compaq iPAQ Bluetooth Sleeve User Guide Device Discovery Device List Presented in tabular format, the device list displays devices found during the search. Device name is presented on the left and device type is presented on the right. The list can be sorted by either Device Name or Type by tapping the respective header. ✎ You can tap-and-hold any of the devices that appear in this list to initiate an action (e.g. send a business card). (see X.X, "Communicating With Other Devices")
Search buttonóLaunches the search for devices. (see X.X, "Searching for Devices")
Save buttonóAllows you to save devices to device groups. (see X.X, "Saving Devices")
Filter buttonóLaunches the search filter screen (see Figure 2-2). Allows you to tailor your search to specific device(s). "Find all devices" is initially selected by default. Also allows you to specify the duration of the search. ✎ If "Stop searching after" is left unchecked, the search will continue until you terminate the search by tapping either "Stop Search" or "ok".
Search Status LineóLocated at the bottom of the search screen. Displays the status of the search. Device Discovery Compaq iPAQ Bluetooth Sleeve User Guide 2–3 Figure 2-2. Search Filter Searching for Devices Your initial search was conducted when you first launched the application. (refer to X.X "Getting Started") It is always possible to conduct a new search for Bluetooth devices. This search will have no affect on any devices that you have previously saved to any of your Device groups. 1. At the bottom of the main window, tap "Search". The search screen will appear (see Figure 2-1). 2. On the search screen, tap "Search". The iPAQ will begin searching for Bluetooth devices in the area. The devices will appear on the screen as they are found (see Figure 2-3). 2–4Compaq iPAQ Bluetooth Sleeve User Guide Device Discovery ✎ The "Search" button will change to "Stop Search" while the search is in progress. It will change back to "Search" when the search is complete (times out) or when you tap "Stop Search." Figure 2-3. Searching for BT Devices Saving Devices Once a device is discovered and you decide that you want to save it for future use, it should be saved to a Device group. The procedure is identical to that used when you conducted your initial search with the exception that you may now have more Device groups to choose from. 1. From the Search Screen, select those devices that you want to keep. Device Discovery Compaq iPAQ Bluetooth Sleeve User Guide 2–5 ✎ You can select one or several devices. 2. Tap "Save". The Device groups screen will appear (see Figure 2-4). 3. Check the box next to any of the groups that you want to save these devices to. ✎ You can check one or several groups. You can also modify the groups prior to making your selection by tapping the "Add/Edit/Delete" button (see X.X, "Modifying Groups") 4. Tap "ok" to return to the Search screen. 5. Repeat for additional devices. ✎ Whenever you save a device to any group, it is also saved to the "All Devices" group. Figure 2-4. Device Groups 2–6Compaq iPAQ Bluetooth Sleeve User Guide Device Discovery Device Information Dialogue Access from the main window by tapping a device. Displays information about the selected device (see Figure 2-5). Figure 2-5. Device Information
Device NameóName assigned by owner of selected device.
Device AddressóUnique Bluetooth address used to identify the device.
Device TypeóIdentifies the type of device (e.g. PDA, cell phone, etc.) Device Discovery Compaq iPAQ Bluetooth Sleeve User Guide 2–7
BondedóDisplays "Yes" if a bond has been established. Bonding allows the device to bypass authorization and authentication. A bond can be created or broken via the "Actions" menu located at the bottom of the Device Information screen.
Last SeenóIndicates the last date and time the device was discovered near your device.
Device Group ListóTap here to review or specify which groups this device belongs to. (see X.X, "Moving and Removing Devices")
Services ListóDisplays those services that your device and the selected device have in common. The status column shows the current state of each service.
Actions MenuóAllows you to initiate an action with the selected device (e.g. send a business card). (see X.X, Communicating With Other Devices") Viewing Devices Devices can be viewed in two different formats, Icons and List. The "View" menu (see Figure 2-6) will allow you to select either of these views. It will also allow you to refresh the screen. 2–8Compaq iPAQ Bluetooth Sleeve User Guide Device Discovery Figure 2-6. View Menu
Icon View (Figure 2-7)óPresents you with a graphical representation of the device (e.g. Computer, Access Point, PDA, Cell Phone, etc.). The device name appears below the icon. The device will be "grayed out" if it is not within range. Device Discovery Compaq iPAQ Bluetooth Sleeve User Guide 2–9 Figure 2-7. Icon View 2–10Compaq iPAQ Bluetooth Sleeve User Guide Device Discovery
List View (see Figure 2-8)óProvides the same information as the Icon View, only in tabular form. The left column displays the device name and type. The right column tells you the current status of the device (e.g. Connected, Available). Figure 2-8. List View
RefreshóUpdates the status and availability of each displayed device. ✎ The status of devices is refreshed each time a new group is selected from the Device Group Pulldown on the main window. Device Discovery Compaq iPAQ Bluetooth Sleeve User Guide 2–11 Communicating With Other Devices Once you have established contact with a device, you can use your installed radio to exchange data. You can establish communication from the Main Window, the Search Window or the Device Information Dialogue Window. From the Main Window or Search Window: Tap-and-hold the device you wish to communicate with; you will be presented with a list of services that the selected device supports (see Figure 2-9). Figure 2-9. Communicating with other devices - OR…

Text truncated - open the document above for the full version.

3–4Compaq iPAQ Bluetooth Sleeve User Guide Device Groups 1. Select the group you want to delete. 2. Tap the "Delete" button. 3. Tap "ok" to return to the previous screen. Group Settings Accessed by selecting "Settings for <group>" from the "Tools" menu in the main window (see Figure 3-4), can be tailored for each device group. These settings will provide the group certain information about your device, as well as specify how our device will interact with the rest of the group. The group settings are distributed among six different tabs (shown below). You can change the group that you are modifying from any tab. Shifting groups or tabs will automatically save data. Figure 3-4. Selecting "Settings for <Group>" Device Groups Compaq iPAQ Bluetooth Sleeve User Guide 3–5 General Tab (see Figure 3-5) Figure 3-5. General Tab
Device NameóThis is the name that other Bluetooth device users will see when they discover to your device.
Default Passkey (Blank by default)óUsed for authenticating connections requested by other devices for transactions that require a "Passkey" (see other service tabs for passkey requirements). The other user will require to know your passkey to complete the transaction. If left blank, you will be requested to enter a passkey every time that one is required. 3–6Compaq iPAQ Bluetooth Sleeve User Guide Device Groups
Delete inactive devices after...óDetermines how long any device will remain in the group between discoveries. You can specify the number of days that the system will use (the default is 30 days). If the checkbox is left unchecked, devices will never be automatically deleted from the group. Connections Tab (see Figure 3-6) Figure 3-6. Connections Tab
Let other devices see me (Checked by default)óCheck this box to allow other devices to locate your device in a search. Device Groups Compaq iPAQ Bluetooth Sleeve User Guide 3–7 ✎ This will not prevent devices that have previously discovered your device from conducting a transaction since they already know your Bluetooth address.
Let other devices connect to me (Checked by default)óCheck this box to allow other devices to connect and conduct transactions. If unchecked, no other device can initiate a connection with your device. ✎ This checkbox has no affect on outgoing connection requests.
All Devices (Default)óAny device can attempt to connect.
Only bonded devicesóOnly bonded devices can connect.
Only selected devicesóLaunches a dialogue (see Figure 3-7) where you can choose specific devices, device types or device groups. 3–8Compaq iPAQ Bluetooth Sleeve User Guide Device Groups Figure 3-7. Connect only to selected devices
Transmission power for this groupóAllows you to choose the transmission power level that will be used whenever the group is selected. Selection of this power level will determine the transmit range (and therefore power consumption) of your device. Device Groups Compaq iPAQ Bluetooth Sleeve User Guide 3–9 File Sharing Tab (see Figure 3-8) Figure 3-8. File Sharing Tab
Let other devices use this service (Checked by default)óCheck this box to allow other devices connect for file sharing. If unchecked, you can still connect with other devices and send them files.
Authorization is required (Checked by default)óCheck this box if you want to screen any unbonded devices prior to allowing a transaction. If checked, you will be prompted to "accept" or "reject" transactions by any unbonded devices (see Figure 3-9). 3–10Compaq iPAQ Bluetooth Sleeve User Guide Device Groups
Passkey is required (Unchecked by default)óCheck this box to require authentication for file sharing. If checked, you will be prompted to "accept" or "reject" transactions by any unbonded devices (see Figure 3-10). Unbonded devices will be required to supply a matching passkey.
Use the Default PasskeyóEnabled only when you check "Passkey is required." Check this box to allow the system to use the default passkey assigned in the "General Tab".
Encryption is requiredóEnabled only when you check "Passkey is required." Check this box to require data encryption when transmitting data.
Shared DirectoryóDisplays the name and the path of the folder used to store files received from other devices. A default folder titled "Bluetooth Inbox" is placed in the My Documents folder during installation. Device Groups Compaq iPAQ Bluetooth Sleeve User Guide 3–11 Figure 3-9. Authorization Dialogue 3–12Compaq iPAQ Bluetooth Sleeve User Guide Device Groups Figure 3-10. Authentication Dialogue Device Groups Compaq iPAQ Bluetooth Sleeve User Guide 3–13 PIM Objects Tab (see Figure 3-11) Figure 3-11. PIM Objects Tab
Let other devices use this service (Checked by default)óCheck this box to allow other devices connect for transferring PIM objects. If unchecked, you can still connect with other devices and send them files.
Authorization is required (Checked by default)óCheck this box if you want to screen any unbonded devices prior to allowing a transaction. If checked, you will be prompted to "accept" or "reject" transactions by any unbonded devices (see Figure 3-9).
Passkey is required (Unchecked by default)óCheck this box to require authentication for transferring PIM objects. If checked, you will be prompted to "accept" or "reject" 3–14Compaq iPAQ Bluetooth Sleeve User Guide Device Groups transactions by any unbonded devices (see Figure 3-10). Unbonded devices will be required to supply a matching passkey.
Use the Default PasskeyóEnabled only when you check "Passkey is required." Check this box to allow the system to use the default passkey assigned in the "General Tab."
Encryption is requiredóEnabled only when you check "Passkey is required." Check this box to require data encryption when transmitting data.
Send my business card on requestóAllows other devices that are able to connect to "Pull" your business card information.
Accept all PIM objects sent to meóAllows other devices that are able to connect to send you PIM ob…

Text truncated - open the document above for the full version.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TRP/Cetecom bvba August 30, 2001 FCC 7435 Oakland Mills Rd Columbia, MD 21036 RE: Philips Components DSS device, FCC ID: PUBWCM0001 Gentlemen: Submitted herewith is additional information pertaining to submittal of application for equipment authorization for a hybrid spread spectrum system manufactured by Philips Components using the Cambridge Silicon Radio Ltd. Bluetooth chip BC01. This application contains the information specified by the FCC as required for all manufacturers of Bluetooth products that use the Cambridge Silicon Radio Bluetooth Chip set BC01 Common information that pertains in their product. to all products using this chip is attached as an appendix to this letter as specified by the FCC is permissible. A processing gain report applicable to the Cambridge Silicon Radio transceiver chip previously accepted by the FCC is submitted with this application. As stated by Cambridge Silicon Radio, the BC01 chip contains an integral transmitter, receiver and processing gain filters. Thus, the processing gain of any device using this chip is identical. This device is used with a hand held personal digital device assistant (PDA) that is subject to verification as a Class B digital device as verbally confirmed by Mr. Ray LaForge at the FCC Laboratory on August 17, 2001. The transceiver sleeve manufactured by Philips that attaches to the PDA is therefore a Class B digital device subject to verification. The required verification has been performed. This material has been submitted by Phil Inglis. As the responsible party reviewing this material any questions that arise regarding this material or other issues that may arise related to this application should be directed to me at 410 531 3439 or email [email protected]. Sincerely, Phillip Inglis Consultant 14085 Howard Rd Dayton, MD 21036 BLUETOOTH APPROVALS The following exhibit indicates the FCC Spread Spectrum requirements in Section 15.247 for devices meeting the Bluetooth Specifications in the 2.4 GHz band as of February 2001 operating in the USA. The purpose of this exhibit is to help expedite the approval process for Bluetooth devices. This exhibit provides items that vary for each device and also provides a list of items that are common to Bluetooth devices that explains the remaining requirements. The list of common items can be submitted for each application for equipment authorization. This exhibit only specifies requirements in Section 15.247, requirements in other rule Sections for intentional radiators such as in Section 15.203 or 15.207 must be also be addressed. For each individual device, the following items, 1-7 will vary from one device to another and must be submitted. 1) The occupied bandwidth in Section 15.247(a)(1)(ii). 2) Conducted output power specified in Section 15.247(b)(1). 3) EIRP limit in Section 15.247(b)(3). 4) RF safety requirement in Section 15.247(b)(4) 5) Spurious emission limits in Section 15.247(c). 6) Power spectral density requirement in Section 15.247(f) in the acquisition mode. NOTE :- In the case where a module’s Bluetooth functionality is completely determined by the BC01 chip which features an integral transmitter, receiver and the processing gain filters. As discussed between Mr. J. Dichoso (FCC) and Mr. C. Neal (CSR), all BC01 based modules are deemed to have identical processing gains, and as such, the test report for product FCC ID O2Z-BT2 can be submitted as evidence for the Process Gain requirements. For all devices, the following items, 1-12, are common to all Bluetooth devices and will not vary from one device to another. This list can be copied into the filing. 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason, the RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: The maximum frequency of the device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification must not be supported by the device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a …

Text truncated - open the document above for the full version.

August 30, 2001 CONFIDENTIALITY REQUEST Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re:Philips Components Inc., application for Spread Spectrum System, FCC ID:PUBWCM0001 Gentlemen: Philips Components Inc., herein submits a request for Confidentiality for the specified attachments that are filed for FCC ID:PUBWCM0001. Certification is sought under the TCB certification program pursuant to the requirements of the Federal Communications Commission for a spread spectrum transmitter under FCC Rules Part 15. Philips Components Inc., requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection by the Commission following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: 1. Circuit diagrams submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “block diagram”. 3. Datasheet submitted as Equipment Authorization Electronic Filing attachment: “BTCdatasheet”. Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that Cambridge Silicon Radio does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned by phone at 410-531-3439, by fax at 410-531-0807, by email at [email protected], or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Regards, (signed) Phillip Inglis, TRP/Cetecom b.v.b.a., Maryland 14085 Howard Rd. Dayton, MD. 21036

CETECOM ICT Services GmbH Test report nr..: 2_2592-A/01Issue Date:14.08.2001Page 53 (57) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_2592-A/01Issue Date:14.08.2001Page 54 (57) Photographs of the equipment

The following FCC ID Label will be located on the bottom of the unit as described. The following text will be placed in the instruction manual due to the small size of the device. FCCID:PUBWCM0001

CETECOM ICT Services GmbH Test report nr..: 2_2592-A/01Issue Date:14.08.2001Page 55 (57) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_2592-A/01Issue Date:14.08.2001Page 56 (57) Photographs of the equipment CETECOM ICT Services GmbH Test report nr..: 2_2592-A/01Issue Date:14.08.2001Page 57 (57) Photographs of the equipment

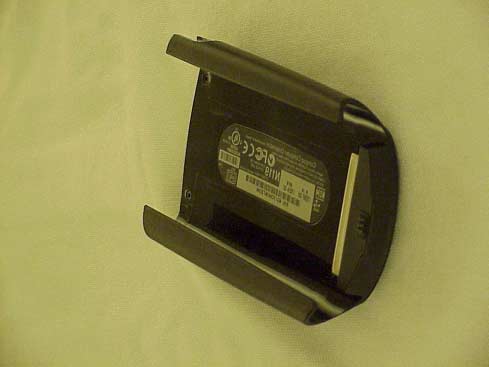

Top View Bottom View
