PUBWCM1003IEEE802.11b PCMCIA Card

Philips Components
IEEE802.11b PCMCIA Card - FCC ID PUBWCM1003 - Philips Components
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jan 30, 2002
Application Purpose
Original Equipment
Date of Application
Jan 30, 2002
Equipment Note
IEEE802.11b PCMCIA Card
Frequency Range
2412.00000000 - 2472.00000000
Company
Philips Components
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PHILIPS WLAN Configuration Utility & User Manual PHILIPS COMPONENTS Page 1 PHILIPS WLAN Configuration Utility Operation Manual Version1.10 2001-12-15 DRAFT Development Information Revision History Version Item Date Contents 1.00 Config Manual 2001-11-23 Initial Release 1.10 Config Manual 2001-12-15 New GUI and Initial installation & upgrade revised PHILIPS WLAN Configuration Utility & User Manual PHILIPS COMPONENTS Page 2 Notice Philips shall not be liable for technical or editorial errors or omissions contained herein. The information in this guide is subject to change without notice. © 2001 Philips Components. Except for use in connection with the accompanying Philips product, no part of this guide may be photocopied or reproduced in any form without prior written consent from Philips Components. Philip and the Philips logo are trademarks of Philips Components. Microsoft, Windows, Windows NT, and other names of Microsoft products referenced herein are trademarks or registered trademarks of Microsoft Corporation. Bluetooth TM is a trademark of the Bluetooth SIG Inc., USA. All other product names mentioned herein may be trademarks or registered trademarks of their respective companies. Printed in U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that causes undesired operation. The following words and symbols mark special messages throughout this guide: WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. PHILIPS WLAN Configuration Utility & User Manual PHILIPS COMPONENTS Page 3 WARNING: Exposure to Radio Frequency Radiation The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should not be less than 2.5 cm (1 inch) from a person’s hand, wrist, feet and ankles and not be less than 5 cm from a person’s body during during normal transmitting operations. PHILIPS WLAN Configuration Utility & User Manual PHILIPS COMPONENTS Page 4 Table of Contents 1 Introduction________________________________________________5 2 Installation_________________________________________________6 2.1 Initial installation_____________________________________________6 2.2 Upgrade Installation___________________________________________7 3 Operation_________________________________________________11 3.1 System Tray Icon____________________________________________11 3.2 Icon Menu__________________________________________________11 4 Starting the Configuration Utility______________________________13 4.1 Configuration Tab___________________________________________13 4.1.1 Setting the Profile_________________________________________________14 4.1.2 Setting the Network Type___________________________________________14 4.1.2.1 Peer-to-Peer_______________________________________________15 4.1.2.2 Access Point_______________________________________________15 4.1.3 Setting the SSID__________________________________________________16 4.1.4 Setting the Transmit Rate___________________________________________16 4.1.5 Enabling Power Save Mode_________________________________________17 4.1.6 Selecting the Peer-to-Peer Channel___________________________________18 4.2 Encryption Tab______________________________________________19 4.2.1 Disabling Encryption_______________________________________________19 4.2.2 Enabling Encryption________________________________________________19 4.2.3 Creating Encryption Keys Using a Passphrase___________________________20 4.2.4 Creating Encryption Keys Manually____________________________________21 4.2.4.1 Alphanumeric:_____________________________________________22 4.2.4.2 Hexadecimal:______________________________________________22 4.2.5 Save Previous Key________________________________________________23 4.2.6 Default Key______________________________________________________23 4.3 Status Tab__________________________________________________23 4.4 About Tab__________________________________________________24 A Agency Requirements PHILIPS WLAN Configuration Utility & User Manual PHILIPS COMPONENTS Page 5 1 Introduction The PHILIPS Wireless Local Area Network (WLAN) Interface card enables high-speed access without wires to network assets. This card uses the IEEE 802.11 protocol to enable communications between the host computer and other computers, using the 2.4GHz ISM Radio Band for the communications medium. The host computer uses the PHILIPS Wireless LAN card for communications in the same way that it would use an Ethernet Network Interface Card. The PHILIPS WLAN Configuration Utility is a Windows application which allows the user of a computer equipped with a PHILIPS WLAN Interface Card to configure the card and to display the card’s current configuration and status. PHILIPS WLAN Configuration Utility & User Manual PHILIPS COMPONENTS Page 6 2 Installation The PHILIPS WLAN Configuration Utility is installed simultaneously with the driver by executing the PHCWL for Windows.exe file. The following illustration shows this program’s initial screen: Installation procedures differ depending on whether this is an initial installation or an upgrade. The following sections discuss these scenarios. NOTE: Some versions of Microsoft Windows operating systems require administrator privileges to install software. If this is the case for your operating system, be sure that you have such privileges before executing the PHCW…

Text truncated - open the document above for the full version.

Cover Letter(s)

January 31, 2002 CONFIDENTIALITY REQUEST Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Philips Components Inc., FCC ID:PUBWCM1003 Gentlemen: Philips Components Inc., herein submits a request for Confidentiality for the specified attachments that are filed forFCC ID:PUBWCM1001. Certification is sought under the TCB certification program pursuant to the requirements of the Federal Communications Commission for a spread spectrum transmitter under FCC Rules Part 15.Philips Components Inc., requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection by the Commission following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: 1.Circuit diagrams, BOM, and PCB submitted as Equipment Authorization Electronic Filing attachment:"schematics”. 2.Block diagram and technical description submitted as Equipment Authorization Electronic Filing attachment:“blockdiagram ”. If you have any questions, please feel free to contact me at the address shown below. Regards, (signed) Gerald Schmidt, Cetecom ICT GmbH, Untertürkheimer Strasse 6-10 D-66117 Saarbrücken Germany Email:[email protected] Phone: +49 681 598 8723

External Photos

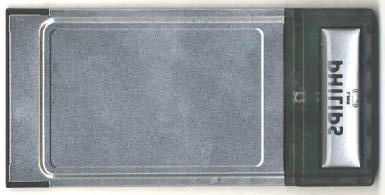

Technical construction file Page 21 of 36 DRAFT . European Communications Consultancy Team Top View Bottom View

ID Label/Location Info

PUBWCM1003

Internal Photos

Technical construction file Page 23 of 36 DRAFT . European Communications Consultancy Team Top View Bottom View

Operational Description

PHILIPS ComponentsData Sheet 3139 147 18070 2 Rev 1.0 : October 31, 2001 Wireless LAN Adapter WLP 1100 DESCRIPTION The 802.11b PC Card is designed to operate in the 2.4 GHz ISM band, channels 1 to 14. The actual operating frequencies and channels depend on the regulations in the country of usage. The module implements Direct Sequence Spread Spectrum DSSS technology providing improved noise and signal jamming immunity including protection from interferes in the 2.4 GHz band like the Microwave Oven. The PC Cards can be used in peer to peer (ad-hoc) or infrastructure networks allowing for instant network set up in any environment. Access points can be used (infrastructure mode) to extend the area of coverage and increase the number of users. WLP1100 PC Cards are certified to interoperate with other manufacturers‘ high-speed IEEE 802.11b compliant systems and are fully compliant with WECA Wi-Fi. The main features of this design are as follows: • IEEE 802.11b WLAN High data rate standard compatible • Wi-Fi Compliant • Backwards compatible to existing 1-2 ; 5.5 Mbps standard • Automatic data rate selection • 2.4 GHz, DSSS, CCK modulation scheme • Supports both Infrastructure mode & Ad-hoc networking • Security ... Real time 128 bit WEP / Encryption & Decryption • Improved multi-path distortion performance • Equalized Rake receiver • Diversity antennas • Win 98/NT/2K/XP/CE support to begin with ; Linux to follow • PCMCIA Type 2 Form factor & Interface

RF Exposure Info

PHILIPS WLAN Configuration Utility & User Manual PHILIPS COMPONENTS Page 3 WARNING: Exposure to Radio Frequency Radiation The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should not be less than 2.5 cm (1 inch) from a person’s hand, wrist, feet and ankles and not be less than 5 cm from a person’s body during during normal transmitting operations.

Test Report

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 54 PagesPage 1 (54) TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_2592-5-A/01 FCC Part 15.247 / CANADA RSS-210 IEEE802.11b PC card WLP1100 (E020EB01) CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2_2592-5-A/01Issue date:19.09.01Page 2 (54) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2_2592-5-A/01Issue date:19.09.01Page 3 (54) 1.3Details of applicant Name : Philips Components Street : 620A Lorong 1, TP3 Level 5 City : Toa Payoh 319762 Country : Singapore Telephone : +65 350 2766 Telefax : +65 252 6201 Contact : Mr M. Guruprasad Telephone : +65 350 2766 1.4Application details Date of receipt of application : 02.08.01 Date of receipt of test item : 18.09.01 Date of test : 18.09.01 1.5Test item Type of equipment : DSSS RLAN Type designation: IEEE802.11b PC card /WLP1100 (E020EB01) Manufacturer: See applicant Street: City: Country: Serial number: See photographs Additional informations: : Frequency: 2400 – 2483.5 MHz Type of modulation: 22M0P7D (DSSS) (20 dB Bandwidth) Number of channels : 13 Antenna: integral antenna / print antenna Power supply: 3,3 V DC from PC Output power: EIRP: 89.1mW Type of equipment: Temperature range : -10°C - +60°C 1.6Test standards: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test report nr.:2_2592-5-A/01Issue date:19.09.01Page 4 (54) 2 Technical test 2.1Summary of test results The radiated measurements were performed vertical andhorizontal over the whole frequency range.We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual remeasurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.247 and the „Measurement guidelines for DSSS systems“. The product fullfills also the requirements for CANACA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS Technical responsibility for area of testing : 19.09.2001RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 19.09.2001RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:2_2592-5-A/01Issue date:19.09.01Page 5 (54) 2.2Testreport TEST REPORT Testreport no. : 2_2592-5-A/01 CETECOM ICT Services GmbH Test report nr.:2_2592-5-A/01Issue date:19.09.01Page 6 (54) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters § 15.247 (a)(2) Spectrum Bandwitdh of a DSSS System 7 § 15.247 (b)(1) Maximum peak output power11 § 15.247 (c)(1) Emission limitations 16 § 15.247 (c)Band edge compliance33 § 15.247 (d)Power Spectral Density36 § 15.247 (e)Processing Gain of DSSS System40 Receiver parameters § 15.209Spurious radiations - Radiated41 Test equipment listing47 Photographs of the equipment49 CETECOM ICT Services GmbH Test report nr..:2_2592-5-A/01Issue Date:19.09.01Page 7 (54) Equipment under test : IEEE802.11b PC card WLP1100 (E020EB01) Ambient temperature : 24° °° °C Relative humidity : 34% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 SPECTRUM BANDWITH OF DSSS-SYSTEMSUBCLAUSE § 15.247 (a)(2) TEST CONDITIONS6 dB BANDWIDTH ( kHz ) Frequency (MHz)241224422472 T nom ( 24 )° °° °C V nom ( 3.3 )V111721122211222 Measurement uncertainty±3dB RBW = 100 KHz, Span >> RBW, here 25 MHz LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz CETECOM ICT Services GmbH Test report nr..:2_2592-5-A/01Issue Date:19.09.01Page 8 (54) Equipment under test : IEEE802.11b PC card WLP1100 (E020EB01) Ambient temperature : 24° °° °C Relative humi…

Text truncated - open the document above for the full version.

Test Setup Photos

CETECOM ICT Services GmbH Test report nr..:2_2592-5-A/01Issue Date:19.09.01Page 49 (54) Test site RADIATED EMISSIONS Picture 1: CETECOM ICT Services GmbH Test report nr..:2_2592-5-A/01Issue Date:19.09.01Page 50 (54) Photographs of the equipment

Contact Information

Applicant

Steve Shearer
[email protected]408-467-9335Fax: 408-467-9480

Test Firm

Cetecom ICT Services GmbHRalf Hoehn
[email protected]49-681-598-8455Fax: 49-681-598-8475

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.47 GHz89.10 mW
Confidentiality
Long Term
Grant Notes
This device and its antenna(s) must operate with a separation distance of least 5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End- users must be provided with specific operating instructions for satisfying RF exposure compliance.
