PVH070201Bluetooth module cB-0702-01

INDUSTRIAL BLUETOOTH™ OEM Serial Port Adapter™ 2 nd Generation Electrical & Mechanical Datasheet OEM Serial Port Adapter™ 2 nd Generation Electrical & Mechanical Datasheet Copyright © 2002-2003 connectBlue AB. The contents of this document can be changed by connectBlue AB without prior notice and do not constitute any binding undertakings from connectBlue AB. connectBlue AB is not responsible under any circumstances for direct, indirect, unexpected damage or consequent damage that is caused by this document. All rights reserved. Release: 0302 Document version: (1.4) Document number: cBProduct-0212-01 Printed in Sweden. Trademarks Registered trademarks from other companies are: Bluetooth is a trademark owned by the Bluetooth SIG,Inc.Microsoft™, Windows™, Windows NT™, Windows 2000™, Windows CE™, Windows ME™, are registered trademarks from Microsoft Corporation. 4 Contents 1. Introduction 5 1.1 Related Documents........................................................................... 5 1.2 Product Variants ................................................................................ 5 1.3 Block Diagram cB-0701-01 ............................................................... 7 1.4 Block Diagram cB-0702-01 ............................................................... 7 2. Electrical Interface and Connectors 8 2.1 CMOS Logic Levels......................................................................... 12 2.2 Signals in J1 and J2 Connector ...................................................... 13 2.3 Signals in J3 – J5 Connector .......................................................... 14 2.4 Power Control.................................................................................. 14 2.5 Interfacing Examples ....................................................................... 15 3. Temperature Information 16 4. Bluetooth Information 17 5. Power Consumption 18 6. Antennas 22 6.1 Surface Mounted Antenna (internal) ............................................... 22 6.2 Antennas on a Cable (external antennas)....................................... 23 7. Additional Mounting Instructions 25 7.1 Antenna Issues................................................................................ 25 7.2 Traces and Component Keep out Area........................................... 25 7.3 Using the 20-pin 2 mm Pitch Pin Connector ................................... 25 7.4 Using Board-to-Board Connectors .................................................. 26 8. Mechanics 27 8.1 Board Outlines................................................................................. 27 9. Regulatory Information 29 9.1 Declaration of Conformity................................................................ 29 9.2 FCC Compliance ............................................................................. 30 5 Chapter 1 Introduction 1.1 Related Documents The picture below shows the relation between the different Serial Port Adapter documents. Bluetooth Enabler Development Kit Se r i a l Po r t A d a p t e r User M anual Se r i a l Po r t A d a p t e r AT Commands OEM Serial Port Adapt er Elect rical & M echanical Dat asheet EC I D r i v e r w i t h connectBlue Extensions User Manual ECI Specification ECI Specification with connectBlue Extensions 1.2 Product Variants This Electrical and Mechanical datasheet contains information about the second generation of OEM Serial Port Adapter. The design consists of two different modules cB-0701-01 (Class 2 / 1 mW / 0 dBm) and cB-0702-01 (Class 1 / 100 mW / 20 dBm). Product Name OEM Module IDType Description OEMSPA13i cB-0701-01 Class 2 / 0 dBm OEM Serial Port Adapter 13i with internal antenna OEMSPA13x cB-0701-01 Class 2 / 0 dBm OEM Serial Port Adapter 13x with external antenna OEMSPA33i cB-0702-01 Class 1 / 20 dBm OEM Serial Port Adapter 33i with internal antenna OEMSPA33x cB-0702-01 Class 1 / 20 dBm OEM Serial Port Adapter 33x with external antenna 6 cB-0701-01 cB-0701-01 is a small size Bluetooth module based on the Infineon (former Ericsson) PBM 990 80 baseband controller and the PBA 313 05 0dBm radio. The PBM 990 80 has 64 Kbytes on chip SRAM and 512 Kbytes FLASH stacked in the same package. cB-0702-01 cB-0702-01 is a long-range versatile Bluetooth module based on the Infineon (former Ericsson) PBM 990 90 baseband controller and the PBA 313 02 20 dBm radio. The PBM 990 90 has 64 Kbytes on chip SRAM, the FLASH is located in a separate package. cB-0702-01 also contains external SRAM. 7 1.3 Block Diagram cB-0701-01 1.4 Block Diagram cB-0702-01 ADR[1..22] DATA[0..15] ADR[0..19] DATA[0..7] Base Band Controller PBM990 90 (BLINK) FLASH 1 - 8Mbyte SRAM 128k - 1Mbyte EBC radio interface RS-232 Transceiver ADM3315 Bluetooth- Radio PBA 313 02 (MIRIAN) Power supply Vin=3.3-6V Module Interface ADR[0..23] DATA[0..15] Internal antenna External Antenna connector J1 J2 J4 J5 J3 J6 Base Band Controller PBM990 80 (FLINK) EBC radio interface RS-232 Transceiver ADM3315 Bluetooth- Radio PBA 313 05 (RAN) Power supply Vin=3.3-6V Module InterfaceInternal antenna External Antenna connector J1 J2 J3 J6 Vin=3-6V 8 Chapter 2 Electrical Interface and Connectors This section describes the signals available on the module interface connectors. There are two ways to connect to the OEM Serial Port Adapter, one is via the J1 connector, a 20-pin 2mm pitch pin header, and the other is via the board-to-board (one piece part) connector, J2 through J5. NOTE! J4 and J5 are only available on cB-0702-01 The J2 to J5 connectors on the OEM Serial Port Adapter exist on the module only as a mating PCB-layout pattern. NOTE! Connectors J3 to J5 are for future use only and will not be covered in details by this document. cB-0701-01 with J1 cB-0702-01 with J1 J1 connector - 20-pin 2mm pitch pin header CB-0702-01 with J2 to J5 (mating PCB-layout pattern) J1 connector (back side) J2 connector J3 connector J4 connector J5 connector 9 J1 connector The figure above shows the pin numbering of the J1 connector. J2 con…

Text truncated - open the document above for the full version.

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Torsten Lohoff 10. April 2003 Phone +49 (0) 2102 749 306 Fax +49 (0) 2102 749 350 request for a modular approval - FCC ID: PVH070201 Dear Application Examiner, the ConnectBlue Bluetooth module cB-0702-01 is seeking FCC authorization as a modular transmitter. The requirement of the FCC Public notice DA00-1407 are met. The module is intended for OEM integration only and cannot be sold to the General Public. The following requirements are fulfilled: 1. The modular transmitter must have its own RF shielding The radio portion of the module is contained in its own RF shielding. See photos in exhibits. 2. The modular transmitter must have buffered modulation/data inputs The module has no modulation inputs. No such inputs are provided on the module. The Bluetooth radio is self contained. 3. The modular transmitter must have its own power supply regulation The module has its own on board power supply circuitry FCC Federal Communications Commission 4_CONNE_0102_BTT - 2 - 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The transmitter shall only be used with the tested antenna or with an antenna that has less antenna gain and which was submitted with this filing. The specifications of possible antennas are filed with this application. Furthermore, the SMA connector of the antenna must be locked with a glue Loctite ® product 270 in a way that it is not possible for the end user to remove the antenna. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in the requested a stand-alone configuration. 6. The modular transmitter must be labelled with its own FCC ID number The EUT will be labelled with its own FCC ID number. The label is specified in related exhibit. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. The maximum measured power output is 31,2 mW (14,94 dBm), the maximum antenna gain is 3 dBi = numeric gain 2,0. This means that the output power value is below the low threshold of 120/2,45 GHz (49 mW). The module has to be integrated in a way that the minimum distance of 2,5 cm between the body of the user and or nearby persons, excluding hands, wrists, feet and ankles the is ensured and it must not be co-located or operating in conjunction with any other antenna or transmitter. If the radio module is installed in a laptop display, transmission must be prevented if the lid is closed to ensure that the minimum distance of 2.5 cm between the user and the transmitting antenna is maintained. Any notification to end users of installation or removal instructions about the integrated radio module is not allowed. Please contact us if you have any additional questions. Best Regards 7layers AG

2003-02-10 Reference:cBProject-0301-21(1) connectBlue ab residence: malmö VAT no. se 556589-0851-01 stora varvsgatan 11 n:1 se-211 19 malmö sweden tel.+46 (0)40-6307100 fax.+46 (0)40-237137 e-mail: [email protected] http://www.connectBlue.se page 1 of 1 FCC identifier label for Bluetooth unit cB-0702-01 FCC ID:PVH070201 S/N:00xx-01-yyyyyy The above label will be attached to the module, located as shown in the figure below. FCC ID:PVH070201 S/N:00xx-01-yyyyyy An auxiliary label will be provided for systems using the module where the original label not will be visible when the module is installed. Instructions on how to attach the auxiliary label in compliance with the modular approval guidelines developed by the FCC will be provided. The instructions will call attention to place the auxiliary label on an exterior surface of the device such that it will be visible upon inspection. The auxiliary label will have at least the information as shown in the figure below This device contains FCC ID:PVH070201

31 FCC Statement for cB-0702-01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Labeling Requirements for End Product For an end product using the OEM Serial Port Adapter or the OEM Bluetooth Enabler there must be a label containing, at least, the following information: The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in compliance with the modular approval guidelines developed by the FCC. In addition, the user manual for the end product must contain the following information: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” RF-exposure statement This portable modular transmitter MUST have a separation distance of at least 2.5cm between the antenna and the body of the user or nearby persons, excluding hands, wrists, feet, and ankles. If the radio module is installed in a laptop display, transmission MUST be prevented if the lid is closed to ensure that the minimum distance of 2.5cm between the user and the transmitting antenna is maintained. Any notification to the end user of installation or removal instructions about the integrated radio module is NOT allowed. This device contains FCC ID: PVH070201 32 Antenna When using the module equipped with the external antennas as described previously the antenna MUST be fixed, not to be able to be removed or replaced by the end user. On modules equipped with SMA-connector, the connector-antenna thread MUST be locked with LOCTITE ® Product 270. LOCTITE ® Product 270 is a single component anaerobic glue. The product cures when confined in the absence of air between close fitting metal surfaces. Caution Any changes or modifications NOT explicitly APPROVED by connectBlue AB could cause the module to cease to comply with FCC rules part 15, and thus void the user’s authority to operate the equipment.

INDUSTRIAL BLUETOOTH™ OEM Serial Port Adapter™ 2 nd Generation Electrical & Mechanical Datasheet OEM Serial Port Adapter™ 2 nd Generation Electrical & Mechanical Datasheet Copyright © 2002-2003 connectBlue AB. The contents of this document can be changed by connectBlue AB without prior notice and do not constitute any binding undertakings from connectBlue AB. connectBlue AB is not responsible under any circumstances for direct, indirect, unexpected damage or consequent damage that is caused by this document. All rights reserved. Release: 0302 Document version: (1.4) Document number: cBProduct-0212-01 Printed in Sweden. Trademarks Registered trademarks from other companies are: Bluetooth is a trademark owned by the Bluetooth SIG,Inc.Microsoft™, Windows™, Windows NT™, Windows 2000™, Windows CE™, Windows ME™, are registered trademarks from Microsoft Corporation. 4 Contents 1. Introduction 5 1.1 Related Documents........................................................................... 5 1.2 Product Variants ................................................................................ 5 1.3 Block Diagram cB-0701-01 ............................................................... 7 1.4 Block Diagram cB-0702-01 ............................................................... 7 2. Electrical Interface and Connectors 8 2.1 CMOS Logic Levels......................................................................... 12 2.2 Signals in J1 and J2 Connector ...................................................... 13 2.3 Signals in J3 – J5 Connector .......................................................... 14 2.4 Power Control.................................................................................. 14 2.5 Interfacing Examples ....................................................................... 15 3. Temperature Information 16 4. Bluetooth Information 17 5. Power Consumption 18 6. Antennas 22 6.1 Surface Mounted Antenna (internal) ............................................... 22 6.2 Antennas on a Cable (external antennas)....................................... 23 7. Additional Mounting Instructions 25 7.1 Antenna Issues................................................................................ 25 7.2 Traces and Component Keep out Area........................................... 25 7.3 Using the 20-pin 2 mm Pitch Pin Connector ................................... 25 7.4 Using Board-to-Board Connectors .................................................. 26 8. Mechanics 27 8.1 Board Outlines................................................................................. 27 9. Regulatory Information 29 9.1 Declaration of Conformity................................................................ 29 9.2 FCC Compliance ............................................................................. 30 5 Chapter 1 Introduction 1.1 Related Documents The picture below shows the relation between the different Serial Port Adapter documents. Bluetooth Enabler Development Kit Se r i a l Po r t A d a p t e r User M anual Se r i a l Po r t A d a p t e r AT Commands OEM Serial Port Adapt er Elect rical & M echanical Dat asheet EC I D r i v e r w i t h connectBlue Extensions User Manual ECI Specification ECI Specification with connectBlue Extensions 1.2 Product Variants This Electrical and Mechanical datasheet contains information about the second generation of OEM Serial Port Adapter. The design consists of two different modules cB-0701-01 (Class 2 / 1 mW / 0 dBm) and cB-0702-01 (Class 1 / 100 mW / 20 dBm). Product Name OEM Module IDType Description OEMSPA13i cB-0701-01 Class 2 / 0 dBm OEM Serial Port Adapter 13i with internal antenna OEMSPA13x cB-0701-01 Class 2 / 0 dBm OEM Serial Port Adapter 13x with external antenna OEMSPA33i cB-0702-01 Class 1 / 20 dBm OEM Serial Port Adapter 33i with internal antenna OEMSPA33x cB-0702-01 Class 1 / 20 dBm OEM Serial Port Adapter 33x with external antenna 6 cB-0701-01 cB-0701-01 is a small size Bluetooth module based on the Infineon (former Ericsson) PBM 990 80 baseband controller and the PBA 313 05 0dBm radio. The PBM 990 80 has 64 Kbytes on chip SRAM and 512 Kbytes FLASH stacked in the same package. cB-0702-01 cB-0702-01 is a long-range versatile Bluetooth module based on the Infineon (former Ericsson) PBM 990 90 baseband controller and the PBA 313 02 20 dBm radio. The PBM 990 90 has 64 Kbytes on chip SRAM, the FLASH is located in a separate package. cB-0702-01 also contains external SRAM. 7 1.3 Block Diagram cB-0701-01 1.4 Block Diagram cB-0702-01 ADR[1..22] DATA[0..15] ADR[0..19] DATA[0..7] Base Band Controller PBM990 90 (BLINK) FLASH 1 - 8Mbyte SRAM 128k - 1Mbyte EBC radio interface RS-232 Transceiver ADM3315 Bluetooth- Radio PBA 313 02 (MIRIAN) Power supply Vin=3.3-6V Module Interface ADR[0..23] DATA[0..15] Internal antenna External Antenna connector J1 J2 J4 J5 J3 J6 Base Band Controller PBM990 80 (FLINK) EBC radio interface RS-232 Transceiver ADM3315 Bluetooth- Radio PBA 313 05 (RAN) Power supply Vin=3.3-6V Module InterfaceInternal antenna External Antenna connector J1 J2 J3 J6 Vin=3-6V 8 Chapter 2 Electrical Interface and Connectors This section describes the signals available on the module interface connectors. There are two ways to connect to the OEM Serial Port Adapter, one is via the J1 connector, a 20-pin 2mm pitch pin header, and the other is via the board-to-board (one piece part) connector, J2 through J5. NOTE! J4 and J5 are only available on cB-0702-01 The J2 to J5 connectors on the OEM Serial Port Adapter exist on the module only as a mating PCB-layout pattern. NOTE! Connectors J3 to J5 are for future use only and will not be covered in details by this document. cB-0701-01 with J1 cB-0702-01 with J1 J1 connector - 20-pin 2mm pitch pin header CB-0702-01 with J2 to J5 (mating PCB-layout pattern) J1 connector (back side) J2 connector J3 connector J4 connector J5 connector 9 J1 connector The figure above shows the pin numbering of the J1 connector. J2 con…

Text truncated - open the document above for the full version.

31 FCC Statement for cB-0702-01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Labeling Requirements for End Product For an end product using the OEM Serial Port Adapter or the OEM Bluetooth Enabler there must be a label containing, at least, the following information: The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in compliance with the modular approval guidelines developed by the FCC. In addition, the user manual for the end product must contain the following information: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” RF-exposure statement This portable modular transmitter MUST have a separation distance of at least 2.5cm between the antenna and the body of the user or nearby persons, excluding hands, wrists, feet, and ankles. If the radio module is installed in a laptop display, transmission MUST be prevented if the lid is closed to ensure that the minimum distance of 2.5cm between the user and the transmitting antenna is maintained. Any notification to the end user of installation or removal instructions about the integrated radio module is NOT allowed. This device contains FCC ID: PVH070201 32 Antenna When using the module equipped with the external antennas as described previously the antenna MUST be fixed, not to be able to be removed or replaced by the end user. On modules equipped with SMA-connector, the connector-antenna thread MUST be locked with LOCTITE ® Product 270. LOCTITE ® Product 270 is a single component anaerobic glue. The product cures when confined in the absence of air between close fitting metal surfaces. Caution Any changes or modifications NOT explicitly APPROVED by connectBlue AB could cause the module to cease to comply with FCC rules part 15, and thus void the user’s authority to operate the equipment.

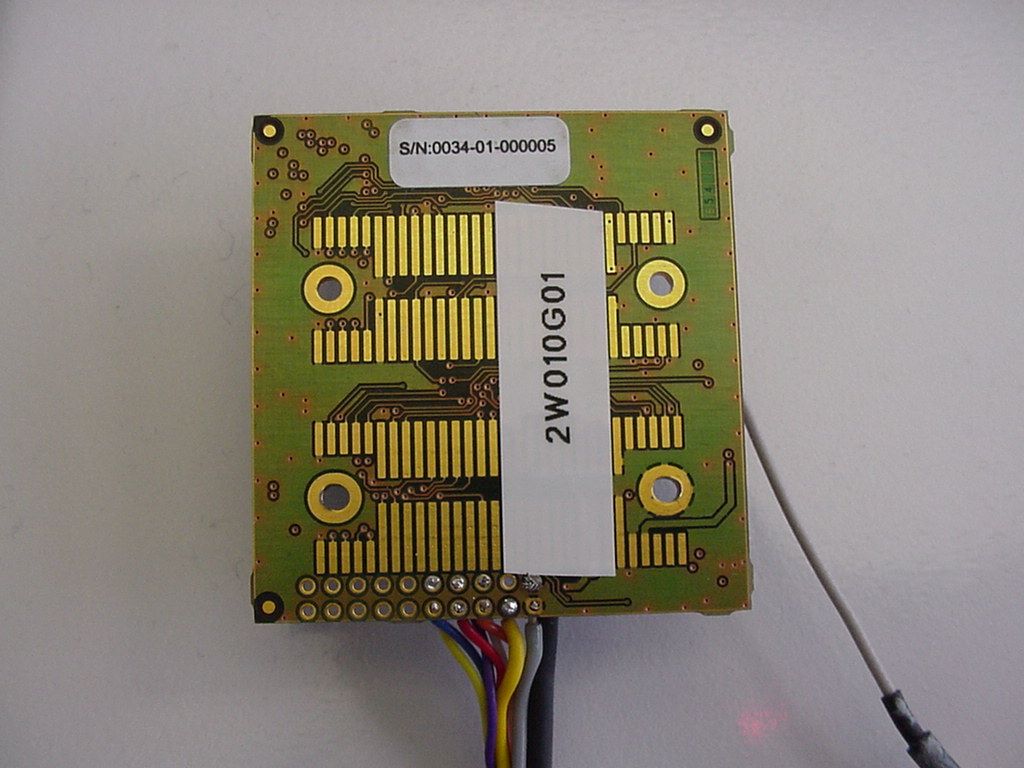

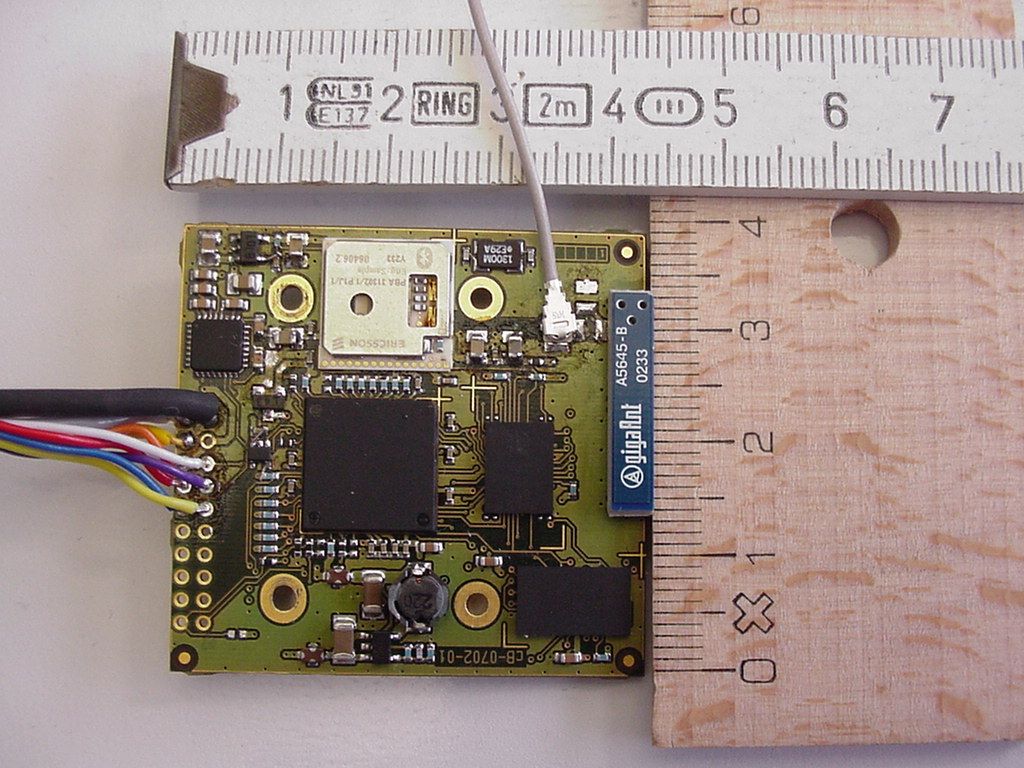

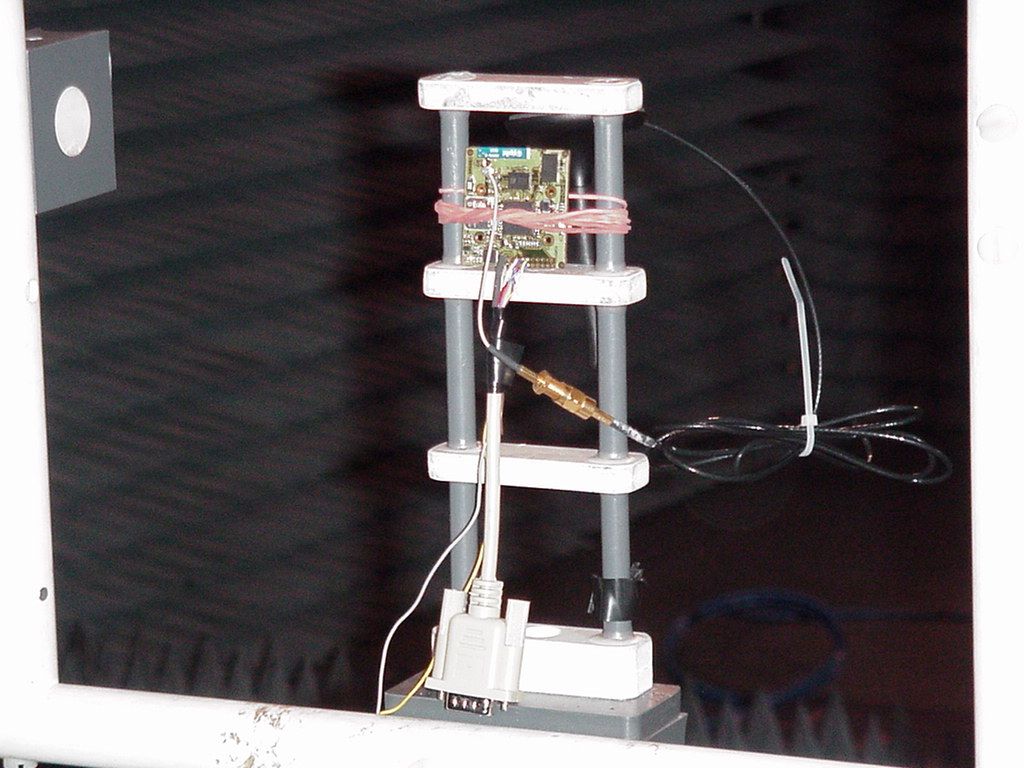

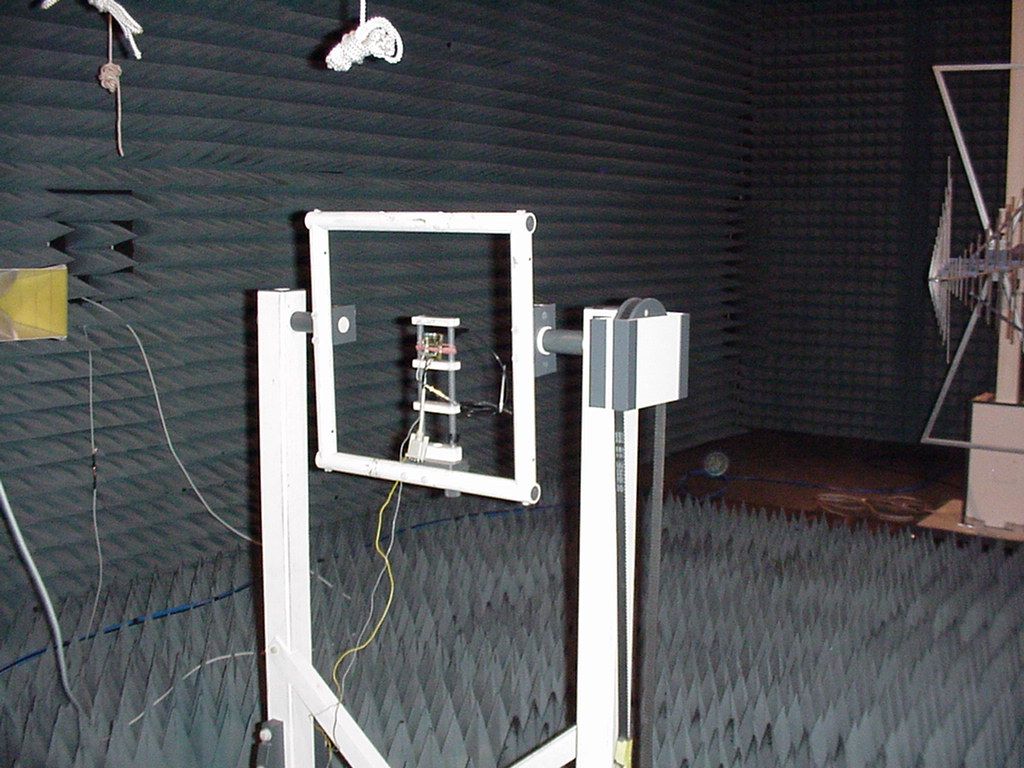

EMC Measurement/Technical Report 4_Conne_0102_BTT_FCCb on 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Bluetooth™ enabler cB-0702-01 Registergericht - registered in: Düsseldorf, HRB 44096 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99TTI-P-G 178/99 Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Measurement Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 11 14 17 28 31 33 34 Spurious RF Radiated Emissions 19 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation Processing Gain 23 25 27 - 4.2 4.2 4.4 4.5 4.6 4.7 4.8 - 8. Annex measurement plots25 Pages Page 2 of 58Testreport Reference: 4_Conne_0102_BTT_FCCb 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 58 Testreport Reference: 4_Conne_0102_BTT_FCCb 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied BandwidthOccupied Bandwidth OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 2op-mode 1Antenna connectorpassed setup 2op-mode 2Antenna connectorpassed setup 2op-mode 3Antenna connectorpassed setup 1op-mode 4Antenna connectorpassed setup 1op-mode 5Antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power OutputPeak Power Output OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 4op-mode 1Antenna connectorpassed setup 4op-mode 2Antenna connectorpassed setup 4op-mode 3Antenna connectorpassed setup 4op-mode 4Antenna connectorpassed setup 4op-mode 5Antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted EmissionsSpurious RF Conducted Emissions OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 2op-mode 1Antenna connectorpassed setup 2op-mode 2Antenna connectorpassed setup 2op-mode 3Antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated EmissionsSpurious Radiated Emissions OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 5op-mode 1enclosurepassed setup 5op-mode 2enclosurepassed setup 5op-mode 3enclosurepassed § 15.247(f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Dwell TimeDwell Time OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 4op-mode 4Antenna connectorpassed setup 4op-mode 5Antenna connectorpassed § 15.247 (d)FCC Part 15, Subpart C Page 4 of 58 Testreport Reference: 4_Conne_0102_BTT_FCCb FCC §15.3110-1-1998 The measurement was performed according to Power DensityPower Density OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 4op-mode 4Antenna connectorpassed setup 4op-mode 5Antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel SeparationChannel Separation OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 6Antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 58Testreport Reference: 4_Conne_0102_BTT_FCCb 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 11.12.2002 Dipl.-Ing. Thomas Hoell 04.03.2003 11.12.2003 - 28.02.2003 Responsible for testing and report Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data ConnectBlue AB Mats Andersson Stora Varvsgatan 11 n:1 SE-211 19 Malmö Sweden please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 58 Testreport Reference: 4_Conne_0102_BTT_FCCb 2.0 Product Labeling 2.1 FCC ID Label: At the time of the report there was no FCC label available. 2.2 Location of Label on the EU…

Text truncated - open the document above for the full version.

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7layers.com Annex Additional declaration part according FCC 15.247 for Bluetooth TM Devices Version: 2002-06-01 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 2 of 5 pages 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth devic…
