PVH0965WLAN and Bluetooth Module

ODIN-W2 series Stand-alone multiradio modules with Wi-Fi & Bluetooth Data Sheet Abstract This technical data sheet describes the ODIN-W2 series short range multiradio modules with Wi-Fi and Bluetooth dual mode 4.0 (Classic Bluetooth and Bluetooth Low Energy). The ODIN-W2 is a compact yet powerful stand-alone multiradio module designed for Internet-of-Things applications in the compact ODIN form factor. The Wi-Fi support conforms to IEEE 802.11a/b/g/n, and has support for dual-band 2.4 GHz and 5 GHz operation and 2×2 MIMO (2.4 GHz). www.u-blox.com UBX-14039949 - R06 ODIN-W2 series - Data Sheet UBX-14039949 - R06 Advance Information Contents Page 2 of 44 Document Information Title ODIN-W2 series Subtitle Stand-alone multiradio modules with Wi-Fi & Bluetooth Document type Data Sheet Document number UBX-14039949 Revision and date R06 09-Nov-2015 Document status Advance Information Document status explanation Objective Specification Document contains target values. Revised and supplementary data will be published later. Advance Information Document contains data based on early testing. Revised and supplementary data will be published later. Early Production Information Document contains data from product verification. Revised and supplementary data may be published later. Production Information Document contains the final product specification. This document applies to the following products: Product name Type number Firmware version PCN / IN reference ODIN-W260 ODIN-W260-00B-00 1.0.0 TBD ODIN-W262 ODIN-W262-00B-00 1.0.0 TBD u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this document or any part thereof without the express permission of u-blox is strictly prohibited. The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by u-blox at any time. For most recent documents, visit www.u-blox.com. Copyright © 2015, u-blox AG. u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries. ARM® is the registered trademark of ARM Limited in the EU and other countries. ODIN-W2 series - Data Sheet UBX-14039949 - R06 Advance Information Contents Page 3 of 44 Contents Contents .............................................................................................................................. 3 1 Functional description .................................................................................................. 6 1.1 Overview .............................................................................................................................................. 6 1.2 Applications .......................................................................................................................................... 6 1.3 Product features ................................................................................................................................... 6 1.4 Block diagram ....................................................................................................................................... 7 1.5 Product description ............................................................................................................................... 7 1.6 AT command support ........................................................................................................................... 8 1.7 IEEE 802.11d and additional regulatory domains .................................................................................. 8 1.7.1 ODIN-W2 IEEE 802.11d implementation description ...................................................................... 8 2 Interfaces .................................................................................................................... 10 2.1 Power management ........................................................................................................................... 10 2.1.1 Module supply input (VCC) ......................................................................................................... 10 2.1.2 Digital I/O interfaces supply output (V_INT) .................................................................................. 10 2.2 Antenna interfaces ............................................................................................................................. 10 2.2.1 Antenna connectors and internal antenna ................................................................................... 11 2.3 Data communication interfaces .......................................................................................................... 12 2.3.1 UART interface ............................................................................................................................ 12 2.3.2 Ethernet interface ........................................................................................................................ 12 3 System functions ........................................................................................................ 13 3.1 Module power modes ........................................................................................................................ 13 3.2 Module reset ...................................................................................................................................... 13 3.3 System IO ........................................................................................................................................... 13 4 Pin definition ..........................................…

Text truncated - open the document above for the full version.

locate, communicate, accelerate RE: Certification Application Product Serie / PMN: ODIN-W2 Model / HVIN: ODIN-W260 and ODIN-W262 FCC ID: PVH0965 IC: 5325A-0965 Block Diagram of OEM-WLAN/Bluetooth module ODIN-W2 Figure-1 - ODIN-W2 block diagram. The two coaxial connectors (Main and MIMO) are only mounted on ODIN-W260 and the internal antenna is only mounted on ODIN-W262. Registered office: u-blox Malmö AB Östra Varvsgatan 4, 5tr 211 75 Malmö Sweden Registered number: 556589-0851 Phone +46 40 630 71 00 Fax +46 40 237 137 [email protected] [email protected]

locate, communicate, accelerate Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application Product Serie: ODIN-W2 FCC ID: PVH0965 Request for Part 15 Limited Modular Transmitter Approval To whom it may concern: We, u-blox Malmö AB, hereby requests for a limited modular transmitter approval of our OEM-WLAN/Bluetooth module ODIN-W2. Please observe that integration of the module is to be made by the grantee himself thus limited to own use only The equipment is described as follows: Brand name: u-blox Product Serie: ODIN-W2 Model : ODIN-W260 and ODIN-W262 FCC ID: PVH0965 In 47 C.F.R. §15.212 there are eight numbered requirements a single modular transmitter must meet to obtain a modular transmitter approval. Our OEM-WLAN/Bluetooth module ODIN-W2 complies with all 8 (eight) of these requirements. 1. The modular transmitter must have its own RF shielding The module ODIN-W2 has its RF-parts covered by a shield box that is soldered on to the module ground plane. 2. The modular transmitter must have buffered modulation/data inputs The module ODIN-W2 does not have modulation inputs. The electrical connection consists of power supply, UART, RMII, SPI and digital-I/O. The interface signals (UART, RMII, SPI and digital-I/O) are internally buffered by the module SoC (System on Chip) and cannot affect the modulation. Detailed instruction on how to connect these interface signals are given in the product Users Guide. 3. The modular transmitter must have its own power supply regulation The WLAN/Bluetooth -module ODIN-W2 has its own voltage regulators. In case the supply voltage changes, the internal voltages will be kept unchanged. 4. The modular transmitter must comply with the antenna requirements of Section 15.203, 15.204(b) and 15.204(c) The module is either equipped with on-board chip antenna or unique (U.FL) antenna connector. For further details please refer to the antenna data sheet included in the filing. 5. The modular transmitter must be tested in a stand-alone configuration The ODIN-W2 was tested on a reference design in a stand-alone configuration. Registered office: u-blox Malmö AB Östra Varvsgatan 4, 5tr 211 75 Malmö Sweden Registered number: 556589-0851 Phone +46 40 630 71 00 Fax +46 40 237 137 [email protected] [email protected] 6. The modular transmitter must be labelled with its own FCC ID number The module ODIN-W2 is marked with its own FCC ID number. The FCC ID number is printed on a label that is affixed on the shield cover. For systems using the module where the original FCC ID marking not will be visible when the module is installed instructions will be provided to the OEM integrator how the end product must be label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The WLAN/Bluetooth-module ODIN-W2 is compliant with all applicable FCC rules. Detail instructions are given in the product Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The RF Module complies with the RF exposure limits when integrated into host devices categorized as mobile and/or fixed. See the “Calculation rf-exposure F151496.pdf” document for RF exposure calculations. Thank you for your attention in this matter. _______________________________ Mats Andersson Job Title and Dept.: Senior director technology, u-blox Malmö AB

locate, communicate, accelerate Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application Product Serie / PMN: ODIN-W2 Model / HVIN: ODIN-W260 and ODIN-W262 FCC ID: PVH0965 IC: 5325A-0965 Request for Long/Short-term Confidentiality To whom it may concern: Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Software security and software configuration description ODIN-W2 Request for pre-approval guidance of 802_11d functionality Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentiality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company: u-blox Malmö AB address: Östra Varvsgatan 4 5tr, SE-211 75 Malmoe, Sweden _______________________________ Mats Andersson Job Title and Dept.: Senior director technology, u-blox Malmö AB Registered office: u-blox Malmö AB Östra Varvsgatan 4, 5tr 211 75 Malmö Sweden Registered number: 556589-0851 Phone +46 40 630 71 00 Fax +46 40 237 137 [email protected] [email protected]

locate, communicate, accelerate Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application Product Serie / PMN: ODIN-W2 Model / HVIN: ODIN-W260 and ODIN-W262 FCC ID: PVH0965 IC: 5325A-0965 Mode Function Declaration To whom it may concern: We, the undersigned, declare that the device described as follows: Brand name: u-blox Product Serie / PMN: ODIN-W2 Model / HVIN: ODIN-W260 and ODIN-W262 FCC ID: PVH0965 IC: 5325A-0965 1. Does not initiate transmission within the frequency band 5600 – 5650 MHz. The module is configured to function under the definition of a client in 47 CFR §15.202 As a DFS client without radar detection using passive scan ODIN-W2 is not able to select channel or initiate a network. 2. Is a client without DFS detection capability. 3. Is not able to operate on non- US/Canadian frequencies within USA/Canada. 4. In non-associated mode, that software and associated drives will not initiate any transmission on DFS frequencies. Frequency band [MHz] Active scanning (the device can transmit a probe) Passive scanning (the device is listen only with no probe) Access point capability 2412 – 2462  - Yes,  - No  - Yes,  - No  - Yes,  - No 2467 – 2472  - Yes,  - No  - Yes,  - No  - Yes,  - No 5180 – 5240  - Yes,  - No  - Yes,  - No  - Yes,  - No 5280 – 5320  - Yes,  - No  - Yes,  - No  - Yes,  - No 5500 – 5700  - Yes,  - No  - Yes,  - No  - Yes,  - No 5745 – 5825  - Yes,  - No  - Yes,  - No  - Yes,  - No Table 1 Active/Passive scanning, Ad-hoc mode/Access point capability of ODIN-W2 Please contact the one signed below or the authorized agent for this filing. Thank you. Applicant’s Company: u-blox Malmö AB Address: Östra Varvsgatan 4 5tr, SE-211 75 Malmoe, Sweden _______________________________ Mats Andersson Job Title and Dept.: Senior director technology, u-blox Malmö AB Tel: +46 40 630 71 00 Fax: +46 40 237 137 Email: [email protected] Registered office: u-blox Malmö AB Östra Varvsgatan 4, 5tr 211 75 Malmö Sweden Registered number: 556589-0851 Phone +46 40 630 71 00 Fax +46 40 237 137 [email protected] [email protected]

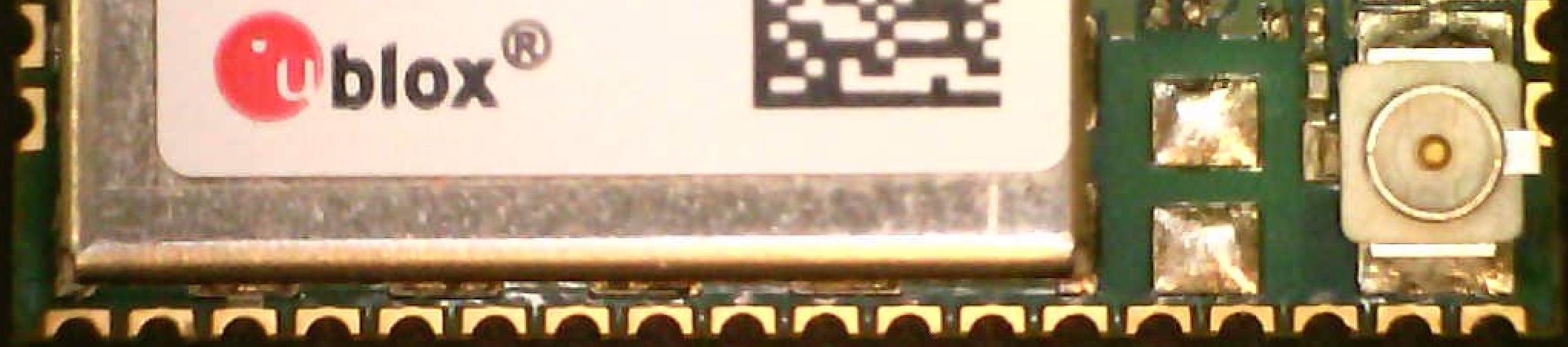

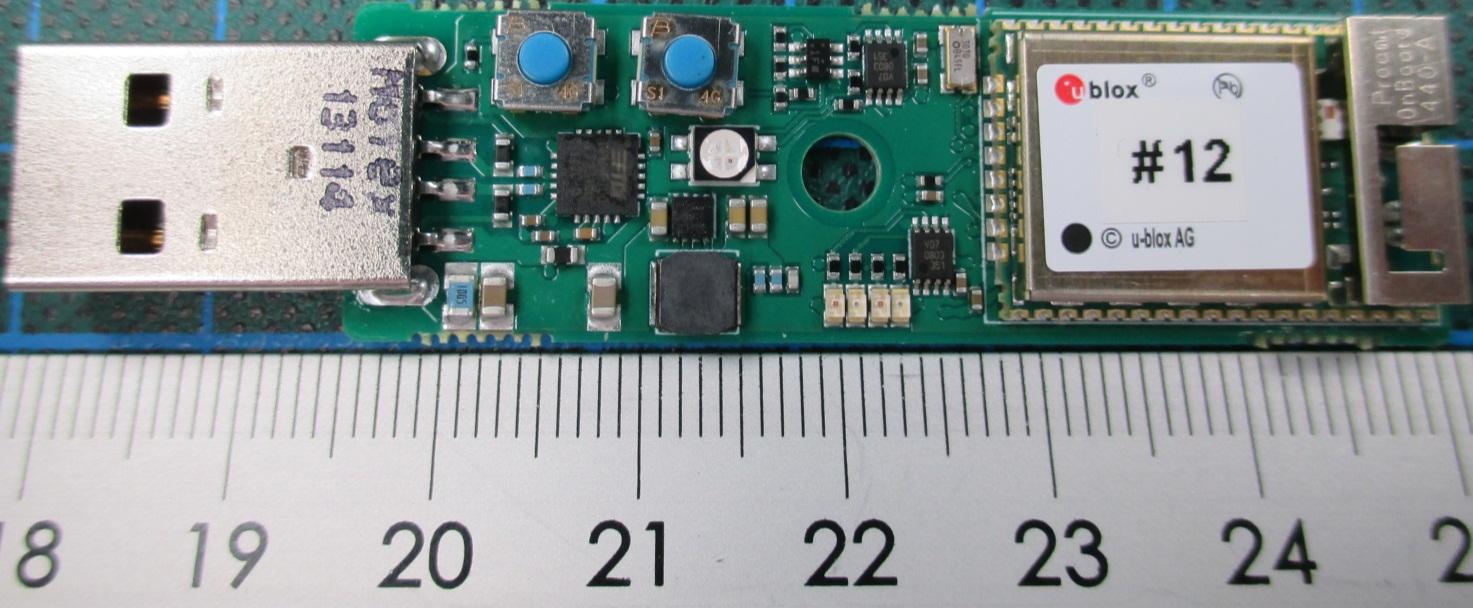

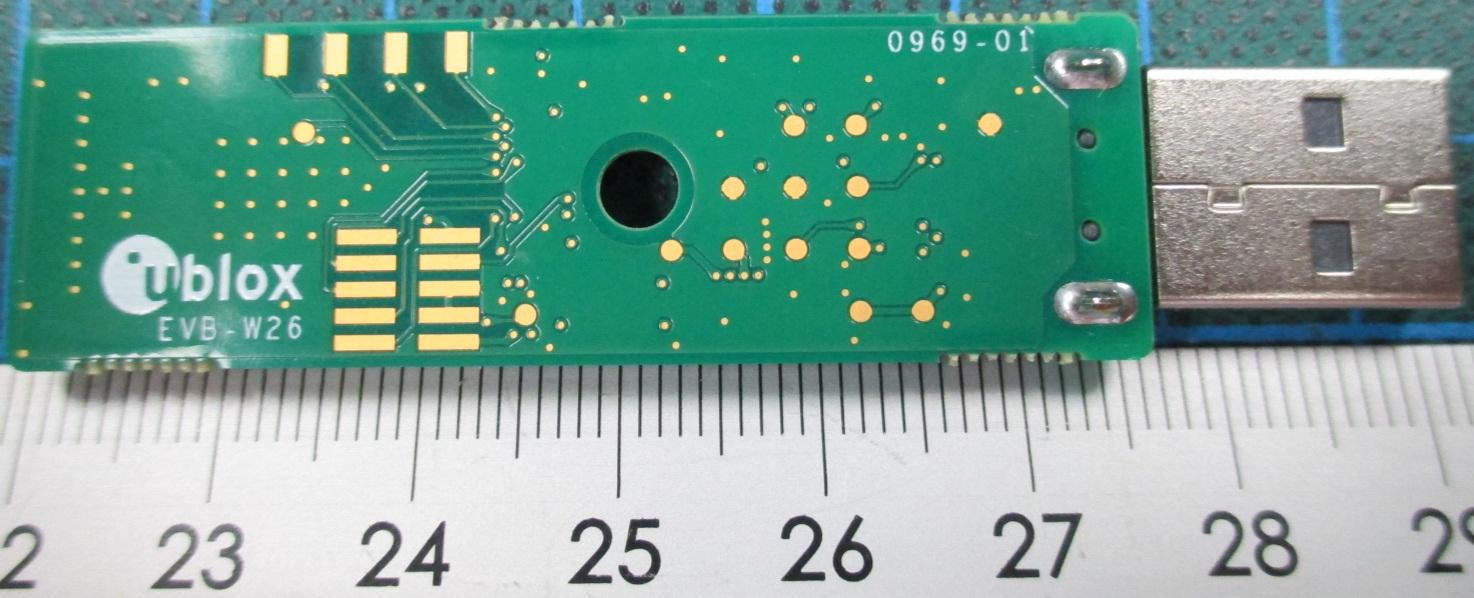

ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 1 of 6 151496_01.jpg: Carrier Board + EUT – Top View (Odin-W260) Carrier Board with EUT EUT ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 2 of 6 151496_02.jpg: Carrier Board – Bottom View (Odin-W260) ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 3 of 6 151496_07.jpg: EUT – Top View (Odin-W260) ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 4 of 6 151496_06.jpg: Carrier Board + EUT – Top View (Odin-W262) Carrier Board with EUT EUT ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 5 of 6 151496_02.jpg: Carrier Board – Bottom View (Odin-W262) ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 6 of 6 151496_08.jpg: EUT – Top View (Odin-W262)

locate, communicate, accelerate RE: Certification Application Product Serie / PMN: ODIN-W2 Model / HVIN: ODIN-W260 and ODIN-W262 FCC ID: PVH0965 IC: 5325A-0965 FCC/IC identifier marking for OEM-WLAN/Bluetooth module ODIN-W2 The FCC/IC identifier marking is a label affixed on the shield cover. The label size is 13.0x10.0 mm. Figure-1 ODIN-W2 with FCC/IC identifier label. Figure-2 ODIN-W2 FCC/IC identifier label. Reference Description 1 Text box containing Product Name and approval ID:s 1a Product Model Name (HVIN) 1b FCC ID 1c IC ID 2 Product Revision and date of production 2a Product Revision 2b Date of unit production encoded YY/WW (year, week) 3 DataMatrix: unit serial number and hardware version: Table 1: ODIN-W2 label description Figure-3 ODIN-W260 label. Figure-4 ODIN-W262 label. Registered office: u-blox Malmö AB Östra Varvsgatan 4, 5tr 211 75 Malmö Sweden Registered number: 556589-0851 Phone +46 40 630 71 00 Fax +46 40 237 137 [email protected] [email protected] An auxiliary label will be provided for systems using the module where the original marking will not be visible when the module is installed. Instructions on how to attach the auxiliary label in compliance with the modular approval guidelines developed by the FCC will be provided. The instructions will call attention to place the auxiliary label on an exterior surface of the device such that it will be visible upon inspection. The auxiliary label will have at least the information shown in the figure below: Figure-5 ODIN-W2 auxiliary label This device contains FCC ID:PVH0965 IC:5325A-0965

ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 1 of 4 151496_03.jpg: EUT – Top View –Shielding removed (Odin-W260) ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 2 of 4 151496_04.jpg: EUT – Bottom View (Odin-W260) ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 3 of 4 151496_05.jpg: EUT – Top View –Shielding removed (Odin-W262) ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F151496E1 + F151496E6 + F151496E7 Date of issue: 16 October 2015 Order No.: 15-111496 page 4 of 4 151496_04.jpg: EUT – Bottom View (Odin-W262)

Calculation: RF-Exposure for 2.4 GHz WLAN transmitter Type identification: ODIN-W2 FCC ID: PVH0965 IC Number 5325A-0965 In accordance to the CFR Part 47, §1.1310 S: Limit for power density according to CFR Part 47, §1.1310: 10 W/m 2 P: 117.5 mW [WLAN 2412 – 2462 MHz] (averaged over 30 min) P: 151 mW [WLAN 5180 – 5240 MHz] (averaged over 30 min) P: 162 mW [WLAN 5260 – 5320 MHz] (averaged over 30 min) P: 229 mW [WLAN 5500 – 5700 MHz] (averaged over 30 min) P: 234 mW [WLAN 5745 – 5825 MHz] (averaged over 30 min) P: 68 mW [Bluetooth 2402 – 2480 MHz] (averaged over 30 min) P: 23 mW [Bluetooth LE 2402 – 2480 MHz] (averaged over 30 min) G: 6 dBi = 4 (Highest array gain for MiMo with 2 antennas) G: 3 dBi = 2 (Highest gain @ 2.4 and 5 GHz band) D: Duty cycle: 100 % = 1 R: Distance in what the limit of S has to be reached: 0.2 m 222 94.0 )2.0(4 14117.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS [WLAN 2412 – 2462 MHz] 222 60.0 )2.0(4 12151.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS [WLAN 5180 – 5240 MHz] 222 64.0 )2.0(4 12162.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS [WLAN 5260 – 5320 MHz] 222 91.0 )2.0(4 12229.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS [WLAN 5500 – 5700 MHz] 222 93.0 )2.0(4 12589.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS [WLAN 5745 – 5825 MHz] 222 27.0 )2.0(4 12068.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS [Bluetooth 2402 – 2480 MHz] 222 09.0 )2.0(4 12023.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS [Bluetooth LE 2402 – 2480 MHz] The value for the “General population / Uncontrolled Exposure” of the power density is below the limit of CFR Part 47, §1.1310.

Königswinkel 10 32825 Blomberg Germany Phone: +49 (0) 52 35 95 00-0 Fax: +49 (0) 52 35 95 00-10 Test Report Report Number: F151496E5 Applicant: u-blox Malmö AB Manufacturer: u-blox Malmö AB Equipment under Test (EUT): ODIN-W2 Laboratory accredited by Deutsche Akkreditierungsstelle GmbH (DAkkS) in compliance with DIN EN ISO/IEC 17025 under the Reg. No. D-PL-17186-01-02, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 Test engineer: Paul NEUFELD Report Number: F151496E5 Date of issue: 16 October 2015 Order Number: 15-111496 page 2 of 64 REFERENCES [1] ANSI C63.10-2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices [2] FCC CFR 47 Part 15 (June 2015) Radio Frequency Devices [3] RSS-247 (May 2015) Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices [4] RSS-Gen Issue 4 (November 2014) General Requirements for Compliance of Radio Apparatus TEST RESULT The requirements of the tests performed as shown in the overview (clause 4) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Paul NEUFELD 13 November 2015 Name Signature Date Authorized reviewer: Bernd STEINER 13 November 2015 Name Signature Date Test engineer: Paul NEUFELD Report Number: F151496E5 Date of issue: 16 October 2015 Order Number: 15-111496 page 3 of 64 Contents: Page 1 IDENTIFICATION ....................................................................................................................................5 1.1 Applicant ..........................................................................................................................................5 1.2 Manufacturer ....................................................................................................................................5 1.3 Test laboratory .................................................................................................................................5 1.4 EUT (Equipment Under Test) ...........................................................................................................6 1.5 Dates ...............................................................................................................................................9 2 OPERATIONAL STATES .........................................................................................................................9 3 ADDITIONAL INFORMATION ................................................................................................................ 11 4 OVERVIEW ........................................................................................................................................... 12 5 TEST RESULTS .................................................................................................................................... 13 5.1 Maximum peak output power.......................................................................................................... 13 5.1.1 Method of measurement .......................................................................................................... 16 5.1.2 Test results ............................................................................................................................. 17 5.2 DTS Bandwidth .............................................................................................................................. 18 5.2.1 Method of measurement .......................................................................................................... 18 5.2.2 Test result ............................................................................................................................... 19 5.3 Peak Power Spectral Density ......................................................................................................... 20 5.3.1 Method of measurement .......................................................................................................... 20 5.3.2 Test result ............................................................................................................................... 21 5.4 Band-edge compliance ................................................................................................................... 22 5.4.1 Method of measurement (band edges next to unrestricted bands (conducted)) ........................ 22 5.4.2 Test result (band edges next to unrestricted bands (conducted)) ............................................. 23 5.4.3 Method of measurement (band edges next to restricted bands (conducted)) ............................ 24 5.4.4 Test result (band edges next to restricted bands (conducted)) ................................................. 24 5.5 Maximum unwanted emissions ....................................................................................................... 28 5.5.1 Method of measurement (conducted emissions in the restricted bands) ................................... 28 5.5.1.1 Limit calculations .............................................................................................................. 29 5.5.2 Method of measurement (conducted emissions in the unrestricted bands) ............................... 30 5.5.2.1 Reference level measurement ..................…

Text truncated - open the document above for the full version.

Königswinkel 10 32825 Blomberg Germany Phone: +49 (0) 52 35 95 00-0 Fax: +49 (0) 52 35 95 00-10 Test Report Report Number: F151496E7 Applicant: u-blox Malmö AB Manufacturer: u-blox Malmö AB Equipment under Test (EUT): ODIN-W2 Laboratory accredited by Deutsche Akkreditierungsstelle GmbH (DAkkS) in compliance with DIN EN ISO/IEC 17025 under the Reg. No. D-PL-17186-01-02, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 Test engineer: Paul NEUFELD Report Number: F151496E7 Date of issue: 16 October 2015 Order Number: 15-111496 page 2 of 64 REFERENCES [1] ANSI C63.10-2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices [2] FCC CFR 47 Part 15 (June 2015) Radio Frequency Devices [3] RSS-247 (May 2015) Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices [4] RSS-Gen Issue 4 (November 2014) General Requirements for Compliance of Radio Apparatus TEST RESULT The requirements of the tests performed as shown in the overview (clause 4) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Paul NEUFELD 13 November 2015 Name Signature Date Authorized reviewer: Bernd STEINER 13 November 2015 Name Signature Date Test engineer: Paul NEUFELD Report Number: F151496E7 Date of issue: 16 October 2015 Order Number: 15-111496 page 3 of 64 Contents: Page 1 IDENTIFICATION ....................................................................................................................................5 1.1 Applicant ..........................................................................................................................................5 1.2 Manufacturer ....................................................................................................................................5 1.3 Test laboratory .................................................................................................................................5 1.4 EUT (Equipment Under Test) ...........................................................................................................6 1.5 Dates ...............................................................................................................................................9 2 OPERATIONAL STATES .........................................................................................................................9 3 ADDITIONAL INFORMATION ................................................................................................................ 11 4 OVERVIEW ........................................................................................................................................... 12 5 TEST RESULTS .................................................................................................................................... 13 5.1 Duty cycle ...................................................................................................................................... 13 5.1.1 Method of measurement .......................................................................................................... 13 5.1.2 Test results ............................................................................................................................. 14 5.2 Maximum peak output power.......................................................................................................... 16 5.2.1 Method of measurement .......................................................................................................... 16 5.2.2 Test results ..........................................................................................…

Text truncated - open the document above for the full version.
