PVH090202LWireless Communication System

INDUSTRIAL BLUETOOTH™ OEM Serial Port Adapter™ cB-0902 Electrical & Mechanical Datasheet OEM Serial Port Adapter™ cB-0902 Electrical & Mechanical Datasheet Copyright © 2005 connectBlue AB. The contents of this document can be changed by connectBlue AB without prior notice and do not constitute any binding undertakings from connectBlue AB. connectBlue AB is not responsible under any circumstances for direct, indirect, unexpected damage or consequent damage that is caused by this document. All rights reserved. Release: 2006-04 Document version: 1.4.1 Document number: cBProduct-0503-01 Printed in Sweden. Trademarks Registered trademarks from other companies are: Bluetooth is a trademark owned by the Bluetooth SIG, Inc., Microsoft™, Windows™, Windows NT™, Windows 2000™, Windows CE™, Windows ME™, are registered trademarks from Microsoft Corporation. Version 1.4.1 - 2006-04 4 Contents 1 Introduction 5 1.1 Related Documents ...........................................................................5 1.2 Product Variants ................................................................................6 1.3 cB-0902..............................................................................................8 1.4 Block Diagram cB-0902 .....................................................................9 2 Electrical Interface and Connectors 10 2.1 Pin Numbering .................................................................................11 2.2 Pin Description .................................................................................12 2.3 Characteristics .................................................................................18 2.4 Hardware Reset ...............................................................................22 2.5 Power Control ..................................................................................22 3 Operating Status 23 4 Antennas 24 4.1 Surface Mounted Antenna (Internal)................................................24 4.2 External antennas ............................................................................25 5 Mounting Information 28 5.1 Board Outlines .................................................................................28 5.2 Using the J2/J3 Board-to-Board Connectors ...................................30 5.3 Using Press-Fit Nuts for Mounting the Module ................................34 5.4 Antenna Issues ................................................................................34 6 Bluetooth Information 35 6.1 General information .........................................................................35 6.2 Bluetooth Qualification information ..................................................36 7 Regulatory Information 37 7.1 Declaration of Conformity ................................................................37 7.2 Safety Compliance ...........................................................................38 7.3 FCC and IC Compliance ..................................................................38 7.4 UL listing information .......................................................................42 7.5 Compliance with RoHS directive......................................................42 8 Guidelines for Efficient and Safe Use 43 8.1 General ............................................................................................43 8.2 Product Care ....................................................................................43 8.3 Radio Frequency Exposure .............................................................43 8.4 Electronic Equipment .......................................................................44 8.5 Potentially Explosive Atmospheres..................................................44 8.6 Power Supply ...................................................................................44 Appendix A - Application Notes 45 A.1 Step-by-Step Guide .........................................................................45 A.2 Design Examples .............................................................................46 Version 1.4.1 - 2006-04 5 1 Introduction 1.1 Related Documents There are some documents related to the Serial Port Adapter: - The Serial Port Adapter AT Commands document contains a description of the AT commands supported in the Serial Port Adapter. It also contains information on how to use the AT commands to create Bluetooth applications. - The OEM Serial Port Adapter Electrical & Mechanical Datasheet (this document) contains important information about the OEM Serial Port Adapter. Read this document if you are using the OEM Serial Port Adapter. Version 1.4.1 - 2006-04 6 1.2 Product Variants This Electrical and Mechanical datasheet contains information about the 16 variants of OEM Serial Port Adapters based on the PCB cB-0902. This document makes references to the OEM Module ID, not the Product Name (see Table 1). Table 1: Product variants Product Name OEM Module ID / FCC ID Bluetooth Type Description CB-OEMSPA312i-02 cB-0069 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port Adapter 312i with internal antenna, 2mm pin connector CB-OEMSPA312i-04 cB-0070 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port Adapter 312i with internal antenna, no connectors CB-OEMSPA312i-06 cB-0071 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port Adapter 312i with internal antenna, JST 6-pol Class 1 +7dBm Internal antenna CB-OEMSPA312i-07 cB-0072 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port Adapter 312i with internal antenna, Flexfilm CB-OEMSPA312x-02 cB-0073 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port Adapter 312x with external antenna, 2mm pin connector CB-OEMSPA312x-04 cB-0074 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port Adapter 312x with external antenna, no connectors CB-OEMSPA312x-06 cB-0075 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port Adapter 312x with external antenna, JST 6-pol Class 1 +7dBm External antenna CB-OEMSPA312x-07 cB-0076 PVH090202S Class 1 / +7dBm 5mW OEM Serial Port …

Text truncated - open the document above for the full version.

2006-05-24 Reference: connectBlue ab residence: malmö VAT no. se 556589-0851-01 isbergs gata 3 se-211 19 malmö sweden tel.+46 (0)40-6307100 fax.+46 (0)40-237137 e-mail: [email protected] http://www.connectBlue.se page 1 of 1 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR FCC ID PVH090202L Model name: Class 1 OEM Bluetooth Unit, Type number: cB-0902-0202 To Whom It May Concern: This letter serves as an official request for confidentiality under the FCC Rule Section 0.457 and 0.459 . We have requested that the schematic diagrams and block diagram, required to be submitted with this application be withheld from public review. The reason for this request is that these documents are company proprietary information that should never get into the possession of competitors, which would be harmful for our business. Please contact me if there is any information you may need. Regards, Mats Andersson, CTO connectBlue

2006-06-14 Reference: cBProject-0502-18 (3) connectBlue ab residence: malmö VAT no. se 556589-0851-01 Norra Vallgatan 64 3V se-211 22 malmö sweden tel.+46 (0)40-6307100 fax.+46 (0)40-237137 e-mail: [email protected] http://www.connectBlue.se page 1 of 2 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 LIMITED MODULAR APPROVAL REQUEST To Whom It May Concern: We, connectBlue AB, hereby requests for part 15 unlicensed modular transmitter approval of our OEM-Bluetooth module, described as follows: Brand name: connectBlue AB Model name: OEM-Bluetooth module Type number: cB-0902-0202 FCC ID: PVH090202L In FCC Public Notice DA 00-1407 released June 26,2000 there are eight numbered requirements that our OEM-Bluetooth module type cB-0902-0202 complies with. 1. The modular transmitter must have its own shielding. The module fulfils the emission requirements of the FCC rules without additional shielding. 2. The modular transmitter must have buffered modulation/data inputs The module has a memory management unit inside of the IC. It buffers the data inputs from UART and USB terminal. 3. The modular transmitter must have its own power supply regulation The IC contains an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c Integration of this modular transmitter is limited to OEM integration. Antennas to be connected prior to shipment. Antenna (s) with SMA-connector to be permanently affixed/glued as described in the filing. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. 2006-06-14 Page 2 of 2 6. The modular transmitter must be labelled with its own FCC ID number The EUT will be labelled with its own FCC ID number. The label is specified in Exhibit D. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the product Users Guide 8. The modular transmitter must comply with any applicable RF exposure requirements. The maximum measured power output is 15,9 mW (12,0 dBm), the maximum antenna gain is + 7,5 dBi = numeric gain 5,7 (acc to FCC test report). The maximum permissible exposure is defined in 47 CFR 1.1310 with 1 mW/cm². The maximum permitted level is calculated using the general equation: S = P*G / 4πR² P = 15,9 mW, G = 5.7 (numeric gain; + 7,5 dBi = linear power gain relative to the isotropic radiator), R = 20 cm p = 3,1416 Solving for S, the power density at 20 cm is 0,018 mW/cm². So the 1mW/cm² limit is kept.

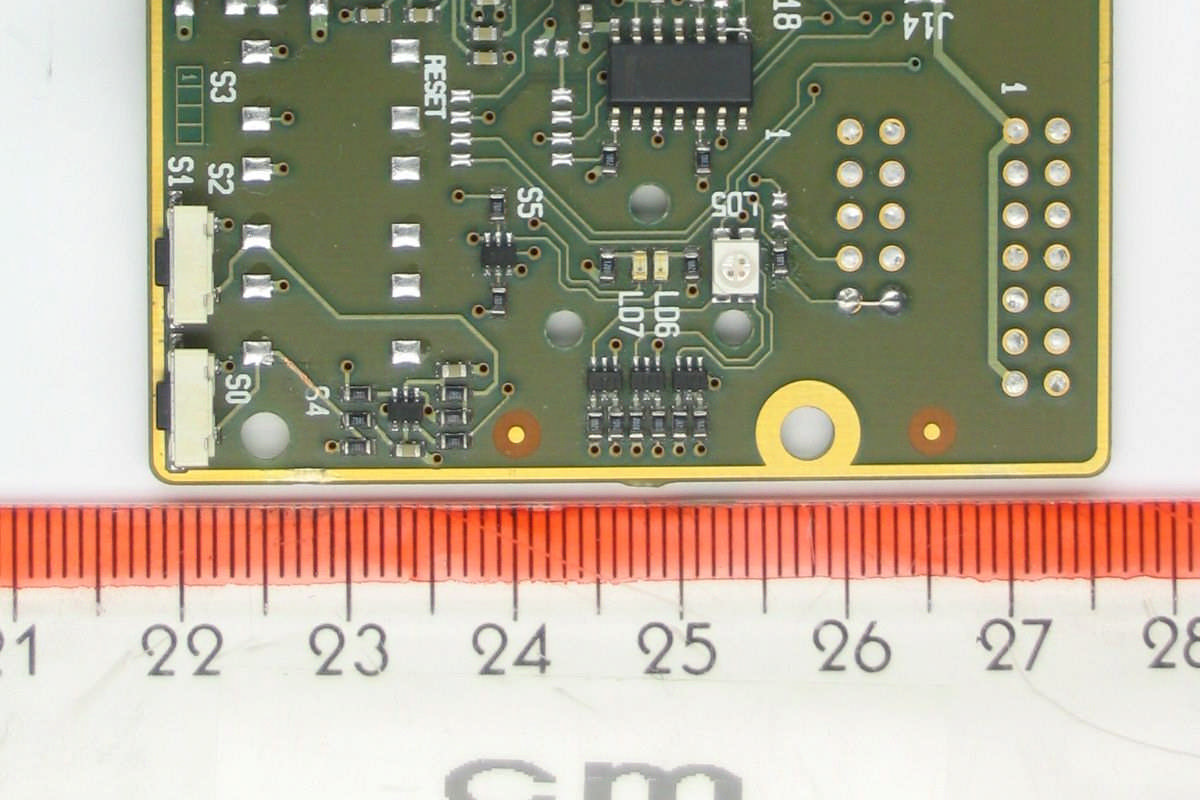

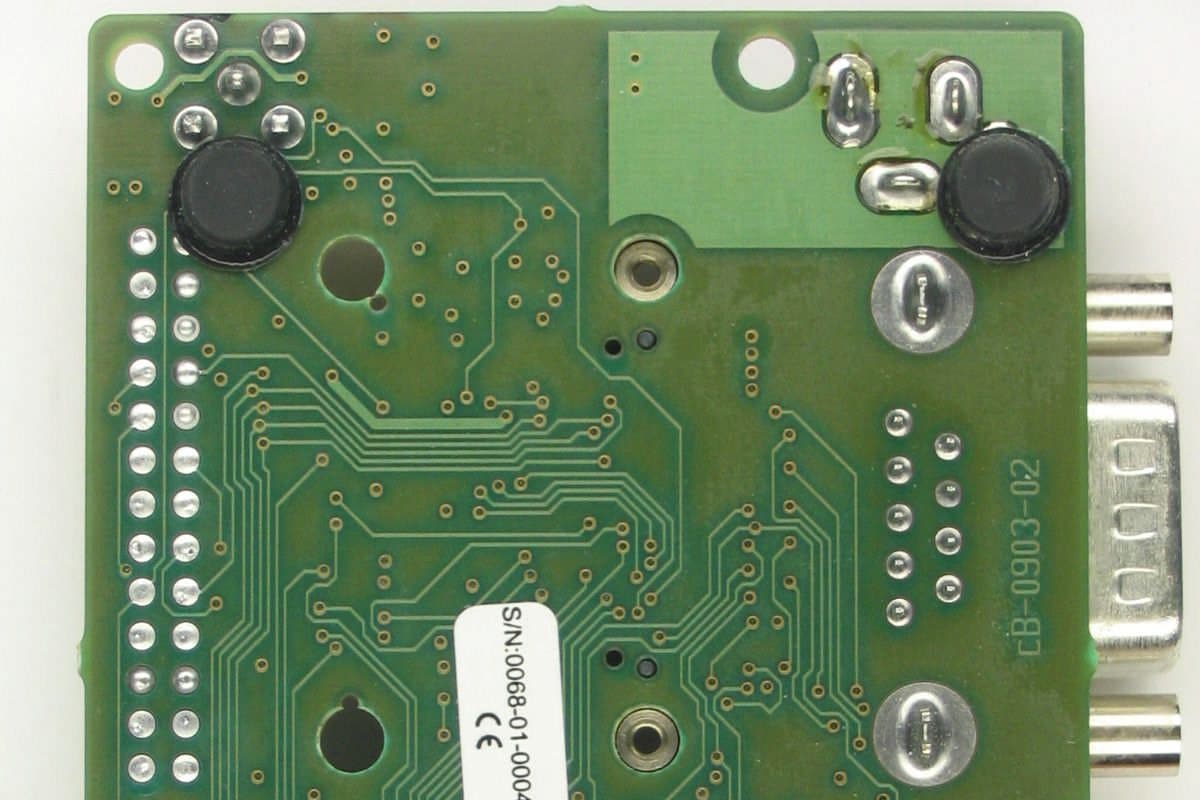

Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page1 of5 51984l3.jpgcB-0902-0202 Sample “37 ”, top view Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page2 of5 51984l1.jpgcB-0902-0202 Sample “29 ”, top view Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page3 of5 51984l2.jpgcB-0902-0202 bottom view l Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page4 of5 51984l8 .jpgcB-0903-02 carrier board, top view Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page5 of5 51984l7 .jpgcB-0903-02 carrier board, bottom view

2006-06-12 Reference: cBProject-0511-02 (2) connectBlue ab residence: malmö VAT no. se 556589-0851-01 Norra vallgatan 64 3V se-211 22 malmö sweden tel.+46 (0)40-6307100 fax.+46 (0)40-237137 e-mail: [email protected] http://www.connectBlue.se page 1 of 1 FCC identifier label for Bluetooth unit cB-0902-0202 S/N:0902-02-02xxxx FCC ID PVH090202L IC: 5325A-090202L The labels will be located as shown in the figures below. An auxiliary label will be provided for systems using the module where the original label not will be visible when the module is installed. Instructions on how to attach the auxiliary label in compliance with the modular approval guidelines developed by the FCC will be provided. The instructions will call attention to place the auxiliary label on an exterior surface of the device such that it will be visible upon inspection. The auxiliary label will have at least the information as shown in the figure below This device contains FCC ID PVH090202L IC: 5325A-090202L S/N label Regulatory label

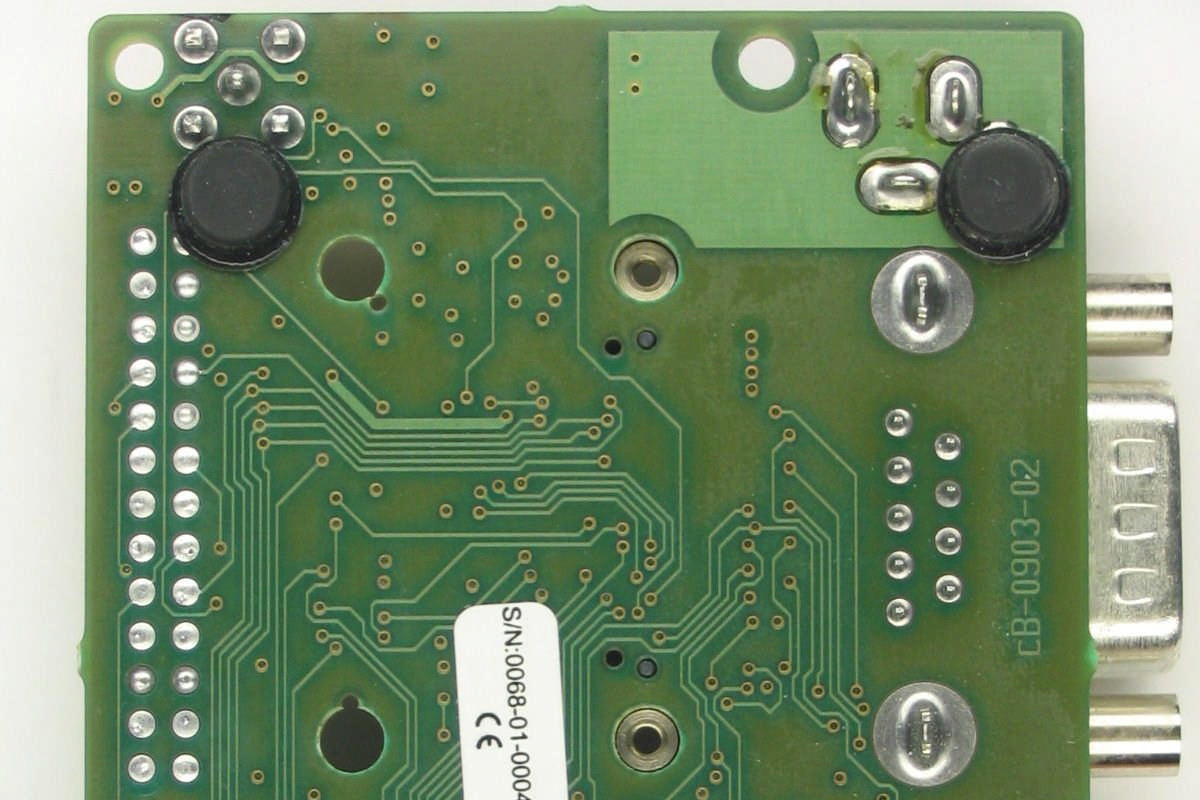

Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page1 of5 51984l3.jpgcB-0902-0202 Sample “37 ”, top view Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page2 of5 51984l1.jpgcB-0902-0202 Sample “29 ”, top view Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page3 of5 51984l2.jpgcB-0902-0202 bottom view l Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page4 of5 51984l8 .jpgcB-0903-02 carrier board, top view Annex B of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page5 of5 51984l7 .jpgcB-0903-02 carrier board, bottom view

Data sheet 2.4 GHz Mica SMD Antenna Miniature, low-weight unit for automatic assembly This surface-mounted, high-performance miniature antenna is intended for use with all 2.4 GHz applications; where small size and low weight are key factors. The antenna requires a ground plane, i.e. your device acts as an active part of the antenna and thus demands careful consideration concerning its placement. For optimal performance, we strongly recommend those customers not very well acquainted with RF technology to use our know-how when it comes to implementing the antenna in your application. We can offer advanced measuring equipment, custom tuning and technical support to obtain a secure and reliable implementation. It is important to note that, upon request, the Mica antenna can be customized according to your design. Typical application areas are: • Mobile phones • PDAs • Headsets • Laptop PCs • Peripheral equipment • PC cards Description The Mica antenna is an integrated low-weight antenna, only 20.5x3.35x3.6 mm in size. It is designed for automatic assembly (DFA). Matching network is needed. Size:20.5x3.35x3.6 mm Art No: 30201840 x gigaAnt, E-mail: [email protected], www.gigaAnt.com Specification subject to change without notice, FE010119-C, Oct 10-01 Antenna Specification Frequency:2.4-2.5 GHz Type:Ground plane dependent Efficiency:> 50%* Gain:2.5 dBi* Nominal impedance:50 Ohm VSWR:<2.0:1* Mounting:SMD Operating temperatur:-40 °C – +85 °C Relative humidity:93% at +40 °C Weight:0.4g * Typical values Mounting interface 3D Radiation pattern Product name / Article No. Mica30201840 9 Mica30201840 2 Mica30201840 3 Horizontal cut, xy-planeVertical cut, xz-plane Detailed foot print see application note Packaging Tape on reel / Bulk Tape on reel / 500 Pcs Tape on reel / 2000 Pcs Dimensions (mm) dBi

Specifications subject to change without notice. 3425 N.44 th Street, LINCOLN, NE 68504 USA SALES PHONE: 800.228.4563 PHONE: 402.467.4491 • FAX: 402.467.4528 www.centurion.com • [email protected] Copyright  2004 Centurion Wireless Technologies, Inc. All Rights Reserved Specifications: ƒ Versatile and easy to use antenna for 2.4 to 2.5 GHz Bluetooth and IEEE 802.11 devices ƒ Designed for easy connection to radio cards ƒ Utilizes Centurion’s patented PCB Microsphere technology ƒ Has a ground plane incorporated into the resonator structure, therefore no additional ground plane is required to radiate efficiently Frequency Range 2.4 – 2.5 GHz Gain 2 dBi Polarization Linear Impedance 50 ohms VSWR <2.5:1 Dimensions (L x W x H) 1.88" x .5"x .032" Weight 2 g Cable & Connector: Model # Part # Cable Connector NanoBlue-IP04 MAF94045 100mm, Ø 1.13mm IPEX MHF NanoBlue MAF94102 100mm, RG-178 Flying Lead NanoBlue a – 9/05/05 NanoBlue Model Number: NanoBlue Internal Antenna – Embedded Azimuth Plane 2.45 GHz Elevation Plane Phi = 90 2.45 GHz Elevation Plane Phi = 0 2.45 GHz 1.88"

2006-06-12 Reference: connectBlue ab residence: malmö VAT no. se 556589-0851-01 norra vallgatan 64 se-211 22 malmö sweden tel.+46 (0)40-6307100 fax.+46 (0)40-237137 e-mail: [email protected] http://www.connectBlue.se page 1 of 1 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Operational Description of cB-0902-0202 This Bluetooth modular transmitter can be integrated in different end products. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All frequencies are equally used. The average time of occupancy is 0.3797 s within a 30 second period. The symbol rate on the channel is 1Ms/s. Regards connectBlue

Features: ƒ Versatile and easy to use antenna for 2.4 to 2.5 GHz Bluetooth and IEEE 802.11 devices ƒ Designed for easy connection to radio cards ƒ Utilizes Centurion’s patented PCB Microsphere technology ƒ Has a ground plane incorporated into the resonator structure, therefore no additional ground plane is required to radiate efficiently Specifications: Frequency Range 2.4 – 2.5 GHz Polarization Linear Peak Gain 1.5 dBi Average Gain >0 dBi Nominal Impedance 50 ohms 2.4 - 2.5 GHz < 1.8:1 VSWR (Min. Performance) > 600 MHz 2.0:1 Temperature Range -40° to +85°C Vibration 6G RMS (9.04g2/Hz) for 15 minutes each in vertical and horizontal. No appearance or functional axis. Thermal Shock Change after 4 repeated cycles of 1 hr. at +85°C and 1 hr. at -40°C. Transfer time is 5 min. Dimensions (L x W x T) 1.88" x .89" x .032" Standard Cable 8" Brown RG-178 Coax Standard Connector R. A. MMCX Plug MicroBlue Part Number (P/N): CAF94131 MicroBlue – 10/28/02 Elevation Plane, Phi = 0 2450 MHz Elevation Plane, Phi = 90 2450 MHz Azimuth Plane 2450 MHz Internal Wireless Device Antenna

Specifications subject to change without notice. 3425 N.44 th Street, LINCOLN, NE 68504 USA SALES PHONE: 800.228.4563 PHONE: 402.467.4491 • FAX: 402.467.4528 www.centurion.com • [email protected] Copyright  2004 Centurion Wireless Technologies, Inc. All Rights Reserved Specifications: ƒ ½ wave coaxial dipole ƒ Flexible element Frequency 2.4 - 2.5 GHz Polarization Vertical Gain 2.0 dBi Nominal Impedance 50 ohms VSWR 1.5:1 max at resonance RF Power Handling 50 watts Length 7.6 cm (90° Bent) or 10.8 cm (180° Straight) Temperature Range -40° to +80°C Drop Test 1M Cables & Connectors: Model # Part # Cable Connector WCR2400-FL04 MAF94015 100 mm RG-178 Flying Lead WCR2400-IP04 MAF94017 100 mm RG-178 IPEX U.FL WCR Snap-in a – 5/20/04 WCR Model Number: WCR2400-IP WCR2400-FL External Antenna – Snap-in/Captive Azimuth 2.45 GHz Antenna Bent @ 90° Antenna Straight @ 180° Elevation phi=0 2.45 GHz 7.6 cm

HUBER+SUHNER ® PLANAR ANTENNA FOR WIRELESS COMMUNICATION SPA 2400/75/8/0/V Technical Data Electrical Properties Frequency range 2300 - 2800 MHz Impedance 50 Ω VSWR 1.5 Polarization linear, vertical Gain 7.5 dBi 3 dB beamwidth horizontal 75° 3 dB beamwidth vertical 70° Downtilt 0° Front to back ratio 20 dB Max. power 75 W (CW) at 25°C Radiation Pattern Mechanical Properties Dimensions 101 x 80 x 20 mm (3.97” x 3.15” x 0.79”) Weight 0.13 kg (0.29 lbs.) Radome material ASA Radome color RAL 7035 (light grey) Operating temperature range - 40°C to + 80°C Storage temperature range - 40°C to + 80°C Windload 15 N at 160km/h (100mph) horizontal Available Types Article no. 1324.19.0032 23019483 SMA female 1324.26.0024 23002469 TNC female 1324.99.0007 23003467 TNC female reverse pigtail (RG 58 C/U, 0.3m) Mounting Hardware Article no. 9091.99.0191 84011560 Optional wall mounting bracket for railway applications. Wall and mast mounting bracket (1 metal band) included, mast diameter 40-60 mm (1.57” – 2.36”) Documents 01.02.0777 security instruction 01.02.1033 mounting instruction 01.02.1111 mounting instruction (9091.99.0191) vertical Document no.: 01.02.0864 Uncontrolled Copy Issue no.: 8 Issued/Checked/Released: 4159/4656/01.2005 Supersedes: 01.2005 Last amended: 4159 HUBER+SUHNER AG RF Technology RF Communication CH-9100 Herisau , Switzerland Tel.: +41 71 353 41 11 Fax: +41 71 353 47 51 www.hubersuhner.com WAIVER! While the information contained has been carefully compiled to the best of our present knowledge, it is not intended as representation or warranty of any kind on our part regarding the fitness of the products concerned for any particular use or purpose and neither shall any statement contained herein be construed as a recommendation to infringe any industrial property rights or as a license to use any such rights. The fitness of each product for any particular purpose must be checked beforehand with our specialists. HUBER+SUHNER group is certified according to ISO 9001 and ISO 14001. HUBER+SUHNER ® PLANAR ANTENNA FOR WIRELESS COMMUNICATION SPA 2400/75/8/0/V Dimensions (mm)

Page 1 (1) DECLARATION OF SMA CONNECTOR AND LOCTITE 2006-05-29 DECLARATION We, connectBlue AB, declare that the following external antennas will be connected to the Bluetooth Module cb-0902-0202 by means of a jumper cable. - HUBER + SUHNE SPA 2400/75/8/0/V The thread of the SMA-connector of the antenna will permanently glued to the connector of the jumper cable using LOCTITE R Product 270 glue, such that the connectors cannot be separated by the end user of the device. LOCTITE R Product 270 is a single component anaerobic glue. The product cures when confined in the absence of air between close fitting metal surfaces. Mats Andersson, CTO connectBlue AB

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: R51984_C Edition 1 Equipment under Test: cB-0902-0202 Serial Number: none Applicant: connectBlue AB Manufacturer: connectBlue AB Test Laboratory (CAB) accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DAT-P-105/99-21, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469 TEST REPORT REFERENCE: R51984_C Edition 1 Examiner: ThomasKÜHNDate of issue: 07 March 2006Page2 of86 Contents:Page 1 IDENTIFICATION.....................................................................................................................................4 1.1 APPLICANT.....................................................................................................................................4 1.2 MANUFACTURER..........................................................................................................................4 1.3 DATES.............................................................................................................................................4 1.4 TEST LABORATORY......................................................................................................................5 1.5 RESERVATION...............................................................................................................................5 1.6 NORMATIVE REFERENCES..........................................................................................................5 1.7 TEST RESULTS..............................................................................................................................5 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................6 2.1 DEVICE UNDER TEST...................................................................................................................6 2.2 PERIPHERY DEVICES...................................................................................................................7 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................7 4 APPLICATION OVERVIEW.....................................................................................................................8 5 TEST RESULTS.......................................................................................................................................9 5.1 20 dBBANDWIDTH........................................................................................................................9 5.1.1 METHOD OF MEASUREMENT (20 dBBANDWIDTH)......................................................9 5.1.2 TEST RESULTS (20 dBBANDWIDTH)..............................................................................10 5.2 CARRIER FREQUENCY SEPARATION.........................................................................................13 5.2.1 METHOD OF MEASUREMENT (CARRIER FREQUENCY SEPARATION)......................13 5.2.2 TEST RESULTS (CARRIER FREQUENCY SEPARATION)..............................................14 5.3 NUMBER OF HOPPING FREQUENCIES......................................................................................16 5.3.1 METHOD OF MEASUREMENT (NUMBER OF HOPPING FREQUENCIES)....................16 5.3.2 TEST RESULTS (NUMBER OF HOPPING FREQUENCIES)............................................17 5.4 DWELL TIME................................................................................................................................... 18 5.4.1 METHOD OF MEASUREMENT (DWELL TIME)................................................................18 5.4.2 TEST RESULTS (DWELL TIME)........................................................................................19 5.5 MAXIMUM PEAK OUTPUT POWER..............................................................................................21 5.5.1 METHOD OF MEASUREMENT (MAXIMUM PEAK OUTPUT POWER)............................21 5.5.2 TEST RESULTS (MAXIMUM PEAK OUTPUT POWER)...................................................22 5.6 POWER SPECTRAL DENSITY......................................................................................................25 5.6.1 METHOD OF MEASUREMENT (POWER SPECTRAL DENSITY).................................... 25 5.6.2 TEST RESULTS (POWER SPECTRAL DENSITY)............................................................26 5.7 BAND-EDGE COMPLIANCE...........................................................................................................28 5.7.1 METHOD OF MEASUREMENT(BAND-EDGE COMPLIANCE)........................................28 5.7.2 TEST RESULT (BAND-EDGE COMPLIANCE)..................................................................29 5.8 CONDUCTED EMISSIONS (TRANSMITTER)...............................................................................32 5.8.1 METHOD OF MEASUREMENT (CONDUCTED EMISSIONS)..........................................32 5.8.2 TEST RESULTS (CONDUCTED EMISSIONS) ..................................................................33 TEST REPORT REFERENCE: R51984_C Edition 1 Examiner: ThomasKÜHNDate of issue: 07 March 2006Page3 of86 Contents (continued):Page 5.9 RADIATED EMISSIONS (TRANSMITTER)....................................................................................37 5.9.1 METHOD OF MEASUREMENT (RADIATED EMISSIONS)...............................................37 5.9.2 TEST RESULTS (RADIATED EMISSIONS).......................................................................43 5.9.2.1 PRELIMINARY MEASUREMENT WITH EXTERNAL ANTENNA (9 kHz to 25 GHz)43 5.9.2.2 FINAL MEASUREMENT WITH EXTERNAL ANTENNA (1 GHz to 25 GHz)..............52 5.9.2.3 PRELIMINARY MEASUREMENT WITH INTERNAL ANTENNA (9 kHz to 25 GHz)..55 5.9.2.4 FINAL MEASUREMENT WITH INTERNAL ANTENNA (1 GHz to 25 GHz)...............64 5.10 CONDUCTED EMISSIONS ON POWER SUPPLY LINES…

Text truncated - open the document above for the full version.

Annex A of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page1 of5 51984ld .jpgcB-0902-0202 with external antenna, test set-up fully anechoic chamber Annex A of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page2 of5 51984ln.jpgcB-0902-0202 with internal antenna, test set-up fully anechoic chamber Annex A of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page3 of5 51984lm.jpgcB-0902-0202withexternalantenna, test set-up fully anechoic chamber Annex A of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page4 of5 51984lc.jpgcB-0902-0202withinternalantenna, test set-up fully anechoic chamber Annex A of test report R51984_C Edition 1 EUT: cB-0902-0202 Manufacturer: connectBlue AB Examiner: Thomas KÜHNDate of issue:07 March 2006page5 of5 51984la.jpgcB-0902-0202test set-up conducted emission measurement
