QA5-OAP-02002Wireless Access Point

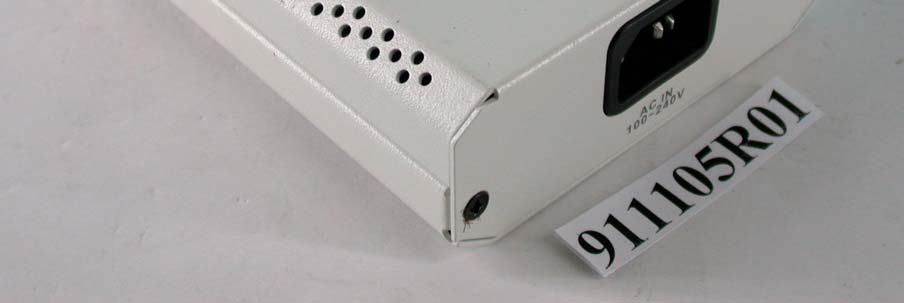

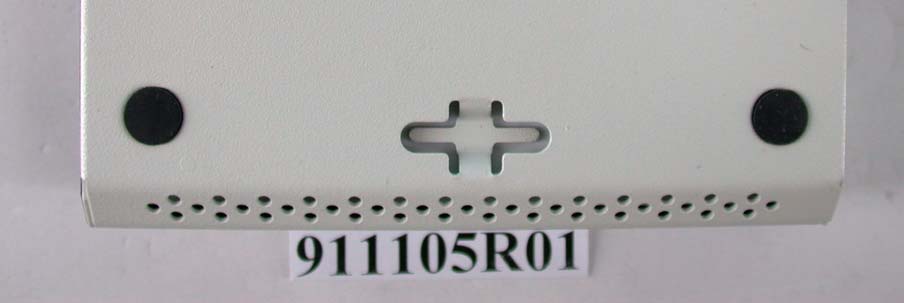

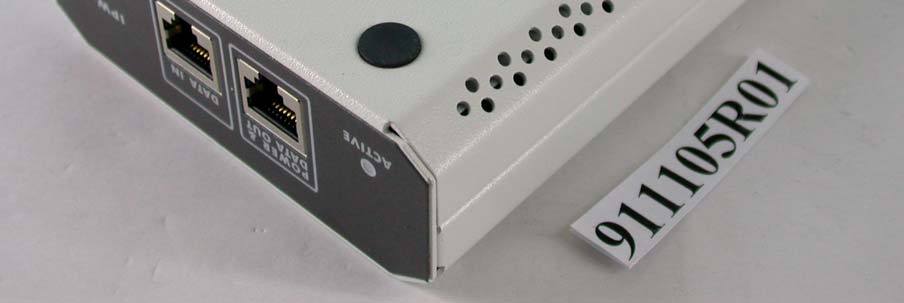

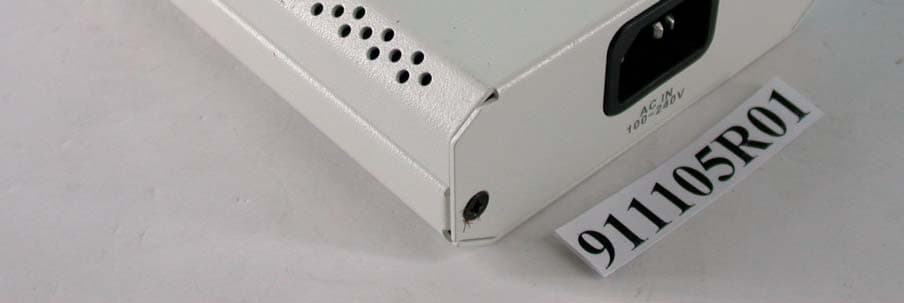

A Outdoor Wireless Access Point User’s Manual Before operating the unit, please read this manual thoroughly, and retain it for future reference . i ■ Contents CHAPTER 1. HARDWARE IN STALLATI ON ........................................... 1 1.1 B EFORE Y OU S TART ............................................................................. 1 1.2 L OCATE THE A CCESS P OINT AND I NLINE P OWER I NJECTOR P ORTS .......... 2 1.3 I NSTALLING THE A NTENNAS ................................................................... 3 1.4 I NSTALLING THE C ONSOLE P ORT C ABLE ................................................. 3 1.5 C ONNECTING THE POWER SUPPLY AND E THERNET CABLE ....................... 4 1.6 O UTDOOR I NSTALLATION ....................................................................... 5 CHAPTER 2. NETWORK TOPOLOGIES................................................. 6 2.1 W IRELESS A CCESS B RIDGE ................................................................... 7 2.2 W IRELESS A CCESS R OUTER WITH PPP O E E THERNET CONNECTION ....... 8 2.3 W IRELESS A CCESS R OUTER WITH DYNAMIC IP E THERNET CONNECTION .. 9 2.4 W IRELESS A CCESS R OUTER WITH STATIC IP E THERNET CONNECTION ... 10 CHAPTER 3. WE B ACCESS .................................................................. 11 CHAPTER 4. CONF IGURATIO N............................................................ 15 4.1 I NTRODUCTION ................................................................................... 15 4.1.1 Basic Confi guration Steps ........................................................... 15 4.2 S YSTEM S ETUP ................................................................................... 16 A FTER THAT , CLICK FINISH AT THE BOTTOM OF THIS PAGE TO COMPLETE THE MODIFICATION OF THIS PAGE . ......................................................................... 20 A FTER THAT , CLICK FINISH AT THE BOTTOM OF THIS PAGE TO COMPLETE THE MODIFICATION OF THIS PAGE .TCP/IP P ROTOCOL C ONFIGURE ......................... 20 TCP/IP P ROTOCOL C ONFIGURE .................................................................... 21 4.2.1 Virtual Se rver M apping................................................................ 21 4.3 C ONFIGURE DHCP SERVER ................................................................ 23 4.3.1 General DHCP Serv er Parame ter............................................... 24 4.3.2 Fixed Host Entries ....................................................................... 24 4.4 C ONFIGURE SNMP............................................................................. 26 4.4.1 Configure Co mmunity Pool ......................................................... 26 4.4.2 Configure Tr ap Host Pool............................................................ 27 4.5 C ONFIGURE W IRELESS RELATED PARAMETERS ..................................... 29 4.6 S ECURITY ........................................................................................... 31 4.6.1 IEEE 802.1x A ccess Cont rol ....................................................... 31 4.6.2 MAC based A ccess Cont rol ........................................................ 32 4.7 U TILITY ............................................................................................... 33 ii 4.7.1 Softwar e Upgr ade ....................................................................... 33 4.7.2 Adminis tration.............................................................................. 34 CHAPTER 5. STATUS MONITOR.......................................................... 35 5.1 S YSTEM I NFORMATION ........................................................................ 36 5.2 DHCP I NFORMATION .......................................................................... 37 5.3 S TATION I NFORMATION ........................................................................ 38 5.4 S TATISTIC I NFORMATION ..................................................................... 39 CHAPTER 6. SPECIF ICATIO NS ............................................................ 40 CHAPTER 7. DEFAU LT SETTING S ...................................................... 42 7.1 G ENERAL C ONFIGURATION .................................................................. 42 7.1.1 System......................................................................................... 42 7.1.2 Virtual Se rver M apping................................................................ 43 7.1.3 DHCP .......................................................................................... 44 7.1.4 SNMP .......................................................................................... 45 7.1.5 Wirele ss LAN............................................................................... 47 7.2 U TILITY ............................................................................................... 48 7.2.1 Softwar e Upgr ade ....................................................................... 48 7.2.2 Adminis tration.............................................................................. 48 CHAPTER 8. REGULATORY COMP LIANCE INFORM ATION ............. 49 1 Chapter 1. Hardware Installation This chapter describes the procedures for installing the SendFar Outdoor Access Point. 1.1 Before You StartAfter unpacking the system, make sure the following items are present and in good condition.1. Access Point2. Inline Power Injector3. AC Power Cord4. MIL-C-5015 style RS232 Console Port Cable5. Grounding Wire6. Cross over Ethernet Cable7. Two rubber dipole antenna7. 30M MIL-C-5015 style Ethernet Cable8. Mast Mounting Kit10. Wall Mounting Kit11. User’s Manual Disk12. Simple Spanner 2 3 4 5 6 8 9 10 11 12 7 2 1.2 Locate the Access Point and Inline PowerInjector Portsz Special Ethernet port 1 for connecting the MIL-C-5015 style Ethernet Cable z Special serial port 2 for connecting the MIL-C-5015 style RS-232 console port cable z Grounding port 3 . z Special N-Type connector 4 for connecting the antenna o…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 20, 2002 RE: SendFar Technology Co., Ltd. FCC ID: QA5-OAP-02002 After a review of the submitted information, I have a few comments on the above referenced Application. 1) FYI, the DoC is actually required because the DoC authorization applies to the device as a PC Peripheral, not as a receiver. Note that the scope of Part 15 only applies to receivers between 30-960 MHz. 2) Please provided information regarding the PCMCIA card integrated into this device. For instance, what is the manufacturer, model, FCC ID # (if applicable), etc. 3) Is the PCMCIA card unmodified/modified from the original approval (if applicable) or is this a special version being used strictly for this purpose? 4) The RF output specified in the users manual is 19 dBm, while the measured value was 14.2 dBm. Please comment and correct all affected exhibits. 5) The users manual states that the connector is an SMA., while the device does not appear to contain any SMA connectors. Please comment and correct any affected exhibits. 6) The users manual does not appear to contain the information specified by 15.21. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Tim, For Item 2: Information for the card: model no. : SL-2511CD PLUS EXT2, FCC ID: NI3-2511CD-PLUS3, Manufacturer: SENAO INTERNATIONAL CO., LTD. For Item 3: The PCMCIA card unmodified from the original approval. For Item 4, 5 & 6: Please see the revised files which had been re-uploaded on your website. Thank You, Rennie (See attached file: ATCB Comments_112002.pdf) ATCB Comments_112002.pdf To: [email protected] Cc: [email protected] Subject: RE =?big5?B? oUcgUmV2aWV3IG9mIFNlbmRGYXIgVGVjaG5vbG9neSwgRkNDIElEOiBRQTUtT0FQ?= =?us-ascii?Q?-02002?= Page 1 of 1In 11/20/2002Printed for "Timothy R. Johnson" <[email protected]>

Page 4 Page 5 Page 6

Page 9 Page 10 Page 11 Page 12

Label Location S/N: Wireless Access Point MADE IN TAIWAN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. FOR HOME OR OFFICE USE Tested To Comply With FCC Standards 116 mm 4 5 m m Model No.: AP-8110 FCC ID: QA5-OAP-02002

Page 7 Page 8

Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21

FCC ID: QA5-OAP-02002 ADT No.911105R01 Operational Description The transmitter of the EUT is powered by POE (Power over Ethernet) and connected with managing computer through RJ45 port. The antenna type is Dipole antenna with Reversed TNC connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: QA5-OAP-02002 ADT No.: 911105R01 FCC TEST REPORT REPORT NO.: RF911105R01 MODEL NO.: AP-8110 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SendFar Technology Co., Ltd. ADDRESS: 15F, No. 866-2, Jung Jeng Rd., Junghe City, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: QA5-OAP-02002 ADT No.: 911105R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: QA5-OAP-02002 ADT No.: 911105R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: QA5-OAP-02002 ADT No.: 911105R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.16 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241226.062.56 6243725.702.54 11246225.642.54 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.
