QAB-ETHERPROXProximity Card Reader

EtherProx TM Entry Installation and Operation Manual tyco Fire & Security Software House Copyright Acknowledgements EtherProx Entry InfoProx™ is a trademark of Software House. EtherProx™ is a trademark of Software House. Microsoft
and Windows
are registered trademarks of Microsoft Corporation. This product is manufactured under license from HID Corporation, Irvine, California and embodies one or more of the inventions disclosed and claimed in U.S. Patents, Number 4,546,241, 4,730,188, 5,041,826 and/or 5,166,676. ProxKey™ and ProxCard™are trademarks, and ISOProx® and ProxCard ll ® are registered trademarks of HID Corporation Document Number: #8000-1410-00 Revision: B0 Release Date: March 2002 This manual is proprietary information of Software House. Unauthorized reproduction of any portion of this manual is prohibited. The material in this manual is for informational purposes only. It is subject to change without notice. Software House assumes no responsibility for incorrect information this manual may contain. © 2002 Software House 70 Westview Street Lexington, MA 02421-3108 All rights reserved Software House Page i Table of Contents EtherProx Entry Table of Contents 1. IMPORTANT SAFETY INFORMATION................................................................................1 POWER SOURCES................................................................................................................................. 1 ANSI/UL LISTING (USA) AND CSA 22.2 LISTING (CANADA)............................................................1 UL 294-COMPLIANT INSTALLATION....................................................................................................1 FCC CLASS A DIGITAL DEVICE..........................................................................................................2 CANADIAN RADIO EMISSIONS REQUIREMENTS...................................................................................2 2. INTRODUCTION.........................................................................................................................2 DESCRIPTION.......................................................................................................................................3 READER TYPES....................................................................................................................................4 PREPARING TO INSTALL ETHERPROX..................................................................................................5 3. ETHERPROX ENTRY INSTALLATION...............................................................................11 POWER CONNECTIONS.......................................................................................................................12 EXIT READER CONNECTIONS............................................................................................................13 ETHERPROX ENTRY ETHERNET CONNECTION..................................................................................13 DOOR CONNECTIONS.........................................................................................................................14 CONNECTING AN EXIT READER TO THE ETHERPROX........................................................................16 INSTALLING THE ETHERPROX ENTRY UNIT......................................................................................17 To install the EtherProx Entry unit............................................................................................... 17 4. CONFIGURING THE ETHERPROX ENTRY.......................................................................19 SETTING UP AN IP ADDRESS..............................................................................................................19 To set up an IP Address................................................................................................................20 TESTING THE CONNECTION...............................................................................................................21 SETTING THE TIME AND DATE...........................................................................................................22 To set the time and date................................................................................................................22 ENTERING A LOCATION NAME; CHANGING THE USER NAME AND PASSWORD................................23 To enter a location name and change the user name and password............................................23 SETTING UP THE INITIAL DOOR CONFIGURATION.............................................................................24 To configure a door.......................................................................................................................24 5. ADMINISTERING THE ETHERPROX ENTRY...................................................................25 ESTABLISHING A CONNECTION WITH ETHERPROX ENTRY...............................................................25 To establish a connection with EtherProx Entry..........................................................................25 ETHERPROX ENTRY MAIN MENU.....................................................................................................26 ADMINISTER CARDHOLDERS.............................................................................................................27 To search for cardholders.............................................................................................................27 To add a cardholder......................................................................................................................28 To set the card status.....................................................................................................................29 To set time clearances...................................................................................................................30 To set time clearances and configure timed event…

Text truncated - open the document above for the full version.

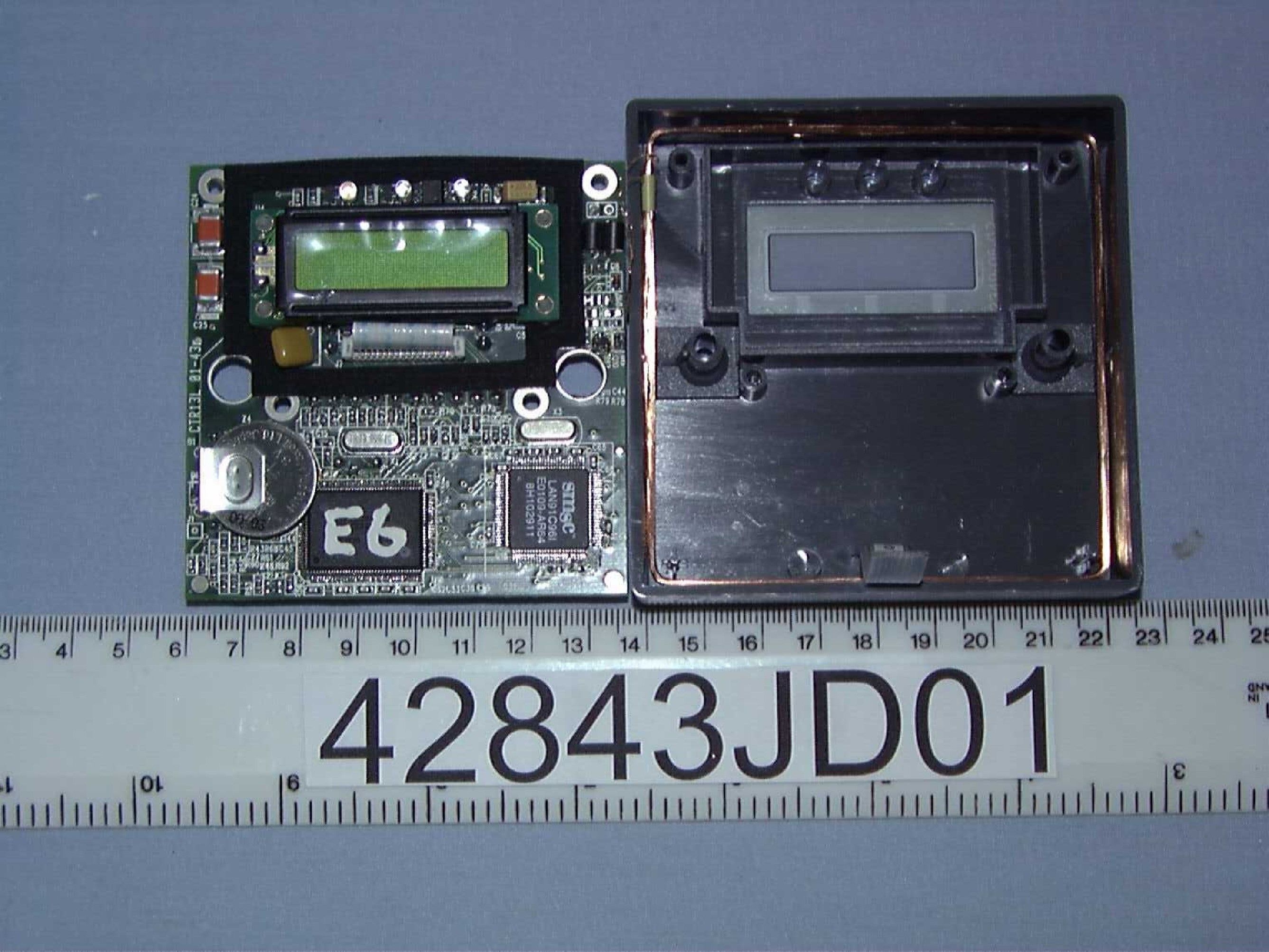

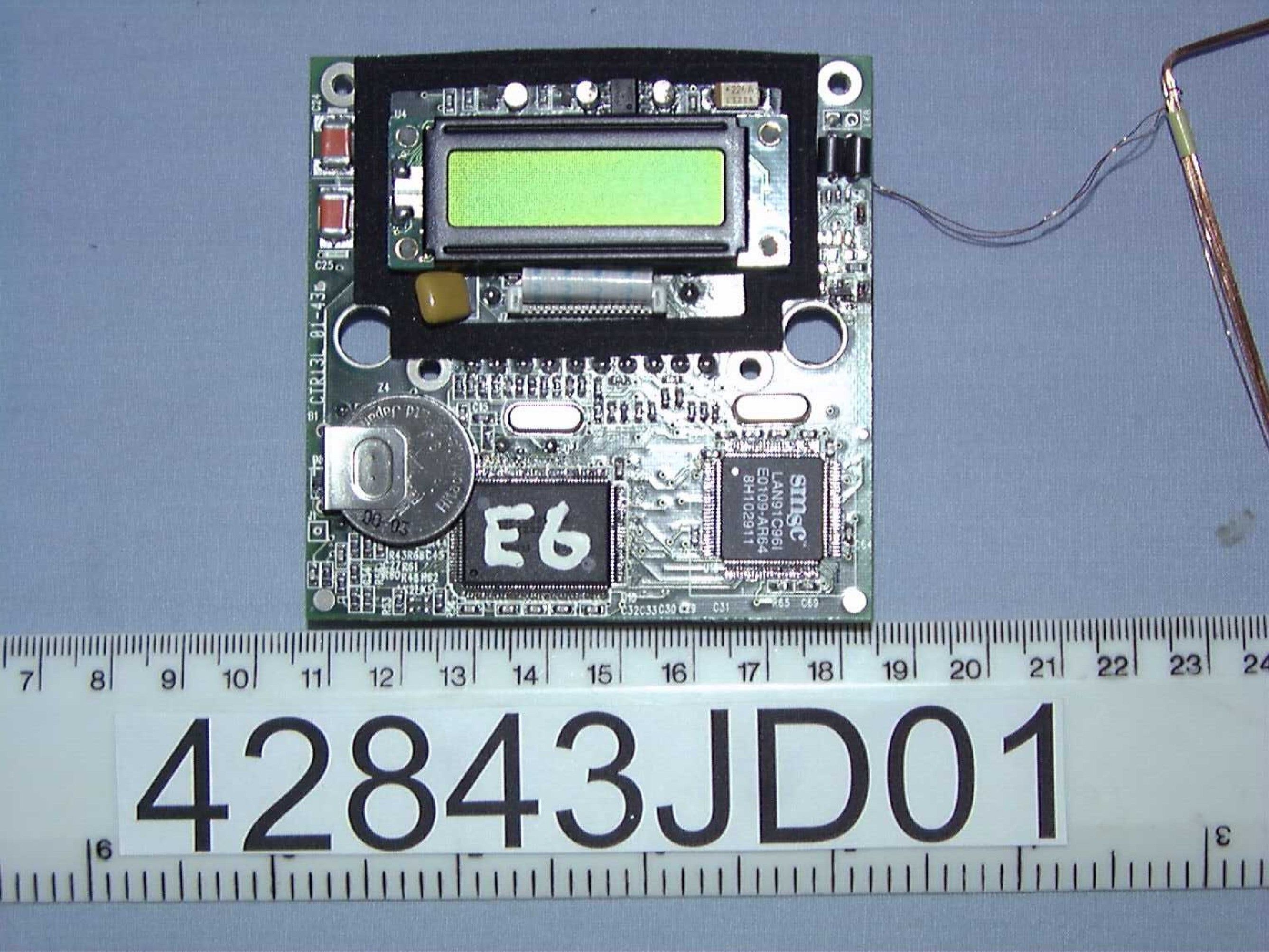

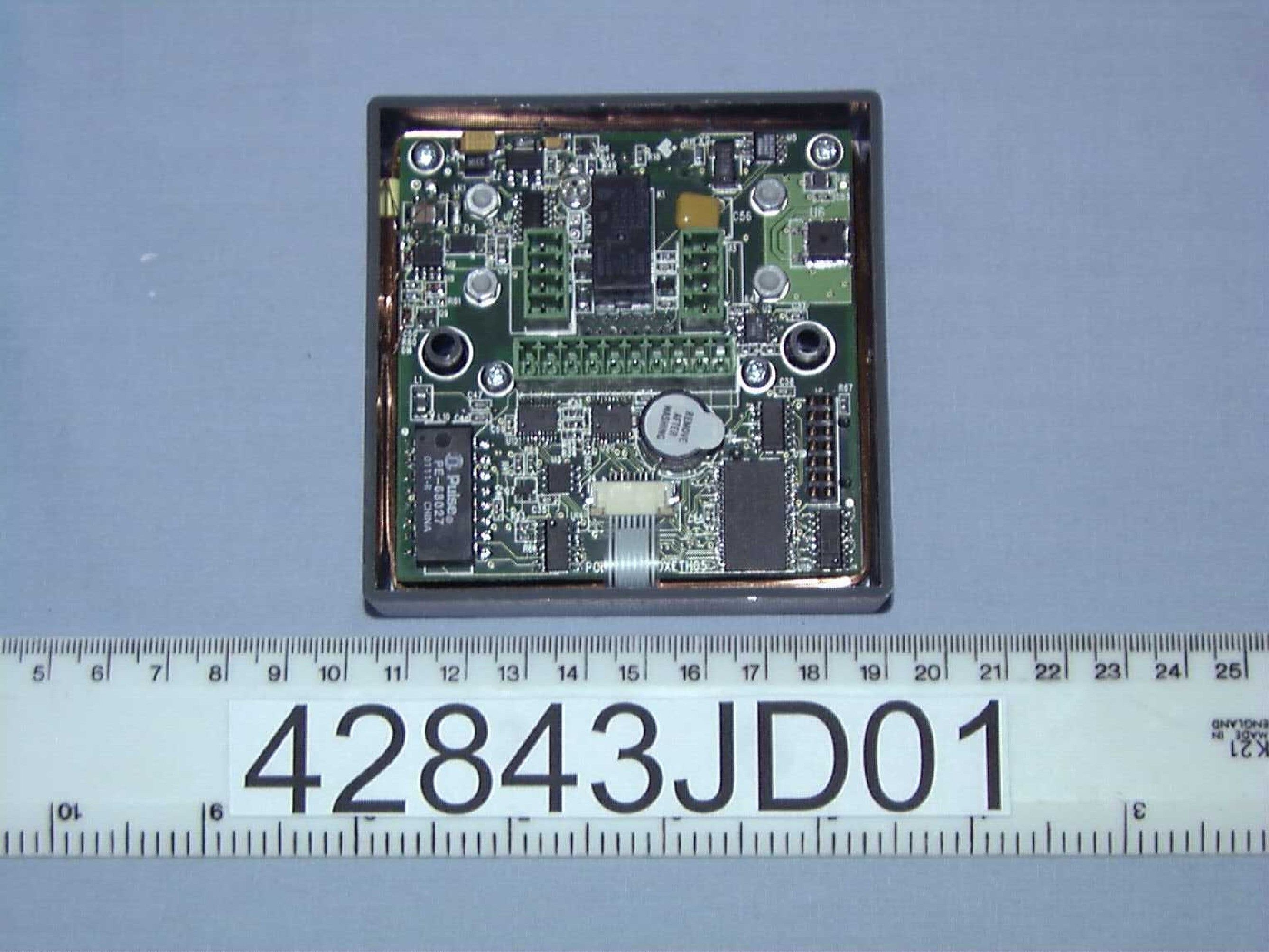

CPU ANALOGUE I/P SRAM OPTICAL TAMPER WATCHDOG 485 PORT 2 Ethernet Battery E² Relay and LEDs RTC Keypad LCD Module O/P Driver Head Power HID HEAD 3V Power EtherProx Reader

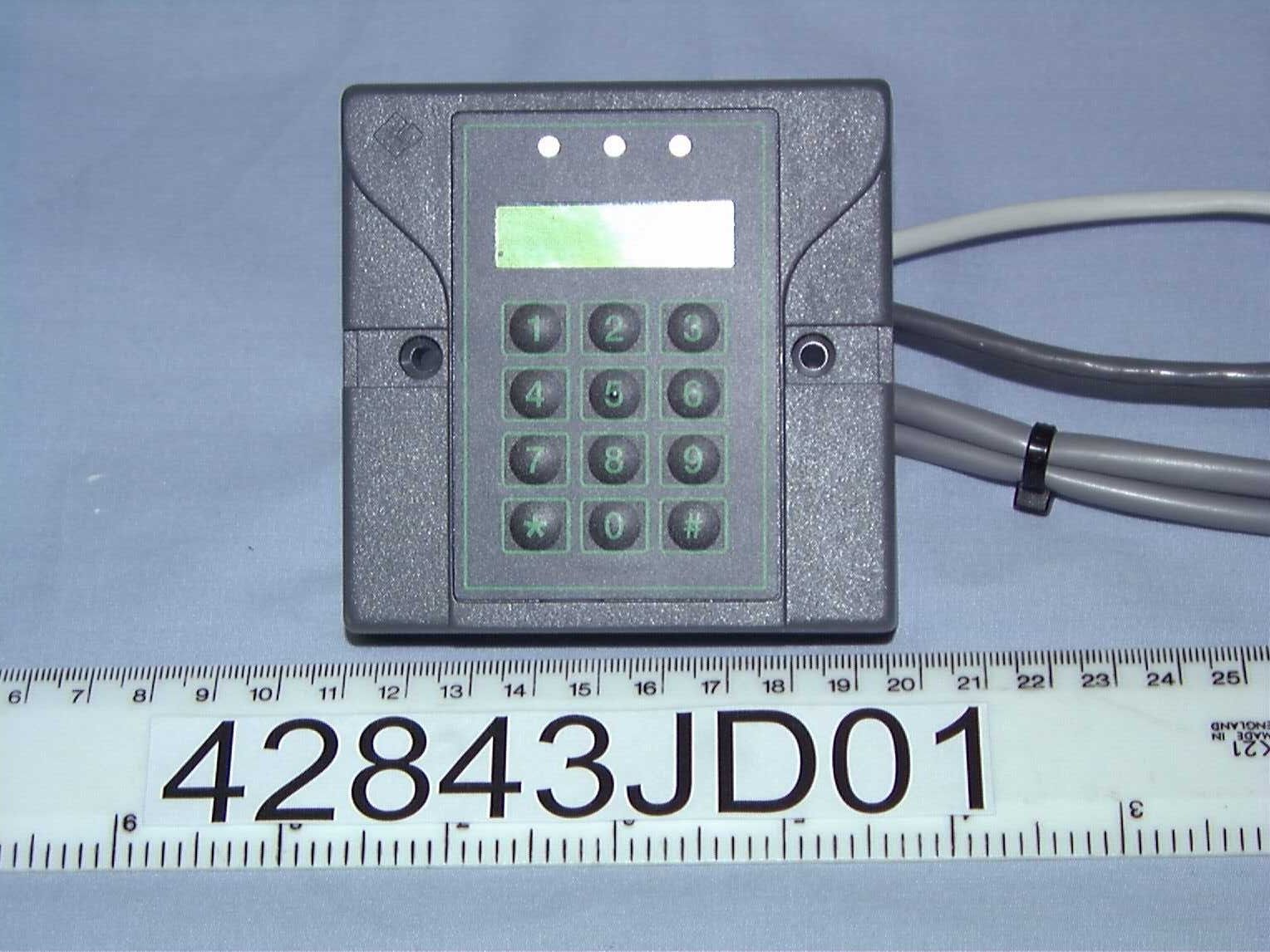

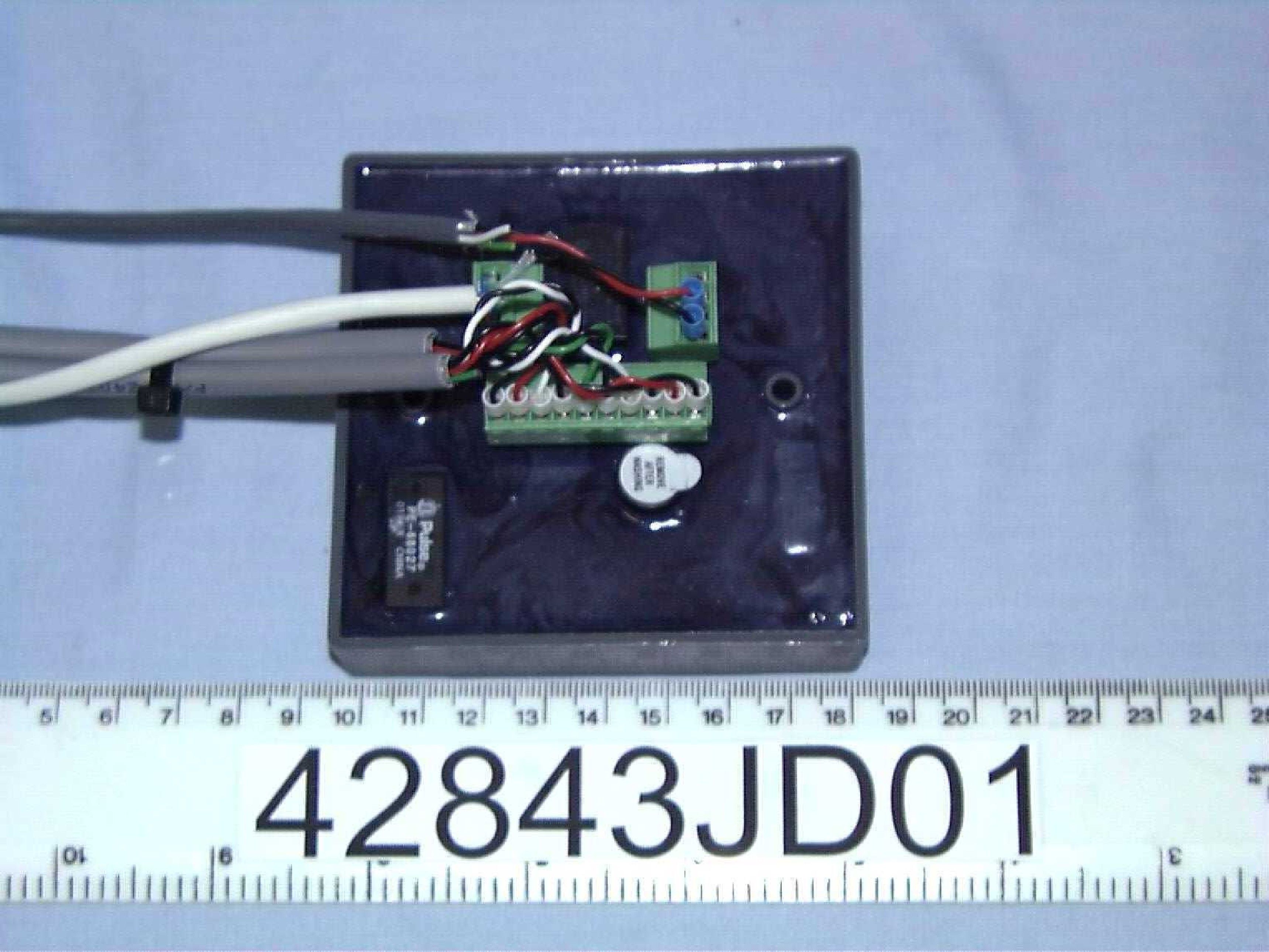

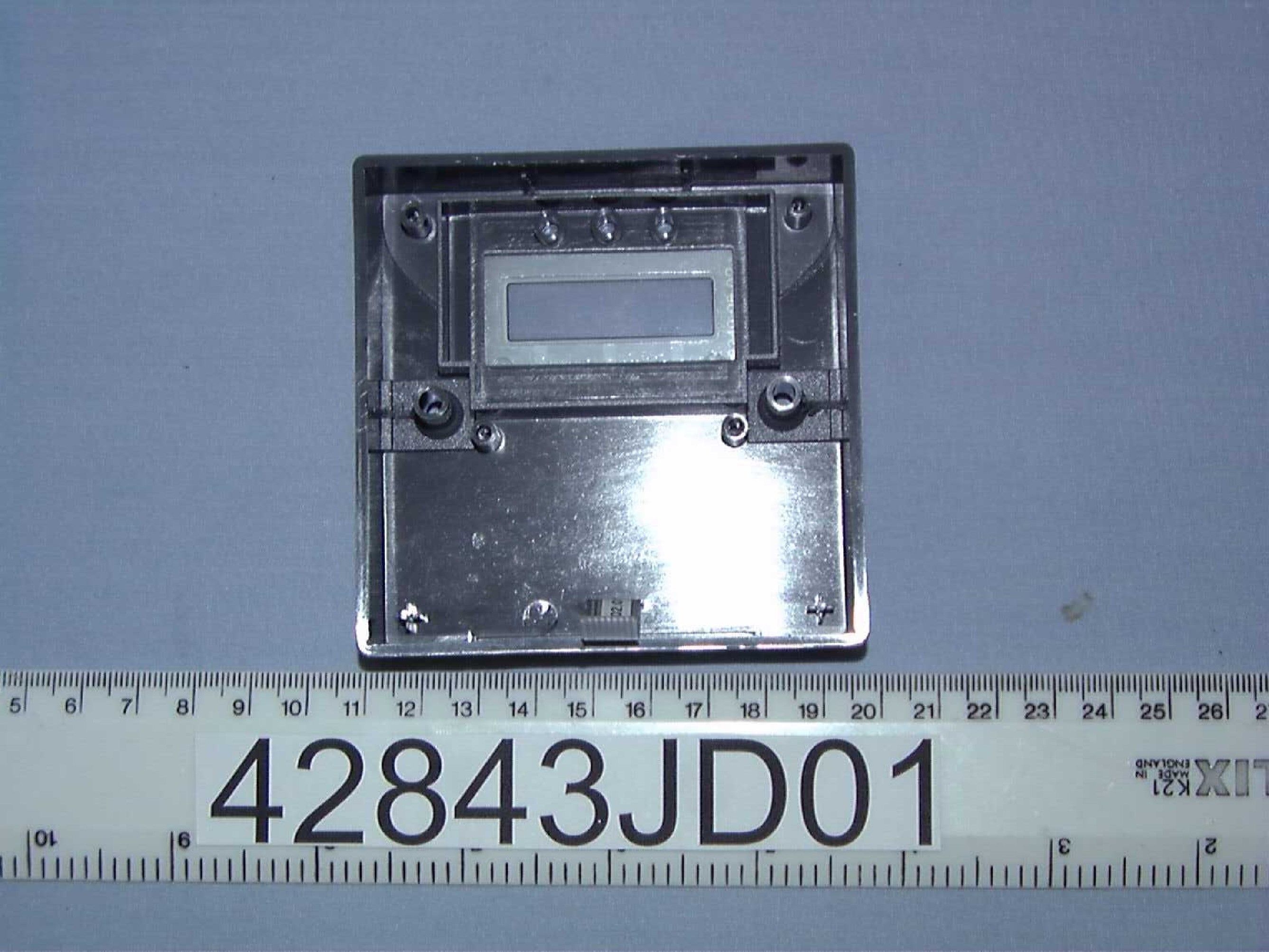

The EtherProx Entry reader is ho used in a polycarbo nate, f ully encapsulated enclosure that is both weather and vandal resistant. The keypad is required for PIN validatio n and for access to the Administration menu. EtherPro x Entry supports HID 26 bit, HID 32 bit, and HID (Software House) 37 bit Wiegand proximity technology, under license from HID Corporation. The following cards and read ranges are supported. CARDS READ RANGES ISOProx® ll Card9cm (3.6") ProxCard™ Plus Card6cm (2.4") ProxCard® ll Card10cm (4") ProxKey™ ll Fob4cm (1.6") Each reader can service o ne InfoProx™ Exit reader configuratio n supported for IN/OUT control. Alternatively, a pushbutton can be co nnected as an input to the reader to provide egress from a controlled area where no exit reader is mounted. In normal door mode, the EtherPro x Entry reader has three analog inputs, as listed in the following table. INPUT DOOR MODE Input 0Monitors door position (Normally Closed) Input 1Monitors lock status (Normally Closed) Input 2Monitors request-to-exit button (Normally Open) For normal door mode access, the reader has o ne relay reserved for a door strike. Yo u can configure the relay to Powered to Secure or Powered to Unlock; the relay automatically fires when a valid card is presented to the reader. Initially, enter all card ID numbers into the reader's database. When a valid card is read, access is granted. Yo u can assign PINs to some or all of the cards to increase security. Yo u can co nfigure the reader to require a valid PIN after presenting a card. The PIN can be required on either the entry or the exit sides of the door, or on both sides, depending on yo ur security needs. You can set up time zones to limit access during specific hours. You can configure the reader to allo w access to cardholders entering a specific Global Pin Code, without the need to present a card. This is especially usef ul for time-specific group functio ns or for situations where tight security is not required.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 (Sections 15.209 & 15.109) Test Report Serial No: RFI/EMCB2/RP42843A Superseded Test Report Serial No: RFI/EMCB1/RP42843A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: Release Version No: PDF01 Issue Date: 18 April 2002 Test Date: 21 November 2001 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. Test Report S.No. RFI/EMCB2/RP42843A EMC Department Page 2 of 26 Issue Date: 18 April 2002 Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 (Sections 15.209 & 15.109) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. Test Report S.No. RFI/EMCB2/RP42843A EMC Department Page 3 of 26 Issue Date: 18 April 2002 Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 (Sections 15.209 & 15.109) Table of Contents 1. Client Information................................................................................................................4 2. Equipment Under Test (EUT).............................................................................................5 3. Test Specification, Methods & Procedures......................................................................9 4. Deviations From The Test Specification.........................................................................10 5. Operation Of The EUT During Testing............................................................................11 6. Summary Of Test Results.................................................................................................12 7. Measurements, Examinations And Derived Results.....................................................13 8. Measurement Uncertainty................................................................................................16 Appendix 1. Test Equipment Used......................................................................................17 Appendix 2. Measurement Methods....................................................................................18 Appendix 3. Test Configuration Drawings.........................................................................20 Appendix 4. Graphical Test Results....................................................................................23 Appendix 5. Photographs of EUT........................................................................................25 Test Report Serial No: RFI/EMCB2/RP42843A supersedes Test Report Serial No: RFI/EMCB1/RP42843A. RADIO FREQUENCY INVESTIGATION LTD. Test Report S.No. RFI/EMCB2/RP42843A EMC Department Page 4 of 26 Issue Date: 18 April 2002 Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 (Sections 15.209 & 15.109) 1. Client Information 1.1. Applicant Details Company Name: Controlled Electronic Management Systems Limited Address: Unit 4 Ravenhill Business Park Ravenhill Road Belfast BT6 8AW Contact Name: Mr David Murphy 1.2. Radio Frequency Investigation Ltd Representative Contact Name: Grant Taylor Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ RADIO FREQUENCY INVESTIGATION LTD. Test Report S.No. RFI/EMCB2/RP42843A EMC Department Page 5 of 26 Issue Date: 18 April 2002 Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 (Sections 15.209 & 15.109) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name CEM Model Name or Number EtherProx Unique Type Identification ENTRY Serial Number 000002 Country Of Manufacture U.K. Date Of Receipt 20 November 2001 2.2. Description Of EUT Stand alone proximity card reader (125kHz). Used to control a single door, via a relay output for door opening. Door inputs are provided to monitor the state of the door. Door Position, Lock engaged an Push Button Exit. Another free input is supplied. This reader is also networkable over Ethernet. 2.3. Modifications Incorporated In EUT The EUT has not been modified from the Model Name or Unique Type Identification number stated above. RADIO FREQUENCY INVESTIGATION LTD. Test Report S.No. RFI/EMCB2/RP42843A EMC Department Page 6 of 26 Issue Date: 18 April 2002 Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 (Sections 15.209 & 15.109) 2.4. Additional Information Related To Testing Equipment Category: Short Range (Low Power) Type Of Unit: Base Station (Fixed Use) Power Characteristics: 14 dBμA/m @ 10m Alignment Range: Transmitter 0.125MHz Receiver 0.125MHz Allocated Frequency: Transmitter 0.125MHz Receiver 0.125MHz Power Supply Requirement: DC Supply (Volts/Amps) DC Supply of (Customer supplied) 12V Battery AC Supply (Volts/Amps) Not Applicable (Note 1) Intended Operating Environment: Commercial Weight: Approx. 0.107Kg Dimensions: Approx. 0.086 x 0.086 x 0.022 mm Cycle Time: Less than 1 sec. Note 1 The client has stated the power supply r…

Text truncated - open the document above for the full version.

PHOTOGRAPH SECTION FOR RFI TEST REPORT SERIAL NO: RFI/EMCB2/RP42843A Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 Section 15.209 & 15.109 RADIO FREQUENCY INVESTIGATION LTD. Photograph Section S.No: RFI/EMCB2/RP42843A EMC Department Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 Section 15.209 & 15.109 This section contains the following photographs: Photo Reference Number Title PHT/42843JD03/001 Rear View of Radiated Electric Field Set-up PHT/42843JD03/002 Front View of Radiated Electric Field Set-up These pages are not included in the total number of pages for this report. RADIO FREQUENCY INVESTIGATION LTD. Photograph Section S.No: RFI/EMCB2/RP42843A EMC Department Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 Section 15.209 & 15.109 PHT/42843JD03/001 Rear View of Radiated Electric Field Set-up RADIO FREQUENCY INVESTIGATION LTD. Photograph Section S.No: RFI/EMCB2/RP42843A EMC Department Test Of: Controlled Electronic Management Systems Limited EtherProx Reader To: FCC Part 15 Subpart C: 2000 Section 15.209 & 15.109 PHT/42843JD03/002 Front View of Radiated Electric Field Set-up
