QABS610MSCRMS610MSCRM RFID multi smart card reader module

S610S Serial Access Control Card Reader Hardware Installer Manual Date Revision Number Modifications 01/10/2007 1.0 S610S Document Release. AC2000 5.5 Current reader Firmware B1.00.39 02/12/2007 1.2 Extended Time Zone mode 01/03/2008 1.3 Document Review 05/11/2008 1.4 Interlock in Door mode and Smartcard key definitions 08/11/2009 1.5 New Passenger Exit mode & web tool firmware update 09/03/2010 1.6 Multi badge access 22/03/2010 1.7 High Security Environments 22/07/2014 S610S-IM-0047-1.8 Product code and warning changes Published by: - Controlled Electronic Management Systems Limited 195 Airport Road West, Belfast Harbour Northern Ireland, United Kingdom BT3 9ED Tel: +44 (0)28 9045 6767 Fax: +44 (0)28 9045 4535 E-mail: [email protected] Website: www.cemsys.com Copyright  Controlled Electronic Management Systems Limited. All rights reserved. No part of this publication may be produced without the written permission of Controlled Electronic Management Systems Limited. The information in this publication is subject to change without notice P:\TAD\CoreDocumentation\CEMCoreDeviceDocs\S600\S610S\S610S_IM-6-1.8.docx Warning This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept an interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Installation of this device shall be performed by a qualified person in accordance to all local regulations. This system must be installed within the protected premise in accordance with the National Electrical Code (NFPA70), and the local authorities having jurisdiction Equipment changes or modifications without the approval of the party responsible for compliance could void the user's authority to operate the equipment and could create a hazardous condition. Warning (English) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Warning (French) Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. S610S Manual - Hardware Installer Manual - Version 1.8 1 I I n n d d e e x x 1 Introduction 5  How to use an S610S reader ..................................................................................... 7  LED Card Response table ......................................................................................... 7 1.1 Cabling requirements ................................................................................................... 7 1.2 Typical S610S Access Control network ....................................................................... 8  Using an Ethernet Control Module (ECM) ............................................................... 8 1.3 S610S/S600S PCB layout ............................................................................................ 8 2 Quick Guide to setting up S610S 9 3 Connecting an S610S Master Reader 11 3.1 Open the S610 reader case ......................................................................................... 11 3.2 S610S Master Reader 12V Power and Data connections ........................................... 11 3.3 Extra settings required, made on the reader ............................................................... 11  Reader Address ....................................................................................................... 11  Door Mode .............................................................................................................. 11  Card Type ................................................................................................................ 12  Read Head ............................................................................................................... 12  Auxiliary Devices ................................................................................................... 12 3.4 Addressing an S610S …

Text truncated - open the document above for the full version.

CEM compliance statement for Modular Transmitters (in Blue below) § 15.212 Modular transmitters. (a) Single modular transmitters consist of a completely self-contained radiofrequency transmitter device that is typically incorporated into another product, host or device. Split modular transmitters consist of two components: a radio front end with antenna (or radio devices) and a transmitter control element (or specific hardware on which the software that controls the radio operation resides). All single or split modular transmitters are approved with an antenna. All of the following requirements apply, except as provided in paragraph (b) of this section. (1) Single modular transmitters must meet the following requirements to obtain a modular transmitter approval. (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Shielding present, Comply (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Comply (iii) The modular transmitter must have its own power supply regulation. Comply (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Antenna is pcb track ->Comply (v) The modular transmitter must be tested in a stand-alone configuration, i.e. , the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). Comply (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Permanently affixed label fitted -> Comply (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Comply (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Electronic Display for FCC ID not used ->N/A (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Comply (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Comply (2) Split modular transmitters must meet the requirements in paragraph (a)(1) of this section, excluding paragraphs (a)(1)(i) and (a)(1)(v), and the following additional requirements to obtain a modular transmitter approval. Not split module -> N/A (i) Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signaling amplitude of 150 mV peak-to- peak. Not split module -> N/A (ii) Control information and other data may be exchanged between the transmitter control elements and radio front end. Not split module -> N/A iii) The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. Not split module -> N/A (iv) Manufacturers must ensure that only transmitter control elements and radio front end components…

Text truncated - open the document above for the full version.

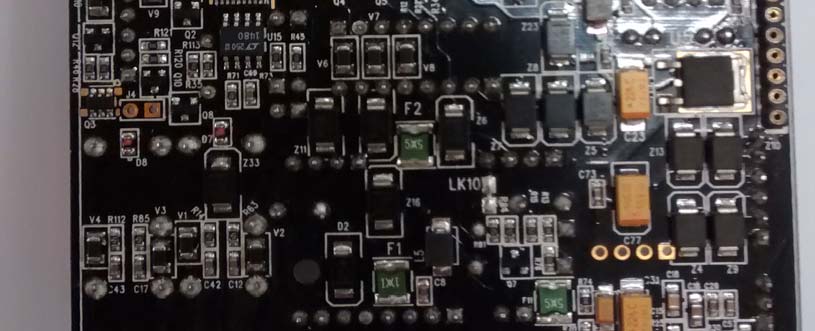

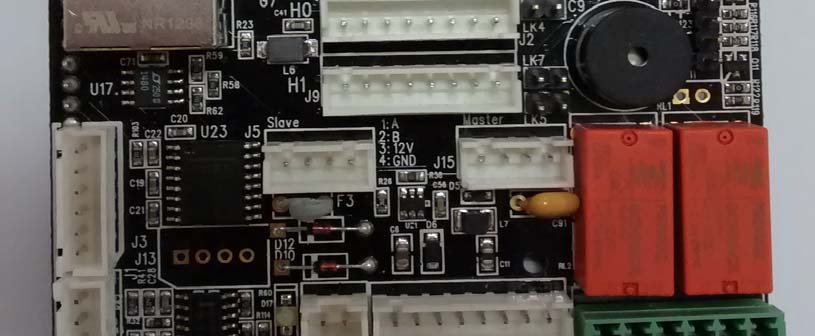

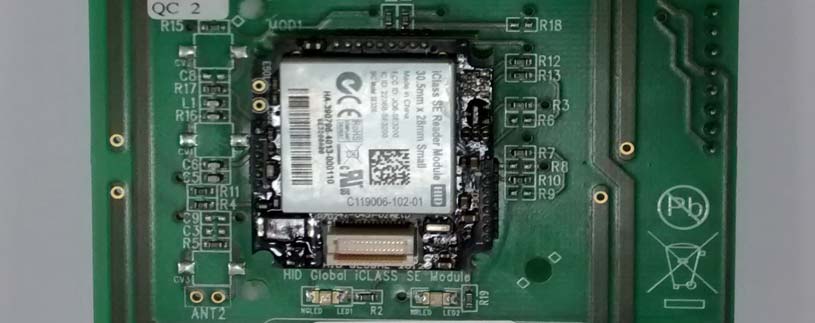

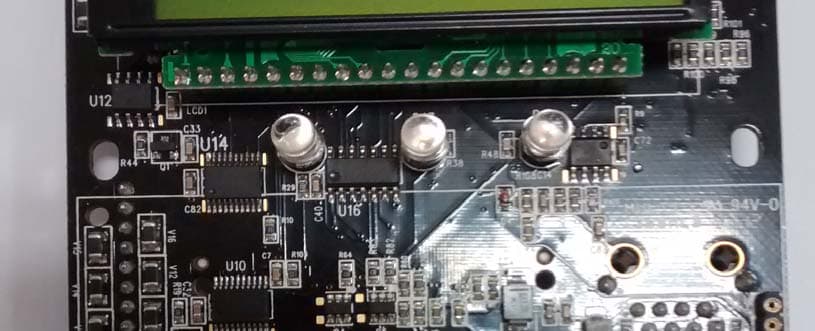

Photos Assembled pcbs top view Photos Assembled pcbs side view Photos Main pcb front Photos Main PCB rear Photos RF pcb Front Photos RF PCB rear

FCC / IC Labelling Info for S610MSCRM Module and Product Label Material We use BM1056 PAT1 labels with Armor AXR 7+ ribbon which meets UL requirements for durability. Module FCC/IC Labelling Representation Module FCC/IC label size is 15mm x 15mm label font is Arial, font size 6 and 54% width. Label location on the module (on top of U1) FCC ID: QABS610MSCRM IC: 12009A-S610MSCRM Model: S610MSCRM Product Case FCC/IC Labelling Representation label font is Arial, font size 7. Product case FCC/IC Label size is 40mm x 9mm Label location on case Contains FCC ID: QABS610MSCRM IC: 12009A-S610MSCRM Label location on case

Photos Assembled pcbs top view Photos Assembled pcbs side view Photos Main pcb front Photos Main PCB rear Photos RF pcb Front Photos RF PCB rear

Report Ref: 14E4885-1b Page 1 of 22 Project Number: 14E4885-1b Prepared for: Controlled Electronic Management Systems Ltd By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Site Code: 8517A-2 FCC ID: QABS610MSCRM IC: 12009A-S610MSCRM Date 4 Sept 2014 FCC EQUIPMENT AUTHORISATION Test Report EUT Description RFID Reader module Authorised : John McAuley Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 14E4885-1b Page 2 of 22 TEST SUMMARY Emissions were assessed to the following standards: FCC CFR 47 Part 15 Federal Communications Commission: Part 15 Radio Frequency Devices The equipment complies with the requirements according to the following standards. FCC Part Section(s) RSS-210 Section TEST PARAMETERS Test Result 15.203 Antenna Requirement Pass 15.225 RSS210 A2.6 Spectrum Mask Pass 15.225(d), 15.209 RSS Gen 7.2.5 Limit outside band 13.11-14.01MHz Pass 15.225e RSS210 A2.6 Frequency Stability Pass 15.207 RSS Gen 7.2.4 Conducted Emissions Pass RSS210 A4.6 Occupied Bandwidth Pass THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 14E4885-1b Page 3 of 22 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION..............................................................................................................................4 1.1 EUT OPERATION..................................................................................................................................5 1.2 MODIFICATIONS...................................................................................................................................5 1.3 DATE OF TEST......................................................................................................................................5 1.4 EMISSIONS TESTING..........................................................................................................................5 1.4.1 MEASUREMENT UNCERTAINTY.......................................................................................................6 2.0 EMISSIONS MEASUREMENTS............................................................................................................7 2.1 CONDUCTED EMISSIONS MEASUREMENTS...................................................................................7 2.2 RADIATED EMISSIONS MEASUREMENTS.......................................................................................7 3.0 RESULTS FOR CONDUCTED EMISSIONS........................................................................................9 4.0 RESULTS FOR RADIATED EMISSIONS...........................................................................................10 Appendix 1 List of Test Equipment 16 Appendix 2 Test plots 17 Report Ref: 14E4885-1b Page 4 of 22 1.0 EUT Description Model: S610MSCRM Type: RFID reader module FCC ID: QABS610MSCRM Company: Controlled Electronic Management Systems Ltd Contact Ewan Peyton Address: 195 Airport Road West, Belfast, Co Antrim, UK, BT3 9ED Phone: +44 28 90788026 e-mail: [email protected] Test Standards: 47 CFR, Part 15.225 Type of radio: Stand-alone Transmitter Type: AM Operating Frequency Range(s): 13.56MHz Number of Channels: 1 Antenna: Integral Power configuration: 12 v dc Oper. Temp Range: 5° C to +35° C Classification: DXX Test Methodology: Measurements performed according to the procedures in ANSI C63.4-2009 Report Ref: 14E4885-1b Page 5 of 22 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: The EUT was powered from a 12v dc mains adapter. The module was operated in normal modulated mode for all tests. In this mode the EUT transmitted with duty cycle with Ton of 15.7mS and Period of 98.9 mS. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: +15 to +35 ° C Humidity: 20-75 % 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on one sample of the EUT on the 5 th June 2014. Report Ref: 14E4885-1b Page 6 of 22 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.’s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spurious emissions in accordance with FCC CFR 15.107, 15.109 and 15.209. Tests were carried out to the requirements of CISPR 16-4 and ANSI C63.4-2003. 1.4.1 Measurement Uncertainty The measurement uncertainty (with a 95% confidence level) for the conducted emissions test was ±3.5 dB. The measurement uncertainty (with a 95% confidence level) for the radiated emissions test was ±5.3 dB (from 30 to 100 MHz), ±4.7 dB (from 100 to 300 MHz), ±3.9 dB (from 300 to 1000 MHz) and ±3.8 dB (from 1 GHz to 40 GHz). Report Ref: 14E4885-1b Page 7 of 22 2.0 Emissions Measurements 2.1 Conducted Emissions Measurements The EUT was connected to the mains through a LISN and measurements were carried out using a Receiver over the frequency range 150KHz to 30MHz. 2.2 Radiated Emissions Measurements Radiated Power measurements were made at the Compliance Engineering Ireland Ltd anechoic chamber located in Dunshaughlin, Co. Meath, Ireland to determine the radio noise radiated from the EUT. A "Description of Measurement Facilities" has been submitted to the FCC and approved pursuant to Section 2.948 of CFR 47 of the FCC rules. The EUT was connected to an AC2000 system comprising of a laptop running AC2000 firmware and a network switch / serial to Ethernet converter for communication to EUT. A Magnetic lock and Door simulator to mimic signals were also connected to t…

Text truncated - open the document above for the full version.

Report Ref: 14E4885-1d Page 1 of 15 Project Number: 14E4885-1d Prepared for: Controlled Electronic Management Systems Ltd By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Site Code: 8517A-2 Date 14 June 2014 FCC EQUIPMENT AUTHORISATION Test Report EUT Description RFID Reader module in 610s plastics Authorised : John McAuley Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 14E4885-1d Page 2 of 15 TEST SUMMARY Emissions were assessed to the following standards: FCC CFR 47 Part 15 Federal Communications Commission: Part 15 Radio Frequency Devices The equipment complies with the requirements according to the following standards. FCC Part TEST PARAMETERS Test Result 15.209 RADIATED EMISSIONS PASS 15.207 CONDUCTED EMISSIONS PASS THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 14E4885-1d Page 3 of 15 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION..............................................................................................................................4 1.1 EUT OPERATION..................................................................................................................................5 1.2 MODIFICATIONS...................................................................................................................................5 1.3 DATE OF TEST......................................................................................................................................5 1.4 EMISSIONS TESTING..........................................................................................................................5 1.4.1 MEASUREMENT UNCERTAINTY.......................................................................................................6 2.0 EMISSIONS MEASUREMENTS............................................................................................................7 2.1 CONDUCTED EMISSIONS MEASUREMENTS...................................................................................7 2.2 RADIATED EMISSIONS MEASUREMENTS.......................................................................................7 3.0 RESULTS FOR CONDUCTED EMISSIONS........................................................................................8 4.0 RESULTS FOR RADIATED EMISSIONS.............................................................................................9 Appendix 1 List of Test Equipment 10 Appendix 2 Test Configurations 11 Appendix 3 Test plots 12 Report Ref: 14E4885-1d Page 4 of 15 1.0 EUT Description The EUT was a RFID reader unit which contained a transceiver module (as below) housed in plastic case. The module used a short range 13.56 MHz band transceiver for RFID. RFID unit Manufacturer: Controlled Electronic Management Systems Ltd Make: 610s Model: 610s Module Model: S610MSCRM Type: 13.56MHz Radio Transceiver for RFID FCC ID: QABS610MSCRM IC ID: 12009A-S610MSCRM Report Ref: 14E4885-1d Page 5 of 15 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: The EUT was powered from a 12v dc mains adapter. The module was operated in normal modulated mode for all tests. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: +15 to +35 ° C Humidity: 20-75 % 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on one sample of the EUT on the 5 th June 2014. 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.’s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spurious emissions in accordance with FCC CFR 15.107, 15.109 and 15.209. Tests were carried out to the requirements of CISPR 16-4 and ANSI C63.4-2003. Report Ref: 14E4885-1d Page 6 of 15 1.4.1 Measurement Uncertainty The measurement uncertainty (with a 95% confidence level) for the conducted emissions test was ±3.5 dB. The measurement uncertainty (with a 95% confidence level) for the radiated emissions test was ±5.3 dB (from 30 to 100 MHz), ±4.7 dB (from 100 to 300 MHz), ±3.9 dB (from 300 to 1000 MHz) and ±3.8 dB (from 1 GHz to 40 GHz). Report Ref: 14E4885-1d Page 7 of 15 2.0 Emissions Measurements 2.1 Conducted Emissions Measurements The EUT was connected to the mains through a LISN and measurements were carried out using a Receiver over the frequency range 150KHz to 30MHz. 2.2 Radiated Emissions Measurements Radiated Power measurements were made at the Compliance Engineering Ireland Ltd anechoic chamber located in Dunshaughlin, Co. Meath, Ireland to determine the radio noise radiated from the EUT. A "Description of Measurement Facilities" has been submitted to the FCC and approved pursuant to Section 2.948 of CFR 47 of the FCC rules. The EUT was connected to an AC2000 system comprising of a laptop running AC2000 firmware and a network switch / serial to Ethernet converter for communication to EUT. A Magnetic lock and Door simulator to mimic signals were also connected to the EUT to prove full functionality and simulate a complete system setup. The EUT was centred on a motorized turntable, which allows 360 degree rotation. A measurement antenna was positioned at a distance of 3 metres as measured from the closest point of the EUT. The radiated emissions were maximised by configuring the EUT, by rotating the EUT, and by raising and lowering the antenna from 1 to 4 meters. Emissions below 30MHz were measured using a loop antenna. In this case the resolution bandwidth was 200Hz for frequenci…

Text truncated - open the document above for the full version.

Report Ref: 14E4885-1e Page 1 of 15 Project Number: 14E4885-1e Prepared for: Controlled Electronic Management Systems Ltd By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Site Code: 8517A-2 Date 14 June 2014 FCC EQUIPMENT AUTHORISATION Test Report EUT Description RFID Reader module in 610e plastics Authorised : John McAuley Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 14E4885-1e Page 2 of 15 TEST SUMMARY Emissions were assessed to the following standards: FCC CFR 47 Part 15 Federal Communications Commission: Part 15 Radio Frequency Devices The equipment complies with the requirements according to the following standards. FCC Part TEST PARAMETERS Test Result 15.209 RADIATED EMISSIONS PASS 15.207 CONDUCTED EMISSIONS PASS THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 14E4885-1e Page 3 of 15 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION..............................................................................................................................4 1.1 EUT OPERATION..................................................................................................................................5 1.2 MODIFICATIONS...................................................................................................................................5 1.3 DATE OF TEST......................................................................................................................................5 1.4 EMISSIONS TESTING..........................................................................................................................5 1.4.1 MEASUREMENT UNCERTAINTY.......................................................................................................6 2.0 EMISSIONS MEASUREMENTS............................................................................................................7 2.1 CONDUCTED EMISSIONS MEASUREMENTS...................................................................................7 2.2 RADIATED EMISSIONS MEASUREMENTS.......................................................................................7 3.0 RESULTS FOR CONDUCTED EMISSIONS........................................................................................8 4.0 RESULTS FOR RADIATED EMISSIONS.............................................................................................9 Appendix 1 List of Test Equipment 10 Appendix 2 Test Configurations 11 Appendix 3 Test plots 12 Report Ref: 14E4885-1e Page 4 of 15 1.0 EUT Description The EUT was a RFID reader unit which contained a transceiver module (as below) housed in plastic case. The module used a short range 13.56 MHz band transceiver for RFID. RFID unit Manufacturer: Controlled Electronic Management Systems Ltd Make: 610e Model: 610e Module Model: S610MSCRM Type: 13.56MHz Radio Transceiver for RFID FCC ID: QABS610MSCRM IC ID: 12009A-S610MSCRM Report Ref: 14E4885-1e Page 5 of 15 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: The EUT was powered from a 12v dc mains adapter. The module was operated in normal modulated mode. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: +15 to +35 ° C Humidity: 20-75 % 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on one sample of the EUT on the 4 th Feb 2014. Report Ref: 14E4885-1e Page 6 of 15 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.’s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spurious emissions in accordance with FCC CFR 15.107, 15.109 and 15.209. Tests were carried out to the requirements of CISPR 16-4 and ANSI C63.4-2003. 1.4.1 Measurement Uncertainty The measurement uncertainty (with a 95% confidence level) for the conducted emissions test was ±3.5 dB. The measurement uncertainty (with a 95% confidence level) for the radiated emissions test was ±5.3 dB (from 30 to 100 MHz), ±4.7 dB (from 100 to 300 MHz), ±3.9 dB (from 300 to 1000 MHz) and ±3.8 dB (from 1 GHz to 40 GHz). Report Ref: 14E4885-1e Page 7 of 15 2.0 Emissions Measurements 2.1 Conducted Emissions Measurements The EUT was connected to the mains through a LISN and measurements were carried out using a Receiver over the frequency range 150KHz to 30MHz. 2.2 Radiated Emissions Measurements Radiated Power measurements were made at the Compliance Engineering Ireland Ltd anechoic chamber located in Dunshaughlin, Co. Meath, Ireland to determine the radio noise radiated from the EUT. A "Description of…

Text truncated - open the document above for the full version.
