QABTSR608V930Emerald TM multi smart card reader

TSR-IM-0045-1.6 emerald TS100/200/300 Installation Manual Notice The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice. Copyright Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of © 2013 Tyco Security Products. All Rights Reserved. Trademarks The trademarks, logos, and service marks displayed on this document are registered in the United States (or other countries). Any misuse of the trademarks is strictly prohibited and Tyco Security Products will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary. All trademarks not owned by Tyco Security Products are the property of their respective owners, and are used with permission or allowed under applicable laws. Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features. Availability varies by region. Contact your sales representative for more information. Licence information Your use of this product is governed by certain terms and conditions. Support If you require technical assistance using CEM products, please contact the CEM Support team using the following telephone number: Telephone:+44(0)2890 456656 Email: [email protected] • Please provide our support engineers with as much information as possible. This may include: • Site name • Product name and model • CEM software version • Description of the problem Publication Date 31st May 2014 emerald TS100/200/300 Installation Manual iii Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures Warning English Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. French Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Warning - For FCC Labelled emerald Terminals This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept an interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Installation of this device shall be performed by a qualified person in accordance to all local regulations. This system must be installed within the protected premise in accordance with the National Electrical Code (NFPA70), and the local authorities having jurisdiction. Equipment changes or modifications without the approval of the party responsible for compliance could void the user's authority to operate the equipment and could create a hazardous condition. TSR-IM-0045-1.6 CHAPTER 1 : iv Contents 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Terminal specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 CEM emerald product codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Terminal dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Part ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Onboard memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Terminal key component parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Simplified AC2000 Network Topology . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

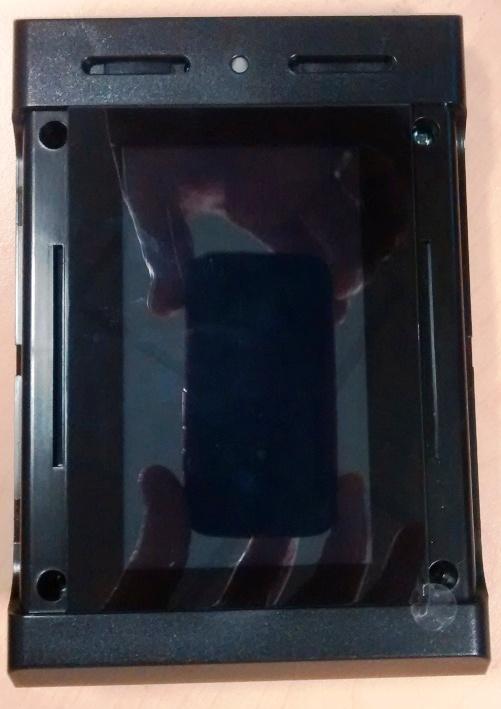

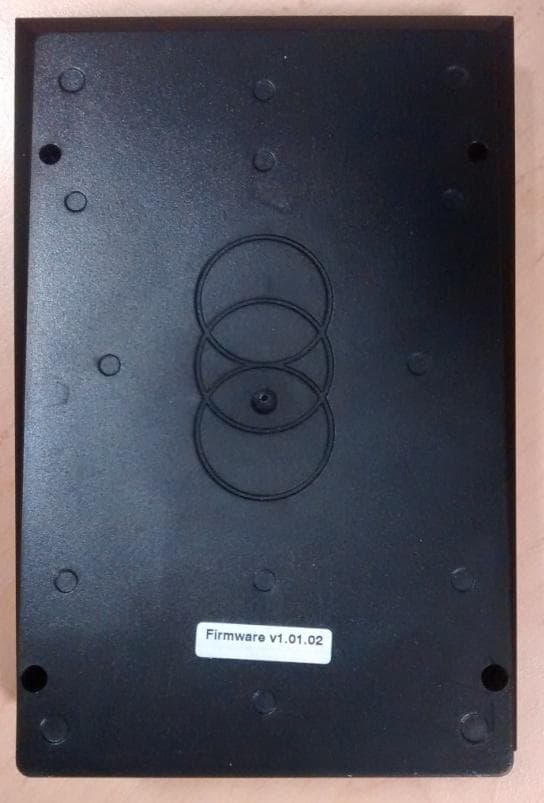

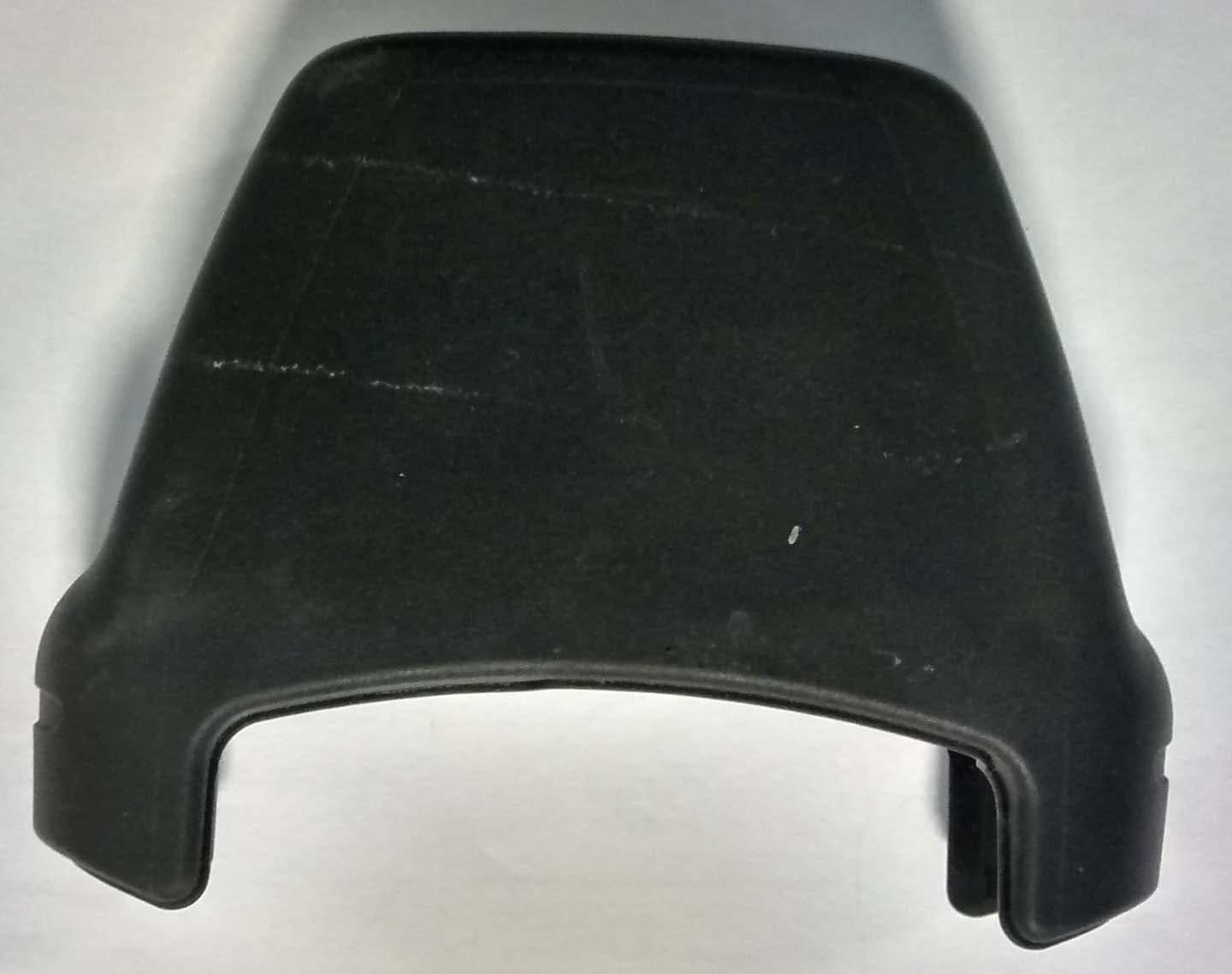

emerald Case -Rear emerald Case -Side emerald Case -Front

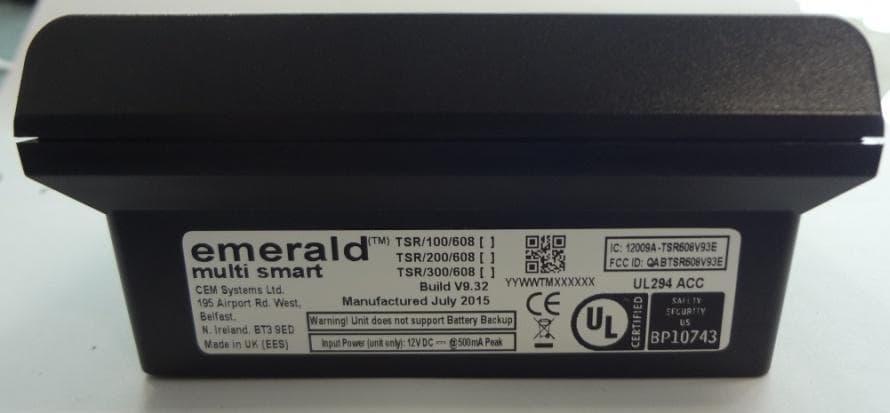

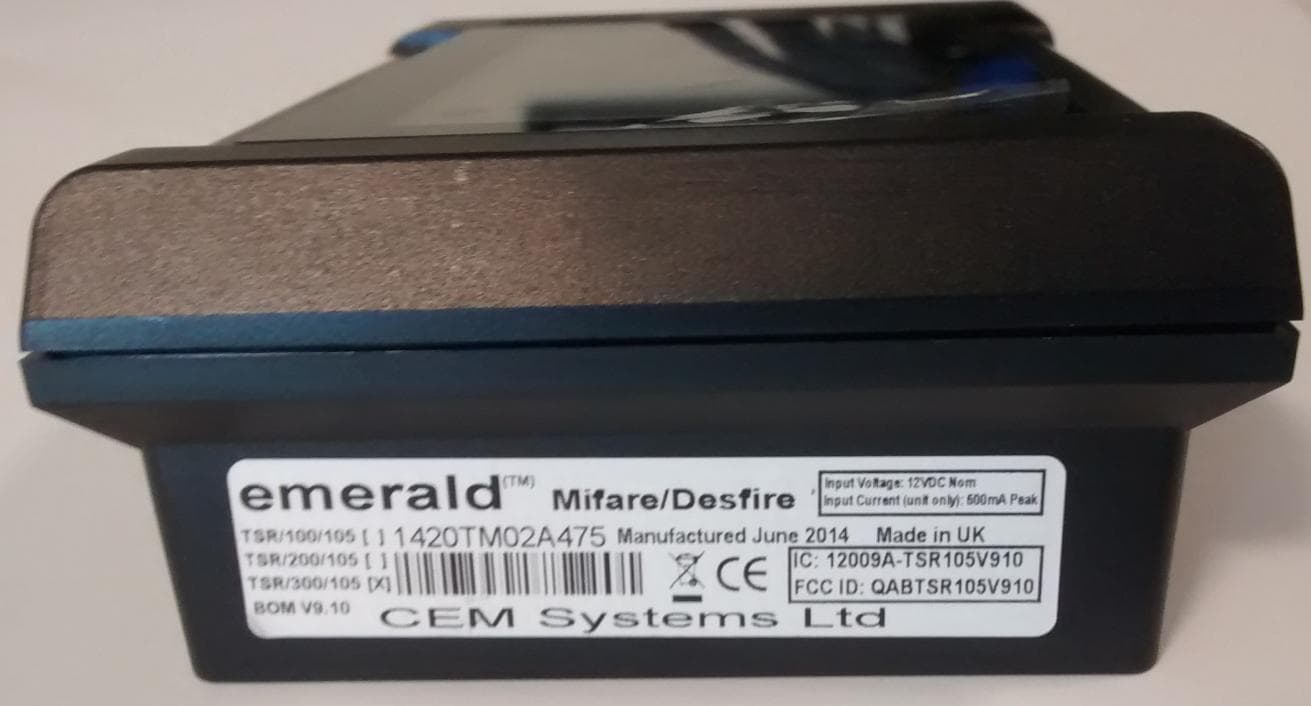

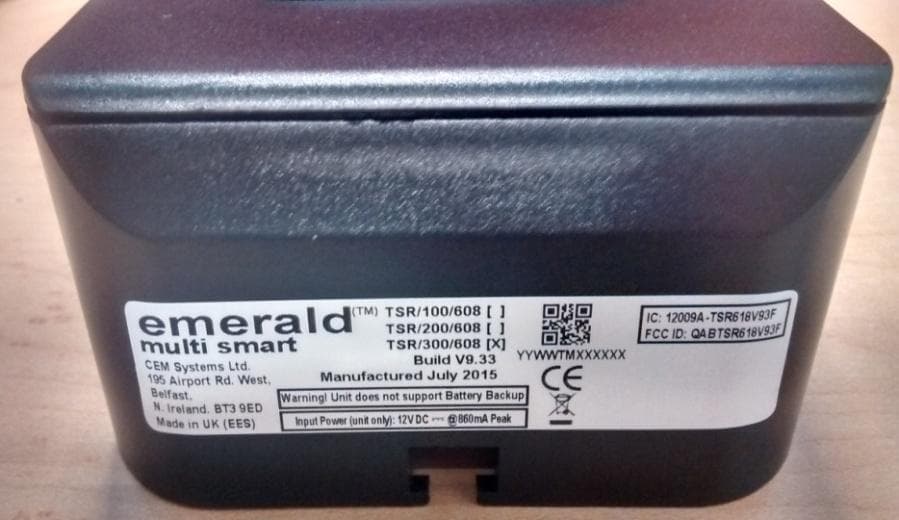

Emerald Label Location and information Information for FCC: QABTSR608V930, IC: 12009A-TSR608V930 application only Date 10 th Feb 2015 Label Location: emerald label location, this is the same location used on all emerald models. The blank space on the bottom right corner of the label is for the UL logo which the unit is currently undergoing testing. Label template: Where YY is year of manufacture WW is week of manufacture TM is product identifier for emerald XXXXXX is the last 6 digits of its MAC address This label identifies the unit as a TSR/300/608 with the [x] The blank space in bottom right will be used for the UL accreditation once it is received. 75 mm 17 mm

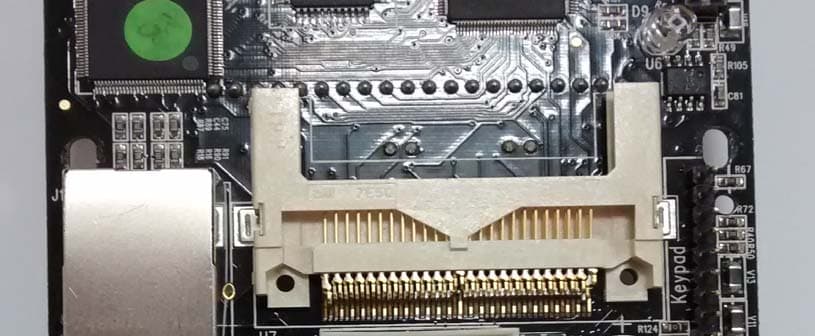

Core Board Front view Core Board Rear view I/O Board Front view I/O Board Rear view Main Board Rear view Main Board Front view Opened emerald Assembly

TRaC Global Test Report: TRA-021653-01-47-01B The calculated output power is 1.09x10 -10 mW (eirp) is less than the SAR Exclusion Threshold of 468mW, at 5mm test separation distance, for general population and uncontrolled exposure. Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. Prediction of MPE limit at a given distance For purposes of these requirements mobile devices are defined by the Industry Canada as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimetres is normally maintained between radiating structures and the body of the user or nearby persons. These devices are normally evaluated for exposure potential with relation to the MPE limits. As the 20cm separation specified under Industry Canada rules may not be achievable under normal operation of the EUT, an RF exposure calculation is needed to show the minimum distance required to be less than 1.67W/m 2 power density limit, as required under Industry Canada rules. Equation from IEEE C95.1 Where: S = power density R = distance to the centre of radiation of the antenna EIRP = EUT Maximum power Note: The EIRP value was calculated using the peak E Field measurement. Result Prediction Frequency (MHz) Maximum EIRP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than 0.98 mW/cm 2 13.562.4x10 -7 0.980.0052 SS4 arranged-re 4 2 S EIRP R R EIRP S 46

TRaC Global Test Report: TRA-021653-01-47-01B Appendix G:General SAR test reduction and exclusion guidance KDB 447498 & RSS-102 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when the considering SAR exclusion Threshold requirement in KDB 447498 is satisfied standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. ,QWKHIUHTXHQF\UDQJHEHORZ0+]DQGWHVWVHSDUDWLRQGLVWDQFH”PPWKH6$5Test Exclusion Threshold will be determined as follows SAR Exclusion Threshold (SARET) SAR Exclusion Threshold= ([Step 1 + Step2] * Step 3a) * Step 3b Step 1 NT =[ (MP/TSD A  ¥I GHz ] NT=Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP =Max Power of channel (mW) (inc tune up) TSD A =Min Test separation Distance or 50mm (whichever is lower) = 50 f GHz =Transmit frequency (or 100MHz if lower) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. MP=[(NT x TSD A ¥I GHz ] For Distances Greater than 50 mm Step 2 applies Step 2 (TSD B – 50mm) * f (MHz) /150 Where: f MHz =Transmit frequency TSD B =Min Test separation Distance (mm) = 50 Step 3 3a)The power threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f (MHz))] for test separation distances > 50 mm and < 200 mm 3b)The power threshold determined by the equation in steps 1 and 2 for 50 mm and 100 MHz is multiplied by ½ for test separation distances ”PP SARET =({ [ (NT xTSD A ¥f GHz ] + (TSD B – 50) * [100/150] } * (1 + Log [100 / F MHz ])) * 1 / 2 SARET =(^> [ ¥] + (50 – 50) * [100/150] } * (1 + Log [100 / F MHz) ]) * 1 / 2 SARET =(474 * (1 + Log [100 / 13.56)) * 1 / 2 SARET =442.65 mW 45 TRaC Global Test Report: TRA-021653-01-47-01B The calculated output power is 1.09x10 -10 mW (eirp) is less than the SAR Exclusion Threshold of 468mW, at 5mm test separation distance, for general population and uncontrolled exposure. Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. Prediction of MPE limit at a given distance For purposes of these requirements mobile devices are defined by the Industry Canada as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimetres is normally maintained between radiating structures and the body of the user or nearby persons. These devices are normally evaluated for exposure potential with relation to the MPE limits. As the 20cm separation specified under Industry Canada rules may not be achievable under normal operation of the EUT, an RF exposure calculation is needed to show the minimum distance required to be less than 1.67W/m 2 power density limit, as required under Industry Canada rules. Equation from IEEE C95.1 Where: S = power density R = distance to the centre of radiation of the antenna EIRP = EUT Maximum power Note: The EIRP value was calculated using the peak E Field measurement. Result Prediction Frequency (MHz) Maximum EIRP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than 0.98 mW/cm 2 13.562.4x10 -7 0.980.0052 SS4 arranged-re 4 2 S EIRP R R EIRP S 46

AN RADIO TEST REPORT FOR CONTROLLED ELECTRONIC MANAGEMENT SYSTEMS LIMITED ON emerald multi smart card reader Model : TSR/300/608 DOCUMENT NO.TRA-021653-00-47-01B TRaC Wireless Test Report : TRA-021653-01-47-01B Applicant : Controlled Electronic Management Systems Limited Apparatus : emerald multi smart card reader Specification(s) : CFR47 Part 15 (c) & RSS-210 Purpose of Test : Certification FCCID : QABTSR608V930 Certification Number : 12009A-TSR608V920 Authorised by : : Radio Product Manager Issue Date : 11 th February 2015 Authorised Copy Number : PDF Total number of pages: 47 TRaC Global Test Report: TRA-021653-01-47-01B Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To the Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 Transmitter Intentional Emission Radiated 15 A2 Frequency Tolerance 16 A3 Occupied Bandwidth 17 A4 Radiated Electric Field Emissions 18 A5 Power Line Conducted Emissions 22 Appendix B: Supporting Graphical Data 25 Appendix C: Additional Test and Sample Details 32 Appendix D: Additional Information 38 Appendix E: Calculation of the duty cycle correction factor 39 Appendix F: Photographs and Figures 40 Appendix G: General SAR test reduction and exclusion guidance 45 3 TRaC Global Test Report: TRA-021653-01-47-01B Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D. Winstanley Report author: D. Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TRA-021653-01-47-01B 1.2 Tests Requested By This testing in this report was requested by: Controlled Electronic Management Systems Limited t/a Tyco Security Products 195 Airport Road Belfast Northern Ireland BT3 9ED 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 17 th November 2014 – 8 th January 2015 Model Name emerald multi smart card reader Model Number TSR/300/608 Hardware Version V9.3 Firmware Revision 1.4T (T is for the test version, production will be 1.4x with x being incremented by any bug fixes as they are found) The above device is a door access RFID reader. It has got two variants given below. • Emerald multi smart card reader powered by POE • Emerald multi smart card reader powered by 12V Supply Radiated spurious emissions and AC powerline conducted emissions were performed on both variants. 5 TRaC Global Test Report: TRA-021653-01-47-01B 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Title 47 of the CFR: Part 15 Subpart (c) RSS-210 Measurement standard Result Spurious Emissions Radiated <1000MHz 15.209 RSS-Gen 6.11 & 8.9 ANSI C63.10:2009 Pass Spurious Emissions Radiated >1000MHz 15.209 RSS-Gen 6.11 & 8.9 ANSI C63.10:2009 N/A AC Power conducted emissions 15.207 RSS-Gen 8.8 ANSI C63.10:2009 Pass Intentional Emission Frequency 15.225(a) RSS-210 A2.6 ANSI C63.10:2009 Pass Intentional Emission Field Strength 15.225(a) RSS-210 A2.6 ANSI C63.10:2009 Pass Intentional Emission Band Occupancy 15.215 (c) RSS-Gen 6.6 ANSI C63.10:2009 Pass Frequency Stability 15.225(e) RSS-210 A2.6 RSS-Gen 6.11 & 8.11 ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Subpart (b) 15.109 RSS-Gen 7.1 ANSI C63.10:2009 Pass Antenna Arrangements Integral: 15.203 RSS-Gen 8.3 - Pass Antenna Arrangements External Connector 15.204 RSS-Gen 8.3 - N/A Restricted Bands 15.205 RSS-Gen 8.10 - Pass Maximum Frequency of Search 15.33 RSS-Gen 6.13 - Pass Extrapolation Factor 15.31(f) RSS-Gen 6.4 and 6.5 - Pass Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions RSS-GEN : RSS-GEN Issue 4 November 2014 6 TRaC Global Test Report: TRA-021653-01-47-01B 1.6 Notes Relating To the Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the res…

Text truncated - open the document above for the full version.

TRaC Global Test Report: TRA-021653-01-47-01B Appendix F:Photographs and Figures The following photographs were taken of the test samples: 1. H Field Radiated emissions arrangement: Overview 2. E Field Radiated emissions arrangement: Overview 3. Radiated emissions arrangement: Close up 4. Powerline conducted emissions arrangement: Overview + 12Vdc 5. Powerline conducted emissions arrangement: Overview POE 40 TRaC Global Test Report: TRA-021653-01-47-01B Photograph 1 41 TRaC Global Test Report: TRA-021653-01-47-01B Photograph 2 42 TRaC Global Test Report: TRA-021653-01-47-01B Photograph 3 43 TRaC Global Test Report: TRA-021653-01-47-01B Photograph 4 44
