QCVC0021031Power Pack

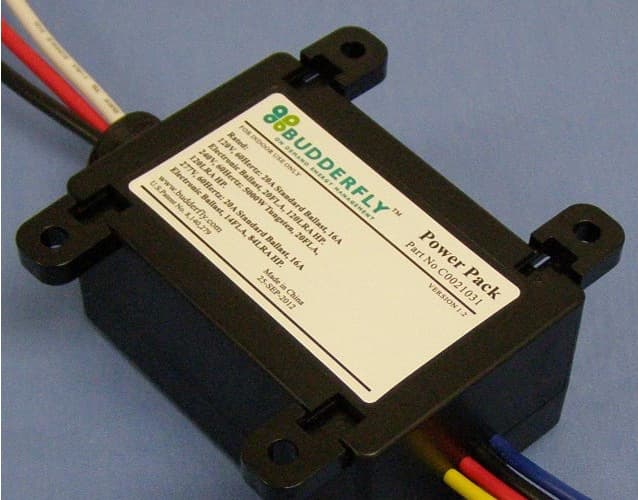

POWER PACK Part No C0021031 Provides Low Voltage Power And Line Voltage Control For Third Party Occupancy Sensors Description Installing a Budderfly adapter transforms your building’s existing wiring into the “Budderfly Open Network” and allows the adapter to monitor energy consumption and communicate the data to a facility controller. Budderfly adaptors will use the existing power line for communication and thus require no re‐wiring. Using our Budderfly software, you can visualize consumption data and manage each individual adapter. The Budderfly Power Pack is a component of the Budderfly system and designed to work with all other Budderfly devices. It is a plug‐and‐play replacement for your existing Power Pack. Once installed, the Budderfly devices also act as repeaters to extend the range of the network and increase efficiency. The Budderfly Power Pack is intended to provide power supply for third party occupancy sensors through its isolated 12VDC and 24VDC outputs. It will also detect input signals from the occupancy sensors in the range of (10VDC~30VDC) and will drive loads up to 20A on 277VAC. Whenever occupancy is detected, the occupancy sensors signal the Budderfly Power Pack to turn ON the lighting loads; after 15 seconds of no‐occupancy detected state the Budderfly Power Pack automatically turns OFF the lighting loads. WARNING –ELECTRICAL SHOCK HAZARD • The Budderfly Power Pack is intended for installation in accordance with the National Electric Code and local regulations in the United States. • If you are not knowledgeable or comfortable with electrical circuitry, you should have a qualified electrician to install the Budderfly Power Pack for you. Installation The Budderfly Power Pack may be used in new installations or to replace an existing Power Pack. It is intended to be used with the different types of the available occupancy sensors. Whether it’s being used in new installations or to replace an existing Power Pack, the Budderfly Power Pack conveniently mounts into a knockout hole of a standard junction box. The unit can be placed inside or outside the junction box with a simple twist‐on nut. The wiring schematic will be as per the below (installing a wall switch in series with load, as shown below, is optional): Warning RISK OF FIRE RISK OF ELECTRICAL SHOCK RISK OF BURNS Exercise extreme caution when using Budderfly devices to control appliances. To avoid the risk of Fire, Electrical Shock, Burns or other hazards we recommend the following: • Install the Budderfly devices indoor only. • Never use the Budderfly devices to control medical and/or life support equipment. • Do not use the Budderfly devices to control electric heaters or any other appliances which may present a hazardous condition due to unattended or unintentional power on control. • Never use the Budderfly devices with loads that exceed the maximum rating specified. WARNING –ELECTRICAL SHOCK HAZARD • Turn OFF the power to the branch circuit for the device and lighting fixture at the service panel. • All wiring connections must be made with the POWER OFF to avoid personal injury and/or damage to the device. 1. At the circuit breaker or fuse panel, disconnect the power for all of the circuits in the device junction box. 2. Double Check that the power is OFF to the device box before continuing by trying to turn on the controlled load using the wall switch. 3. Unscrew the cover of the junction box where the Budderfly Power Pack will be installed, and remove the existing power pack (in case you are replacing an existing Power Pack). 4. Follow the Wiring information provided below to connect the wires as follows: o Connect the LOAD wire (usually Black) that goes to the light to the LOAD wire of Budderfly Power Pack (Red). o Connect the LINE wire (usually Black) that comes from the electrical service panel to the HOT wire of Budderfly Power Pack (Black). o Connect the NEUTRAL wire (usually White) to the Neutral wire of Budderfly Power Pack(White). o In order to test the Budderfly Power Pack, with no occupancy sensors connected, connect the 24VDC (Red) low‐ voltage output to the CONTROL wire of the Budderfly Power Pack (Blue). The lights should turn ON. Disconnect the wires, and the lights should turn OFF after 15 seconds. o Connect the POWER INPUT wire of the occupancy sensor (usually Red) to either the 12VDC (Yellow) or the 24VDC (Red) low‐voltage output of the Budderfly Power Pack; in correspondence with the ratings of the installed occupancy sensor. o In case one of the low‐voltage wires is not used (12VDC or 24VDC wire), make sure that the copper (of the unconnected wire) is not exposed by covering it with a screw nut. o Connect the COMMON wire (usually Black) of the occupancy sensor to the COMMON wire of the Budderfly Power Pack (Black) o Connect the Occupancy State (Control)wire of the occupancy sensor (usually White/Grey) to the CONTROL wire of the Budderfly Power Pack (Blue) 5. After you have connected all of the wires, ensure that all of the wire connectors are firmly attached and that there is no exposed copper. 6. Mount the Budderfly Power Pack to the knockout hole inside the junction box, and reinstall the cover. 7. Enable power to the Budderfly Power Pack from the circuit breaker or fuse panel. 8. After the Power LED comes on, you can test the Budderfly Power Pack if it is working properly with the sensor, by making interrupted movements in the area covered by the sensor; the lights should turn and stay ON (as long as there is a movement detected in the area) and turn OFF (after 15 seconds without any detecting any movement). 9. Add the device address to the Budderfly web application. 10. Wiring designations: Signal Type Color Gauge Line Voltage Wires Line White 12AWG Neutral Black 12AWG Load Red 12AWG Low Voltage Wires 24VDC (Power) Red 16AWG 12VDC (Power) Yellow 16AWG Control Blue 16AWG Common Black 16AWG Wiring Information • Important: Budderfly devices are rated for and intended to only be used wi…

Text truncated - open the document above for the full version.

Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com April 17, 2013 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Budderfly LLC (FRN# 0022045272) 2 Trap Falls Road, Suite 507 Shelton, CT 06484 for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Budderfly product: Power Pack under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Budderfly nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Budderfly will notify the Federal Communications Commission if, at any time, the situation changes causing Budderfly to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 714-921-1210. Sincerely, Daniel Riscalla Vice-President Engineering, Budderfly (714)921-1210

Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com April 17, 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Budderfly, would like to declare that the application being submitted for the Power Pack with FCC ID: QCVC0021031 has not been submitted to another TCB or FCC for certification. If you have any further questions or need additional information, please feel free to give me a call at 714-921-1210. Sincerely, Daniel Riscalla Vice-President of Engineering (714)921-1210

February 06, 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, Budderfly LLC, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at (714)921-1210 or at (203)513-8634. Sincerely, Sincerely, Daniel Riscalla Vice-President of Engineering Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com

12345678 12345678 A B C D E F A B C D E F ANY DISCREPANCIES BETWEEN THE DRAWING AND THE ASSOCIATED MODEL WHEN SUPPLIED TO BE DISCUSSED WITH BNUDDERFLY DENOTES UL QUALITY CHECK U L - 40 76 A3 BUDDERFLY 1 OF 1 SHEET NO: THE INFORMATION DISCLOSED IN THIS DOCUMENT IS PROPRIETARY TO BUDDERFLY AND MAY NOT BE USED FOR MANUFACTURE OR ANY OTHER PURPOSE WITHOUT THE WRITTEN CONSENT OF BUDDERFLY. NA HPGL FILE NAME: NA ALL RIGHTS RESERVED CAD FILE NAME: Power Pack Label Location NA DWG NO: NADWG REPL:TITLE: SURFACE AREA:MASS: FREE TOLERANCE NASURFACE FINISH: NAMATL DESCP:APVD BY: NATOOL SERNO:NAMATL NO:CHK BY: DIMENSIONS ARE IN mm INCLUDING FINISH A.Olleik 13-May-13DWN BY: SCALE:NAMEDATE A.Olleik13-May-13DRAWING ISSUED00ANA DOC NAMEDATESPRTAMENDMENTSIDXZONE RECESSED RECTANGLE FOR LABEL ATTACHMENT FCC ID: QCVC0021031 FOR INDOOR USE ONLYVERSION 1.41 Part No C0021031 Power Pack Rated: www.budderfly.com Made in China 27 Nov 2012 - 120V, 60 Hz: 20A Standard Ballast,16A Electronic Ballast, 20FLA,120LRA HP. - 240V, 60Hz: 5000W Tungsten, 20FLA, 120LRA HP. - 277V, 60Hz: 20A Standard Ballast, 16A Electronic Ballast, 14FLA, 84LRA HP. Patent No.: US 8,140,279 US 8,396,608 Dual Band

Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com September 05, 2013 CETCB 114 Olinda Drive Brea, CA 92823 Subject: SAR TEST EXCLUSION Gentlemen: The Budderfly Power Pack, FCC ID: QCVC0021031, is excluded from SAR testing by the following justification. The maximum power that the transmitter IC is capable of is 5.01 mW. By using the following formula from section 4.3.1 of KDB 447498: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Using the maximum conducted power capable (7.0 dBm) and the minimum test separation (5 mm), the resulting calculated SAR value is: (5.01 mW)/5 mm) * (√0.915 GHz) = 0.958 This value is below the exclusion threshold for both the 1-g SAR and 10-g extremity SAR requirements. If you have any further questions or need additional information, please feel free to give me a call at 714-921-1210. Sincerely, Daniel Riscalla Vice-President of Engineering (714)921-1210

Report Number: D30509R1 FCC ID: QCVC0021031 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 1 of 17 FCC PART 15, SUBPART B & SUBPART C TEST REPORT For POWER PACK Model: C0021031 Prepared for BUDDERFLY LLC 2 TRAP FALLS RD., SUITE 507 SHELTON, CT 06484 Prepared by: _____________________ MATT HARRISON Approved by: ____________________ JOSH HANSEN COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: MAY 9, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 15 21 59 This report shall not be reproduced, except in full, without the written approval of Compatible Electronics. Report Number: D30509R1 FCC ID: QCVC0021031 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Photograph of Test Configuration - EMI 8 4.1.2 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. CHARACTERISTICS OF THE TRANSMITTER 13 7.1 Channel Number and Frequencies 13 7.2 Antenna 13 8. TEST PROCEDURES 14 8.1 RF Emissions 14 8.1.1 Conducted Emissions Test 14 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 15 8.1.3 Fundamental Field Strength 16 8.1.4 Emissions Radiated Outside of the Fundamental Frequency Band 16 8.1.5 Voltage Fluctuations 16 8.1.6 Pulsed Operation Duty Cycle Correction 16 9. TEST PROCEDURE DEVIATIONS 17 10. CONCLUSIONS 17 Report Number: D30509R1 FCC ID: QCVC0021031 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts and Photos  Test Setup Diagrams  Antenna and Amplifier Gain Factors  Radiated and Conducted Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site below 1 GHz 3 Plot Map & layout of test site Above 1 GHz Report Number: D30509R1 FCC ID: QCVC0021031 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form except in full, without the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Power Pack Model: C0021031 S/N: None Product Description: The EUT is an in-line power pack that is capable of sensing the current/voltage on the Power Line. This device also supports both power-line and RF communication using the INSTEON Protocol Modifications: The EUT was not modified during testing. Manufacturer: Budderfly LLC 2 Trap Falls Road, Suite 507 Shelton, CT 06484 Test Date: May 09, September 25, 2013 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart B sections 15.107 and 15.109, Subpart C Sections 15.205, 15.207, 15.209 and 15.249 Test Procedures: ANSI C63.4 and ANSI C63.10 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz. Complies with the limits of CFR Title 47 Part 15 Subpart B Section 15.107, Subpart C Section 15.207 2 Radiated RF Emissions & Harmonics, 9 kHz – 10,000 MHz. Complies with the limits of CFR Title 47 Part 15 Subpart B Section 15.109 and Subpart C Section 15.205, 15.209 3 Fundamental Field Strength Complies with CFR Title 47 Part 15 Subpart C Section 15.249(a) 4 Emissions Radiated Outside of the Fundamental Frequency Band Complies with CFR Title 47 Part 15 Subpart C Section 15.249(d) 5 Voltage Variation Complies with CFR Title 47 Part 15 Subpart C Section 15.31(e) Report Number: D30509R1 FCC ID: QCVC0021031 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Power Pack Model: C0021031. The EMI measurements were performed according to the measurement procedure described in ANSI C63.10 and ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT (equipment under test) hereafter, are within the specification limits defined by the Code of Federal Regulations Title 47, Part 15 Subpart B 15.107 and 15.109, Subpart C sections 15.205, 15.207, 15.209 and 15.249. The power line carrier emissions tests were not performed by Compatible Electronics. Report Number: D30509R1 FCC ID: QCVC0021031 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) …

Text truncated - open the document above for the full version.
