QCVM0021501Power Meter

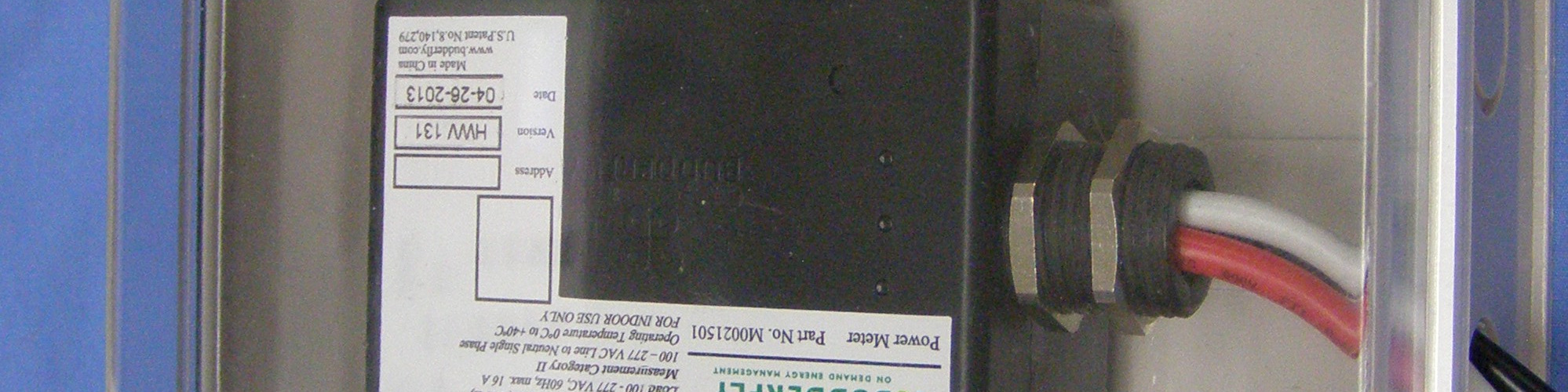

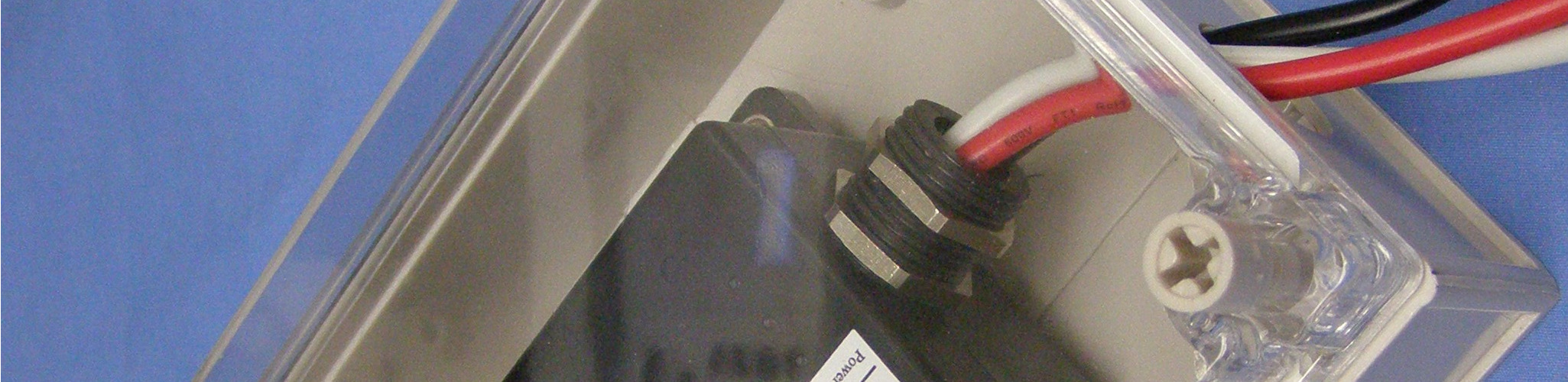

POWER METER M0021501 Description: Installing a Budderfly adapter transforms your building’s existing wiring into the “Budderfly Open Network” and allows the adapter to monitor energy consumption and communicate the data to a facility controller. Budderfly adaptors will use the existing power line for communication and thus require no re‐wiring. Using our Budderfly software, you can visualize consumption data and manage each individual adapter. The Budderfly Power Meter is a component of the Budderfly system and designed to work with all other Budderfly devices. Once installed, the Budderfly Power Meter also acts as repeaters to extend the range of the network and increase efficiency. Warning RISK OF FIRE RISK OF ELECTRICAL SHOCK RISK OF BURNS To avoid the risk of Fire, Electrical Shock, Burns or other hazards we recommend the following: • Use Budderfly Power Meter indoor only. • Never connect the Budderfly Power Meter to medical and/or life support equipment. • Do Not use the Budderfly Power Meter where excessive moisture is present or near Water related Applications • Never use the Budderfly Power Meter with loads that exceed the maximum rating specified. Features: ‐ Measures up to 16A load on the connected branch circuit. ‐ Low power consumption. ‐ 1% accuracy over full measurement range. ‐ Measurement Category II ‐ LED indicators to show the current consumption of the connected branch. Power consumption: Budderfly Power Meter will measure the current, the voltage and the power consumed by the connected branch circuit. The data can be accessed at any time through the Budderfly software. The user can generate reports, monitor the consumption or check expenses. LED Indicators: The Budderfly Power Meters are equipped with a three LED’s that indicate current consumption of the connected branch. The table below explains the LED indications: LED Color State 1 Green LED lit Measured current is less than 10A 2 Green LED’s lit Measured current is between 10A and 15A 3 Green LED’s lit Measured current is higher than 15A Reset: If the device stops responding, it can be restarted by pushing the Reset Button. A non‐metallic pin should be used to push the reset button. None of the stored parameters are affected. Monitoring No Neutral switches: ‐ Budderfly power meter must be connected to any branch including Budderfly no neutral switches ‐ The power meter monitors the branch and reports all changes in power to the facility controller to calculate the energy consumption of every no neutral switch. Installation: 1‐ Budderfly Power meter cannot be located inside the panel board. 2‐ Budderfly Power meter require a switch or circuit breaker as part of the building installation. 3‐ An equipment switch or circuit breaker employed as disconnecting device shall meet the relevant requirements of IEC 60947‐1 and IEC 60947‐3 and be suitable for the application 4‐ A switch or circuit breaker shall not interrupt any protective earth conductor. 5‐ It is recommended that the Power Meter be mounted near the disconnecting device. 6‐ If a suitable mounting location near the load center cannot be found, additional in line fuses or circuit breaker may be required in accordance with NEC regulations. 7‐ The switch or circuit breaker must be marked as the disconnecting device for the respective Budderfly Power Meter, additionally I and O labels to be used to identify connecting and disconnecting positions. 8‐ Locate the Circuit Breaker of the branch circuit to be monitored, apply the identification and ON/OFF ( I/O) Labels and set it to the “OFF” position, and identify the wire that is leaving this breaker. WARNING –ELECTRICAL SHOCK HAZARD • Use only the plastic (non‐metallic) pin to press the reset button. • Never use a metallic pin to press the reset button. 9‐ Turn OFF the Power Supply to the electrical panel by locating the “Service Disconnect” or “Main” circuit breaker in the electrical panel and set it to the “OFF” position. 10‐ Test the panel for power, by using a tester or meter set to the highest AC voltage range, and check for the presence of power by touching one probe to the Hot terminals of the branch circuit breakers. 11‐ Select #8 or #10 pan head screws suitable for the surface where the power meter will be mounted 12‐ Fasten the enclosure to the selected surface via the 4 mounting holes (refer to figure below). 13‐ Budderfly Power Meter has 4 pre‐defined ½ inch conduit knockouts. Open the knockout were needed and fix the conduit using a suitable conduit hub. 14‐ Verify that the enclosure is not loose and that all connections are secure. 15‐ Make sure the conduit fittings are aligned properly and tightened securely. 16‐ Connect the Budderfly Power Meter in series with the Circuit Breaker of the branch circuit according to the below steps: a. Connect the LINE wire (black) of the Power Meter to the LINE wire that is leaving the circuit breaker. b. Connect the LOAD wire (red) of the Power Meter to the LINE wire that is feeding the branch circuit. c. Connect the NEUTRAL (white) of the Power Meter to the NEUTRAL wire of the electrical panel. d. Ensure that all the wire connectors are firmly attached and that there is no exposed copper inside the box. 17 ‐ Install the cover of the power meter box 18‐ Restore the power to the electrical panel by setting the circuit breaker mentioned above and the “Main” circuit breaker to “ON”, and check for correct operation of the branch circuit (lights, outlets, etc.). Communication: The Budderfly Power Meter uses the power line and radio frequency to communicate with the “Facility Controller”. This Meter can reply to the following commands: • Join/Disjoin group “X”: The Budderfly Power Meter will Join/Disjoin the group “X”. Each Meter can be member of several groups at the same time. • Direct RTC synchronization: The Budderfly Power Meter can receive a command to synchronize its “Real Time Clock” • Get Actual Measurement: When the Budderfly Power Meter receives a “Get Measureme…

Text truncated - open the document above for the full version.

Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com April 26, 2013 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Budderfly LLC (FRN# 0022045272) 2 Trap Falls Road, Suite 507 Shelton, CT 06484 for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Budderfly product: Power Meter under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Budderfly nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Budderfly will notify the Federal Communications Commission if, at any time, the situation changes causing Budderfly to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 714-921-1210. Sincerely, Daniel Riscalla Vice-President Engineering, Budderfly (714)921-1210

Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com April 26, 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Budderfly, would like to declare that the application being submitted for the Power Meter with FCC ID: QCVM0021501 has not been submitted to another TCB or FCC for certification. If you have any further questions or need additional information, please feel free to give me a call at 714-921-1210. Sincerely, Daniel Riscalla Vice-President of Engineering (714)921-1210

February 06, 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, Budderfly LLC, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at (714)921-1210 or at (203)513-8634. Sincerely, Sincerely, Daniel Riscalla Vice-President of Engineering Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com

12345678 12345678 A B C D E F A B C D E F ANY DISCREPANCIES BETWEEN THE DRAWING AND THE ASSOCIATED MODEL WHEN SUPPLIED TO BE DISCUSSED WITH BNUDDERFLY DENOTES UL QUALITY CHECK U L - 34 13 27 6.21 A3 BUDDERFLY 1 OF 1 SHEET NO: THE INFORMATION DISCLOSED IN THIS DOCUMENT IS PROPRIETARY TO BUDDERFLY AND MAY NOT BE USED FOR MANUFACTURE OR ANY OTHER PURPOSE WITHOUT THE WRITTEN CONSENT OF BUDDERFLY. HPGL FILE NAME: ALL RIGHTS RESERVED CAD FILE NAME: DWG NO: DWG REPL:TITLE: SURFACE AREA:MASS: FREE TOLERANCE SURFACE FINISH: MATL DESCP:APVD BY: TOOL SERNO:MATL NO:CHK BY: DIMENSIONS ARE IN mm INCLUDING FINISH 18-Sep-13DWN BY: SCALE:NAMEDATE DOC NAMEDATESPRTAMENDMENTSIDXZONE Power Meter Part No. M0021501 FCC ID: QCVM0021501 12345678 12345678 A B C D E F A B C D E F ANY DISCREPANCIES BETWEEN THE DRAWING AND THE ASSOCIATED MODEL WHEN SUPPLIED TO BE DISCUSSED WITH BNUDDERFLY DENOTES UL QUALITY CHECK U L - DENOTES CHECKING CHARACTERISTIC 60.25 41 60.25 41 5 33.38 A3 BUDDERFLY 1 OF 1 SHEET NO: THE INFORMATION DISCLOSED IN THIS DOCUMENT IS PROPRIETARY TO BUDDERFLY AND MAY NOT BE USED FOR MANUFACTURE OR ANY OTHER PURPOSE WITHOUT THE WRITTEN CONSENT OF BUDDERFLY. HPGL FILE NAME: ALL RIGHTS RESERVED CAD FILE NAME: Power Meter Label Location NA DWG NO: NADWG REPL:TITLE: NASURFACE AREA:MASS: FREE TOLERANCE NASURFACE FINISH: NAMATL DESCP:APVD BY: NATOOL SERNO:NAMATL NO:CHK BY: DIMENSIONS ARE IN mm INCLUDING FINISH 1:1A.Olleik13-May-13DWN BY: SCALE:NAMEDATE A.Olleik13-May-13NADRAWING ISSUEDNANA DOC NAMEDATESPRTAMENDMENTSIDXZONE SCALE 0.500 Patent No.: US 8,140,279 US 8,396,608 www.budderfly.com Made in China - Input 100-277VAC,60Hz,80mA(CAT II) - Load 100-277VAC, 60Hz, max. 16A - Measurement Category II 100-277VAC Line to Neutral Single Phase - Operating Temperature 0C to +40ºC Power Meter Part No. M0021501 FOR INDOOR USE ONLY Address Version Date FCC ID: QCVM0021501 (APPLIANCE CONTROL) 4NE7 Dual Band Patent No.: US 8,140,279 US 8,396,608 Power Meter Part No. M0021501 FOR INDOOR USE ONLY Address Version Date (WATT-HOUR METER) E360610 Dual Band Made in China www.budderfly.com - Input 100-277VAC, 60Hz, 80mA (CAT II) - Load 100-277VAC, 60Hz, max. 16A - Measurement Category II 100-277VAC Line to Neutral Single Phase - Operating Temperature 0°C to +40ºC CAUTION - Nonmetallic enclosure does not provide grounding between conduit connections, use grounding bushings and jumper wires.

Budderfly LLC 2 Trap Falls Rd., Suite 507 Shelton, CT 06484 203-513-8634 www.Budderfly.com September 05, 2013 CETCB 114 Olinda Drive Brea, CA 92823 Subject: SAR TEST EXCLUSION Gentlemen: The Budderfly Power Meter, FCC ID: QCVM0021501, is excluded from SAR testing by the following justification. The maximum power that the transmitter IC is capable of is 5.01 mW. By using the following formula from section 4.3.1 of KDB 447498: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Using the maximum conducted power capable (7.0 dBm) and the minimum test separation (5 mm), the resulting calculated SAR value is: (5.01 mW)/5 mm) * (√0.915 GHz) = 0.958 This value is below the exclusion threshold for both the 1-g SAR and 10-g extremity SAR requirements. If you have any further questions or need additional information, please feel free to give me a call at 714-921-1210. Sincerely, Daniel Riscalla Vice-President of Engineering (714)921-1210

Report Number: D30515R2 FCC ID: QCVM0021501 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 1 of 17 FCC PART 15, SUBPART B & SUBPART C SECTION 15.249 TEST REPORT For POWER METER Model: M0021501 Prepared for BUDDERFLY LLC 2 TRAP FALLS RD., SUITE 507 SHELTON, CT 06484 Prepared by: _____________________ MATT HARRISON Approved by: ____________________ JOSH HANSEN COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: MAY 15, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 15 22 60 This report shall not be reproduced, except in full, without the written approval of Compatible Electronics. Report Number: D30515R2 FCC ID: QCVM0021501 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Photograph of Test Configuration - EMI 8 4.1.2 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. CHARACTERISTICS OF THE TRANSMITTER 13 7.1 Channel Number and Frequencies 13 7.2 Antenna 13 8. TEST PROCEDURES 14 8.1 RF Emissions 14 8.1.1 Conducted Emissions Test 14 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 15 8.1.3 Fundamental Field Strength 16 8.1.4 Emissions Radiated Outside of the Fundamental Frequency Band 16 8.1.5 Voltage Fluctuations 16 8.1.6 Pulsed Operation Duty Cycle Correction 16 9. TEST PROCEDURE DEVIATIONS 17 10. CONCLUSIONS 17 Report Number: D30515R2 FCC ID: QCVM0021501 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts and Photos  Test Setup Diagrams  Antenna and Amplifier Gain Factors  Radiated and Conducted Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site below 1 GHz 3 Plot Map & layout of test site Above 1 GHz Report Number: D30515R2 FCC ID: QCVM0021501 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form except in full, without the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Power Meter Model: M0021501 S/N: None Product Description: The EUT is an adapter that is capable of sensing the current/voltage on the Power Line. This device also supports both power-line and RF communication using the INSTEON Protocol Modifications: The EUT was not modified during testing. Manufacturer: Budderfly LLC 2 Trap Falls Road, Suite 507 Shelton, CT 06484 Test Date: May 11 & 15, September 25, 2013 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart B sections 15.107 and 15.109, Subpart C Sections 15.205, 15.207, 15.209 and 15.249 Test Procedures: ANSI C63.4 and ANSI C63.10 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz. Complies with the limits of CFR Title 47 Part 15 Subpart B Section 15.107, Subpart C Section 15.207 2 Radiated RF Emissions & Harmonics, 9 kHz – 10GHz. Complies with the limits of CFR Title 47 Part 15 Subpart B Section 15.109 and Subpart C Section 15.205, 15.209 3 Fundamental Field Strength Complies with CFR Title 47 Part 15 Subpart C Section 15.249(a) 4 Emissions Radiated Outside of the Fundamental Frequency Band Complies with CFR Title 47 Part 15 Subpart C Section 15.249(d) 5 Voltage Variation Complies with CFR Title 47 Part 15 Subpart C Section 15.31(e) Report Number: D30515R2 FCC ID: QCVM0021501 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX: (949) 587-0476 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Power Meter Model: M0021501. The EMI measurements were performed according to the measurement procedure described in ANSI C63.10 and ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT (equipment under test) hereafter, are within the specification limits defined by the Code of Federal Regulations Title 47, Part 15 Subpart B 15.107 and 15.109, Subpart C sections 15.205, 15.207, 15.209 and 15.249. The power line carrier emissions tests were not performed by Compatible Electronics. Report Number: D30515R2 FCC ID: QCVM0021501 FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630  PH: (949) 587-0400 FX…
