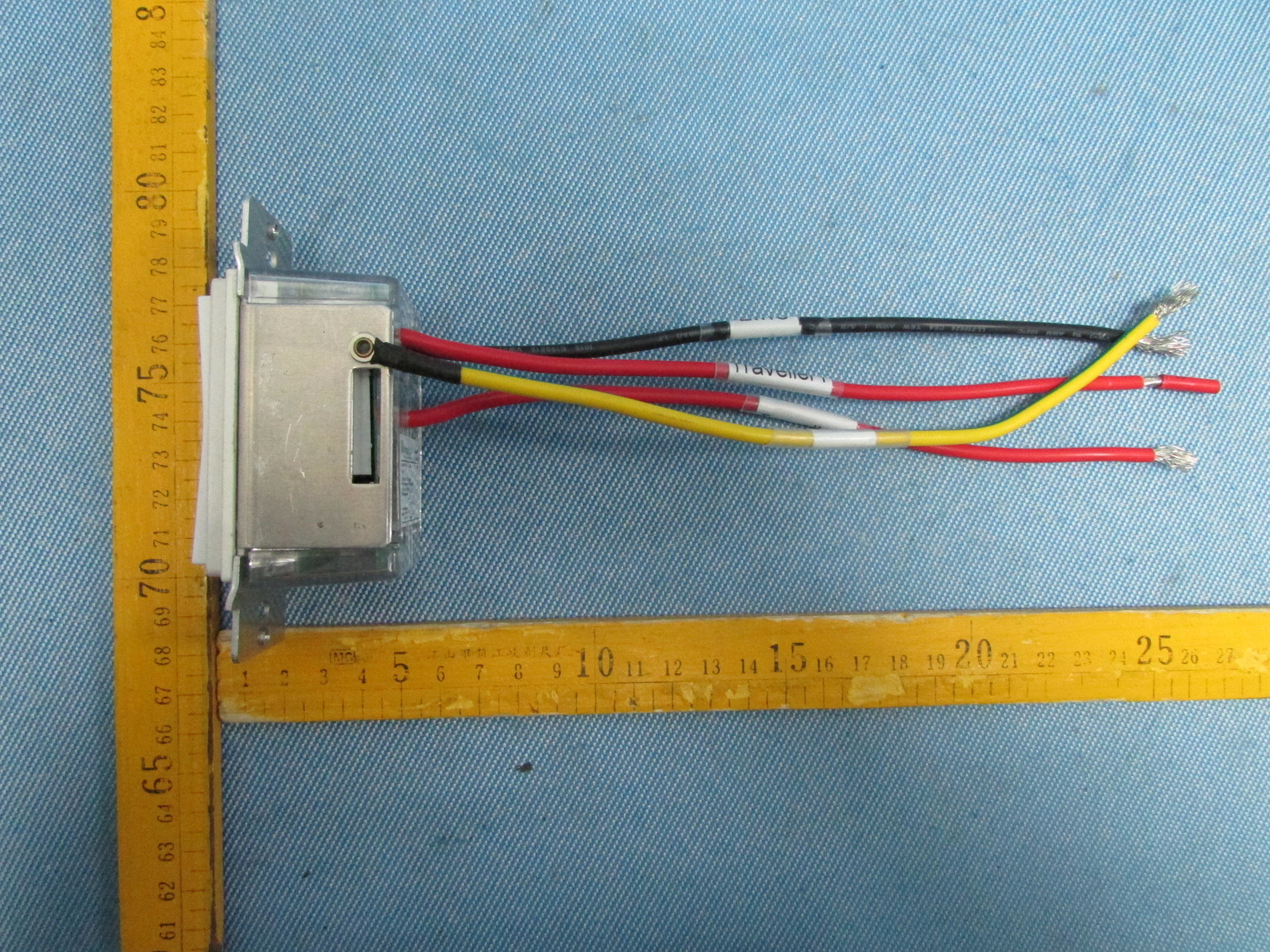

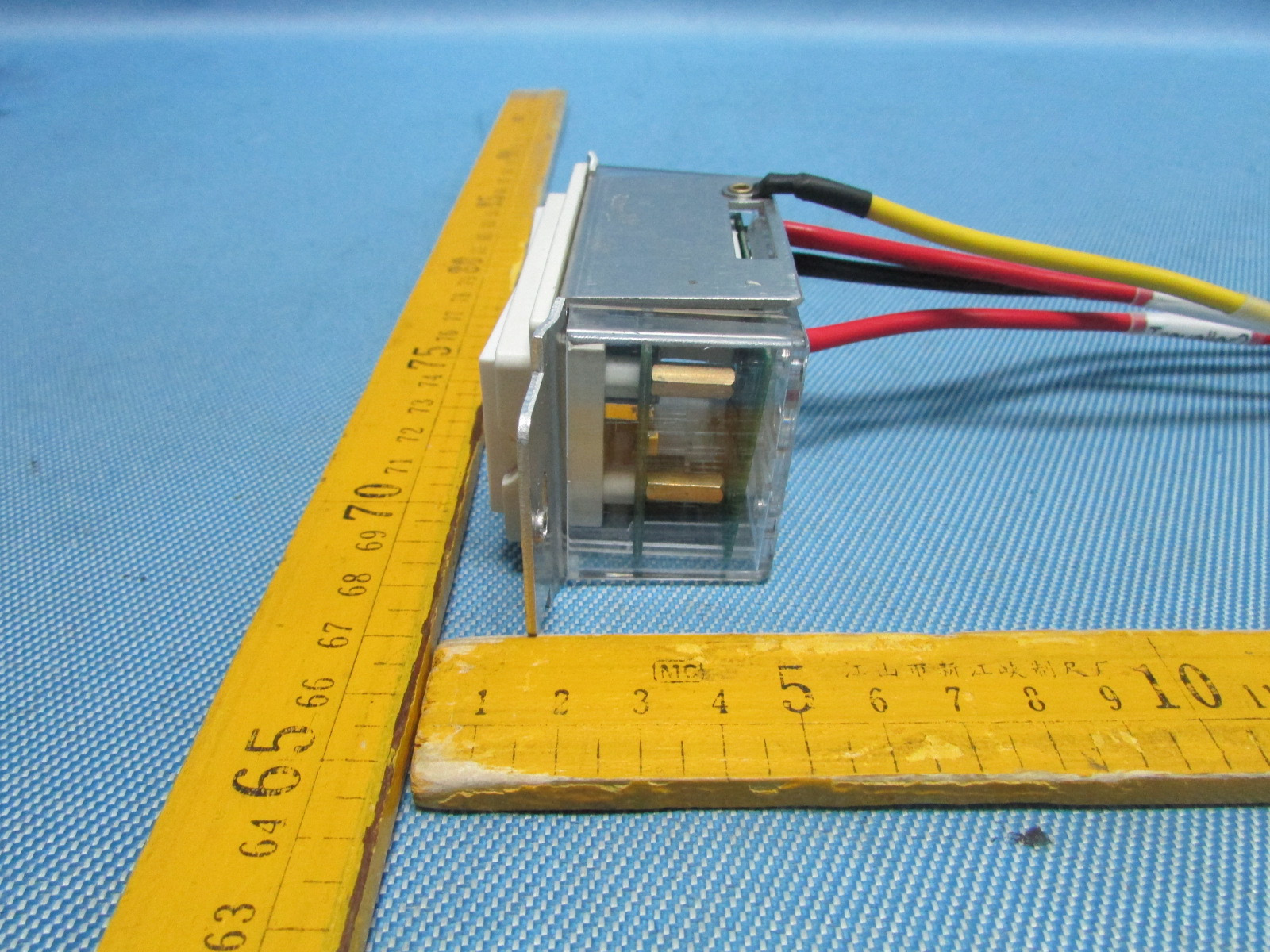

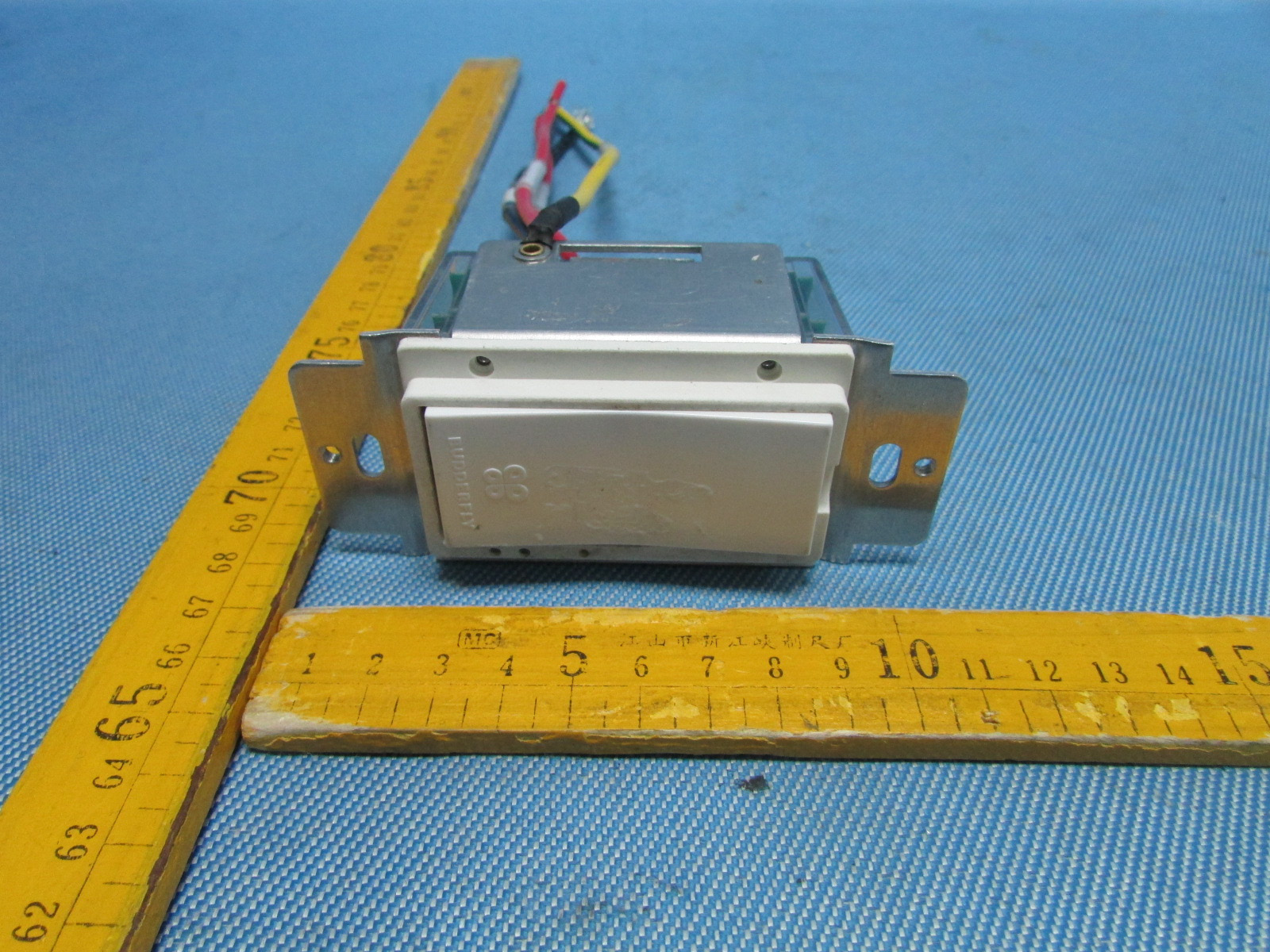

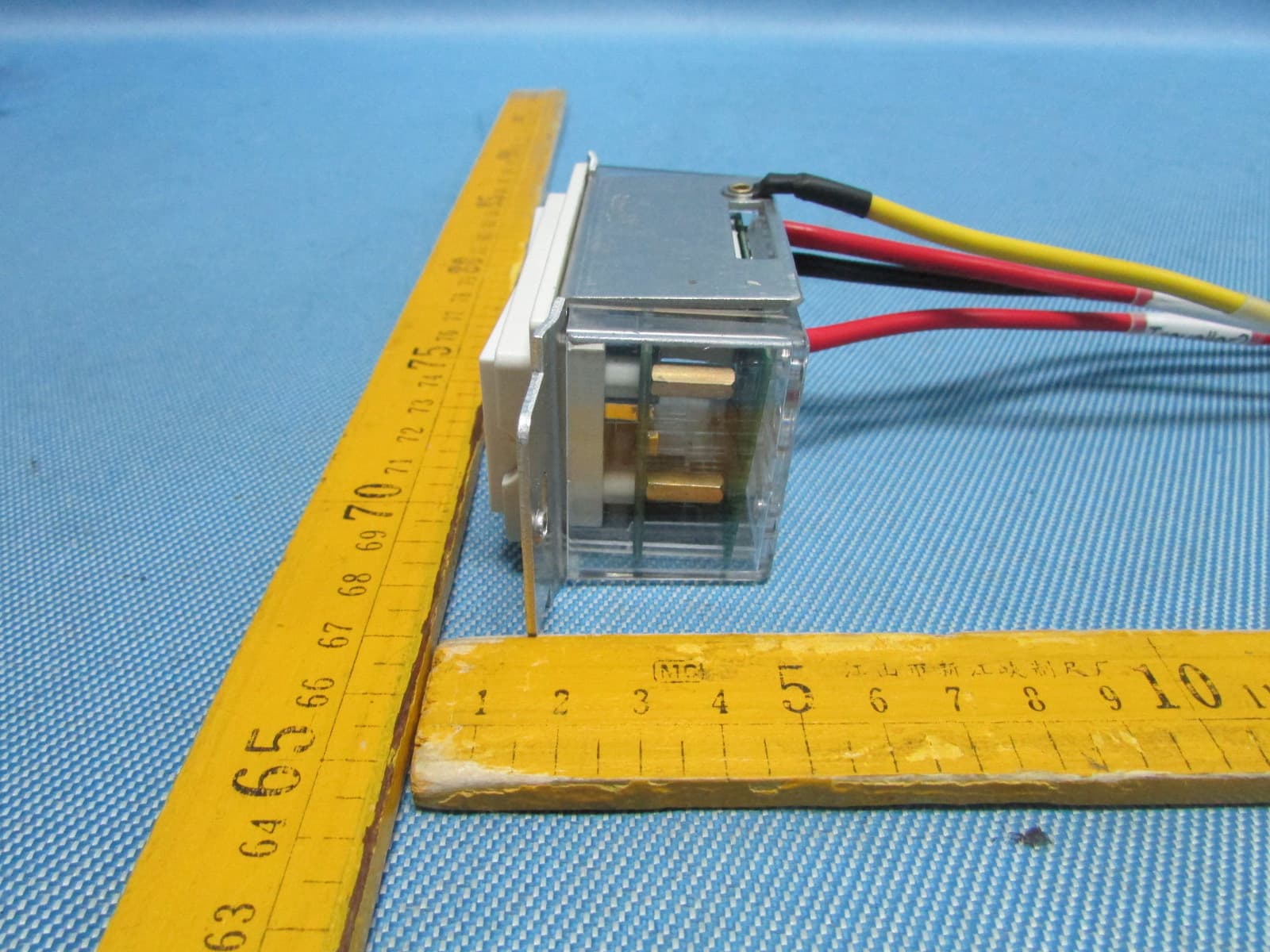

QCVS0911011BUDDERFLY RF MULTI-WAY SWITCH

Part No S0911011 Description: /ŶƐƚĂůůŝŶŐĂƵĚĚĞƌĨůLJĂĚĂƉƚĞƌƚƌĂŶƐĨŽƌŵƐLJŽƵƌďƵŝůĚŝŶŐ͛ƐĞdžŝƐƚŝŶŐǁŝƌŝŶŐŝŶƚŽƚŚĞ͞ƵĚĚĞƌĨůLJKƉĞŶEĞƚǁŽƌŬ͟ĂŶĚĂůůŽǁƐƚŚĞĂĚapter to monitor energy consumption and communicate the data to a facility controller. The Budderfly RF Multi-Way Switch presents a battery powered solution to replace installed light switches that lack the presence of a neutral, for operation it will use the RF to communicate withthe installed the plug and play Budderfly RF outletthat uses the power line communication and thus require no re-wiring. The RF Multi-Way Switch requires to be installed within a range of 8 meters of Budderfly RF outlet. The Budderfly RF Multi-Way Switch is designed with battery saving features to prolong the battery life. The Budderfly RF Multi-Way Switch is a component of the Budderfly system and designed to work with all other Budderfly devices. It is a plug-and-play replacement for your existing light switch. NOTE: For remote control applications using the Budderfly software, the Budderfly RF Multi-Way Switch must be installed within a distance of 30 Feet from a nearby Budderfly RF outlet. This device is designed for use only with permanently installed fixtures. WARNING ʹELECTRICAL SHOCK HAZARD x The Budderfly RF Multi-Way Switch is intended for installation in accordance with the National Electric Code and local regulations in the United States. x If you are not knowledgeable or comfortable with electrical circuitry, you should have a qualified electrician to install the Budderfly Switch for you. Installation: The Budderfly RF Multi-Way Switch may be used in new installations or to replace an existing wall switch. It could be used either as a 2-way switch, or as a 3-way switch. The wiring steps for both configurations are explained in the following diagrams: 2-Way Configuration: AC BUDDERFLY Multi-Way Switch HOT (Usually Black) LIGHTING LOAD GROUND (Green/Yellow) HOT (Black) Traveler 2 (Blue) Traveler 1 (Red) NEUTRAL (Usually White) Legend: Wiring Nuts Not Connected Warning RISK OF FIRE RISK OF ELECTRICAL SHOCK RISK OF BURNS Exercise extreme caution when using Budderfly switching devices to control appliances. To avoid the risk of Fire, Electrical Shock, Burns or other hazards we recommend the following: x Install the Budderfly switches indoor only. x Never use the Budderfly switches to control medical and/or life support equipment. x Do not use the Budderfly switches to control electric heaters or any other appliances which may present a hazardous condition due to unattended or unintentional power on control. x Never use the Budderfly switches with loads that exceed the maximum rating specified. WARNING ʹELECTRICAL SHOCK HAZARD x Turn OFF the power to the branch circuit for the switch and lighting fixture at the service panel. x All wiring connections must be made with the POWER OFF to avoid personal injury and/or damage to the switch. 3-Way Configuration: AC BUDDERFLY Multi-Way Switch HOT (Usually Black) LIGHTING LOAD GROUND (Green/Yellow) HOT (Black) Traveler 2 (Blue) Traveler 1 (Red) NEUTRAL (Usually White) Legend: Wiring Nuts Standard Multi-Way Switch LOAD (Usually Black) Traveler 2 (Usually Blue) Traveler 1 (Usually Red) 1. Before installing the Budderfly RF Multi-Way Switch, make sure that a Budderfly RF plug will be installed within a distance of 30 Feet. 2. At the circuit breaker or fuse panel, disconnect the power for all of the circuits in the switch junction box. 3. Double check that the power is OFF to the switch box before continuing by trying to turn on the controlled load. 4. Remove the wall plate from the switch you are replacing. Then, unscrew the switch itself and pull it out from the junction box. 5. Disconnect the wires from the switch you are replacing. 6. Follow the wiring information provided below to connect the wires as follows: x Connect the GROUND wire (usually Bare Copper or Green) to the Ground wire of Budderfly Switch (Yellow & Green). x 2-Way configuration: o Connect the LOAD wire (usually Black) that goes to the light to the Traveler#1 (Red) wire of Budderfly Switch. x 3-Way configuration: o Connect the Traveler#1 (Usually Red) and Traveler#2 (Usually Blue) wires of the Standard Multi-Way Switch to the Traveler#1 (Red) and Traveler#2 (Blue) wires of Budderfly Switch respectively. o Connect the LOAD wire (usually Black) that goes to the light to the LOAD wire (usually Black) of the Standard Multi-Way Switch. x Connect the LINE wire (usually Black) that comes from the electrical service panel to the HOT wire of Budderfly Switch (Black). x Connect the NEUTRAL wire (usually White) to the Neutral wire of Budderfly Switch (White). 7. After you have connected all of the wires, ensure that all of the wire connectors are firmly attached and that there is no exposed copper except for the GROUND wire. 8. Gently place Budderfly Switch into the junction box, orienting the unit with the LED bar on the left. Then, screw the switch into place. Wiring Information x Important: Budderfly Switch is rated for and intended to only be used with copper wire. x Use 12 AWG or larger wires suitable for 80 o. x Remove 3/4" (1.9 cm) of insulation from each wire. x Connect as follows: Twist strands of each end tightly together. Hold bare ends of wires together and push firmly into wire Nut. Screw Nut clockwise making sure that no bare conductor shows below the connector. 9. Place the batteries in the battery compartment as shown in the following three steps: a. Remove the rocker b. Insert the batteries as shown in the picture c. Put the rocker back on 10. Reinstall the wall plate 11. Enable power to the switch from the circuit breaker or fuse panel 12. After the Enabling the power wait for 1 min, the Statues LED will turn ON for 10 seconds then is turned OFF indicating that a connection with RF plug was established 13. Add the device address to the Budderfly web application. ͞WŽǁĞƌƵƚ-KĨĨ͟ŵŽĚĞ͗ - The Budderfly switches have the ability to comple…
