QFENTP-63092.4 GHz Cordless Phone

OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. 40 CHANNEL AUTOSCAN 2.4GHz CORDLESS CALLER ID TELEPHONE WITH CALL WAITING NTP-6309 NEWCONTNEWCONT NEWCONTNEWCONT NEWCONTNEWCONT NEWCONT 2.4GHz Made in China 2002.8 ongratulations on your selection of a quality NEWCONT product. With proper care and by following the setup and user instructions in this manual, this unit will provide you with years of trouble free service. NEWCONT is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product . You may mail your comments to: 40 Floor, Block C, Electronics science &Technology Bldg, Shennanzhonglu, Shenzhen , P.R.C 518031 website: www. newcont. com Special Features C When examining your new NEWCONT cordless telephone, you will find an array of special features including: Filtered Sound System - Receives considerably less noise than conventional cordless telephones because of a special circuit which delivers the clearest possible reception. 40 Channel Auto Scan - Press the /SCAN button on the HANDSET to find and lock on to the clearest channel for any call. TONE or PULSE Dialing - Use this phone for either TONE or push-button PULSE(rotary ) dialing . Automated Functions - Redial the last number called and automatic STANDBY mode. Security - Ensures greater privacy because a built-in security code with 65,536 combinati- ons prevents use of your telephone line by another nearby cordless phone. Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger The battery low warning tone tells you when the BATTERY PACK needs recharging (See page 26) Special Services - Use the / FLASH button to access special services such as Call Waiting supplied by your telephone company or company switchboard . STANDBY Mode - When in STANDBY mode (ON-HOOK),the telephones is capable of receiving a call. When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode ( ON-HOOK).When the HANDSET is taken off the BASE UNIT, it remains in the STANDBY mode until you activate the button. Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximum of three days without the need for recharging. Length of charge depends on frequency of use. A DEL Notes IMPORTANT In order to get maximum life from the HANDSET battery pack, be sure to charge the HANDSET for 12 hours before initial use. IMPORTANT PlacingyourBASEUNITnearappliances such astelevisions,refrigerators,radios,or microwave ovensmaycauseinterference. IMPORTANT IMPORTANT The AC ADAPTOR must always be plugged into an electrical outlet. IMPORTANT Toobtainthebestreception,besureto aise r theBASEUNITANTENNA. IMPORTANT Ifyou live inanarea whichgets frequent thunderstorms,westronglyrecommendplugging yourACADAPTORintoasurgeprotector. 30 Whenyouhearinterference,pressthe buttontochargetheoperatingchannel. /SCAN DEL Special Features Luminous LCD Screen - The LCD Screen emits light for 8 seconds every time you press any of the TELEPHONE KEYPAD buttons. HANDSET Ringer Volume Level - Select the ringer volume level (HI, LOW, OFF). HANDSET Volume Control Switch - Select the receiver volume level(HI.MID,LOW). HEADSET JACK - Your telephone can utilize a headset for hands-free communication BELT CLIP- Use the BELT CLIP to hang your HANDSET on your belt. CALLER ID SYSTEM Multi-Function Large LCD Screen - Shows the number you are dialing and with Caller ID service (available through subscription from your local telephone company), displays information about the caller before you answer the call. Name and Number Directory - Stores up to 64 names and numbers so that you can call them with a single key stroke. Caller List - Available with Caller ID service .Stores up to 80 calls to keep track of every- one who called. The name, phone number ,time and date of the call are recorded. Allows you to return their calls with a single key stroke . Preferred Calls - You can mark the name and number of a welcome caller in the DIREC- TORY. When that number calls in, the caller's name will appear on the DISPLAY and a special ring sound will be heard. Blocked calls - You can mark the name and number of an unwelcome caller in the DIRE- CTORY When that number calls in, the caller's name will appear on the DISPLAY and the ringer will be disabled. Repeat Call Indicator - Shows if a new incoming call has called more than once. Out of Area Call Indicator - Advises you that the incoming call is not in a Caller ID service area. Call Waiting Service - Displays the name and number of the second caller, if you have subscribed for Call Waiting service from your local telephone company (see page 12). Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message service and requested Visual Message Indication from your local telephone company. (see page 12). B Technical Information This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties in using radio frequencies with a cordless telephone. While these are normal, the following could after operation of your system. Noise Electrical pulse noise is present in most homes at one time or another. This noise in most intense during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are a minor annoyance and should not be interpreted as a defect in your system. Range Because radio frequency is used, location of the BASE UNIT can affect operating range. Try several locations in your home or office and pick the one that gives you the clearest signal to the HANDSET. Interference Electronic circuits activate a relay to connect the cordless telephone to your telephone …

Text truncated - open the document above for the full version.

6309CFK2.sch-1 - Thu Jan 02 17:21:23 2003

6309CFK1.sch-1 - Thu Jan 02 17:26:37 2003

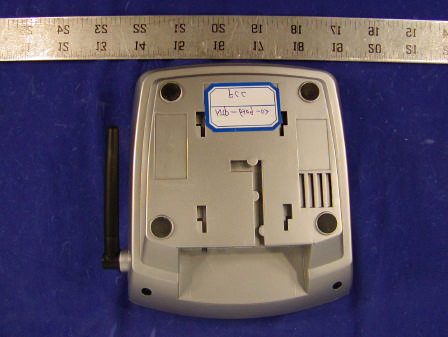

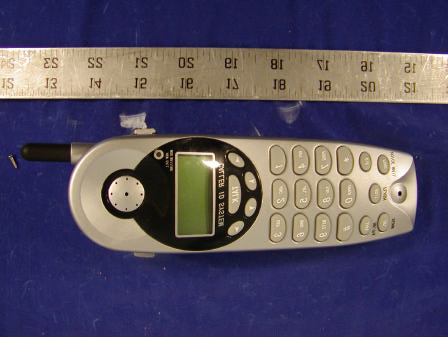

NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Base Top View Base Bottom View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Base Port View Handset Top View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Handset Bottom View Adapter View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of Base/Proposed FCC ID Label Location / Bottom Side of Handset FCC Warning Statement A FCC Warning Statement is provided in the product manual.

NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 APPENDIX C - EUT INTERNAL PHOTOGRAPHS Base Component View Base Solder View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Base Transceiver Component View Base Transceiver Solder View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Base Antenna View Handset Component View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Handset Solder View Handset Transceiver Component View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Handset Transceiver Solder View Handset Antenna View

Antenna Statement This device uses a permanently attached antenna which uses a unique coupling to the transceiver. No other antenna will be used with the device.

NEWCONT ELECTRONICS LTD ISSUED DATE :15-Jan-03 PRODUCTION SPECIFICATION MODEL: SZ6309D ISSUED NO.: 01 ISSUED BY : APPROVED BY: MEASUREMENT CONDITION: 1. Standard Voltage: Handset unit DC 3. 8 V +/- 0.1 V Base unit AC 110 V +/- 10% V DC 9V 300 mA 2. Temperature: 25 °C +/- 5 °C 3. Standard Modulation on SSG: Modulation Frequency 1.0 KHz Modulation Deviation (2404.00MHz) 6.0 KHz Modulation Deviation (2474.950Mhz) 6.0 KHz 4. Bell Signal Frequency: 25 Hz ( 70 VR.M. S.) MODEL : SZ6309D PD SPEC. ISSUE NO. : 01 PAGE 1 OF 5 NEWCONT ELECTRONICS LTD 5. Channels: CHANNEL HANDSET UNIT TX (MHz) BASE UNIT TX (MHz) REMARKS CH-1 2474.000 2403.050 CH-2 2474.050 2403.100 CH-3 2474.100 2403.150 CH-4 2474.150 2403.200 CH-5 2474.200 2403.250 CH-6 2474.250 2403.300 CH-7 2474.300 2403.350 CH-8 2474.350 2403.400 CH-9 2474.400 2403.450 CH-10 2474.450 2403.500 CH-11 2474.500 2403.550 CH-12 2474.550 2403.600 CH-13 2474.600 2403.650 CH-14 2474.650 2403.700 CH-15 2474.700 2403.750 CH-16 2474.750 2403.800 CH-17 2474.800 2403.850 CH-18 2474.850 2403.900 CH-19 2474.900 2403.950 CH-20 2474.950 2404.000 CH-21 2475.000 2404.050 CH-22 2475.050 2404.100 CH-23 2475.100 2404.150 CH-24 2475.150 2404.200 CH-25 2475.200 2404.250 CH-26 2475.250 2404.300 CH-27 2475.300 2404.350 CH-28 2475.350 2404.400 CH-29 2475.400 2404.450 CH-30 2475.450 2404.500 CH-31 2475.500 2404.550 CH-32 2475.550 2404.600 CH-33 2475.600 2404.650 CH-34 2475.650 2404.700 CH-35 2475.700 2404.750 CH-36 2475.750 2404.800 CH-37 2475.800 2404.850 CH-38 2475.850 2404.900 CH-39 2475.900 2404.950 CH-40 2475.950 2405.000 MODEL : SZ6309D PD SPEC. ISSUE NO. : 01 PAGE 2 OF 5 NEWCONT ELECTRONICS LTD HANDSET 1) TRANSMISSION: DESCRIPTION Units Nominal Limit Remark A) Carrier Power (50Ω Load) dBm 0 ≤5 IN CH20 B) TX Frequency MHz 2475.950 ±600Hz C)Mic Deviation at 15mVrms I/P (CH20) KHz 6 ±0.3 Filter is 15K D) Max Deviation (I/P 150mv) (CH20) KHz 14 <17 Filter is 15K E) Data Deviation at (Test mode) (CH20) KHz 12 10 ~ 17 Filter is 15K F) Deviation Difference (CH1~CH40) KHz 0.2 <0.5 Filter is 15K F) Non signer Deviation (CH1~CH40) KHz 0.5 <0.8 Filter is 15K G)CarrierPower Difference (CH1~CH40) dB 0.2 <0.5 2) RECEIVER: DESCRIPTION Units Nominal Limit Remark A) 12dB SINAD Sensitivity (SSG 1.0KHz, DEV 5KHz) dBm -110 ≤-105 B) Data Sensitivity(SSG 99dBuVemf) KHz 1 0.5~1.5 C) S/N Ratio at Speaker Output (SSG 0.0dBm) dB 55 >50 D) Distortion (SSG. output 99 dBuVemf) % 1 ≤3.0 E) Adjacent Channel Selectivity dB 50 >42 F) Sensitivity difference (CH1~CH40) dB 0 <3 G) Speaker O/P level (5KHz Dev) mVrms 150 ± 20 H) Noise Squelch (Test Mode) (DC level change from low to high ) dB 12dB SINAD LEVEL +4/-6 3) TX AND RX VCO LEVEL: DESCRIPTION Units Nominal Limit Remark A) TX and RX VCO Level V 1.5 ± 0.1 4) P0WER CONSUMPTION: DESCRIPTION Units Nominal Limit Remark A) TALK mode Current (50 Ohm Load) 3.8V POWER mA 80 ≤88 B) STAND-BY mode Low 3.8V POWER Current Hi AVG mA 1.5 20 2.5 <2 <30 < 3.5 C) Battery Low V 3. 3 ± 0.15 MODEL : SZ6309D PD SPEC. ISSUE NO. : 01 PAGE 3 OF 5 NEWCONT ELECTRONICS LTD BASE UNITS 1) TRANSMISSION: DESCRIPTION Units Nominal Limit Remark A) Carrier Power CH20 dBm 0 ≤5 B) Transmit Frequency MHz 2404.000 ± 600Hz C)Nominal Deviation (-15dBm,1KHz) (CH20) KHz 6 ± 0.3 Filter is 15K D)Max Deviation (+5dBm, 1KHz) (CH20) KHz 14 ≤ 17 Filter is 15K E) Data Deviation KHz 12 10 ~ 17 Filter is 15K F) Carrier Power Difference (CH1~CH40) dB 0.2 < 0.5 Filter is 15K G) Non signer Deviation (CH1~CH40) KHz 0.5 < 0.8 Filter is 15K H) Deviation Different (CH1~CH40) KHz 0.1 < 0.3 2) RECEIVER: DESCRIPTION Units Nominal Limit Remark A) Sensitivity at 12 SINAD dBm -110 ≤ -105 B) Data Sensitivity khz 1 0.5~1.5 C)ele Line Output (600 Ohm,6.0KHz Dev) mVrms 550 ±50 D) Distortion (SSG 0.0dBm) % 1.0 ≤ 4.0 E) S/N Ratio (SSG 0.0dBm) dB 50 > 45 F Adjacent Channel Selectivity dB 50 > 42 G) Sensitivity Difference (CH1~CH15) dB 0 ≤ 3 H) Noise Squelch (Test Mode) (DC level change from low to high ) dB +4/-6 12dB SINAD LEVEL 3) POWER CONSUMPTION: DESCRIPTION Units Nominal Limit Remark A) TALK mode (DC 9V) mA 80 <100 B) Stand-By mode (DC 9V) mA 40 <50 C) Charge Current to 3.6v Battery mA 50 ± 6 4) TX AND RX VCO LEVEL: DESCRIPTION Units Nominal Limit Remark A) TX and RX VCO Level V 2.0 ± 0.1 5) RINGER STATE: DESCRIPTION Units Nominal Limit Remark A) Ringer Current mA 1 <1.5 B ) Ringer Sensitivity Vrms 28 <30 MODEL : SZ6309D PD SPEC. ISSUE NO. : 01 PAGE 4 OF 5 NEWCONT ELECTRONICS LTD 6) TELEPHONE SIGNAL(DTMF/TONE/PULSE): DESCRIPTION Units Nominal Limit Remark A) DTMF Frequency Error % 1 ± 1.3 D. Signal Power LOW Group HIGH Group dBm dBm -7 -5 ± 2 ± 2 C) Pre-Emphasis (Twist) dB 2.0 1.3~2.7 D) Pulse M/B ratio % 40 38 ~ 42 E) Pusle rate PPS 10 ± 0.5 7) FLASH TIME: DESCRIPTION Units Nominal Limit Remark A) Flash time mS 600 ± 50 8) OTHER-TELEPHONE LINE: DESCRIPTION Units Nominal Limit Remark A) Leakage Current (50V) uA 0 <3 B) DC Characteristic 8.5V 6.5V mA 80 40 >60 >36 9) OTHER-FUNCTIONS: DESCRIPTION Units Nominal Limit Remark A) Security Code -- Confirm B) Clear Down -- Confirm C) Acoustic Line (Ω) SLR 0Kft RLR STMR dB -45 45 10 -43 ~ -47 42 ~ 47 > 6 SLR 9Kft RLR STMR dB -43 48 10 -38 ~ -46 46 ~ 50 > 6 SLR 15Kft RLR STMR dB -39 52 10 -37 ~ -41 50 ~ 53.5 > 6 Vo l . L O REFERENCE R&D SAMPLE D) Receive Volume Difference dB 13 12 ~ 14 E) Receive & sending Distortion % 2 ≤4.5 F) Return loss dB 16 ≥12 G) Earphone Receive Volume Difference dB 9 8 ~ 12 32Ω load H) Earphone Receive Volume level dB 41 ± 2 10) SAFETY DESCRIPTION Units Nominal Limit Remark A) Electrical & Insulation Strength AC Test Voltage 1.0 mA 3 Second KV 1.2 No Breakdown MODEL : SZ6309D PD SPEC. ISSUE NO. : 01 PAGE 4 OF 5

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For NEWCONT ELE CO., LTD. 40F, BLOCK C SCIENCE & TECHNOLOGY BLDG SHENNANZHONGLU, SHENZHEN, P.R.CHINA FCC ID: QFENTP-6309 December 26, 2002 This Report Concerns: Original Report Equipment Type: 2.4 GHz Cordless Telephone Test Engineer:Benjamin Jin Report No.:R0212066 Test Date:December 13, 2002 Reviewed By:Hans Mellberg Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Report # R0212066RptPage 2 of 17CC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST............................................................................................................................................................4 1.7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...............................................................................................................4 1.8 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................4 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION..............................................................................................................................5 2.2 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................6 2.3 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................6 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................................6 3 - CONDUCTED EMISSIONS TEST DATA........................................................................................................................7 3.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................7 3.2 EUT SETUP...............................................................................................................................................................................7 3.3 SPECTRUM ANALYZER SETUP...............................................................................................................................................7 3.4 TEST PROCEDURE....................................................................................................................................................................8 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................................8 3.6 CONDUCTED EMISSIONS TEST DATA....................................................................................................................................8 3.7 PLOT OF CONDUCTED EMISSIONS TEST DATA....................................................................................................................8 4 - RADIATED EMISSION DATA..........................................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY...........................................................................................................................................10 4.2 EUT SETUP.............................................................................................................................................................................10 4.3 SPECTRUM ANALYZER SETUP.............................................................................................................................................10 4.4 TEST PROCEDURE..................................................................................................................................................................11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION......................................................................................................11 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................................12 4.7 RADIATED EMISSIONS TEST RESULT DATA...................................................…

Text truncated - open the document above for the full version.

NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 APPENDIX B - TEST SETUP PHOTOGRAPHS Base & Handset Conducted Emission - Front View Base & Handset Conducted Emission - Rear View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Handset Radiated Emission - Front View Handset Radiated Emission - Rear View NEWCONT ELE CO., LTD. FCC ID: QFENTP-6309 Base Radiated Emission - Front View Base Radiated Emission - Rear View
