  1. Home/
  2. Newcont Electronic Co., Ltd./
  3. QFEPMP-3850

QFEPMP-38502.4GHz Cordless Phone

Newcont Electronic Co., Ltd.
2.4GHz Cordless Phone - FCC ID QFEPMP-3850 - Newcont Electronic Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
Aug 27, 2002
Application Purpose
Original Equipment
Date of Application
Aug 27, 2002
Equipment Note
2.4GHz Cordless Phone
Frequency Range
2474.00000000 - 2475.95000000
Company
Newcont Electronic Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MODEL: PMP-3850 2.4GHZ CORDLESS TELEPHONEWITH CALL WAITING CALLER ID INSTALLATION AND OPERATING GUIDE IMPORTANT: To receive Caller ID information on incoming telephone calls, you must subscribe to the Caller ID service provided by your local telephone company; there is a fee for this service and it may not be available in all areas. 600-0851001-A l PMP-3850 TABLE OF CONTENTS Important Safety Instructions ................2 FCC Regulations .................................3-4 Battery Cautionary Instructions ............5 PMP-3850 Parts Checklist ......................6 Location of Controls and Features ...7-11 Handset ..............................................7-8Base ................................................9-10LCD Display ........................................11 Choosing a Location ............................12 Telephone Setup ..............................13-15 Connecting the Base ...........................13Wall Mounting ......................................14Tone/Pulse Switch ...............................15Handset Volume ..................................15 Battery Installation ...............................16 Battery Duration ...................................16When the Battery Needs Charging ......16When to Purchase a Ne wBattery Pack ........................................16 Headset and Data Jack ..........................17 The Data Jack ......................................17The Headset Jack.................................17Belt-Clip ...............................................17 Basic Displa ys .......................................18 Basic Operation ................................19-20 Making Calls .........................................19Receiving Calls.....................................19Redialing ..............................................20Addit ional Options ..............................20 Caller ID ............................................33-37 When You Receive a Call .....................33Viewing the Caller ID List ....................33Caller ID Displays ................................34Caller ID with Call Waiting Service .......35Storing Caller ID Records ....................35Deleting Caller ID Records ..................36Returning Caller ID Calls .....................37 Message Waiting ...................................38 Using One-Touch Voice Mail Dialing ....38New Call Light ......................................38 Other Features ......................................39 Using the Handset Finder (PAGE) ......39Out-of-Range Warning ........................39Channel Changing ...............................39 Care and Maintenance .........................40 Troubleshooting ...................................41 Glossary ................................................42 Warranty ...........................................43-44 Wall Mount Template .............................45 Battery Order Form ..............................46 Settings ................................................21-27 Handset Settings...............................21-22 Changing the Language.........................22 Silent On or Off......................................23 Setting the Time and Date......................23 Setting the Ringer Level.........................24 Adjusting the Contrast............................24 Setting the PBX Number........................25 Changing the Flash Time......................25Changing the Pause Time.....................26Programming One-TouchVoice Mail Dialing..................................26Deleting Message Waiting Indication...............................................27 Speed Dialing .............................28-32 Storing Phone Numbers..................28 Letter Table....................................29 Viewing the Phone Book................ .29 Making Calls From the Phone Book..............................................30 Editing a Stored Number.................30 Deleting a Stored Number...............31 Deleting All Stored number .............31 Preferred Calls...............................32 Blocked Calls.................................32 46 TT SYSTEMS LLC 7 Odell Plaza Yonkers, NY 10701 To order a replacement batter y pack for the PMP-3850 cordless telephone, please mail this order form to the licensee for this product. Please enclose a check or money order made out toTT SYSTEM LLCfor the respective amount. Shipping and handling is included in the pr ice. Please ship order to: Name:______________________________ Company:___________________________ Address:____________________________ ___________________________________ City:____________State:____Zip:________ Ni-MH Battery Packs are $14.95 each TT SYSTEMS LLC 7 Odell Plaza Yonkers, NY 10701 (This is your mailing label) From: To : ___________________________________ ___________________________________ ___________________________________ ___________________________________ ___________________________________ __________________ ORDER FORM Place this template on the w all. The location of the scre ws is indicated by the centers of the crossed lines . Fasten the screws leaving 3/16 of the screw extending from the wall. Remove This Page to Mark Wall 45 Expansion Anchor #6 or #8 Pan Head Self Tapping Screw Screws needed for wall mounting: 23/4 WALL MOUNT TEMPLATE IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 2 This symbol is to alert you to important operating or servicing instructions that may appear in theuser's manual. Always follow basic safety precautions when using this product to reduce the risk ofinjury, fire, or electrical shock. When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shockand injury to persons, including the following: 1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product.3. Use only with class 2 power source DC 9V 300mA.4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or …

Text truncated - open the document above for the full version.

Block Diagram

sz3850bm.sch-2 - Mon Jul 29 10:29:42 2002 sz3850bm.sch-2 - Mon Jul 29 10:22:49 2002

External Photos

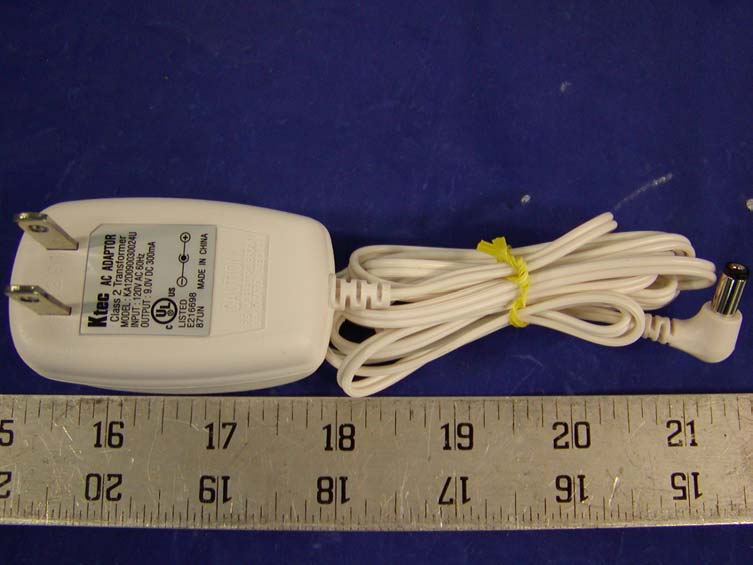

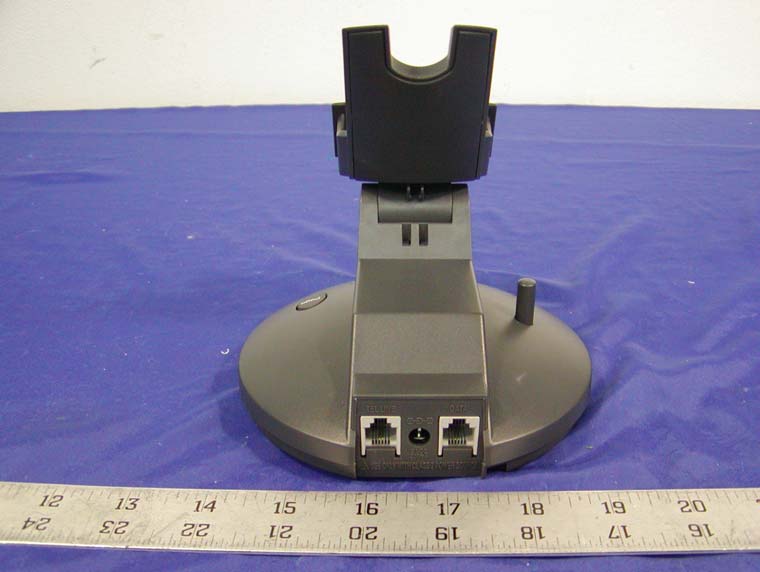

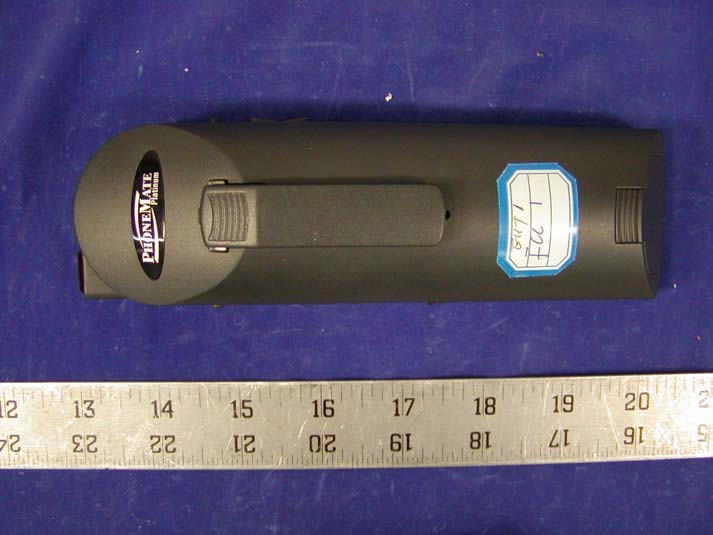

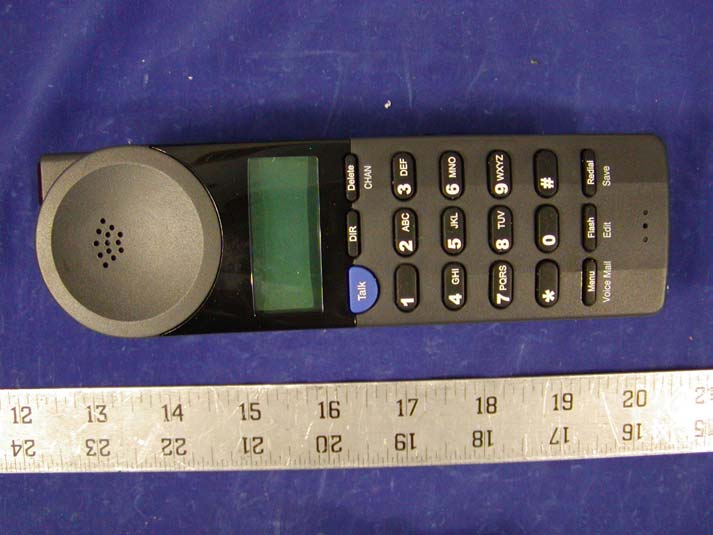

APPENDIX C - EUT PHOTOGRAPHS Handset Chassis - Top View Handset Chassis - Bottom View Base Chassis - Front View Base Chassis - Rear View EUT - Overall View Power Adapter Overall View

ID Label/Location Info

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear Side of Base/Proposed FCC ID Label Location / Bottom Side of Handset

Internal Photos

APPENDIX C - EUT INTERNAL PHOTOGRAPHS Handset Main Board - Component View Handset Main Board - Solder View Handset Transceiver - Component View Handset Transceiver - Solder View Base Main Board - Component View Base Transceiver - Solder View Base Transceiver - Component View Base Transceiver - Solder View

Operational Description

PMP3850 PERFORMANCE SPECIFICATION A. RF Perfomance 1. General Test Conditlion ltemDescriptionsUnitHandsetBase 1.1Supply VoltageVdc3.89 1.2Receiver(ear piece) lmpedanceohm150 1.3Telephone Line lmpedanceohm600 1.4Ringer lmpedanceohm50 1.5Antenna lnpedanceohm5050 1.6Standard Deviation on Signal generator±KHz ±5 ±5 1.7RF Signal Generator lmpedanceohm5050 1.8Audio Signal Generator lmpedanceohm600600 1.9Transmit Frepuency @ Channel -1MHz2474.000 2403.05 Transmit Frepuency @ Channel -2MHz2474.050 2403.1 Transmit Frepuency @ Channel -3MHz2474.100 2403.15 Transmit Frepuency @ Channel -4MHz2474.150 2403.2 Transmit Frepuency @ Channel -5MHz2474.200 2403.25 Transmit Frepuency @ Channel -6MHz2474.250 2403.3 Transmit Frepuency @ Channel -7MHz2474.300 2403.35 Transmit Frepuency @ Channel -8MHz2474.350 2403.4 Transmit Frepuency @ Channel -9MHz2474.400 2403.45 Transmit Frepuency @ Channel -10MHz2474.450 2403.5 Transmit Frepuency @ Channel -11MHz2474.500 2403.55 Transmit Frepuency @ Channel -12MHz2474.550 2403.6 Transmit Frepuency @ Channel -13MHz2474.600 2403.65 Transmit Frepuency @ Channel -14MHz2474.650 2403.7 Transmit Frepuency @ Channel -15MHz2474.700 2403.75 Transmit Frepuency @ Channel -16MHz2474.750 2403.8 Transmit Frepuency @ Channel -17MHz2474.800 2403.85 Transmit Frepuency @ Channel -18MHz2474.850 2403.9 Transmit Frepuency @ Channel -19MHz2474.900 2403.95 Transmit Frepuency @ Channel -20MHz2474.950 2404 Transmit Frepuency @ Channel -21MHz2475.000 2404.05 Transmit Frepuency @ Channel -22MHz2475.050 2404.1 Transmit Frepuency @ Channel -23MHz2475.100 2404.15 Transmit Frepuency @ Channel -24MHz2475.150 2404.2 Transmit Frepuency @ Channel -25MHz2475.200 2404.25 Transmit Frepuency @ Channel -26MHz2475.250 2404.3 Transmit Frepuency @ Channel -27MHz2475.300 2404.35 Transmit Frepuency @ Channel -28MHz2475.350 2404.4 Transmit Frepuency @ Channel -29MHz2475.400 2404.45 Transmit Frepuency @ Channel -30MHz2475.450 2404.5 Transmit Frepuency @ Channel -31MHz2475.500 2404.55 File 3850TEST SPECIFICATIONPage 1 of 5Print on 8/28/2002 3:15 PM PMP3850 PERFORMANCE SPECIFICATION 1.1.9Transmit Frepuency @ Channel -32MHz2475.550 2404.6 Transmit Frepuency @ Channel -33MHz2475.600 2404.65 Transmit Frepuency @ Channel -34MHz2475.650 2404.7 Transmit Frepuency @ Channel -35MHz2475.700 2404.75 Transmit Frepuency @ Channel -36MHz2475.750 2404.8 Transmit Frepuency @ Channel -37MHz2475.800 2404.85 Transmit Frepuency @ Channel -38MHz2475.850 2404.9 Transmit Frepuency @ Channel -39MHz2475.900 2404.95 Transmit Frepuency @ Channel -40MHz2475.950 2405 1.1.10Unless otherwise specified,all audio input are 600ohm source impedance open load. Unless otherwise specified,use 15KHz filter when measure the deivation. Unless otherwise specified,measured on channel 20. 2. Handset Unit 2.1 Handset Transmitter Performance ltemDescriptionsUnitNominalLimitResult 2.1.1Tx Output Power (direct measure) dBm 2.1.2Tx Output Frepuency ToleranceHz ±0±500 2.1.3 Adjacent channel power Attenuation @±20KHzdB 2.1.4Spurious AttenuationdB 2.1.5Nominai Deviation @20mV,1KHz±KHz ±5 3to7 2.1.6Max Deviation @200mV ,1KHz±KHz ±13±15 2.1.7Residual Modulation @20mV,1KHzdB 2.1.8Deviation THD @20mV,1KHz%35max Modulation Slop @20mV,Ref=1KHz@300 HdB Modulation Slop @20mV,Ref=1KHz@300HdB 2.1.10Data Deviation±KHz ±10 8to12 2.2 Handset Receier Performance ltemDescriptionsUnitNominalLimitResult 2.2.1Sensitivity @S/N20dBdBuV 2.2.2Adjacent channel Attenuation @±20KHzdB 2.2.3Co-Channel RejectiondB 2.2.4Suprious RejectiondB 2.2.5Bandwide @-6dB±KHz 2.2.6Receiver RadiationdBm 2.2.7Audio output Level @60dBuV RF input,1K HdBV 2.2.8Audio S/N Ratio @20dbuV RF inputdB 2.2.9Audio Output Response @60dbuV Ref=1KHz @300HzdB Audio Output Response @60dbuV Ref=1KHz @3KHzdB 2.2.10Audio Output Distortion @60dbuV input%1.55 max 2.2.11 Data Filter Response @60dBuV Ref=250Hz @100HzdB Data Filter Response @60dBuV Ref=250Hz @500HzdB 2.1.9 File 3850TEST SPECIFICATIONPage 2 of 5Print on 8/28/2002 3:15 PM PMP3850 PERFORMANCE SPECIFICATION 2.3 Operating & Current Drain ltemDescriptionsUnitNominalLimitResult 2.3.1 Battery Charge Current(1/10 of battery capacity)mA6054 to 66 2.3.2Current Drain @ Ringer OnmA 2.3.3Current Drain @ TalkmA 2.3.4Current Drain @ StandbymA 2.3.5Current Drain @ During Battery SavemA 2.3.6Operating Votage RangeVdc3.3 min3.6 to 4.2 2.3.7Batt.Low Threshold VoltageVdc3.33.2 to 3.4 2.3.8Ringer Output Level @1m distancedBspl7560 min 3. Base Unit 3.1 Base Transmitter Performance ltemDescriptionsUnitNominalLimitResult 3.1.1Tx Output Power (direct measure)dBm 3.1.2Tx Output Frepuency ToleranceHz 3.1.3 Adjacent Channel Power Attenuation @+-10KHzdB 3.1.4Spurious AttenuationdB 3.1.5Nominai Deviation @100mV,1KHz±KHz 3.1.6Max Deviation @1000mV ,1KHz±KHz 3.1.7Residual Modulation @100mV,1KHzdB 3.1.8Deviation THD @100mV,1KHz% 3.1.9 Modulation Slop @100mV,Ref=1KHz@3KHzdB Modulation Slop @100mV,Ref=1KHz@300HzdB 3.1.10Data Deviation±KHz 3.2 Base receiver Performane ltemDescriptionsUnitNominalLimitResult 3.2.1Sensitivity @20dBS/NdBuV 3.2.2Adjacent Channel Attenuation @+-20KHzdB 3.2.3Co-Channel RejectiondB 3.2.4Suprious Response RejectiondB 3.2.5Bandwide @-6dB±KHz 3.2.6Squalch SensitivitydBuV 3.2.7Receiver RadiationdBm 3.2.8Audio Output Level @60dBuV RF input,0K HdBV 3.2.9Audio Output S/N Ratio @20dBuV RF input,1KHzdB 3.2.10Audio Output Diatortion @60dBuV RF input,1KHz% Audio Output Response @60dBuV Ref=1KHz @300HzdB Audio Output Response @60dBuV Ref=1KHz @3KHzdB Audio Filter Response @60dBuV Ref=250Hz @100HzdB Audio Filter Response @60dBuV Ref=250Hz @500HzdB 3.2.11 3.2.12 File 3850TEST SPECIFICATIONPage 3 of 5Print on 8/28/2002 3:15 PM PMP3850 PERFORMANCE SPECIFICATION 3.3 Operating & Current Drain ltemDescriptionsUnitNominalLimitResult 3.3.1Current Drain,Talk mA 3.3.2Current Drain,StandbymA 3.3.3Current Drain,ChargemA 3.3.4Current Drain,Speaker Phone modemA 3.3.5Operating Votage RangeVdc 3.3.6Ringer Output Level mA B. Telephone Performance 1. DC Resistance ltemDescriptionsUnitNominalLimitResult 1.1On-Hoo…

Text truncated - open the document above for the full version.

Schematics

sz3850bm.sch-1 - Fri Jul 05 09:07:05 2002 sz3850hm.sch-1 - Fri Jul 05 09:10:01 2002

Test Setup Photos

APPENDIX B - TEST SETUP PHOTOGRAPHS Base Conducted Emission Base Radiated Emission Handset Radiated Emission

Contact Information

Applicant

Dinghui Wu(R & D Director)
[email protected](86-755) 8327 4466Fax: (86-755) 8327 4566

Test Firm

Bay Area Compliance LaboratoryJohn Chan
[email protected]408-732-9162Fax: 408-732-9164

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.47 GHz - 2.48 GHz-
