MODEL: PMP-3815 2.4GHZ CORDLESS TELEPHONE Please read this manual carefully prior to using the telephone. 600-0931201-A INSTALLATION AND OPERATING GUIDE This symbol is to alert you to important operating or servicing instructions that may appear in the user's manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electrical shock. When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on the product. 3.Use only with class 2 power source DC 9V 300mA. 4.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 5.Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. 6.Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 7.Slots and openings in the cabinet back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in an enclosed environment unless proper ventilation is provided. 8.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by animals or persons walking on it. 9.Do not overload wall outlets and extension cords as this can result in risk of fire or electrical shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electrical shock, do not disassemble this product. Instead take it to a qualified service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re-assembly can cause electrical shock when the appliance is subsequently used. 12. Unplug all cords and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls covered in the operating instructions. Improper adjustment of other controls may result in damage and require work by a qualified technician to restore the product to normal operation. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use a telephone to report a gas leak in the vicinity of the leak. IF YOUR PRODUCT UTILIZES BATTERIES, THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED: 1.Use only the type and size of batteries specified in the users manual. 2.Do not dispose of batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions. 3.Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 4.Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns. 5.Do not attempt to recharge the batteries with or identified for use with this product. The batteries may leak corrosive electrolyte or explode. 6.Do not attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin. 7.When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the discharged batteries. 8.When inserting the batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries can cause charging, which may result in leakage or explosion. If a battery is installed incorrectly it may explode. 9.Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the batteries could leak, damaging the product. 10. Discard "dead" batteries as soon as possible since they are more likely to leak in a product. 11. Do not store this product, or the batteries provided with or for identified use with this product, in high temperature areas. 12. If your product uses a rechargeable battery, charge the battery(ies) only in accordance with the instructions and limitation specified in the User Manual. SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 2 Important Safety Instructions .........2 FCC Regulations..........................3-4 Battery Cautionary Instructions .....5 PMP-3815 Parts Checklist ...............6 Location of Controls and Features ......................................7-11 Handset .......................................7-8 Base ..........................................9-10 Choosing a Location .....................11 Telephone Setup.......................12-14 Connecting the Base ....................12 Wall Mounting ...............................13 Tone/Pulse Switch ........................14 Battery Installation........................15 Battery Duration ............................15 When the Battery Needs Charging .......................................15 When to …

Text truncated - open the document above for the full version.

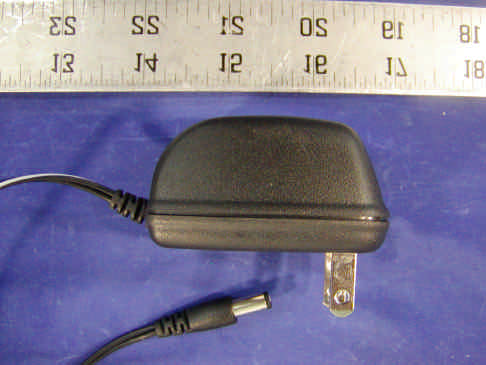

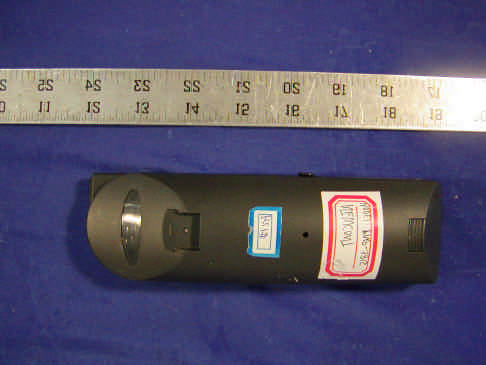

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Handset Chassis - Top View Handset Chassis - Bottom View Base Chassis - Top View Base Chassis - Bottom View Power Adapter - Overall View

NEWCONT ELE CO., LTD. FCC ID: QFEPMP-3815 Report # R0207033.doc Page 17 of 30 FCC Part 15 Subpart C Test Report APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of Base/Proposed FCC ID Label Location / Handset Label Label QFEPMP-3815

APPENDIX D - EUT INTERNAL PHOTOGRAPHS Handset Main Board - Component View Handset Main Board - Solder View Handset Transceiver - Component View Handset Transceiver - Solder View Base Main Board - Component View Base Main Board - Solder View Base Transceiver - Component View Base Transceiver - Solder View

1) STANARD VOLTAGE HANDSETDC 3.6 V ± 0.1 V BASE UNIT AC/DC 120 V ± 3 V 60 Hz /9 V ± 1 V 300mA 2) TEMPERATURE: 25 °C ± 2 °C 3) PERFORMANCE REQUIREMENTS A) STANDARD VOLTAGE REMOTE UNITDC 3.5 V TO 4.2 V BASE UNITAC 120 V ± 12 V B) TEMPERATURE 25 ± 15 °C TRANSMITRECEIVETRANSMITRECEIVE MHzMHzMHzMHz 1 2403.0502474.0002474.0002403.050 2 2403.1002474.0502474.0502403.100 3 2403.1502474.1002474.1002403.150 4 2403.2002474.1502474.1502403.200 5 2403.2502474.2002474.2002403.250 6 2403.3002474.2502474.2502403.300 7 2403.3502474.3002474.3002403.350 8 2403.4002474.3502474.3502403.400 9 2403.4502474.4002474.4002403.450 10 2403.5002474.4502474.4502403.500 11 2403.5502474.5002474.5002403.550 12 2403.6002474.5502474.5502403.600 13 2403.6502474.6002474.6002403.650 14 2403.7002474.6502474.6502403.700 15 2403.7502474.7002474.7002403.750 16 2403.8002474.7502474.7502403.800 17 2403.8502474.8002474.8002403.850 18 2403.9002474.8502474.8502403.900 19 2403.9502474.9002474.9002403.950 20 2404.0002474.9502474.9502404.000 21 2404.0502475.0002475.0002404.050 22 2404.1002475.0502475.0502404.100 23 2404.1502475.1002475.1002404.150 24 2404.2002475.1502475.1502404.200 25 2404.2502475.2002475.2002404.250 26 2404.3002475.2502475.2502404.300 27 2404.3502475.3002475.3002404.350 28 2404.4002475.3502475.3502404.400 29 2404.4502475.4002475.4002404.450 30 2404.5002475.4502475.4502404.500 31 2404.5502475.5002475.5002404.550 32 2404.6002475.5502475.5502404.600 33 2404.6502475.6002475.6002404.650 34 2404.7002475.6502475.6502404.700 35 2404.7502475.7002475.7002404.750 36 2404.8002475.7502475.7502404.800 37 2404.8502475.8002475.8002404.850 38 2404.9002475.8502475.8502404.900 39 2404.9502475.9002475.9002404.950 40 2405.0002475.9502475.9502405.000 22 20 21 16 17 18 19 12 13 14 15 8 9 10 11 4 5 6 7 MEASUREMENT CONDITION 1 2 3 CHANNEL BASE CHANNEL HANDSET 23 24 25 26 33 34 27 28 29 30 39 40 4)2.4G RF Freq Table 35 36 37 38 31 32 1) TRANSMITTER: NOMINALLIMITSUNITS 0±3dBm ±2±3dB ±2±3dB ±4±8PPm 10±1kHz 5±0.2kHz ±0.2±0.3kHz 810kHz =3=5% 2) RECEIVER: NOMINALLIMITSUNITS <-106<-106dBm =3=5% 65±10mV >55>50dB 3) POWER CONSUMPTION LIMITSUNITS < 5mA 130mA 4) LOW BATTERY DETECT VOLTAGE NOMINALLIMITSUNITS 3.33.1-3.5V 3.63.45-3.65V NOMINALLIMITSUNITS 0±3dBm ±4±8PPm 10±1kHz 5±0.2kHz ±0.2±0.3kHz 810kHz =3=5% NOMINALLIMITSUNITS <-108<-108dBm =3=5% 450±10mV >50>50dB 3) POWER CONSUMPTION: NOMINALLIMITSUNITS 120+/-10mA HANDSET DESCRIPTION 3.8V power supply TX POWER Variation of difference between Channel Variation of supply voltage from 3.4V to 4.2V FREQUENCE TOLERANCE TX Code DEV TX Audio DEV (I/P 1kHz 18mV) TX Audio DEV variation of difference between channel Max TX Audio DEV (I/P 2.5kHz 180mV) Tx modulation Distortion DESCRIPTION 12dB SINAD SENSITIVITY Audio O/P Distortion Audio O/P Level (5kHz DEV) Audio O/P S/N Ratio DESCRIPTIONNOMINAL ST-BY MODE CURRENT AVERAGE< 5 TALK MODE CURRENT MID-Volume120 DESCRIPTION ALARM VOLTAGE (TALK MODE) NOT ALARM VOLTAGE BASE UNIT 1) TRANSMITTER: DESCRIPTION TX POWER FREQUENCE TOLERANCE TX Code DEV TX Audio DEV (I/P 1kHz 300mV) TX Audio DEV variation of difference between channel Max TX Audio DEV (I/P 2.5kHz 3V) Tx modulation Distortion 2) RECEIVER: DESCRIPTION 12dB SINAD SENSITIVITY Audio O/P Distortion Audio O/P Level (5kHz DEV) Audio O/P S/N Ratio DESCRIPTION ACTIVE CURRENT (DC JACK) NOMINALLIMITSUNITS 4038~42% 10±1PPS 600±50mS NOMINALLIMITSUNITS -5±2dBm -7±2dBm 2±2dB =1=1.5% NOMINALLIMITSUNITS Mark1200±12Hz Space2200±22Hz 1200±12BPS Mark-12 ~ -38dBm Space-12 ~ -39dBm -20dB -25dB PASS PASS NOMINALLIMITSUNITS 32DIGIT 16DIGIT 40Location NOMINALLIMITSUNITS 3030 to 35Vr.m.s 25 ~ 3020 ~ 30Vr.m.s 15 to 7515 to 75Hz H80dBA>70dBAdBA L65dBA>60dBAdBA NOMINAL LIMITSUNITS PASSED =-40=-53dB =41=51dB = 3=99.9dB PASSED PASSED NOTE:Volume High Low Difference =12dB 4) TELEPHONE LINE (PULSE) DESCRIPTION MAKE RAITO (at 20mA/80mA) DIAL PULSE RATE (at 20mA/80mA) TIME BEAK FLASH (at 20mA/80mA) 5) TELEPHONE LINE (DTMF): DESCRIPTION HIGH GROUP (at 20mA/80mA) LOW GROUP (at 20mA/80mA) H/L GROUP LEVEL TWIST FREQUENCY TOLERANCE 6) CID CW DESCRIPTION FREQUENCY VARIATION BAUD RATE FSK DETECTOR SENSITIVITY NOISE IMMINITY Noise below 200Hz and 300Hz Noise between 200Hz and 300Hz CAS DETECTOR OFF-HOOK FSK RECEPTION 7) MEMORY AND REDIAL: DESCRIPTION DIGIT OF REDIAL DIGIT OF MEMORY MEMORY NUMBER 8) RINGER I/P ( Ringer patter 2 second ON and 4 second off ) DESCRIPTION a) RINGER DETECTOR LEVEL b) NOT RINGER LEVEL c) RINGER FREQUENCY d) RINGER OUTPUT LEVEL (1 foot) e) 2 SECOND ON AND 4 SECOND OFF 9) OTHER: ACOUSTIC EST SOLR : 0 kft (at Normal Volume) TRANSMITT FREQUENCY RESPONSE RECEIVE FREQUENCY RESPONSE DESCRIPTION SAFE IMMUNITY (1700V DC 0.5mA 1 Second) ACOUSTIC EST TOLR : 0 kft (at Normal Volume) ACOUSTIC EST ROLR : 0 kft (at Normal Volume)

PMP3815 TEST MODE BASE 1) Press and hold PAGE button while plugging-in battery pack, the unit will get into Test Mode and CH20 . 2) About P/T switch: being switched to P, then the RX is muted, if being switched to T, nothing is muted. 3) Upon detecting the state of charging, the unit transmits data, and simultaneously the TX is muted. 4) Press PAGE button, the channel can be changed. 5) While RSS2=1, the indicator of charging/in use goes out; anyway, if RSS2=0, then the indicator lights. HANDSET 1) Press and hold “*” button while plugging-in the battery pack, the unit gets into Test Mode and CH20. 2) If you want to change the channel in natural sequence, just press “*” button again and again. And if you want to change the channel in sequence of CH1, CH20, CH40, then you just need to press “0” button. 3) Press “#” button, the handset transmits code, simultaneously mute both TX and RX 4) RSS2=1, the new-call indicator goes out, RSS2=0, the new-call indicator lights

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For NEWCONT ELE CO., LTD. 40F, BLOCK C SCIENCE & TECHNOLOGY BLDG SHENNANZHONGLU, SHENZHEN, P.R.CHINA FCC ID: QFEPMP-3815 August 6, 2002 This Report Concerns: Original Report Equipment Type: 2.4GHz Cordless Phone Test Engineer: Benjamin Jing Report No.: R0207033 Test Date: July 23, 2002 Reviewed By: Jeff Lee Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 NEWCONT ELE CO., LTD. FCC ID: QFEPMP-3815 Report # R0207033.doc Page 2 of 15 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).....................................................................................................................................3 1.4 TEST METHODOLOGY..............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST............................................................................................................................................................4 1.7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...............................................................................................................4 1.8 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................4 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION..............................................................................................................................5 2.2 CONFIGURATION OF TEST SYSTEM (BASE).........................................................................................................................6 2.3 TEST SETUP BLOCK DIAGRAM...............................................................................................................................................6 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................................6 3 - CONDUCTED EMISSIONS TEST DATA........................................................................................................................7 3.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................7 3.2 EUT SETUP...............................................................................................................................................................................7 3.3 SPECTRUM ANALYZER SETUP................................................................................................................................................7 3.4 TEST PROCEDURE....................................................................................................................................................................7 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................................7 3.6 CONDUCTED EMISSIONS TEST DATA....................................................................................................................................8 3.7 PLOT OF CONDUCTED EMISSIONS TEST DATA....................................................................................................................8 4 - RADIATED EMISSION DATA............................................................................................................................................9 4.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................9 4.2 EUT SETUP...............................................................................................................................................................................9 4.3 SPECTRUM ANALYZER SETUP................................................................................................................................................9 4.4 TEST PROCEDURE..................................................................................................................................................................10 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.......................................................................................................10 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................................11 4.7 RADIATED EMISSIONS TEST RESULT DATA..........................................................…
