QIS-HG523V1Home Gateway

HUAWEI HG523 Home Gateway User Guide HUAWEI TECHNOLOGIES CO., LTD. HUAWEI HG523 Home Gateway V100R001 User Guide Issue 01 Date 2010-09-13 Part Number 202134 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS’’. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Contents 1 Warnings and Precautions ....................................................................... 1 2 Connecting the Cables and Getting Started............................................ 7 2.1 Connecting the Cables..................................................................................7 2.2 Getting Started .............................................................................................8 3 Setting the Network-Access Parameters ................................................. 8 3.1 Accessing the Network Through the Embedded PPP Dial-Up Software on the HG523 ...........................................................................................................8 3.2 Accessing the Network Through the PPP Dial-Up Software on Your Computer .............................................................................................................9 4 Configuring the Wireless Network Connection.................................... 10 5 Configuring the HG523 .......................................................................... 12 5.1 Changing the Administrator Password Used for Logging In to the Web-Based Configuration Utility ......................................................................12 5.2 Enabling or Disabling the Wireless Network Function ..............................12 5.3 Changing the Wireless Network Name and the Access Password .............13 5.4 Changing the IP Address Used for Logging In to the Web-Based Configuration Utility .........................................................................................13 5.5 Restoring Default Settings..........................................................................13 6 FAQs......................................................................................................... 14 7 Appendix .................................................................................................. 17 7.1 Indicators....................................................................................................17 i 7.2 Interfaces and Buttons ................................................................................18 7.3 Default Settings ..........................................................................................18 7.4 Technical Specifications.............................................................................19 ii 1 1 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements z During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. z Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. z Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. z When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device z Before connecting and disconnecting ca…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: QIS-HG523V1 Date: Nov 01, 2010 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1006073-B. Testing in regards to this report was done by Cerpass technology Coporation, located at No. 7-2, Moshihkeng, Fongtian Village, Shihding Township, Taipei County, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Anson Chou / Manager Tel: +886-2-26558100#5301 Fax: +886-2-26558200 Email: [email protected]

AHTHORIZATION LETTER FCC ID: QIS-HG523V1 Date: Nov 01, 2010 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Thank you. Yours Sincerely, Zhang xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd.

Huawei Technologies Co., Ltd. Date: Nov 01, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: QIS-HG523V1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description 3 Block Diagram. 4 Part list The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhang xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd.

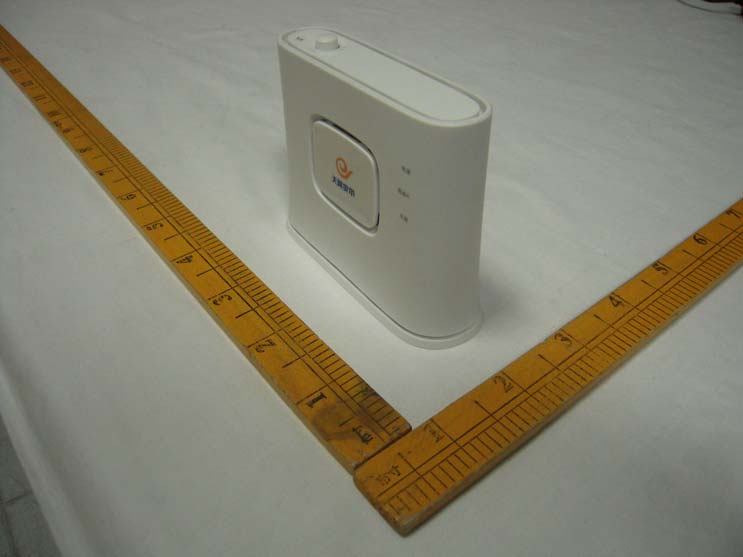

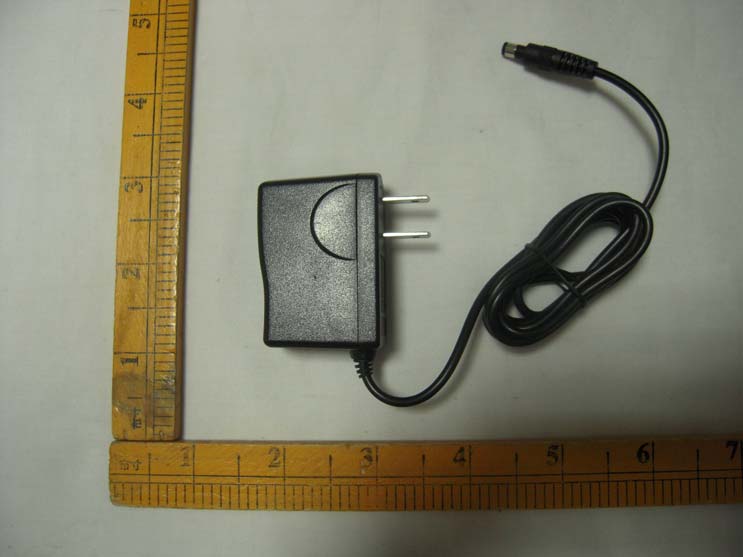

Home Gateway (Model name: HG523) Exterior Photographs: 1) 2) 3) 4) 5) 6) 7) 8) 9) 10) 11) 12) 13)

Home Gateway (Model name: HG523) FCC ID Position: FCC ID

Home Gateway (Model name: HG523) Inside photo: 1) 2) 3)

Page: 1 of 3 RF Exposure Evaluation Declaration Product: Home Gateway Test Item: RF Exposure Evaluation Declaration 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Page: 2 of 3 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.4. Test Result of RF Exposure Evaluation Antenna Gain: Antenna Gain: The maximum Gain is 2.0dBi. Output Power Into Antenna & RF Exposure Evaluation Distance: 1) 802.11b Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 33.8844 0.0106839 06 2437.00 34.1193 0.0107579 11 2462.00 46.9894 0.0148159 2) 802.11g Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 49.7737 0.0156938 06 2437.00 64.4169 0.0203109 11 2462.00 80.5378 0.0253939 Page: 3 of 3 3) 802.11n(20MHz) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 67.6083 0.0213172 06 2437.00 67.1429 0.0211704 11 2462.00 74.6449 0.0235358 4) 802.11n(40MHz) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 55.8470 0.0176088 06 2437.00 63.8263 0.0201247 09 2452.00 75.6833 0.0238632 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1006073-A Cerpass Technology Corp. Issued Date : Oct 15, 2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 199 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Factory : Askey Technology (Jiangsu) Ltd. Address : No.1388, JiaoTong Road, WuJiang Economic-Technological Development Area, Jiangsu Province, P.R.C. Equipment : Home Gateway Model No. : HG523 Trade Mark : HUAWEI FCC ID : QIS-HG523V1 It is a serials report. The original report No.: SEFI1006073 ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1006073-A Cerpass Technology Corp. Issued Date : Oct 15, 2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 199 Table of Contents 1. Report of Measurements and Examinations.............................................................................................6 2. Test Configuration of Equipment under Test............................................................................................7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 8 2.3. Test Manner ..................................................................................................................................... 9 2.4. Description of Test System .............................................................................................................. 9 2.5. Connection Diagram of Test System ............................................................................................. 10 2.6. General Information of Test ............................................................................................................11 2.7. Measurement Uncertainty ..............................................................................................................11 3. Test of Conducted Emission ....................................................................................................................12 3.1. Test Limit........................................................................................................................................ 12 3.2. Test Procedures............................................................................................................................. 12 3.3. Typical Test Setup.......................................................................................................................... 13 3.4. Measurement Equipment .............................................................................................................. 13 3.5. Test Result and Data ..................................................................................................................... 14 4. Test of Radiated Emission ........................................................................................................................18 4.1. Test Limit........................................................................................................................................ 18 4.2. Test Procedures............................................................................................................................. 18 4.3. Typical Test Setup.......................................................................................................................... 19 4.4. Measurement Equipment .............................................................................................................. 20 4.5. Test Result and Data ..................................................................................................................... 21 5. Occupied Bandwidth ...............................................................................................................................141 5.1. Test Limit...................................................................................................................................... 141 5.2. Test Procedures........................................................................................................................... 141 5.3. Test Setup Layout ........................................................................................................................ 141 5.4. Measurement Equipment ............................................................................................................ 141 5.5. Test Result and Data ................................................................................................................... 142 6. Maximum Peak Output Power ................................................................................................................150 6.1. Test Limit...................................................................................................................................... 150 6.2. Test Procedure ............................................................................................................................ 150 6.3. Test Setup Layout ........................................................................................................................ 151 6.4. Measurement Equipment ............................................................................................................ 15…

Text truncated - open the document above for the full version.

Home Gateway (Model name: HG523) Test Photograph: Front View of Conducted Emission Test Back View of Conducted Emission Test Front View of Radiated Emission Test Back View of Radiated Emission Test
