QISRRU3278Remote Radio Unit

RRU3278 Installation Guide Issue 05 Date 2017-03-10 HUAWEI TECHNOLOGIES CO., LTD. Issue 05 (2017-03-10) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] RRU3278 Installation Guide About This Document Issue 05 (2017-03-10) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii About This Document Overview This document describes how to install a DC RRU3278 (referred to as RRU in this document). RRU is short for remote radio unit. Product Version The following table lists the product versions related to this document. Product Name Solution Version Product Version DBS3900  SRAN9.0 and later versions  eRAN TDD 7.0 and later versions V100R009C00 and later versions Intended Audience This document is intended for: eNodeB installation personnel Organization 1 Changes in RRU3278 Installation Guide This chapter describes changes in the installation guide. 2 Installation Preparations This chapter describes the reference documents, tools, and instruments that must be ready before the installation. In addition, it specifies the skills that installation engineers must have. 3 Information About the Installation This chapter describes remote radio unit (RRU) information, including its exterior, ports, installation scenarios, and installation clearance requirements. The information must be obtained before the RRU installation. RRU3278 Installation Guide About This Document Issue 05 (2017-03-10) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iii 4 Unpacking the Equipment This chapter describes how to unpack and check the delivered equipment to ensure that all the materials are included and intact. 5 Installation Process This chapter describes how to install a remote radio unit (RRU), which involves installing an RRU and RRU cables, checking the RRU hardware installation, and powering on the RRU. 6 Hoisting the RRU and Cables onto a Tower This section describes how to hoist the remote radio unit (RRU) and cables onto a tower and provides important notes about the installation. 7 Installing RRU This chapter describes how to install a remote radio unit (RRU). 8 Installing RRU Cables This chapter describes how to install cables for a remote radio unit (RRU). 9 Checking the RRU Hardware Installation This chapter describes how to check the hardware installation after a remote radio unit (RRU) is installed. 10 Checking the Power-on Status of an RRU This chapter describes how to check the power-on status of a remote radio unit (RRU) after all the devices are installed. 11 Appendix Conventions Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. RRU3278 Installation Guide About This Document Issue 05 (2017-03-10) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iv Symbol Description Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. NOTICE is used to address practices not related to personal injury. Calls attention to important information, best practices and tips. NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration. General Conventions Convention Description Times New Roman Normal paragraphs are in Times New Roman. Boldface Names of files, directories, folders, and users are in boldface. For example, log in as user root. Italic Book titles are in italics. Courier New Terminal display is in Courier New. Command Conventions Convention Description Boldface The keywords of a command line are in boldface. Italic Command arguments are in italics. [ ] Items (keywords or arguments) in brackets [ ] are optional. { x | y | ... } Optional items are grouped in braces and separated by vertical bars. One item is selected. [ x | y | ... ] Optional items are grouped in brackets and separated by vertical bars. One item is selected or no item is selected. { x | y | ... } * Optional items are grouped in braces and separated by vertical bars. A minimum of one item or a maximum of all items can be selected. [ x | y | ... ] * Optional items are grouped in brackets and separated by vertical bars. Several items …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Date (09/03/2020) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: QISRRU3278 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Huawei Technologies Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation] Huawei Technologies Co., Ltd. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Zhangxinghai Telephone Number: +86 755 8965 3391 Email: [email protected]

Date (10/22/2020) To Federal Communications Commission 2020-08-31 Oakland Mills Road Columbia MD 21046 Product name: Remote Radio Unit FCC ID: QISRRU3278 The product was first granted on 09/03/2020, and the power 39.44573W listed on the grant is the power 45.96dBm/10MHz, it is a certified value which compare with the limit requirement 47dBm/10MHz. As the requirement from applicant, the power on grant was modified to authorized power 70.70458W equal to 48.96dBm/20MHz on 10/22/2020 as it need to cooperation with Amdocs. This letter is being made for tracking purposes. Kind Regards. Cookies Bu Email: [email protected]

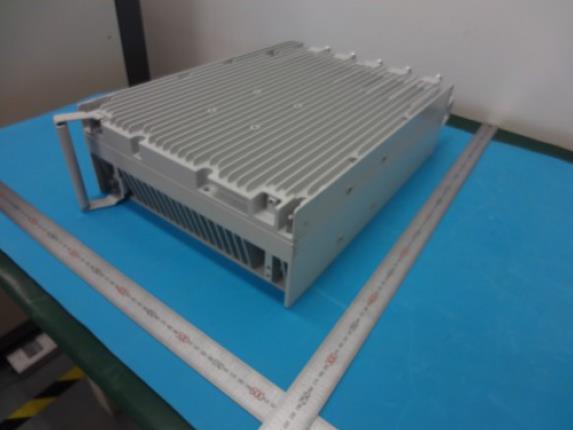

External Photos

Label: Label Location:

Internal Photos

Report No.: SYBH(R-EMF)06705945-1 Page 1 of 13 EMF Report (FCC Maximum Permissible Exposure) Product Name: Remote Radio Unit Product Model: RRU3278 FCC ID: QISRRU3278 Report Number: SYBH(R-EMF)06705945-1 Global Compliance and Testing Center of Huawei Technologies Co., Ltd. (Reliability Laboratory of Huawei Technologies Co., Ltd.) No.2 New City Avenue, Songshan Lake Sci. &Tech. Industry Park, Dongguan, 523808, P.R.C. Tel: +86 769 23830808, Fax: +86 769 23837628 EMF Report for RRU3278 Public Report No.: SYBH(R-EMF)06705945-1 Page 2 of 13 NOTICE 1. The laboratory has passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been recognized by the US Federal Communications Commission (FCC) to perform compliance testing subject to the Commission's Certification rules. The Designation Number is CN1173, and the Test Firm Registration Number is 294140. 4. The laboratory (Reliability Laboratory of Huawei Technologies Co., Ltd.) is also named as "Global Compliance and Testing Center of Huawei Technologies Co., Ltd."; the both names have coexisted since 2009. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. 9. All dates in the test report, including attachment document(s) (if applicable), have the format of “yyyy-MM-dd”. 10. If any question about this report, please contact the laboratory ([email protected]). EMF Report for RRU3278 Public Report No.: SYBH(R-EMF)06705945-1 Page 3 of 13 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Product Name: Remote Radio Unit Product Model: RRU3278 FCC ID: QISRRU3278 Date of Receipt Sample: 2020-06-30 Start Date of Test: 2020-06-30 End Date of Test: 2020-07-23 Test Result: Pass Approved by Senior Engineer: 2020-07-27 Zhang Xinghai Date Name Signature Prepared by: 2020-07-27 Zhang Siwen Date Name Signature EMF Report for RRU3278 Public Report No.: SYBH(R-EMF)06705945-1 Page 4 of 13 MODIFICATION RECORD No. Report No. Modification Description 1 SYBH(R-EMF)06705945-1 First report. EMF Report for RRU3278 Public Report No.: SYBH(R-EMF)06705945-1 Page 5 of 13 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 RF Exposure Requirements ................................................................................................................................... 7 3 RF Exposure Evaluation ......................................................................................................................................... 8 3.1 Determine the exposure limits .................................................................................................................... 8 3.2 Compliance evaluation ............................................................................................................................... 9 4 Conclusion ............................................................................................................................................................ 11 Annex A General RF Exposure Guidelines Information (Informative) ..................................................................... 12 EMF Report for RRU3278 Public Report No.: SYBH(R-EMF)06705945-1 Page 6 of 13 1 General Information 1.1 Applied Standard FCC Rules: 47CFR FCC Part 1 (Note) ____________________ Note: The most up to date FCC rules are applied, see http://www.ecfr.gov/cgi- bin/text-idx?tpl=/ecfrbrowse/Title47/47tab_02.tpl. Other References: FCC OET Bulletin 65 FCC KDB Publication 447498 (10/23/2015) IEEE Std C95.3™ -2002 1.2 Test Location TL#DG1: Global Compliance and Testing Center of Huawei Technologies Co., Ltd. (Reliability Laboratory of Huawei Technologies Co., Ltd.) No.2, New City Avenue, Songshan Lake Sci. & Tech. Industry Park, Dongguan, 523808, P.R.C. TL#DG2: Global Compliance and Testing Center of Huawei Technologies Co., Ltd. (Reliability Laboratory of Huawei Technologies Co., Ltd.) No.1, Gaoxiong Avenue, Songshan Lake Sci. & Tech. Industry Park, Dongguan, 523808, P.R.C. ____________________ Note: The house number of Huawei R&D laboratory was changed from “No.18, Alishan Avenue” to “No.1, Gaoxiong Avenue” by Songshan Lake Branch of Dongguan Public Security Bureau. 1.3 Test Environment Condition Ambient Temperature: Not applicable Ambient Relative Humidity: Not applicable Atmospheric Pressure: Not applicable EMF Report for RRU3278 Public Report No.: SYBH(R-EMF)06705945-1 Page 7 of 13 2 RF Exposure Requirements According to FCC Part §1.1310(e), the maximum permissible exposure (MPE) to radiofrequency electromagnetic fields are: f = frequency in MHz * = Plane-wave equivalent power density EMF Report for RRU3278 Public Report No.: SYBH(R-EMF)06705945-1 Page 8 of 13 3 RF Exposure Evaluation 3.1 Determine the …

Text truncated - open the document above for the full version.

TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 1 of 177 TEST RECORDS TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 2 of 177 CONTENT PART 1 TEST INFORMATION ........................................................................................................................................ 3 1 General ....................................................................................................................................................................... 4 2 Auxiliary Facilities Supporting Tests ........................................................................................................................... 5 3 Main Measurement Instruments ................................................................................................................................. 6 PART 2 TEST PLANS ...................................................................................................................................................... 7 1 Test Environments ...................................................................................................................................................... 8 2 EUT Configurations .................................................................................................................................................... 9 3 Test Configurations ....................................................................................................................................................10 PART 3 TEST RESULTS ................................................................................................................................................11 Test item 1 RF power output ..............................................................................................................................................12 1 Result Table ...............................................................................................................................................................13 2 Test Plot .....................................................................................................................................................................17 Test item 2 Bandwidth .....................................................................................................................................................140 1 Result Table .............................................................................................................................................................141 2 Test Plot ...................................................................................................................................................................142 Test item 3 Band Edges Compliance / Emission Mask ....................................................................................................148 1 Result Table .............................................................................................................................................................149 2 Test Plot ...................................................................................................................................................................150 Test item 4 Spurious emissions at antenna terminals ......................................................................................................160 1 Result Table .............................................................................................................................................................161 2 Test Plot ...................................................................................................................................................................162 Test item 5 Field strength of spurious radiation ...............................................................................................................168 1 Result Table .............................................................................................................................................................169 2 Test Plot ...................................................................................................................................................................170 Test item 6 Frequency stability ........................................................................................................................................175 1 Result Table .............................................................................................................................................................176 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 3 of 177 PART 1 TEST INFORMATION TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 4 of 177 1 General Configuration Description Date Date of Receipt Sample : 2020-06-30 Start Date of Test: 2020-06-30 End Date of Test: 2020-07-23 Test Location For Conducted Test Items: TL#DG1 For Radiated Test Items: TL#DG1 Ambient Environment Temperature: 15 to 30 °C Relative Humidity: 20 to 85 % Atmospheric Pressure: Not applicable TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 5 of 177 2 Auxiliary Facilities Supporting Tests NOTE: The EUT was tested together with other necessary auxiliary facilities so as to form representative EUT installation configurations and test setup configurations during the tests. Facility Manufacturer Model Identification Remark UMPT HUAWEI WD22UMPTe4 210305725510JA000014 Universal Main Processing & Transmission unit UBBP HUAWEI WD22UBBPfw1 024RHK9WJB101084 Baseband Processing and Interface Unit UBBP HUAWEI WD22UBBPg3 025MLS10K2000050 Baseband Processing and Interface Unit UBBP HUAWEI WD22UBBPg3 025MLS10K2000007 Baseband Processing and Interface Unit TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 6 of 177 3 Main Measurement Instruments NOTE 1: NCR = No calibra…

Text truncated - open the document above for the full version.

TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 60 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 61 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 62 of 177 2.1.6 Channel Power of Ant6 2.1.6.1 TX_1L_20M_TM1.1_B Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.15 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 63 of 177 2.1.6.2 TX_1L_20M_TM1.1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3625 20 RMS 29.91 22.6 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 64 of 177 2.1.6.3 TX_1L_20M_TM1.1_T Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3690 20 RMS 30.06 22.54 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 65 of 177 2.1.6.4 TX_2L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.14 Pass NTNV 3690 20 RMS 30.06 22.56 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 66 of 177 2.1.6.5 TX_3L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.27 Pass NTNV 3670 20 RMS 30.01 22.62 Pass NTNV 3690 20 RMS 30.06 22.68 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 67 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 68 of 177 2.1.6.6 TX_4L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.26 Pass NTNV 3610 20 RMS 29.95 22.72 Pass NTNV 3640 20 RMS 29.97 22.69 Pass NTNV 3690 20 RMS 30.06 22.66 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 69 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 70 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 71 of 177 2.1.7 Channel Power of Ant7 2.1.7.1 TX_1L_20M_TM1.1_B Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 22.95 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 72 of 177 2.1.7.2 TX_1L_20M_TM1.1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3625 20 RMS 29.91 22.36 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 73 of 177 2.1.7.3 TX_1L_20M_TM1.1_T Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3690 20 RMS 30.06 22.56 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 74 of 177 2.1.7.4 TX_2L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 22.87 Pass NTNV 3690 20 RMS 30.06 22.49 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 75 of 177 2.1.7.5 TX_3L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23 Pass NTNV 3670 20 RMS 30.01 22.47 Pass NTNV 3690 20 RMS 30.06 22.55 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 76 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 77 of 177 2.1.7.6 TX_4L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.03 Pass NTNV 3610 20 RMS 29.95 22.32 Pass NTNV 3640 20 RMS 29.97 22.3 Pass NTNV 3690 20 RMS 30.06 22.39 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 78 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 79 of 177 Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 80 of 177 2.1.8 Channel Power of Ant8 2.1.8.1 TX_1L_20M_TM1.1_B Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.2 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 81 of 177 2.1.8.2 TX_1L_20M_TM1.1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3625 20 RMS 29.91 22.58 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 82 of 177 2.1.8.3 TX_1L_20M_TM1.1_T Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3690 20 RMS 30.06 22.61 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 83 of 177 2.1.8.4 TX_2L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.19 Pass NTNV 3690 20 RMS 30.06 22.63 Pass TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 84 of 177 2.1.8.5 TX_3L_20M_TM1_M Test Environment Center Frequency [MHz] IBW [MHz] Detector Transducer [dB] Power [dBm] Verdict NTNV 3560 20 RMS 29.76 23.2 Pass NTNV 3670 20 RMS 30.01 22.6…

Text truncated - open the document above for the full version.

TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 119 of 177 2.2.6 PSD of Ant6 2.2.6.1 TX_1L_20M_TM1.1_B Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3580 1 RMS 3554.4 M 10.89 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 120 of 177 2.2.6.2 TX_1L_20M_TM1.1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3605 3645 1 RMS 3632.36 M 10.5 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 121 of 177 2.2.6.3 TX_1L_20M_TM1.1_T Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3670 3710 1 RMS 3695.52 M 10.36 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 122 of 177 2.2.6.4 TX_2L_20M_TM1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3710 1 RMS 3553.6 M 10.46 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 123 of 177 2.2.6.5 TX_3L_20M_TM1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3710 1 RMS 3676.85 M 10.66 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 124 of 177 2.2.6.6 TX_4L_20M_TM1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3710 1 RMS 3647.27 M 10.71 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 125 of 177 2.2.7 PSD of Ant7 2.2.7.1 TX_1L_20M_TM1.1_B Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3580 1 RMS 3554.2 M 10.69 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 126 of 177 2.2.7.2 TX_1L_20M_TM1.1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3605 3645 1 RMS 3631.44 M 10.31 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 127 of 177 2.2.7.3 TX_1L_20M_TM1.1_T Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3670 3710 1 RMS 3695.4 M 10.33 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 128 of 177 2.2.7.4 TX_2L_20M_TM1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3710 1 RMS 3695.55 M 10.25 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 129 of 177 2.2.7.5 TX_3L_20M_TM1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3710 1 RMS 3677.02 M 10.51 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 130 of 177 2.2.7.6 TX_4L_20M_TM1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3710 1 RMS 3554.28 M 10.25 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 131 of 177 2.2.8 PSD of Ant8 2.2.8.1 TX_1L_20M_TM1.1_B Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3540 3580 1 RMS 3554.2 M 10.91 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 132 of 177 2.2.8.2 TX_1L_20M_TM1.1_M Start Frequency [MHz] Stop Frequency [MHz] RBW [MHz] Detector Frequency [Hz] Emission [dBm] Limit [dBm] Verdict Sweep Point 3605 3645 1 RMS 3631.72 M 10.51 28 Pass 1001 TEST RECORDS for RRU3278 Public Document No.: SYBH(R)06705945-1-TR1 Page 133 of 177 2.2.8.3 TX_1L_20M_TM1.1_T Start Frequency [MHz] …
