QIS-HG622Home Gteway

HUAWEI HG622 Home Gateway User Guide HUAWEI TECHNOLOGIES CO., LTD. HUAWEI HG622 Home Gateway V100R001 User Guide Issue 01 Date 2009-11-10 Part Number 202193 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Contents 1 Warnings and Precautions....................................................................... 1 2 Connecting the Cables and Getting Started............................................ 7 2.1 Simple Connection.......................................................................................7 2.2 Connecting One Telephone..........................................................................8 2.3 Getting Started.............................................................................................9 3 Setting the Network-Access Parameters................................................. 9 3.1 Accessing the Network Through the Embedded PPP Dial-Up Software on the HG622...........................................................................................................9 3.2 Accessing the Network Through the PPP Dial-Up Software on Your Computer...........................................................................................................10 4 Configuring the Wireless Network Connection.................................... 11 5 Using the WPS function.......................................................................... 12 6 Configuring the HG622.......................................................................... 13 6.1 Changing the Administrator Password Used for Logging In to the Web-Based Configuration Utility......................................................................13 6.2 Enabling or Disabling the Wireless Network Function..............................13 6.3 Changing the Wireless Network Name and the Access Password.............14 6.4 Changing the IP Address Used for Logging In to the Web-Based Configuration Utility.........................................................................................14 6.5 Downloading Files Through the USB Port.................................................15 6.6 Restoring Default Settings..........................................................................15 i 7 FAQs......................................................................................................... 16 8 Appendix.................................................................................................. 19 8.1 Indicators....................................................................................................19 8.2 Interfaces and Buttons................................................................................21 8.3 Default Settings..........................................................................................21 8.4 Technical Specifications.............................................................................22 ii 1 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the device described in this section includes the device and its accessories. Basic Requirements z During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. z Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. z Without authorization, no …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Attestation for FCC Declaration of Conformity FCC ID: QIS-HG622 Date: 2009-12-16 Please be notified that we, the undersigned, Huawei Technologies Co. Ltd. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is TS09120056- EME. Testing in regards to this report was done by Intertek Testing Service Taiwan Ltd., located at No. 11, Lane 275, Ko Nan 1st Street, Shiang-Shan District, Hsinchu Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Printed name: Xinghai Zhang Position: EMC Manager Huawei Technologies Co. Ltd. Tel: +86-755-89650288 Fax: +86-755-89650226 Email:[email protected]

Huawei Technologies Co., Ltd. Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Huawei Technologies Co. Ltd. FCC ID: QIS-HG622 To whom it may concern, Request is hereby submitted by Huawei Technologies Co. Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Huawei Technologies Co. Ltd. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Title: EMC Manager Company name: Huawei Technologies Co. Ltd. Date: 2009-12-16

Huawei Technologies Co., Ltd. Lettery of Agency "I, an officer of Huawei Technologies Co. Ltd. do hereby authorize Rico Deng, who is Senior Engineer in Intertek Testing Services Taiwan Ltd. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By: Xinghai Zhang Signature Printed Title: EMC Manager Date: 2009-12-16

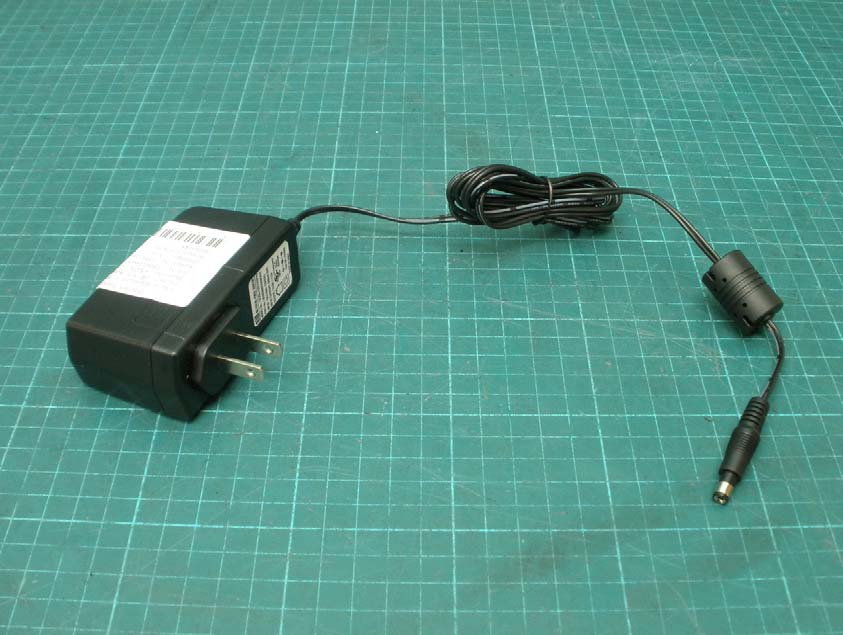

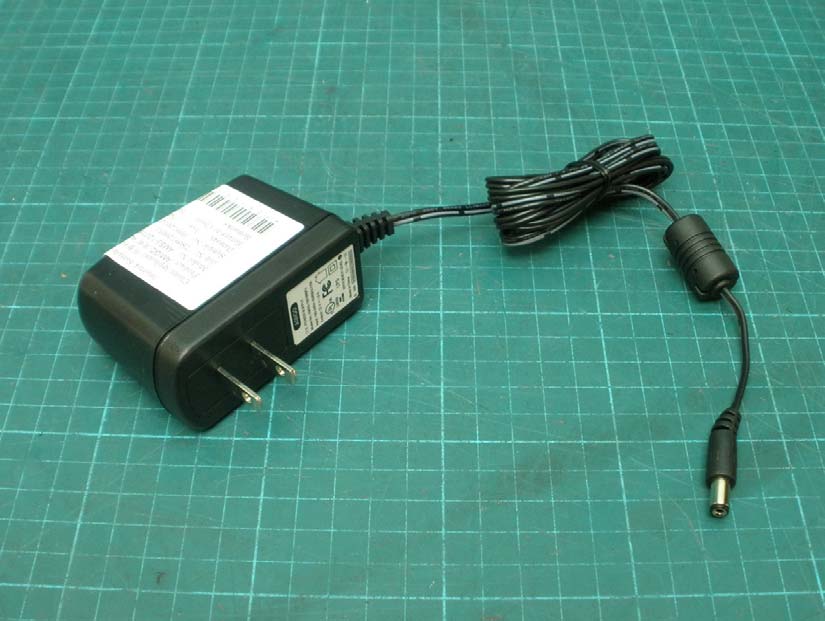

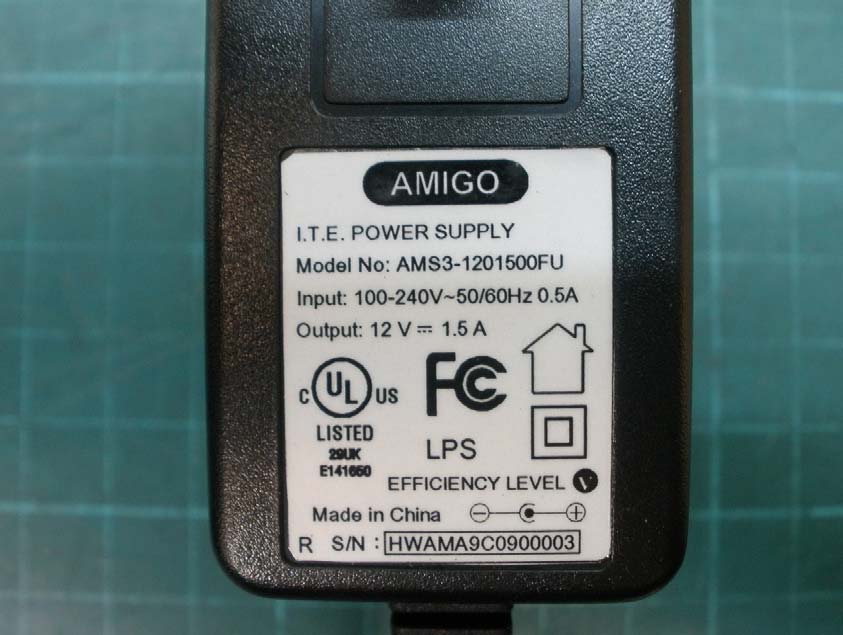

Photo 1: External photo of EUT Photo 2: External photo of EUT HG622 HG622 Photo 3: External photo of Adapter Photo 4: External photo of Adapter HG622 HG622 Photo 5: External photo of Adapter Photo 6: External photo of Adapter HG622 HG622

Please see the next page FCC ID Label Location 73.0 27.0 3.0 2.9 0678 FCC ID:QIS-HG622 US:HAUxxxxxHG622 This Product Complies With 47CFR PART 68 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. MODEL: HG622 NAME: Home Gateway POWER RATING: 12 V; 1.5 A

Photo 1: Internal photo of EUT Photo 2: Internal photo of EUT HG622 HG622 Photo 3: Internal photo of EUT Photo 4: Internal photo of EUT HG622 HG622 Photo 5: Internal photo of EUT Photo 6: Internal photo of EUT HG622 HG622 PCB Antenna TX0 PCB Antenna TX1

FCC ID. : QIS-HG622 Report No.: TS09120058-EME Page 1 of 7 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : TS09120058-EME Model No. : HG622 Issued Date : Dec. 31, 2009 Applicant: Huawei Technologies Co. Ltd. Administration Building, Huawei Base, Bantian. Longgang District, Shenzhen, China Te s t M e t h o d / Standard: FCC 1.1310 and Safety Code 6 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Sunny Liu/ Senior Officer These measurements were taken by: Sign on File Leon Cheng/ Engineer The test report was reviewed by: Name Rex Liao Title Engineer FCC ID. : QIS-HG622 Report No.: TS09120058-EME Page 2 of 7 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4 Description of EUT ....................................................................................................... 6 4. Test results .................................................................................................................... 7 FCC ID. : QIS-HG622 Report No.: TS09120058-EME Page 3 of 7 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997, IEEE C95.1-2005 and IC Safety Code 6 Home Gateway -Model: HG622 FCC ID: QIS-HG622 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 and IC Safety Code 6 Complies FCC ID. : QIS-HG622 Report No.: TS09120058-EME Page 4 of 7 1. Introduction The EUT operates in the 2.4 GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20 cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 and Safety Code 6 are followed. According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. RF Exposure Limit For FCC: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : QIS-HG622 Report No.: TS09120058-EME Page 5 of 7 For IC: Exposure Limits for Persons Not Classed As RF and Microwave Exposed Workers (Including the General Public) Frequency Range (MHz) Electric Field Strength; rms (V/m) Magnetic Field Strength; rms (A/m) Power Density (W/m 2 ) Average Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2 * 30 300-1500 1.585 f 0.5 0.0042 f 0.5 F/150 30 1500-15000 61.4 0.163 10 30 15000-150000 61.4 0.163 10 616000/f 1.2 150000-300000 0.158 f 0.5 4.21 × 10 -4 f 0.5 6.67 × 10 -5 f 616000/f 1.2 * Power density limit is applicable at frequencies greater than 100 MHz. Notes: 1. Frequency, f, is in MHz. 2. A power density of 10 W/m 2 is equivalent to 1 mW/cm 2 . 3. A magnetic field strength of 1 A/m corresponds to 1.257 microtesla (μT) or 12.57 milligauss (mG). 3. RF Exposure calculations From §FCC 1.1310 table 1 and §Safety Code 6 table 5, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/(cm 2 ) (or 10 W/m 2 )* * 10 W/m 2 = 1 mW/ (cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) (or = 0.0995 W/m 2 ) FCC ID. : QIS-HG622 Report No.: TS09120058-EME Page 6 of 7 4 Description of EUT The EUT is a Home Gateway, which is an 802.11b/g/n MIMO product with dual transmitters and dual receivers. The 802.11n function can transmit independently and simultaneously. 4.1 Antenna description The EUT uses a permanently connected antenna. Antenna 0 (transmission under 802.11b/g/n modes) Antenna Gain: 2dBi max Antenna Type: PCB printed antenna Connector Type: N/A Antenna 1 (transmission under 802.11n mode only) Antenna Gain: 2dBi max Antenna Type: PCB printed antenna Connector Type: N/A FCC ID. : QIS-HG622 Report No.: TS09120058-EME Page 7 of 7 4. Test results Mode Channel Frequency (MHz) Antenna Gain (numeric) Output power to antenna (mW) Power density (mW/cm2) Limit of power density (mW/cm2) Distance (cm) 1 2412 1.58 29.92 0.009434745 1.0 20 6 243…

Text truncated - open the document above for the full version.

QI FCC ID. :QIS-HG622 Report No.: TS09120057-EME Page 1 of 96 EMC TEST REPORT Report No. : TS09120057-EME Model No. : HG622 Issued Date : Dec. 31, 2009 Applicant: Huawei Technologies Co. Ltd. Administration Building, Huawei Base, Bantian. Longgang District, Shenzhen, China Test Method/ Standard: 47 CFR FCC Part 15.247 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Sunny Liu/ Senior Officer These measurements were taken by: Sign on File Leon Cheng/ Engineer The test report was reviewed by: Name Rex Liao Title Engineer QI FCC ID. :QIS-HG622 Report No.: TS09120057-EME Page 2 of 96 Table of Contents 1. Summary of Test Data................................................................................................. 3 2. General Information .................................................................................................... 4 3. Maximum 6 dB Bandwidth .......................................................................................... 7 4. 99% Occupied Bandwidth ......................................................................................... 18 5. Maximum Output Power............................................................................................ 29 6. Power Spectral Density ............................................................................................. 31 7. RF Antenna conducted Spurious............................................................................... 42 8. Radiated Spurious Emission..................................................................................... 70 9. Emission on Band Edge............................................................................................ 79 Appendix A: Test Equipment List................................................................................... 96 QI FCC ID. :QIS-HG622 Report No.: TS09120057-EME Page 3 of 96 1. Summary of Test Data Test/Requirement Description Applicable Rule Result Minimum 6 dB Bandwidth 15.247(a)(2) Pass Maximum Output Power 15.247(b) Pass Power Spectral Density 15.247(e) Pass RF Antenna Conducted Spurious 15.247(d) Pass Radiated Spurious Emission 15.247(d), 15.205, 15.209 Pass Emission on the Band Edge 15.247(d) Pass AC Power Line Conducted Emission 15.207 Pass QI FCC ID. :QIS-HG622 Report No.: TS09120057-EME Page 4 of 96 2. General Information Identification of the EUT Product: Home Gateway Model No.: HG622 FCC ID.: QIS-HG622 Operating Frequency: 1. 2412 MHz to 2462 MHz for 802.11b/g/n HT20 2. 2422 MHz to 2452 MHz for 802.11n HT40 Channel Number: 1. 11 channels for 802.11b/g/n HT20 2. 7 channels for 802.11n HT40 Rated Power: 1. DC 12 V from adapter model: AMS3-1201500FU I/P Voltage: 100-240 Vac, 50/60Hz 2. DC 12 V from adapter model: UE25L-120150SPAU I/P Voltage: 100-240 Vac, 50/60Hz Power Cord: N/A Data Cable: RJ-45 UTP Cat.5 10meter × 1 Sample Received: Dec. 15, 2009 Test Date(s): Dec. 24, 2009 ~ Dec. 25, 2009 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. QI FCC ID. :QIS-HG622 Report No.: TS09120057-EME Page 5 of 96 Description of EUT The EUT is a Home Gateway, which is an 802.11b/g/n MIMO product with dual transmitters and dual receivers. The 802.11n function can transmit independently and simultaneously. For more detail features, please refer to User's manual as file name “Installation guide.pdf” Antenna description The EUT uses a permanently connected antenna. Antenna 0 (transmission under 802.11b/g/n modes) Antenna Gain: 2dBi max Antenna Type: PCB printed antenna Connector Type: N/A Antenna 1 (transmission under 802.11n mode only) Antenna Gain: 2dBi max Antenna Type: PCB printed antenna Connector Type: N/A QI FCC ID. :QIS-HG622 Report No.: TS09120057-EME Page 6 of 96 Operation mode The EUT was supplied with DC 12 V from adapter (Test voltage: 120 Vac, 60 Hz). The EUT was transmitted continuously during the test. With individual verifying, the maximum output power was found at 1 Mbps data rate for 802.11b mode, 6 Mbps data rate for 802.11g mode, 6.5 Mbps data rate for 802.11n HT20 mode and 13 Mbps data rate for 802.11n HT40 mode. The final tests were executed under these conditions and recorded in this report individually. 802.11b ch6 chain0 11n HT20 ch6 chain0 Data rate(MHz) PK(dBm) Data rate(MHz) PK(dBm) 1 14.64 6.5 18.52 2 14.6 13 18.45 5.5 14.52 19.5 18.38 11 14.5 26 18.31 39 18.37 11g ch6 chain0 52 18.11 Data rate(MHz) PK(dBm) 58.5 18.08 6 18.4 65 18.06 9 18.37 12 18.3 11n HT40 ch6 chain0 18 18.26 Data rate(MHz) PK(dBm) 24 18.31 13 18.46 36 18.2 26 18.4 48 18.08 39 18.38 54 17.99 52 18.42 78 18.3 104 18.1 117 17.98 130 17.94 QI FCC ID. :QIS-HG622 Report No.: TS09120057-EME Page …

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo Photo 2: Conducted Emission Test Set-up photo HG622 HG622

Photo 1: Radiated Emission Test set-up photo Photo 2: Radiated Emission Test set-up photo HG622 HG622
