QIS-T-101MID

Quick Start T-101 2 1 T-101 at a glance 1 Front camera 2 LED indicator 3 Microphone 4 Volume keys 5 Power key 6 Headphone jack 7 Rear camera 8 Micro-USB port (with the charging function) 9 Micro-HDMI port 10 Card slot 11 Speaker 3 2 Installing the Micro-SIM and micro-SD Cards 1. Open the Micro-SIM and microSD card slot cover. 2. Insert the Micro-SIM card into upper slot with its gold contacts facing down, as indicated in the preceding figure. Push the card inward until it clicks into place. T-101 is only compatible with standard Micro-SIM cards, whose dimensions are 0.76 mm x 12 mm x 15 mm. Inserting a SIM card with other dimensions will damage your T-101. 3. Insert the microSD card into lower slot with its gold contacts facing up, as indicated in the preceding figure. Push the card inward until it clicks into place. 4. Replace the card slot cover. Do not remove the card slot cover from the tablet. 4 3 Powering On or Off Powering On Press and hold the power key until T-101's screen is on. If T-101 has not been used for a long time or the battery level is low, you may not be able to power it on immediately after you start charging the battery. Allow the battery to charge for a few minutes before attempting to use it. Powering Off Press and hold the power key until a dialog box is displayed. Then follow the onscreen instructions to power off T-101. 4 Locking the Screen When your T-101 is turned on, press the Power button to lock the screen. If your T-101 is idle for a preset period of time, the screen will lock automatically. 5 Unlocking the Screen 1. Press the Power button to wake up the screen. 2. Drag the lock icon to theicon on the right. 5 6 Gestures The following simple finger gestures make it easy to use your T-101. Touch: Touch an item to select or open it. Double-click: Touch the screen twice consecutively to zoom in. Touch and hold: Touch and hold the screen to display an options menu. Flick: Flick up or down to scroll up or down. Flick left or right to switch between screens. Drag: Touch and hold an item to drag it to another position. Pinch: Pinch two fingers together or apart to zoom in or out. You can use this gesture when browsing photos and web pages. 6 7 Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device Keep the device far from sources of heat and fire, such as a heater or a candle. Keep the device far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. Place the device on a stable surface. Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight. Keep the ambient temperature between 0°C and 35°C while the device is being charged. Keep the ambient temperature between 0°C to 35°C for using the device powered by a battery. Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. 7 Traffic Security Observe local laws and regulations while using the device. In addition, if using the device while driving a vehicle, comply with the following guidelines: Concentrate on driving. Your first responsibility is to drive safely. RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates. Do not use your device while flying in an aircraft. Power off your device before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Precautions for Using Wireless Devices The device complies with the RF specifications when the device is used in portable exposure conditions or at a distance of 1.5 cm from your body. Do not use the device where using wireless devices is prohibited or may cause interference or danger. The radio waves generated by the device may interfere with the operation of electronic medical devices. If you are using any electrical medical device, contact its manufacturer for the restrictions on the use of the device. Do not take the device into operating rooms, intensive care units (ICUs), or coronary care units (CCUs). Areas with Inflammables and Explosives Do not use the device where inflammables or explosives are stored, for example, in a gas station, oil depot, or chemical plant. Otherwise, explosions or fires may occur. In addition, follow the instructions indicated in text or symbols. Do not store or transport the device in the same box as inflammable liquids, gases, or explosives. 8 Accessory Requirements Use only the accessories supplied or authorized by the device manufacturer. Otherwise, the performance of the device may get affected, the warranty for the device or the laws and regulations related to telecommunication…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd To：775 Montague Expressway Mlpitas,CA 95035,USA Declaration Letter Dear Sir， For our business issue and marketing requirement, we would like to list Model No.: T-101 on the FCC reports, as following: Model No.: T-101 We declare that : Base on T-101(Job No.13070542) apply FCC certificate add product models: T-101, All models the same PCB and Appearance shape, accessories ,the difference of these is listed as below: Main Model No Serial Model No Difference T-101 T-101 Trade and Applicant name Thank you! Sincerely, Client’s signature： Client’s name / title：Zhang Xinghai / Manager Contact information : +86-755-2897-0299 Address : Administration Building, Headquarters of Huawei, Technologies Co., Ltd., Bantian, Longgang District,shenzhen

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Huawei Technologies Co.,Ltd Date:2013-12-4 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Huawei Technologies Co.,Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: MID Trade name:N/A Model name: T-101 FCC ID: QIS-T-101 We affirm that between SIEMIC and Matsunichi Digital Development (Shenzhen) Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title: Zhang Xinghai / Manager Contact information / address : Administration Building, Headquarters of Huawei， Technologies Co., Ltd., Bantian, Longgang District,Shenzhen

2 SCS-F19: Confidentiality Request Letter Page 1 of Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 2 SCS-F19: Confidentiality Request Letter Page 2 of Rev 3.0 Huawei Technologies Co.,Ltd Date:2013-12-4 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: QIS-T-101 We hereby request confidential treatment of information accompanying this application as outlined below: - 1.Block Diagram - 2. Schematics - 3. Operational Description - 4. Tune up Procedure - 5.BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title: Zhang Xinghai /Manager Contact information / address : Administration Building, Headquarters of Huawei，Technologies Co., Ltd., Bantian, Longgang District

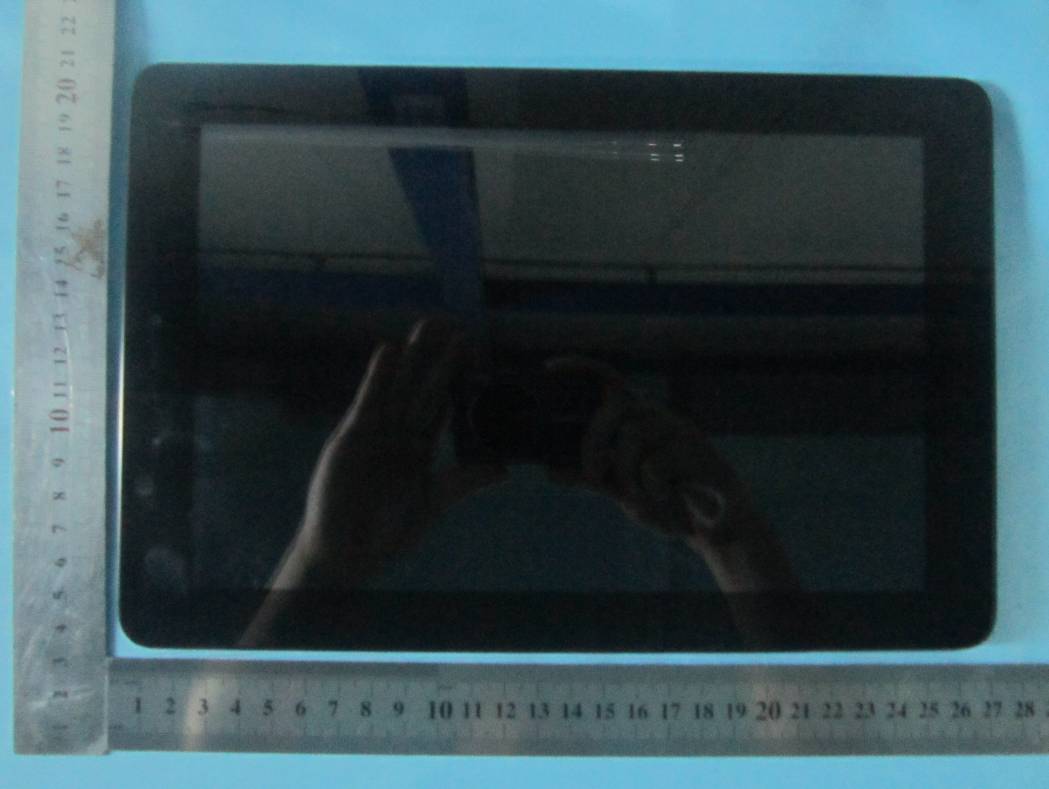

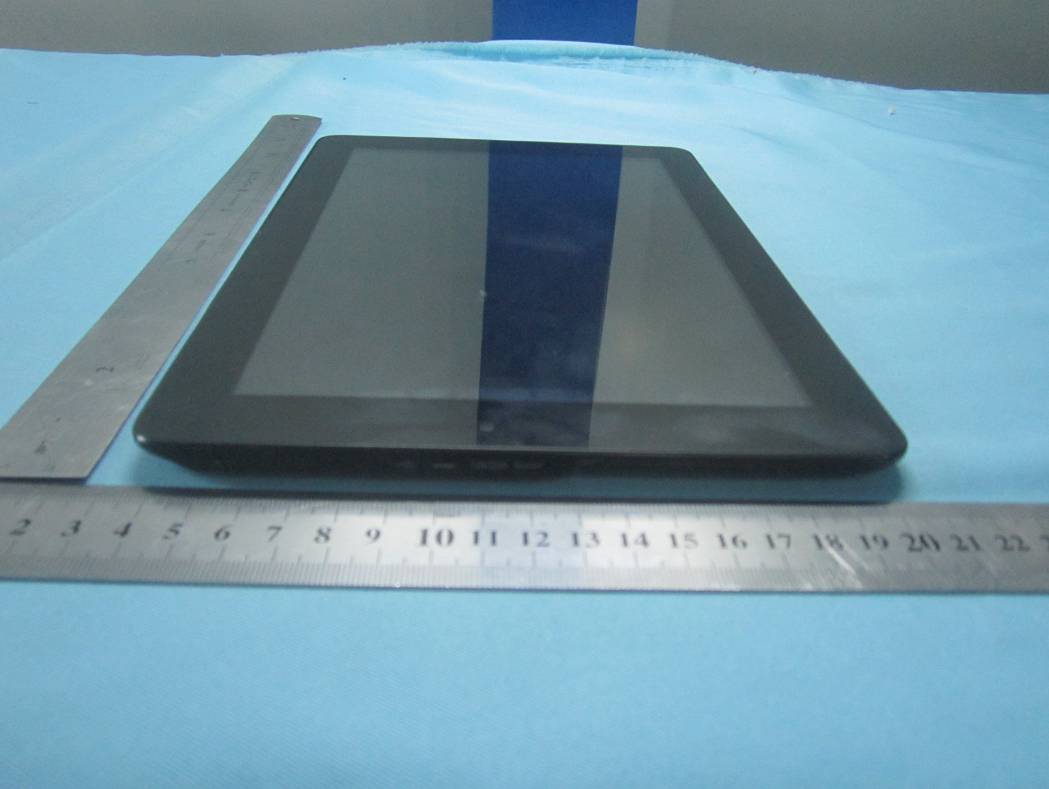

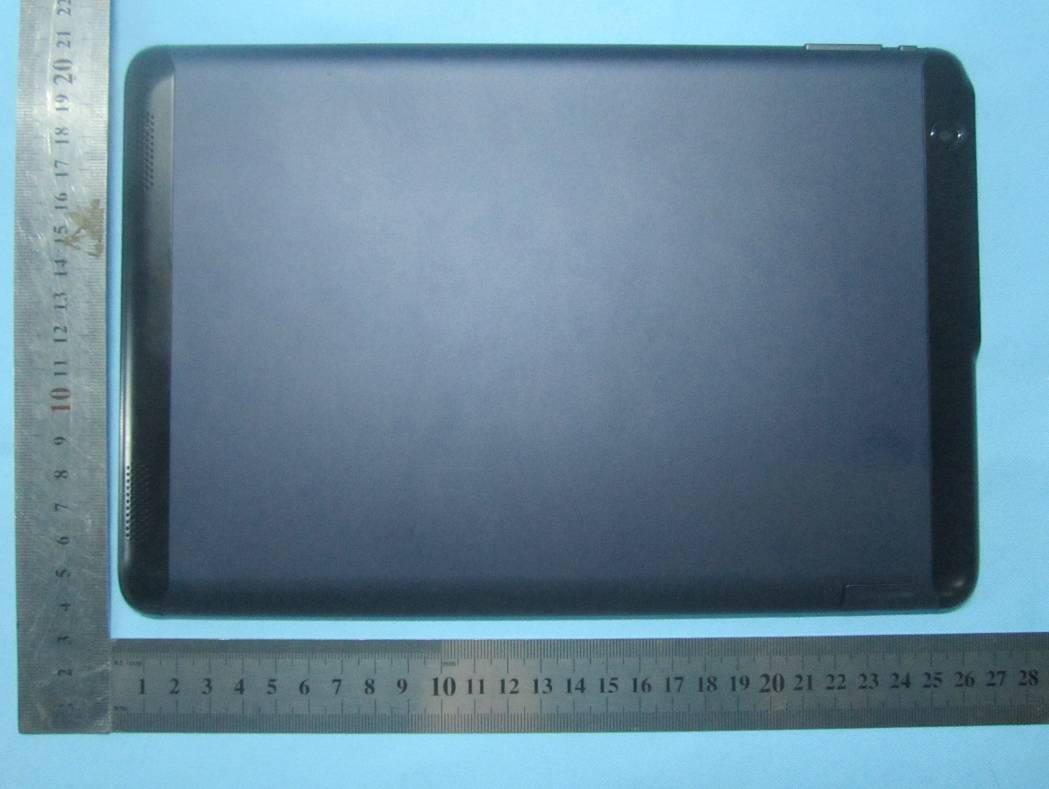

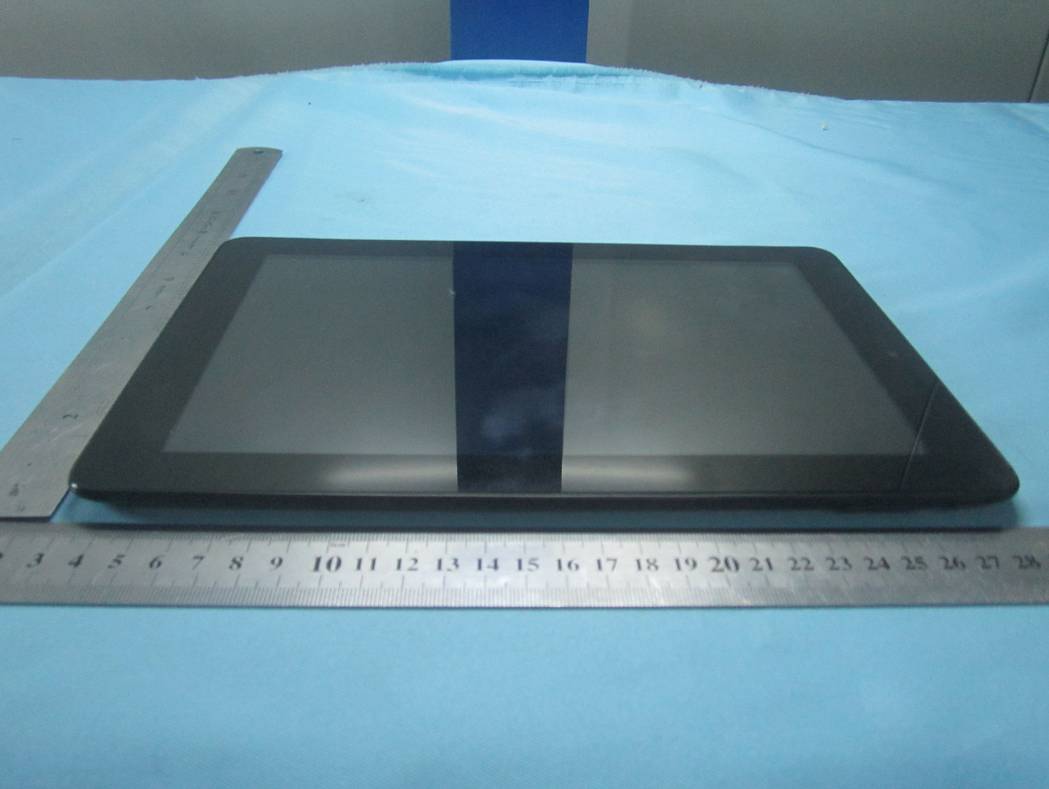

Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 19 of 38 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B. i. Photograph 1: EUT External Photo Whole Package - Top View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 20 of 38 www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 21 of 38 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 22 of 38 www.siemic.com.cn EUT - Left View EUT - Right View

Model: T-101 Name: MID GSM850/1900,WCDMA850/1900 FCC I D:QIS-T-101 Dimension:35x15mm Material: 80g Art paper Huawei Technologies Co., Ltd.

PDF pdfFactory Pro www.fineprint.cn

Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 23 of 38 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Front View 1 Cover Off - Front View 2 Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 24 of 38 www.siemic.com.cn Adapter – Top View Battery - Top View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 25 of 38 www.siemic.com.cn Battery - Bottom View EUT- Uncover Front View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 26 of 38 www.siemic.com.cn Main board With Shielding - Top View Main board - Bottom View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 27 of 38 www.siemic.com.cn Main board Without Shielding - Bottom View Connect board – Top View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 28 of 38 www.siemic.com.cn Connect board – Bottom View LCD – Top View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 29 of 38 www.siemic.com.cn LCD – Bottom View Bluetooth / WIFI Antenna View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 30 of 38 www.siemic.com.cn GSM / PCS/ UMTS Antenna View

Huawei Technologies Co., Ltd. MID Main Model: T-101 Serial Model: N/A December 11, 2013 Report No.: 13070574-FCC-E1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Kahn Yang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 2 of 38 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 3 of 38 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 4 of 38 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS.......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS................................................................... 9 ANNEX A. TEST INSTRUMENTATION & GENERAL PROCEDURES ............................................................. 14 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 19 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 33 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................. 37 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 38 Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 5 of 38 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Huawei Technologies Co., Ltd., MID and Model: T-101 against the current Stipulated Standards. The MID has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2013, ANSI C63.4: 2009. EUT Information EUT Description : MID Main Model : T-101 Serial Model N/A Antenna Gain : UMTS-FDD Band V/GPRS850: 0.9dBi UMTS-FDD Band II/GPRS1900: 0.6dBi Bluetooth: 1.9dBi WIFI: 1.9dBi Input Power : Battery: Model: 3655148/7000mAh/3.7V Spec: 3.7V 7000mAh Limited charger voltage: 4.2V Adapter: Model: CYSG10-050200-U Input: AC 100-240V 50/60Hz 0.5A Output: DC 5V 2A Classification Per Stipulated Test Standard : Class B Emission Product Per FCC Part 15 Subpart B Class B: 2013, ANSI C63.4: 2009 Note: This is the amended report application of the device, the original submission (13070542-FCC-E1) was granted on December 02, 2013. The difference between the original device and the current one were only the Trade and Applicant information. Details were explained in the attached Declaration Letter. And based on the letter the difference between them will not affect any test items, so in this report we didn’t revise any test data and photos about all affect part, the following test data please refer to report 13070542-FCC-E1. Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 6 of 38 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of MID with stipulated standards Applicant / Client Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Laboratory performing the tests SIEMIC (Shenzhen-China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 E…

Text truncated - open the document above for the full version.

Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 31 of 38 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Title: EMC Test Report for MID Main Model: T-101 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13070574-FCC-E1 Issue Date: December 11, 2013 Page: 32 of 38 www.siemic.com.cn Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
