QIS-TE50Videoconferencing Endpoint

HUAWEI TE40&TE50&TE60 Videoconferencing Endpoint V100R001C01 Administrator Guide Issue 01 Date 2013-09-30 HUAWEI TECHNOLOGIES CO., LTD. Issue 01 (2013-09-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://enterprise.huawei.com HUAWEI TE40&TE50&TE60 Videoconferencing Endpoint Administrator Guide About This Document Issue 01 (2013-09-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii About This Document Before you use the product, refer to the product vendor for version mapping information and to confirm compatibility with other videoconferencing equipment. This document describes how to install, configure, maintain, and troubleshoot the HUAWEI TE40 Videoconferencing Endpoint (TE40 or endpoint for short), HUAWEI TE50 Videoconferencing Endpoint (TE50 or endpoint for short) and HUAWEI TE60 Videoconferencing Endpoint (TE60 or endpoint for short). It also provides step-by-step instructions on conferencing tasks. Intended Audience This document is intended for but not limited to endpoint administrators. An endpoint administrator has access to all functions on the endpoint web interface and remote controlled user interface (UI). Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury. Indicates a hazard with a medium or low level of risk, which if not avoided, could result in minor or moderate injury. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. Indicates a tip that may help you solve a problem or save time. Provides additional information to emphasize or supplement important points of the main text. HUAWEI TE40&TE50&TE60 Videoconferencing Endpoint Administrator Guide About This Document Issue 01 (2013-09-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iii Change History Changes between document issues are cumulative. The latest document issue contains all the changes made in earlier issues. Issue 01 (2013-09-30) This issue is the first official release. HUAWEI TE40&TE50&TE60 Videoconferencing Endpoint Administrator Guide Contents Issue 01 (2013-09-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iv Contents About This Document .................................................................................................................... ii 1 Overview ......................................................................................................................................... 1 1.1 Definition of an Endpoint Administrator ...................................................................................................................... 2 1.2 Requirements for an Endpoint Administrator ............................................................................................................... 2 1.3 Related Documentation................................................................................................................................................. 3 1.4 Safety Precautions ........................................................................................................................................................ 4 1.5 How to Obtain Help .................................................................................................................................................... 10 2 Basic Configuration and Verification ..................................................................................... 11 2.1 Powering On or Off the Endpoint ............................................................................................................................... 11 2.2 Using the Wizard ........................................................................................................................................................ 13 2.3 Verifying the Basic Configuration .............................................................................................................................. 14 2.3.1 Call Test ................................................................................................................................................................... 14 2.3.2 Sound Test ............................................................................................................................................................... 15 2.3.3 Image Test ...........................................…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Authority to Act as Agent Date: 2013/11/15 TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Huawei Technologies Co., Ltd. / Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District,Shenzhen, 518129, P.R.C. . For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Zhang Xinghai / Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-11-15 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QIS-TE50 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic diagram  Block Diagram  Parts list (BOM) Information  Operational description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards Zhang Xinghai Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

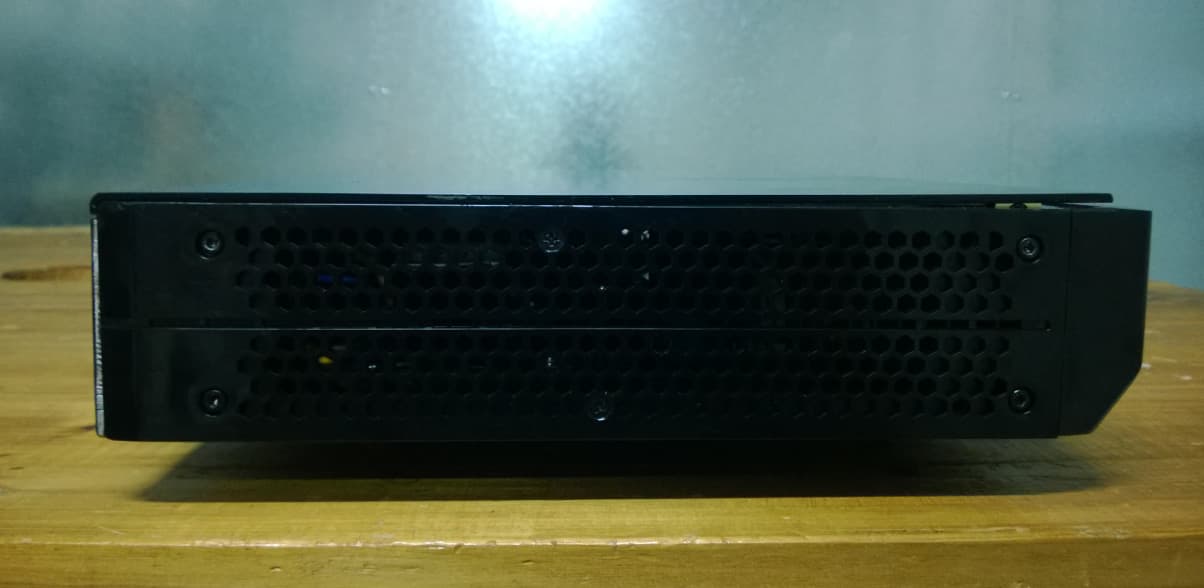

TE50 out photos 华为技术有限公司 华为技术有限公司华为技术有限公司 华为技术有限公司 版权所有 侵权必究 1、 、、 、 TE50 front side 2、 、、 、 TE50 back side 3、 、、 、 TE50 left side 4、 、、 、 TE50 right side 5、 、、 、 TE50 bottom

文档名称 文档密级 2013-11-22 华为保密信息,未经授权禁止扩散 第1页, 共1页 TE50 nameplate

文档名称 文档密级 2013-11-22 华为保密信息,未经授权禁止扩散 第1页, 共5页 TE50 inside photos VC83TVAB 文档名称 文档密级 2013-11-22 华为保密信息,未经授权禁止扩散 第2页, 共5页 VC83TVAI 文档名称 文档密级 2013-11-22 华为保密信息,未经授权禁止扩散 第3页, 共5页 POWER MODULE---FSP 文档名称 文档密级 2013-11-22 华为保密信息,未经授权禁止扩散 第4页, 共5页 文档名称 文档密级 2013-11-22 华为保密信息,未经授权禁止扩散 第5页, 共5页 POWER MODULE---VAPEL

Declaration for Compliance with EMF for HUAWEI TE40&TE50 Security Level: Public Document No.: SYBH(R)01083312EB-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 2 Declaration of Electromagnetic Field Health Compliance To whom it may concern, As to the product HUAWEI TE40&TE50 made by Huawei Technologies Co., Ltd., we declare that it complies with the Basic restrictions/Reference levels for electric, magnetic and electromagnetic fields as specified in following standards(s): Nr. Standard 1 47CFR FCC Part 1 (10-1-12 Edition) & OET Bulletin 65 2 RSS-102 (Issue4, March 2010) The compliance is demonstrated based on the following calculation model assessment: 1. The power density according to far-field model is: 2 ),( 4R GP S      Where: P = input power of the antenna. G = antenna gain relative to an isotropic antenna. , = elevation and azimuth angles. R = distance from the antenna to the point of investigation. 2. For single or multiple RF sources, the calculated power density should comply with following: 1 ,   i iLimit i S S Where: i S = the power density when the f is i . iLim it S , = the reference level requirement for power density when f is i . 3. The calculation of the power density or safe distance is: NOTE 1: The RF exposure evaluation is base on the far-field and the radiation exposure is over-estimated. NOTE 2: The maximum output power level is taken into account as a worst case for the purpose of the calculation of power density or safe distance. NOTE 3: The minimum antenna feed cable loss (assumed no cable loss) is taken into account as a worst case for the purpose of the calculation of power density or safe distance. NOTE 4: The maximum antenna radiation exposure orientation and maximum antenna gain is taken into account as a worst case for the purpose of the calculation of power density or safe distance. RF Source Calculation RF Source #1 f = 2400 to 2483.5 MHz iLim it S , = 10 2 W/m P = 0.056 W (= 17.48 dBm, peak value, measured max) Declaration for Compliance with EMF for HUAWEI TE40&TE50 Security Level: Public Document No.: SYBH(R)01083312EB-2 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 2 RF Source Calculation ),( G = 2 (= 3 dBi) ),( GPEIRP = 0.112W , = The worst condition is considered, i.e. the max G is used. R  0.2 m i S  2 ),( 4R GP     = 0.22 2 W/m iLim it i S S ,  0.022 RF Source(s) Combination  i iLimit i S S ,  0.022 (Less than 1, so complied) Person responsible for making this declaration: ____________________________ Zhang Weimin RF Engineer, EMC Lab Reliability Laboratory of Huawei Technologies Co., Ltd. November 14, 2013

RF Test Report Product Name: Videoconferencing Endpoint Product Model: HUAWEI TE40, TE50 Report Number: SYBH(R)01083312EB-1 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50) IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 20 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1, 6369A-2 and 6369A-3. 5. The laboratory has been listed by the VCCI to perform EMC measurements. The accreditation numbers of test site No.1 are R-3892, G-415, C-4361, and T-1348, and the accreditation numbers of test site No.2 are R-3760, G-485, C-4210 and T-1237. 6. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. The test report is only valid for the test samples. 9. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 20 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Product Name: Videoconferencing Endpoint Product Model: HUAWEI TE40, TE50 Date of Receipt Sample: 2013-09-22 Start Date of Test: 2013-09-22 End Date of Test: 2013-10-30 Test Result: Pass Approved by Senior Engineer: 2013-11-21 Zhang Xinghai Date Name Signature Prepared by: 2013-11-21 Zhang Weimin Date Name Signature RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 20 Modification Record No. Last Report No. Modification Description 1 --- First report. RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 20 Declaration Type Description Multiple Models Applications The present report applies to single model. The present report applies to several models. The practical measurements are performed with the model TE50. These models utilize the similar radio design, shielding, interface, physical layout and so on. The differences and modifications between these models are declared by the applicant and showed as below:  The detailed differences are listed in clause 3.1.  All others between these models are identical. Considering that the RF components between HUAWEI TE40 and TE50 are fully identical, the TE50 as the most complex product is selected to perform RF measurements. For impact from other components, please see EMC tests (e.g. Radiated Emissions, Conducted Emissions, and so on) for detailed. The present report only presents the worst test results of all these models. RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 20 CONTENT 1 General Information ......................................................................................................................................... 7 1.1 Applied Standard ................................................................................................................................. 7 1.2 Test Location....................................................................................................................................... 7 1.3 Test Environment Condition ................................................................................................................. 7 2 Test Summary ................................................................................................................................................. 8 2.1 Measurement Technical Requirements ................................................................................................ 8 2.2 Non-measurement Technical Requirements ......................................................................................... 9 3 Description of the Equipment under Test (EUT) .............................................................................................. 10 3.1 General Description ...............................................…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 529 Annex A: DTS (6 dB) Bandwidth RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 529 For measurements on devices with multiple transmit chains, the test is performed at each chain, and is used as respective result for each chain. 1 Result Table EUT Conf. Ant. DTS (6 dB) Bandwidth [MHz] Verdict 11B1-B-Ant1 Ant 1 12.06 Pass 11B1-M-Ant1 Ant 1 12.08 Pass 11B1-T-Ant1 Ant 1 12.08 Pass 11G6-B-Ant1 Ant 1 16.1 Pass 11G6-M-Ant1 Ant 1 15.82 Pass 11G6-T-Ant1 Ant 1 15.72 Pass 11N0-20B-Ant1 Ant 1 15.94 Pass 11N0-20M-Ant1 Ant 1 16.1 Pass 11N0-20T-Ant1 Ant 1 15.88 Pass 11N0-40B-Ant1 Ant 1 35.14 Pass 11N0-40M-Ant1 Ant 1 35.14 Pass 11N0-40T-Ant1 Ant 1 35.16 Pass RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 529 2 Test Plot 2.1 11B/1_B@1 2.2 11B/1_M@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 529 2.3 11B/1_T@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 529 2.4 11G/6_B@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 529 2.5 11G/6_M@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 529 2.6 11G/6_T@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 529 2.7 11N20/0_B@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 529 2.8 11N20/0_M@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 529 2.9 11N20/0_T@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 529 2.10 11N40/0_B@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 529 2.11 11N40/0_M@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 529 2.12 11N40/0_T@1 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 529 Annex B: Occupied Bandwidth RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 529 For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. 1 Result Table EUT Conf. Ant. Occupied Bandwidth [MHz] Verdict 11B1-B-Ant1 Ant 1 14.49475 Pass 11B1-M-Ant1 Ant 1 14.49348 Pass 11B1-T-Ant1 Ant 1 14.50822 Pass 11G6-B-Ant1 Ant 1 16.49107 Pass 11G6-M-Ant1 Ant 1 16.476 Pass 11G6-T-Ant1 Ant 1 16.50188 Pass 11N0-20B-Ant1 Ant 1 17.52331 Pas…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 301 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 302 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 303 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 304 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 305 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 306 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 307 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 308 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 309 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 310 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 311 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 312 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 313 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 314 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 315 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 316 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 317 of 529 2.8 11N20/0_M@1 2.8.1 Pref RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 318 of 529 2.8.2 Puw RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 319 of 529 RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 320 of 529 RF Test Report of HUAWE…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI TE40, TE50 FCC ID: QIS-TE40 (for HUAWEI TE40), QIS-TE50 (for TE50), IC: 6369A-TE40 (for HUAWEI TE40), 6369A-TE50 (for TE50) Security Level: Public Report No: SYBH(R)01083312EB-1 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 527 of 529 1 Test Setup 2 1.1 Radiated (Unwanted E…
