QIS-WS320Wireless Repeater

HUAWEI WS320 Wireless Repeater User Guide HUAWEI WS320 Wireless Repeater User Guide Issue 01 Date 2010-07-01 Part Number 202302 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Contents 1 Warnings and Precautions...................................................... 1 2 Function Overview.................................................................. 8 3 Setting Up a Wireless Connection............................................ 9 Setting Up a Wireless Connection Through the WPS Button ................ 10 Setting Up a Wireless Connection Through the Web-Based Configuration Utility ...................................................................................................... 17 4 Maintaining the WS320......................................................... 27 Logging In to the Advanced Configuration Webpage ............................ 27 Connecting to a New Wireless Network................................................. 28 Changing the IP address of the LAN Interface ....................................... 29 Restoring Default Settings ...................................................................... 30 5 FAQs.................................................................................... 30 6 Appendix.............................................................................. 34 Hardware Features .................................................................................. 34 Default Settings ....................................................................................... 36 Technical Specifications ......................................................................... 37 i 1 1 Warnings and Precautions Basic Requirements z During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. z Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. z Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. z When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device z Keep the device far from sources of heat and fire, such as a heater or a candle. z Keep the device far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. z Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight. z Do not block the openings on the device with any object. Reserve a minimum space of 10 cm around the device for heat dissipation. z Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. z During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. 2 Precautions for Using Wireless Devices z When using the device, ensure that the antenna of the device is at least 20 cm away from all persons. z Do not use the device where using wireless devices is prohibited or may cause interference or danger. z The radio waves generated by the device may interfere with the operation …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Administration Building, Huawei Base,Bantian, Longgang District, Shenzhen 518129 P.R.C. Antenna Specification The product Wireless Repeater（model name: WS320）used PCB Antenna with a maximum gain of 2dBi.

Huawei Technologies Co.,Ltd. Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: July 13, 2010 Power of Attorney To whom it may concern, Please be notified that I, Zhang Xinghai, have designated Compliance Certification Services Inc. as the persons being responsible for this project and to sign the form 731 and below documents: -External Photos -Lable & Location Info -Internal Photos -RF Exposure Info -Test Report -Test setup photos -User's manual -Short Term Confidentiality Any and all acts carried out by Compliance Certification Services Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: QIS-WS320 Any changes or modifications of FCC ID must be allowed by HUAWEI. If you have any acknowledgement and response, please send it to Compliance Certification Services Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. The authorization shall become effective on 2010-7-13, and expired on 2011-7-12. Sincerely yours, Contact Person: Zhang Xinghai Company: Huawei Technologies Co.,Ltd. TEL: +86-755-2878-1879 FAX: +86-755-2878-1889 E-mail: [email protected]

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QIS-WS320 to be kept confidential. 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Part list The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Signature: Name/Title: Zhang Xinghai / Vice President – Systems & Software Company Name: Huawei Technologies Co., Ltd. Address: Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. TEL: +86-755-28781879 FAX: +86-755-28781889 Email: [email protected]

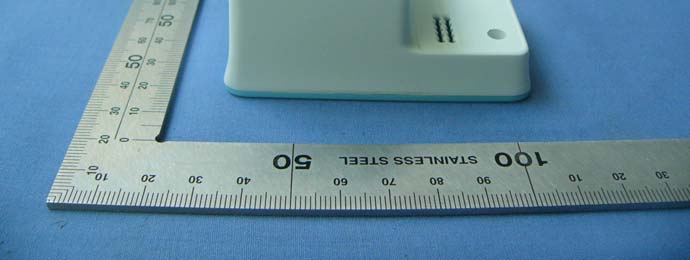

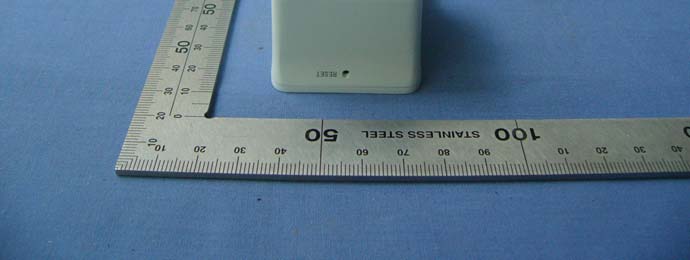

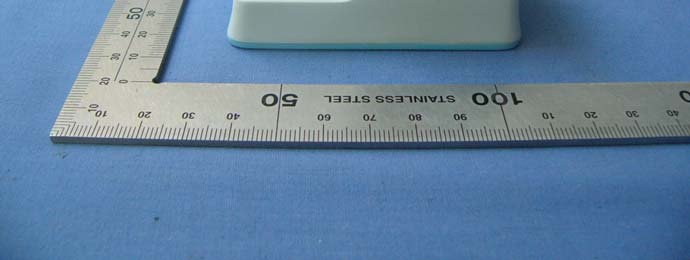

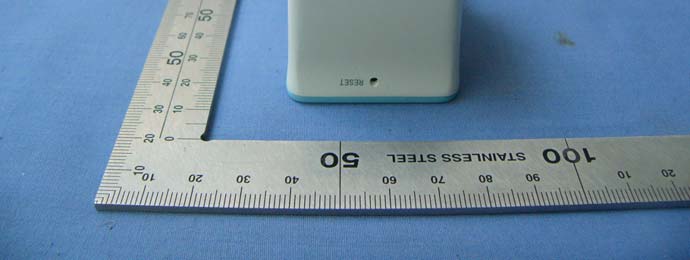

Reference No: Report No: SZ100612B03 Page 1 / 6 US Plug-White Reference No: Report No: SZ100612B03 Page 2 / 6 Reference No: Report No: SZ100612B03 Page 3 / 6 Reference No: Report No: SZ100612B03 Page 4 / 6 US Plug-Green Reference No: Report No: SZ100612B03 Page 5 / 6 Reference No: Report No: SZ100612B03 Page 6 / 6

Label Location

2007-12-26 2007-12-26 2007-12-26 2007-12-26 2-R3.0 2-R1.0 37.4mm MODEL:WS320 NAME:WirelessRepeater POWERRATING:100-240VAC 50/60Hz0.3Amax HUAWEITECHNOLOGIES MADEINCHINA FCCID:QIS-WS320 ThisdevicecomplieswithPart15ofthe FCCRules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynot causeharmfulinterference,and(2)thisdevice mustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation.

Reference No: Report No: SZ100612B03 Page 1 / 2 Reference No: Report No: SZ100612B03 Page 2 / 2

Compliance Certification Services (Shenzhen) Inc. Report No: SZ100612B03_MPE FCC ID: QIS-WS320 Date of Issue: July 02, 2010 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Ethernet Adapter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 16.74dBm (47.21mW) Antenna gain (Max) 2.00 dBi (Numeric gain:1.58) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 16.74 dBm (47.21mW) at 2412MHz (with 1.58 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services (Shenzhen) Inc. Report No: SZ100612B03_MPE FCC ID: QIS-WS320 Date of Issue: July 02, 2010 2 Calculation Given d GP E ×× = 30 & 3770 2 E S= Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=47.21mW Numeric antenna gain=1.58 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 30 × 47.21×1.58/ (3770 × 400) cm 2 = 1.4839 X 10 -3 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Reference No.: Report No.: SZ100612B03-RP FCC ID : QIS-WS320 Page 1 / 89 FCC TEST REPORT for Wireless Repeater MODEL: WS320 Test Report Number: SZ100612B03-RP Issued for Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: July 02, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Reference No.: Report No.: SZ100612B03-RP FCC ID : QIS-WS320 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 02, 2010 Initial Issue ALL Clinton Kao Reference No.: Report No.: SZ100612B03-RP FCC ID : QIS-WS320 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ................................................................................................. 4 2 TEST RESULT SUMMARY ........................................................................................... 5 3 EUT DESCRIPTION....................................................................................................... 6 4 TEST METHODOLOGY................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST ....................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS ......................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 14 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 44 7.4. PEAK OUTPUT POWER ................................................................................................... 52 7.5. BAND EDGES MEASUREMENT:...................................................................................... 60 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 82 Reference No.: Report No.: SZ100612B03-RP FCC ID : QIS-WS320 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product: Wireless Repeater Model: WS320 Brand: HUAWEI Tested: June 02-July 02, 2010 Applicant: Huawei Technologies Co., Ltd. Administration Building, Huawei Base,Bantian, Longgang District, Shenzhen 518129 P.R.C. Manufacturer: Huawei Technologies Co., Ltd. Administration Building, Huawei Base,Bantian, Longgang District, Shenzhen 518129 P.R.C. APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Clinton Kao Manager Compliance Certification Service Inc. Vincent Yao Assistant manager Compliance Certification Service Inc . Reference No.: Report No.: SZ100612B03-RP FCC ID : QIS-WS320 Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type Result Remark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet the requirement of limit. 15.247(e) Peak Power Spectral Density Pass Meet the requirement of limit. 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions Pass Meet the requirement of limit. 15.207(a) Power line Conducted Emissions Pass Meet t…

Text truncated - open the document above for the full version.

Reference No.: Report No.: SZ100612B03-RP FCC ID : QIS-WS320 Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION Radiated Emissions Setup Photos Reference No.: Report No.: SZ100612B03-RP FCC ID : QIS-WS320 Page 2 . Power Line Conducted Emissions Setup Photos
