QIS-WS330300Mbps Wireless Router

Quick Start WS330 300Mbps Wireless Router 1 1 Obtaining More Information Thanks for purchasing the WS330 300Mbps Wireless Router (WS330 for short). This quick start will show you how to connect your WS330 to a network and access the Internet. The figures in this guide are for reference only. The appearance and display features may vary slightly depending on the actual product version. For the full user guide, visit http://www.huaweidevice.com. Enter WS330 in the website search box and press Enter . Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region. 2 Connecting Cables Connect your devices in the sequence indicated in the following figure. Packing list: 1 x WS330, 1 x power adapter, 1 x network cable, 1 x Quick Start and 1 x Warranty Card. When configuring the WS330 for the first time, use an Ethernet cable to connect the WS330 to a computer. 12 3 WS330 2 3 Powering On To power on the WS330, press its On/Off button. After the WS330 is powered on, the WS330 indicator turns on. The following table lists how the indicators behave when the WS330 is operating correctly. If the indicators do not behave as expected, ensure that everything is plugged in correctly. IndicatorExpected State InternetSteady on (WAN port connected to a network) LANSteady on(any of the LAN1 to LAN4 ports connected to a computer) PowerSteady on (On/Off button pressed )(WLAN enabled) WLANSteady on (WLAN enabled) WPS• Steady off (WPS disabled) • Blinking (WPS enabled) 4 Setting the Computer IP Address 1. Choose Start > Control Panel > Network and Internet > Network and Sharing Center . 2. Choose Change adapter settings . Right-click Local Area Connection and choose Properties . The following example uses Windows 7 to describe how to set the computer IP address: 3 1. Open a browser. In the address box, enter 192.168.3.1 . Press Enter . Enter the login user name ( admin by default) and password ( admin by default). Click Login . 2. On the Home tab, click Connect to internet . Then select a network connection type and set network parameters based on the network provided by your Internet service provider. To protect against unauthorized access, change your user name and password after the first login. 5 Quick Setup 3. Double-click Internet Protocol Version 4 (TCP/IPv4) . 4. S e l e c t Obtain an IP address automatically and Obtain DNS server address automatically . Click OK . 4 The following example uses Windows 7 to describe how to set up a wireless connection: 6 Wireless Connection Setup The default WLAN key is printed on the router's rear label. To protect your wireless network from unauthorized access, change the key promptly after setup. 1. Choose Start > Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings . Right-click Local Area Connection , a n d c h o o s e Connect / Disconnect . 2. From the wireless network list, select the WLAN provided by the WS330. Click Connect . 3. In the displayed dialog box, enter the WLAN key and click OK . 4. In the wireless network list, check t h e W L A N c o n n e c t i o n s t a t u s . I f t h e s t a t u s i s Connected , t h e computer is wirelessly connected to the WS326. 5 This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment >Follow rules and regulations set forth by hospitals and health care facilities.Do not use your device where prohibited. >Some wireless devices may affect the performance of hearing aids orpacemakers. Consult your service provider for more information. >Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives >Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. >Do not store or transport the device in containers with flammable liquids, gases, or explosives. Operating environment >Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. >Before connecting and disconnecting cables, stop using the device and disconnect it from the power supply. Ensure that your hands are dry during operation. >Place the device on a stable surface. >Keep the device away from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or refrigerator. >During thunderstorms, power off your device and remove all cables connected to it to protect against lightning strikes. >Do not use your device during thunderstorms to protect your device against any danger caused by lightning. >Ideal operating temperatures are 0°C to 40°C. Ideal storage temperatures are 0°C to 40°C. Extreme heat or cold may damage your device or accessories. >Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag. >To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture. >Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle. >Do not place…

Text truncated - open the document above for the full version.

文档名称 文档密级 2013-4-20 华为保密信息,未经授权禁止扩散 第1页, 共1页 To whom it may concern, Letter of Agency I, an officer of HUAWEI TECHNOLOGIES CO.,LTD do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Zhang xinghai EMC Laboratory Manager

文档名称 文档密级 2013-4-20 华为保密信息,未经授权禁止扩散 第1页, 共1页 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: QIS-WS330 Request is hereby submitted by Huawei Technologies Co., Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Huawei Technologies Co., Ltd. reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Huawei Technologies Co., Ltd.and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Zhang Xinghai EMC Laboratory Manager

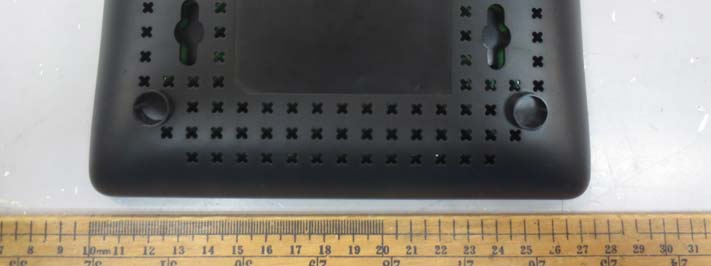

External photos Left Antenna (Ant 1) Right Antenna (Ant 2) Internal Antenna (Ant 3)

HUAWEI TECHNOLOGIES CO.,LTD. YOUXIAOYU2013-04-24 WS330英文版铭牌 PET哑白 WS330 Black White DKBA88076772 DKBA88076772 96651310A YANGCHAO XUDUJUAN ZHONGGANG 2013-04-24 2013-04-24 2013-04-24 Name: 300Mbps Wireless Router Model: WS330 Power Rating:12V;0.5A WEB Address: XXXX XXXX XXXX Username: XXXX XXXX XXXX Password: XXXX XXXX XXXX SSID: XXXX XXXX XXXX WLAN Key: XXXX XXXX XXXX S/N: XXXX XXXX XXXX MAC: XXXX XXXX XXXX FCC ID: QIS-WS330 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Name: 300Mbps Wireless Router Model: WS330 Power Rating:12V;0.5A FCC ID: QIS-WS330 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

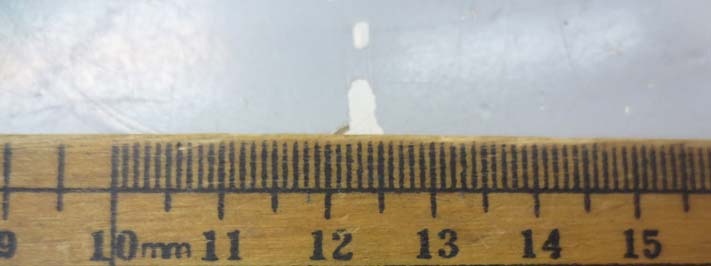

Internal photos Ant 1 & Ant2 internal photo Internal Antenna (Ant 3)

FCC ID: QIS-WS330 RF Exposures Evaluation for single antenna transmissions The Equipment Under Test (EUT) is a 300Mbps Wireless Router, Model: WS330 operating at 2412-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing. EUT operated at 2422-2452MHz for 802.11n-HT40, 7 channels with 5MHz channel spacing. It is powered by AC/DC Adapter Input: 120Vac, 60Hz. The EUT including 3 antennas, the RF IC support 2Tx & 2Rx mode only with can form 3 MIMO mode (Ant1+Ant2 or Ant1+Ant3 or Ant2+Ant3) under the 802.11n-HT20 & 802.11n-HT40, If the receiver sensitivity has meet internal limit valve, the antenna of EUT will auto transfer to the another antenna. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral antenna. Ant1 Gain: 5dBi; Ant2 Gain: 5dBi, Ant3 Gain: 3dBi The nominal conducted output power specified : 21dBm +/-4dB. Modulation Type: DBPSK, DQPSK, BPSK, QPSK, 16QAM, 64QAM. The maximum conducted output power for the EUT is 23.36dBm in the frequency 2.412GHz 802.11g which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. The maximum E.I.R.P= 21+4+5=30dBm=1000mW The source-based time averaged maximum radiated power = 1000 x Duty Cycle = 1000mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: = 1000 / 4πR^2 = 0.20 mW/cm^2 The MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1. The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.” FCC ID: QIS-WS330 RF Exposures Evaluation for both antenna transmissions The EUT including 3 antennas, the RF IC support 2Tx & 2Rx mode only with can form 3 MIMO mode (Ant1+Ant2 or Ant1+Ant3 or Ant2+Ant3) under the 802.11n-HT20 & 802.11n-HT40, If the receiver sensitivity has meet internal limit valve, the antenna of EUT will auto transfer to the another antenna. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral antenna. Ant1 Gain: 5dBi; Ant2 Gain: 5dBi, Ant3 Gain: 3dBi The MIMO mode single antenna nominal conducted output power specified: 21dBm +/-5dB . Modulation Type: DBPSK, DQPSK, BPSK, QPSK, 16QAM, 64QAM. The KDB 447498: A Mobile Multi-transmitter MPE Estimation MPE spreadsheet is used for estimating MPE limits for these 2 antennas’ simultaneous transmission. The information of operating frequency (MHz), power (W), antenna gain (dBi), location (X and Y coordinates showed on page 2) for each antenna are entered in the MPE spreadsheet. The power densities of up to 2 antennas located within a 90 cm² region at 1cm intervals are estimated first. Then the power densities computed for each antenna are summed. The plot “% MPE Contour” displays the result in percentages of the frequency-dependent power density limits. As the measured power density at 20cm from the transmitter is lower than the MPE limit (the compliance boundary for simultaneous transmission), the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter’s radiating structures and body of the user or nearby persons. Ant 2 X, Y (-7, 0) Ant 1 X, Y (7, 0) Ant 3 X, Y (7, -9.5) Ant1+Ant2 Antenna No. Total 1 2 3 4 5 6 Tx Status On On Off Off Off Off Frequency MHz 2450 2450 2450 2450 2450 5800 MPE Limit mW/cm 2 1.00 1.00 0.00 0.00 0.00 0.00 Max % MPE % 48.9 25.0 25.0 0.0 0.0 0.0 0.0 Power (W) 0.796 0.3980.3980.0000.0000.000 0.000 Antenna Gain dBi 5.00 5.00 3.00 1.50 0.50 1.00 EIRP (W) 2.52 1.2591.2590.0000.0000.000 0.000 X (cm) 7.0 -7.0 7.0 4.0 -8.0 8.0 Y (cm) 0.0 0.0 -9.5 0.0 0.0 0.0 Sector FALSEFALSEFALSEFALSEFALSE FALSE Arc FALSEFALSEFALSEFALSEFALSE FALSE θ 1 degs input -120 -120 -120 -120 -120 -120 θ 2 60 60 60 60 60 60 θ 1 actual -120 -120 -120 -120 -120 -120 θ 2 60 60 60 60 60 60 Ant2+Ant3 Antenna No. Total 1 2 3 4 5 6 Tx Status Off On On Off Off Off Frequency MHz 2450 2450 2450 2450 2450 5800 MPE Limit mW/cm 2 0.00 1.00 1.00 0.00 0.00 0.00 Max % MPE % 39.1 0.0 25.0 15.8 0.0 0.0 0.0 Power (W) 0.796 0.0000.3980.3980.0000.000 0.000 Antenna Gain dBi 5.00 5.00 3.00 1.50 0.50 1.00 EIRP (W) 2.05 0.0001.2590.7940.0000.000 0.000 X (cm) 7.0 -7.0 7.0 4.0 -8.0 8.0 Y (cm) 0.0 0.0 -9.5 0.0 0.0 0.0 Sector FALSEFALSEFALSEFALSEFALSE FALSE Arc FALSEFALSEFALSEFALSEFALSE FALSE θ 1 degs input -120 -120 -120 -120 -120 -120 θ 2 60 60 60 60 60 60 θ 1 actual -120 -120 -120 -120 -120 -120 θ 2 60 60 60 60 60 60 Ant1+Ant3 Antenna No. Total 1 2 3 4 5 6 Tx Status On Off On Off Off Off Frequency MHz 2450 2450 2450 2450 2450 5800 MPE Limit mW/cm 2 1.00 0.00 1.00 0.00 0.00 0.00 Max % MPE % 38.8 25.0 0.0 15.8 0.0 0.0 0.0 Power (W) 0.796 0.3980.0000.3980.0000.000 0.000 Antenna Gain dBi 5.00 5.00 3.00 1.50 0.50 1.00 EIRP (W) 2.05 1.2590.0000.7940.0000.000 0.000 X (cm) 7.0 -7.0 7.0 4.0 -8.0 8.0 Y (cm) 0.0 0.0 -9.5 0.0 0.0 0.0 Sector FALSEFALSEFALSEFALSEFALSE FALSE Arc FALSEFALSEFALSEFAL…

Text truncated - open the document above for the full version.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_Tx_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com HUAWEI TECHNOLOGIES CO., LTD. Application For Certification FCC ID: QIS-WS330 300Mbps Wireless Router Model: WS330 WiFi Transceiver Report No.: 130411010SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file Lin Lin Project Engineer Billy Li Supervisor Date: 18 April, 2013 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TX_b FCC ID: QIS-WS330 Report No.: 130411010SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Confidentiality Request EXHIBIT 10: Miscellaneous Information EXHIBIT 11: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: QIS-WS330 Report No.: 130411010SZN-001 ii MEASUREMENT/TECHNICAL REPORT Huawei Technologies Co.,Ltd - MODEL: WS330 FCC ID: QIS-WS330 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (WiFi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-12 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0645 Fax: (86 755) 8614 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: QIS-WS330 Report No.: 130411010SZN-001 iii Table of Contents 1.0 Summary of test results ............................................................................... 2 2.0 General Description ................................................................................................ 4 2.1 Product Description ....................................................................................... 4 2.2 Related Submittal(s) Grants .......................................................................... 5 2.3 Test Methodology .......................................................................................... 5 2.4 Test Facility ................................................................................................... 5 3.0 System Test Configuration ................................................................................. 7 3.1 Justification ................................................................................................... 7 3.2 EUT Exercising Software ............................................................................... 7 3.3 Details of EUT and Description of Peripherals ............................................... 8 3.4 Measurement Uncertainty.............................................................................. 8 3.5 Equipment Modification ................................................................................. 8 3.6 Support Equipment List and Description ....................................................... 9 4.0 Measurement Results .......................................................................................... 11 4.1 Maximum Conducted Output Power at Antenna Terminals .......................... 11 4.2 Minimum 6dB RF Bandwidth ....................................................................... 24 4.3 Maximum Power Density ................................................................................ 47 4.4 Out of Band Conducted Emissions ............................................................... 70 4.5 Out of Band Radiated Emissions ............................................................... 162 4.6 Transmitter Radiated Emissions in Restricted Bands ................................. 163 4.7 Field Strength Calculation .......................................................................... 164 4.8 Radiated Spurious Emission .........................................................................165 4.9 Conducted Emission ...............................................................................…
