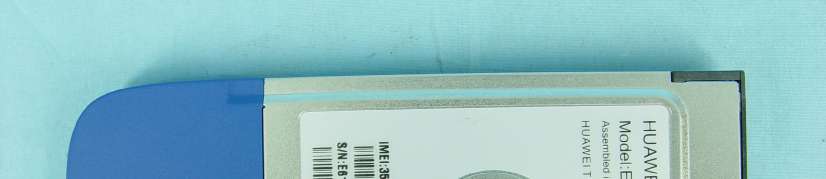

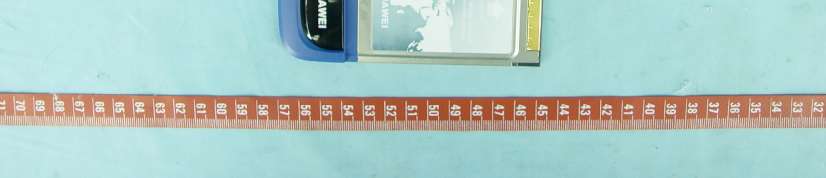

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : QIS0000E612 Label Location

DKBA8.807.1093 51650125 D K B A 8 8 0 7 1 0 9 3 . c d r Dingfeng 2005.04.28 Zhangxianji 2005.04.28 Wangliyan 2005.04.28 Zhongchao 2005.02.28 E612 A0 12 HUAWEI Mobile Connect Model:E612 Assembled in China 文字：BLACK Fasson72826 0682 41.00 mm 6 3 . 0 0 m m FCC ID: QIS0000E612

Page 3 Page 4 Page 5 Page 6

FCC ID: QIS0000E612 Report No.: 940527L01 Operational Description This device is the UMTS/GSM/GPRS datacard and operated frequency in the 1.9GHz (PCS) band. When GSMK technique will be applied under the transmission data and voice. In addition, the GPRS transmission rate is the class 10. The transmitter of the EUT is powered from host equipment. The antennas are internal chip antenna and external dipole antenna. The other instruction, please have a look at the users manual.

FCC ID:QIS0000E612 Report No: SA940527L01 1 RF EXPOSURE REPORT REPORT NO.: SA940527L01 MODEL NO.: E612 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Huawei Technologies Co., Ltd. ADDRESS: Huawei Industrial Park, Bantian, Longgang District, Shenzhen 518129, P.R.China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID:QIS0000E612 Report No: SA940527L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID:QIS0000E612 Report No: SA940527L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification When the device used external antenna, the antenna shall be placed on the edge of the top side of the NB’s panel. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID:QIS0000E612 Report No: SA940527L01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.5849 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: GSM 1time solt (External antenna with 2dBi gain) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 5121850.2974.9900.3071.0 6611880.0895.3650.2821.0 8101909.8837.5290.2641.0 GSM 2time solts (External antenna with 2dBi gain) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 5121850.2916.2200.2891.0 6611880.0946.2370.2981.0 8101909.8833.6810.2631.0

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Notebook: DELL C600 The Bottom of the EUT to the flat phantom distance 11 mm A - 2 Notebook: Compaq EVO N800C The Bottom of the EUT to the flat phantom distance 10 mm A - 3 Notebook: Dell D600 The Bottom of the EUT to the flat phantom distance 13 mm A - 4 EUT Photo A - 5 Liquid Level Photo MSL 19 00MHz D=150mm A - 6 Date/Time: 2005/6/7 11:07:25 Test Laboratory: Advance Data Technology E612 PCS1900 with GPRS C600 Mode 1 DUT: UMTS/GSM/GPRS datacard ; Type: E612 ; Test Frequency: 1850.2 MHz Communication System: PCS 1900 ; Frequency: 1850.2 MHz ; Duty Cycle: 1:4 ; Modulation type: GMSK / UL 2 time slots Medium: MSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.5 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.71, 4.71, 4.71) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 512/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.461 mW/g Low Channel 512/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.4 V/m Peak SAR (extrapolated) = 0.757 W/kg SAR(1 g) = 0.451 mW/g; SAR(10 g) = 0.256 mW/g Maximum value of SAR (measured) = 0.501 mW/g A - 7 A - 8 Date/Time: 2005/6/7 11:28:23 Test Laboratory: Advance Data Technology E612 PCS1900 with GPRS C600 Mode 1 DUT: UMTS/GSM/GPRS datacard ; Type: E612 ; Test Frequency: 1880 MHz Communication System: PCS 1900 ; Frequency: 1880 MHz ; Duty Cycle: 1:4 ; Modulation type: GMSK / UL 2 time slots Medium: MSL1900 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.71, 4.71, 4.71) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Middle Channel 661/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.346 mW/g Middle Channel 661/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.9 V/m Peak SAR (extrapolated) = 0.694 W/kg SAR(1 g) = 0.326 mW/g; SAR(10 g) = 0.164 mW/g Maximum value of SAR (measured) = 0.360 mW/g A - 9 Date/Time: 2005/6/7 11:48:01 Test Laboratory: Advance Data Technology E612 PCS1900 with GPRS C600 Mode 1 DUT: UMTS/GSM/GPRS datacard ; Type: E612 ; Test Frequency: 1909.8 MHz Communication System: PCS 1900 ; Frequency: 1909.8 MHz ; Duty Cycle: 1:4 ; Modulation type: GMSK / UL 2 time slots Medium: MSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.57 mho/m; ε r = 50.7; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.71, 4.71, 4.71) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 810/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.354 mW/g High Channel 810/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.0 V/m Peak SAR (extrapolated) = 0.794 W/kg SAR(1 g) = 0.326 mW/g; SAR(10 g) = 0.160 mW/g Maximum value of SAR (measured) = 0.363 mW/g A - 10 Date/Time: 2005/6/7 01:07:17 Test Laboratory: Advance Data Technology E612 PCS1900 with GPRS N800C Mode 2 DUT: UMTS/GSM/GPRS datacard ; Type: E612 ; Test Frequency: 1850.2 MHz Communication System: PCS 1900 ; Frequency: 1850.2 MHz ; Duty Cycle: 1:4 ; Modulation type: GMSK / UL 2 time slots Medium: MSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.5 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.71, 4.71, 4.71) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 512/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.656 mW/g Low Channel 512/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.9 V/m Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.587 mW/g; SAR(10 g) = 0.333 mW/g Maximum value of SAR (measured) = 0.748 mW/g A - 11 A - 12 Date/Time: 2005/6/7 01:28:18 Test Laboratory: Advance Data Technology E612 PCS1900 with GPRS N800C Mode 2 DUT: UMTS/GSM/GPRS datacard ; Type: E612 ; Test Frequency: 1880 MHz Communication System: PCS 1900 ; Frequency: 1880 MHz ; Duty Cycle: 1:4 ; Modulation type: GMSK / UL 2 time slots Medium: MSL1900 Medium parameters used: f = 1880 MHz; σ = 1.54 mh…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: QIS0000E612 Report no.: SA940527L011Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA940527L01 MODEL NO.: E612 RECEIVED: May 30, 2005 TESTED: Jun. 07, 2005 ISSUED: Aug. 08, 2005 APPLICANT: Hauwei Technologies Co., Ltd. ADDRESS: Huawei Industrial Park, Bantian, Longgang District, Shenzhen 518129 P.R.China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 37 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: QIS0000E612 Report no.: SA940527L012Report Format Version 2.0.1 TABLE OF CONTENTS 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................................ 9 3.DESCRIPTION OF SUPPORT UNITS .................................................................................... 13 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................................ 14 4.1. DESCRIPTION OF ANTENNA LOCATION............................................................................. 14 4.2. DESCRIPTION OF ASSESSMENT POSITION ...................................................................... 15 4.3. DESCRIPTION OF TEST MODE ............................................................................................ 16 4.4. SUMMARY OF TEST RESULT ............................................................................................... 16 5.TEST RESULTS ...................................................................................................................... 17 5.1TEST PROCEDURES .............................................................................................................17 5.2MEASURED SAR RESULT ..................................................................................................... 19 5.3SAR LIMITS ............................................................................................................................. 21 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 22 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 24 6.SYSTEM VALIDATION ............................................................................................................25 6.1TEST EQUIPMENT ................................................................................................................. 25 6.2TEST PROCEDURE................................................................................................................ 26 6.3VALIDATION RESULT............................................................................................................. 28 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 29 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 30 7.1. PROBE CALIBRATION UNCERTAINTY................................................................................. 30 7.2. ISOTROPY UNCERTAINTY.................................................................................................... 31 7.3. BOUNDARY EFFECT UNCERTAINTY................................................................................... 31 7.4. PROBE LINEARITY UNCERTAINTY ...................................................................................... 32 7.5. READOUT ELECTRONICS UNCERTAINTY.......................................................................... 32 7.6. RESPONSE TIME UNCERTAINTY ........................................................................................ 32 7.7. INTEGRATION TIME UNCERTAINTY .................................................................................... 33 7.8. PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 34 7.9. PROBE POSITIONING............................................................................................................ 34 7.10. PHANTOM UNCERTAINTY .................................................................................................... 35 7.11. DASY4 UNCERTAINTY BUDGET .......................................................................................... 36 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 37 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: QIS0000E612 Report no.: SA940527L013Report Format Version 2.0.1 1. CERTIFICATION PRODUCT : UMTS/GSM/GPRS datacard MODEL NO. : E612 BRAND NAME : HUAWEI APPLICANT : Hauwei Technologies Co., Ltd. TESTED : Jun. 07, 2005 TEST SAMPLE : MASS-PRODUCTION STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Ad…

Text truncated - open the document above for the full version.

FCC ID: QIS0000E612 Report No.: RF940527L011Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.: RF940527L01 MODEL NO.: E612 RECEIVED: May 30, 2005 TESTED: May 26 ~ Jul. 27, 2005 ISSUED: Aug. 03, 2005 APPLICANT: Huawei Technologies Co., Ltd. ADDRESS: Huawei Industrial Park, Bantian, Longgang District, Shenzhen 518129, P.R.China ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 79 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: QIS0000E612 Report No.: RF940527L012Report Format Version 2.0.1 TABLE OF CONTENTS 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 2.1MEASUREMENT UNCERTAINTY.................................................................6 3GENERAL INFORMATION............................................................................7 3.1GENERAL DESCRIPTION OF EUT..............................................................7 3.2DESCRIPTION OF TEST MODES................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................11 3.4DESCRIPTION OF SUPPORT UNITS........................................................11 4TEST TYPES AND RESULTS.....................................................................12 4.1MODULATION CHARACTERISTICS..........................................................12 4.1.1DESCRIPTION OF MODULATION TECHNIQUE........................................12 4.1.2THE ACTIVE TIME SLOT 8 MODULATED FRAME PLOT..........................13 4.2OUTPUT POWER MEASUREMENT...........................................................15 4.2.1LIMITS OF OUTPUT POWER MEASUREMENT........................................15 4.2.2TEST INSTRUMENTS.................................................................................16 4.2.3TEST PROCEDURES.................................................................................17 4.2.4TEST SETUP..............................................................................................18 4.2.5EUT OPERATING CONDITIONS................................................................19 4.2.6TEST RESULTS..........................................................................................20 4.3FREQUENCY STABILITY MEASUREMENT...............................................23 4.3.1LIMITS OF FREQUENCY STABILIITY MEASUREMENT...........................23 4.3.2TEST INSTRUMENTS.................................................................................23 4.3.3TEST PROCEDURE....................................................................................24 4.3.4TEST SETUP..............................................................................................24 4.3.5TEST RESULTS..........................................................................................25 4.4OCCUPIED BANDWIDTH MEASUREMENT..............................................28 4.4.1LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT............................28 4.4.2TEST INSTRUMENTS.................................................................................28 4.4.3TEST SETUP..............................................................................................28 4.4.4TEST PROCEDURES.................................................................................29 4.4.5EUT OPERATING CONDITION...................................................................29 4.4.6TEST RESULTS..........................................................................................29 4.5BAND EDGE MEASUREMENT...................................................................37 4.5.1LIMITS OF BAND EDGE MEASUREMENT................................................37 4.5.2TEST INSTRUMENTS.................................................................................37 FCC ID: QIS0000E612 Report No.: RF940527L013Report Format Version 2.0.1 4.5.3TEST SETUP..............................................................................................37 4.5.4TEST PROCEDURES.................................................................................38 4.5.5EUT OPERATING CONDITION...................................................................38 4.5.6TEST RESULTS..........................................................................................39 4.6CONDUCTED SPURIOUS EMISSIONS.....................................................41 4.6.1LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT......41 4.6.2TEST INSTRUMENTS.................................................................................41 4.6.3TEST PROCEDURE....................................................................................42 4.6.4TEST SETUP..............................................................................................42 4.6.5EUT OPERATING CONDITIONS................................................................42 4.6.6TEST RESULTS..........................................................................................43 4.7RADIATED EMISSION MEASUREMENT (BELOW 1GHz).........................61 4.7.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................61 4.7.2TEST INSTRUMENTS.................................................................................62 4.7.3TEST PROCEDURES.................................................................................63 4.7.4DEVIATION FROM TE…

Text truncated - open the document above for the full version.

FCC ID: QIS0000E612 Report No.: RF940527L0177Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST TEST MODE A FCC ID: QIS0000E612 Report No.: RF940527L0178Report Format Version 2.0.1 TEST MODE B
