HUAWEI MediaPad X1 7.0 Quick Start 1 1 For More Help Welcome to the bright new world of HUAWEI MediaPad X1 7.0 (HUAWEI MediaPad for short). For more help, go to http://consumer.huawei.com/en/ to download the User Guide. To find the User Guide of your tablet quickly, enter HUAWEI MediaPad X1 7.0 in the webpage search box. Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region. The figures in this guide are provided for your reference only. The appearance and display features may vary slightly depending on the actual product version. 2 2 HUAWEI MediaPad at a Glance 3 3 Installing the SIM and microSD Cards 4 Charging the Battery 4 5 Gestures The following simple finger gestures make it easy to use your HUAWEI MediaPad. Touch: Touch an item to select or open it. Double-click: Touch the screen twice consecutively to zoom in. Touch and hold: Touch and hold the screen to display an options menu. Flick: Flick up or down to scroll up or down. Flick left or right to switch between screens. Drag: Touch and hold an item to drag it to another position. Pinch: Pinch two fingers together or apart to zoom in or out. You can use this gesture when browsing photos and web pages. 5 6 Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset To prevent possible hearing damage, do not listen at high volume levels for long periods. 6 Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. Concentrate on driving. Your first responsibility is to drive safely. Do not hold the device while driving. Use hands-free accessories. When you must make or answer a call, pull of the road safely and park the vehicle first. RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. 7 Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. Do not use your device during thunderstorms to protect your device against any danger caused by lightning. Ideal operating temperatures are 0°C to 35°C. Ideal storage temperatures are -20°C to 50°C. Extreme heat or cold may damage your device or accessories. Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods. To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture. Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle. Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury. Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur. Do not touch the device's antenna. Otherwise, communication quality may be reduced. 8 Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion. Child's safety Comply with all precautions with regard to child's safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children. The device and its accessories are not intended for use by children. Children should only use the device with adult supervision. Accessories Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards. Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (16/3/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QIS7D-501U Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-03-06 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QIS7D-501U To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-04-30: User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

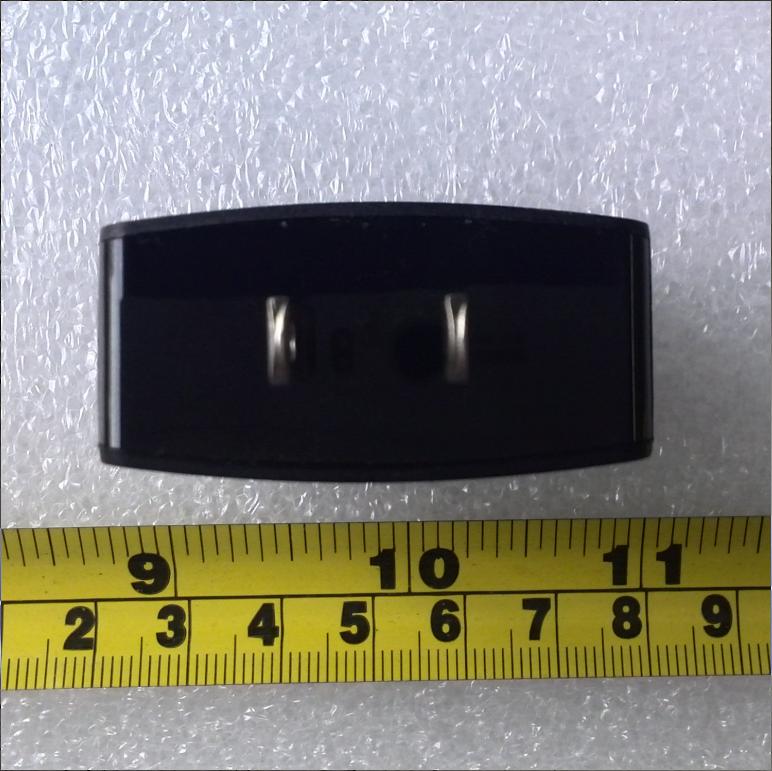

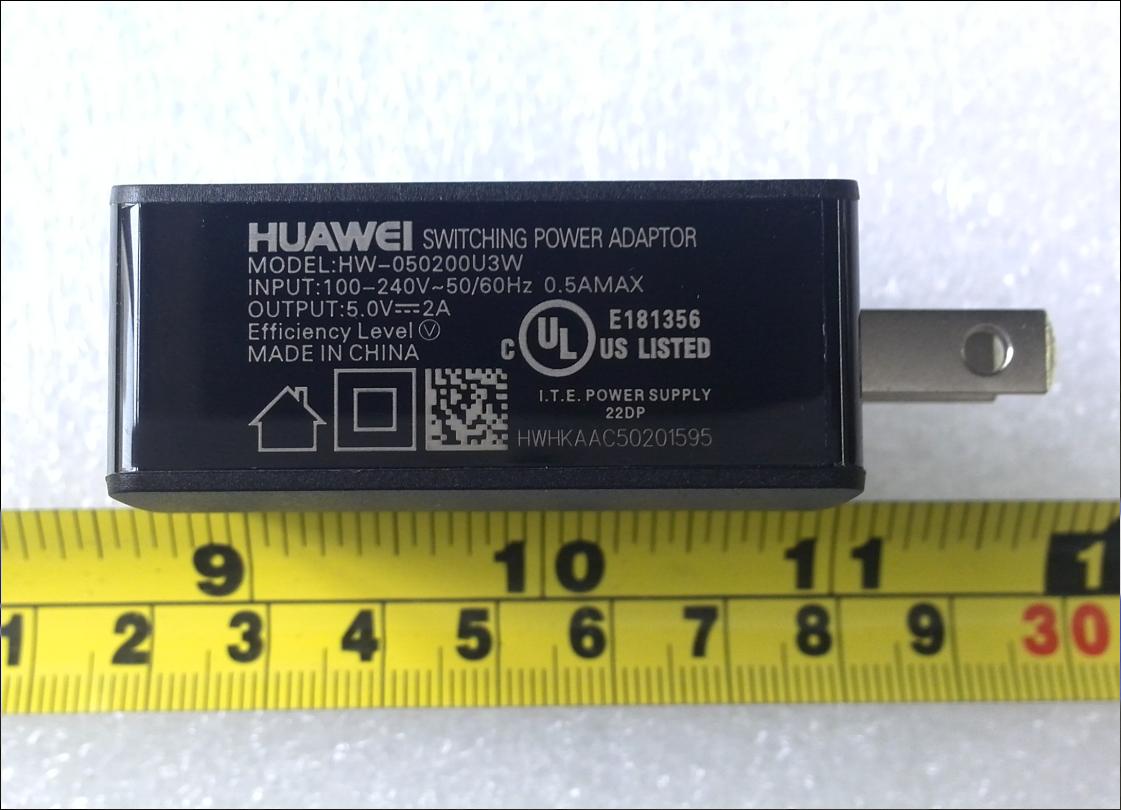

7D-501u SECRET Page1, Total7 Photo documentation of external of product 7D-501u SECRET Page2, Total7 7D-501u SECRET Page3, Total7 7D-501u SECRET Page4, Total7 7D-501u SECRET Page5, Total7 7D-501u SECRET Page6, Total7 7D-501u SECRET Page7, Total7

HUAWEI MediaPad X1 7.0 SECRET Page1, Total 1

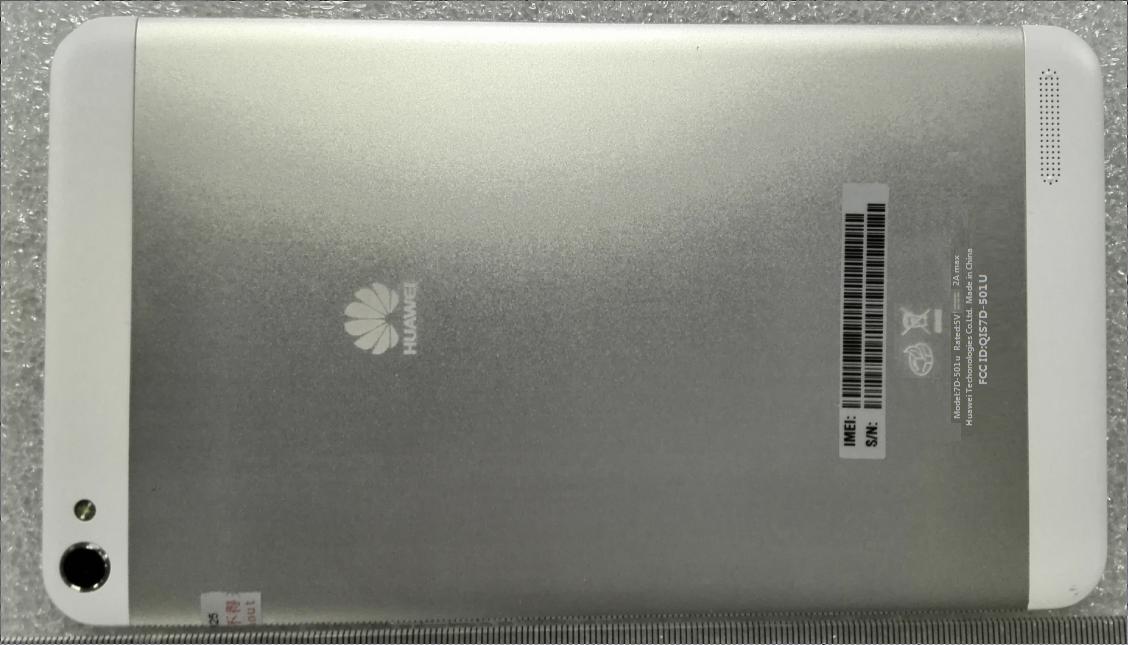

HUAWEI MediaPad x1 7.0 SECRET Page1, Total 1 Label Location

HUAWEI MediaPad X1 7.0 SECRET Page1, Total7 Photo documentation of interior of product HUAWEI MediaPad X1 7.0 SECRET Page2, Total7 HUAWEI MediaPad X1 7.0 SECRET Page3, Total7 HUAWEI MediaPad X1 7.0 SECRET Page4, Total7 HUAWEI MediaPad X1 7.0 SECRET Page5, Total7 HUAWEI MediaPad X1 7.0 SECRET Page6, Total7 HUAWEI MediaPad X1 7.0 SECRET Page7, Total7

Report No. RHA1403-0022SAR Page 1 of 174 TESTING No. L2264 SAR TEST REPORT Product Name HUAWEI MediaPad X1 7.0 Model Name 7D-501u FCC ID QIS7D-501U Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue March 24, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 2 of 174 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 General RF Exposure Guidance v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D03 SAR Test Reduction GSM/GPRS/EDGE v01: Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE KDB 616217 D04 SAR for laptop and tablets v01r01: SAR Evaluation Considerations for Laptop, Notebook, Netbook and Tablet Computers KDB 648474 D04 Handset SAR v01r02 SAR Evaluation Considerations for Wireless Handsets KDB 941225 D02 HSPA and 1x Advanced v02r02 SAR Guidance for HSPA, HSPA+, DC-HSDPA and 1x-Advanced Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Weizhong Yang Director Revised by Minbao Ling SAR Manager Performed by Yi Zhang SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 3 of 174 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the Test Report .......................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT ................................................................................................................... 7 1.6. The Maximum Reported SAR 1g ............................................................................................... 9 1.7. Maximum Conducted Power of Each Tested Mode ............................................................... 10 1.8. Test Date ............................................................................................................................... 10 2. SAR Measurements System Configuration .................................................................................... 11 2.1. SAR Measurement Set-up ..................................................................................................... 11 2.2. DASY5 E-field Probe System ................................................................................................ 12 2.2.1. EX3DV4 Probe Specification .......................................................................................... 12 2.2.2. E-field Probe Calibration ................................................................................................. 13 2.3. Other Test Equipment ............................................................................................................ 13 2.3.1. Device Holder for Transmitters ....................................................................................... 13 2.3.2. Phantom ......................................................................................................................... 14 2.4. Scanning Procedure .............................................................................................................. 14 2.5. Data Storage and Evaluation ................................................................................................. 16 2.5.1. Data Storage ................................................................................................................... 16 2.5.2. Data Evaluation by SEMCAD ......................................................................................... 16 3. Laboratory Environment ................................................................................................................ 18 4. Tissue-equivalent Liquid ............................................................................................................... 19 4.1. Tissue-equivalent Liquid Ingredients ...................................................................................... 19 4.2. Tissue-equivalent Liquid Properties ....................................................................................... 21 5. System Check ............................................................................................................................... 22 5.1. Description of System Check ................................................................................................. 22 5.2. System Check Results ..............…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 61 of 174 System Performance Check at 835 MHz Body TSL DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN: 4d020 Date/Time: 3/14/2014 5:21:34 PM Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.99 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 – SN3677; ConvF(9.51, 9.51, 9.51); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Sensor-Surface: 4mm (Mechanical Surface Detection) Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) d=15mm, Pin=250mW/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.72 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.9 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.52 mW/g; SAR(10 g) = 1.65 mW/g Maximum value of SAR (measured) = 2.73 mW/g Figure 7 System Performance Check 835MHz 250mW TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 62 of 174 System Performance Check at 1900 MHz Head TSL DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN: 5d060 Date/Time: 3/18/2014 23:13:45 PM Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(8.15, 8.15, 8.15); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM2; Type: SAM; Serial: TP-1524 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) d=10mm, Pin=250mW/Area Scan (41x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.3 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.5 V/m; Power Drift = 0.028 dB Peak SAR (extrapolated) = 17.8 W/kg SAR(1 g) = 9.48 mW/g; SAR(10 g) = 4.9 mW/g Maximum value of SAR (measured) = 10.7 mW/g Figure 8 System Performance Check 1900MHz 250mW TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 63 of 174 System Performance Check at 1900 MHz Body TSL DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN: 5d060 Date/Time: 3/17/2014 11:45:37 AM Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.52 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.63, 7.63, 7.63); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) d=10mm, Pin=250mW/Area Scan (41x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.9 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 80.8 V/m; Power Drift = -0.063 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 9.82 mW/g; SAR(10 g) = 5.2 mW/g Maximum value of SAR (measured) = 11 mW/g Figure 9 System Performance Check 1900MHz 250mW TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 64 of 174 System Performance Check at 2450 MHz Head TSL DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN: 786 Date/Time: 3/19/2014 5:41:12 AM Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.80 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.64, 7.64, 7.64); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM2; Type: SAM; Serial: TP-1524 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) d=10mm, Pin=250mW/Area Scan (41x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 18.2 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.8 V/m; Power Drift = 0.075 dB Peak SAR (extrapolated) = 30 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.22 mW/g Maximum value of SAR (measured) = 15.9 mW/g Figure 10 System Performance Check 2450MHz 250mW TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 65 of 174 System Performance Check at 2450 MHz Body TSL DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN: 786 Date/Time: 3/18/2014 22:30:37 PM Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.61, 7.61, 7.61); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: ELI v4.0; Type: QDOVA001BB; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) d=10mm, Pin=250mW/Area Scan (41x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 17.3 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.4 V/m; Power Drift = -0.093 dB Peak SAR (extrapolated) = 26.1 W/kg SAR(1 g) = 13.2 mW/g; SAR(10 g) = 6.27 mW/g Maximum value of SAR (measured) = 15 mW/g Figure 11 System Performance Check 2450MHz 250mW TA Technology (Shanghai) Co.…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 101 of 174 Figure 42 Right Hand Touch Cheek UMTS Band II Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 102 of 174 UMTS Band II Right Tilt Middle Date/Time: 3/18/2014 1:35:54 AM Communication System: WCDMA (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.413 S/m; ε r = 39.689; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(8.15, 8.15, 8.15); Calibrated: 11/28/2013 Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Right Tilt Middle /Area Scan (81x151x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.332 W/kg Right Tilt Middle /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.047 V/m; Power Drift = 0.021 dB Peak SAR (extrapolated) = 0.517 W/kg SAR(1 g) = 0.292 W/kg; SAR(10 g) = 0.140 W/kg Maximum value of SAR (measured) = 0.301 W/kg Figure 43 Right Hand Tilt 15° UMTS Band II Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 103 of 174 UMTS Band II with Test Position 1 Middle Date/Time: 3/17/2014 1:25:23 PM Communication System: WCDMA (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.493 S/m; ε r = 52.676; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.63, 7.63, 7.63); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Position 1 Middle /Area Scan (81x131x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.546 W/kg Test Position 1 Middle /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.005 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.596 W/kg; SAR(10 g) = 0.259 W/kg Maximum value of SAR (measured) = 0.655 W/kg TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 104 of 174 Figure 44 UMTS Band II with Test Position 1 Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 105 of 174 UMTS Band II with Test Position 3 Middle Date/Time: 3/17/2014 2:13:43 PM Communication System: WCDMA (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.493 S/m; ε r = 52.676; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.63, 7.63, 7.63); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Position 3 Middle /Area Scan (31x91x1): Interpolated grid: dx=12 mm, dy=12 mm Maximum value of SAR (interpolated) = 0.579 W/kg Test Position 3 Middle /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.716 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.565 W/kg; SAR(10 g) = 0.215 W/kg Maximum value of SAR (measured) = 0.579 W/kg Figure 45 UMTS Band II with Test Position 3 Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 106 of 174 UMTS Band II with Test Position 4 Middle Date/Time: 3/17/2014 2:36:03 PM Communication System: WCDMA (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.493 S/m; ε r = 52.676; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.63, 7.63, 7.63); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Position 4 Middle /Area Scan (31x131x1): Interpolated grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.0333 W/kg Test Position 4 Middle /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.415 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 0.0550 W/kg SAR(1 g) = 0.028 W/kg; SAR(10 g) = 0.014 W/kg Maximum value of SAR (measured) = 0.027 W/kg Figure 46 UMTS Band II with Test Position 4 Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 107 of 174 UMTS Band II with Test Position 5 Middle Date/Time: 3/17/2014 1:56:55 PM Communication System: WCDMA (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.493 S/m; ε r = 52.676; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3677; ConvF(7.63, 7.63, 7.63); Calibrated: 11/28/2013; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Position 5 Middle /Area Scan (31x131x1): Interpolated grid: dx=12 mm, dy=12 mm Maximum value of SAR (interpolated) = 0.111 W/kg Test Position 5 Middle /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.770 V/m; Power Drift = 0.098 dB Peak SAR (extrapolated) = 0.195 W/kg SAR(1 g) = 0.099 W/kg; SAR(10 g) = 0.048 W/kg Maximum value of SAR (measured) = 0.101 W/kg Figure 47 UMTS Band II with …

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 141 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 142 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 143 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 144 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 145 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 146 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 147 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 148 of 174 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 149 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 150 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 151 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 152 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 153 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 154 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 155 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 156 of 174 ANNEX G: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 157 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 158 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 159 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 160 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 161 of 174 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0022SAR Page 162 of 174 TA Technology (Shanghai) …
