QISAF500ColorBand

User Guide ColorBand 1 Content What's in the box ............................................................................................................................ 3 Getting to know your ColorBand .................................................................................................... 3 Installing the app and pairing your device ..................................................................................... 4 Quick ways to turn on the screen ................................................................................................... 5 Viewing your screen in strong sunlight .......................................................................................... 5 Switching to sleep mode ................................................................................................................. 6 Switching to sleep mode automatically ...................................................................................................................... 6 Switching to sleep mode manually ............................................................................................................................. 6 Setting an alarm ............................................................................................................................... 7 Setting an exercise reminder ........................................................................................................... 7 Reviewing exercise and sleep data ................................................................................................. 8 Phone finder .................................................................................................................................... 8 Activating call reminders ................................................................................................................. 9 Remote-controlled camera .............................................................................................................. 9 Updating the app ........................................................................................................................... 10 Updating the ColorBand's system software ................................................................................. 10 2 Restoring default settings .............................................................................................................. 11 Restarting the ColorBand .............................................................................................................. 11 Understanding the screen ............................................................................................................. 12 FAQs ............................................................................................................................................... 14 Safety Information ......................................................................................................................... 18 Legal Notice ................................................................................................................................... 21 For more help ................................................................................................................................. 22 3 What's in the box ColorBand x 1 Charging cable x 1 User Guide x 1 Getting to know your ColorBand 4 Installing the app and pairing your device 1. Charge your ColorBand by connecting it to a power source with the charging cable. If the word HUAWEI does not scroll across the screen, try using a pointed object to press the Reset button on the charging cable and reset the ColorBand. Note: The time it takes to charge your ColorBand depends on the USB power output. 2. After your ColorBand is fully charged, download the Huawei Wear app from Google Play (for Android users) or App Store (for iPhone users). After the app is installed, is displayed on your phone. 3. To uch and follow the on-screen instructions to complete the pairing process. The ColorBand will automatically sync the time from your phone. If you want to cancel pairing, touch > > Disassociate (for Android users) or > > your ColorBand's name > Disassociate (for iPhone users). After disassociated, the ColorBand can be paired with other phones. Caution: You must connect to the ColorBand via Bluetooth using the app. Failure to do so may cause the ColorBand to vibrate unexpectedly, in which case a factory reset will be required. 5 Quick ways to turn on the screen You can turn on your ColorBand's screen in a number of quick and easy ways.  When it's dark, cover the entire screen with your hand, or touch the function button.  When you're exercising, bump the function button against your body when your hands aren't free.  When you're at the office or home, touch > (for Android users) or > > your ColorBand's name (for iPhone users), activate Flip to turn on screen, and then rotate your wrist to turn on the screen. This function may reduce your device standby time. Use only when needed. Viewing your screen in strong sunlight If you're exercising outdoors, touch > (for Android users) or > > your ColorBand's name (for iPhone users), and activate Enhanced brightness to view your screen clearly in bright sunlight. This function only works during daylight hours (06:00 to 20:00) and may reduce your device standby time. Use only when needed. 6 Switching to sleep mode The ColorBand features a pedometer and sleep mode. Sleep data is only recorded when the ColorBand is in sleep mode. Switching to sleep mode automatically Set your sleep time and the ColorBand will automatically switch from pedometer mode to sleep mode. 1. Touch > > Sleep time (for Android users) or > > your ColorBand's name > Sleep time (for iPhone users), and specify your time range. 2. Touch the back button on your phone, and then touch Sync. The settings will be synced to your ColorBand. Tip: Automatic sleep mode cannot be disabled. If you need to…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (24/0 3/2015) BABT T CB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China here by authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e- mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application : FCC ID: QISAF500 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E- mail: [email protected] Tel: 0086-0 755 -28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-3-24 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QIS AF500 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-9-11: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E- mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

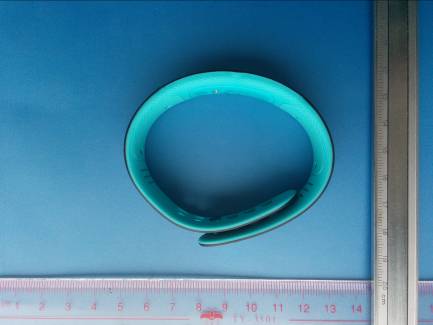

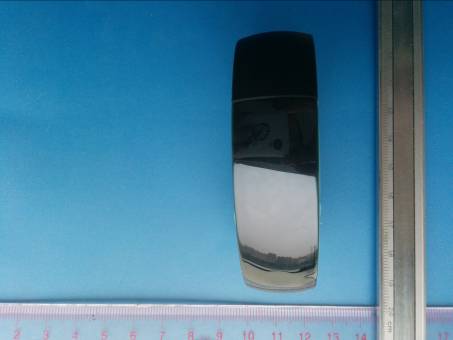

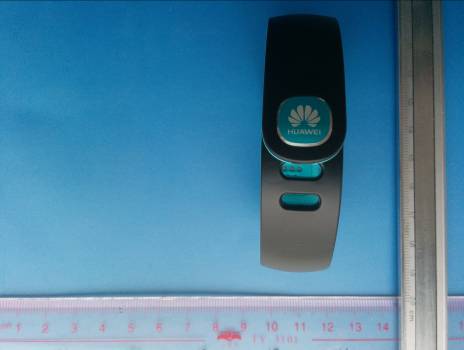

1. front and back 2. left and right 3. top and bottom 4. Lable

表带A 颜色： 材料：TPSIV 工艺：双色注塑 黑色 表带B 颜色： 材料：TPSIV 工艺：双色注塑，纹理如附件， 表面触感为soft Touch. 宝蓝色(详见色板) 钮扣 颜色： 材料：铝合金 工艺：氧化色板西瓜红，镭雕 切C角。 宝蓝色(详见色板) logo， LENS 颜色：与表带A同色 材料：亚克力 工艺：半透黑,正面透明光学镀，再过UV。 支架 颜色：宝蓝色 材料：PC 工艺：表面手感与表带B保持一致， 丝印铭牌PT432U(MY:日期，不同批次按实际定,详见page5）。 (详见色板) 电池盖 颜色：(详见色板) 材料：金属 工艺：表面手感与表带B保持一致, 喷涂softTouch,螺丝黑色. 宝蓝色 具体效果以样品为准 所提供的油漆编号作为该样品参考 有疑问的工艺供应商务必与工程师沟通确认 腕带AF500-黑色 ding Yuan 2014-08-05 AF 500 A 全球版国内版 M Y 表带A 颜色：黑 材料：TPSIV 工艺：双色注塑 色 表带B 颜色： 材料：TPSIV 工艺：双色注塑，纹理如附件， 表面触感为soft Touch. 粉蓝色(详见色板) 钮扣 颜色： 材料：铝合金 工艺：氧化色板西瓜红，镭雕 切C角。 粉蓝色(详见色板) logo， LENS 颜色：与表带A同色 材料： 工艺：半透黑正面透明光学镀，再过UV。 亚克力 支架 颜色： 材料：PC 工艺：表面手感与表带B保持一致 丝印铭牌PT3145U(MY:日期，不同批次按实际定,详见page5）。 粉蓝色(详见色板) ， 电池盖 颜色：(详见色板) 材料：金属 工艺：表面手感与表带B保持一致 喷涂softTouch,螺丝黑色. 粉蓝色 ， 具体效果以样品为准 所提供的油漆编号作为该样品参考 有疑问的工艺供应商务必与工程师沟通确认 腕带AF500-粉蓝红 ding Yuan 2014-08-05 AF 500 A 全球版国内版 M Y 表带A 颜色： 材料：TPSIV 工艺：双色注塑 黑色 表带B 颜色： 材料：TPSIV 工艺：双色注塑，纹理如附件， 表面触感为soft Touch. 西瓜红(详见色板) 钮扣 颜色： 材料：铝合金 工艺：氧化色板西瓜红，镭雕 切C角。 西瓜红(详见色板) logo， LENS 颜色：与表带A同色 材料： 工艺：半透黑，正面透明光学镀，再过UV。 亚克力 支架 颜色： 材料：PC 工艺：表面手感与表带B保持一致 丝印铭牌PT1805U(MY:日期，不同批次按实际定,详见page5）。 西瓜红(详见色板) ， 电池盖 颜色：西瓜红(详见色板) 材料：金属 工艺：表面手感与表带B保持一致, 喷涂softTouch,螺丝黑色. 具体效果以样品为准 所提供的油漆编号作为该样品参考 有疑问的工艺供应商务必与工程师沟通确认 腕带AF500-西瓜红 ding Yuan 2014-08-05 AF 500 A M Y 全球版国内版 表带A 颜色： 材料：TPSIV 工艺：双色注塑 黑色 表带B 颜色： 材料：TPSIV 工艺：双色注塑，纹理如附件， 表面触感为soft Touch. 黄绿色PT389u 钮扣 颜色： 材料：铝合金 工艺：氧化色板黄绿色PT389u，镭雕 切C角。 黄绿色PT389u logo， LENS 颜色：与表带A同色 材料： 工艺：半透黑，正面透明光学镀，再过UV。 亚克力 支架 颜色：黄绿色 材料：PC 工艺：表面手感与表带B保持一致 丝印铭牌PT390U(MY:日期，不同批次按实际定,详见page5）。 PT389u ， 电池盖 颜色： 材料：金属 工艺：表面手感与表带B保持一致, 喷涂softTouch,螺丝黑色. 黄绿色PT389u 具体效果以样品为准 所提供的油漆编号作为该样品参考 有疑问的工艺供应商务必与工程师沟通确认 腕带AF500-西瓜红 ding Yuan 2014-08-05 AF 500 A 全球版国内版 M Y 年月表示方法 月份 M 年份 Y 1月 1 2014年 4 2月 2 2015年 5 3月 3 2016年 6 4月 4 5月 5 6月 6 7月 7 8月 8 9月 9 10月 A 11月 B 12月 C

inside PCBA photo

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Exemption Evaluation Report Product Name: ColorBand Model: AF500 Report No.: SYBH(Z-SAR)015032015-2 FCC ID: QISAF500 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2015-04-07 2015-04-07 The test results of this test report relate exclusively to the item(s) tested . The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)015032015-2 FCC ID: QISAF500 2015-04-07 Page 2 of 7 ※ ※ Modified History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release 2015-04-07 Sun Shaobin Report No.: SYBH(Z-SAR)015032015-2 FCC ID: QISAF500 2015-04-07 Page 3 of 7 Table of Contents 1 EUT Description .................................................................................................................................................................. 4 1.1 General Description ................................................................................................................................................... 4 2 Test specification(s) ........................................................................................................................................................... 5 3 Testing laboratory ............................................................................................................................................................... 5 4 Applicant and Manufacturer ............................................................................................................................................... 5 5 Application details ............................................................................................................................................................... 5 6 Ambient Condition .............................................................................................................................................................. 5 7 RF exposure limits .............................................................................................................................................................. 6 8 SAR Exemption Evaluation ............................................................................................................................................... 7 Report No.: SYBH(Z-SAR)015032015-2 FCC ID: QISAF500 2015-04-07 Page 4 of 7 1 EUT Description Table 1:Device information and operating configuration 1.1 General Description ColorBand(AF500) is a product thought bluetooth 4.0 technology connect with smart phone.It has G- Sensor inside, which inset special algorithm.So colour band could track user`s sleep & physical activity,and calories burned.In the same time,the colour can do cloud data synchronization, find phone, remote control camera, phone calls reminding and many other functions. Device Information： Product Name: ColorBand Model: AF500 FCC ID : QISAF500 Device Type : Portable device Device Phase: Identical Prototype Exposure Category: Uncontrolled environment / general population Hardware Version : A3.33D Software Version : 12.03.12.01.00 Antenna Type : Internal Antenna Antenna Gain : 0dBi Device Operating Configurations: Supporting Mode(s) BT Test Modulation GFSK Operating Frequency Range(s) Band Tx (MHz) Rx (MHz) BT 2402-2480 2402-2480 Report No.: SYBH(Z-SAR)015032015-2 FCC ID: QISAF500 2015-04-07 Page 5 of 7 2 Test specification(s) ANSI Std C95.1-1992 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) KDB447498 D01 General RF Exposure Guidance v05r02 3 Testing laboratory Test Site The Reliability Laboratory of Huawei Technologies Co., Ltd. Test Location Zone G1,Huawei Industrial Base, Bantian Industry Area, Longgang District, Shenzhen, Guangdong, China Telephone +86 755 28780808 Fax +86 755 89652518 State of accreditation The Test laboratory (area of testing) is accredited according to ISO/IEC 17025. CNAS Registration number: L0310 A2LA TESTING CERT #2174.01 4 Applicant and Manufacturer Company Name HUAWEI TECHNOLOGIES CO., LTD Address Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 5 Application details Start Date of test 2015-04-07 End Date of test 2015-04-07 6 Ambient Condition Ambient temperature 20°C – 24°C Relative Humidity 30% – 70% Report No.: SYBH(Z-SAR)015032015-2 FCC ID: QISAF500 2015-04-07 Page 6 of 7 7 RF exposure limits Human Exposure Uncontrolled Environment General Population Controlled Environment Occupational Spatial Peak SAR* (Brain/Body/Arms/Legs) 1.60 mW/g 8.00 mW/g Spatial Average SAR** (Whole Body) 0.08 mW/g 0.40 mW/g Spatial Peak SAR*** (Hands/Feet/Ankle/Wrist) 4.00 mW/g 20.00 mW/g Table 2: RF exposure limits The limit applied in this test report is shown in bold letters Notes: * The Spatial Peak value of the SAR averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time ** The Spatial Average value of the SAR averaged over the whole body. *** The Spatial Peak value of the SAR averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. Uncontrolled Environments are defined as locations where there is the exposure of individuals who have no knowledge or control of their exposure. Controlled Environments are defined as locations where there is exposure that may be incurred by persons who are…

Text truncated - open the document above for the full version.

FCC & IC RF Test Report Product Name: Color Band Model Number: AF500 Report No: SYBH(Z-RF)007012015-2001 FCC ID:QISAF500 IC：6369A-AF500 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 15 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 15 Approved by Senior Engineer: 2015-01-28 Liu Chunlin Date Name Signature Prepared by: 2015-01-28 Zhang Guocai Date Name Signature Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2015-01-19 Start Date of Test: 2015-01-19 End Date of Test: 2015-01-20 Test Result: Pass RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 15 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 15 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard ........................................................................................................................................ 6 1.2 Test Location.............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 8 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 EUT Configurations .................................................................................................................................. 10 4.2 Test Environments ................................................................................................................................... 10 4.3 Test Setups .............................................................................................................................................. 11 4.4 Test Conditions ........................................................................................................................................ 14 5 Main Test Instruments .......................................................................................................................................... 15 RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 15 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2013 47 CFR FCC Part 15, Subpart C 2013 IC RSS-Gen Issue 4 (Nov. 13, 2014) IC RSS-210 (Issue 8, December 2010) Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r02 ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices. 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 1.3 Test Environment Condition Ambient Temperature: 19.5to 25 °C Ambient Relative Humidity: 40 to 55 % Atmospheric Pressure: Not applicable RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 15 2 Test Summary Test Item FCC Part No. IC Standard N…

Text truncated - open the document above for the full version.

RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 52 Appendix for Test report RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 52 1 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. 1.1 Part I - Test Results Test Mode Test Channel Frequency[MHz] DTS6dBBW[kHz] Verdict TM1_DH5_Ch0 L 2402 682 pass TM1_DH5_Ch19 M 2440 677 pass TM1_DH5_Ch39 H 2480 685 pass RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 52 1.2 Part II - Test Plots 1.2.1 TM1_DH5_Ch0_L RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 52 1.2.2 TM1_DH5_Ch19_M RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 52 1.2.3 TM1_DH5_Ch39_H RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 52 2 Appendix B: Occupied Bandwidth For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. 2.1 Part I - Test Results Test Mode Test Channel Frequency[MHz] Occupied Bandwidth [MHz] Verdict TM1_DH5_Ch0 L 2402 1.17 pass TM1_DH5_Ch19 M 2440 1.05 pass TM1_DH5_Ch39 H 2480 1.02 pass RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 52 2.2 Part II - Test Plots 2.2.1 TM1_DH5_Ch0_L RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 52 2.2.2 TM1_DH5_Ch19_M RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 52 2.2.3 TM1_DH5_Ch39_H RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 52 3 Appendix C: Duty Cycle 3.1 Part I - Test Results # EUT Conf. Signal Description Operating Frequency Duty cycle [%] TM1_DH5_Ch0 GFSK for BT 4.0 modulation, package type DH5, hopping off. Ch No. 0 / 2402 MHz 67.9 TM1_DH5_Ch19 GFSK for BT 4.0 modulation, package type DH5, hopping off. Ch No. 19 / 2440 MHz 68 TM1_DH5_Ch39 GFSK for BT 4.0 modulation, package type DH5, hopping off. Ch No. 39 / 2480 MHz 67.7 RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 52 4 Appendix D: Maximum Conducted Average Output Power 4.1 Part I - Test Results Test Mode Test Channel Frequency[MHz] Duty Cycle [%] Power[dBm] Verdict TM1_DH5_Ch0 L 2402 67.9 3.70 pass TM1_DH5_Ch19 M 2440 68 3.67 pass TM1_DH5_Ch39 H 2480 67.7 3.25 pass RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 52 4.2 Part II - Test Plots 4.2.1 TM1_DH5_Ch0_L RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 52 4.2.2 TM1_DH5_Ch19_M RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 52 4.2.3 TM1_DH5_Ch39_H RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 52 5 Appendix E: Maximum Power Spectral Density Level 5.1 Part I - Test Results Test Mode Test Channel Frequency[MHz] Duty Cycle [%] PD[MHz] Verdict TM1_DH5_Ch0 L 2402 67.9 -10.24 pass TM1_DH5_Ch19 M 2440 68 -9.55 pass TM1_DH5_Ch39 H 2480 67.7 -10.20 pass RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 52 5.2 Part II - Test Plots 5.2.1 TM1_DH5_Ch0_L RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 52 5.2.2 TM1_DH5_Ch19_M RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 52 5.2.3 TM1_DH5_Ch39_H RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 52 6 Appendix F: Band Edges Compliance 6.1 Part I - Test Results Test Mode Test Channel Frequency [MHz] Carrier Power[dBm] Max.Spurious Level[dBm] Verdict TM1_DH5_Ch0 L 2402 3.71 -49.95 pass TM1_DH5_Ch39 H 2480 3.36 -49.28 pass RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 52 6.2 Part II - Test Plots 6.2.1 TM1_DH5_Ch0_L RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 52 6.2.2 TM1_DH5_Ch39_H RF Test Report of AF500 Report No: SYBH(Z-RF)007012015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 52 7 Appendix G: Unwanted Emissions into Non-…

Text truncated - open the document above for the full version.

FCC Test Report of AF500 Photos of Test Setup FCC Test Report of AF500 1 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) FCC Test Report of AF500 Radiated Spurious Emission (1GHz to18GHz) FCC Test Report of AF500 Radiated Spurious Emission (above 18GHz) FCC Test Report of AF500 2 Conducted Emissions Conducted Emissions for AC Ports
