QISALE-L04Smart Phone

Huawei Technologies Co.,Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 27, 2015
Application Purpose: Original Equipment
Date of Application: Apr 27, 2015
Equipment Note: Smart Phone
Frequency Range: 2402.00000000 - 2480.00000000
Company: Huawei Technologies Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Huawei Technologies Co., Ltd. Date (2015-04-22) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISALE-L04 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Cover Letter(s)

Statements Date (2015-04-22) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby to confirm that our device, FCC ID: QISALE-L04, is shipped with the battery pre-installed and the FCC ID is readily visible when users open the product box. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Cover Letter(s)

Huawei Technologies Co., Ltd. Federal Communications Commission 2015/4/22 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISALE-L04 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-5-30 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Cover Letter(s)

Huawei Technologies Co., Ltd Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China +86 755 28780808 www.huawei.com Declaration of Letter Product Type: Smart Phone Model No.: HUAWEI ALE-L04, ALE-L04 The two four models are identical, only difference is the model name. And the two models have the same technical construction, including software design, RF module, antennas, circuit design and PCB layout. There are no differences between the two models (HUAWEI ALE-L04, ALE-L04) on electrical and mechanical construction. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China

External Photos

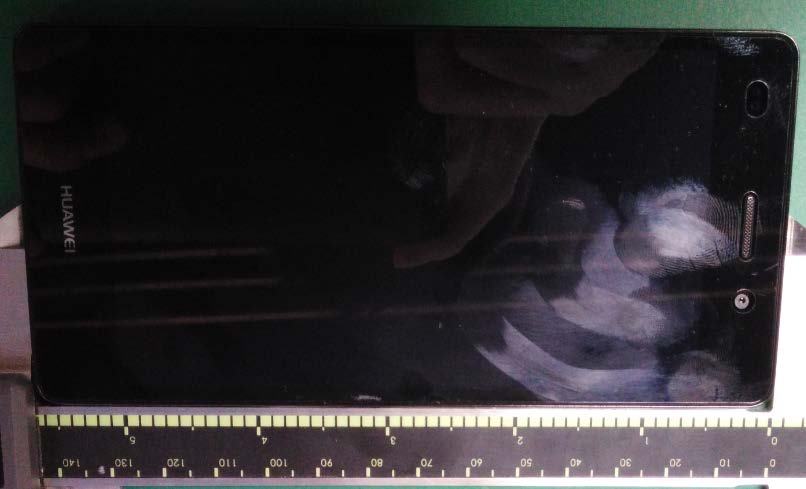

HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 4/22/2015 Page1,Total 4 External Photos of HUAWEI ALE-L04, ALE-L 04 HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 4/22/2015 Page2,Total 4 01. Front-HUAWEI ALE-L04,ALE-L04 02. Back- HUAWEI ALE-L04,ALE-L04 HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 4/22/2015 Page3,Total 4 03. Left- HUAWEI ALE-L04,ALE-L04 04. Right- HUAWEI ALE-L04,ALE-L04 05. Bottom- HUAWEI ALE-L04,ALE-L04 06. Top- HUAWEI ALE-L04,ALE-L04 HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 4/22/2015 Page4,Total 4

ID Label/Location Info

HUAWEI ALE-L04,ALE-L04 Smart Phone SECRET 2015-4-22 Page1, Total1 Label & Label Location：

Internal Photos

HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 2015-04-22 Page1, Total4 Internal Photos of HUAWEI ALE-L04, ALE-L 04 HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 2015-04-22 Page2, Total4 HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 2015-04-22 Page3, Total4 HUAWEI ALE-L04, ALE-L04 Smart Phone SECRET 2015-04-22 Page4, Total4

RF Exposure Info

!"#$%&"$'()& *++,-./,01234256 789:;<=>9?@ABCDEFAC GHIJKL;M=@NOPQRSTUVW X9Y;Z>[L;@\]^_`a^b`cb Cde ^b`cb Cd fKKZJ<[M=@ \g PhWijWkTVUlUmiWnEUoe b Rpo fYY8;qq@^ pOiVinRQPRiUVr g ilpiVme \ WPps g PQRWQnUt \g PhWi jWkTVUlUmiWnEUoe b RpoerPVRiPVe b UVmmPVmuinRQikRe NTWVvTWVeBAwAFxeSoyoE z[=;9{|;<;JK=@} PQoF~eFCAB z[=;9{;q=@} PQoFweFCAB ^ QoFCeFCAB qqI;Yz[=;@ ^ QoFAeFCAB ;q=;Y@ rj ba Vko ;q=JMGMJM;;8@ N g WQiPVm ;<MJ<[ZX[M[;8@ b WU \g Vm fI=98J;YJM[=98@ NRWWV bg B T L I N C . ¡¢£¤ ¡¥¦§ ̈©ª«¬ª«©©«®®® ̄°±§ ̈©ª«¬ª«©«ª®®® ² z;<Z[8[=J9M ³ ́μ¶·¶ ̧¹º ̧ºº»¼½¾¹ºº»ºº ̧º¾¹¾ ̧¿¹¾¹¼¼¶¿¹¼À¾º» ̧º¹¿¶¿·¶¼¿Á¶ ̧ ̧··½¾¼Â½¹¿ º»ºº ̧º¾¹ ̧º¶ÁÃ¹º ̧Á ̧¿» ̧Â¹¼½¾Â¶º¿À¾º»º» ̧º¹¿¶¿ ̧º¶¼Â½ºÄº¾¹½Å ̧Á¶Ã¹º ÆÂ¶º¶ÇÈÉÊμËÌ¶Äº¾¹½Í¹ ̧º¾ºÁºÎº¹¿¶¿ ̧¹¿Ï¼»¹½ÇÈÉÐÑ ́ËÒ ³ ́μÓÔÕÖ×ØÕÙÔÚ××ÛÜØÝÛÜÙØÙÞÖÔ×ÖßàáàßÔÚâ×ÛÖÔÙÖÔÙÖãäÝãÖÕßØÝãàÙàØÝÔåæÙàÔâÚÝäáÚßÙäÕÖçÔÕÖÔ×ØÝÔàèàÛàÙÜ º¹ ̧Á¶º»º¿¿¾º¾¹½·¶¿Á¼º¾¹Á¹¾º ̧º»¾ ̧Ã¿½¶Ã¹Á¼ºÁ¶¿À¾º»º»¾¿¹º¾¼½½¼º¶¾¼½¹¿ Ã¼»¹¾¼½¼Ã·¹¹º ̧Ò³ ́μ ̧»½½»é¹½¾Â¾½¾ºÇ¶¹Ç¿¼½¶º¾¹ ̧Ì¾¹¶¹¼ ̧¶¹¶½¾êº¾¹ ̧ ¿¶À¹ÂÇº»¼½¾¹º¶º»¶ ̧¶Ã³ ́μ¾ ̧ ̧Á¿¶·¶º ̧Ò ³ ́μçÔÕÖ×ØÕÙÔâäÔÙÝØÙèÖäÔÖãèÜÙÞÖßÛàÖÝÙÙØßÛÚàâ×ÕØãäßÙÖÝãØÕÔÖâÖÝÙèÜÙÞÖÚäÙÞØÕàÙàÖÔØÕÚÝÜ ¹¼Çº»ëé¶¹Ã¹ºÒ Ï»¾ ̧¶·¶º¾ ̧º»¼¹¾¿¹º¾½·¶·¶ºÇº»¼½¾¹ºÒì ̧ÃÁºÁ½·¶º¼º¾¹ºº»¼½¾¹º ̧Ìº»·ÁÂ½¾¼¹¿ ³ ́μíîïðñÌòº¶¼º ̧¶Ãº»º ̧º¶·¶º ̧»½½¹ºÂ¶·¶¿Á¼¿ò¼·º¾¹Á½½À¾º»³ ́μçÔÚäÙÞØÕàóÖãôÕàÙÙÖÝ ··¶é½Ò ³ ́μçÔÛÚèØÕÚÙØÕÜõäÚÛàÙÜÚÔÔäÕÚÝßÖ·¶¼¿Á¶ ̧¶¾¹¼Ã·½¾¹¼À¾º»º»ÐÑö÷øùúïûüýþÿ¶Á¾¶Ã¹º ̧Ì ¹¿¼¼¶¿¾º¿ÂÇº»¼¹¶Ã¾ºÇ ̧ ̧ ̧ ̧Ã¹ºÁº»¶¾º¾ ̧½¾ ̧º¿¾¹º»¾ ̧º ̧º¶·¶ºÒ JLJ=[=J9M ¶º»Á ̧º»Áº»¶¾ºÇ ̧½¾ ̧½¾Ã¾º¿Á¹½ ̧ ̧º»Ï ̧ºÎº¹¿¶¿È ̧ËÎ¼·È ̧ËÍºÃÈ ̧ËÃ¹º¾¹¿¾¹º»¾ ̧ º ̧º¶·¶º¾ ̧È¶Ë¾¹¼½Á¿¿¾¹º»¼¹¶Ã¾ºÇ ̧ ̧ ̧ ̧Ã¹ºÁº»¶¾º¾ ̧¼¼·º¹¼¶ ̧·¼º¾éÒ !""#$% &?'G(f)*+ &?&XGf,|GXG>,>)G|f>*+ -"!#$"#. /?'fGXG>0()0X7f>)G1 /?&2G>G|fzG)|70>0(G,3 /?/4070705G||Gz,)0>7G)()f0>(0|f|'& /?6f70|f0|*G>8|0>XG>'/ /?9Xf>G>|,XG>'6 :$$;#!"$"#< 6?'f|XGf,|GXG>G=,7'9 6?&zf*9G=(Gz7|07G>?@ABC'D <$E"!";$"#F#;G : 9?',G8G|()f0>&6 9?&*GX)4G)H&D 9?/*GX)4G)H7|0)Gz,|G&+ $E"I""$G;$"$ . D?'f|XGf,|GXG>8f|f7*&1 D?&f|XGf,|GXG>,>)G|f>*&1 %$$;#!"$"# J +?'2XG)0>(2,|f0>&3 +?&,XG)0>(2,|f0>/K +?/GG)0>(2,|f0>/D +?65(&?62G)0>(2,|f0>/1 .$$$-J 1?')0>z,)Gz705G||G,/3 1?&f|G|G,D9 1?/X,7G|f>XG|G8f,f0>36 FFG"LM% $$#$M% N $;O;PF#$M -$F#$M :;"I$"#;$"!";$M <$$$"F#"$"#G$#;$"# Q F#$"GO"$# a nn g WpRUouWnkQi RiUV a nn g WpuPRW rj bcS EE c N ^ y c ABCDEFACTQimiVPl a nn g Wo ^ QoFAeFCAB ` s g i OWVRNOPQRSTUVW } UpWlRPOW \]^_`a^b`cb Cd e ^b`cb Cd rQPVpRPOW \]^_`a } PV g tPkR g QWQ \g PhWijWkTVUlUmiWnEUoe b Rpo ^ ppQWnn ^ pOiVinRQPRiUVr g ilpiVme \ WPps g PQRWQnUt \g PhWijWkTVUlUmiWnEUoe b RpoerPVRiPVe b UVmmPVmuinRQikReNTWVvTWVeBAwAFxeSoyoE NRPVpPQpn f>=Y)39?'='33&NPtWRU b WWlnhiRTyWn WkRRU \g OPV `V Un g QWRUyPpiU S QWs g WVkU ` lWkRQUOPmVWRik S iWlpneDW \ vXDCC Y \ vo a``` NRpExBoA c AxxA GGG=Y'9&1=&KK/yWkUOOWVpWpSQPkRikWtUQuWRWQOiViVmRTW SWPWN PRiPl c^ WQPmWN Wkitik ^Z nUQ RiUVyPRWN ^ yiVRTW \g OPV \ WPptQUO _ iQWlWnnEUOO g VikPRiUVnuWikWn[ } WPn g QWOWVR jWkTVis g Wn GGG=Y'9&1[=&KK9 a``` yWkUOOWVpWpSQPkRikWtUQuWRWQOiViVm RTWSWPWN PRiPl c^ N Wkitik ^Z nUQ RiUVyPRWN ^ yiVRTW \g OPV \ WPptQUO _ iQWlWnnEUOO g VikPRiUVnuWikWn[ } WPn g QWOWVR jWkTVis g Wn ^ OWVpOWVRA[E ^ u S ilWtUQ \g OPV \ WPp } UpWlN ^ } STPVRUO Hz736'&&9zK'DYN ^ ySQUkWp g QWnCD Hz736'&&9zK9N ^ ytUQ b j ` uWikWnCFQCD Hz736'&&9zKD \ URn UR } UpW\CF Hz766+631zK'YWVWQPly S`V Un g QWY g ipPVkWCBQCF Hz7D616+6zK6N ^ y \ PVpnWRn } g lRi]OiRWQPVp ^ VRCAQCF Hz7&61&&+zK'N ^ yOWPntUQwCFoAAP^ Z ^mCAQCF Hz71D9DD6zK'N ^ yOWPn g QWOWVRACC } \ vRU_Y \ vCAQCD Hz71D9DD6zK&N ^ yyW UQRiVmCAQCA Hz7D3K+1/zK'N ^ y b inRiVmnUVYQPVRnCAQCD jTWP Z UWWs g i OWVRTPn Z WWVRWnRWpPVptU g VpkUO liPVkWhiRTRTWQWs g iQWOWVRUtRTWQWlPRiW nRPVpPQpn Z Urj ba Vko jTWRWnRpPRPepPRPWPl g PRiUVePVpWs g i OWVRkUVtim g QPRiUVkUVRPiVWpiVU g QRWnRQW UQRyWtRUo rj bcS EE c N ^ y c ABCDEFAChWQWU Z RPiVWp g RiliviVmRTWRWnR QUkWp g QWneRWnRiVnRQ g OWVRneRWnRniRWn RTPRTPn Z WWVPkkQWpiRWp Z URTW ^g RTUQiRUUtj ^S PkkUQpiVmRURTW a NT c A~CFBs g PliRUPnnWnnOWVR nRPVpPQpPVpRWkTVikPlnRPVpPQpno ` !""#$ &?'G(f)* jTWRWnRtPkiliRiWn g nWpRUkUllWkRRTWRWnRpPRPiVRTinQW UQRinf|899LPRRTWlUkPRiUVUt RUoDeiVnTPmPVmAnRyUPpeNTi]iPeuPlPVmjUhVeuUVmY g PVeETiVPoBFD~xF &?&XGf,|GXG>,>)G|f>* ,M<;8=[JM=)9LK9M;M= ,M<;8=[JM= 8[ZI; 789[JZJ= zJq=8JI=J9M zJaJq98 )b c'd =[MY[8Y ,M<;8=[JM= e 'f 8bgh 8ijj X;[qI8;L;M=q=;L klmnopqrsnlqtsmuvwxyz{|}~mlqryy{|} sqrmtlm|otqurql y|} osolsqrmlm}|otqurql |} muqloty|otqurqly| suoqlstotqurqly| to¡ototsmussty|otqurqly| oqmtrotlmus| ~mlqryy| omuo¢so|£otqurql¤y|{ utolqtsmu¢so|otqurqlyy|{ ¥nsoutpmustsmu¦~mso |otqurql ¤ yy| ¥nsoutorotsmu |otqurql ¤ yy| klmnokmstsmuol§oqusqr ¢mrolquo |otqurqly| klmnokmstsmusu ̈stloottm kqutm orr |}otqurqlyy| tlqmrqtsmu©sutolmrqtsmuqu sutolqtsmurmlstml§q| ªqrqtsmu y|otqurql y| …

Text truncated - open the document above for the full version.

RF Exposure Info

Appendix A System Check Plots: Please reference next page. Date/Time: 04/13/2015 18:10:34 Test Laboratory: BTL Inc. SystemPerformanceCheck-750 Body DUT: Dipole 750 MHz D750V3; Type: D750V3; Serial: D750V3 - SN1095 Communication System: UID 0, CW (0); Frequency: 750 MHz Medium parameters used: f = 750 MHz; σ = 0.95 S/m; ε r = 54.68; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(10.25, 10.25, 10.25); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) System Performance Check at Frequency at 750MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (5x23x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.35 W/kg System Performance Check at Frequency at 750MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.415 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 2.48 W/kg SAR(1 g) = 1.98 W/kg; SAR(10 g) = 1.34 W/kg Maximum value of SAR (measured) = 2.39 W/kg Date/Time: 04/15/2015 18:32:14 Test Laboratory: BTL Inc. SystemPerformanceCheck-750 Body DUT: Dipole 750 MHz D750V3; Type: D750V3; Serial: D750V3 - SN1095 Communication System: UID 0, CW (0); Frequency: 750 MHz Medium parameters used: f = 750 MHz; σ = 0.962 S/m; ε r = 54.695; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(10.25, 10.25, 10.25); Calibrated: 01/30/2015  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) System Performance Check at Frequency at 750MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (5x23x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.38 W/kg System Performance Check at Frequency at 750MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.523 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 2.88 W/kg SAR(1 g) = 1.96 W/kg; SAR(10 g) = 1.32 W/kg Maximum value of SAR (measured) = 2.42 W/kg Date/Time: 04/09/2015 20:03:14 Test Laboratory: BTL Inc. SystemPerformanceCheck-750 Head DUT: Dipole 750 MHz D750V3; Type: D750V3; Serial: D750V3 - SN1095 Communication System: UID 0, CW (0); Frequency: 750 MHz Medium parameters used: f = 750 MHz; σ = 0.87 S/m; ε r = 42.523; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(10.38, 10.38, 10.38); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) System Performance Check at Frequency at 750MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (5x23x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.25 W/kg System Performance Check at Frequency at 750MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.428 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 2.58 W/kg SAR(1 g) = 2.04 W/kg; SAR(10 g) = 1.43 W/kg Maximum value of SAR (measured) = 2.42 W/kg Date/Time: 04/13/2015 09:54:28 Test Laboratory: BTL Inc. SystemPerformanceCheck-835 Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d160 Communication System: UID 0, CW (0); Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.94 S/m; ε r = 54.35; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(10.19, 10.19, 10.19); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = -9.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) System Performance Check at Frequency at 835MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.86 W/kg System Performance Check at Frequency at 835MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.234 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.94 W/kg SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.42 W/kg Maximum value of SAR (measured) = 3.28 W/kg Date/Time: 04/15/2015 03:03:28 Test Laboratory: BTL Inc. SystemPerformanceCheck-835 Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d160 Communication System: UID 0, CW (0); Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ =0.954 S/m; ε r = 54.372; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(10.19, 10.19, 10.19); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = -9.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) System Performance Check at Frequency at 835MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.89 W/kg System Performance Check at Frequency at 835MHz/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.341 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) =3.98 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.44 W/kg Maximum value of SAR (measured) = 3.42 W/kg Date/Time: 03/29/2015 16:23:38 Test Laboratory: BTL Inc. SystemPerformanceCheck-835 Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 04/12/2015 20:31:49 Test Laboratory: BTL Inc. Smart phone Huawei ALE-L04 LTE Band 4 50%RB Body Back Mid DUT: Smart phone ; Type: ALE-L04; Serial: NA Communication System: UID 0, LTE-FDD(50%RB,20MHz,QPSK) (0); Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.469 S/m; ε r = 53.249; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(8.08, 8.08, 8.08); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Back Side 15mm/ALE-L04/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.09 W/kg Back Side 15mm/ALE-L04/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.654 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 0.729 W/kg; SAR(10 g) = 0.491 W/kg Maximum value of SAR (measured) = 1.30 W/kg Date/Time: 04/20/2015 13:54:25 Test Laboratory: BTL Inc. Smart phone Huawei ALE-L04 LTE Band 4 100%RB Body Back DUT: Smart phone ; Type: ALE-L04; Serial: NA Communication System: UID 0, LTE-FDD(100%RB,20MHz,QPSK) (0); Frequency: 1745 MHz Medium parameters used (interpolated): f = 1745 MHz; σ = 1.484 S/m; ε r = 53.171; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(8.08, 8.08, 8.08); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Back Side 15mm/ALE-L04/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.483 W/kg Back Side 15mm/ALE-L04/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.834 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.638 W/kg SAR(1 g) = 0.391 W/kg; SAR(10 g) = 0.225 W/kg Maximum value of SAR (measured) = 0.554 W/kg Date/Time: 04/12/2015 21:04:58 Test Laboratory: BTL Inc. Smart phone Huawei ALE-L04 LTE Band 4 50%RB Body Back SIM 2 DUT: Smart phone ; Type: ALE-L04; Serial: NA Communication System: UID 0, LTE-FDD(50%RB,20MHz,QPSK) (0); Frequency: 1720 MHz Medium parameters used (interpolated): f = 1720 MHz; σ = 1.454 S/m; ε r = 53.326; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(8.08, 8.08, 8.08); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Back Side 15mm/ALE-L04/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.08 W/kg Back Side 15mm/ALE-L04/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.951 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.581 W/kg; SAR(10 g) = 0.443 W/kg Maximum value of SAR (measured) = 1.32 W/kg Date/Time: 04/12/2015 21:34:08 Test Laboratory: BTL Inc. Smart phone Huawei ALE-L04 LTE Band 4 50%RB Body Back Battery 2# DUT: Smart phone ; Type: ALE-L04; Serial: NA Communication System: UID 0, LTE-FDD(50%RB,20MHz,QPSK) (0); Frequency: 1720 MHz Medium parameters used (interpolated): f = 1720 MHz; σ = 1.454 S/m; ε r = 53.326; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(8.08, 8.08, 8.08); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Back Side 15mm/ALE-L04/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.965 W/kg Back Side 15mm/ALE-L04/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.997 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 0.742 W/kg; SAR(10 g) = 0.490 W/kg Maximum value of SAR (measured) = 1.28 W/kg Date/Time: 04/12/2015 22:10:53 Test Laboratory: BTL Inc. Smart phone Huawei ALE-L04 LTE Band 4 1RB Body Front DUT: Smart phone ; Type: ALE-L04; Serial: NA Communication System: UID 0, LTE-FDD(1RB,20MHz,QPSK) (0); Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.469 S/m; ε r = 53.249; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(8.08, 8.08, 8.08); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Front Side 10mm/ALE-L04/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.440 W/kg Front Side 10mm/ALE-L04/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.012 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.554 W/kg SAR(1 g) = 0.335 W/kg; SAR(10 g) = 0.182 W/kg Maximum value of SAR (measured) = 0.478 W/kg Date/Time: 04/12/2015 22:41:57 Test Laboratory: BTL Inc. Smart phone Huawei ALE-L04 LTE Band 4 1RB Body Back DUT: Smart phone ; Type: ALE-L04; Serial: NA Communication System: UID 0, LTE-FDD(1RB,20MHz,QPSK) (0); Frequency: 1732.5 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.469 S/m; ε r = 53.249; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:  Probe: EX3DV4 - SN3932; ConvF(8.08, 8.08, 8.08); Calibrated: 01/30/2015;  Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1390; Calibrated: 09/15/2014  Phantom: SAM 1; Type: SAM; Serial: 1784  DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Back Side 10mm/ALE-L04…

Text truncated - open the document above for the full version.

Test Report

FCC RF Test Report Product Name: Smart Phone Model Number: HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 FCC ID：QISALE-L04 \ Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 20 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 and 6369A-3. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 20 Date of Receipt Sample: 2015-04-13 Start Date of Test: 2015-04-13 End Date of Test: 2015-04-23 Test Result: Pass Approved by Senior Engineer: 2015-04-23 Liu Chunlin Date Name Signature Prepared by: 2015-04-23 maowenli Date Name Signature Applicant: Huawei Technologies Co., Ltd. Address: Location 1: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Location 2: BTL Laboratory No.3,Jinshagang 1st Road,ShiXia,Dalang Town,DongGuan,China. RF Test Report of HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 20 Modification Record No. Last Report No. Modification Description First Report RF Test Report of HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 20 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 8 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 Test Modes .............................................................................................................................................. 10 4.2 EUT Configurations .................................................................................................................................. 10 4.3 Test Environments ................................................................................................................................... 11 4.4 Antenna requirements .............................................................................................................................. 11 4.5 Description of tests................................................................................................................................... 12 4.6 Test Setups .............................................................................................................................................. 14 4.7 Test Conditions ........................................................................................................................................ 17 5 Main Test Instruments .......................................................................................................................................... 19 RF Test Report of HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 20 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2013 47 CFR FCC Part 15, Subpart C 2013 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r02 ANSI C63.10-2013, American National Standard for Tes…

Text truncated - open the document above for the full version.

Test Report

RF Test Report of HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 139 Appendix for Test report RF Test Report of HUAWEI ALE-L04, ALE-L04 Report No: SYBH(Z-RF)018032015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 139 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(D…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Zhang Xinghai

[email protected]+86-755-2897-0299Fax: +86-755-8965-0226

Test Firm

BTL Inc.Daisy Dai

[email protected]008676983183000Fax: 0086 769 83196000

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.40 GHz - 2.48 GHz	1.20 mW

Confidentiality

Long Term

Grant Notes

Output power is conducted. SAR compliance for body worn operating configurations must be restricted to belt-clips and holsters described in this filing, or which maintain a minimum separation distance of 1.5 cm and which contain no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, hotspot (wireless router) and simultaneous transmission exposure conditions are 0.78 W/kg, 0.072 W/kg, 0.24 W/kg and 1.38 W/kg respectively.
