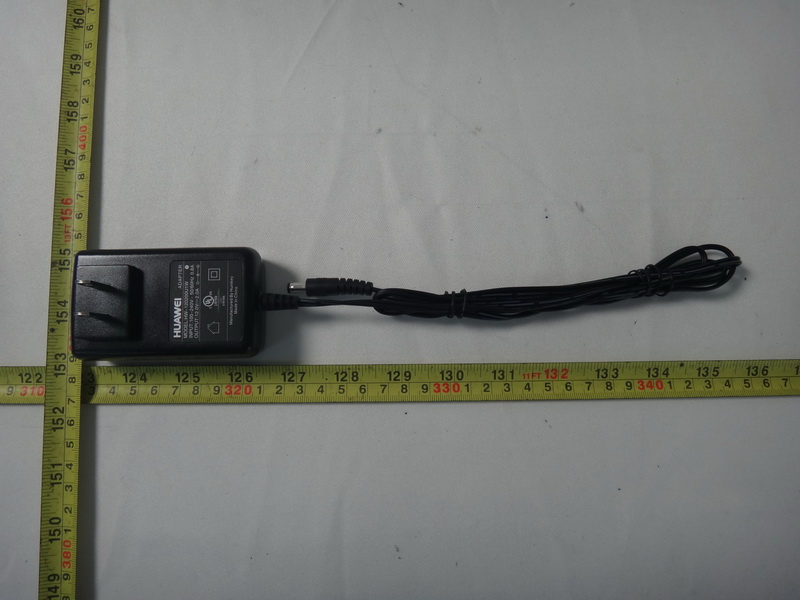

QISAP7110DNAGNWireless LAN Access Point

AP Series Indoor Wireless LAN Access Points Quick Start Guide Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. 1 Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People’s Republic of China Website: http://enterprise.huawei.com Symbol Description Alerts you to a potentially hazardous situation that could, if not avoided, result in equipment damage, data loss, performance deterioration, or unanticipated results. Provides additional information to emphasize or supplement important points of the main text. Alerts you to a medium or low risk hazard that could, if not avoided, result in moderate or minor injury. Alerts you to a high risk hazard that could, if not avoided, result in serious injury or death. Preface 2 This document describes the hardware configuration, installation preparation, installation method, installation procedure, cable connection, and procedure for logging in to the indoor APs. The preface is organized as follows: • Intended Audience •Symbol Conventions •Documentation Obtaining •Technical Support Symbol Conventions The symbols that may be found in this document are defined as follows: WARNING DANGER NOTE CAUTION Intended Audience This document is intended for: •Hardware installation engineers •Onsite maintenance engineers •Network administrators configuring and maintaining the network Documentation Obtaining You can visit http://enterprise.huawei.com to obtain the latest product documentations. Choose Product Support > Enterprise Networking > Datacom Network > WLAN > Product Documentation, and then select the document of a specified version. You can select the document as required. For example, if you want to obtain AP7110DN-AGN documents, select AP7110DN-AGN. 3 NOTE Technical Support If you have trouble in locating or rectifying faults during maintenance or troubleshooting by following instructions in this document, contact the Huawei customer service center (CSC) for help. •Tel: 4008229999 You can also visit http://enterprise.huawei.com, click Contact Us in the lower area of the page, and select the country to obtain contact information about Huawei local office. Change History Changes between document issues are cumulative. Therefore, the latest document issue contains all the changes in previous issues. Change in Issue 01 (2012-10-31) Initial commercial release. 4 5 Device Introduction The Huawei AP series indoor wireless LAN access point provides eight models: AP3010DN-AGN, AP5010DN-AGN, AP5010SN-GN, AP6010DN-AGN, AP6010SN-GN, AP6310SN-GN, AP7110DN-AGN, and AP7110SN-GN. The indoor AP features high reliability, high security, simple network deployment, automatic AC discovery and configuration, and real-time management and maintenance. The APs are recommended in scenarios where the building structure is simple and the building area is small, have a high density of users, and have high capacity demands, for example, small-scale meeting rooms, bars, and entertainment places. The APs can be flexibly deployed. Table 1 lists the dimensions and weights of indoor APs. Table 1 Dimensions and weight Model Dimensions Weight AP3010DN-AGN AP5010DN-AGN AP5010SN-GN AP6010DN-AGN AP6010SN-GN 180mm×180mm×50mm（W×D×H） 0.4kg AP6310SN-GN 130mm×150mm×35mm（W×D×H） 0.6kg AP7110DN-AGN 200mm×200mm×45mm（W×D×H） 0.95kg AP7110SN-GN 200mm×200mm×45mm（W×D×H） 0.92kg Table 2 Interfaces on indoor APs AP3010DN-AGN AP5010DN-AGN AP5010SN-GN AP6010DN-AGN AP6010SN-GN AP6310SN-GN 1 2 3 4 5 DC 12V Default ETH/PoE Console 1 2 3 4 6 8 6 Device Introduction No. Name Description 1 DC 12V Connected to the power adapter. 2 Default Press and hold down the Reset button for 3 seconds to restore the factory settings and restart the AP. 3 ETH/PoE 10/100/1000M port, which connects to the wired Ethernet. The port can connect to a PoE switch or a PoE power supply to provide power for APs. 4 Console Connected to the maintenance terminal for device configuration and management. 5 Security slot Connected to the security lock. 6 2.4 GHz antenna port A port connected to the 2.4 GHz antenna. 7 5 GHz antenna port A port connected to the 5 GHz antenna. 8 Ground screw Connect the ground cable to the AP with a ground screw. Table 2 Interfaces on indoor APs Table 3 Interfaces on indoor APs AP7110DN-AGN AP7110SN-GN 1 2 3 4 5 6 1 2 3 4 5 6 7 Console ETH/PoE Default DC 12V Console ETH/PoE Default DC 12V 8 8 7 Installation Preparations 1. Safety Precautions 2. Installation Environment Check Before installation, verify that the device runs in a favorable environment. The table lists requirements on the environment that a device works in, including the temperature, humidity, altitude, and pressure. Table 4 Requirements on the environment Only the qualified personnel are permitted to install and remove the device and its accessories. Before installation a…

Text truncated - open the document above for the full version.

AP7110DN&AP5010DN&AP7110SN &AP5010SN Product Compliance and Safety Manual Issue 01 Date 2012-11-22 HUAWEI TECHNOLOGIES CO., LTD. Issue (2012-11-23) Huawei Technologies Proprietary i Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Compliance and Safety Manual Contents Issue (2012-11-23) Huawei Technologies Proprietary iii About This Document Intended Audience This document describes Electromagnetic Compatibility (EMC) and other safety standards compliance and information about the AP. This document provides the general safety guidelines for handling, installing or operating the AP. This document is intended for:  Maintenance engineers  Technical support engineers  Installation engineers  Network planning engineers Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury. Indicates a hazard with a medium or low level of risk, which if not avoided, could result in minor or moderate injury. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. Indicates a tip that may help you solve a problem or save time. Provides additional information to emphasize or supplement important points of the main text. Contents Compliance and Safety Manual iv Huawei Technologies Proprietary Issue (2012-11-23) Change History Changes between document issues are cumulative. Therefore, the latest document issue contains all the changes in previous issues. Changes in Issue 01 (2012-11-22) Initial commercial release. Compliance and Safety Manual Contents Issue (2012-11-23) Huawei Technologies Proprietary v Contents 1 Regulatory Compliance Information ..................................................................................... 1-1 1.1 USA Regulatory Compliance ........................................................................................................................ 1-1 1.1.1 FCC Part 15.......................................................................................................................................... 1-1 1.2 Canada Regulatory Compliance .................................................................................................................... 1-2 1.2.1 RSS-Gen & RSS-210 statement ........................................................................................................... 1-2 2 Safety Information ..................................................................................................................... 2-3 2.1 Overview ....................................................................................................................................................... 2-4 2.1.1 Safety Precautions ................................................................................................................................ 2-4 2.1.2 General Requirements .......................................................................................................................... 2-4 2.2 Electricity Safety ........................................................................................................................................... 2-6 2.2.1 High Voltage ........................................................................................................................................ 2-6 2.2.2 Thunderstorm ....................................................................................................................................... 2-6 2.2.3 Tools ..................................................................................................................................................... 2-7 2.2.4 High Electrical Leakage ....................................................................................................................... 2-7 2.2.5 Power Cable ......................................................................................................................................... 2-7 2.2.6 Fuse ...................................................................................................................................................... 2-8 2.2.7 Electrostatic Discharge......................................................................................................................... 2-8 2.3 Inflammable Environment ............................................................................................................................. 2-9 2.4 Laser .........................................................…

Text truncated - open the document above for the full version.

AP7110DN-AGN Wireless LAN Access Point V200R002C00 Product Description Issue01 Date2012-10-31 HUAWEI TECHNOLOGIES CO., LTD. Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address:Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website:http://enterprise.huawei.com Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Contents 1 Product Orientation and Characteristics...................................................................................1 2 Product Structure...........................................................................................................................5 3 Functions and Features.................................................................................................................8 4 Technical Specifications.............................................................................................................11 AP7110DN-AGN Wireless LAN Access Point Product DescriptionContents Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii 1 Product Orientation and Characteristics Product Orientation The AP7110DN-AGN is an enhanced indoor dual-band 3x3 MIMO access point (AP) that supports 2.4 GHz and 5 GHz frequency bands. It complies with IEEE 802.11a/b/g/nsupports 2.4 GHz and 5 GHz frequency bands, and has enhanced coverage performance and protection capabilities. It supports wireless bridging, complies with IEEE 802.11a/b/g/n,connects a large number of users, and works as a Fit AP. The AP7110DN-AGN has the following advantages: lHigh reliability lHigh security lSimple network deployment lAutomatic AC discovery and configuration lReal-time management and maintenance The AP7110DN-AGN is recommended for use in buildings with a simple structure, small area, a high density of users, and require a high capacity, for example, small-scale meeting rooms, bars, and entertainment places. The AP7110DN-AGN APs can be flexibly deployed in these places and work in both Fit AP and bridge mode . The AP7110DN-AGN is for use in Fit AP and bridge networking scenarios. AP7110DN-AGN Wireless LAN Access Point Product Description1 Product Orientation and Characteristics Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 1 Figure 1-1 Fit AP networking AP n AP1 ...... NMS AC Authentication system Switch Management channel between NMS and AC Management channel between the AC and the AP and data channel Where data flows are encapsulated with CAPWAP Channel where data flows are not encapsulated with CAPWAP Business users Residential users WLAN teminal In this networking, the AP7110DN-AGN functions as a Fit AP that provides only data forwarding functions. The AC is responsible for user access, authentication, AP management, and configurations of security protocols, routing, and QoS. Figure 1-2 WDS networking (point-to-point) AP 1 AP 2 LAN Segment 1 LAN Segment 2 AP7110DN-AGN Wireless LAN Access Point Product Description1 Product Orientation and Characteristics Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 2 Figure 1-3 WDS networking (point-to-multipoint) AP 2 AP 1 AP 3 AP 4 LAN Segment 1 LAN Segment 2 LAN Segment 3 LAN Segment 4 In this networking, the AP7110DN-AGN connects two or more independent wired or wireless LANs through wireless links to realize communication between the LANs. In a Wireless Distribution System (WDS), the AP7110DN-AGN supports point-to-point, point-to-multipoint networking modes. The AP implements wireless bridging and access functions using 5 GHz and 2.4 GHz frequency bands. Product Characteristics The AP7110DN-AGN has the following characteristics on the WLAN. Product Characteristics Description Highly reliable wireless access lComplies with IEEE 802.11 a/b/g/n. lSupports3x3 MIMO and provides a maximum rate of 450 Mbit/s for each spatial stream. lUses Wi-Fi Multimedia (WMM) to implement priority scheduling based on the service type (voice, video, or data), and supports priority mapping on the air interface and wired interface. lSupports wired link integrity check. lSupports load balancing. lSupports roaming without service interruptions. lSupports AC Dual-Link Backup. lSupports the beamforming technique. lUses the latest 802.11n chip to provide higher performance and wider coverage. lHas a strong coverage capability. Comprehensive user access control capability lSupports access control lists (ACLs) and user access controls based on user group policies. lProvides per-user bandwidth management. lSupports user isolation policies. lSupports AC authentication. AP7110DN-AGN Wireless LAN Access Point Product Description1 Product Orientation and Characteristi…

Text truncated - open the document above for the full version.

AP7110DN&AP5010DN&AP7110SN &AP5010SN Product Compliance and Safety Manual Issue 01 Date 2012-11-22 HUAWEI TECHNOLOGIES CO., LTD. Issue (2012-11-23) Huawei Technologies Proprietary i Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Compliance and Safety Manual Contents Issue (2012-11-23) Huawei Technologies Proprietary iii About This Document Intended Audience This document describes Electromagnetic Compatibility (EMC) and other safety standards compliance and information about the AP. This document provides the general safety guidelines for handling, installing or operating the AP. This document is intended for:  Maintenance engineers  Technical support engineers  Installation engineers  Network planning engineers Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury. Indicates a hazard with a medium or low level of risk, which if not avoided, could result in minor or moderate injury. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. Indicates a tip that may help you solve a problem or save time. Provides additional information to emphasize or supplement important points of the main text. Contents Compliance and Safety Manual iv Huawei Technologies Proprietary Issue (2012-11-23) Change History Changes between document issues are cumulative. Therefore, the latest document issue contains all the changes in previous issues. Changes in Issue 01 (2012-11-22) Initial commercial release. Compliance and Safety Manual Contents Issue (2012-11-23) Huawei Technologies Proprietary v Contents 1 Regulatory Compliance Information ..................................................................................... 1-1 1.1 USA Regulatory Compliance ........................................................................................................................ 1-1 1.1.1 FCC Part 15.......................................................................................................................................... 1-1 1.2 Canada Regulatory Compliance .................................................................................................................... 1-2 1.2.1 RSS-Gen & RSS-210 statement ........................................................................................................... 1-2 2 Safety Information ..................................................................................................................... 2-3 2.1 Overview ....................................................................................................................................................... 2-4 2.1.1 Safety Precautions ................................................................................................................................ 2-4 2.1.2 General Requirements .......................................................................................................................... 2-4 2.2 Electricity Safety ........................................................................................................................................... 2-6 2.2.1 High Voltage ........................................................................................................................................ 2-6 2.2.2 Thunderstorm ....................................................................................................................................... 2-6 2.2.3 Tools ..................................................................................................................................................... 2-7 2.2.4 High Electrical Leakage ....................................................................................................................... 2-7 2.2.5 Power Cable ......................................................................................................................................... 2-7 2.2.6 Fuse ...................................................................................................................................................... 2-8 2.2.7 Electrostatic Discharge......................................................................................................................... 2-8 2.3 Inflammable Environment ............................................................................................................................. 2-9 2.4 Laser .........................................................…

Text truncated - open the document above for the full version.

AP7110DN-AGN Wireless LAN Access Point V200R002C00 Product Description Issue01 Date2012-10-31 HUAWEI TECHNOLOGIES CO., LTD. Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address:Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website:http://enterprise.huawei.com Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Contents 1 Product Orientation and Characteristics...................................................................................1 2 Product Structure...........................................................................................................................5 3 Functions and Features.................................................................................................................8 4 Technical Specifications.............................................................................................................11 AP7110DN-AGN Wireless LAN Access Point Product DescriptionContents Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii 1 Product Orientation and Characteristics Product Orientation The AP7110DN-AGN is an enhanced indoor dual-band 3x3 MIMO access point (AP) that supports 2.4 GHz and 5 GHz frequency bands. It complies with IEEE 802.11a/b/g/nsupports 2.4 GHz and 5 GHz frequency bands, and has enhanced coverage performance and protection capabilities. It supports wireless bridging, complies with IEEE 802.11a/b/g/n,connects a large number of users, and works as a Fit AP. The AP7110DN-AGN has the following advantages: lHigh reliability lHigh security lSimple network deployment lAutomatic AC discovery and configuration lReal-time management and maintenance The AP7110DN-AGN is recommended for use in buildings with a simple structure, small area, a high density of users, and require a high capacity, for example, small-scale meeting rooms, bars, and entertainment places. The AP7110DN-AGN APs can be flexibly deployed in these places and work in both Fit AP and bridge mode . The AP7110DN-AGN is for use in Fit AP and bridge networking scenarios. AP7110DN-AGN Wireless LAN Access Point Product Description1 Product Orientation and Characteristics Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 1 Figure 1-1 Fit AP networking AP n AP1 ...... NMS AC Authentication system Switch Management channel between NMS and AC Management channel between the AC and the AP and data channel Where data flows are encapsulated with CAPWAP Channel where data flows are not encapsulated with CAPWAP Business users Residential users WLAN teminal In this networking, the AP7110DN-AGN functions as a Fit AP that provides only data forwarding functions. The AC is responsible for user access, authentication, AP management, and configurations of security protocols, routing, and QoS. Figure 1-2 WDS networking (point-to-point) AP 1 AP 2 LAN Segment 1 LAN Segment 2 AP7110DN-AGN Wireless LAN Access Point Product Description1 Product Orientation and Characteristics Issue 01 (2012-10-31)Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 2 Figure 1-3 WDS networking (point-to-multipoint) AP 2 AP 1 AP 3 AP 4 LAN Segment 1 LAN Segment 2 LAN Segment 3 LAN Segment 4 In this networking, the AP7110DN-AGN connects two or more independent wired or wireless LANs through wireless links to realize communication between the LANs. In a Wireless Distribution System (WDS), the AP7110DN-AGN supports point-to-point, point-to-multipoint networking modes. The AP implements wireless bridging and access functions using 5 GHz and 2.4 GHz frequency bands. Product Characteristics The AP7110DN-AGN has the following characteristics on the WLAN. Product Characteristics Description Highly reliable wireless access lComplies with IEEE 802.11 a/b/g/n. lSupports3x3 MIMO and provides a maximum rate of 450 Mbit/s for each spatial stream. lUses Wi-Fi Multimedia (WMM) to implement priority scheduling based on the service type (voice, video, or data), and supports priority mapping on the air interface and wired interface. lSupports wired link integrity check. lSupports load balancing. lSupports roaming without service interruptions. lSupports AC Dual-Link Backup. lSupports the beamforming technique. lUses the latest 802.11n chip to provide higher performance and wider coverage. lHas a strong coverage capability. Comprehensive user access control capability lSupports access control lists (ACLs) and user access controls based on user group policies. lProvides per-user bandwidth management. lSupports user isolation policies. lSupports AC authentication. AP7110DN-AGN Wireless LAN Access Point Product Description1 Product Orientation and Characteristi…

Text truncated - open the document above for the full version.
